  1. Lake Morphometry Hydrology (residence time) Affects turbulence (sediment delivery) Stratification Productivity Resuspension

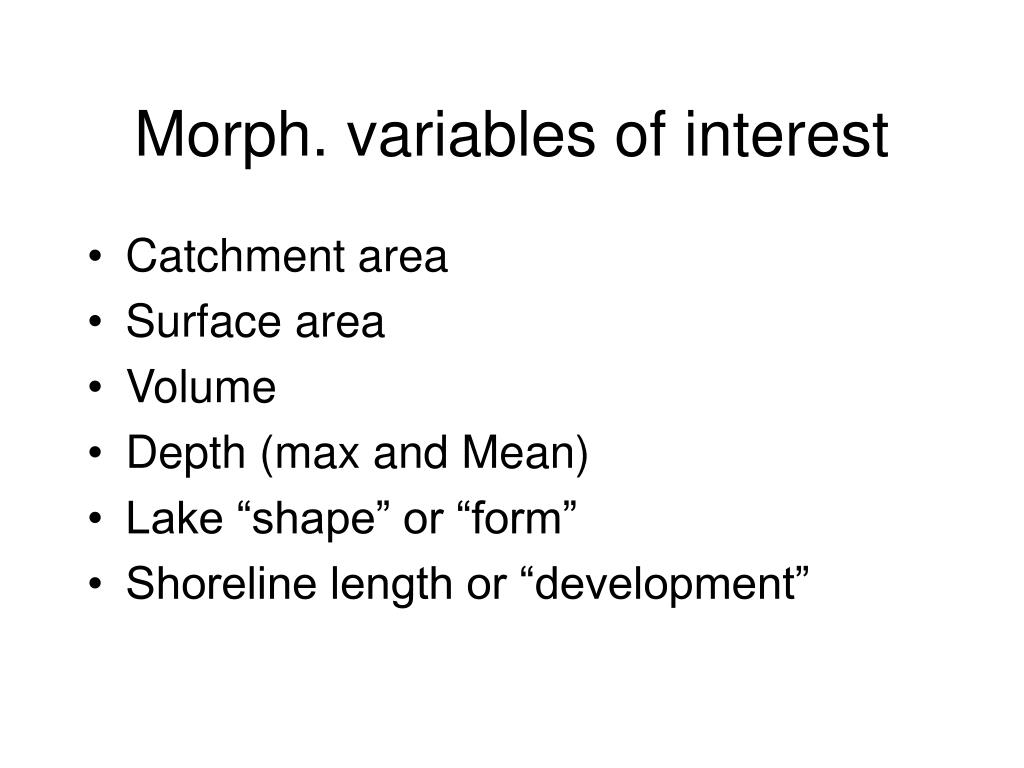

  2. Morph. variables of interest • Catchment area • Surface area • Volume • Depth (max and Mean) • Lake “shape” or “form” • Shoreline length or “development”

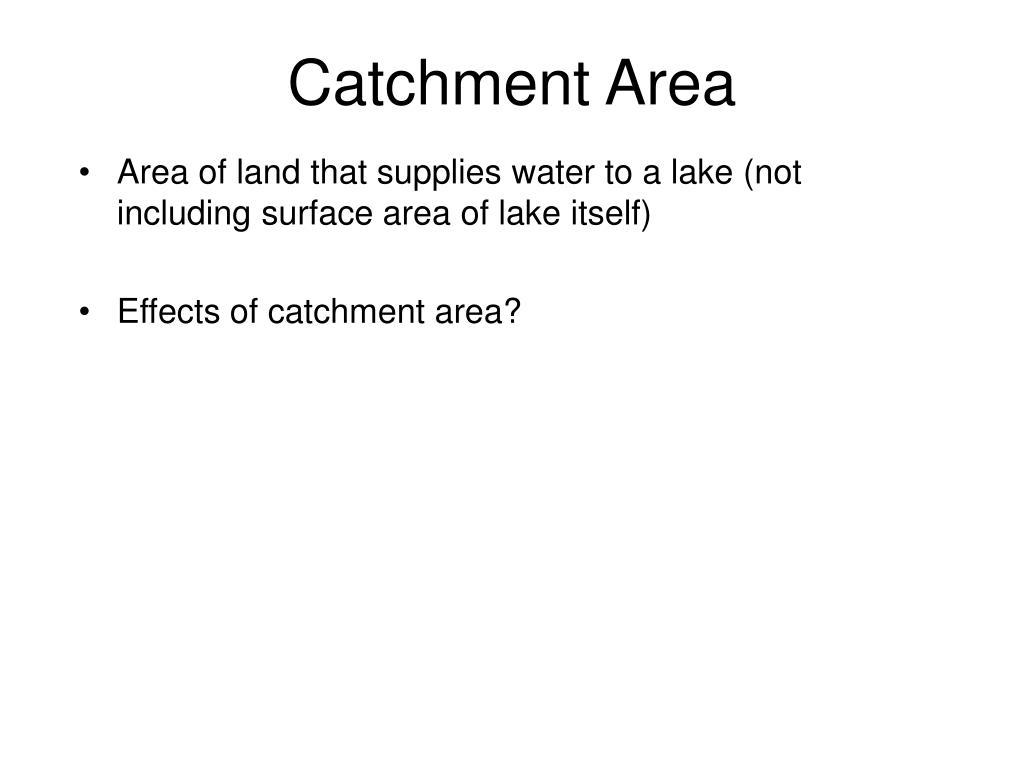

  3. Catchment Area • Area of land that supplies water to a lake (not including surface area of lake itself) • Effects of catchment area?

  4. Catchment Area • Larger catchment = more inputs, modified by: - Slope - ?????

  5. Bathymetric Map

  6. Data from a map: • Surface area • Volume • Depth (max and Mean) • Lake “shape” or “form” • Shoreline length or “development”

  7. Area • GIS software • NIH Image or Image J http://rsb.info.nih.gov/nih-image/ • Weight method (not recommended)

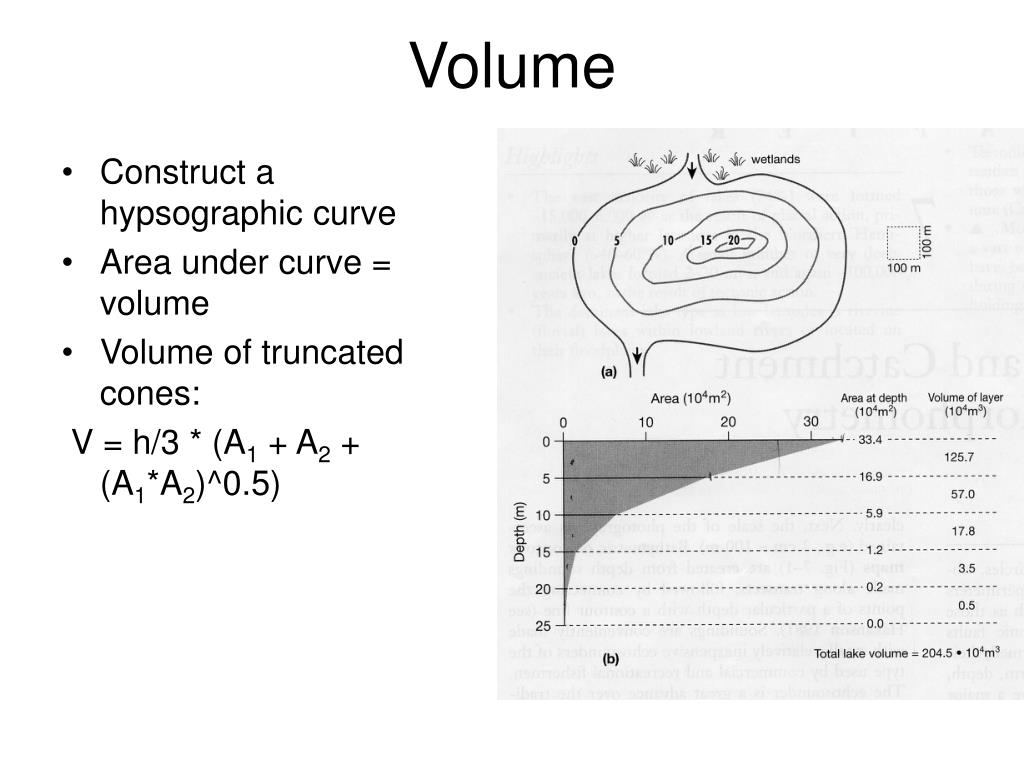

  8. Volume • Construct a hypsographic curve • Area under curve = volume • Volume of truncated cones: V = h/3 * (A1 + A2 + (A1*A2)^0.5)

  9. Mean and Max Depth • Mean depth z = V / A • Correlates with: - residence time (+) - productivity (-) - stratification (+) - sedimentation efficiency (+)

  10. Morphometric indices of lakes: The Hypsographic curve • Kettle Lakes: small, deep, steep-sided • Scoured basins: variable, less steep • Mean Z / Zmax Area (m2) 0 Depth 25

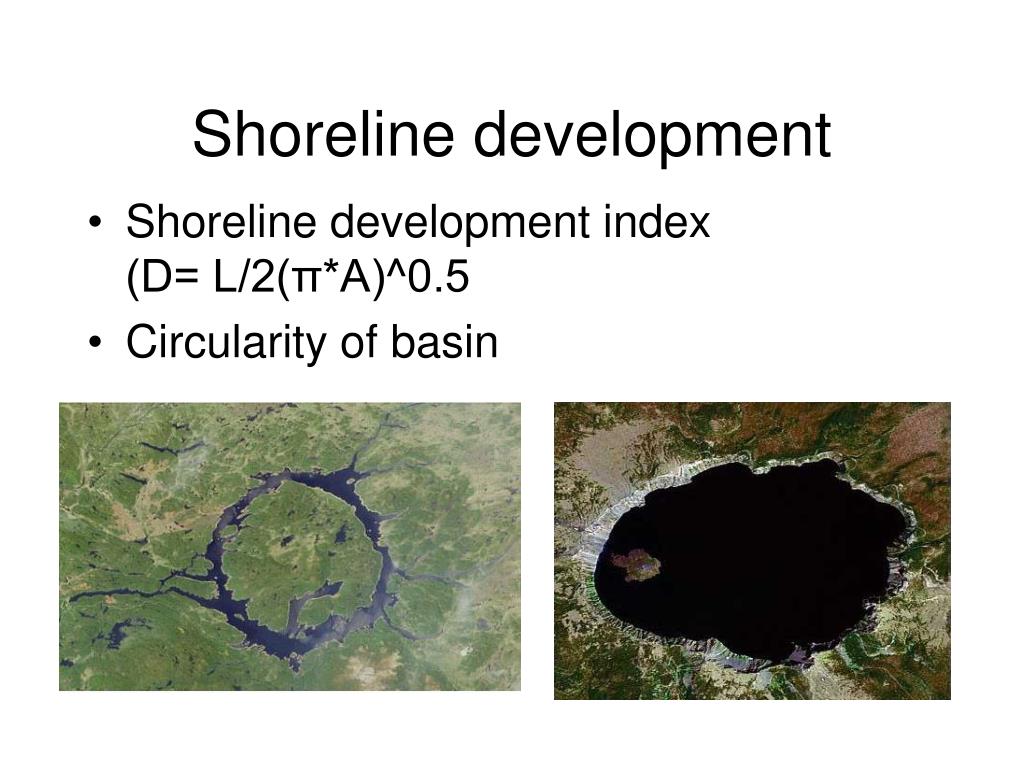

  11. Shoreline development • Shoreline development index (D= L/2(π*A)^0.5 • Circularity of basin
