Presentation Transcript
address decoding for memory and i o

Address Decoding for Memory and I/O

Lecture 3 - Instruction Set - Al

address decoding
Address Decoding
  • Address Decoding Designs
    • Full Address Decoding
    • Partial Address Decoding
    • Block Address Decoding
  • Implementation
    • Random, Decoders, PROM, FPGA

Lecture 3 - Instruction Set - Al

address decoding1
Address Decoding
  • Required for a microcomputer where memory and I/O support are essential
  • Needed for embedded system when on chip microcontroller memory is not sufficient

Lecture 3 - Instruction Set - Al

the memory space
The Memory Space
  • 2 basic approaches
    • Memory mapped system – main memory and I/O space are just different addresses or regions – or memory mapped I/O (MMIO)
      • Addressing is the same pins for memory and I/O
      • Advantage – less pin and hardware complexity
    • Port Mapped I/O – have unique pins (signals) that differentiate memory and I/O address spaces
      • Advantage – If limited memory, memory is memory
      • Advantage – Large I/O space

Lecture 3 - Instruction Set - Al

other architectures
Other architectures
  • Harvard Architecture
    • Separate memory spaces for instructions and data
    • Requires pin(s) to differentiate
    • I/O is MMIO
  • Check these out on www.wikipedia.com

Lecture 3 - Instruction Set - Al

the 68000 memory space
The 68000 Memory Space
  • 23 address lines
    • 223 words with UDS* and LDS*
  • This is 8M words or 16M bytes

Lecture 3 - Instruction Set - Al

address map
Address Map
  • When implementing a system the designer creates a memory map.
  • Map would include where RAM, ROM and I/O are.

Lecture 3 - Instruction Set - Al

full address decoding
Full address decoding
  • Each addressable location within the memory components responds to only a single unique address.

Lecture 3 - Instruction Set - Al

example of full address decoding
Example of full address decoding

Lecture 3 - Instruction Set - Al

ex continued

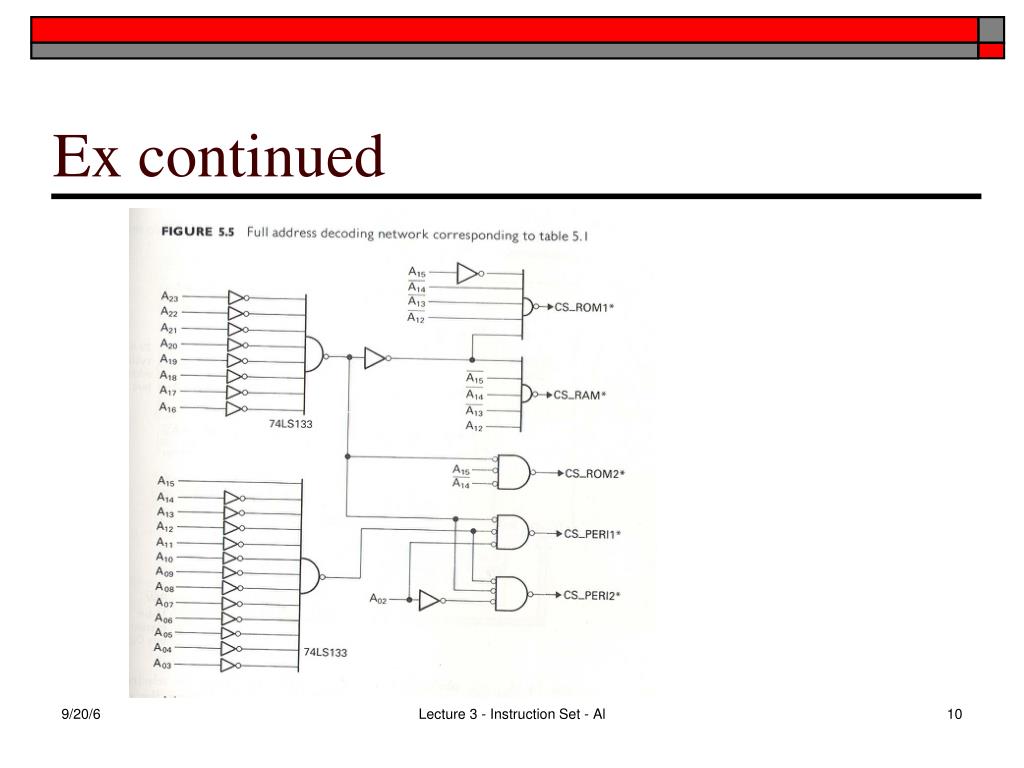

Ex continued

Lecture 3 - Instruction Set - Al

partial address decoding

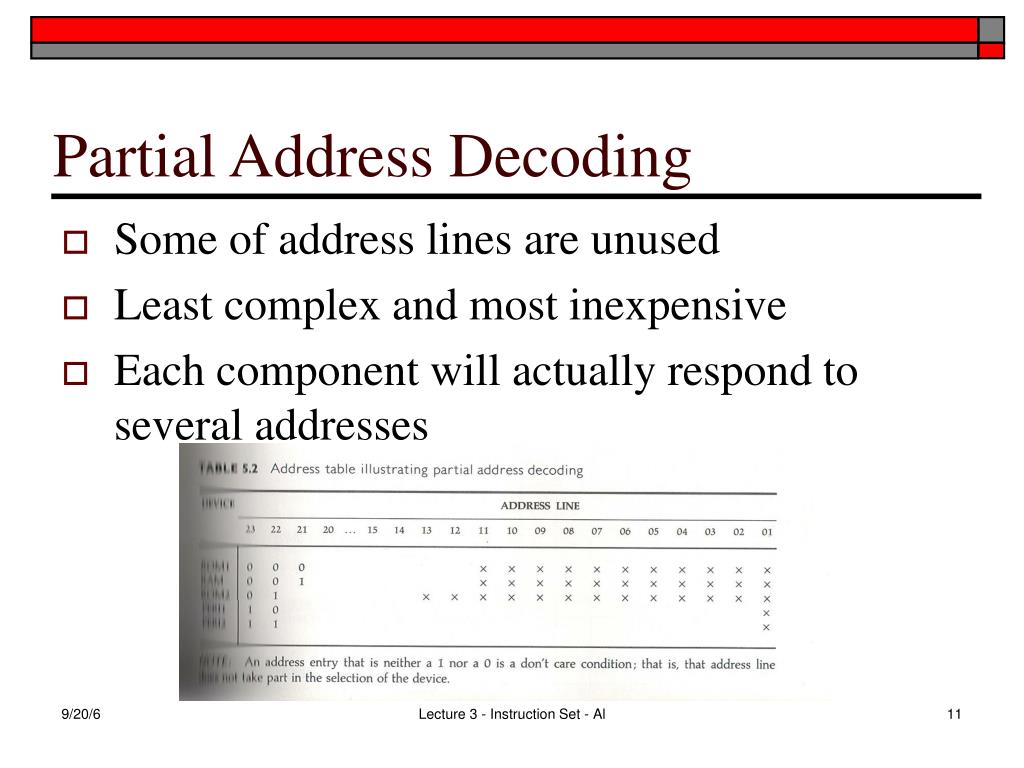

Partial Address Decoding
  • Some of address lines are unused
  • Least complex and most inexpensive
  • Each component will actually respond to several addresses

Lecture 3 - Instruction Set - Al

partial address decoding example
Partial Address decoding example

Lecture 3 - Instruction Set - Al

block address decoding
Block Address decoding
  • Compromise between full and partial.
  • Don’t decode all of address lines but do decode more than the bare minimum.
  • Less repeated addresses for each populated device

Lecture 3 - Instruction Set - Al

designing the decode logic
Designing the decode logic
  • Multiple methods of implementing the decode logic
  • One method is of course to implement it with “random logic” – i.e., AND gates, OR gates, inverters, NAND gates, NOR gates
  • Advantage – speed
  • Disadvantage – possibly the number of chips

Lecture 3 - Instruction Set - Al

decoders

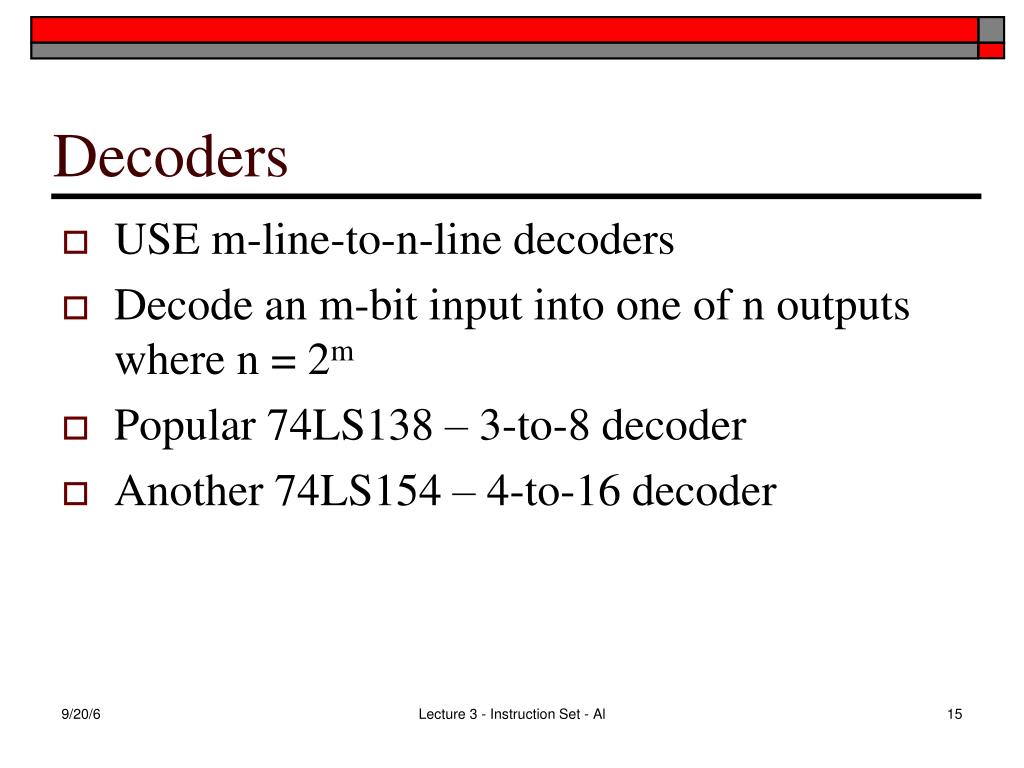

Decoders
  • USE m-line-to-n-line decoders
  • Decode an m-bit input into one of n outputs where n = 2m
  • Popular 74LS138 – 3-to-8 decoder
  • Another 74LS154 – 4-to-16 decoder

Lecture 3 - Instruction Set - Al

decoder truth table
Decoder Truth table

Lecture 3 - Instruction Set - Al

example of decoder use
Example of decoder use

Lecture 3 - Instruction Set - Al

implementation
Implementation

Lecture 3 - Instruction Set - Al

proms
PROMS
  • A PROM can also be use to implement logic functions
  • Can use it to do address decoding

Lecture 3 - Instruction Set - Al

example of prom use

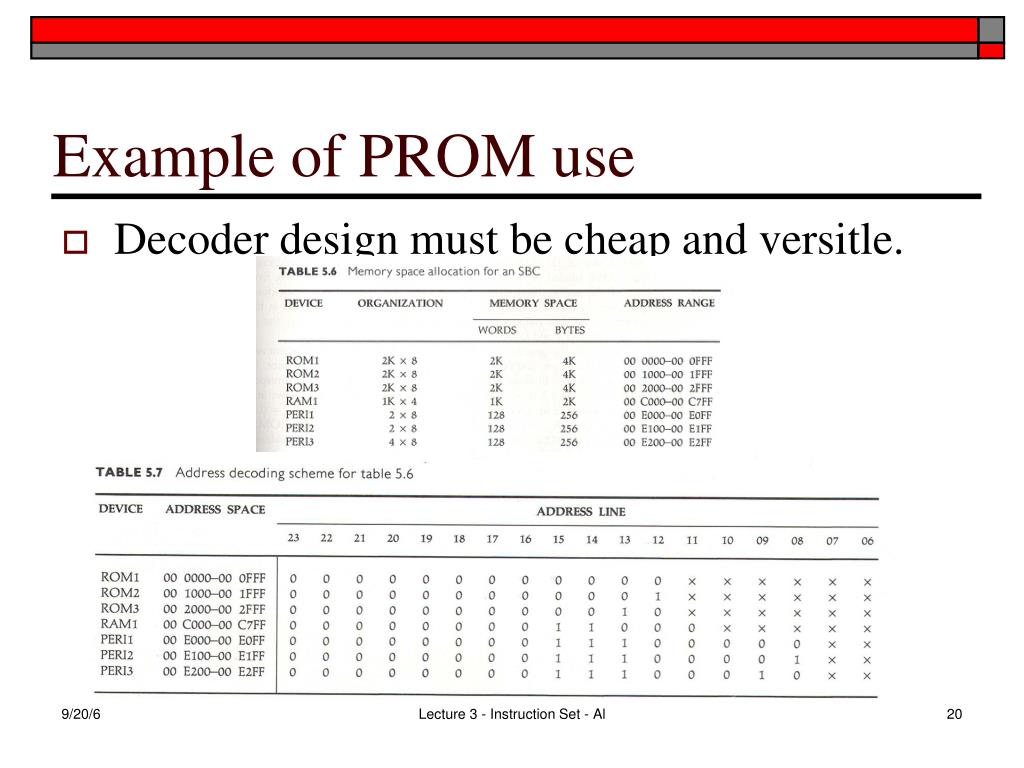

Example of PROM use
  • Decoder design must be cheap and versitle.

Lecture 3 - Instruction Set - Al

prom programming
PROM Programming

Lecture 3 - Instruction Set - Al

prom system

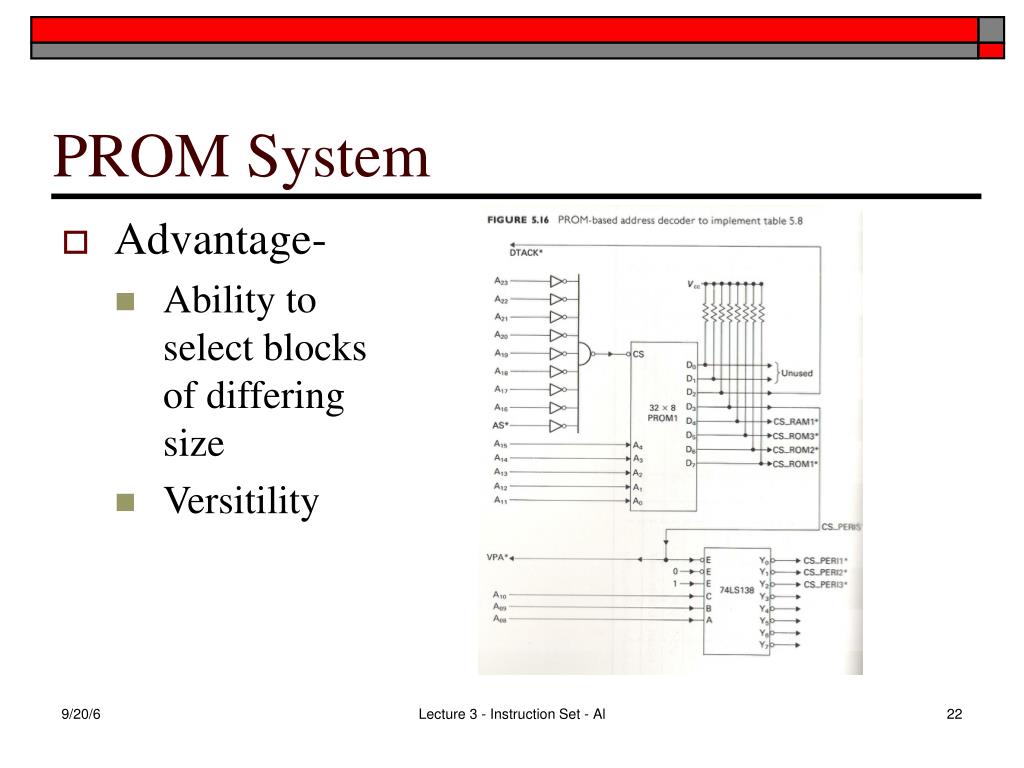

PROM System
  • Advantage-
    • Ability to select blocks of differing size
    • Versitility

Lecture 3 - Instruction Set - Al

fpga pla pal
FPGA, PLA, PAL
  • Programmable Logic Arrays
    • AND plane – OR plane
  • Programmable Array Logic
    • Limited PLA
  • FPGA – A network of CLBs

Lecture 3 - Instruction Set - Al

pal vs pla
PAL vs PLA
  • In a PAL the ouput’s connection to product terms is fixed
  • More limited logic equation support

Lecture 3 - Instruction Set - Al

special devices

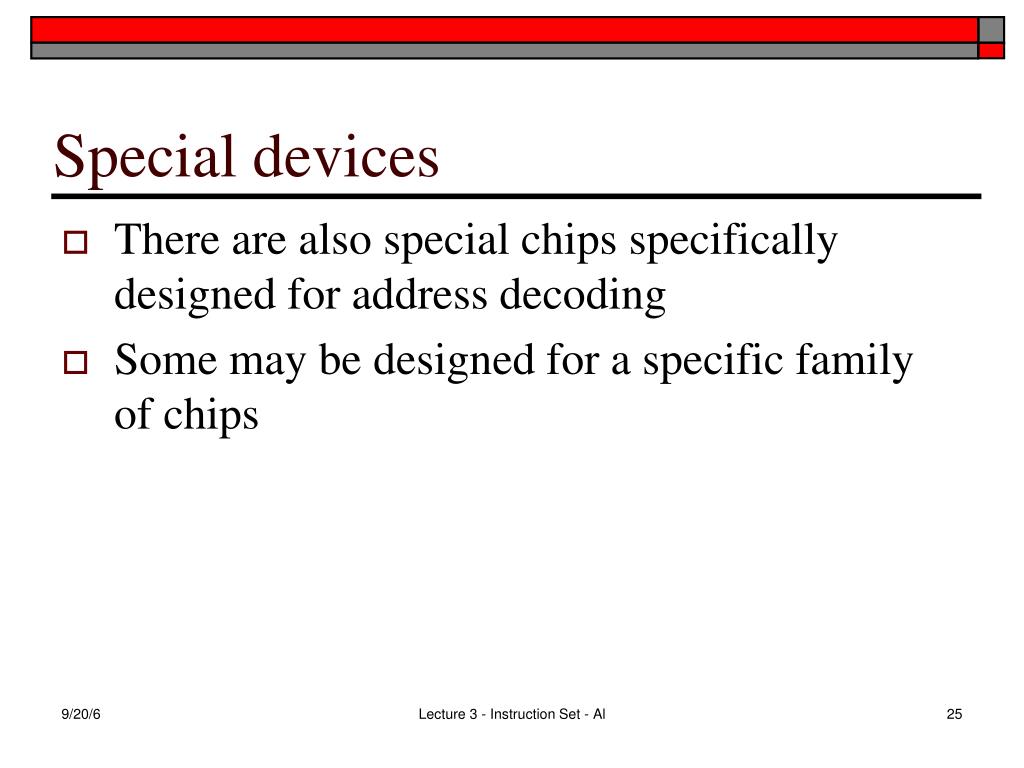

Special devices
  • There are also special chips specifically designed for address decoding
  • Some may be designed for a specific family of chips

Lecture 3 - Instruction Set - Al
