Three-Steps of Linear Convolution

For any given n , how to obtain Step 1: time reversal of either signal (e.g., f(k)  f(-k) ) Step 2: shift f(-k) by n samples to obtain f(n-k) Step 3: multiply h(k) and f(n-k) for each k and then take the summation over k. Three-Steps of Linear Convolution. Note

pleasance
Download Presentation

Three-Steps of Linear Convolution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. For any given n, how to obtain Step 1: time reversal of either signal (e.g., f(k)f(-k) ) Step 2: shift f(-k) by n samples to obtain f(n-k) Step 3: multiply h(k) and f(n-k) for each k and then take the summation over k Three-Steps of Linear Convolution Note You need to change variable n to get the whole sequence. EE465: Introduction to Digital Image Processing

  2. 1D Linear Convolution f(n)=[1 2 3 4] h(n)=[1 –1] 4 1 3 2 1 o -1 o origin EE465: Introduction to Digital Image Processing

  3. Step 1:Time Reversal h(-k)=[–1 1] h(k)=[1 –1] 1 1 o o -1 -1 EE465: Introduction to Digital Image Processing

  4. h(-k) h(1-k) h(2-k) 1 1 1 o o o -1 n=1 -1 n=2 n=0 Step 2: Shift 4 3 2 f(k)=[1 2 3 4] 1 o EE465: Introduction to Digital Image Processing

  5. g(0)=1 g(1)=1 g(2)=1 1 1 1 o o o -1 n=1 -1 n=2 n=0 Step3: Multiply-and-Add 4 3 2 f(k)=[1 2 3 4] 1 o EE465: Introduction to Digital Image Processing

  6. Final Result f(n)=[1 2 3 4] h(n)=[1 –1] g(n)=[1 1 1 1 -4] If the lengths of two input signals are N1 and N2 respectively, the length of the output signal will be N1+N2-1. EE465: Introduction to Digital Image Processing

  7. 2D Linear Convolution n n x(m,n) h(m,n) • 4 1 • 2 5 3 • 1 • 1 -1 m m EE465: Introduction to Digital Image Processing

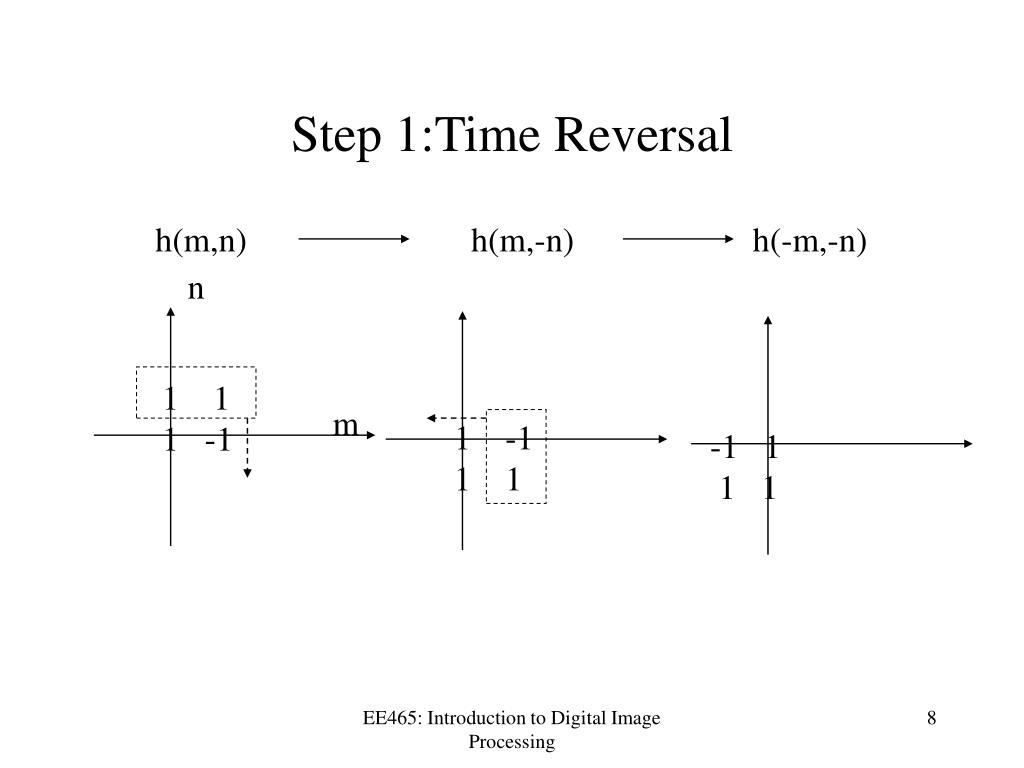

  8. Step 1:Time Reversal h(m,n) h(m,-n) h(-m,-n) n • 1 • 1 -1 m • -1 • 1 1 -1 1 1 1 EE465: Introduction to Digital Image Processing

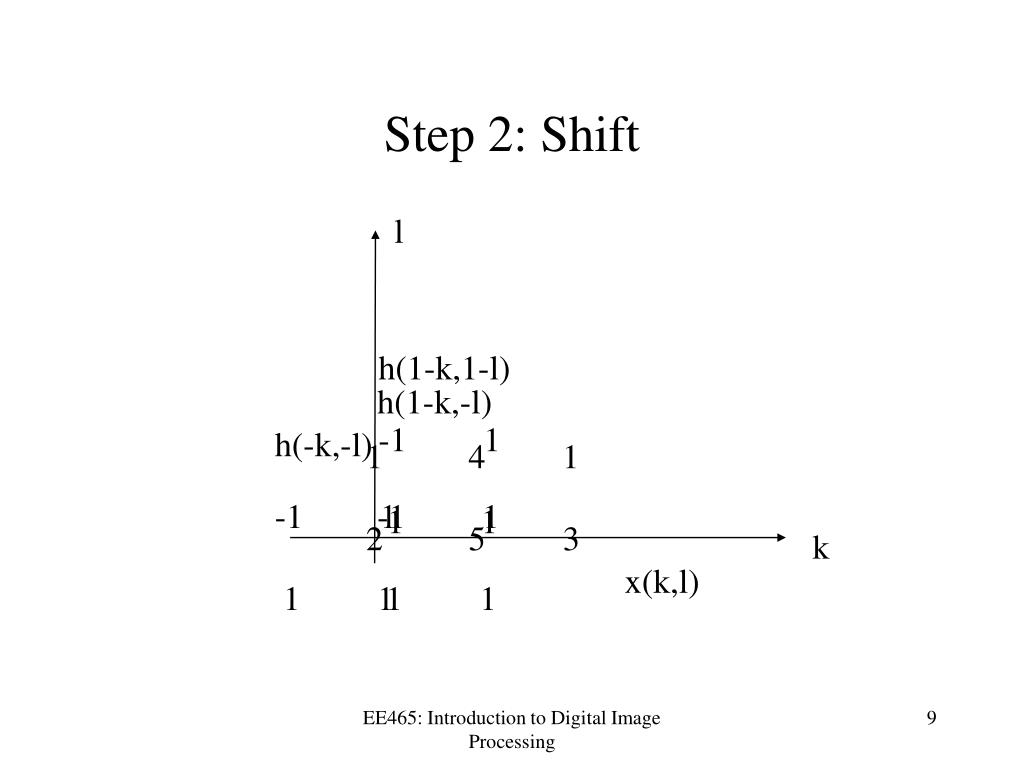

  9. h(1-k,-l) h(-k,-l) h(1-k,1-l) -1 1 1 1 -1 1 1 1 -1 1 1 1 Step 2: Shift l • 4 1 • 2 5 3 k x(k,l) EE465: Introduction to Digital Image Processing

  10. y(1,0)=3 y(1,1)=10 y(0,0)=2 -1 1 1 1 -1 1 1 1 -1 1 1 1 Step3: Multiply-and-Add l • 4 1 • 2 5 3 k x(k,l) EE465: Introduction to Digital Image Processing
