  1. Computer Organization and Design Lecture 16 – Combinational Logic Blocks Close call! Cal squeakedby Washingtonin Overtime 31-24. We win, and then we drop a spot in the polls. Yikes! UCLA soon. calbears.cstv.com

  2. Review • Use this table and techniques we learned to transform from 1 to another

  3. Today • Data Multiplexors • Arithmetic and Logic Unit • Adder/Subtractor

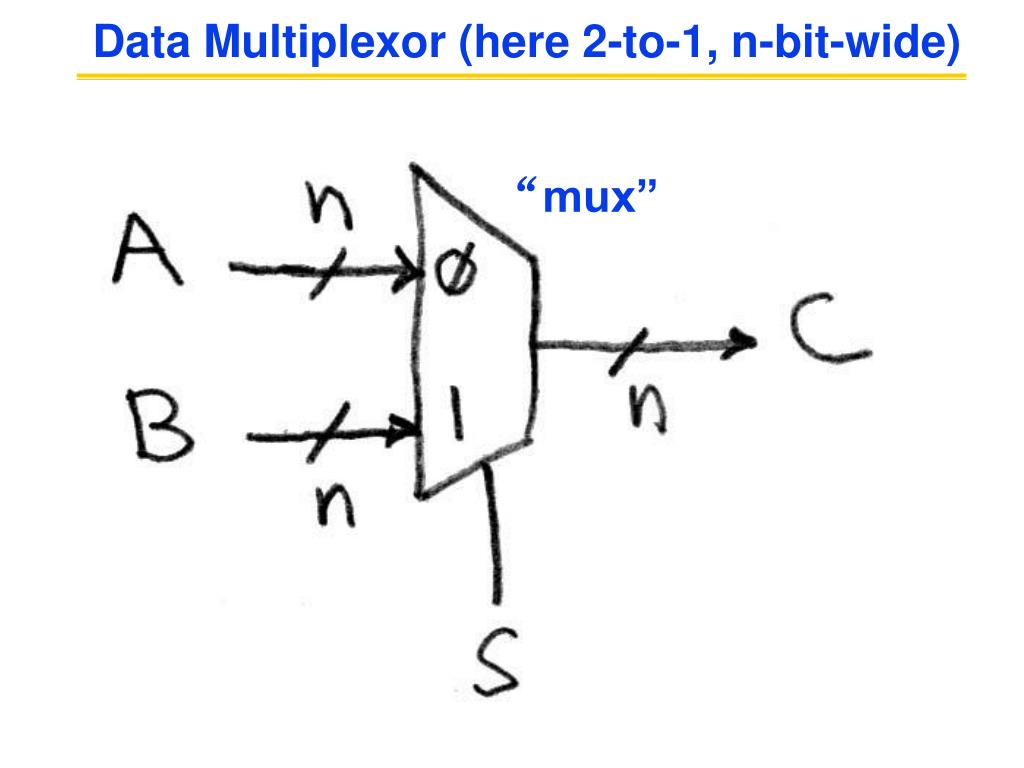

  4. Data Multiplexor (here 2-to-1, n-bit-wide) “mux”

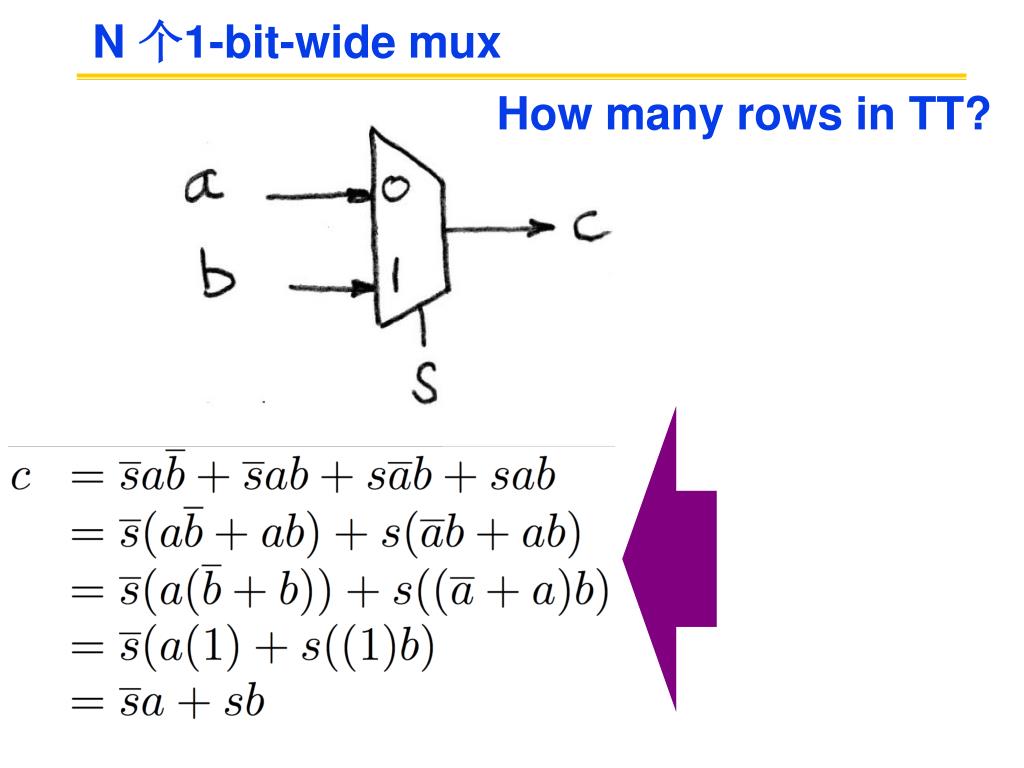

  5. N 个1-bit-wide mux How many rows in TT?

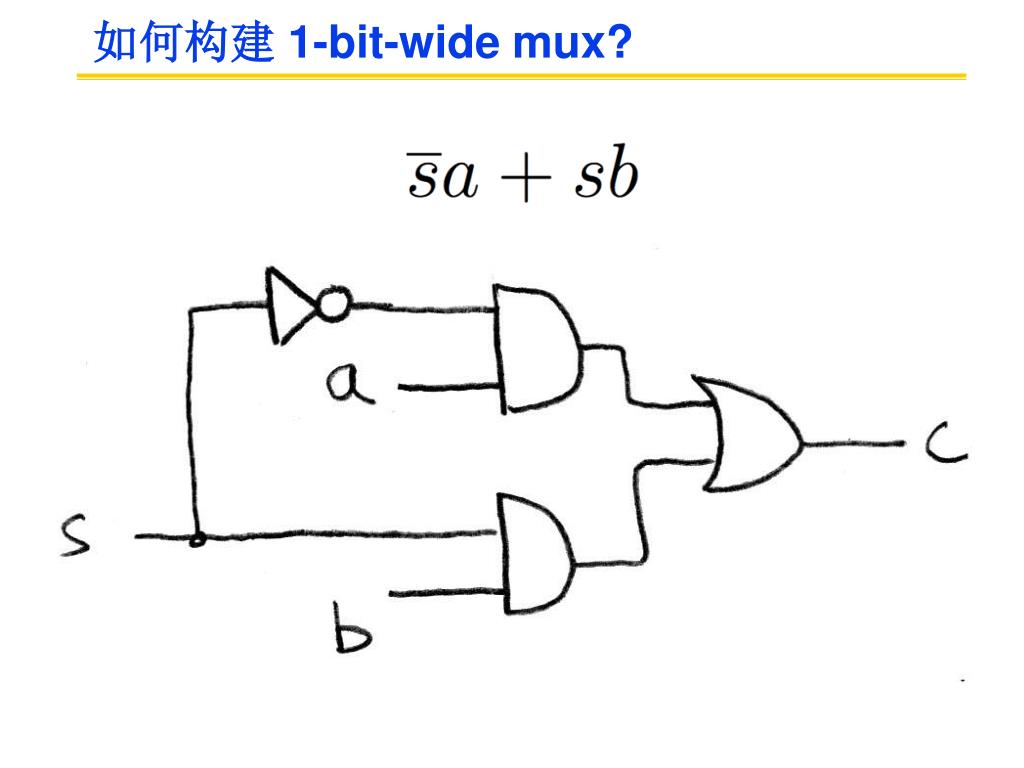

  6. 如何构建 1-bit-wide mux?

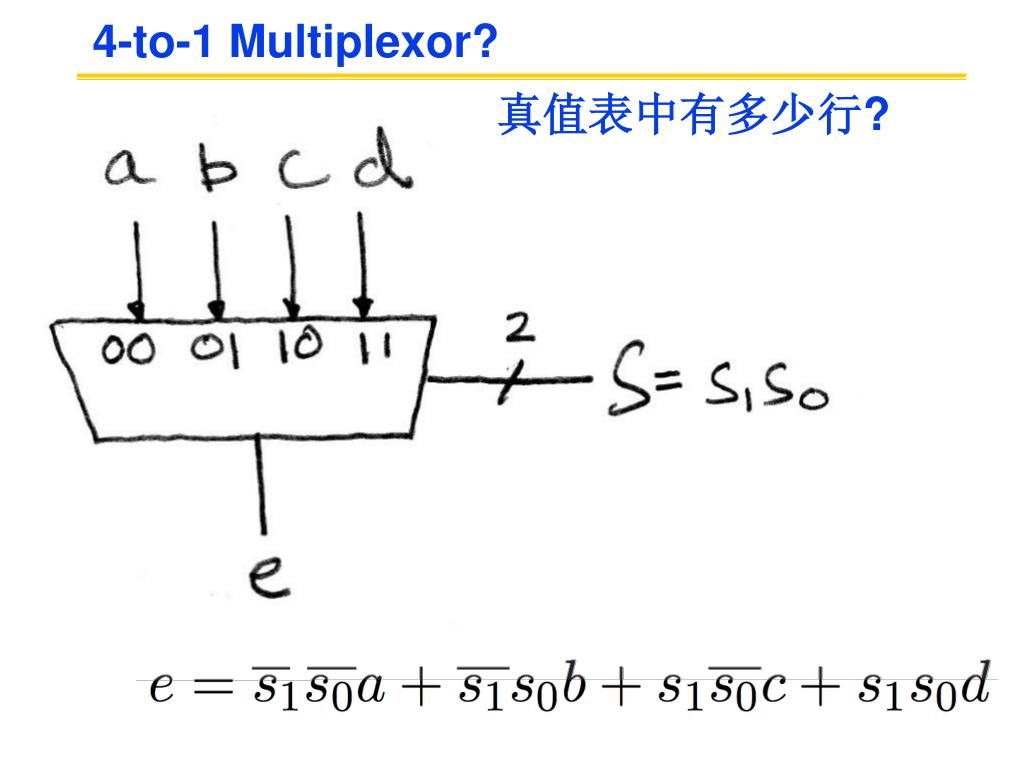

  7. 4-to-1 Multiplexor? 真值表中有多少行?

  8. 其它方式完成? Ans: 层次结构!

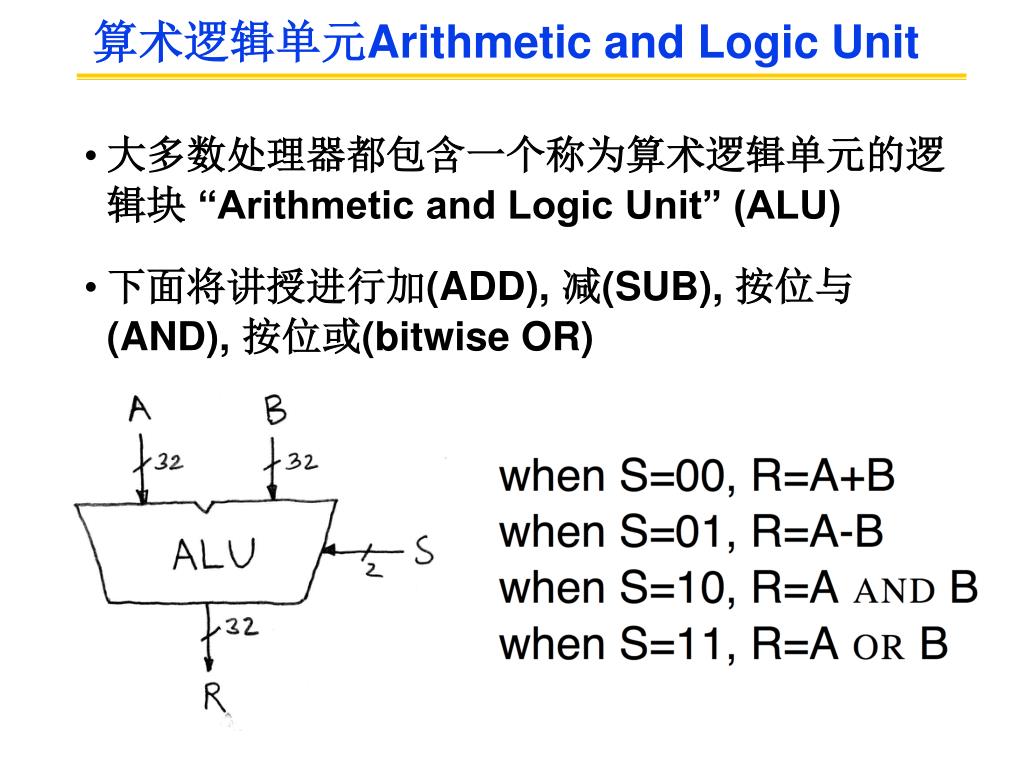

  9. 算术逻辑单元Arithmetic and Logic Unit • 大多数处理器都包含一个称为算术逻辑单元的逻辑块 “Arithmetic and Logic Unit” (ALU) • 下面将讲授进行加(ADD), 减(SUB), 按位与(AND), 按位或(bitwise OR)

  10. Our simple ALU

  11. 真值表, 然后确定与或范式, 然后简化 将问题分解为更小的问题,使用层次方法或者连接的方法进行求解 加/减法设计 – 如何进行?

  12. Adder/Subtracter – One-bit adder LSB…

  13. Adder/Subtracter – One-bit adder (1/2)…

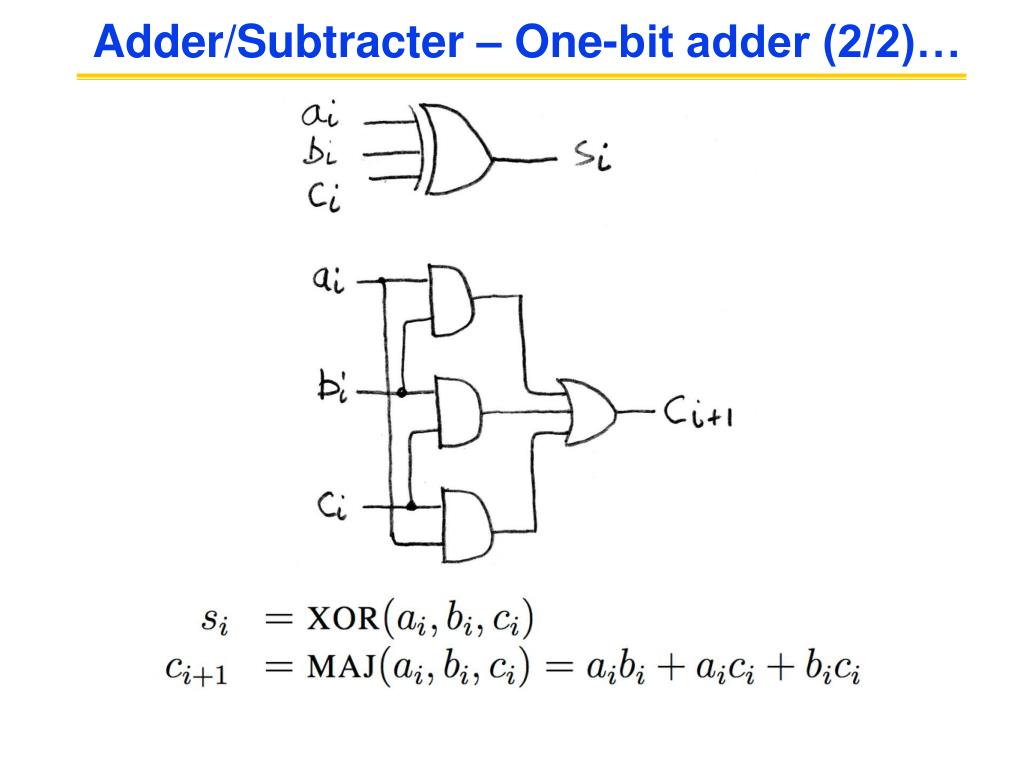

  14. Adder/Subtracter – One-bit adder (2/2)…

  15. + + + N 1-bit adders  1 N-bit adder b0 关于溢出? Overflow = cn?无符号数是这样的

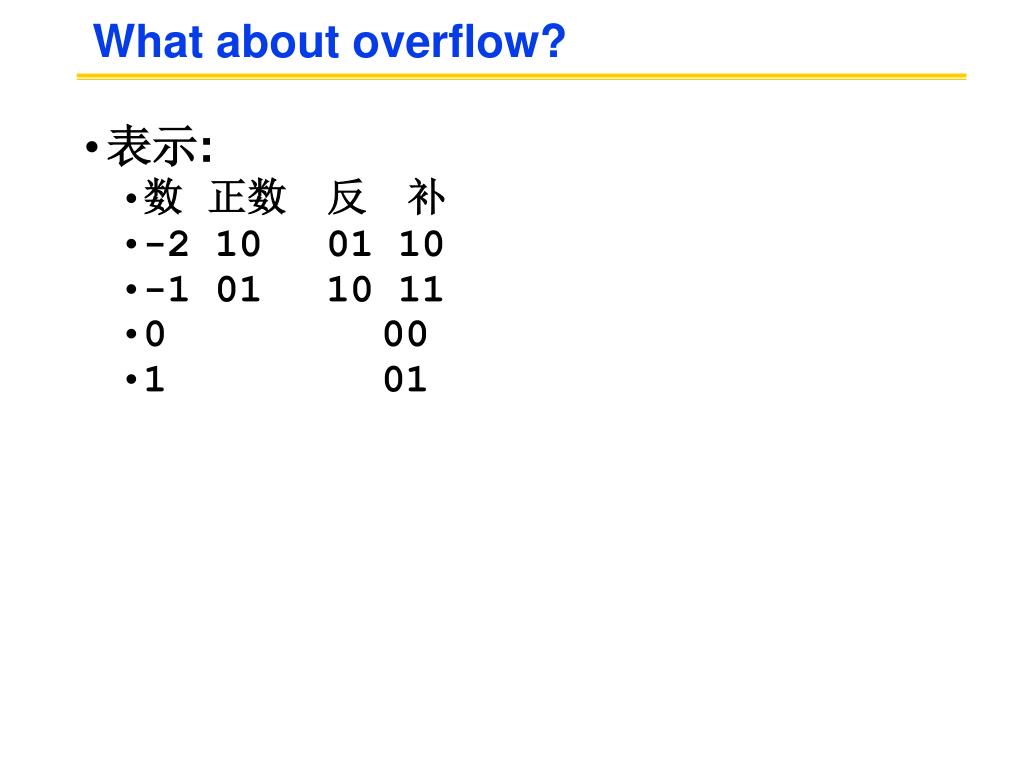

  16. What about overflow? • 表示: • 数 正数 反 补   • -2 10 01 10 • -1 0110 11 • 0 00 • 1 01

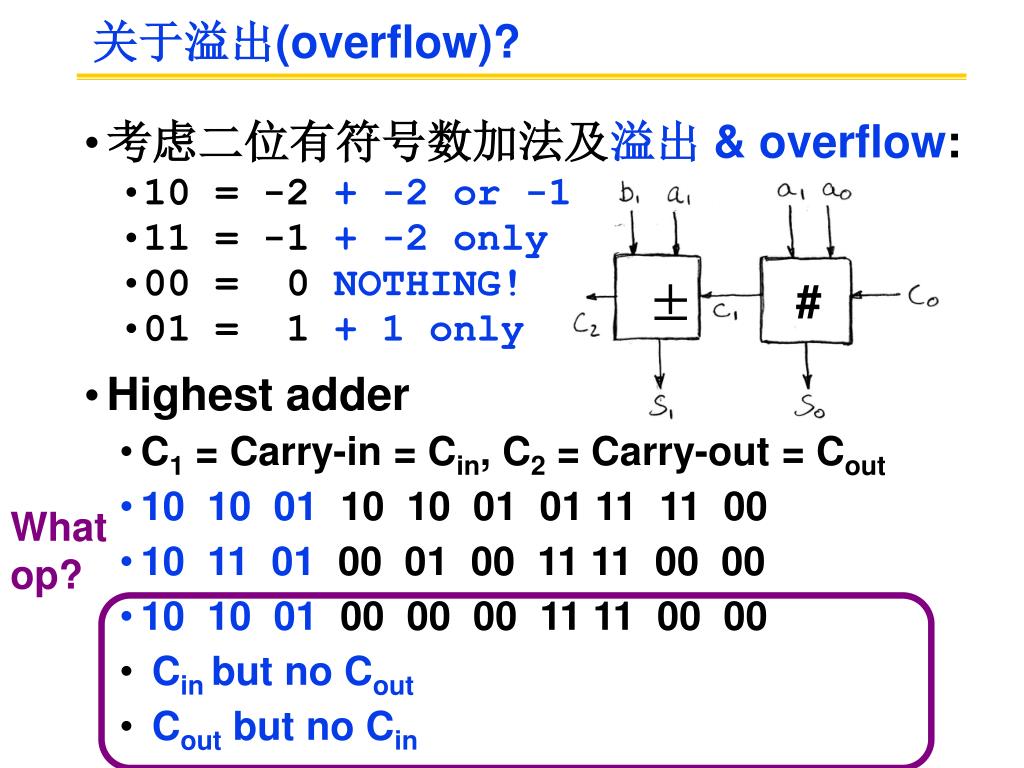

  17. # ± Whatop? 关于溢出(overflow)? • 考虑二位有符号数加法及溢出& overflow: • 10 = -2 + -2 or -1 • 11 = -1 + -2 only • 00 = 0 NOTHING! • 01 = 1 + 1 only • Highest adder • C1 = Carry-in = Cin, C2 = Carry-out = Cout • 10 10 01 10 10 01 01 11 11 00 • 10 11 01 00 01 00 11 11 00 00 • 10 10 01 00 00 00 11 11 00 00 • Cin but no Cout • Cout but no Cin

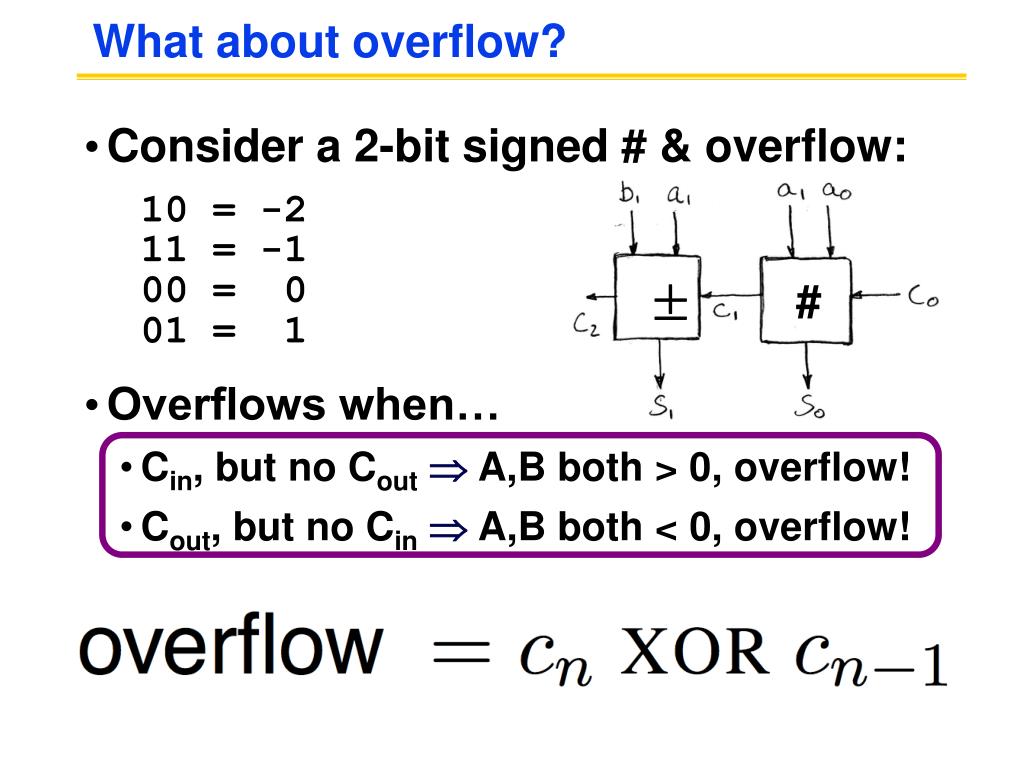

  18. # ± What about overflow? • Consider a 2-bit signed # & overflow: 10 = -2 + -2 or -111 = -1 + -2 only00 = 0 NOTHING!01 = 1 + 1 only • Overflows when… • Cin, but no Cout A,B both > 0, overflow! • Cout, but no Cin A,B both < 0, overflow!

  19. Overflow detection?Another explain • 当a,b不同号时,不会溢出 • 两个正数相加 • 在最高位不可能有进位 • 在次高位有进位,则加成了负数 • 两个负数相加 • 在最高位总有进位 • 如果次高位无进位,则加成了负数 • 无论何种情况,只要两个进行不同则发生溢出

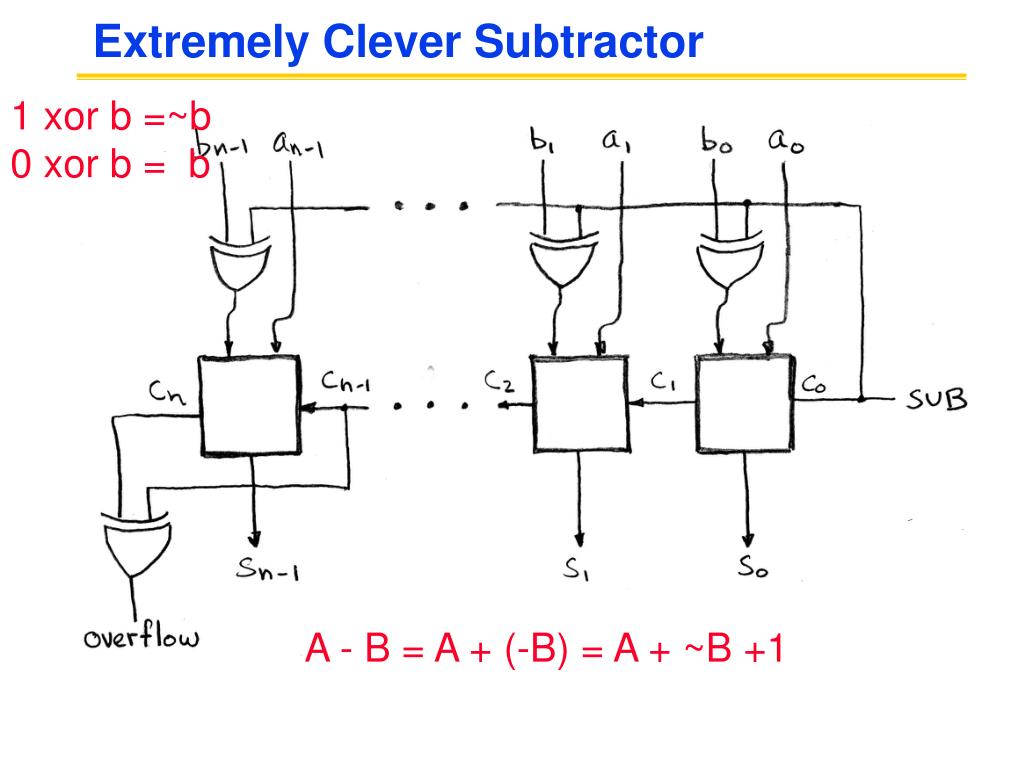

  20. Extremely Clever Subtractor 1 xor b =~b 0 xor b = b A - B = A + (-B) = A + ~B +1

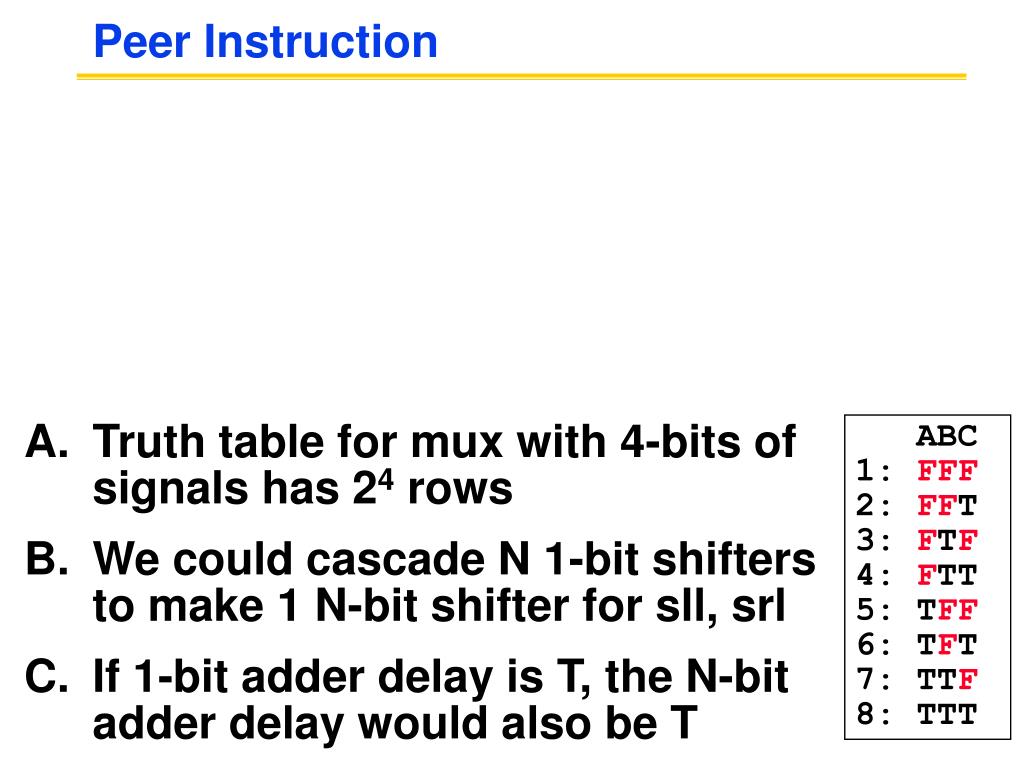

  21. Peer Instruction • Truth table for mux with 4-bits of signals has 24 rows • We could cascade N 1-bit shifters to make 1 N-bit shifter for sll, srl • If 1-bit adder delay is T, the N-bit adder delay would also be T ABC 1: FFF 2: FFT 3: FTF 4: FTT 5: TFF 6: TFT 7: TTF 8: TTT

  22. Peer Instruction Answer • Truth table for mux with 4-bits of signals controls 16 inputs, for a total of 20 inputs, so truth table is 220 rows…FALSE • We could cascade N 1-bit shifters to make 1 N-bit shifter for sll, srl … TRUE • What about the cascading carry? FALSE • Truth table for mux with 4-bits of signals is 24 rows long • We could cascade N 1-bit shifters to make 1 N-bit shifter for sll, srl • If 1-bit adder delay is T, the N-bit adder delay would also be T ABC 1: FFF 2: FFT 3: FTF 4: FTT 5: TFF 6: TFT 7: TTF 8: TTT

  23. “And In conclusion…” • Use muxes to select among input • S input bits selects 2S inputs • Each input can be n-bits wide, indep of S • Implement muxes hierarchically • ALU can be implemented using a mux • Coupled with basic block elements • N-bit adder-subtractor done using N 1-bit adders with XOR gates on input • XOR serves as conditional inverter

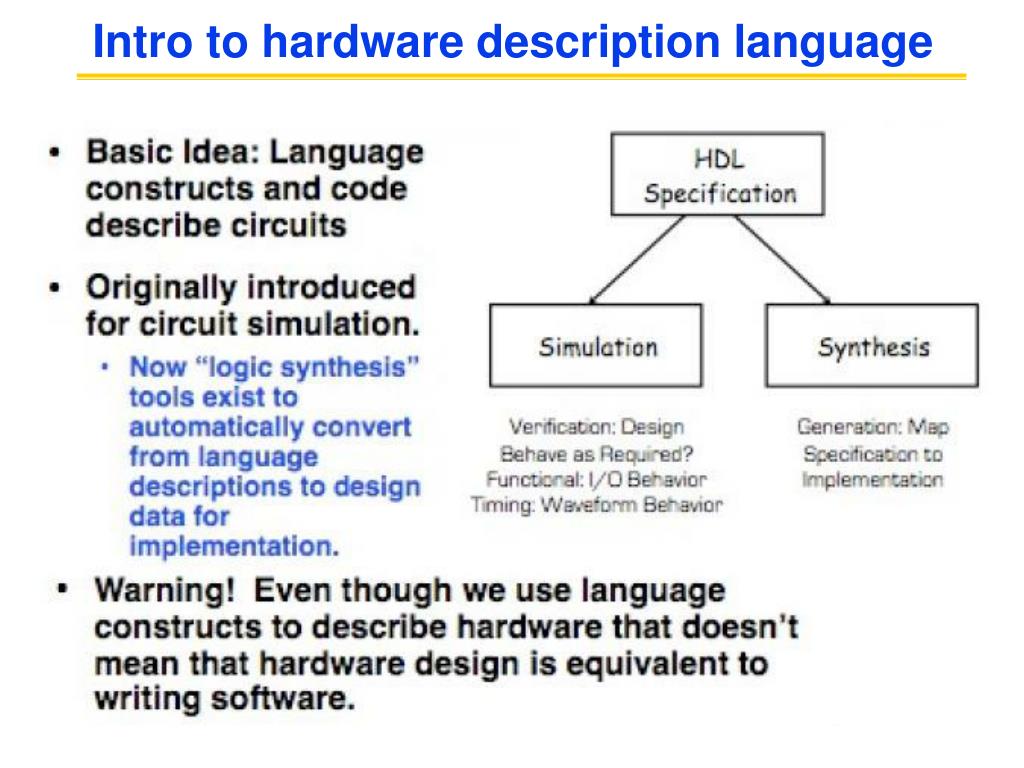

  24. Intro to hardware description language

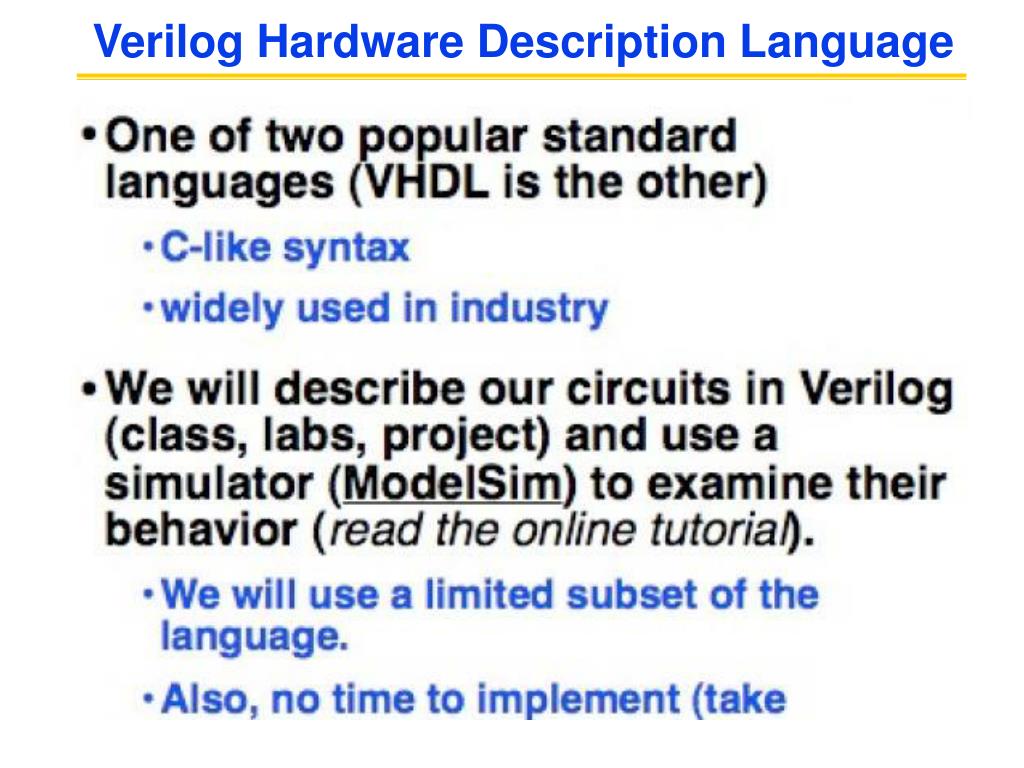

  25. Verilog Hardware Description Language

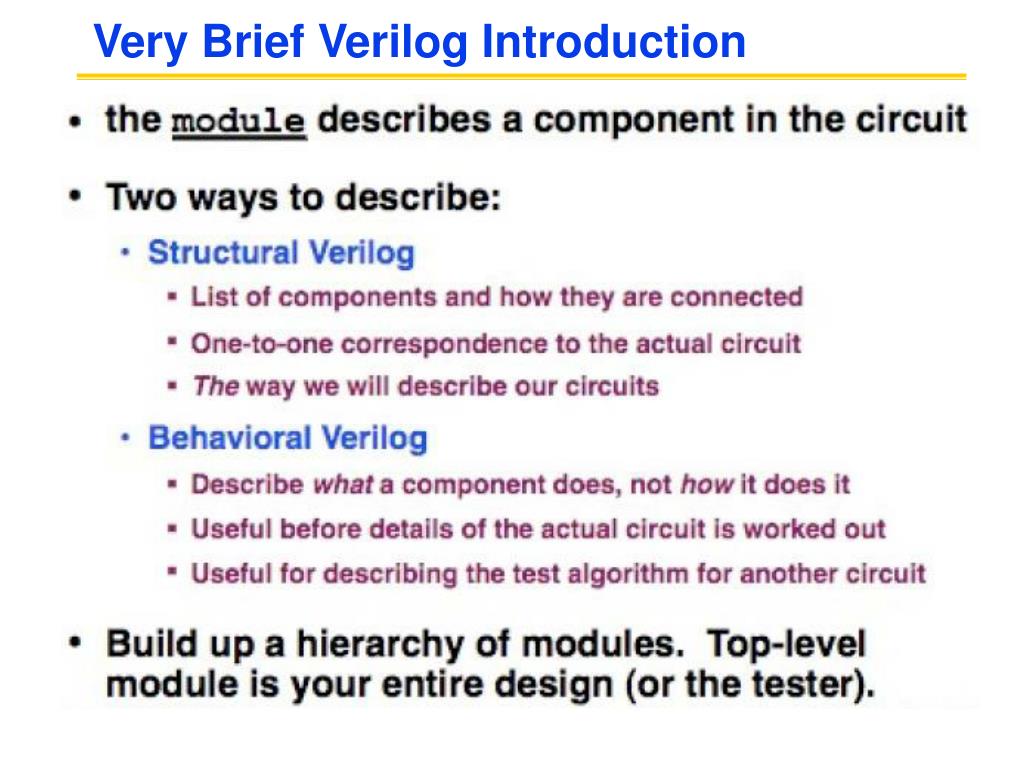

  26. Very Brief Verilog Introduction

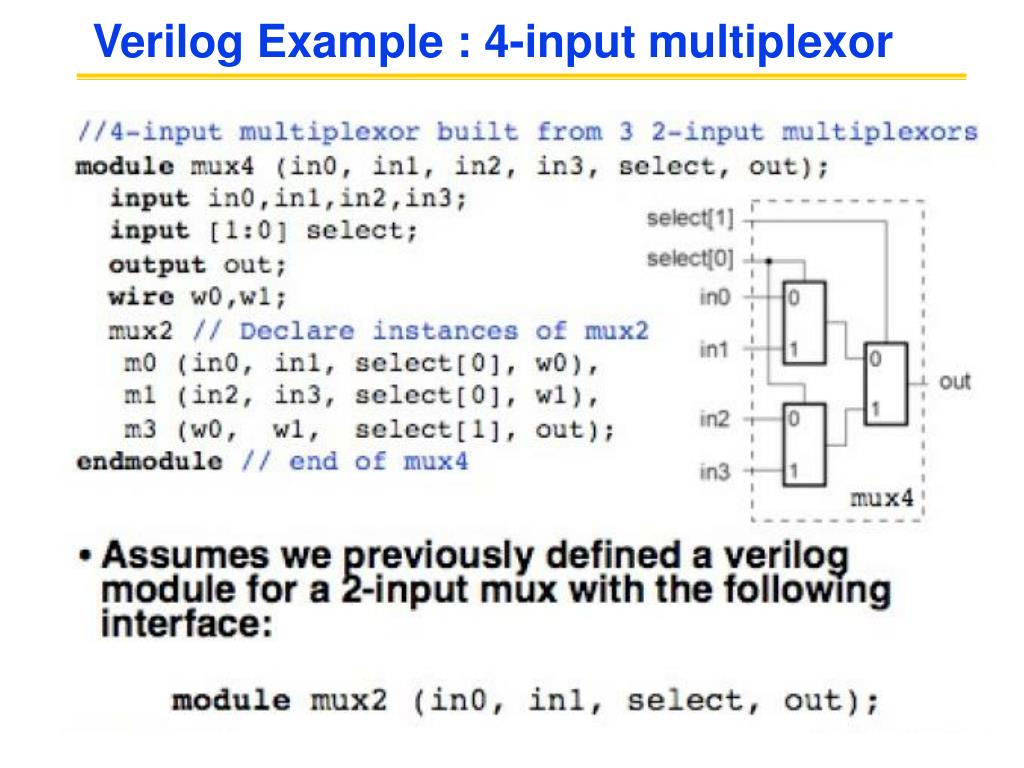

  27. Verilog Example : 4-input multiplexor

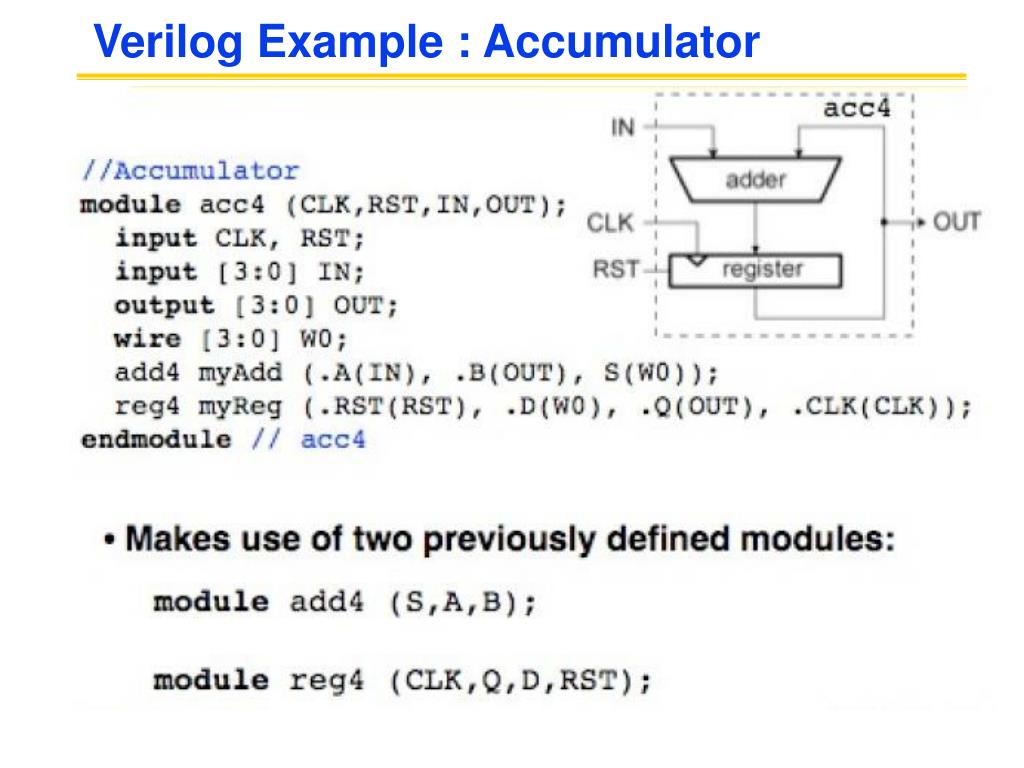

  28. Verilog Example : Accumulator

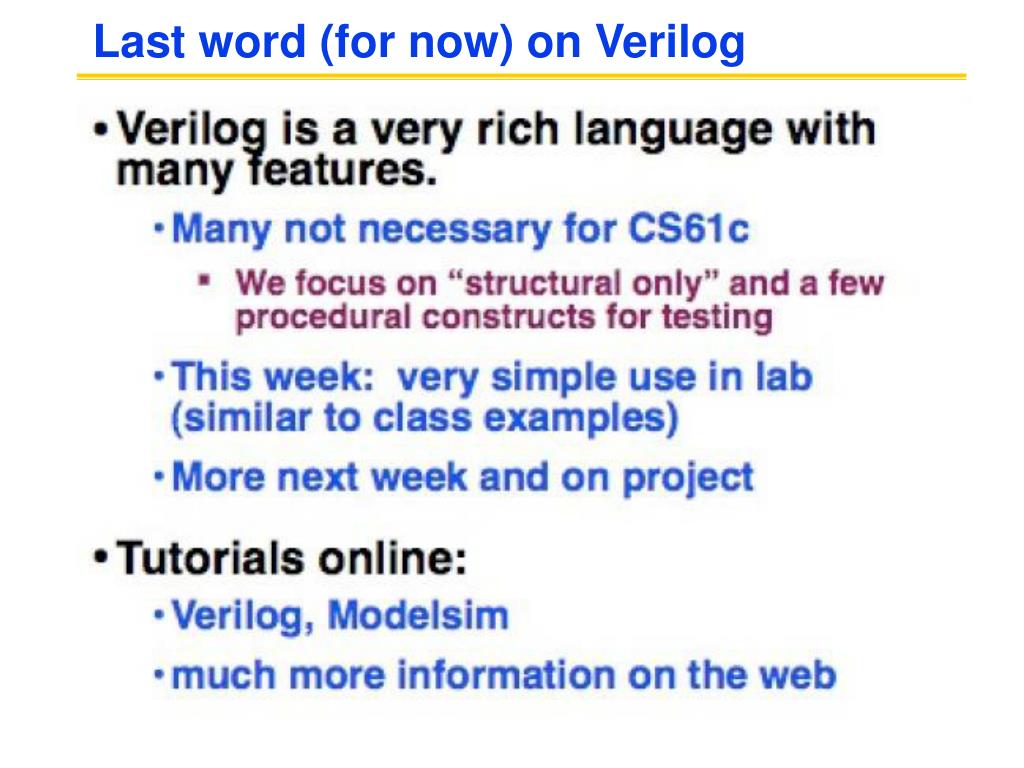

  29. Last word (for now) on Verilog

  30. Verilog and Boolean Equations • Besides the two major styles, structural and behavioral, a third style (somewhat in between) called dataflow • Continuous Assignment statements • // y = ab + ac + bc; • wire a, b, c, y; • assign y = a & b | a & c | b & c; • Not like a normal assignment in programming languages. This assign happens continuously. Whenever anything on the RHS changes, the LHS is updated.

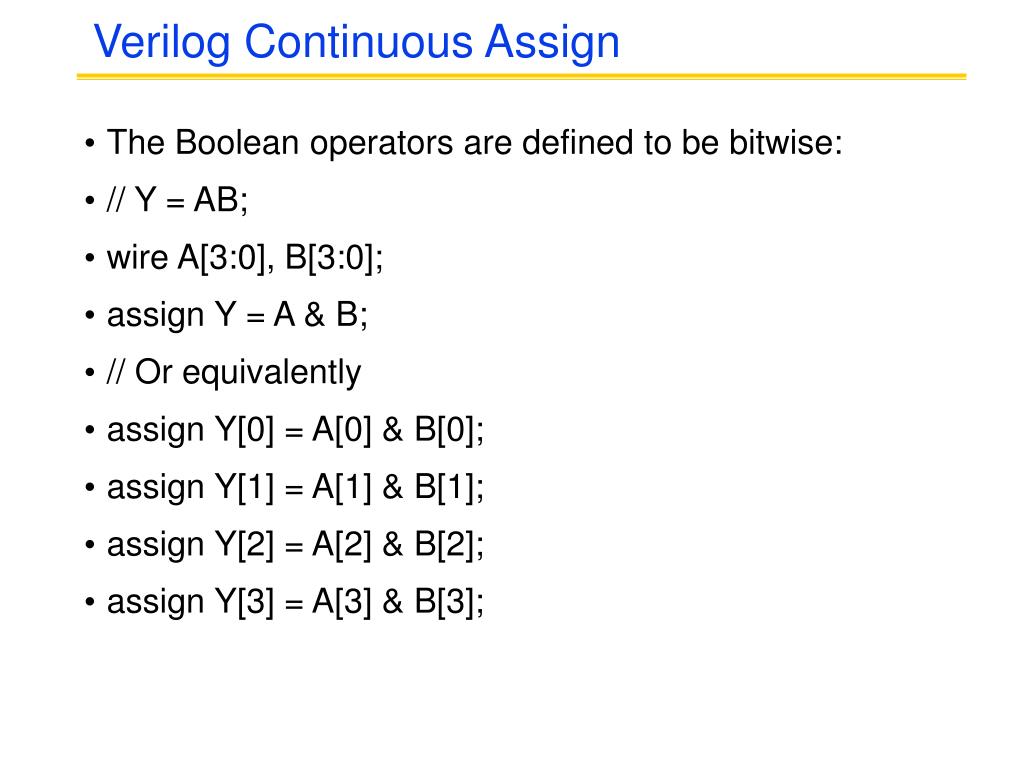

  31. Verilog Continuous Assign • The Boolean operators are defined to be bitwise: • // Y = AB; • wire A[3:0], B[3:0]; • assign Y = A & B; • // Or equivalently • assign Y[0] = A[0] & B[0]; • assign Y[1] = A[1] & B[1]; • assign Y[2] = A[2] & B[2]; • assign Y[3] = A[3] & B[3];

  32. Verilog Bitwise Operators

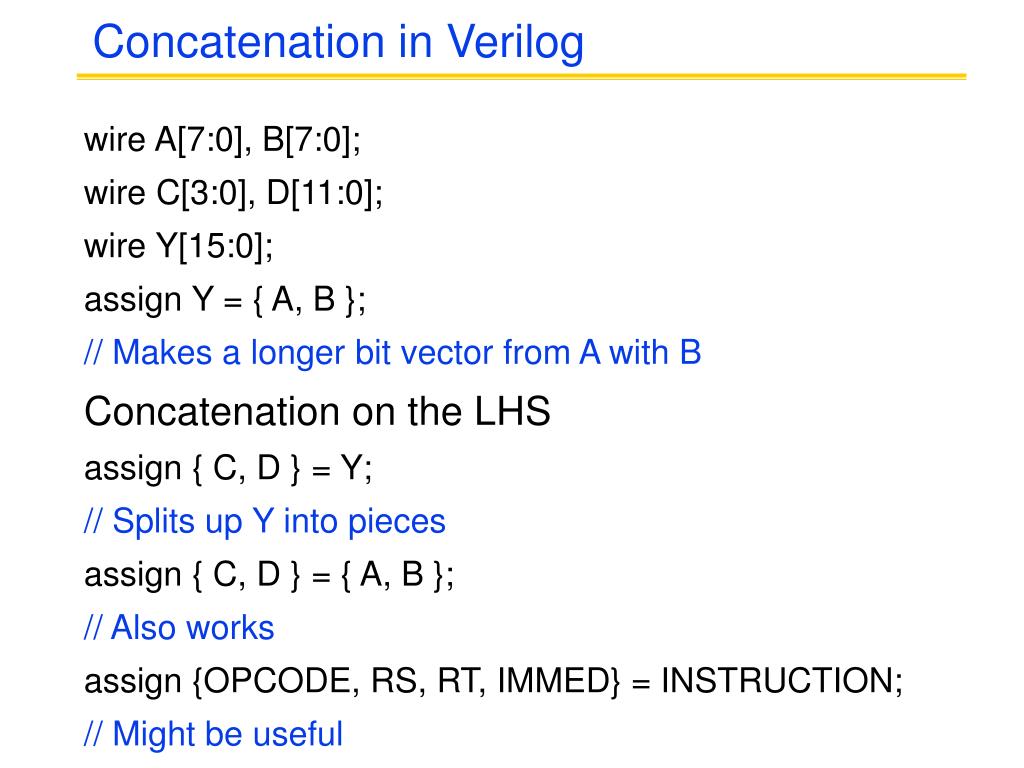

  33. Concatenation in Verilog wire A[7:0], B[7:0]; wire C[3:0], D[11:0]; wire Y[15:0]; assign Y = { A, B }; // Makes a longer bit vector from A with B Concatenation on the LHS assign { C, D } = Y; // Splits up Y into pieces assign { C, D } = { A, B }; // Also works assign {OPCODE, RS, RT, IMMED} = INSTRUCTION; // Might be useful

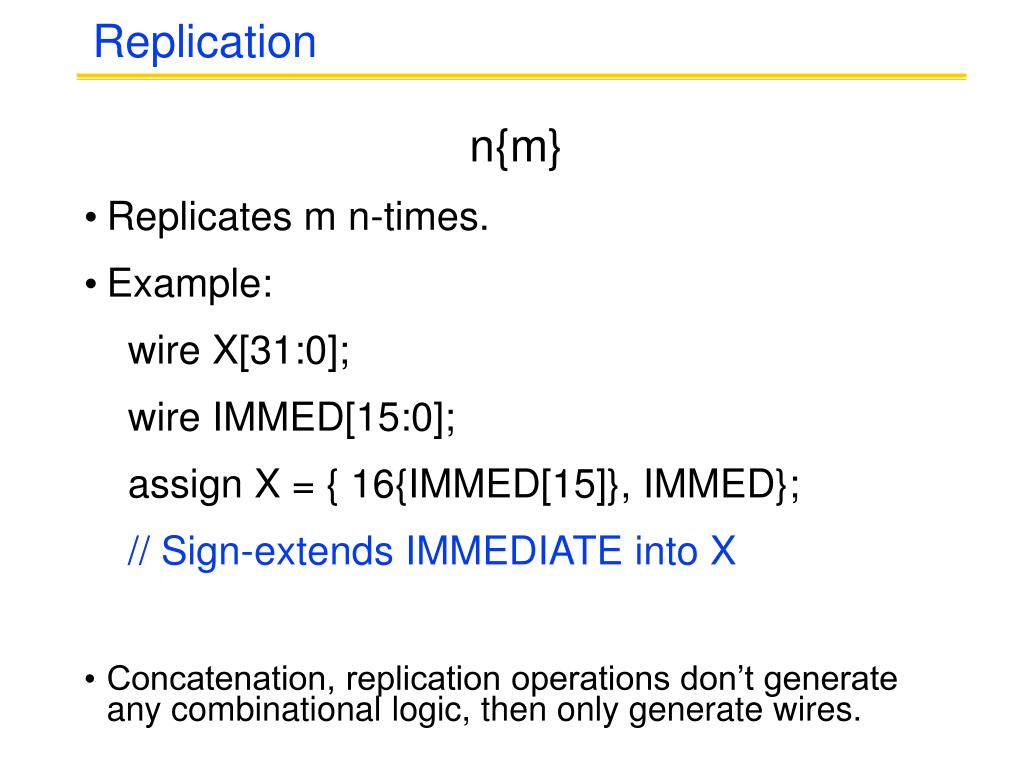

  34. Replication n{m} • Replicates m n-times. • Example: wire X[31:0]; wire IMMED[15:0]; assign X = { 16{IMMED[15]}, IMMED}; // Sign-extends IMMEDIATE into X • Concatenation, replication operations don’t generate any combinational logic, then only generate wires.

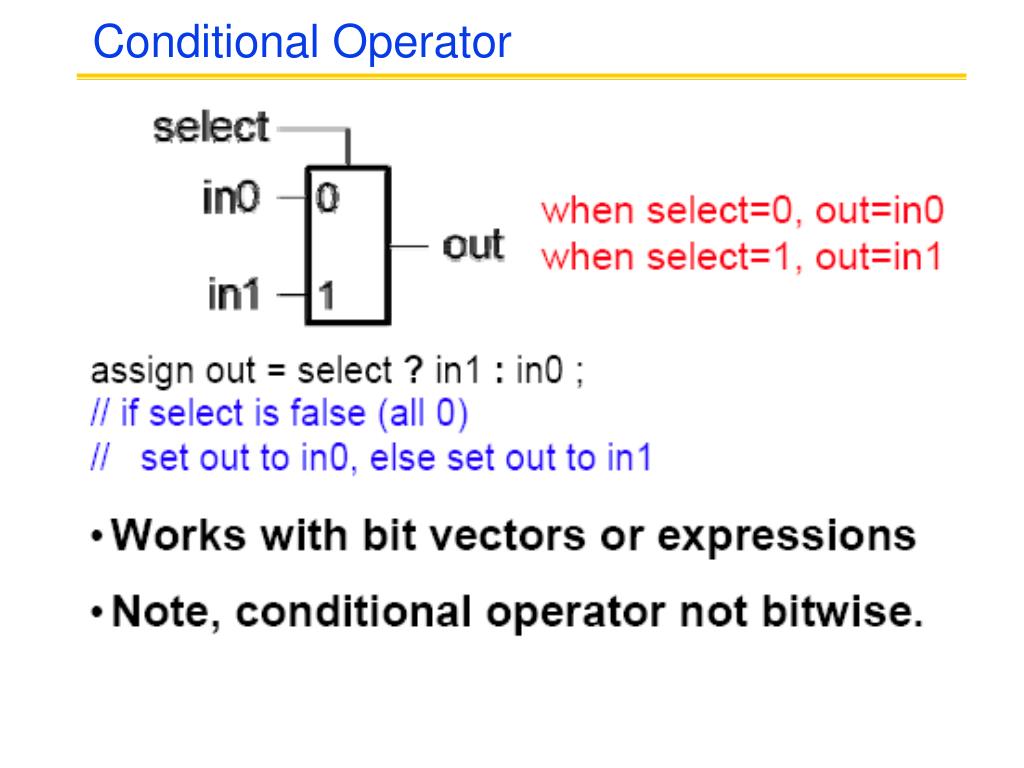

  35. Conditional Operator
