Presentation Transcript
Slide1 l.jpg

Computer Architecture

  • Welcome to the KKK4504 class

  • Dr. Abd Rahman Ramli

  • Main Component of Lecture:

    • The Computer System

    • The Central Processing Unit

    • The Control Unit

    • Advance Computer Design

Mail Text Book: Computer Organization and Architecture

Designing for Performance,

By:- William Stallings

Prenrice Hall, 1996

Assessment : Test 1 - 20%, Test 2 - 20%, Assignments - 30%

Final Test - 30%

KK4504 : Computer Architecture

 MMH, UPM


Slide2 l.jpg

Distribution of Classes

1. Overview over Computer 2

2. System Buses 4

3. Memories internal/external 6

4. Input/output 2

5. Operating System 2

6. Computer Architecture 8

7. CPU structure and Function 5

8. RISC instructions 4

9. High Performance Computer (HPC) 3

10. Control Units 6

Date First Test - / /98

Date Second Test - / /98

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide3 l.jpg

Computer System

  • What is computer system?

  • The term computer is used to describe a device made

  • up a combination of electronic and electromechanical (part

  • electronic and part mechanical) components.

  • By itself, a computer has no intelligence and is referred

  • to as hardware. A computer system is a combination of five

  • elements:

    • Hardware

    • Software

    • People

    • Procedures

    • Data/information

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide4 l.jpg

Computer System

0101010

0101111

0001010

Hardware Software People Procedure Data/

Information

Software is the term used to describe the instructions that tell the

hardware how to perform a task; without software instructions,

the hardware doesn’t know what to do.

People constitute the most important of the computer system.

Procedure is the set of instructions.

The purpose of a computer system is to convert data into

information.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide5 l.jpg

Computer System

Computer hardware can be divided into four categories:

1. Input hardware.

2. Storage hardware.

3. Processing hardware.

4. Output hardware.

The purpose of input hardware is to collect data and convert

it into a form suitable for computer processing, keyboard,

mouse, track ball, digitizer, scanner ...

The purpose of storage hardware is to provide a means of storing

computer instructions and data in a form that is permanent or

nonvolatile - the data is not lost when the power is turned off -

and easy to retrieve when needed for processing, hard disk,

tape drive, diskette, CD ...

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide6 l.jpg

Computer System

The purpose of processing hardware is to retrieve, interpret,

and direct the execution of software instruction provided to

the computer.

The Central Processing Unit (CPU) is composed of three units

(1) the arithmetic-logic unit (ALU) (2) main memory unit and

(3) control unit.

ALU: As its name indicates this unit takes care of arithmetic

operations (addition, subtraction, multiplication and division)

and logic operations (such as comparing two numbers to test

for equality, or to test which is greater).

Main memory: Main memory stores both data and programs.

They will be present in main memory for only a relatively short

time. Two common types of memory used are RAM (Random

Access Memory) and ROM (Read-Only Memory).

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide7 l.jpg

Computer System

Control unit: The part of the CPU that control the CPU and

indirectly the entire computer system. The control unit decides

what to do next and then directs it to be done.

Output hardware: The purpose of output hardware is to

provide the user with the means to view information

produced by the computer system. Information is output either

hardcopy or softcopy form. Hardcopy output can be held in

your hand, such as paper with text or graphics printed on it.

Softcopy output is displayed on a monitor, a television like

screen on which you can read text and graphics.

Control Unit

ALU

Main Memory Unit

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide8 l.jpg

Computer System

Software is made up of a group of related programs, each of

which is a group of related instructions that perform very

specific processing tasks. Software acquired to perform a

general business function is often referred to as a software

package.

Software can generally be divided into two categories:

(1) System Software

(2) Application Software.

Programs designed to allow the computer to manage its own

resources are called System software (Dos, Windows, UNIX, OS)

Any instructions or collection of related programs design to be

carried out by a computer to satisfy a user’s specific needs are

Application software package.

WE THE PEOPLE

KK345 : Computer Architecture and Organization

 MMH, UPM

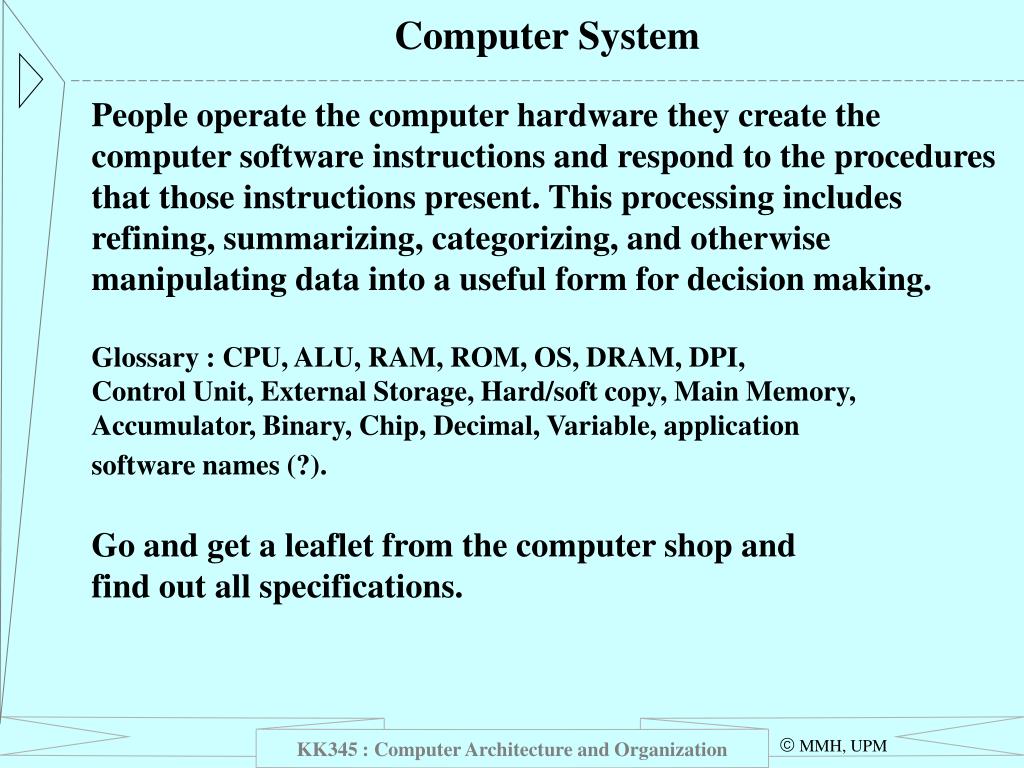

Slide9 l.jpg

Computer System

People operate the computer hardware they create the

computer software instructions and respond to the procedures

that those instructions present. This processing includes

refining, summarizing, categorizing, and otherwise

manipulating data into a useful form for decision making.

Glossary : CPU, ALU, RAM, ROM, OS, DRAM, DPI,

Control Unit, External Storage, Hard/soft copy, Main Memory,

Accumulator, Binary, Chip, Decimal, Variable, application

software names (?).

Go and get a leaflet from the computer shop and

find out all specifications.

KK345 : Computer Architecture and Organization

 MMH, UPM

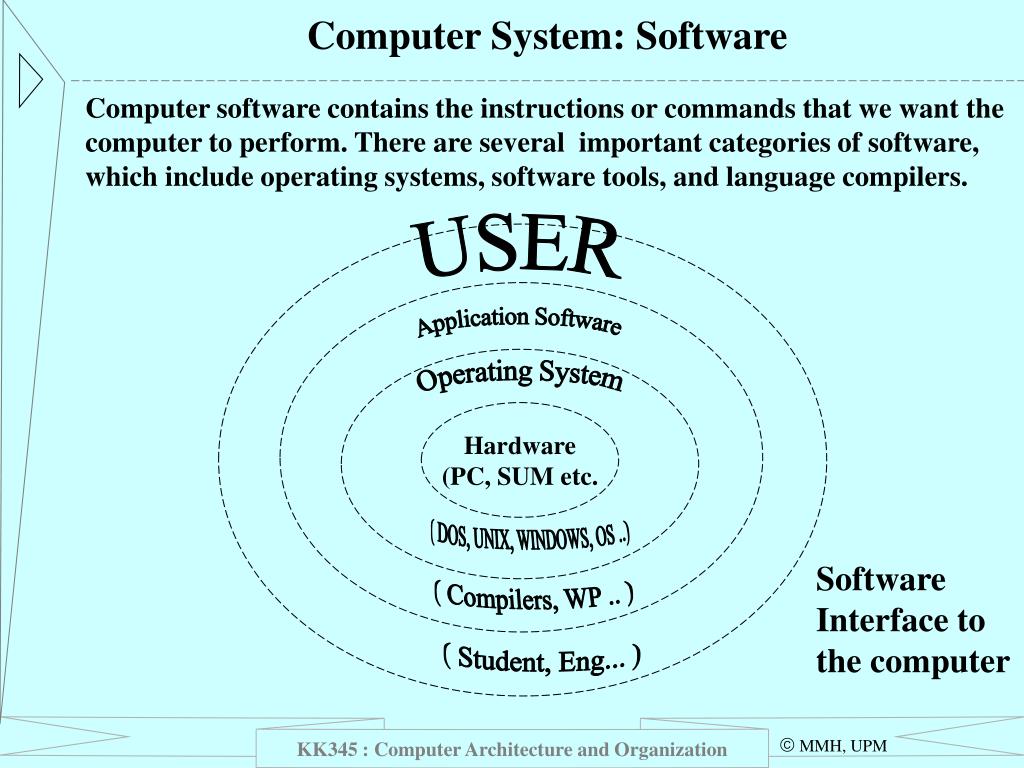

Slide10 l.jpg

Computer System: Software

Computer software contains the instructions or commands that we want the computer to perform. There are several important categories of software, which include operating systems, software tools, and language compilers.

USER

Application Software

Operating System

Hardware

(PC, SUM etc.

( DOS, UNIX, WINDOWS, OS ..)

Software

Interface to

the computer

( Compilers, WP .. )

( Student, Eng... )

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide11 l.jpg

Computer System: Software

Operating System:

The operating system provides an interface

between you (the user) and the hardware by providing a

convenient and efficient environment in which you can select

and execute the software on your system.

Software tool:

Software tools are programs that have been

written to perform common operations. (Spreadsheet,

computer-aided design, mathematical computation tools,

graphics tools..)

Computer Language:

Computer languages can be described in terms

of levels, Low-level and high-level languages.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide12 l.jpg

Computer System: Software

Low-level language:

Low-level languages, machine languages or

assembly languages are tied closely to the design of the

computer hardware. Therefore machine language is a binary

language, and the instructions are written using two symbols,

which are usually represented using the digit 0 and 1.

High-level languages:

High-level languages are computer languages

that have English like commands and instructions, and

include languages such as C, BASIC, JAVA, FORTRAN,

Pascal, COBOL, HTML, VRML.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide13 l.jpg

Computer System

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide14 l.jpg

Communication lines

Computer System: Software

KK345 : Computer Architecture and Organization

 MMH, UPM


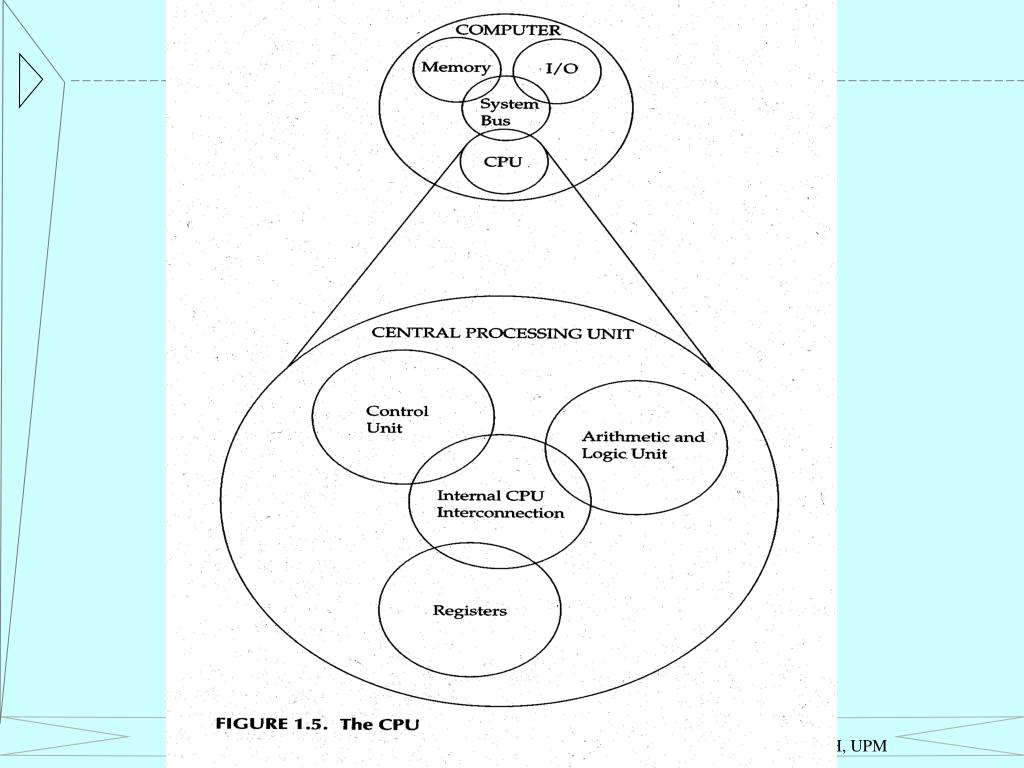

Slide15 l.jpg

Computer System: Software

KK345 : Computer Architecture and Organization

 MMH, UPM



Slide17 l.jpg

Computer System

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide18 l.jpg

Memory Buffer Register (MBR): Contains a word to be stored in memory, or is used to

receive a word from memory.

Memory Address Register (MAR): Specifies the address in memory of the word to be

written from or read into the MBR.

Instruction Register (IR): Contains the 8-bit op code instruction being executed.

Instruction Buffer Register (IBR): Employed to temporarily hold the instruction from a word in memory.

Program Counter (PC): Contains the address of the next instruction-pair to be fetched from memory.

Accumulator (AC) and Multiplier-Quotient (MQ) ...


Slide20 l.jpg

KK345 : Computer Architecture and Organization in memory, or is used to

 MMH, UPM

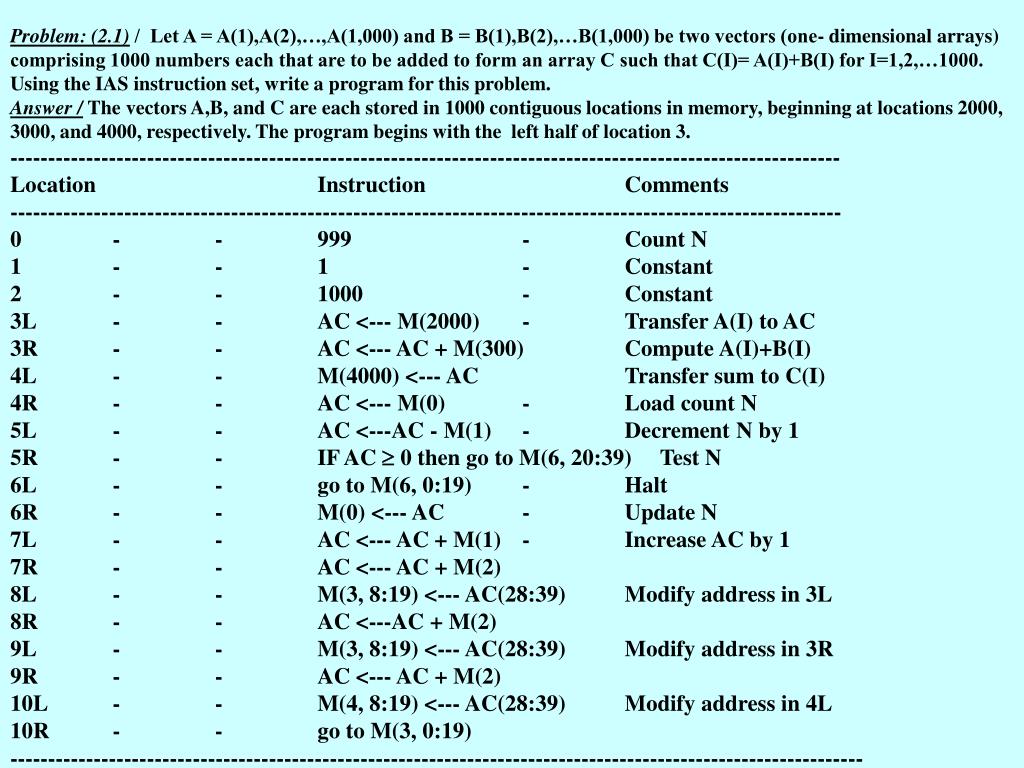

Slide21 l.jpg

Problem: (2.1) in memory, or is used to / Let A = A(1),A(2),…,A(1,000) and B = B(1),B(2),…B(1,000) be two vectors (one- dimensional arrays) comprising 1000 numbers each that are to be added to form an array C such that C(I)= A(I)+B(I) for I=1,2,…1000. Using the IAS instruction set, write a program for this problem.

Answer / The vectors A,B, and C are each stored in 1000 contiguous locations in memory, beginning at locations 2000, 3000, and 4000, respectively. The program begins with the left half of location 3.

-------------------------------------------------------------------------------------------------------------

Location Instruction Comments

-------------------------------------------------------------------------------------------------------------

0 - - 999 - Count N

1 - - 1 - Constant

2 - - 1000 - Constant

3L - - AC <--- M(2000) - Transfer A(I) to AC

3R - - AC <--- AC + M(300) Compute A(I)+B(I)

4L - - M(4000) <--- AC Transfer sum to C(I)

4R - - AC <--- M(0) - Load count N

5L - - AC <---AC - M(1) - Decrement N by 1

5R - - IF AC  0 then go to M(6, 20:39) Test N

6L - - go to M(6, 0:19) - Halt

6R - - M(0) <--- AC - Update N

7L - - AC <--- AC + M(1) - Increase AC by 1

7R - - AC <--- AC + M(2)

8L - - M(3, 8:19) <--- AC(28:39) Modify address in 3L

8R - - AC <---AC + M(2)

9L - - M(3, 8:19) <--- AC(28:39) Modify address in 3R

9R - - AC <--- AC + M(2)

10L - - M(4, 8:19) <--- AC(28:39) Modify address in 4L

10R - - go to M(3, 0:19)

----------------------------------------------------------------------------------------------------------------


Slide22 l.jpg

System Buses in memory, or is used to

  • Three key concept of Von Neumann architecture:

  • Data and instructions are stored in a single read-write memory.

  • The contents of this memory are addressable by location, without regard

  • to the type of data contained there.

  • Execution occurs in a sequential fashion (unless explicitly modified) from

  • one instruction to the next.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide23 l.jpg

System Buses in memory, or is used to

CPU has two internal register: a memory address register (MAR), which

specifies the address in memory for the next read or write, and a memory

buffer register (MBR), which contains the data to be written into memory

or receives the data read from memory.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide24 l.jpg

Computer Functions in memory, or is used to

CPU - Memory: Data may be transferred from the CPU to memory or from

memory to CPU.

CPU-I/O: Data may be transferred to or from the outside world by

transferring between the CPU and I/O module.

Data Processing: The CPU may perform some arithmetic or logic operation

on data.

Instruction Format

Address

Op Code

0 3 4 15

Integer Format

Magnitude

S

0 3 4 15

Program Counter (PC) - Address of Instruction, Instruction Register (IR) = Instruction Being Executed, Accumulator (AC) = Temporary Storage

Internal CPU Registers (examples)

0001 = Load AC from Memory

0010 = Store AC to Memory

0101 = Add to AC from Memory

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide29 l.jpg

KK345 : Computer Architecture and Organization in memory, or is used to

 MMH, UPM


Slide32 l.jpg

Bus Interconnection in memory, or is used to


Slide34 l.jpg

Elements of Bus Design in memory, or is used to

Type Bus Width

Dedicated Address

Multiplexed Data

(control)

Method of Arbitration Data Transfer Type

Centralized Read

Distributed Write

Read-modify-write

Timing Read-after-write

Synchronous Block

Asynchronous

KK441 : Robotic

 MMH, UPM


Slide35 l.jpg

Bus Types in memory, or is used to

  • Two generic types:

    • Dedicated bus type : The dedicated bus line is permanently assigned either to one function or to a physical subset of computer components. The advantage of physical dedication is high throughput, because there is less contention. A disadvantage is the increased size and cost of the system

    • Multiplexed bus type : Using the same line for address and data communication (Time multiplexing). The advantages of time multiplexing is the fewer lines, which save space and cost. The disadvantages are more complex circuitry and potential reduction of performance.

KK441 : Robotic

 MMH, UPM


Slide36 l.jpg

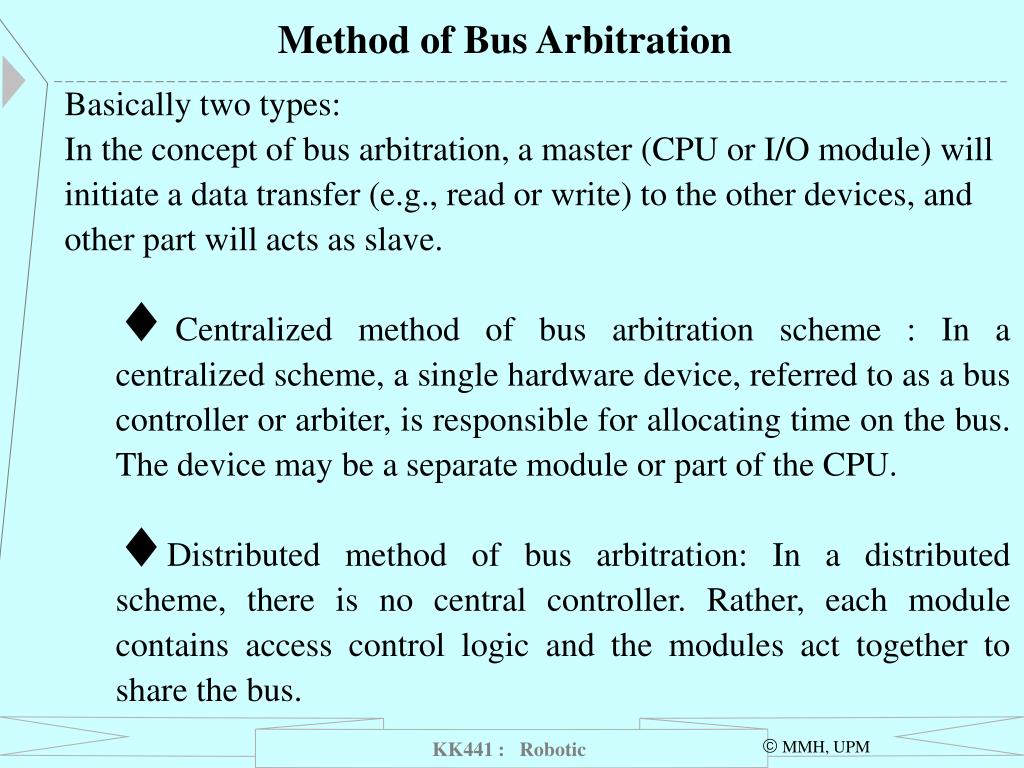

Method of Bus Arbitration in memory, or is used to

  • Basically two types:

  • In the concept of bus arbitration, a master (CPU or I/O module) will initiate a data transfer (e.g., read or write) to the other devices, and other part will acts as slave.

    • Centralized method of bus arbitration scheme : In a centralized scheme, a single hardware device, referred to as a bus controller or arbiter, is responsible for allocating time on the bus. The device may be a separate module or part of the CPU.

    • Distributed method of bus arbitration: In a distributed scheme, there is no central controller. Rather, each module contains access control logic and the modules act together to share the bus.

KK441 : Robotic

 MMH, UPM


Slide37 l.jpg

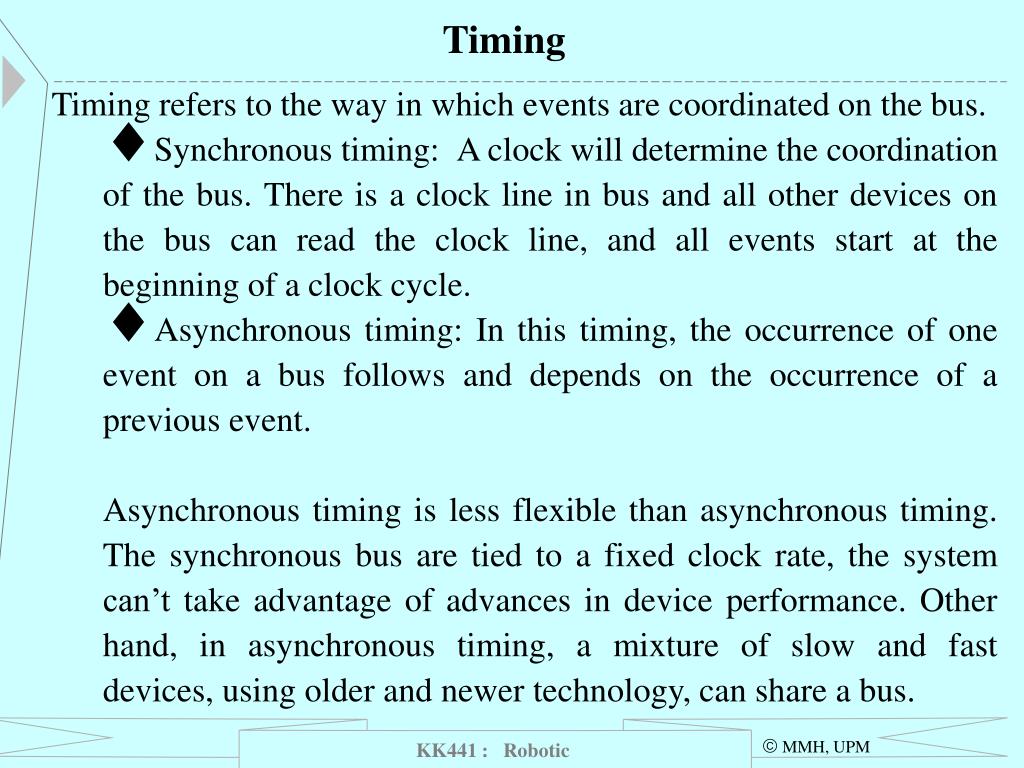

Timing in memory, or is used to

  • Timing refers to the way in which events are coordinated on the bus.

    • Synchronous timing: A clock will determine the coordination of the bus. There is a clock line in bus and all other devices on the bus can read the clock line, and all events start at the beginning of a clock cycle.

    • Asynchronous timing: In this timing, the occurrence of one event on a bus follows and depends on the occurrence of a previous event.

      Asynchronous timing is less flexible than asynchronous timing. The synchronous bus are tied to a fixed clock rate, the system can’t take advantage of advances in device performance. Other hand, in asynchronous timing, a mixture of slow and fast devices, using older and newer technology, can share a bus.

KK441 : Robotic

 MMH, UPM


Slide38 l.jpg

Bus Width and Data Transfer Type in memory, or is used to

  • The width of Data bus has an impact on system performance.

  • The width of address bus has an impact on system capacity

Read

Write

Read-modify-write

Read-after-write

Block


Slide39 l.jpg

Peripheral Component Interconnect (PCI) Bus System in memory, or is used to

PIC is designed for high-speed I/O subsystems (e.g., graphic,

display adapters, network interface controllers, disk controller ..).

64 data line with 33 MHz data transfer rate is 264 Mbytes/sec,

PIC has synchronous timing and a centralized arbitration scheme.


Slide40 l.jpg

Peripheral Component Interconnect (PCI) Bus System in memory, or is used to

PIC is designed for high-speed I/O subsystems (e.g., graphic,

display adapters, network interface controllers, disk controller ..).

64 data line with 33 MHz data transfer rate is 264 Mbytes/sec,

PIC has synchronous timing and a centralized arbitration scheme.


Slide42 l.jpg

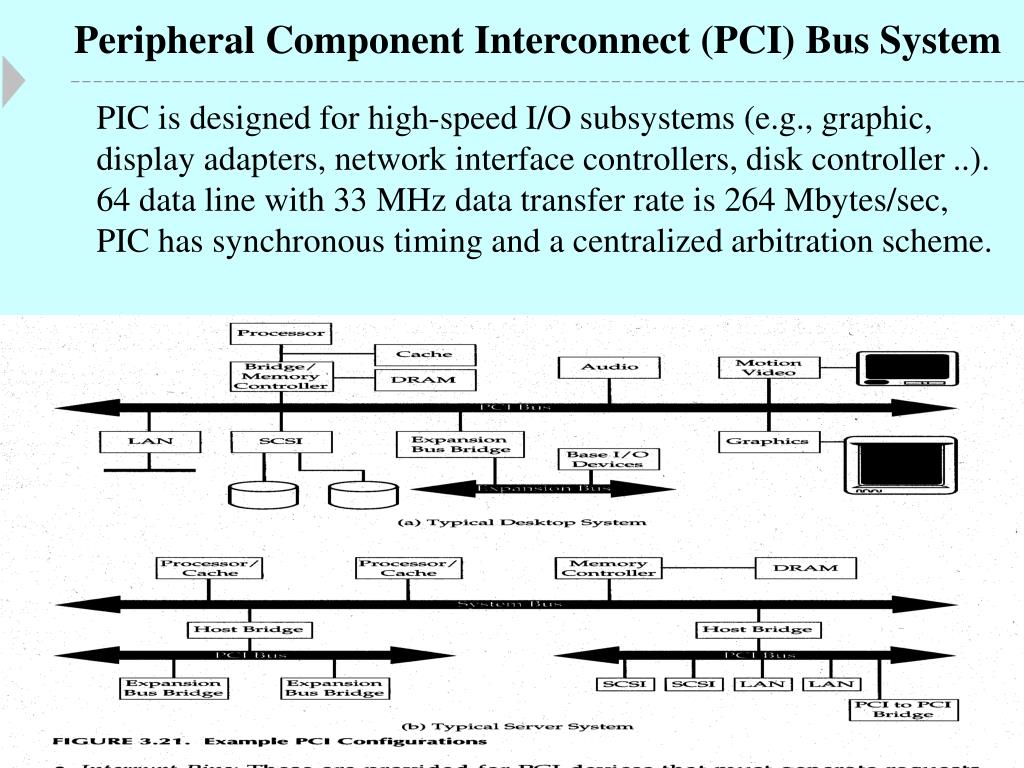

Peripheral Component Interconnect (PCI) Bus System in memory, or is used to

PIC is designed for high-speed I/O subsystems (e.g., graphic,

display adapters, network interface controllers, disk controller ..).

64 data line with 33 MHz data transfer rate is 264 Mbytes/sec,

PIC has synchronous timing and a centralized arbitration scheme.


Slide43 l.jpg

Peripheral Component Interconnect (PCI) Bus System in memory, or is used to

  • System Pins: Include the clock and reset pins

  • Address and Data Pins: Time-multiplexed for addresses and data.

  • Interface Control Pines: Control the timing of transactions.

  • Arbitration Pines: PCI master has its own pair of arbitration lines

  • that connect it direst to the PCI bus arbiter.

  • Error Reporting Pins: Used to report parity and other errors.

  • Interrupt Pins: PCI device has its own interrupt line or lines

  • to an interrupt controller.

  • Cache Support Pines: These pins support snoopy cache protocols.

  • 64-bit Bus Extension Pines: There are two lines that enable two

  • PCI devices to the use of the 64-bit capability.

  • JTAG/Boundary Scan Pines: The signal lines support testing.

PCI Commands (Home work)


Slide44 l.jpg

PCI Data Transfers in memory, or is used to

Every data transfer on the PCI bus is a signal transaction

consisting of one address phase and one or more data phases.


Slide45 l.jpg

PCI Bus Arbitration in memory, or is used to

PCI makes use of a centralized, synchronous arbitration scheme in which each master has a unique request (REQ) and grant (GNT) signal. These signal lines are attached to a central arbiter and a simple request-grant handshake is used to grant access to the bus.

It is a first-come-first-served approach, a round-robin approach, or some sort of priority scheme.


Slide46 l.jpg

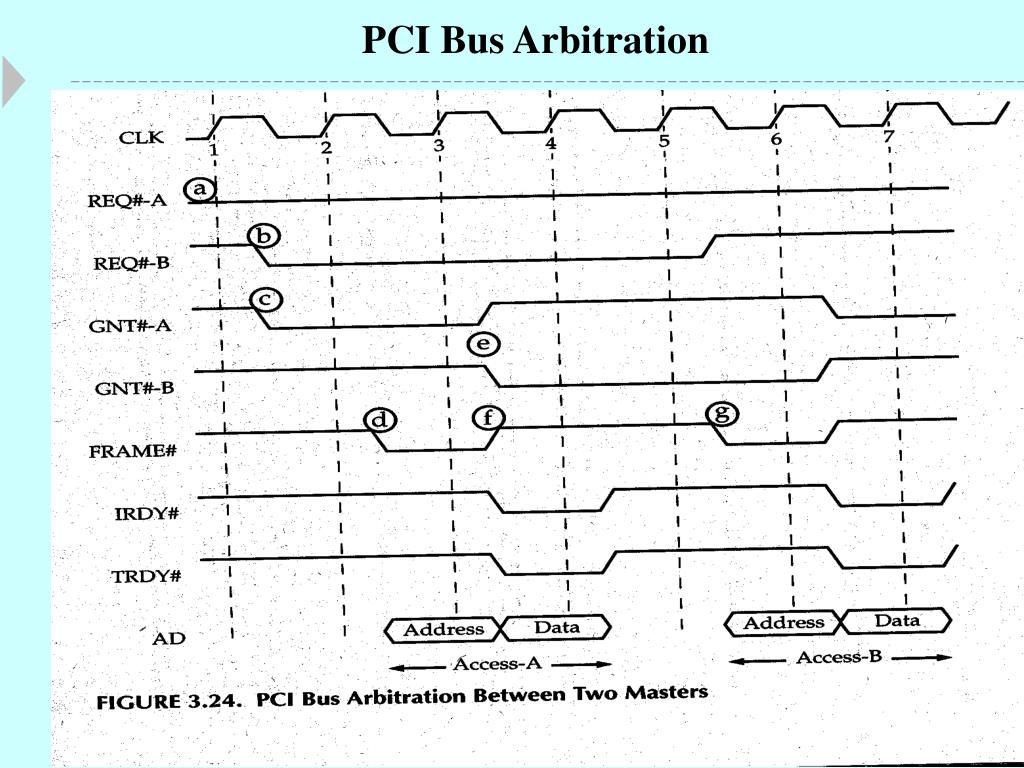

PCI Bus Arbitration in memory, or is used to


Slide47 l.jpg

Assignment : in memory, or is used to

1. Please put your comments over the FUTUREBUS+ .

Take note of every aspect of BUS design.

2. (Q/3.13) Draw and explain a timing diagram for a PCI

write operations.

(3.3, 3.8, 3.10, 3.11, 3.12)


Slide48 l.jpg

Computer Memory System in memory, or is used to

Key characteristics of computer memory systems

LocationPerformance

CPU Access time

Internal (main) Cycle time

External (secondary) Transfer rate

Capacity Physical Type

Word size Semiconductor

Number of words Magnetic surface

Unit of Transfer Physical Characteristics

Word Volatile/non-volatile

Block Erasable/non-erasable

Access Method Organization

Sequential access

Direct access

Random access

Associative access


Slide49 l.jpg

The Memory Hierarchy in memory, or is used to


Slide50 l.jpg

Memory Chip in memory, or is used to


Slide51 l.jpg

Error Correction in memory, or is used to


Slide52 l.jpg

Cache Memory in memory, or is used to

(the phenomenon of locality of reference)

There is a relatively larger and slower main memory together with a smaller, faster cache

memory. The cache contains a copy of portions of main memory.

Cache consists of C slots of K works each, and the number of clots, or lines, in considerably

less than the number of main memory block (C << M). If a word in a block of memory

is read, that block is transferred to one of the slots of the cache.


Slide53 l.jpg

Cache Memory Read Operation in memory, or is used to

(the phenomenon of locality of reference)

Elements of Cache Design

Cache Size

Mapping Function

Direct

Associative

Set associative

Replacement Algorithm

Least-recently used (LRU)

First-in-first-out (FIFO)

Least-frequently used (LFU)

Random

Write Policy

Write Through

Write back

Write once

Block Size

Number of Caches

Single or two-level

Unified or split


Slide54 l.jpg

Mapping Function in memory, or is used to


Slide55 l.jpg

Associative Cache Mapping in memory, or is used to


Slide56 l.jpg

Associative Cache Mapping in memory, or is used to


Slide57 l.jpg

Associative Cache Mapping in memory, or is used to


Slide58 l.jpg

Associative Cache Mapping in memory, or is used to


Slide59 l.jpg

Pentium Processor in memory, or is used to


Slide60 l.jpg

Pentium Processor in memory, or is used to


Slide61 l.jpg

PowerPC in memory, or is used to


Slide62 l.jpg

PowerPC Cache State Diagram in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide63 l.jpg

Enhanced Dynamic RAM (EDRAM) in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide64 l.jpg

Synchronous Dynamic RAM (SDRAM) in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide65 l.jpg

RamLink Architecture in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide66 l.jpg

Magnetic Disk Data Layout in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide67 l.jpg

Winchester Disk Track Format in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide68 l.jpg

Characteristics of Disk Systems in memory, or is used to

Head Motion Platters

Fixed head (one per track) Single-platter

Movable head (one per surface) Multiple-platter

Disk Portability Head Mechanism

Non-removable disk Contact (floppy)

Removable disk Fixed gap

Sides Aerodynamic gap

Single-sided (Winchester)

Double-sided

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide69 l.jpg

Multiple-Platter Disk in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide70 l.jpg

Redundant Array of Independent Disks (RAID) in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide71 l.jpg

Optical Memory {Compact Disk (CD) } in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide72 l.jpg

I/O Modules in memory, or is used to

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide73 l.jpg

I/O Modules in memory, or is used to

  • I/O Module Functions:

  • Control and Timing : to coordinate the flow of traffic between internal resources and external devices. (1) The CPU interrogates the I/O module to check the status of the attached device. (2) The I/O module returns the device status. (3) If the device is operational and ready to transmit, the CPU requests the transfer of data, by means of a command to the I/O module. (4) The I/O module obtains a unit of data from the external device. (5) The data are transferred from the I/O module to the CPU.

  • CPU Communication : to communicate with the CPU and the external devices. (1) Command decoding, (2) Data, (3) Status reporting (4) Address Recognition

  • Device Communication

  • Data Buffering

  • Error Detection

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide74 l.jpg

Programmed I/O, Interrupt-Driven I/O and Direct Memory Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide75 l.jpg

Memory-mapped and isolated I/O Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide76 l.jpg

Memory-mapped and isolated I/O Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide77 l.jpg

Memory and register for an interrupt Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide78 l.jpg

Interrupt Controller (8259A) Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide79 l.jpg

Interrupt Controller (8259A) Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide80 l.jpg

Keyboard/Display Interface to 8255A Access

KK345 : Computer Architecture and Organization

 MMH, UPM



Slide82 l.jpg

Input/Output Channels Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide83 l.jpg

External Interface Access

Parallel and Serial Interface

Point-to-Point and Multi-point Configuration

Small Computer System Interface (ACSI)

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide84 l.jpg

SCSI Bus Signals Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide85 l.jpg

SCSI Bus Timing Diagram Access

Bus Free Delay

Bus Set Delay

Bus Settle Delay

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide86 l.jpg

SCSI Command Access

8 bits

  • The execution of the command

  • involves some or all of the following

  • steps:

  • The target acquires and decodes command information.

  • Data is transferred to or from the target [not performed for all commands]

  • The target generates and returns status information.

  • SCSI-2 standard includes commands for the following device types:

  • direct-access devices, sequential-access device, printers, processors, write-one device, CD-ROMs, scanners, optical memory devices, medium-changer devices, communication devices.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide87 l.jpg

P1394 Serial Bus and SCSI Bus Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide88 l.jpg

P1394 Configuration Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide89 l.jpg

P1394 Configuration Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide90 l.jpg

Operating System Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide91 l.jpg

Operating System Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide92 l.jpg

Multiprogramming Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide93 l.jpg

Uniprogramming vs. Multiprogramming Histogram Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide94 l.jpg

Scheduling Access

Multiprogramming

High-level Scheduling: The high-level scheduler determines which programs are admitted to the system for processing. (degree of multiprogramming- number of processing in memory).

In a batch system, newly submitted jobs are routed to disk and held in a queue or waiting line.

In time sharing, a process request is generated by the act of a user attempting to connect to the system. Time-sharing users are not simply queued up and kept waiting until the system can accept them. Rather, the operating system will accept all authorized comers until the system is saturated. At that point, a connection request is met with a message indicating that the system is full and the user should try again later.

Short-Term Scheduling: Known as the dispatcher, executes frequently and makes the fine-grained decision of which job to execute next. Process state concept :- New, Ready, Running, Waiting, Halted.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide95 l.jpg

Scheduling Techniques Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide96 l.jpg

Memory Management and Partitioning Access

Variable-size partitions

Compaction

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide97 l.jpg

Paging or page frames Access

Virtual Memory

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide98 l.jpg

Page Table Structure Access

Translation Lookaside Buffer

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide99 l.jpg

Segmentation Access

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide100 l.jpg

Segmentation Access

The advantages are:

1. It simplifies the handling of growing data structures.

2. It allows programs to be altered and recompiled independently.

3. It lends itself to sharing among processes.

4. It lends itself to protection.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide101 l.jpg

Pentium Memory Management Access

Address Spaces: Unsegmented Unpaged Memory, Unsegmented paged Memory, Segmented Unpaged

memory, segmented paged memory.

Segmentation: The physical address space employs a 32-bit address for a maximum of 4 Gbytes.

Unsegmented memory, the user’s virtual memory is 232 = 4 Gbytes. With segmented memory, the

total virtual memory space as seen by a user is 246 = 64 terabytes (Tbytes).

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide102 l.jpg

Pentium Memory Management (Memory address translation mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide103 l.jpg

PowerPC Memory Management mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide104 l.jpg

Problems mechanisms) and PowerPC

Q/7.2/ The answers are the same for (a) and (b). Assume that although CPU operations cannot

overlap, I/O operations can.

1 Job: TAT = NT CPU utilization = 50 %

2 Job: TAT = NT CPU utilization = 100 %

4 Job: TAT = (2N - 1)T CPU utilization = 100 %

Q/7.7/ With very small page size, there are two problems: (1) Since very little data is brought in with each page, there will need to be a lot of I/O to bring in the many small pages. (2) The overhead (page table size, length of field for page number) will be disproportionately high.

If pages are very large, main memory will be wasted because the principle of locality suggests that only a small part of the large page will be used.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide105 l.jpg

The Central Processing Unit (CPU) mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide106 l.jpg

CPU mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide107 l.jpg

CPU mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide108 l.jpg

Instruction Sets: Characteristics and Functions mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide109 l.jpg

Instruction Sets: Characteristics and Functions mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide110 l.jpg

Instruction Sets: Characteristics and Functions mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide111 l.jpg

Instruction Sets: Characteristics and Functions mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide112 l.jpg

Instruction Sets: Addressing Modes and Formats mechanisms) and PowerPC

Mode Algorithm Principal Advantage Principal Disadvantage

-------------------------------------------------------------------------------------------

Immediate Operand = A No memory reference Limited Operand magnitude

Direct EA=A Simple Limited address space

Indirect EA=(A) Large address space Multiple memory references

Register EA=R No memory reference Limited address space

Register indirect EA=(R) Flexibility Complex

Stack EA=top of stack No memory reference Limited applicability

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide113 l.jpg

Addressing Modes mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide114 l.jpg

Instruction Format mechanisms) and PowerPC

  • Instruction Length

  • Allocation of Bits

    • Number of Addressing Modes

    • Number of Operands

    • Register vs. Memory

    • Number of Register sets

    • Address Range

    • Address Granularity

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide115 l.jpg

Pentium Instruction Format mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide116 l.jpg

CPU Structure and Function mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide117 l.jpg

The Instruction Cycle mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide118 l.jpg

Data Flow mechanisms) and PowerPC

Instruction Pipelining

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide119 l.jpg

Instruction Pipelining mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide120 l.jpg

Instruction Pipelining mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide121 l.jpg

Instruction Pipelining mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide122 l.jpg

Reduced Instruction Set Computers RISC mechanisms) and PowerPC

  • The major advances are :The Family Concept, Micro-programmed Control, Cache Memory, Pipelining, Multiple Processors.

  • RISC System:

  • A limited and simple instruction set.

  • A large number of general-purpose registers, or the use of compiler technology to optimize register usage.

  • An emphasis on optimizing the instruction pipeline.

CISC - Complex Instruction Set Computer

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide123 l.jpg

RISC - Instruction Execution Characteristics mechanisms) and PowerPC

  • The goal:

  • Ease the task of the compiler writer.

  • Improve execution efficiency.

  • Provide support for even more complex and sophisticated high-level language.

  • The aspects of computation of interest are:

  • Operations Performed: These determine the functions to be performed by the CPU and its interaction with memory.

  • Operands Used: The types of operands and the frequency of their use determine the memory organization for storing them and the addressing modes for accessing them.

  • Execution Sequencing: This determines the control and pipeline organization.

  • Operations, Operands, Procedure Calls and Implication

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide124 l.jpg

RISC - Instruction Execution Characteristics mechanisms) and PowerPC

Large Register File

This is intended to optimize operand referencing.

Local registers are used for local variables, as assigned by the compiler. Temporary register are

used to exchange parameters and results with the next lower level. Current-window pointer (CWP) is

used.

Global Variable:

1. Variables declared as global in an HLL can be assigned memory locations by the compiler and all machine instructions that reference these variables will use memory reference operands.

2. Alternative is to incorporate a set of global registers in the CPU. May be with unified numbering scheme.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide125 l.jpg

RISC - Instruction Execution Characteristics mechanisms) and PowerPC

Large Register File Versus Cache

Register File

The register file, organized into windows, acts

as a small, fast buffer for holding a subset of all variables that are likely to be used the most heavily.

The window-based register file holds all local scalar variables.

The register file should save time, since all local scalar variables are retained. The register file contains only variables those are in use.

A register file may make inefficient use of space, since not all procedures will need the full window space allotted to them. With the register file, the movement of data between register and memory is determined by the procedure nesting depth.

Cache Memory

The register file acts much like a cache memory. The cache holds a selection of recently used scalar variables. The cache may make more efficient use of space, since it is reacting to the situation dynamically.

The cache is capable of handling global as well as local variables.

The cache reads in a block of data, some or much of which will not be used.

Most cache memories are set associative with a small set size. Thus, there is the danger that other data or instructions will overwrite frequently used variables.

The register approach is clearly superior and which suggests that a cache-based system will be noticeably slower.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide126 l.jpg

RISC - Instruction Execution Characteristics mechanisms) and PowerPC

Compiler-based Register Optimization

The objective of the compiler is to keep the operands for as many computations as possible in registers rather than main memory, and to minimize load-and-store operations.

Each program quantity that is a candidate for residing in a register is assigned to a symbolic or virtual register. The compiler then maps the unlimited number of symbolic register into a fixed number of real registers. Symbolic registers whose usage does not overlap can share the same real register. If, in a particular portion of the program, there are more quantities to deal with than real registers, then some of the quantities are assigned to memory locations. Load-and-store instructions are used to temporarily position quantities in registers for computational operations.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide127 l.jpg

RISC - Architecture mechanisms) and PowerPC

CISC: Desire to simplify compilers and a desire to improve performance

RISC: Program takes up less memory. Fewer instruction means fewer instruction bytes to be fetched. In a paging environment, smaller programs occupy fewer pages, reducing page faults.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide128 l.jpg

Characteristics of RISC Architecture mechanisms) and PowerPC

CISC Versus RISC Characteristics

1. A simple instruction size. 2. That size is typically 4 bytes. 3. A small number of data addressing modes, typically less than five. 4. No indirect addressing mode. 5. No operations that combine load/store with arithmetic. 6. No more than one memory-addressed operand per instruction. 7. Does not support arbitrary alignment of data for load/store operations. 8. Maximum number of uses of the memory management unit (MMU) for a data address in an instruction. 9. Number of bits for integer register specifier equal to five or more. 10. Number of bits for floating-point register specifier equal to four or more. 1-3 (instruction decode complexity) 4-8 (difficulty of pipelining) and 9-10 (good advantage of compilers).

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide129 l.jpg

RISC Pipelining mechanisms) and PowerPC

  • Most instructions are register-to-register, and an instruction cycle has the following two phases:

  • I: Instruction Fetch.

  • E: Execute. Performs an ALU operation with register input and output.

  • For load and store operations, three phases are required:

  • I: Instruction Fetch.

  • E: Execute. Calculates memory address.

  • D: Memory. Register-to-memory or memory-to-register operation.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide130 l.jpg

RISC Pipelining mechanisms) and PowerPC

Optimization of Pipelining

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide131 l.jpg

Motorola 88000 - Instruction Set mechanisms) and PowerPC

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide132 l.jpg

Motorola 88000 - Instruction Set mechanisms) and PowerPC

Architecture: The main processor chip consists of multiple independent function units connected

to a multiported register file. The function units can operate independently and concurrently,

providing a very efficient means of processing instructions.

(1) Integer Unit, (2) Floating-Point Unit, (3) Instruction Unit, (4) Data Memory Unit.

The memory bus interface two cache memory management units to the memory system, one for

data and one for instructions. This feature is implemented on a number of recent RISC system.

Register Management: It has 32 bit 32 general purpose registers.

Instruction Unit Pipeline:

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide133 l.jpg

Motorola 88000 - Instruction Set mechanisms) and PowerPC

The RISC versus CISC controversy

The RISC approach can be grouped into two categories: (1) Quantitative, (2) Qualitative. Most commercially available machines advertised as RISC a mixture of RISC and CISC characteristics. (80X86…)

Function Units

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide134 l.jpg

The RISC versus CISC mechanisms) and PowerPC

Kiviat graph is used to assess the degree to which a processor exhibits RISC characteristics.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide135 l.jpg

The RISC versus CISC mechanisms) and PowerPC

Kiviat graph is used to assess the degree to which a processor exhibits RISC characteristics.

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide136 l.jpg

Superscalar Processors mechanisms) and PowerPC

A superscalar implementation of a processor architecture is one in which common

instructions - integer and floating-point arithmetic, loads, stores, and conditional branches-

can be initiated simultaneously and executed independently.

  • The superscalar approach depends on the ability

  • to execute multiple instructions in parallel. A

  • combination of compiler-based optimization and

  • hardware techniques can be used to maximize

  • instruction-level parallelism.

  • True Data Dependency

  • Procedural Dependency

  • Resource Conflicts

  • Output Dependency

  • Antidependency

KK345 : Computer Architecture and Organization

 MMH, UPM


Slide137 l.jpg

Superscalar Processors mechanisms) and PowerPC

  • True Data Dependency

  • Procedural Dependency

  • Resource Conflicts

  • Output Dependency

  • Antidependency

KK345 : Computer Architecture and Organization

 MMH, UPM


ad
