Presentation Transcript
Let s get started with l.jpg
Let’s get started with...

  • Logic!

CMSC 203 - Discrete Structures


Logic l.jpg
Logic

  • Crucial for mathematical reasoning

  • Important for program design

  • Used for designing electronic circuitry

  • Logic is a system based on propositions.

  • A proposition is a (declarative) statement that is either true or false (not both).

  • We say that the truth value of a proposition is either true (T) or false (F).

  • Corresponds to 1 and 0 in digital circuits

CMSC 203 - Discrete Structures


The statement proposition game l.jpg
The Statement/Proposition Game

  • “Elephants are bigger than mice.”

Is this a statement?

yes

Is this a proposition?

yes

What is the truth value

of the proposition?

true

CMSC 203 - Discrete Structures


The statement proposition game4 l.jpg
The Statement/Proposition Game

  • “520 < 111”

Is this a statement?

yes

Is this a proposition?

yes

What is the truth value

of the proposition?

false

CMSC 203 - Discrete Structures


The statement proposition game5 l.jpg
The Statement/Proposition Game

  • “y > 5”

Is this a statement?

yes

Is this a proposition?

no

Its truth value depends on the value of y, but this value is not specified.

We call this type of statement a propositional function or open sentence.

CMSC 203 - Discrete Structures


The statement proposition game6 l.jpg
The Statement/Proposition Game

  • “Today is January 27 and 99 < 5.”

Is this a statement?

yes

Is this a proposition?

yes

What is the truth value

of the proposition?

false

CMSC 203 - Discrete Structures


The statement proposition game7 l.jpg
The Statement/Proposition Game

  • “Please do not fall asleep.”

Is this a statement?

no

It’s a request.

Is this a proposition?

no

Only statements can be propositions.

CMSC 203 - Discrete Structures


The statement proposition game8 l.jpg
The Statement/Proposition Game

  • “If the moon is made of cheese,

  • then I will be rich.”

Is this a statement?

yes

Is this a proposition?

yes

What is the truth value

of the proposition?

probably true

CMSC 203 - Discrete Structures


The statement proposition game9 l.jpg

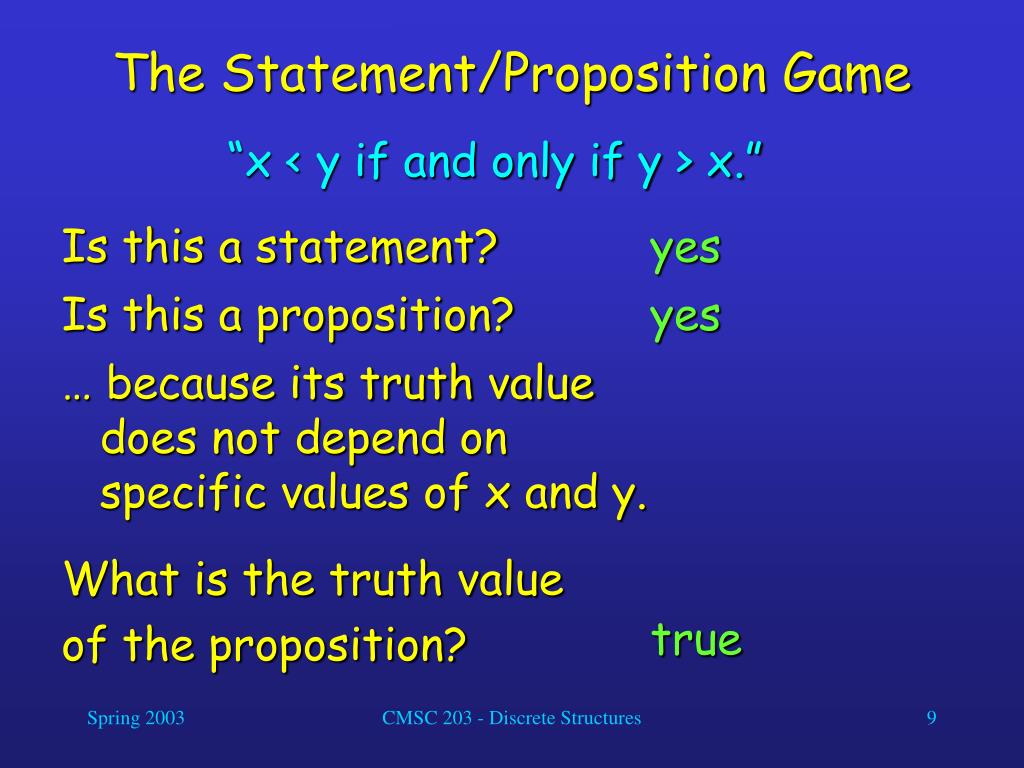

The Statement/Proposition Game

  • “x < y if and only if y > x.”

Is this a statement?

yes

Is this a proposition?

yes

… because its truth value does not depend on specific values of x and y.

What is the truth value

of the proposition?

true

CMSC 203 - Discrete Structures


Combining propositions l.jpg
Combining Propositions

  • As we have seen in the previous examples, one or more propositions can be combined to form a single compound proposition.

  • We formalize this by denoting propositions with letters such as p, q, r, s, and introducing several logical operators or logical connectives.

CMSC 203 - Discrete Structures


Logical operators connectives l.jpg
Logical Operators (Connectives)

  • We will examine the following logical operators:

  • Negation (NOT, )

  • Conjunction (AND, )

  • Disjunction (OR, )

  • Exclusive-or (XOR, )

  • Implication (if – then,  )

  • Biconditional (if and only if,  )

  • Truth tables can be used to show how these operators can combine propositions to compound propositions.

CMSC 203 - Discrete Structures


Negation not l.jpg
Negation (NOT)

  • Unary Operator, Symbol: 

CMSC 203 - Discrete Structures


Conjunction and l.jpg
Conjunction (AND)

  • Binary Operator, Symbol: 

CMSC 203 - Discrete Structures


Disjunction or l.jpg
Disjunction (OR)

  • Binary Operator, Symbol: 

CMSC 203 - Discrete Structures


Exclusive or xor l.jpg
Exclusive Or (XOR)

  • Binary Operator, Symbol: 

CMSC 203 - Discrete Structures


Implication if then l.jpg
Implication (if - then)

  • Binary Operator, Symbol: 

CMSC 203 - Discrete Structures


Biconditional if and only if l.jpg
Biconditional (if and only if)

  • Binary Operator, Symbol: 

CMSC 203 - Discrete Structures


Statements and operators l.jpg
Statements and Operators

  • Statements and operators can be combined in any way to form new statements.

CMSC 203 - Discrete Structures


Statements and operations l.jpg
Statements and Operations

  • Statements and operators can be combined in any way to form new statements.

CMSC 203 - Discrete Structures


Exercises l.jpg
Exercises

  • To take discrete mathematics, you must have taken calculus or a course in computer science.

  • When you buy a new car from Acme Motor Company, you get $2000 back in cash or a 2% car loan.

  • School is closed if more than 2 feet of snow falls or if the wind chill is below -100.

CMSC 203 - Discrete Structures


Equivalent statements l.jpg
Equivalent Statements

  • The statements  (PQ) and ( P)  ( Q) are logically equivalent, since they have the same truth table, or put it in another way, (PQ)  ( P)  ( Q) is always true.

CMSC 203 - Discrete Structures


Tautologies and contradictions l.jpg
Tautologies and Contradictions

  • A tautology is a statement that is always true.

  • Examples:

    • R (R)

    •  (PQ)  (P)( Q)

  • A contradiction is a statement that is always false.

  • Examples:

    • R(R)

    •  ( (P  Q)  ( P)  ( Q))

  • The negation of any tautology is a contradiction, and the negation of any contradiction is a tautology.

CMSC 203 - Discrete Structures


Equivalence l.jpg
Equivalence

  • Definition: two propositional statements S1 and S2 are said to be (logically) equivalent, denoted S1  S2 if

    • They have the same truth table, or

    • S1  S2 is a tautology

  • Equivalence can be established by

    • Constructing truth tables

    • Using equivalence laws (Table 5 in Section 1.2)

CMSC 203 - Discrete Structures


Equivalence24 l.jpg

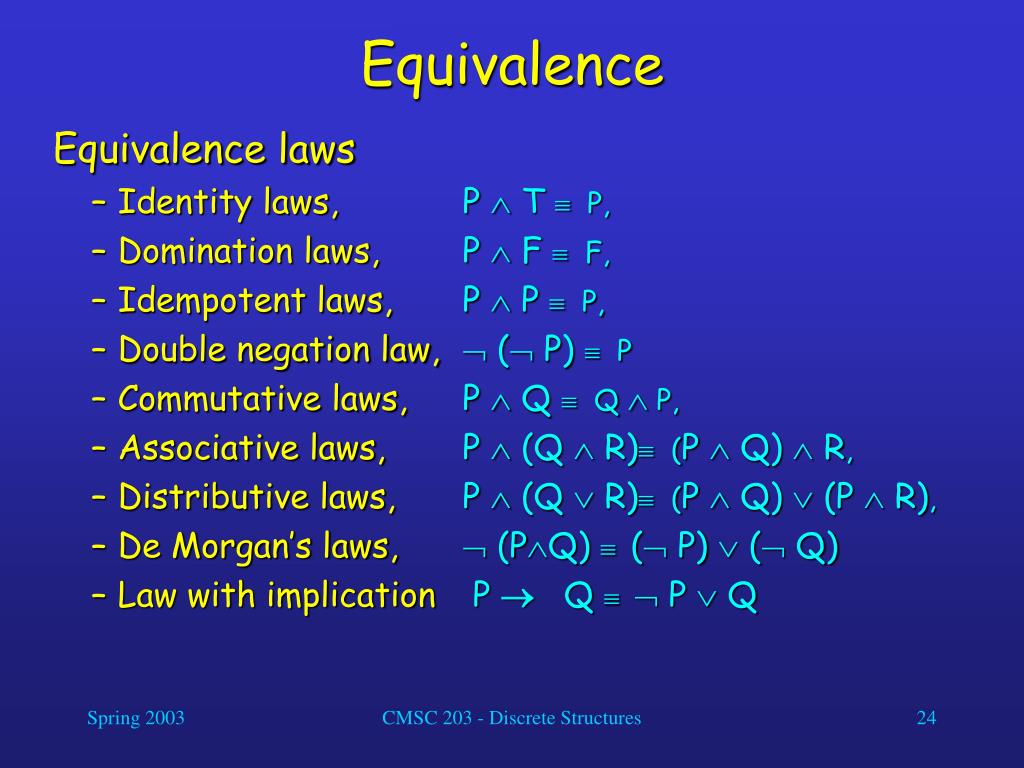

Equivalence

  • Equivalence laws

    • Identity laws, P  T  P,

    • Domination laws, P  F  F,

    • Idempotent laws, P  P  P,

    • Double negation law,  ( P)  P

    • Commutative laws, P  Q  Q  P,

    • Associative laws, P  (Q  R) (P  Q)  R,

    • Distributive laws, P  (Q  R) (P  Q)  (P  R),

    • De Morgan’s laws,  (PQ) ( P)  ( Q)

    • Law with implication P  Q  P  Q

CMSC 203 - Discrete Structures


Exercises25 l.jpg
Exercises

  • Show that P  Q  P  Q: by truth table

  • Show that (P  Q)  (P  R)  P  (Q  R): by equivalence laws (q20, p27):

    • Law with implication on both sides

    • Distribution law on LHS

CMSC 203 - Discrete Structures


Summary sections 1 1 1 2 l.jpg
Summary, Sections 1.1, 1.2

  • Proposition

  • Truth value

  • Truth table

  • Operators and their truth tables

  • Equivalence of propositional statements

    • Definition

    • Proving equivalence (by truth table or equivalence laws)

CMSC 203 - Discrete Structures


Propositional functions predicates l.jpg
Propositional Functions & Predicates

  • Propositional function (open sentence):

  • statement involving one or more variables,

  • e.g.: x-3 > 5.

  • Let us call this propositional function P(x), where P is the predicate and x is the variable.

What is the truth value of P(2) ?

false

What is the truth value of P(8) ?

false

What is the truth value of P(9) ?

true

CMSC 203 - Discrete Structures


Propositional functions l.jpg
Propositional Functions

  • Let us consider the propositional function Q(x, y, z) defined as:

  • x + y = z.

  • Here, Q is the predicate and x, y, and z are the variables.

true

What is the truth value of Q(2, 3, 5) ?

What is the truth value of Q(0, 1, 2) ?

false

What is the truth value of Q(9, -9, 0) ?

true

A propositional function (predicate) becomes a proposition when all its variables are instantiated.

CMSC 203 - Discrete Structures


Universal quantification l.jpg
Universal Quantification

  • Let P(x) be a predicate (propositional function).

  • Universally quantified sentence:

  • For all x in the universe of discourse P(x) is true.

  • Using the universal quantifier :

  • x P(x) “for all x P(x)” or “for every x P(x)”

  • (Note: x P(x) is either true or false, so it is a proposition, not a propositional function.)

CMSC 203 - Discrete Structures


Universal quantification30 l.jpg

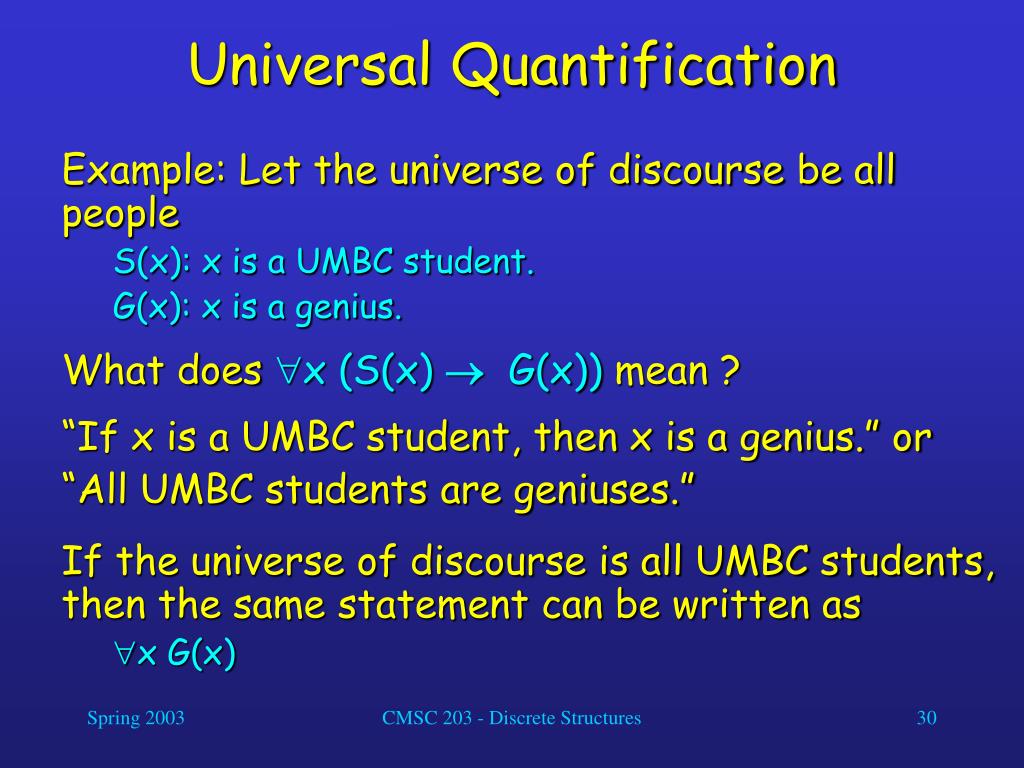

Universal Quantification

  • Example: Let the universe of discourse be all people

    S(x): x is a UMBC student.

    G(x): x is a genius.

  • What does x (S(x)  G(x)) mean ?

  • “If x is a UMBC student, then x is a genius.” or

  • “All UMBC students are geniuses.”

  • If the universe of discourse is all UMBC students, then the same statement can be written as

    x G(x)

CMSC 203 - Discrete Structures


Existential quantification l.jpg
Existential Quantification

  • Existentially quantified sentence:

  • There exists an x in the universe of discourse for which P(x) is true.

  • Using the existential quantifier :

  • x P(x) “There is an x such that P(x).”

  • “There is at least one x such that P(x).”

  • (Note: x P(x) is either true or false, so it is a proposition, but no propositional function.)

CMSC 203 - Discrete Structures


Existential quantification32 l.jpg
Existential Quantification

  • Example:

  • P(x): x is a UMBC professor.

  • G(x): x is a genius.

  • What does x (P(x)  G(x)) mean ?

  • “There is an x such that x is a UMBC professor and x is a genius.”

  • or

  • “At least one UMBC professor is a genius.”

CMSC 203 - Discrete Structures


Quantification l.jpg
Quantification

  • Another example:

  • Let the universe of discourse be the real numbers.

  • What does xy (x + y = 320) mean ?

  • “For every x there exists a y so that x + y = 320.”

Is it true?

yes

Is it true for the natural numbers?

no

CMSC 203 - Discrete Structures


Disproof by counterexample l.jpg

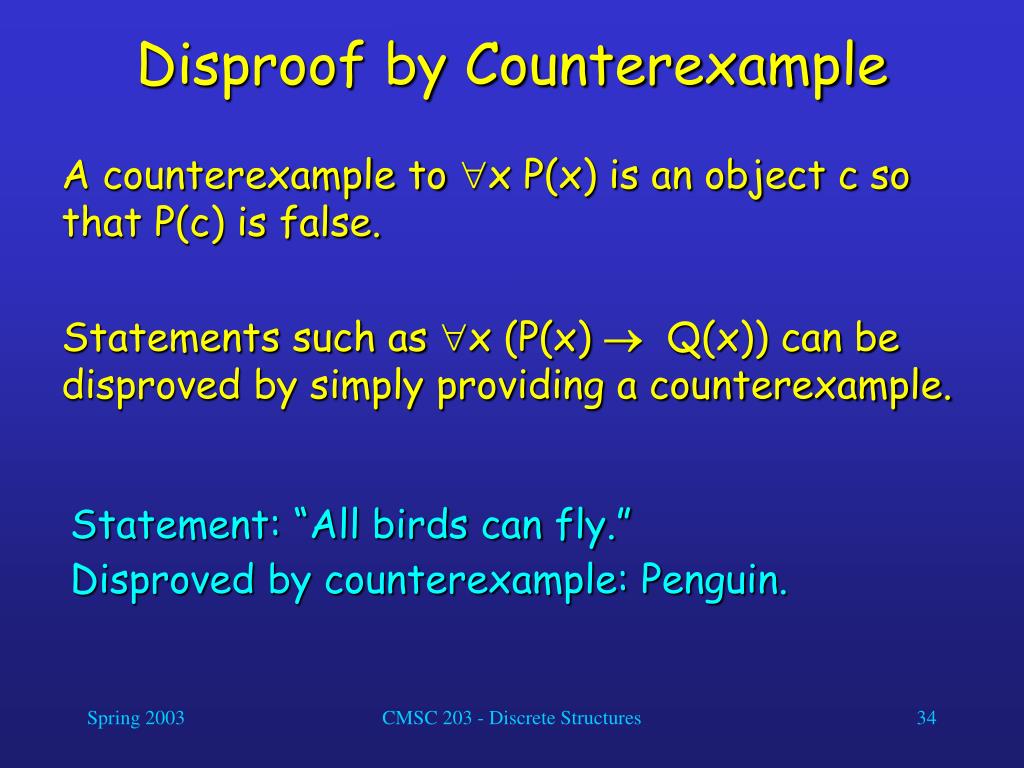

Disproof by Counterexample

  • A counterexample to x P(x) is an object c so that P(c) is false.

  • Statements such as x (P(x)  Q(x)) can be disproved by simply providing a counterexample.

Statement: “All birds can fly.”

Disproved by counterexample: Penguin.

CMSC 203 - Discrete Structures


Negation l.jpg
Negation

  •  (x P(x)) is logically equivalent to x ( P(x)).

  •  (x P(x)) is logically equivalent to x ( P(x)).

  • See Table 2 in Section 1.3.

  • This is de Morgan’s law for quantifiers

CMSC 203 - Discrete Structures


Nested quantifier l.jpg

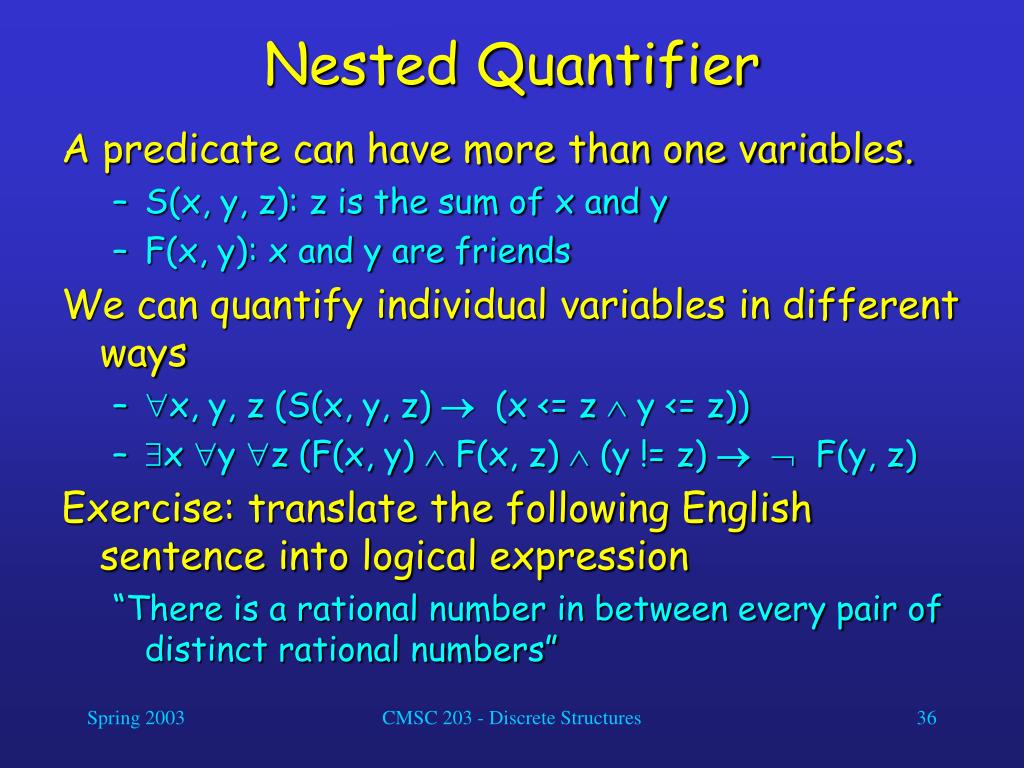

Nested Quantifier

  • A predicate can have more than one variables.

    • S(x, y, z): z is the sum of x and y

    • F(x, y): x and y are friends

  • We can quantify individual variables in different ways

    • x, y, z (S(x, y, z)  (x <= z  y <= z))

    • x y z (F(x, y)  F(x, z)  (y != z)  F(y, z)

  • Exercise: translate the following English sentence into logical expression

    “There is a rational number in between every pair of distinct rational numbers”

CMSC 203 - Discrete Structures


Summary sections 1 3 1 4 l.jpg
Summary, Sections 1.3, 1.4

  • Propositional functions (predicates)

  • Universal and existential quantifiers, and the duality of the two

  • When predicates become propositions

  • Nested quantifiers

  • Logical expressions formed by predicates, operators, and quantifiers

CMSC 203 - Discrete Structures


Let s proceed to l.jpg
Let’s proceed to…

  • Mathematical Reasoning

CMSC 203 - Discrete Structures


Mathematical reasoning l.jpg
Mathematical Reasoning

  • We need mathematical reasoning to

  • determine whether a mathematical argument is correct or incorrect and

  • construct mathematical arguments.

  • Mathematical reasoning is not only important for conducting proofs and program verification, but also for artificial intelligence systems (drawing logical inferences from knowledge and facts).

CMSC 203 - Discrete Structures


Terminology l.jpg
Terminology

  • An axiom is a basic assumption about mathematical structured that needs no proof.

  • We can use a proof to demonstrate that a particular statement is true. A proof consists of a sequence of statements that form an argument.

  • The steps that connect the statements in such a sequence are the rules of inference.

  • Cases of incorrect reasoning are called fallacies.

CMSC 203 - Discrete Structures


Terminology41 l.jpg
Terminology

  • A theorem is a statement that can be shown to be true.

  • A lemma is a simple theorem used as an intermediate result in the proof of another theorem.

  • A corollary is a proposition that follows directly from a theorem that has been proved.

  • A conjecture is a statement whose truth value is unknown. Once it is proven, it becomes a theorem.

CMSC 203 - Discrete Structures


Rules of inference l.jpg
Rules of Inference

  • Rules of inference provide the justification of the steps used in a proof.

  • One important rule is called modus ponens or the law of detachment. It is based on the tautology (p  (p  q))  q. We write it in the following way:

  • p

  • p  q

  • ____

  •  q

The two hypotheses p and p  q are written in a column, and the conclusionbelow a bar, where  means “therefore”.

CMSC 203 - Discrete Structures


Rules of inference43 l.jpg
Rules of Inference

  • The general form of a rule of inference is:

  • p1

  • p2

  • .

  • .

  • .

  • pn

  • ____

  •  q

The rule states that if p1and p2and … and pn are all true, then q is true as well.

These rules of inference can be used in any mathematical argument and do not require any proof.

CMSC 203 - Discrete Structures


Rules of inference44 l.jpg
Rules of Inference

q

p  q

_____

  p

Modus tollens

Addition

  • p

  • _____

  •  pq

p  q

q  r

_____

 p r

pq

_____

 p

Hypothetical syllogism

Simplification

p

q

_____

 pq

pq

 p

_____

 q

Conjunction

Disjunctive syllogism

CMSC 203 - Discrete Structures


Arguments l.jpg
Arguments

  • Just like a rule of inference, an argument consists of one or more hypotheses (or premises) and a conclusion.

  • We say that an argument is valid, if whenever all its hypotheses are true, its conclusion is also true.

  • However, if any hypothesis is false, even a valid argument can lead to an incorrect conclusion.

  • Proof: show that hypotheses  conclusion is true using rules of inference

CMSC 203 - Discrete Structures


Arguments46 l.jpg
Arguments

  • Example:

  • “If 101 is divisible by 3, then 1012 is divisible by 9. 101 is divisible by 3. Consequently, 1012 is divisible by 9.”

  • Although the argument is valid, its conclusion is incorrect, because one of the hypotheses is false (“101 is divisible by 3.”).

  • If in the above argument we replace 101 with 102, we could correctly conclude that 1022 is divisible by 9.

CMSC 203 - Discrete Structures


Arguments47 l.jpg
Arguments

  • Which rule of inference was used in the last argument?

  • p: “101 is divisible by 3.”

  • q: “1012 is divisible by 9.”

p

p  q

_____

 q

Modus ponens

Unfortunately, one of the hypotheses (p) is false.

Therefore, the conclusion q is incorrect.

CMSC 203 - Discrete Structures


Arguments48 l.jpg
Arguments

  • Another example:

  • “If it rains today, then we will not have a barbeque today. If we do not have a barbeque today, then we will have a barbeque tomorrow.Therefore, if it rains today, then we will have a barbeque tomorrow.”

  • This is a valid argument: If its hypotheses are true, then its conclusion is also true.

CMSC 203 - Discrete Structures


Arguments49 l.jpg
Arguments

  • Let us formalize the previous argument:

  • p: “It is raining today.”

  • q: “We will not have a barbecue today.”

  • r: “We will have a barbecue tomorrow.”

  • So the argument is of the following form:

p  q

q  r

______

 P  r

Hypothetical syllogism

CMSC 203 - Discrete Structures


Arguments50 l.jpg
Arguments

  • Another example:

  • Gary is either intelligent or a good actor.

  • If Gary is intelligent, then he can count from 1 to 10.

  • Gary can only count from 1 to 3.

  • Therefore, Gary is a good actor.

  • i: “Gary is intelligent.”

  • a: “Gary is a good actor.”

  • c: “Gary can count from 1 to 10.”

CMSC 203 - Discrete Structures


Arguments51 l.jpg
Arguments

  • i: “Gary is intelligent.”a: “Gary is a good actor.”c: “Gary can count from 1 to 10.”

  • Step 1:  c Hypothesis

  • Step 2: i  c Hypothesis

  • Step 3:  i Modus tollens Steps 1 & 2

  • Step 4: a  i Hypothesis

  • Step 5: a Disjunctive SyllogismSteps 3 & 4

  • Conclusion: a (“Gary is a good actor.”)

CMSC 203 - Discrete Structures


Arguments52 l.jpg
Arguments

  • Yet another example:

  • If you listen to me, you will pass CS 320.

  • You passed CS 320.

  • Therefore, you have listened to me.

  • Is this argument valid?

  • No, it assumes ((p  q) q)  p.

  • This statement is not a tautology. It is false if p is false and q is true.

CMSC 203 - Discrete Structures


Rules of inference for quantified statements l.jpg
Rules of Inference for Quantified Statements

Universal instantiation

  • x P(x)

  • __________

  •  P(c) if cU

P(c) for an arbitrary cU

___________________

 x P(x)

Universal generalization

x P(x)

______________________

 P(c) for some element cU

Existential instantiation

P(c) for some element cU

____________________

 x P(x)

Existential generalization

CMSC 203 - Discrete Structures


Rules of inference for quantified statements54 l.jpg
Rules of Inference for Quantified Statements

  • Example:

  • Every UMB student is a genius.

  • George is a UMB student.

  • Therefore, George is a genius.

  • U(x): “x is a UMB student.”

  • G(x): “x is a genius.”

CMSC 203 - Discrete Structures


Rules of inference for quantified statements55 l.jpg

x P(x)

__________

 P(c) if cU

Universal instantiation

Rules of Inference for Quantified Statements

  • The following steps are used in the argument:

  • Step 1: x (U(x)  G(x)) Hypothesis

  • Step 2: U(George)  G(George) Univ. instantiation using Step 1

Step 3: U(George) Hypothesis

Step 4: G(George) Modus ponens using Steps 2 & 3

CMSC 203 - Discrete Structures


Proving theorems l.jpg
Proving Theorems

  • Direct proof:

  • An implication p  q can be proved by showing that if p is true, then q is also true.

  • Example: Give a direct proof of the theorem “If n is odd, then n2 is odd.”

  • Idea: Assume that the hypothesis of this implication is true (n is odd). Then use rules of inference and known theorems of math to show that q must also be true (n2 is odd).

CMSC 203 - Discrete Structures


Proving theorems57 l.jpg
Proving Theorems

  • n is odd.

  • Then n = 2k + 1, where k is an integer.

  • Consequently, n2 = (2k + 1)2.

  • = 4k2 + 4k + 1

  • = 2(2k2 + 2k) + 1

  • Since n2 can be written in this form, it is odd.

CMSC 203 - Discrete Structures


Proving theorems58 l.jpg
Proving Theorems

  • Indirect proof:

  • An implication p  q is equivalent to its contra-positive  q   p. Therefore, we can prove p  q by showing that whenever q is false, then p is also false.

  • Example: Give an indirect proof of the theorem “If 3n + 2 is odd, then n is odd.”

  • Idea: Assume that the conclusion of this implication is false (n is even). Then use rules of inference and known theorems to show that p must also be false (3n + 2 is even).

CMSC 203 - Discrete Structures


Proving theorems59 l.jpg
Proving Theorems

  • n is even.

  • Then n = 2k, where k is an integer.

  • It follows that 3n + 2 = 3(2k) + 2

  • = 6k + 2

  • = 2(3k + 1)

  • Therefore, 3n + 2 is even.

  • We have shown that the contrapositive of the implication is true, so the implication itself is also true (If 2n + 3 is odd, then n is odd).

CMSC 203 - Discrete Structures


Summary section 1 5 l.jpg
Summary, Section 1.5

  • Terminology (axiom, theorem, conjecture, etc.)

  • Rules of inference (Tables 1 and 2)

  • Valid argument (hypotheses and conclusion)

  • Construction of valid argument using rules of inference

  • Direct and indirect proofs

  • Other proof methods (e.g., induction, pigeon hole) will be introduced in later chapters

CMSC 203 - Discrete Structures


And now for something completely different l.jpg
and now for something completely different…

  • Set Theory

Actually, you will see that logic and set theory are very closely related.

CMSC 203 - Discrete Structures


Set theory l.jpg
Set Theory

  • Set: Collection of objects (“elements”)

  • aA “a is an element of A” “a is a member of A”

  • aA “a is not an element of A”

  • A = {a1, a2, …, an} “A contains a1, …, an”

  • Order of elements is insignificant

  • It does not matter how often the same element is listed.

CMSC 203 - Discrete Structures


Set equality l.jpg
Set Equality

  • Sets A and B are equal if and only if they contain exactly the same elements.

  • Examples:

  • A = {9, 2, 7, -3}, B = {7, 9, -3, 2} :

A = B

  • A = {dog, cat, horse}, B = {cat, horse, squirrel, dog} :

A  B

  • A = {dog, cat, horse}, B = {cat, horse, dog, dog} :

A = B

CMSC 203 - Discrete Structures


Examples for sets l.jpg
Examples for Sets

  • “Standard” Sets:

  • Natural numbers N = {0, 1, 2, 3, …}

  • Integers Z = {…, -2, -1, 0, 1, 2, …}

  • Positive Integers Z+ = {1, 2, 3, 4, …}

  • Real Numbers R = {47.3, -12, , …}

  • Rational Numbers Q = {1.5, 2.6, -3.8, 15, …}

  • (correct definitions will follow)

CMSC 203 - Discrete Structures


Examples for sets65 l.jpg
Examples for Sets

  • A = “empty set/null set”

  • A = {z} Note: zA, but z  {z}

  • A = {{b, c}, {c, x, d}}

  • A = {{x, y}} Note: {x, y} A, but {x, y}  {{x, y}}

  • A = {x | P(x)}“set of all x such that P(x)”

  • A = {x | x N x > 7} = {8, 9, 10, …}“set builder notation”

CMSC 203 - Discrete Structures


Examples for sets66 l.jpg
Examples for Sets

  • We are now able to define the set of rational numbers Q:

  • Q = {a/b | aZ bZ+}, or

  • Q = {a/b | aZ bZ  b0}

  • And how about the set of real numbers R?

  • R = {r | r is a real number}That is the best we can do. It can neither be defined by enumeration or builder function.

CMSC 203 - Discrete Structures


Subsets l.jpg
Subsets

  • A  B “A is a subset of B”

  • A  B if and only if every element of A is also an element of B.

  • We can completely formalize this:

  • A  B  x (xA  xB)

  • Examples:

A = {3, 9}, B = {5, 9, 1, 3}, A  B ?

true

A = {3, 3, 3, 9}, B = {5, 9, 1, 3}, A  B ?

true

A = {1, 2, 3}, B = {2, 3, 4}, A  B ?

false

CMSC 203 - Discrete Structures


Subsets68 l.jpg

U

B

C

A

Subsets

  • Useful rules:

  • A = B  (A  B)  (B  A)

  • (A  B)  (B  C)  A  C (see Venn Diagram)

CMSC 203 - Discrete Structures


Subsets69 l.jpg
Subsets

  • Useful rules:

  •   A for any set A

  • A  A for any set A

  • Proper subsets:

  • A  B “A is a proper subset of B”

  • A  B  x (xA  xB)  x (xB  xA)

  • or

  • A  B  x (xA  xB)  x (xB  xA)

CMSC 203 - Discrete Structures


Cardinality of sets l.jpg
Cardinality of Sets

  • If a set S contains n distinct elements, nN,we call S a finite set with cardinality n.

  • Examples:

  • A = {Mercedes, BMW, Porsche}, |A| = 3

B = {1, {2, 3}, {4, 5}, 6}

|B| = 4

C = 

|C| = 0

D = { xN | x  7000 }

|D| = 7001

E = { xN | x  7000 }

E is infinite!

CMSC 203 - Discrete Structures


The power set l.jpg
The Power Set

  • P(A) “power set of A” (also written as 2A)

  • P(A) = {B | B  A} (contains all subsets of A)

  • Examples:

  • A = {x, y, z}

  • P(A)= {, {x}, {y}, {z}, {x, y}, {x, z}, {y, z}, {x, y, z}}

  • A = 

  • P(A) = {}

  • Note: |A| = 0, |P(A)| = 1

CMSC 203 - Discrete Structures


The power set72 l.jpg

  • 1

  • 2

  • 3

  • 4

  • 5

  • 6

  • 7

  • 8

  • x

  • x

  • x

  • x

  • x

  • x

  • x

  • x

  • x

  • y

  • y

  • y

  • y

  • y

  • y

  • y

  • y

  • y

  • z

  • z

  • z

  • z

  • z

  • z

  • z

  • z

  • z

The Power Set

  • Cardinality of power sets: | P(A) | = 2|A|

  • Imagine each element in A has an “on/off” switch

  • Each possible switch configuration in A corresponds to one subset of A, thus one element in P(A)

  • For 3 elements in A, there are 222 = 8 elements in P(A)

CMSC 203 - Discrete Structures


Cartesian product l.jpg
Cartesian Product

  • The ordered n-tuple (a1, a2, a3, …, an) is an ordered collection of n objects.

  • Two ordered n-tuples (a1, a2, a3, …, an) and (b1, b2, b3, …, bn) are equal if and only if they contain exactly the same elements in the same order, i.e. ai = bi for 1  i  n.

  • The Cartesian product of two sets is defined as:

  • AB = {(a, b) | aA  bB}

CMSC 203 - Discrete Structures


Cartesian product74 l.jpg

(bad, prof)}

(good, student),

(good, prof),

(bad, student),

(prof, bad)}

BA = {

(student, good),

(prof, good),

(student, bad),

Cartesian Product

  • Example:

  • A = {good, bad}, B = {student, prof}

  • AB = {

Example: A = {x, y}, B = {a, b, c}AB = {(x, a), (x, b), (x, c), (y, a), (y, b), (y, c)}

CMSC 203 - Discrete Structures


Cartesian product75 l.jpg
Cartesian Product

  • Note that:

  • A = 

  • A = 

  • For non-empty sets A and B: AB  AB  BA

  • |AB| = |A||B|

  • The Cartesian product of two or more sets is defined as:

  • A1A2…An = {(a1, a2, …, an) | aiA for 1  i  n}

CMSC 203 - Discrete Structures


Set operations l.jpg
Set Operations

  • Union: AB = {x | xA  xB}

  • Example: A = {a, b}, B = {b, c, d}

  • AB = {a, b, c, d}

  • Intersection: AB = {x | xA  xB}

  • Example: A = {a, b}, B = {b, c, d}

  • AB = {b}

CMSC 203 - Discrete Structures


Set operations77 l.jpg
Set Operations

  • Two sets are called disjoint if their intersection is empty, that is, they share no elements:

  • AB = 

  • The difference between two sets A and B contains exactly those elements of A that are not in B:

  • A-B = {x | xA  xB}Example: A = {a, b}, B = {b, c, d}, A-B = {a}

CMSC 203 - Discrete Structures


Set operations78 l.jpg
Set Operations

  • The complement of a set A contains exactly those elements under consideration that are not in A:

  • Ac = U-A

  • Example: U = N, B = {250, 251, 252, …}

  • Bc = {0, 1, 2, …, 248, 249}

CMSC 203 - Discrete Structures


Set identity l.jpg
Set Identity

  • Table 1 in Section 1.7 shows many useful equations

  • How can we prove A(BC) = (AB)(AC)?

  • Method I:logical equivalent

  • xA(BC)

  • xA  x(BC)

  • xA  (xB  xC)

  • (xA  xB)  (xA  xC) (distributive law)

  • x(AB)  x(AC)

  • x(AB)(AC)

    Every logical expression can be transformed into an equivalent expression in set theory and vice versa.

CMSC 203 - Discrete Structures


Set operations80 l.jpg

  • BC

  • A(BC)

  • AB

  • AC

  • (AB) (AC)

  • 0 0 0

  • 0

  • 0

  • 0

  • 0

  • 0

  • 0 0 1

  • 0

  • 0

  • 0

  • 1

  • 0

  • 0 1 0

  • 0

  • 0

  • 1

  • 0

  • 0

  • 0 1 1

  • 1

  • 1

  • 1

  • 1

  • 1

  • 1 0 0

  • 0

  • 1

  • 1

  • 1

  • 1

  • 1 0 1

  • 0

  • 1

  • 1

  • 1

  • 1

  • 1 1 0

  • 0

  • 1

  • 1

  • 1

  • 1

  • 1 1 1

  • 1

  • 1

  • 1

  • 1

  • 1

Set Operations

  • Method II: Membership table

  • 1 means “x is an element of this set”0 means “x is not an element of this set”

CMSC 203 - Discrete Structures


And the following mathematical appetizer is about l.jpg
… and the following mathematical appetizer is about…

  • Functions

CMSC 203 - Discrete Structures


Functions l.jpg
Functions

  • A function f from a set A to a set B is an assignment of exactly one element of B to each element of A.

  • We write

  • f(a) = b

  • if b is the unique element of B assigned by the function f to the element a of A.

  • If f is a function from A to B, we write

  • f: AB

  • (note: Here, ““ has nothing to do with if… then)

CMSC 203 - Discrete Structures


Functions83 l.jpg
Functions

  • If f:AB, we say that A is the domain of f and B is the codomain of f.

  • If f(a) = b, we say that b is the image of a and a is the pre-image of b.

  • The range of f:AB is the set of all images of elements of A.

  • We say that f:AB maps A to B.

CMSC 203 - Discrete Structures


Functions84 l.jpg
Functions

  • Let us take a look at the function f:PC with

  • P = {Linda, Max, Kathy, Peter}

  • C = {Boston, New York, Hong Kong, Moscow}

  • f(Linda) = Moscow

  • f(Max) = Boston

  • f(Kathy) = Hong Kong

  • f(Peter) = New York

  • Here, the range of f is C.

CMSC 203 - Discrete Structures


Functions85 l.jpg
Functions

  • Let us re-specify f as follows:

  • f(Linda) = Moscow

  • f(Max) = Boston

  • f(Kathy) = Hong Kong

  • f(Peter) = Boston

  • Is f still a function?

yes

What is its range?

{Moscow, Boston, Hong Kong}

CMSC 203 - Discrete Structures


Functions86 l.jpg

  • f(x)

Linda

Boston

  • Linda

  • Moscow

Max

New York

  • Max

  • Boston

Kathy

Hong Kong

  • Kathy

  • Hong Kong

Peter

Moscow

  • Peter

  • Boston

Functions

  • Other ways to represent f:

CMSC 203 - Discrete Structures


Functions87 l.jpg
Functions

  • If the domain of our function f is large, it is convenient to specify f with a formula, e.g.:

  • f:RR

  • f(x) = 2x

  • This leads to:

  • f(1) = 2

  • f(3) = 6

  • f(-3) = -6

CMSC 203 - Discrete Structures


Functions88 l.jpg
Functions

  • Let f1 and f2 be functions from A to R.

  • Then the sum and the product of f1 and f2 are also functions from A to R defined by:

  • (f1 + f2)(x) = f1(x) + f2(x)

  • (f1f2)(x) = f1(x) f2(x)

  • Example:

  • f1(x) = 3x, f2(x) = x + 5

  • (f1 + f2)(x) = f1(x) + f2(x) = 3x + x + 5 = 4x + 5

  • (f1f2)(x) = f1(x) f2(x) = 3x (x + 5) = 3x2 + 15x

CMSC 203 - Discrete Structures


Functions89 l.jpg
Functions

  • We already know that the range of a function f:AB is the set of all images of elements aA.

  • If we only regard a subset SA, the set of all images of elements sS is called the image of S.

  • We denote the image of S by f(S):

  • f(S) = {f(s) | sS}

CMSC 203 - Discrete Structures


Functions90 l.jpg
Functions

  • Let us look at the following well-known function:

  • f(Linda) = Moscow

  • f(Max) = Boston

  • f(Kathy) = Hong Kong

  • f(Peter) = Boston

  • What is the image of S = {Linda, Max} ?

  • f(S) = {Moscow, Boston}

  • What is the image of S = {Max, Peter} ?

  • f(S) = {Boston}

CMSC 203 - Discrete Structures


Properties of functions l.jpg
Properties of Functions

  • A function f:AB is said to be one-to-one (or injective), if and only if

  • x, yA (f(x) = f(y)  x = y)

  • In other words: f is one-to-one if and only if it does not map two distinct elements of A onto the same element of B.

CMSC 203 - Discrete Structures


Properties of functions92 l.jpg
Properties of Functions

g(Linda) = Moscow

g(Max) = Boston

g(Kathy) = Hong Kong

g(Peter) = New York

Is g one-to-one?

Yes, each element is assigned a unique element of the image.

  • And again…

  • f(Linda) = Moscow

  • f(Max) = Boston

  • f(Kathy) = Hong Kong

  • f(Peter) = Boston

  • Is f one-to-one?

  • No, Max and Peter are mapped onto the same element of the image.

CMSC 203 - Discrete Structures


Properties of functions93 l.jpg
Properties of Functions

  • How can we prove that a function f is one-to-one?

  • Whenever you want to prove something, first take a look at the relevant definition(s):

  • x, yA (f(x) = f(y)  x = y)

  • Example:

  • f:RR

  • f(x) = x2

  • Disproof by counterexample:

  • f(3) = f(-3), but 3  -3, so f is not one-to-one.

CMSC 203 - Discrete Structures


Properties of functions94 l.jpg
Properties of Functions

  • … and yet another example:

  • f:RR

  • f(x) = 3x

  • One-to-one: x, yA (f(x) = f(y)  x = y)

  • To show: f(x)  f(y) whenever x  y

  • x  y

  • 3x  3y

  • f(x)  f(y),

    so if x  y, then f(x)  f(y), that is, f is one-to-one.

CMSC 203 - Discrete Structures


Properties of functions95 l.jpg
Properties of Functions

  • A function f:AB with A,B  R is called strictly increasing, if

  • x,yA (x < y  f(x) < f(y)),

  • and strictly decreasing, if

  • x,yA (x < y  f(x) > f(y)).

  • Obviously, a function that is either strictly increasing or strictly decreasing is one-to-one.

CMSC 203 - Discrete Structures


Properties of functions96 l.jpg
Properties of Functions

  • A function f:AB is called onto, or surjective, if and only if for every element bB there is an element aA with f(a) = b.

  • In other words, f is onto if and only if its range is its entire codomain.

  • A function f: AB is a one-to-one correspondence, or a bijection, if and only if it is both one-to-one and onto.

  • Obviously, if f is a bijection and A and B are finite sets, then |A| = |B|.

CMSC 203 - Discrete Structures


Properties of functions97 l.jpg
Properties of Functions

  • Examples:

  • In the following examples, we use the arrow representation to illustrate functions f:AB.

  • In each example, the complete sets A and B are shown.

CMSC 203 - Discrete Structures


Properties of functions98 l.jpg

Linda

Boston

Max

New York

Kathy

Hong Kong

Peter

Moscow

Properties of Functions

  • Is f injective?

  • No.

  • Is f surjective?

  • No.

  • Is f bijective?

  • No.

CMSC 203 - Discrete Structures


Properties of functions99 l.jpg

Linda

Boston

Max

New York

Kathy

Hong Kong

Peter

Moscow

Properties of Functions

  • Is f injective?

  • No.

  • Is f surjective?

  • Yes.

  • Is f bijective?

  • No.

Paul

CMSC 203 - Discrete Structures


Properties of functions100 l.jpg

Linda

Boston

Max

New York

Kathy

Hong Kong

Peter

Moscow

Lübeck

Properties of Functions

  • Is f injective?

  • Yes.

  • Is f surjective?

  • No.

  • Is f bijective?

  • No.

CMSC 203 - Discrete Structures


Properties of functions101 l.jpg

Linda

Boston

Max

New York

Kathy

Hong Kong

Peter

Moscow

Lübeck

Properties of Functions

  • Is f injective?

  • No! f is not evena function!

CMSC 203 - Discrete Structures


Properties of functions102 l.jpg
Properties of Functions

Linda

Boston

  • Is f injective?

  • Yes.

  • Is f surjective?

  • Yes.

  • Is f bijective?

  • Yes.

Max

New York

Kathy

Hong Kong

Peter

Moscow

Helena

Lübeck

CMSC 203 - Discrete Structures


Inversion l.jpg
Inversion

  • An interesting property of bijections is that they have an inverse function.

  • The inverse function of the bijection f:AB is the function f-1:BA with

  • f-1(b) = a whenever f(a) = b.

CMSC 203 - Discrete Structures


Inversion104 l.jpg
Inversion

Example:

f(Linda) = Moscow

f(Max) = Boston

f(Kathy) = Hong Kong

f(Peter) = Lübeck

f(Helena) = New York

Clearly, f is bijective.

The inverse function f-1 is given by:

f-1(Moscow) = Linda

f-1(Boston) = Max

f-1(Hong Kong) = Kathy

f-1(Lübeck) = Peter

f-1(New York) = Helena

Inversion is only possible for bijections(= invertible functions)

CMSC 203 - Discrete Structures


Inversion105 l.jpg

f

f-1

Inversion

Linda

Boston

  • f-1:CP is no function, because it is not defined for all elements of C and assigns two images to the pre-image New York.

Max

New York

Kathy

Hong Kong

Peter

Moscow

Helena

Lübeck

CMSC 203 - Discrete Structures


Composition l.jpg
Composition

  • The composition of two functions g:AB and f:BC, denoted by fg, is defined by

  • (fg)(a) = f(g(a))

  • This means that

  • first, function g is applied to element aA, mapping it onto an element of B,

  • then, function f is applied to this element of B, mapping it onto an element of C.

  • Therefore, the composite function maps from A to C.

CMSC 203 - Discrete Structures


Composition107 l.jpg
Composition

  • Example:

  • f(x) = 7x – 4, g(x) = 3x,

  • f:RR, g:RR

  • (fg)(5) = f(g(5)) = f(15) = 105 – 4 = 101

  • (fg)(x) = f(g(x)) = f(3x) = 21x - 4

CMSC 203 - Discrete Structures


Composition108 l.jpg
Composition

  • Composition of a function and its inverse:

  • (f-1f)(x) = f-1(f(x)) = x

  • The composition of a function and its inverse is the identity function i(x) = x.

CMSC 203 - Discrete Structures


Graphs l.jpg
Graphs

  • Thegraphof a functionf:AB is the set of ordered pairs {(a, b) | aA and f(a) = b}.

  • The graph is a subset of AB that can be used to visualize f in a two-dimensional coordinate system.

CMSC 203 - Discrete Structures


Floor and ceiling functions l.jpg
Floor and Ceiling Functions

  • The floor and ceiling functions map the real numbers onto the integers (RZ).

  • The floor function assigns to rR the largest zZ with z  r, denoted by r.

  • Examples: 2.3 = 2, 2 = 2, 0.5 = 0, -3.5 = -4

  • The ceiling function assigns to rR the smallest zZ with z  r, denoted by r.

  • Examples: 2.3 = 3, 2 = 2, 0.5 = 1, -3.5 = -3

CMSC 203 - Discrete Structures


Exercises111 l.jpg
Exercises

  • I recommend Exercises 1 and 15 in Section 1.6.

  • It may also be useful to study the graph displays in that section.

  • Another question: What do all graph displays for any function f:RR have in common?

CMSC 203 - Discrete Structures


ad
