Presentation Transcript


Multivariate regression l.jpg

Multivariate Regression


Topics l.jpg

Topics

  • The form of the equation

  • Assumptions

  • Axis of evil (collinearity, heteroscedasticity and autocorrelation)

  • Model miss-specification

  • Missing a critical variable

  • Including irrelevant variable (s)


The form of the equation l.jpg

The form of the equation

Yt= Dependent variable

a1 = Intercept

b2= Constant (partial regression coefficient)

b3= Constant (partial regression coefficient)

X2 = Explanatory variable

X3 = Explanatory variable

et = Error term


Partial correlation slope coefficients l.jpg

Partial Correlation (slope) Coefficients

B2 measures the change in the mean value of Y per unit change in X2, while holding the value of X3 constant. (Known in calculus as a partial derivative)

Y = a +bX

dy = b


Assumptions of mvr l.jpg

Assumptions of MVR

  • X2 and X3 are non-stochastic, that is, their values are fixed in repeated sampling

  • The error term e has a zero mean value (Σe/N=0)

  • Homoscedasticity, that is the variance of “e”, is constant.

  • No autocorrelation exists between the error term and the explanatory variable.

  • No exact collinearity exist between X2 and X3

  • The error term “e” follows the normal distribution with mean zero and constant variance


Venn diagram correlation coefficients of determination r 2 l.jpg

Venn Diagram: Correlation & Coefficients of Determination (R2)

Y

Y

X2

X1

X1

X2

Correlation exists between

X1 and X2. There is a portion of the

variation of Y that can be attributed to

either one

No correlation exists between

X1 and X2. Each variable explains

a portion of the variation of Y


A special case perfect collinearity l.jpg

A special case: Perfect Collinearity

Y

X1 X2

X2 is a perfect function of X1. Therefore, including X2 would be irrelevant because does not explain any of the variation on Y that is already accounted by X1. The model will not run.


Consequences of collinearity l.jpg

Consequences of Collinearity

Multicollinearity is related to sample-specific issues

  • Large variance and standard error of OLS estimators

  • Wider confidence intervals

  • Insignificant t ratios

  • A high R2 but few significant t ratios

  • OLS estimators and their standard error are very sensitive to small changes in the data; they tend to be unstable

  • Wrong signs of regression coefficients

  • Difficult to determine the contribution of explanatory variables to the R2


Testing for multicollinarity l.jpg

TESTING FOR MULTICOLLINARITY


Slide10 l.jpg

DEPENDENT

TLA

BATHS

BEDROOM

AGE


Is bad if we have multicollinearity l.jpg

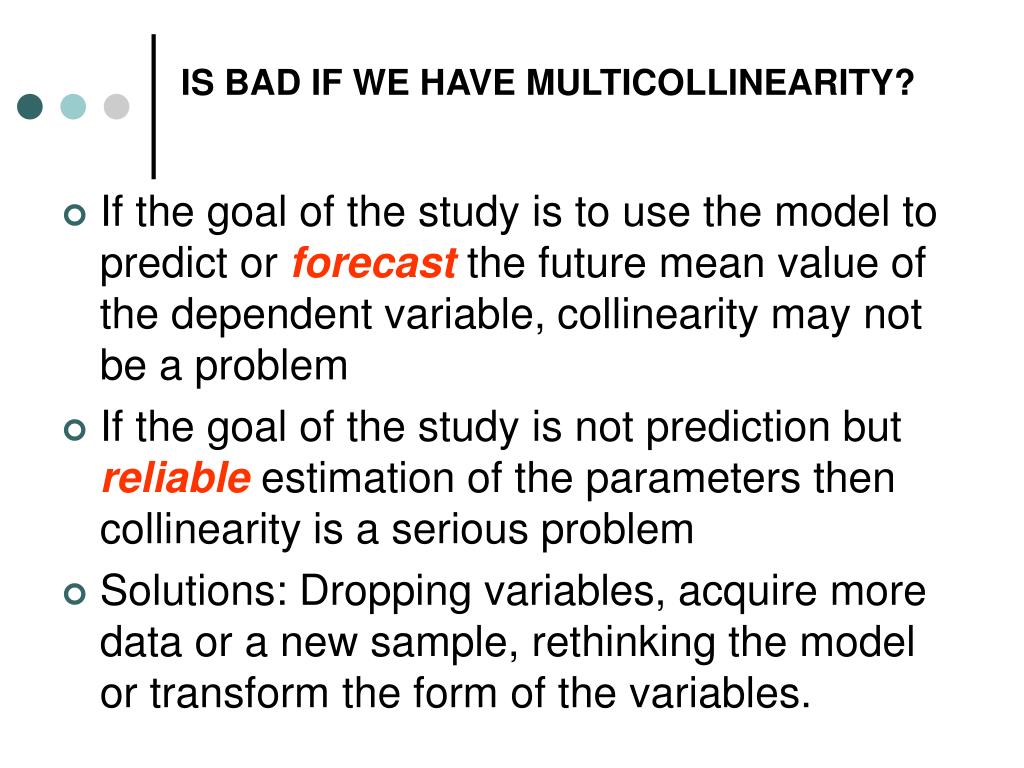

IS BAD IF WE HAVE MULTICOLLINEARITY?

  • If the goal of the study is to use the model to predict or forecast the future mean value of the dependent variable, collinearity may not be a problem

  • If the goal of the study is not prediction but reliable estimation of the parameters then collinearity is a serious problem

  • Solutions: Dropping variables, acquire more data or a new sample, rethinking the model or transform the form of the variables.


Heteroscedasticity l.jpg

Heteroscedasticity

  • Heteroscedasticity: The variance of “e” is not constant, therefore, violates the assumption of hemoscedasticity or equal variance.


Heteroscedasticity13 l.jpg

Heteroscedasticity


What to do when the pattern is not clear l.jpg

What to do when the pattern is not clear ?

  • Run a regression where you regress the residuals or error term on Y.


Let s estimate heteroscedasticity l.jpg

LET’S ESTIMATE HETEROSCEDASTICITY

Do a regression where the residuals become the dependent

Variable and home value the independent variable.


Consequences of heteroscedasticity l.jpg

Consequences of Heteroscedasticity

  • OLS estimators are still linear

  • OLS estimators are still unbiased

  • But they no longer have minimum variance. They are not longer BLUE

  • Therefore we run the risk of drawing wrong conclusions when doing hypothesis testing (Ho:b=0)

  • Solutions: variable transformation, develop a new model that takes into account no linearity (logarithmic function).


Testing for heteroscedasticity l.jpg

Testing for Heteroscedasticity

Let’s regress the predicted value (Y hat) on the log of the residual

(log e2) to see the pattern of heteroscedasticity.

Log e2

The above pattern shows that our relationships is best described as a

Logarithmic function


Autocorrelation l.jpg

Autocorrelation

  • Time-series correlation: The best predictor of sales for the present Christmas season is the previous Christmas season

  • Spatial correlation: The best predictor of a home’s value is the value of a home next door or in the same area or neighborhood.

  • The best predictor for a politician, to win an election as an incumbent, is the previous election (ceteris paribus)


Autocorrelation19 l.jpg

Autocorrelation

  • Gujarati defines autocorrelation as “correlation between members of observations ordered in time [as time- series data] or space as [in cross-sectional data].

    E (UiUj)=0

    The product of two different error terms Ui and Uj is zero.

  • Autocorrelation is a model specification error or the regression model is not specified correctly. A variable is missing or has the wrong functional form.


Types of autocorrelation l.jpg

Types of Autocorrelation


The durbin watson test d of autocorrelation l.jpg

The Durbin Watson Test (d) of Autocorrelation

Values of the d

d = 4 (perfect negative correlation

d = 2 (no autocorrelation)

d = 0 (perfect positive correlation)


Let s do a d test l.jpg

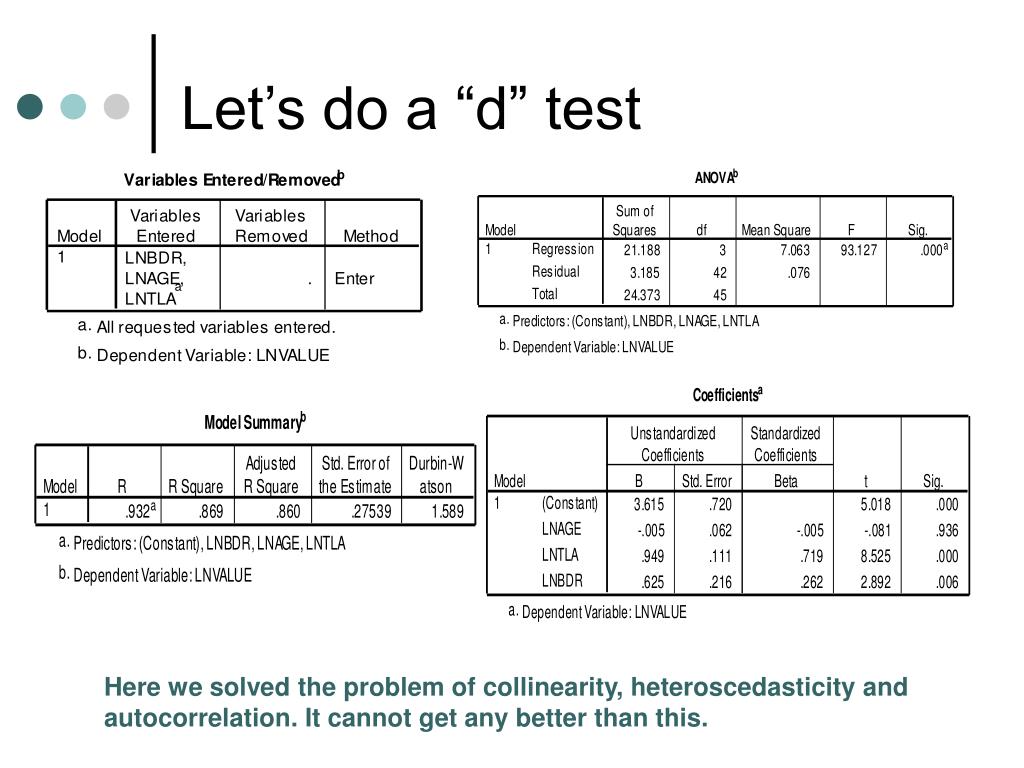

Let’s do a “d” test

Here we solved the problem of collinearity, heteroscedasticity and

autocorrelation. It cannot get any better than this.


Model miss specification l.jpg

Model Miss-specification

  • Omitted variable bias or underfitting a model. Therefore

  • The omitted variable is correlated with the included variable then the parameters estimated are bias, that is their expected values do not match the true value

  • The error variance estimated is bias

  • The confidence intervals and hypothesis-testing procedures and unreliable.

  • The R2 is also unreliable

  • Let’s run a model

    LnVAL = a + bLNTLA + bLNBDR + bLNAGE (true model)

    LnVAL=a +bLNBDR + LNAGE + e (underfitted)


Model miss specification24 l.jpg

Model Miss-specification

  • Irrelevant variable bias

  • The unnecessary variables has not effect on Y (although R2may increase).

  • The model still give us unbias and consistent estimates of the coefficients

  • The major penalty is that the true parameters are less precise therefore the CI are wider increasing the risk of drawing invalid inference during hypothesis testing (accept the Ho: B=0)

  • Let’s run the following model:

    LNVALUE=a + bLNTLA+ bLNBTH + bLNBDR + bLNAGE
