Presentation Transcript
power quality product overview

Power QualityProduct Overview

GE Consumer & Industrial

slide2

Content

  • Introduction
  • UPS Products
  • Static Transfer Switches
  • GE’s unique technologies
slide3

Energy is the Key

The actual power grid was built to supply the 3 main inventions of the last Century:

the light bulb

the electric motor

the refrigerator

Utilities provide a reliability of 99,9%= 8 hours out of tolerance/year„good enough“ for this type of application

To produce, store, transfer and restore 4 MB of data

we „burn“ the energy equivalent of 1 Kilo of coal

slide4

=

Utility not meeting business requirements

Process

Fact: 99.9%

Need: 99,9999999..%

„DIGITAL WORLD“

ELECTRICAL POWER

CRITICAL RAW MATERIAL OF THE 21ST CENTURY:

QUANTITY & QUALITY & RELIABILITY OF ELECTRONS

slide5

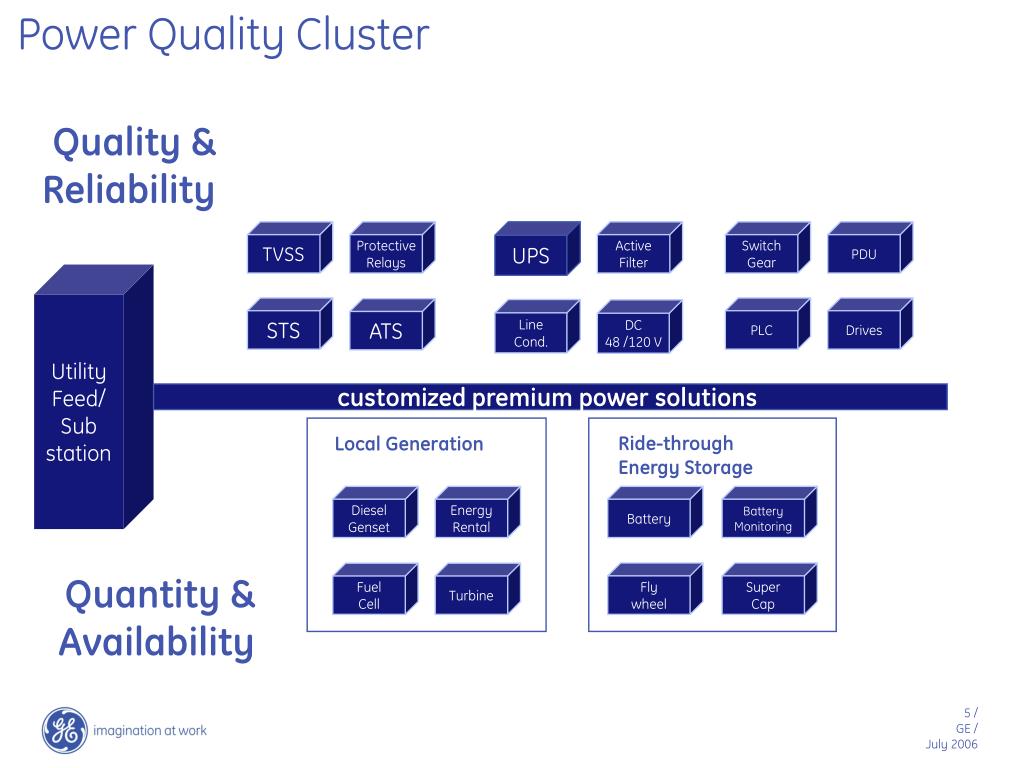

Power Quality Cluster

Quality &

Reliability

TVSS

Protective

Relays

UPS

Active

Filter

Switch

Gear

PDU

Utility

Feed/

Sub

station

STS

PLC

Drives

ATS

Line

Cond.

DC

48 /120 V

customized premium power solutions

Ride-through

Energy Storage

Local Generation

Diesel

Genset

Energy

Rental

Battery

Battery

Monitoring

Fly

wheel

Super

Cap

Fuel

Cell

Turbine

Quantity &

Availability

slide6

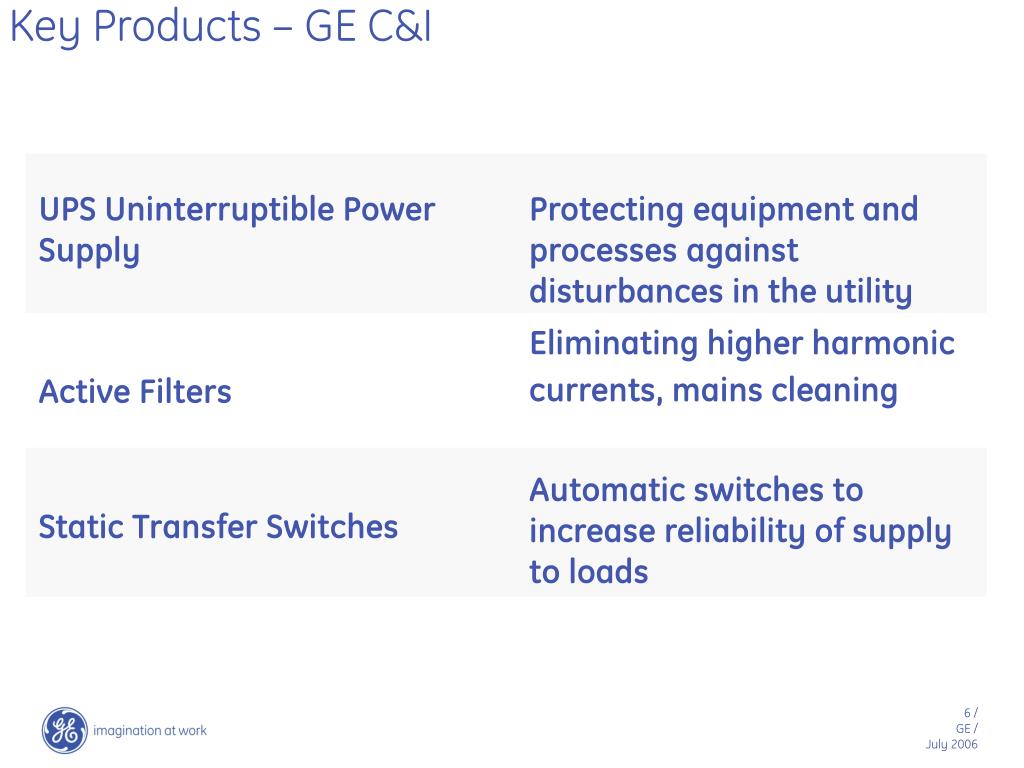

Key Products – GE C&I

  • UPS Uninterruptible Power Supply
  • Active Filters
  • Static Transfer Switches
  • Protecting equipment and processes against disturbances in the utility
  • Eliminating higher harmonic currents, mains cleaning
  • Automatic switches to increase reliability of supply
  • to loads
slide7

UPS – Product Range

0.35 – 3 KVA

3 to 30 KVA

Single or Redundant

20 – 120 KVA

Single or Redundant

– 4’000 KVA

Redundant

Commercial

Telecom - Wireless

Telecom - Wireline

Small Enterprise – Data Centre

Medium Enterprise – Data Centre

Large Enterprise – Data Centre

External Data Centre

Semiconductor Fab

Process Industry

BioTech, Pharmaceuticals, Hospitals

slide8

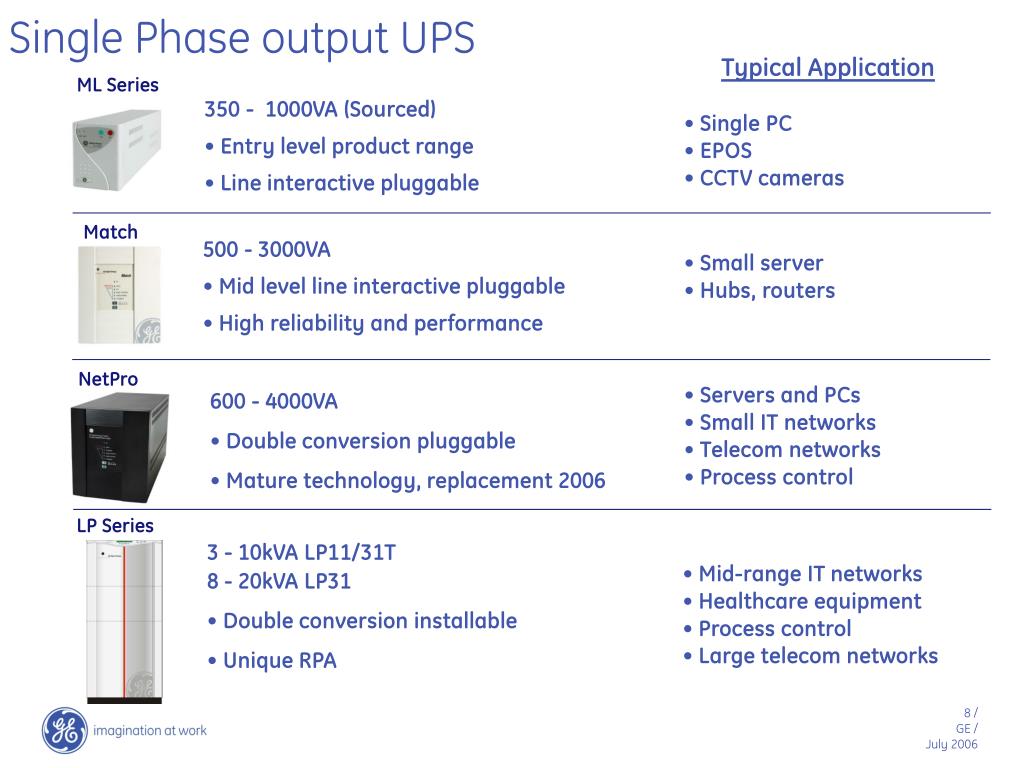

Single Phase output UPS

Typical Application

ML Series

  • 350 - 1000VA (Sourced)
  • Entry level product range
  • Line interactive pluggable
  • Single PC
  • EPOS
  • CCTV cameras

Match

  • 500 - 3000VA
  • Mid level line interactive pluggable
  • High reliability and performance
  • Small server
  • Hubs, routers

NetPro

  • Servers and PCs
  • Small IT networks
  • Telecom networks
  • Process control
  • 600 - 4000VA
  • Double conversion pluggable
  • Mature technology, replacement 2006

LP Series

  • 3 - 10kVA LP11/31T
  • 8 - 20kVA LP31
  • Double conversion installable
  • Unique RPA
  • Mid-range IT networks
  • Healthcare equipment
  • Process control
  • Large telecom networks
slide9

Three Phase output UPS

LP33 Series

Typical Application

  • Healthcare equipment
  • IT infrastructure
  • Telecom networks
  • 10 - 120kVA
  • Transformerless; Clean Input Tech
  • Small footprint, front access

SitePro

  • Process control
  • Transportation infrastructure
  • Telecom networks
  • Healthcare equipment
  • 10 - 60kVA ; 250 - 500kVA
  • Transformer base design
  • Configurable according to installation requirements

SG Series

  • 80 - 200kVA
  • Best in class in output performance
  • EMC solution for critical applications
  • IT networks
  • Industrial applications
  • Broadcasting systems

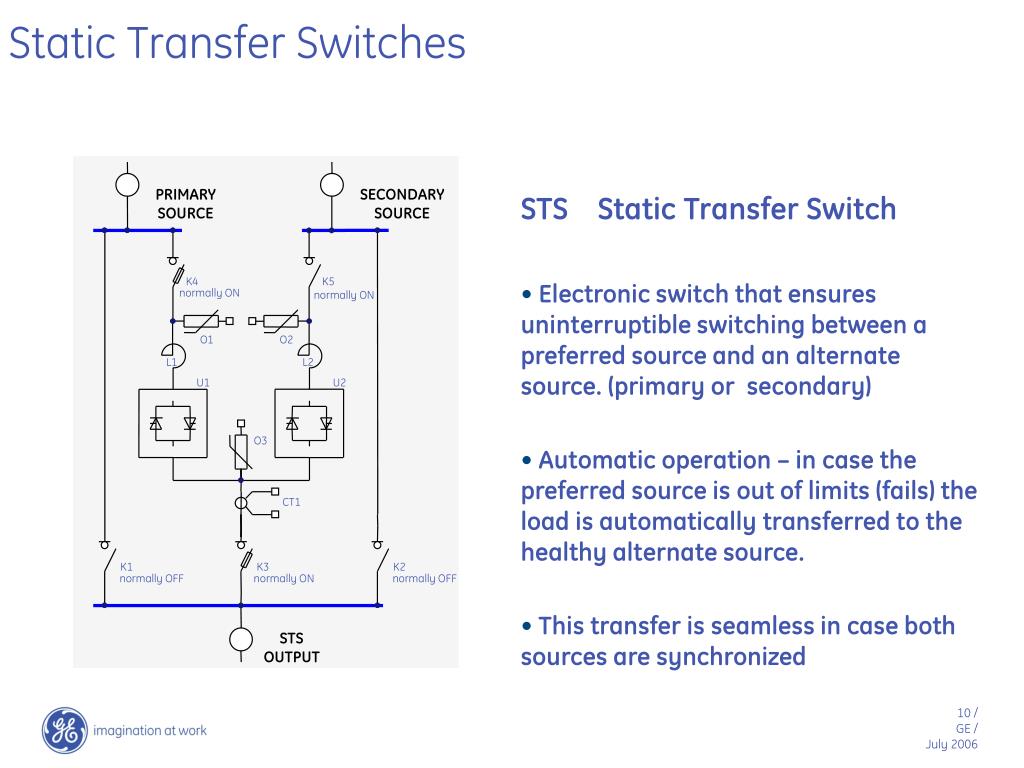

static transfer switches

PRIMARY

SOURCE

SECONDARY

SOURCE

K4

K5

normally ON

normally ON

O1

O2

L1

L2

U1

U2

O3

CT1

K1

K3

K2

normally OFF

normally ON

normally OFF

STS

OUTPUT

Static Transfer Switches
  • STS Static Transfer Switch
  • Electronic switch that ensures uninterruptible switching between a preferred source and an alternate source. (primary or secondary)
  • Automatic operation – in case the preferred source is out of limits (fails) the load is automatically transferred to the healthy alternate source.
  • This transfer is seamless in case both sources are synchronized
slide11

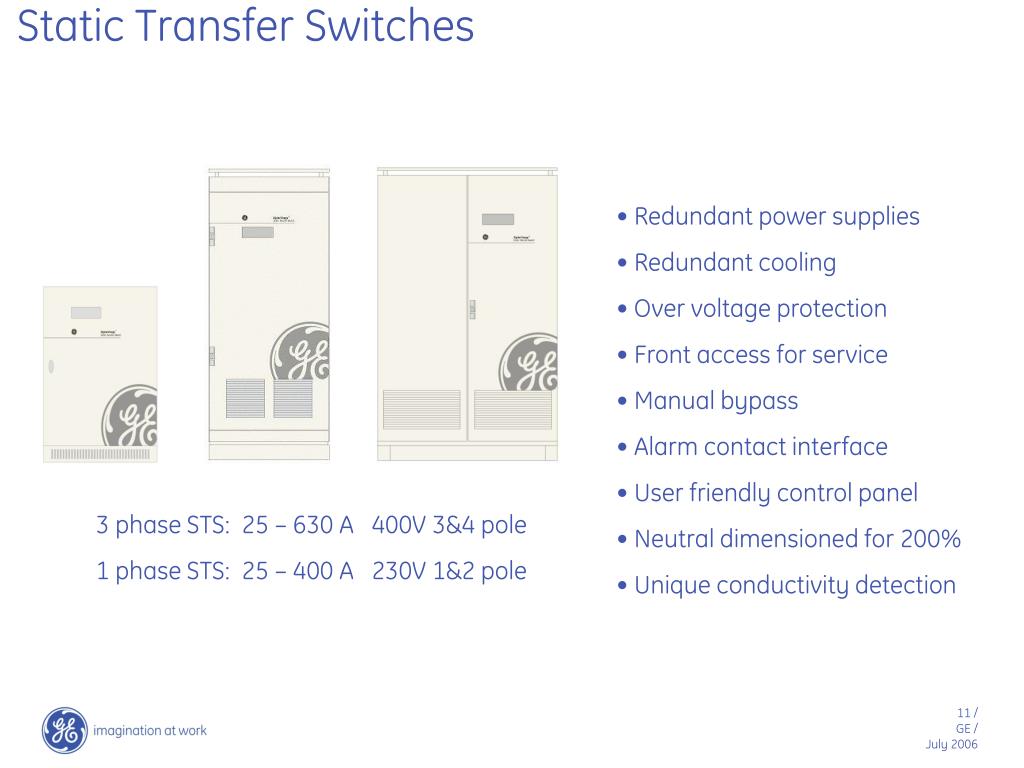

Static Transfer Switches

  • Redundant power supplies
  • Redundant cooling
  • Over voltage protection
  • Front access for service
  • Manual bypass
  • Alarm contact interface
  • User friendly control panel
  • Neutral dimensioned for 200%
  • Unique conductivity detection

3 phase STS: 25 – 630 A 400V 3&4 pole

1 phase STS: 25 – 400 A 230V 1&2 pole

slide12

GE‘s unique technologies

RPA Redundant Parallel Architecture

High reliability UPS cluster with no single point of failure

SEM Super ECO Mode

Saving energy whilst maintaining high protection level

IEM Intelligent Energy Management

Award winning concept for energy savings

slide13

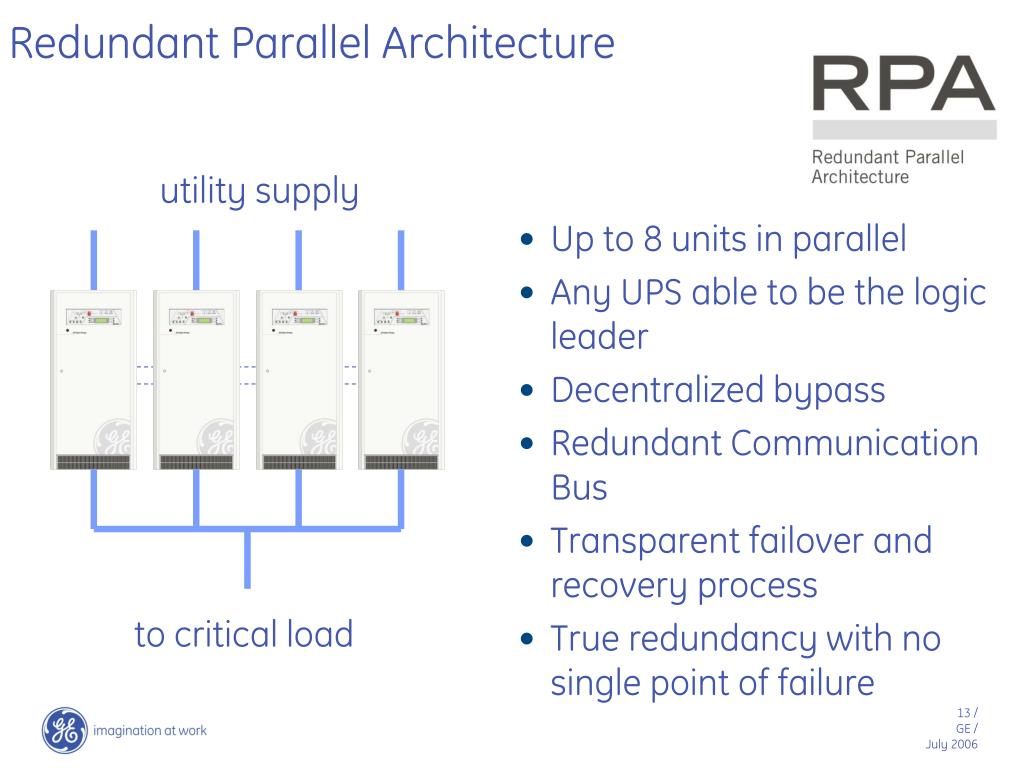

Redundant Parallel Architecture

utility supply

  • Up to 8 units in parallel
  • Any UPS able to be the logic leader
  • Decentralized bypass
  • Redundant Communication Bus
  • Transparent failover and recovery process
  • True redundancy with no single point of failure

to critical load

slide14

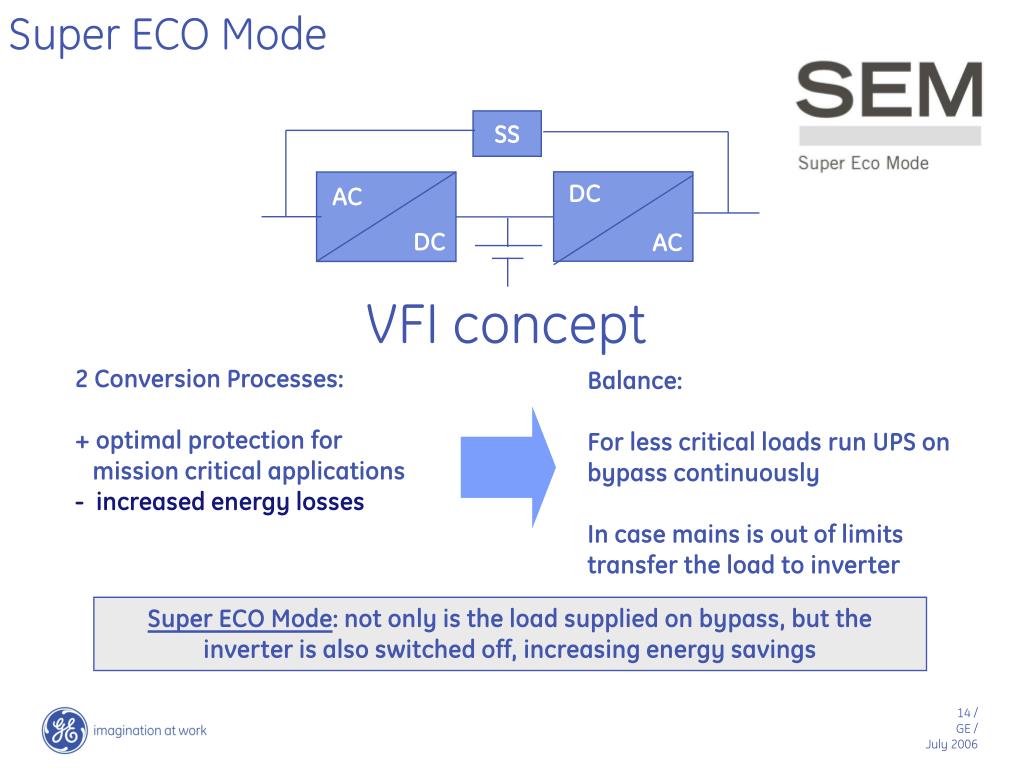

Super ECO Mode

SS

DC

AC

DC

AC

VFI concept

2 Conversion Processes:

+ optimal protection for

mission critical applications

- increased energy losses

Balance:

For less critical loads run UPS on bypass continuously

In case mains is out of limits transfer the load to inverter

Super ECO Mode: not only is the load supplied on bypass, but the inverter is also switched off, increasing energy savings

slide15

Super ECO Mode

< 2ms

Bypass on/off

Output voltage

Inverter current

Inverter control

Fast Transfer to Inverter

  • Super ECO mode
  • Efficiency : 98%
  • to Inverter in case Bypass is out of limits
  • Fast error detection
  • Extremely short transfer times (<2 ms)
  • User definable scheduling
  • Available for 10 – 500 kVA

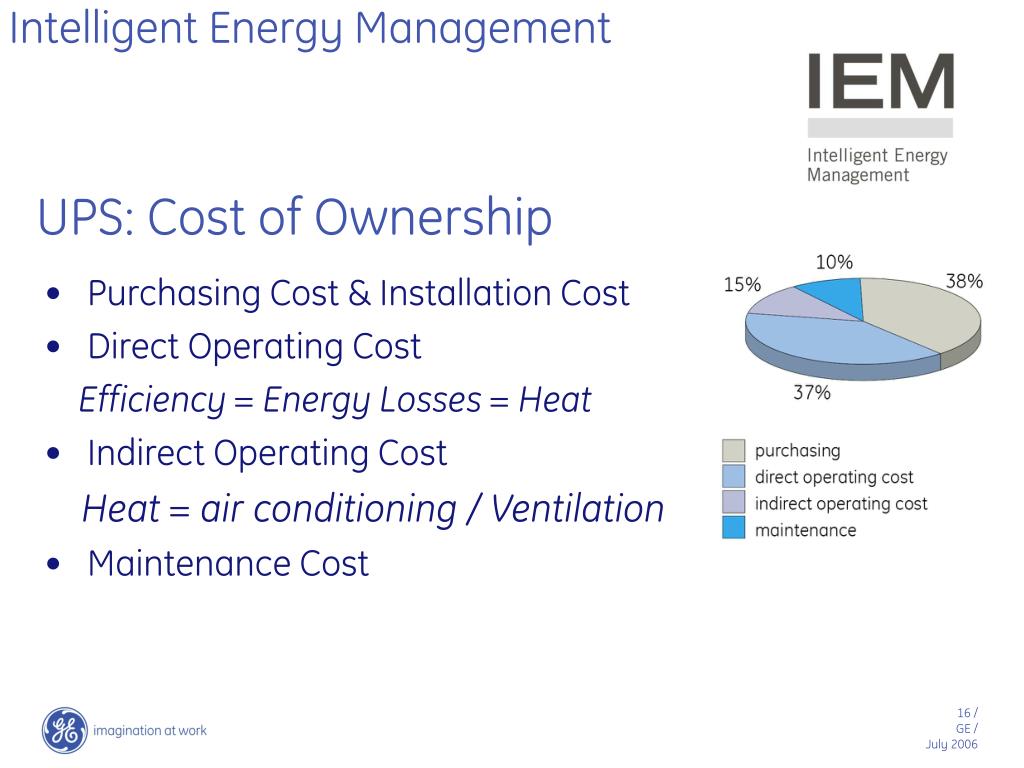

ups cost of ownership

Intelligent Energy Management

UPS: Cost of Ownership
  • Purchasing Cost & Installation Cost
  • Direct Operating Cost

Efficiency = Energy Losses = Heat

  • Indirect Operating Cost

Heat = air conditioning / Ventilation

  • Maintenance Cost

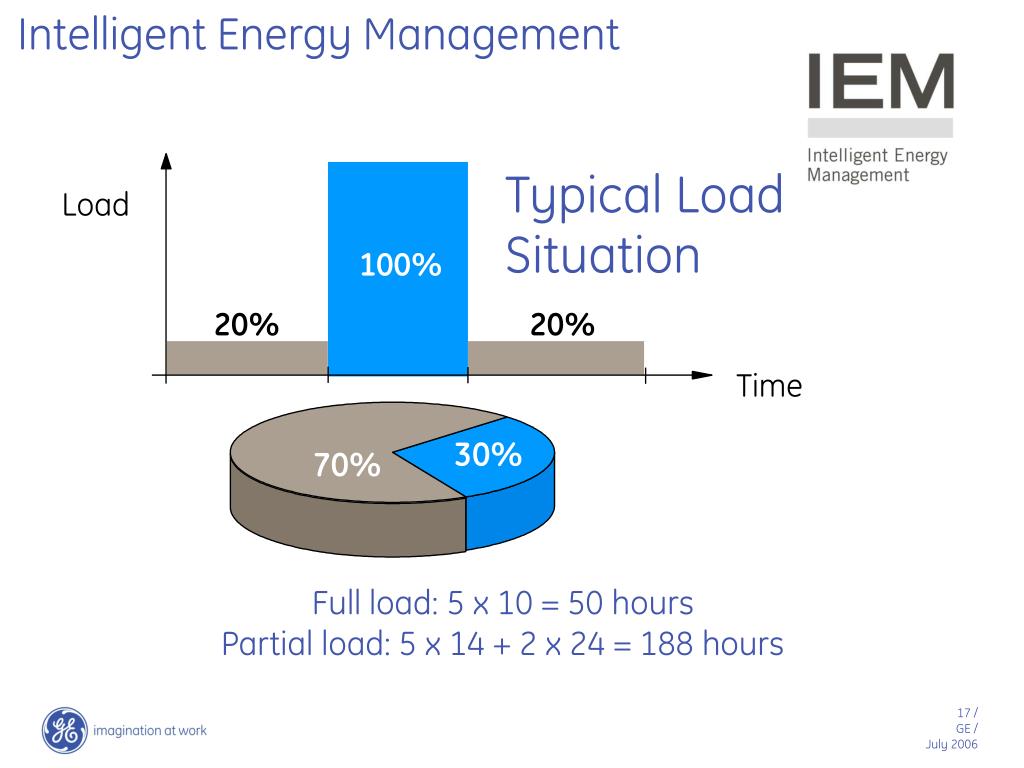

typical load situation

Intelligent Energy Management

Typical Load Situation

Load

100%

20%

20%

Time

30%

70%

Full load: 5 x 10 = 50 hours

Partial load: 5 x 14 + 2 x 24 = 188 hours

slide18

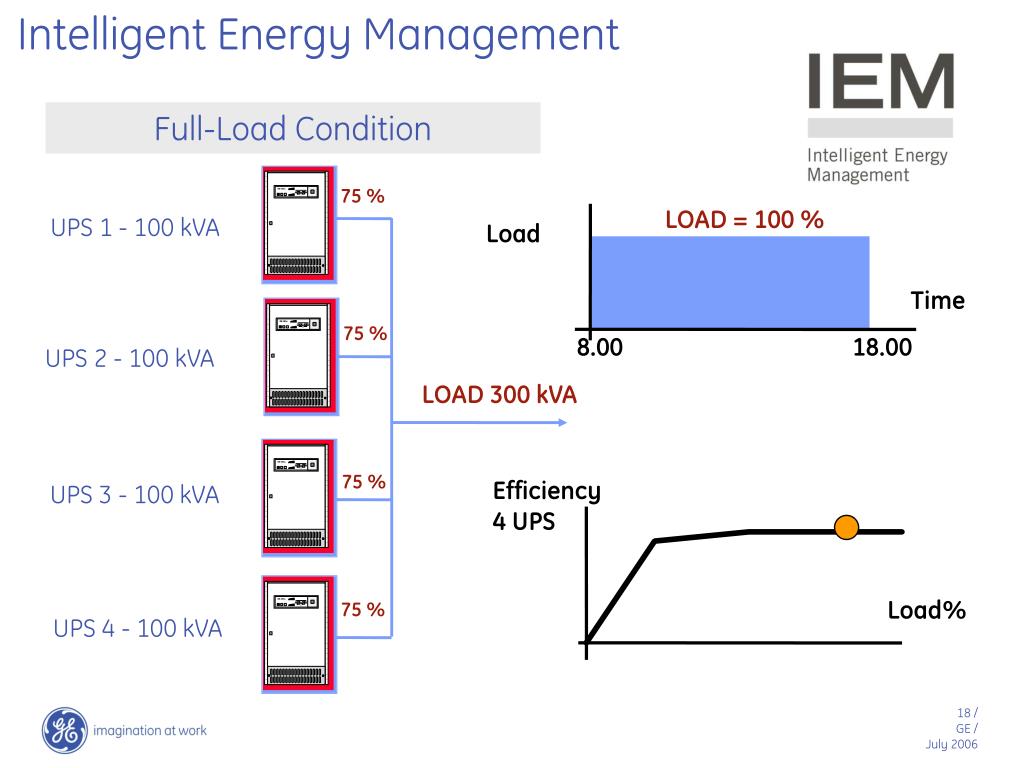

Intelligent Energy Management

Full-Load Condition

75 %

LOAD = 100 %

UPS 1 - 100 kVA

Load

Time

75 %

8.00

18.00

UPS 2 - 100 kVA

LOAD 300 kVA

75 %

Efficiency

4 UPS

UPS 3 - 100 kVA

Load%

75 %

UPS 4 - 100 kVA

slide19

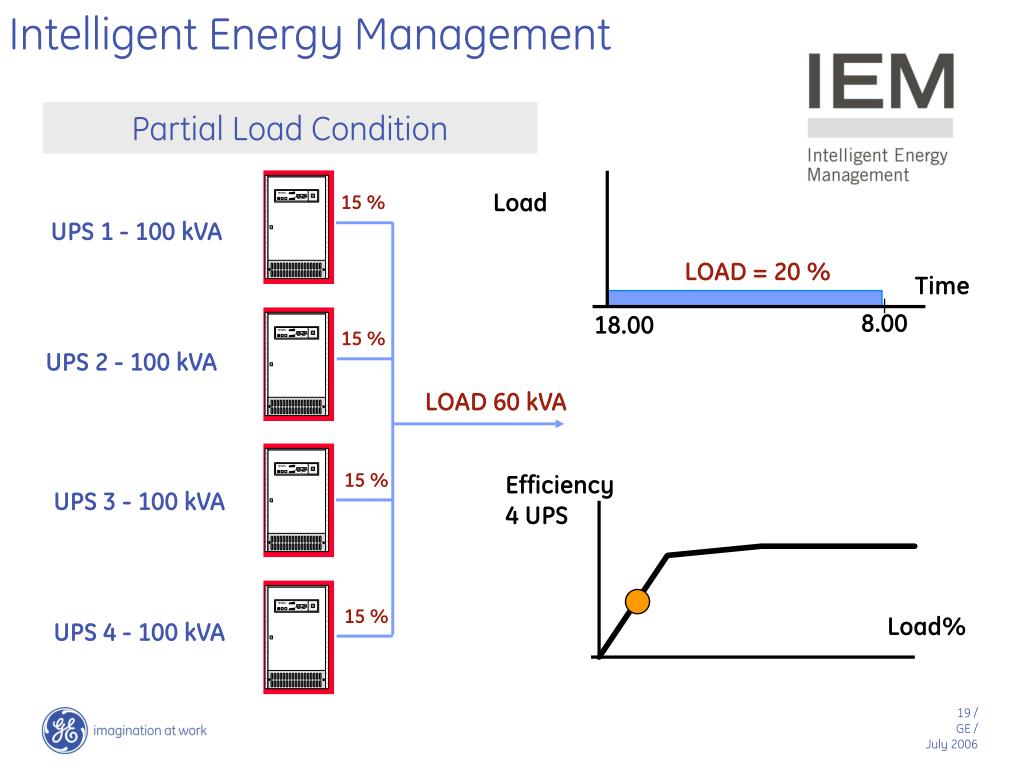

Intelligent Energy Management

Partial Load Condition

Load

15 %

UPS 1 - 100 kVA

LOAD = 20 %

Time

8.00

18.00

15 %

UPS 2 - 100 kVA

LOAD 60 kVA

15 %

Efficiency

4 UPS

UPS 3 - 100 kVA

15 %

Load%

UPS 4 - 100 kVA

slide20

Intelligent Energy Management

Partial Load Condition with IEM (redundancy)

Load

UPS 1 - 100 kVA

LOAD = 20 %

18.00

Time

8.00

UPS 2 - 100 kVA

LOAD 60 kVA

30 %

UPS 3 - 100 kVA

Efficiency

2 UPS

30 %

UPS 4 - 100 kVA

Load%

slide21

Intelligent Energy Management

Partial Load with IEM (mains redundancy)

UPS 1 - 100 kVA

Load

Time

LOAD = 20 %

18.00

8.00

UPS 2 - 100 kVA

LOAD 60 kVA

Efficiency

1 UPS

UPS 3 - 100 kVA

Load%

60 %

UPS 4 - 100 kVA

slide22

US$

IEM Savings with Utility redundancy

35000

30000

IEM Savings with UPS redundancy

25000

20000

15000

10000

5000

0

500

400

330

250

200

160

120

100

80

60

40

30

UPS POWER (kVA)

20

15

10

Intelligent Energy Management

Number of UPS : 4

Full load condition : 75%

Partial Load Condition : 10%

Losses : efficiency of UPS*

Cost per kWh : 0.11 $

Hours at full load : 50h / week

Hours at partial load : 118 / week

*: Load Efficiency

75% 94%

50% 93%

30% 87.5%

15% 79%
