Rack Type • Ideal for central office applications (16-ports/48-ports) • Fiber to the home (FTTH) • Fiber to the multi-tenant building (campus,hotel application) • Industrial and military application • Comprehensive media conversion platform include E1/T1/Datacom/Fast Ethernet/Gigabit Ethernet • Redundant power supported • Auto recovery function • Manageable advanced features (SNMP): • Link-loss forwarding • Loopback test & Get CPE status • Pass through QoS & Tag VLAN frame auto-select • Network Management System supported.Helps administrators save labor & money

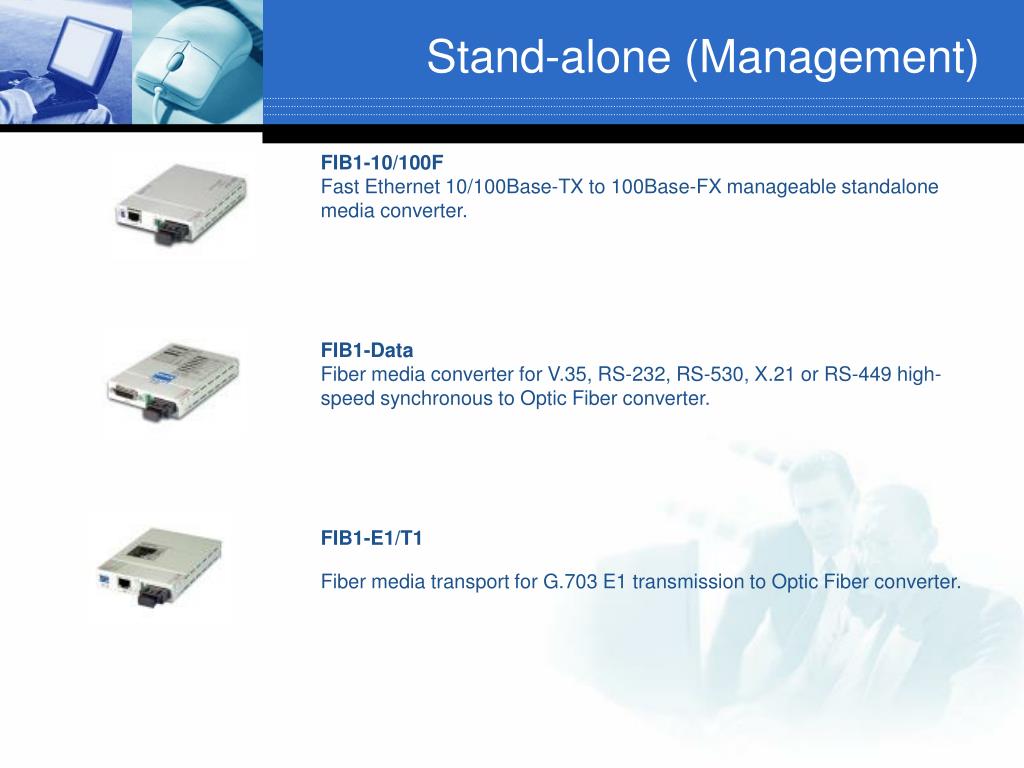

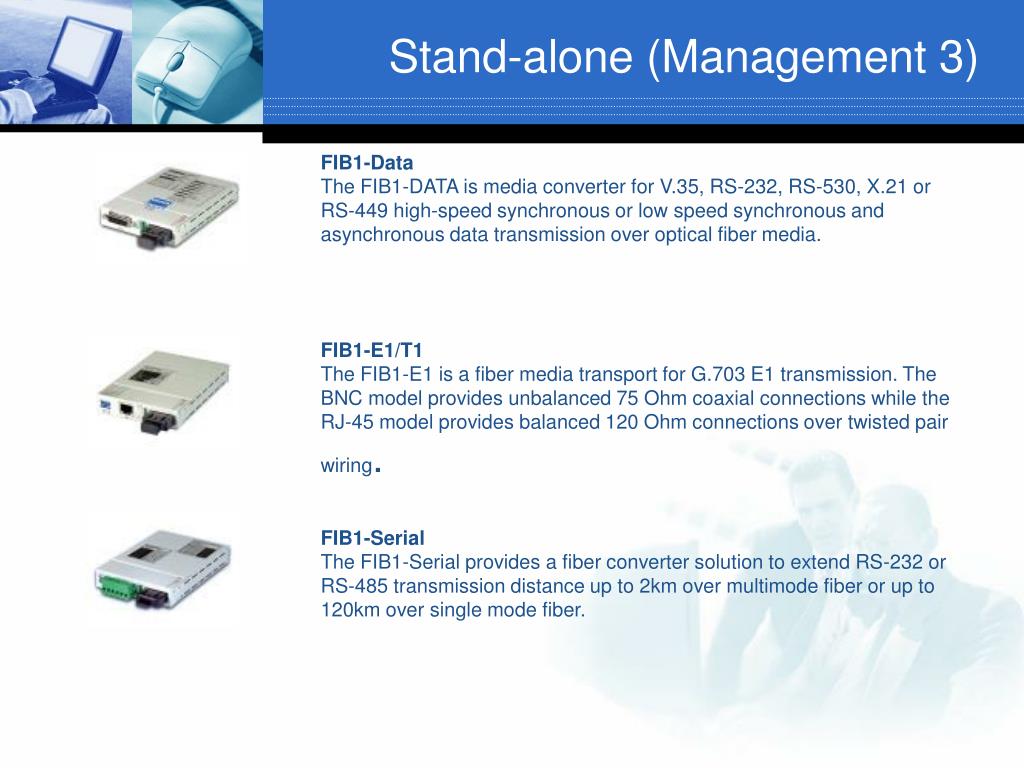

Stand-alone • Compact design & Wall-mountable • Support FE/GE,E1/T1,RS485,422 or Async232,FXO/FXS • Full or Half-Duplex on copper • Auto Negotiation at TP port • Auto Crossover for MDI/MDIX at TP port • Support Multi-mode & Single-mode • Extend Fiber Optic distance up to 550m / 1,815 ft (Multi-mode) • Extend Fiber Optic distance up to 120km / 3630 ft (Single mode) • Connector support SC,ST,FC,LC • Support GUI, SNMP Management with FRM301 Chassis • Supports link-loss-forwarding function, loop-Back test, and remote state monitor • Built-in power supply or external power
CWDM Sigma Links 5000 : CWDM • 5U high,19 (or 23) inchRack with convertible standalone units,rack accommodates up to 17 card modules • All modules are hot-swappable with AC/DC Power redundant and cooling fans module • Alarm Relay contacts • Chassis Cascade up to 16 Chassis • LED and LCD status indication with keypad control • TFTP firmware upgrade • Support Concole,Telnet,SNMP.Web management • Up to 8 CWDM wavelengths in compliance with ITU G.694.2

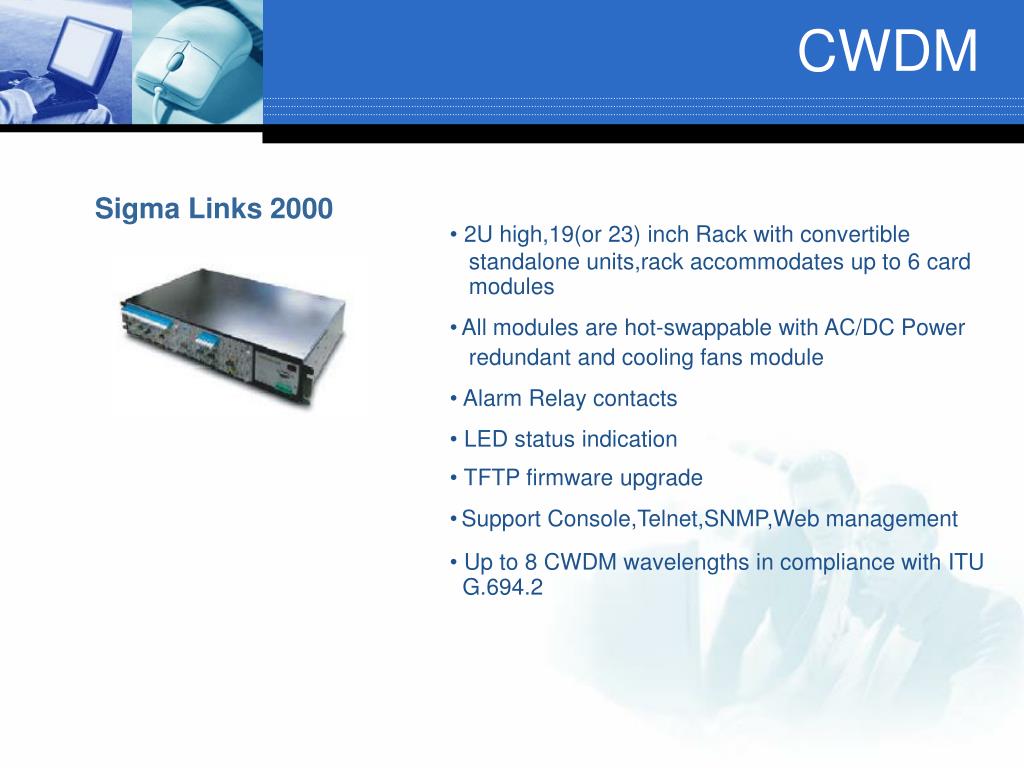

CWDM Sigma Links 2000 • 2U high,19(or 23) inch Rack with convertible standalone units,rack accommodates up to 6 card modules • All modules are hot-swappable with AC/DC Power redundant and cooling fans module • Alarm Relay contacts • LED status indication • TFTP firmware upgrade • Support Console,Telnet,SNMP,Web management • Up to 8 CWDM wavelengths in compliance with ITU G.694.2
IP Data IP Data FE GE FE GE Consolidation on Single Fiber A B Surveillance Surveillance Vx8 Vx4 Vx1 Storage Storage ESCON FICON FC ESCON FICON FC WDM Chassis WDM Chassis TELCO TELCO PDH SDH SONET PDH SDH SONET CWDM Application
Mini DSLAM • 2U chassis, temperature hardened • GE trunk card • 2-GbE, 2-GbE Fiber SFP • 1-FE outband management port • 1- Local Serial console • 3 Slots for 24 each ADSL2+ (w/splitters) • Annex A ANSI • Annex A ETSI • Annex B MD-20 mini-DSLAM (IP DSLAM)
Mini DSLAM MD-15 mini-DSLAM (IP DSLAM) • 1.5U chassis, temperature hardened, pizzabox • Dual service -48VDC input • AC Power supply optional • GE Uplink • 2-GbE, 2-GbE Fiber SFP • 1-FE outband management port • 1- Local Serial console • Fixed 24 or 48 each ADSL2+ (w/splitters) • Annex A ANSI • Annex A ETSI • Annex B

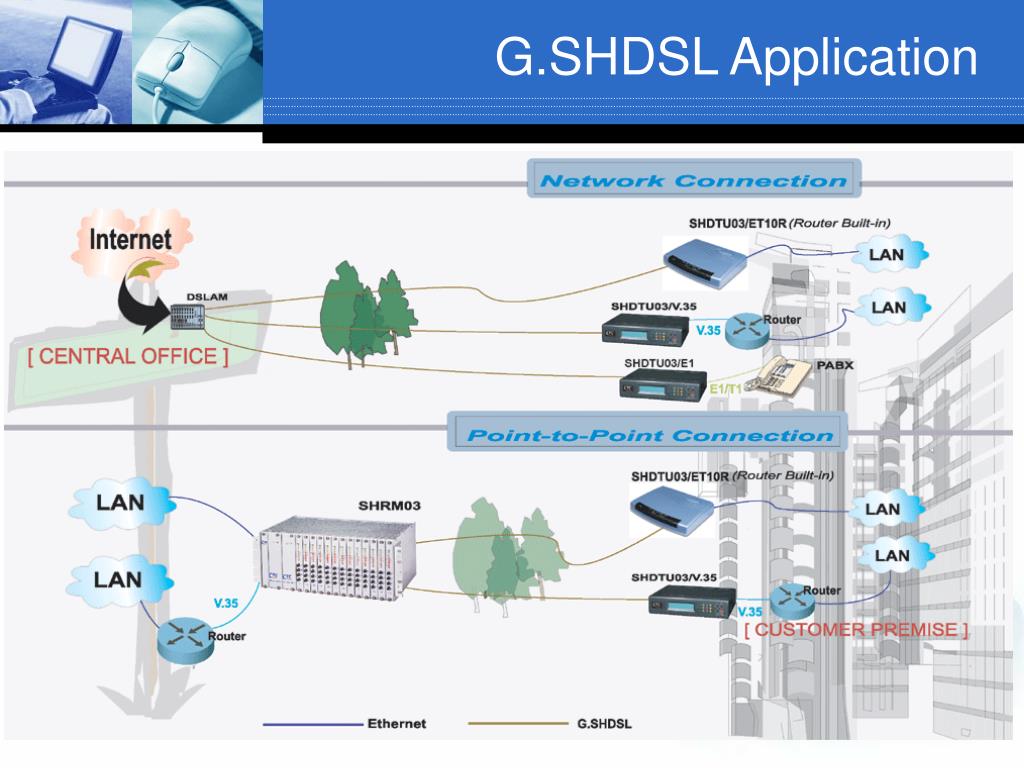

G.SHDSL SHRM03 – E1 / V35 / ET100 : G.SHDSL Modem Concentrator(TDM) • Central solution in standard 19 inch rack • Downloadable software for easy upgrade • E1 and fractional E1 capable • Each line card supports 2 channels of single pair for E1/Datacom/Ethernet solution N x 64k rate selectable from 64Kbps to 2.304Mbps • Hot swappable cards and redundant power supplies • Menu oriented console screens for ease of use • Optional SNMP network management system card • Up to 13 cards (26 loops) cand be installed + SNMP card

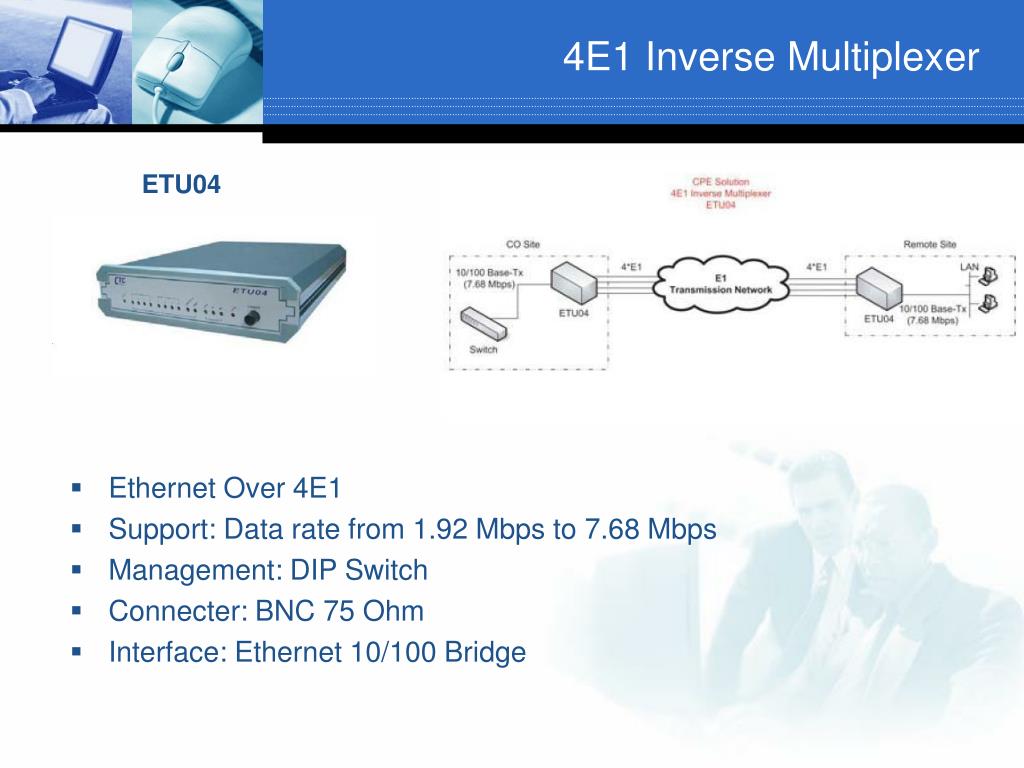

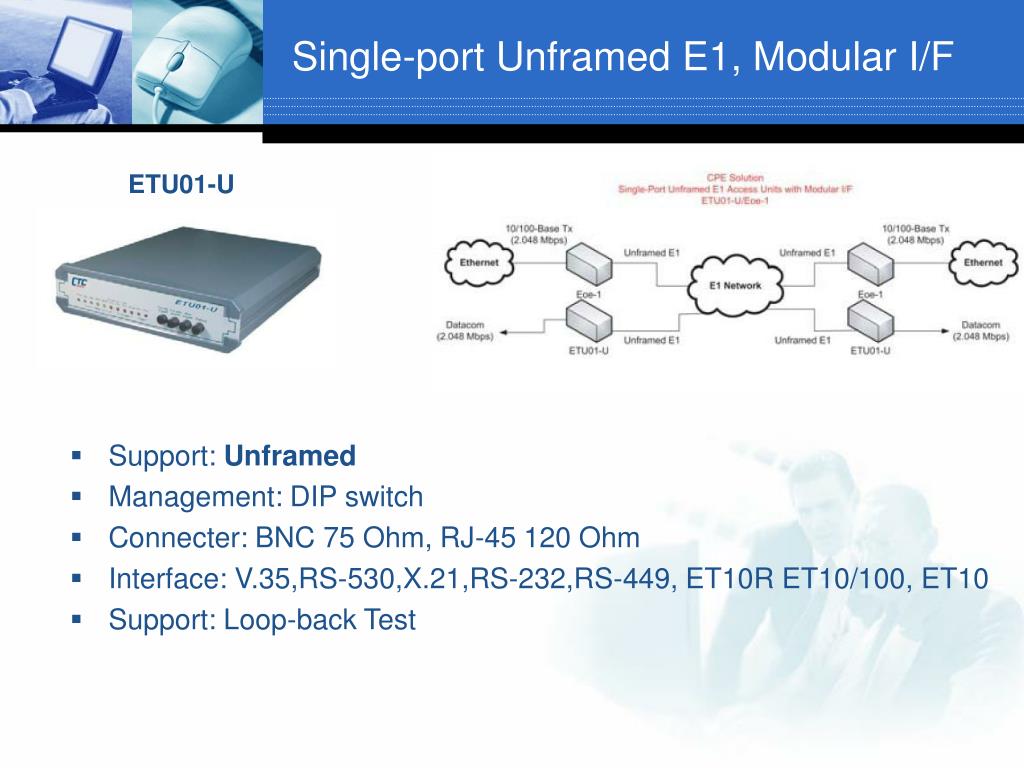

G.SHDSL SHDTU03 – E1 / V35 / ET100(TDM) • Bandwidth guaranteed transmission equipment • Can operate in back to back configurations • Local management interface with LCD display • Remote loopback • SHDSL Line performance monitoring • Standard G.SHDSL (ITU G.991.2) support for improved reach/speed and greater interopreability • Use existing copper loop infrastructures • Up to 2.048Mbps symmetrical service bit rate
G.SHDSL SHRM03 – ET100R: G.SHDSL Modem Concentrator (ATM) • Central solution in 19 inch rack • Software upgrade via TFTP or Web interface • IP based in-band management • Each card supports 2 channels of single pair for Ethernet Bridging or Routing solution at nx64 rates up to 2.304Mbps • Hot swappable cards and redundant power supplies • Web browser screens for easy use • SNMP agent embedded in each channel • Up to 13 cards (26 loops) may be placed in on rack
G.SHDSL SHDTU03-ET10R/SHDTU03F-ET10R SHDTU03A-ET10RS/SHDTU03AF-ET10RS • Bandwidth guaranteed transmission equipment • Can operate in point-to-point configurations • Support 2 wire and 4 wire • SHDSL Line performance monitoring • Standard G.SHDSL (ITU G.991.2) support for improved reach/speed and greater interoperability • Use existing copper loop infrastructures • Up to 2.304Mbps (2-wire) or 4.608Mbps (4-wire) symmetrical service bit rate

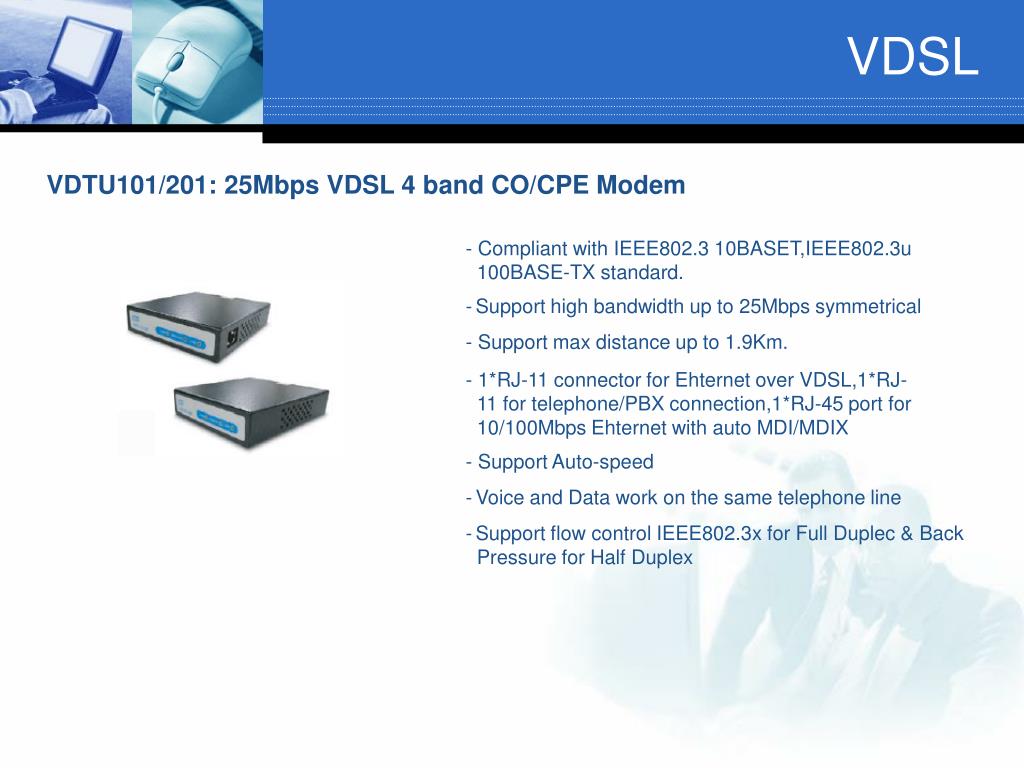

VDSL VDTU101/201: 25Mbps VDSL 4 band CO/CPE Modem • Compliant with IEEE802.3 10BASET,IEEE802.3u 100BASE-TX standard. • Support high bandwidth up to 25Mbps symmetrical • Support max distance up to 1.9Km. • 1*RJ-11 connector for Ehternet over VDSL,1*RJ- 11 for telephone/PBX connection,1*RJ-45 port for 10/100Mbps Ehternet with auto MDI/MDIX • Support Auto-speed • Voice and Data work on the same telephone line • Support flow control IEEE802.3x for Full Duplec & Back Pressure for Half Duplex
VDSL2 VDTU2-104(CO)/204(CPE) • IEEE802.3 & 802.3u Ethernet Standards • Provides 4 x 10/100M auto-sensing RJ-45 Ethernet ports • Support Bandwidth setup with 100Mbps VDSL RJ-11 ports • POTS/ISDN Splitter port RJ-11 x 1 (Splitter on board) • Supports auto speed for VDSL2 port • Supports Web management (HTTP),TFTP • Supports PPPOE • Supports uPnP • Supports NAT/DHCP/DMZ • Supports Firewall • Support Route & Switch mode • Supports Loop back
