Development of Aluminum Mirrors for Metal Optics Applications

Research and development of aluminum mirrors for metal optics applications conducted by Masaki Mori at ICRR, Univ. Tokyo, in collaboration with Akiko Kawachi (Tokai), Midori Yuasa, and Michiko Ohishi. Presented at CTA meeting in Berlin, May 4-5, 2006. The study includes mirror materials, reflectivity measurements, weathering tests, and the need for anti-dew mechanisms. The summary outlines the progress in mirror development and considerations for real-world applications.

wynona
Download Presentation

Development of Aluminum Mirrors for Metal Optics Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. R&D for metal mirrors Masaki Mori ICRR, Univ. Tokyo In collaboration with: Akiko Kawachi (Tokai), Midori Yuasa, Michiko Ohishi (ICRR) CTA meeting, Berlin, May 4-5, 2006

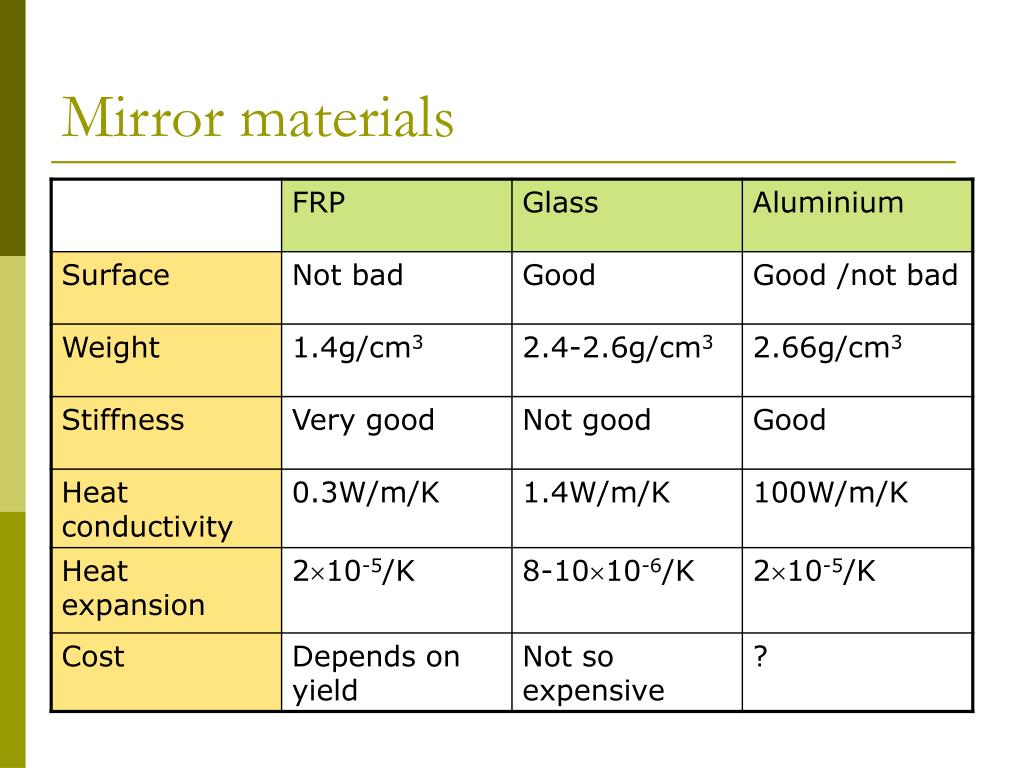

  2. Mirror materials

  3. A. Kawachi et al., Astropart. Phys. 14, 261 (2001) CANGAROO-II/III plastic mirror Light (~6kg), durable, but… T2 T1

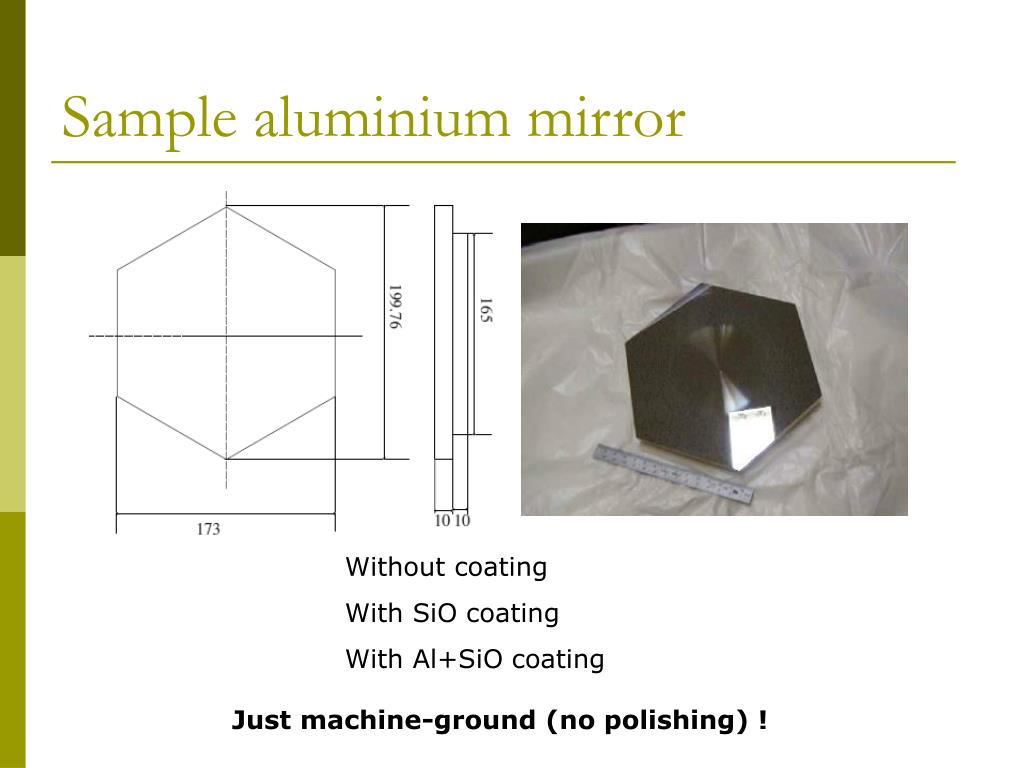

  4. Sample aluminium mirror Without coating With SiO coating With Al+SiO coating Just machine-ground (no polishing) !

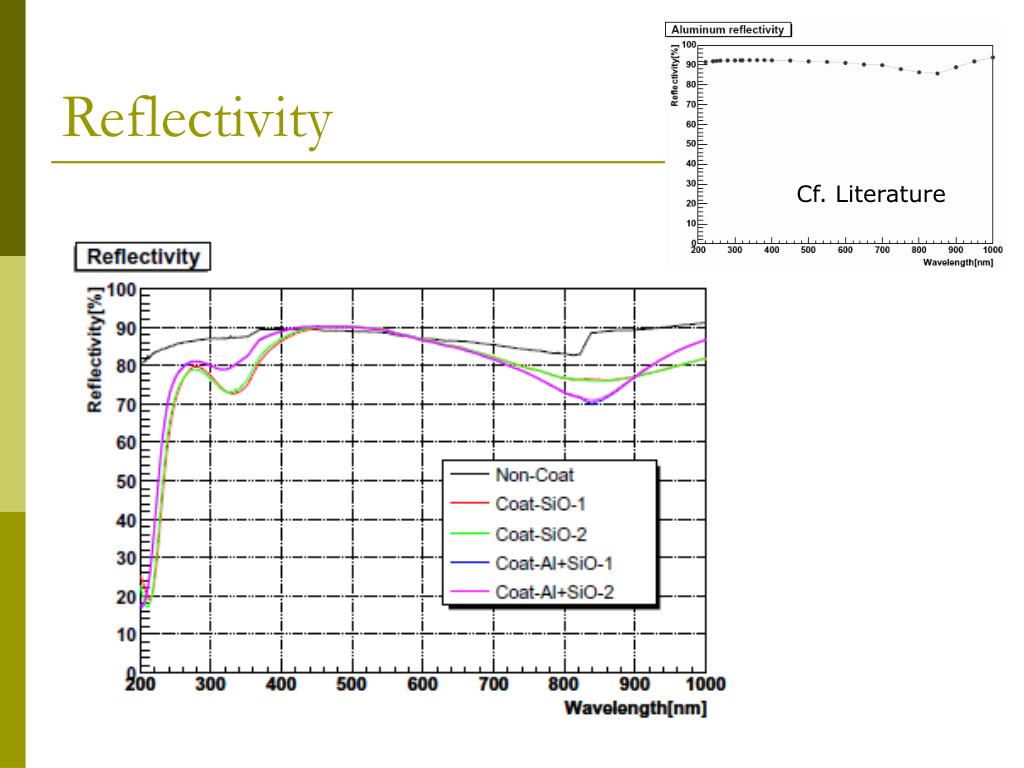

  5. Reflectivity Cf. Literature

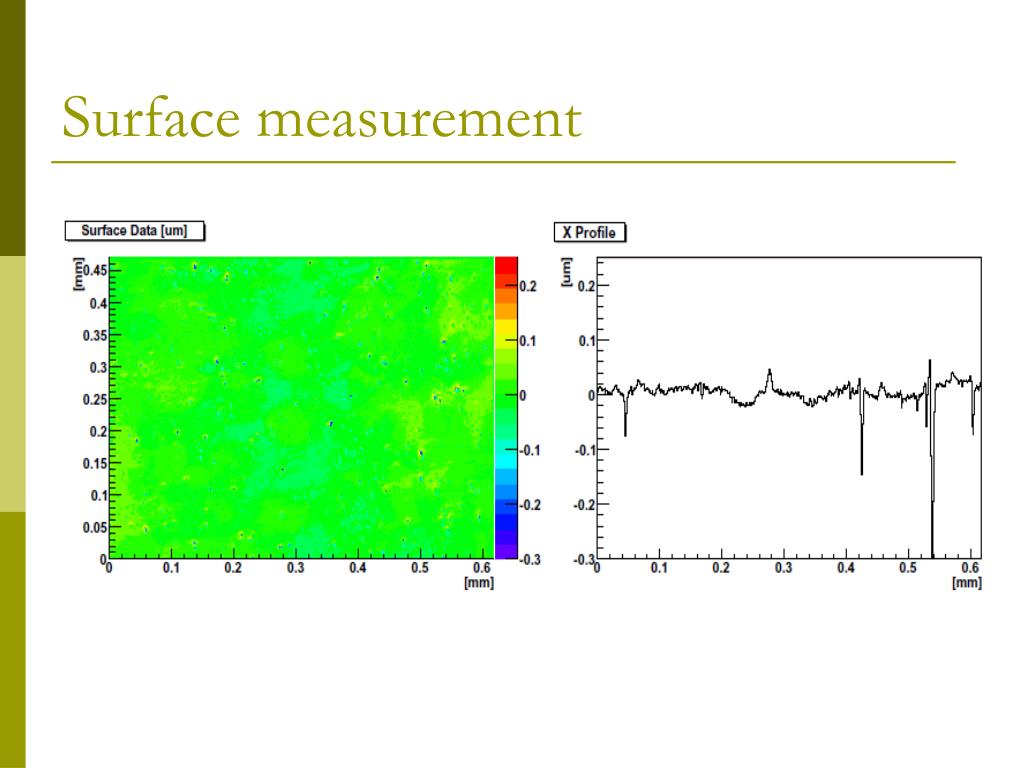

  6. Surface measurement

  7. 3D measurement

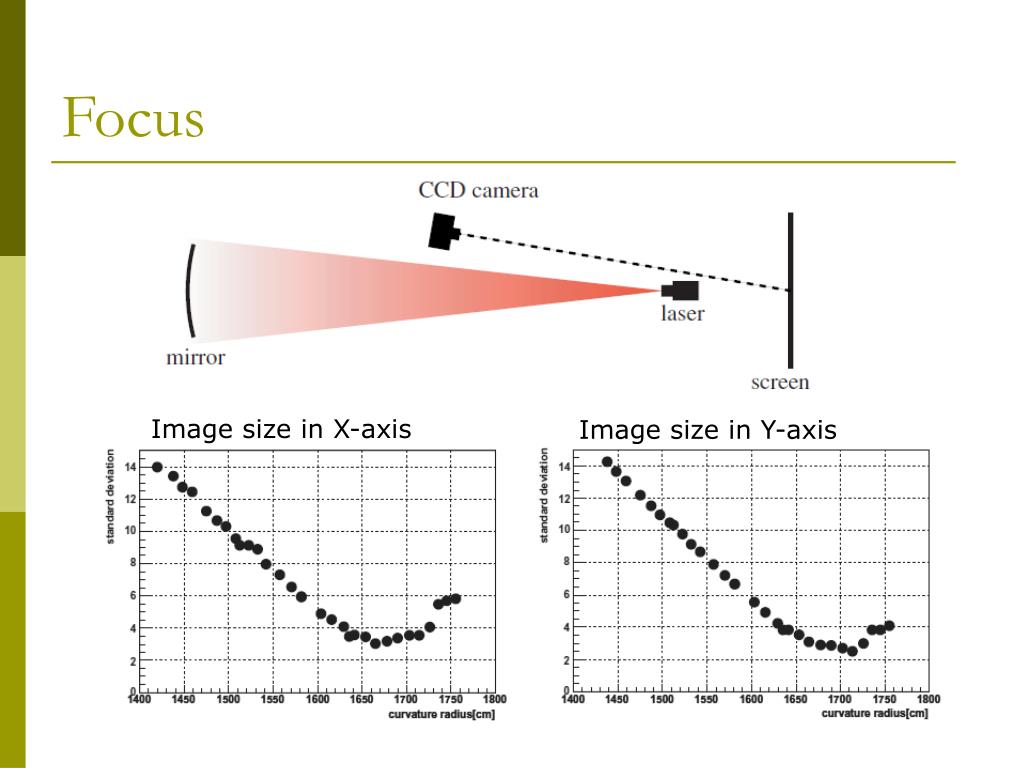

  8. Focus Image size in X-axis Image size in Y-axis

  9. Image Integrated CCD counts 89% within 0.1 degree

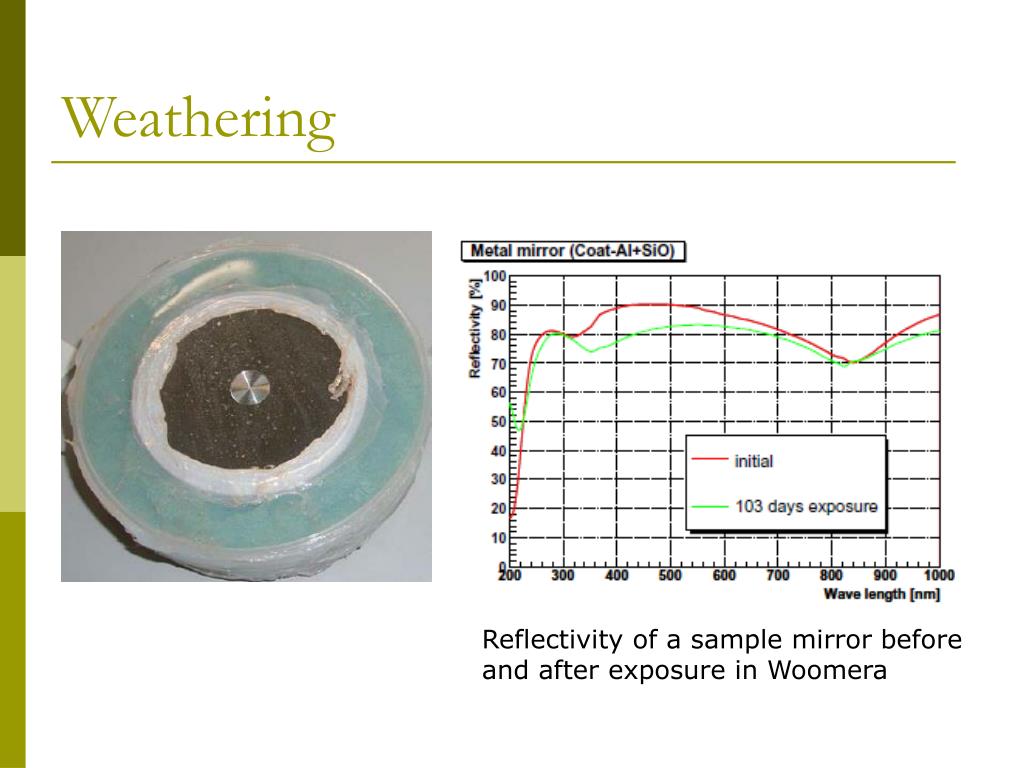

  10. Weathering Reflectivity of a sample mirror before and after exposure in Woomera

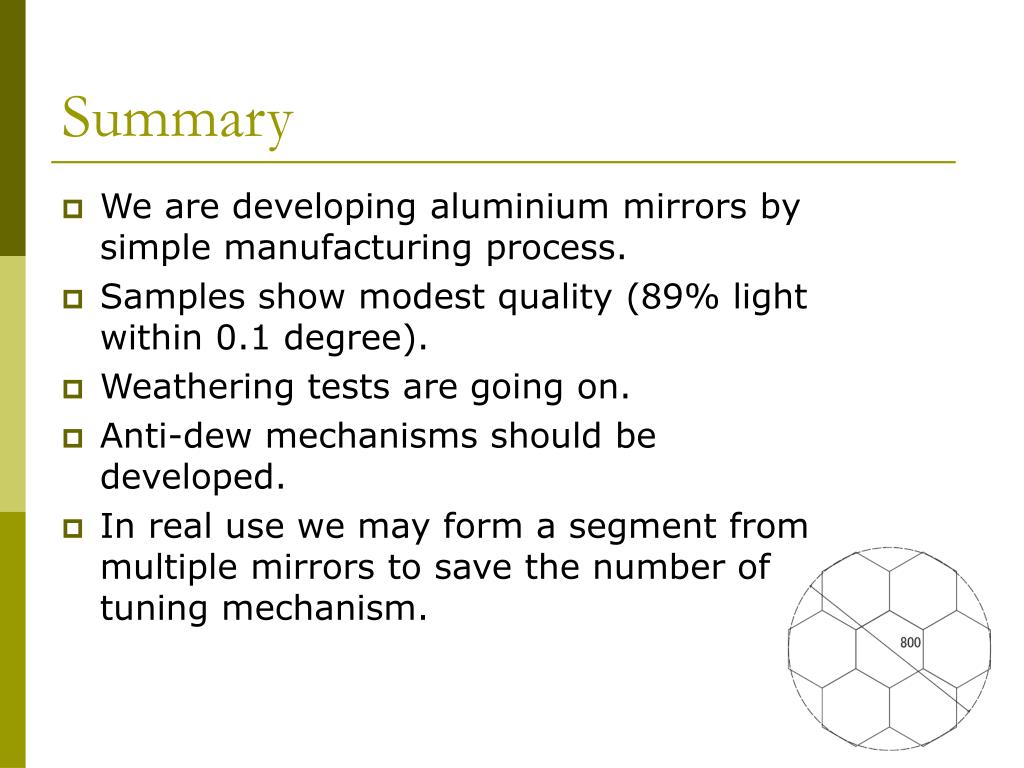

  11. Summary • We are developing aluminium mirrors by simple manufacturing process. • Samples show modest quality (89% light within 0.1 degree). • Weathering tests are going on. • Anti-dew mechanisms should be developed. • In real use we may form a segment from multiple mirrors to save the number of tuning mechanism.
