Ch 5 – Weathering & Erosion

Ch 5 – Weathering & Erosion. Objectives Briefly contrast weathering and erosion. Contrast chemical and mechanical weathering. List and describe the types of mechanical weathering. List and describe the types of chemical weathering.

winifred
Download Presentation

Ch 5 – Weathering & Erosion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ch 5 – Weathering & Erosion Objectives Briefly contrast weathering and erosion. Contrast chemical and mechanical weathering. List and describe the types of mechanical weathering. List and describe the types of chemical weathering. List the products resulting from the chemical weathering of Igneous rocks. List and discuss the factors that influence the type and rate of rock weathering.

  2. The Rock Cycle This Unit – Ch 5 & 6 Last Unit – Ch 3 &4 What kinds of rock can be melted? Can be weathered & eroded? Heated & Pressurized?

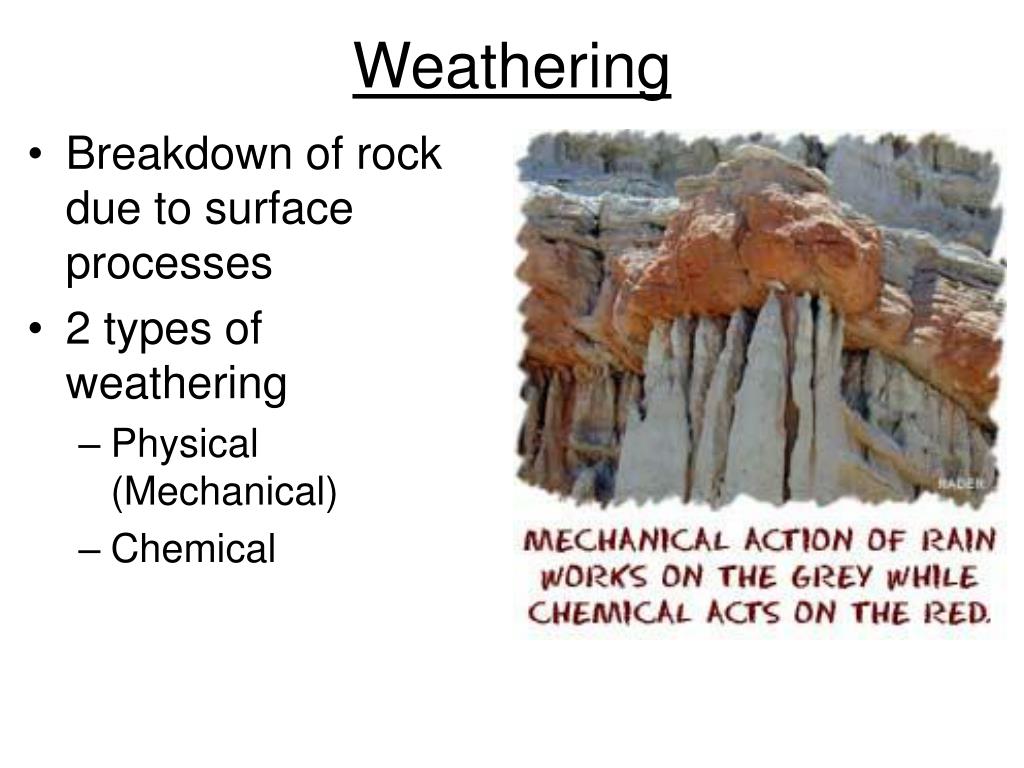

  3. Weathering • Breakdown of rock due to surface processes • 2 types of weathering • Physical (Mechanical) • Chemical

  4. Physical Weathering • Abrasion - wind & water • Frost wedging - water expands when it freezes • Exfoliation or unloading – • rock breaks off into leaves or sheets along joints which parallel the ground surface; • caused by expansion of rock due to uplift and erosion; removal of pressure of deep burial • Thermal expansion - • repeated daily heating and cooling of rock; • heat causes expansion; cooling causes contraction. • different minerals expand and contract at different rates causing stresses along mineral boundaries. • Plant Roots – break rocks apart as they grow • Salt Crystal Growth–evaporation, crystals grow between rocks

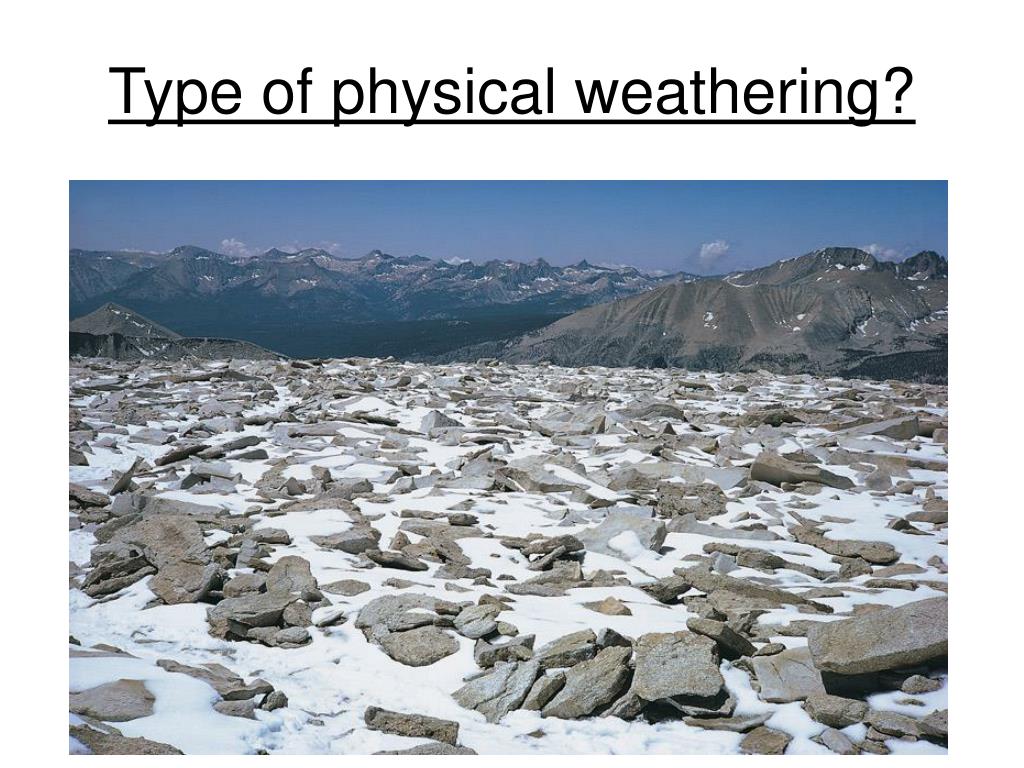

  5. Type of physical weathering?

  6. Type of physical weathering?

  7. Type of physical weathering?

  8. Type of physical weathering?

  9. Type of physical weathering?

  10. Type of physical weathering?

  11. Type of physical weathering?

  12. Type of physical weathering?

  13. Chemical Weathering Rock reacts with water, gases and solutions (may be acidic); will add or remove elements from minerals. 1. Dissolution (or solution) - also includes leaching 2. Oxidation 3. Hydrolysis 4. Biological Action 5. Spheroidal

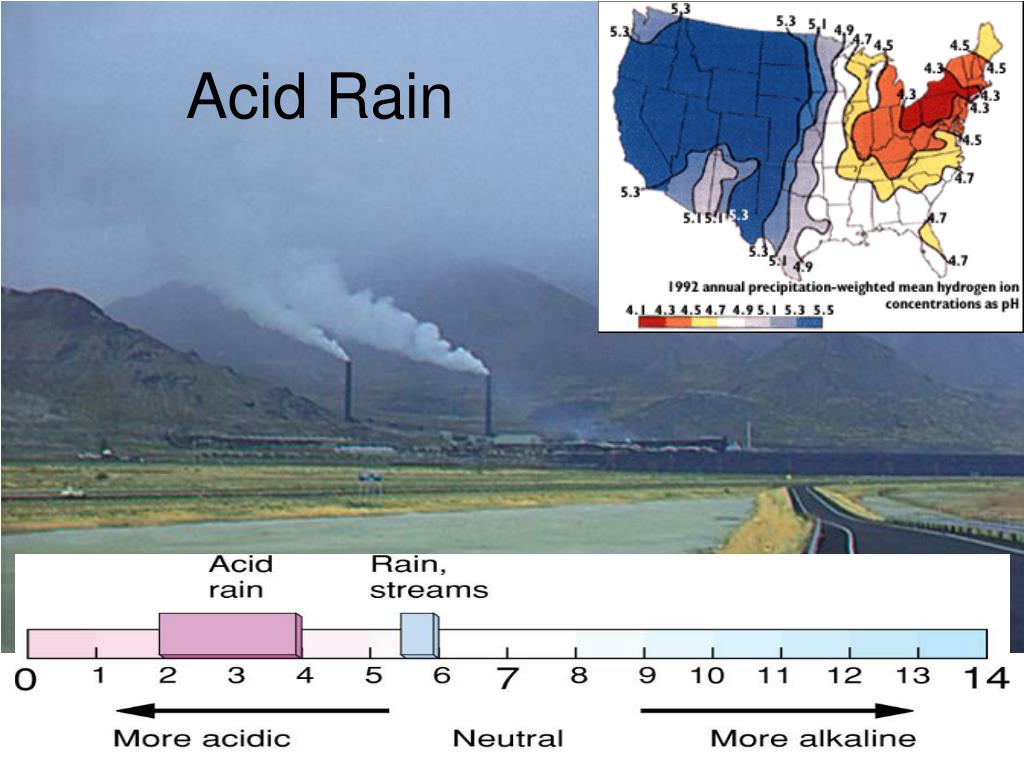

  14. Acid Rain

  15. Dissolution • Several common minerals dissolve in water • halite • calcite • Limestone and marble contain calcite and are soluble in acidic water • Marble tombstones and carvings are particularly susceptible to chemical weathering by dissolution.

  16. More Dissolution Caves and caverns typically form in limestone • speleothems - cave formations; made of calcite • form a rock called travertine • stalactites - from ceiling • stalagmites - on ground

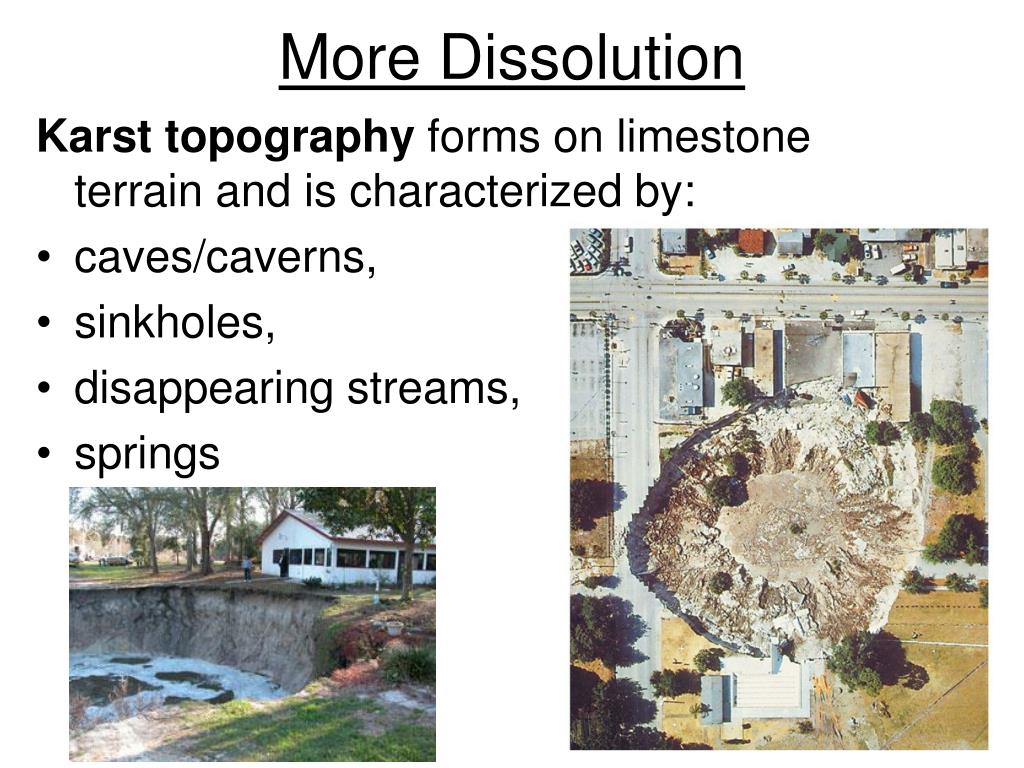

  17. More Dissolution Karst topography forms on limestone terrain and is characterized by: • caves/caverns, • sinkholes, • disappearing streams, • springs

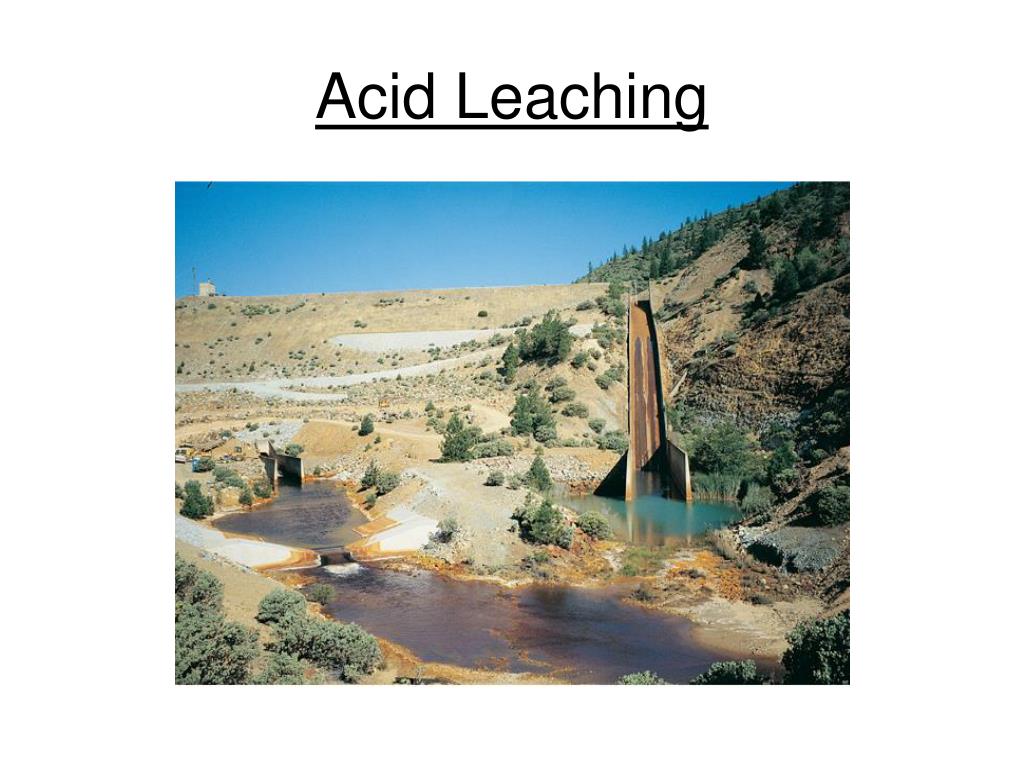

  18. Acid Leaching

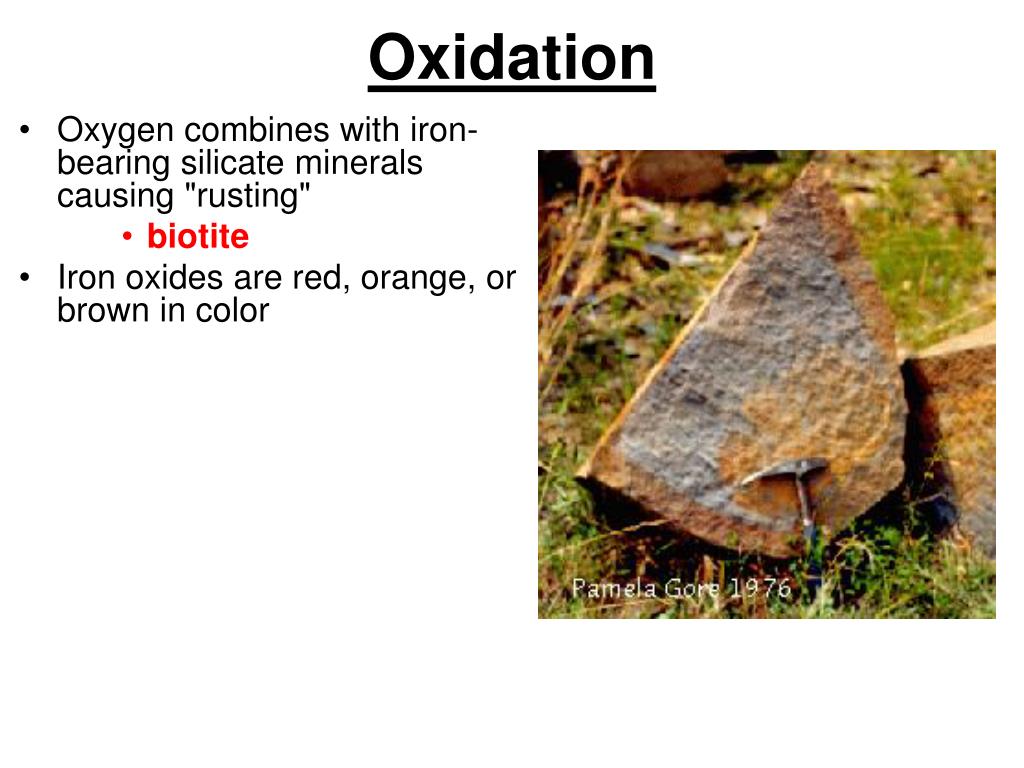

  19. Oxidation • Oxygen combines with iron-bearing silicate minerals causing "rusting" • biotite • Iron oxides are red, orange, or brown in color

  20. Hydrolysis – affected by H20 • Feldspar alters to clay • Feldspars = stable at high temperatures and pressures • Claysare stable under conditions at the Earth's surface • Quartz turns to sand

  21. Biological Action • Lichens, fungi, and other micro-organisms • Chemically and physically change rock

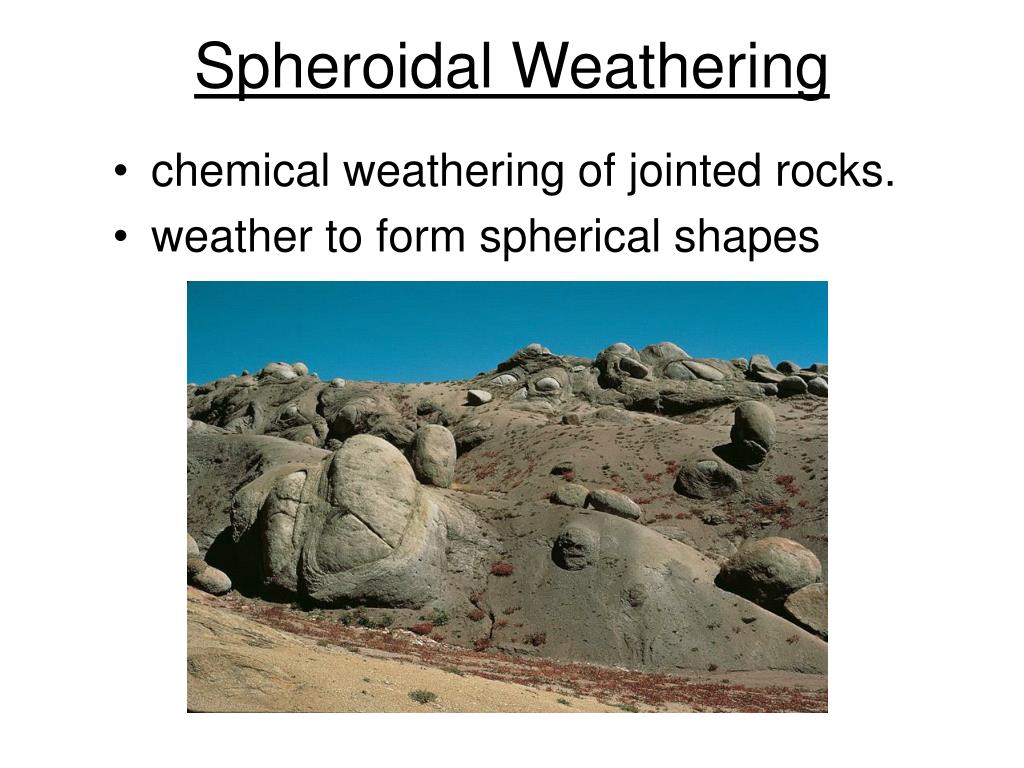

  22. Spheroidal Weathering • chemical weathering of jointed rocks. • weather to form spherical shapes

  23. Factors Affecting Weathering *Surface Area Texture Temperature Humidity Plant growth Topography Time Mineral Content Least stable Olivine Ca plagioclase feldspar Pyroxene Amphibole Biotite Na plagioclase feldspar Potassium feldspar Muscovite Quartz Most stable

  24. Factors Affecting Weathering Surface Area – Most important • Smaller particles, more surface area • Examples • Crushed ice cools faster • Granulated sugar dissolves faster • More exposed rocks weather more

  25. Factors Affecting Weathering • Type of material – both are from 1780’s; one is slate, the other is marble. Which is which? Why is there a difference?

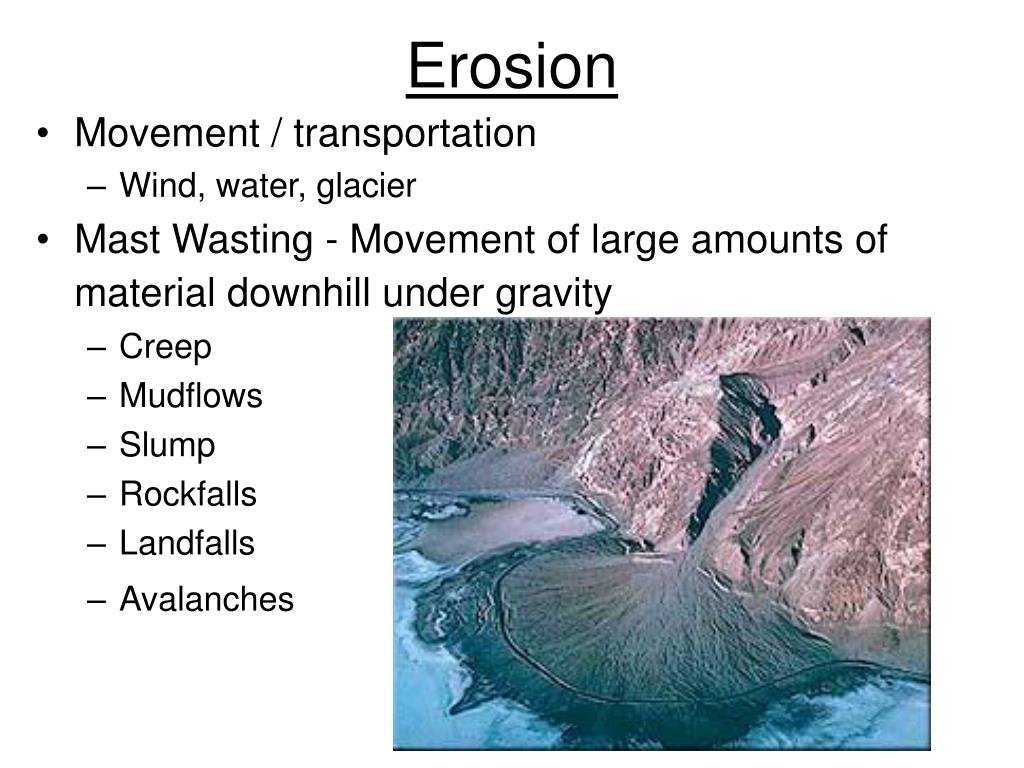

  26. Erosion • Movement / transportation • Wind, water, glacier • Mast Wasting - Movement of large amounts of material downhill under gravity • Creep • Mudflows • Slump • Rockfalls • Landfalls • Avalanches

  27. What happens to Granite? Weathering 1. The feldspars undergo hydrolysis to form ________ and Na and K ions The Na and K ions removed by leaching. 2. The biotite & amphibole will undergo hydrolysis to form clay, and oxidation to form _________. 3. The quartz (and muscovite, if present) will remain as residual minerals because they are very resistant to weathering. They get smaller to make ________. Granite contains Na Plagioclase feldspar, K feldspar, Quartz • Lesser amounts of biotite, amphibole, or muscovite Weathered rock fragments are one of the constituents of soil – our next topic.
