scantronic 868mhz radio
Scantronic 868MHz Radio

A Training Session on Understanding and Installing the EN 50131-1 Grade 2: Radio Equipment

Your Trainer is :

Dave Armstrong

what classification is applied
What Classification is Applied?
  • The Scantronic 868 “narrow band” radio systems –
    • The 9751, 9752 & 9851 & Radio Transmitters & RFX
    • The Homelink 75 Domestic Radio System
    • The 868 Radio Telematics System

has been submitted and approved to EN 50131-1: Grade 2.

what does grade 2 require
What does Grade 2 Require
  • Remove from wall tampers for fixed detectors
  • Supervision intervals – less than 20 minutes (Scantronic is 4 minutes)
  • System must report as a ‘Fault’ transmitter battery problems and supervision failures if the system is unset and a ‘Tamper’ alarm if the system is set.
868 narrow band receivers
868 “narrow band” Receivers

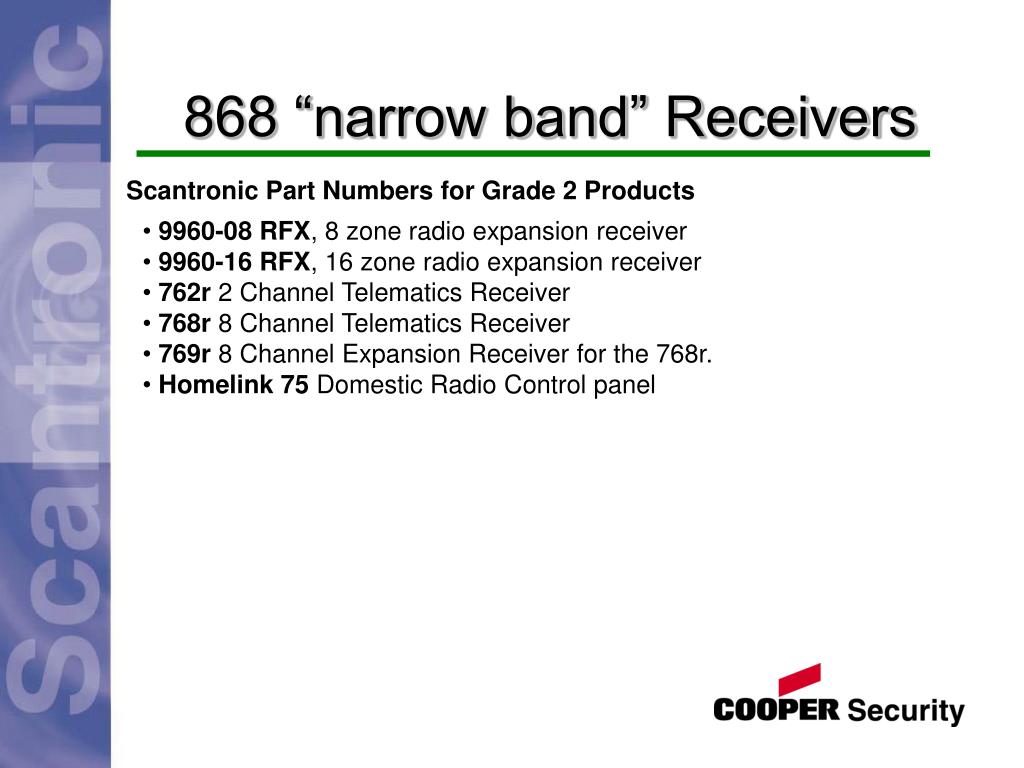

Scantronic Part Numbers for Grade 2 Products

  • 9960-08 RFX, 8 zone radio expansion receiver
  • 9960-16 RFX, 16 zone radio expansion receiver
  • 762r 2 Channel Telematics Receiver
  • 768r 8 Channel Telematics Receiver
  • 769r 8 Channel Expansion Receiver for the 768r.
  • Homelink 75 Domestic Radio Control panel

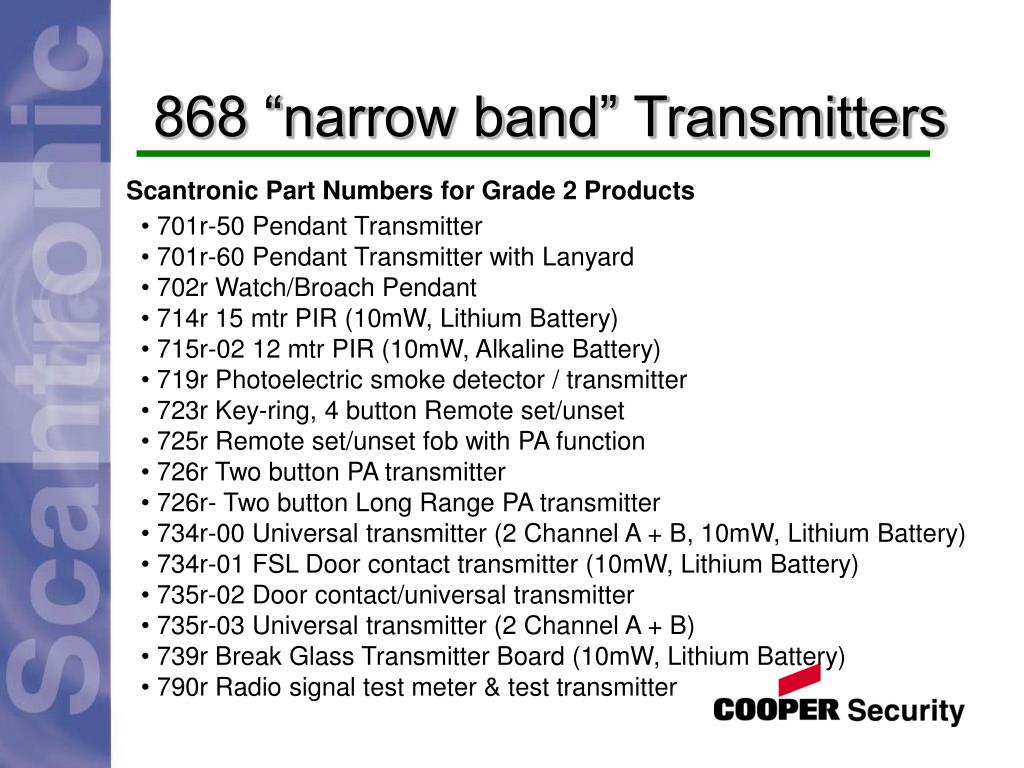

868 narrow band transmitters
868 “narrow band” Transmitters

Scantronic Part Numbers for Grade 2 Products

  • 701r-50 Pendant Transmitter
  • 701r-60 Pendant Transmitter with Lanyard
  • 702r Watch/Broach Pendant
  • 714r 15 mtr PIR (10mW, Lithium Battery)
  • 715r-02 12 mtr PIR (10mW, Alkaline Battery)
  • 719r Photoelectric smoke detector / transmitter
  • 723r Key-ring, 4 button Remote set/unset
  • 725r Remote set/unset fob with PA function
  • 726r Two button PA transmitter
  • 726r- Two button Long Range PA transmitter
  • 734r-00 Universal transmitter (2 Channel A + B, 10mW, Lithium Battery)
  • 734r-01 FSL Door contact transmitter (10mW, Lithium Battery)
  • 735r-02 Door contact/universal transmitter
  • 735r-03 Universal transmitter (2 Channel A + B)
  • 739r Break Glass Transmitter Board (10mW, Lithium Battery)
  • 790r Radio signal test meter & test transmitter

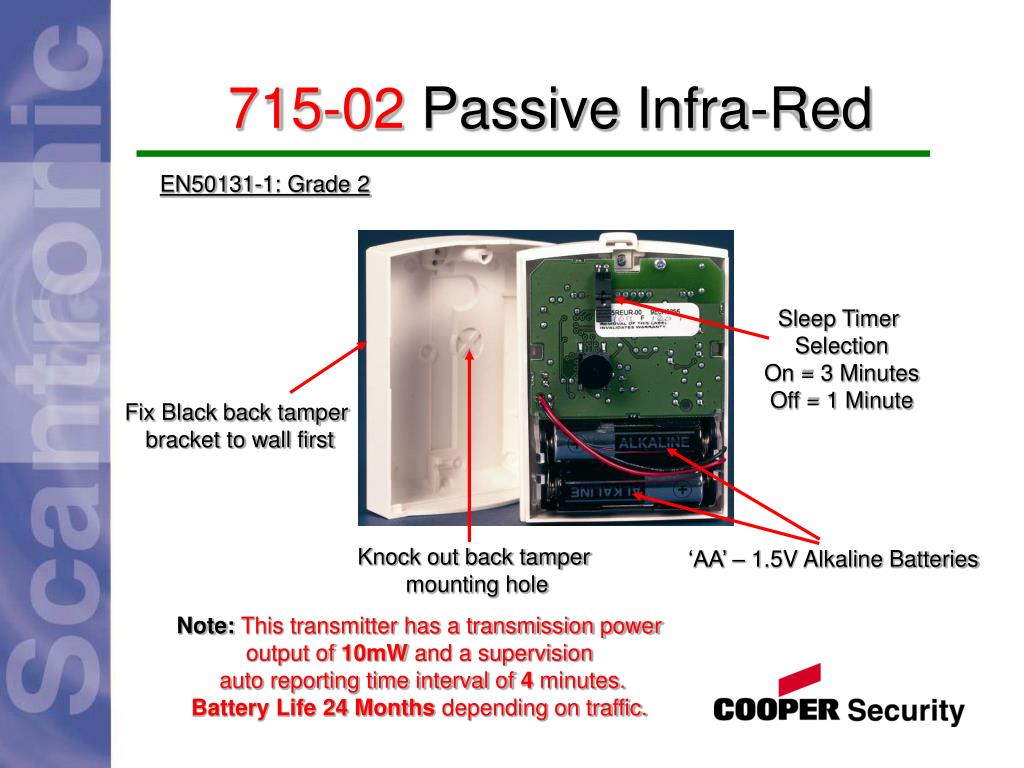

715 02 passive infra red
715-02 Passive Infra-Red

EN50131-1: Grade 2

Sleep Timer

Selection

On = 3 Minutes

Off = 1 Minute

Fix Black back tamper

bracket to wall first

Knock out back tamper

mounting hole

‘AA’ – 1.5V Alkaline Batteries

Note:This transmitter has a transmission power

output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 24 Months depending on traffic.

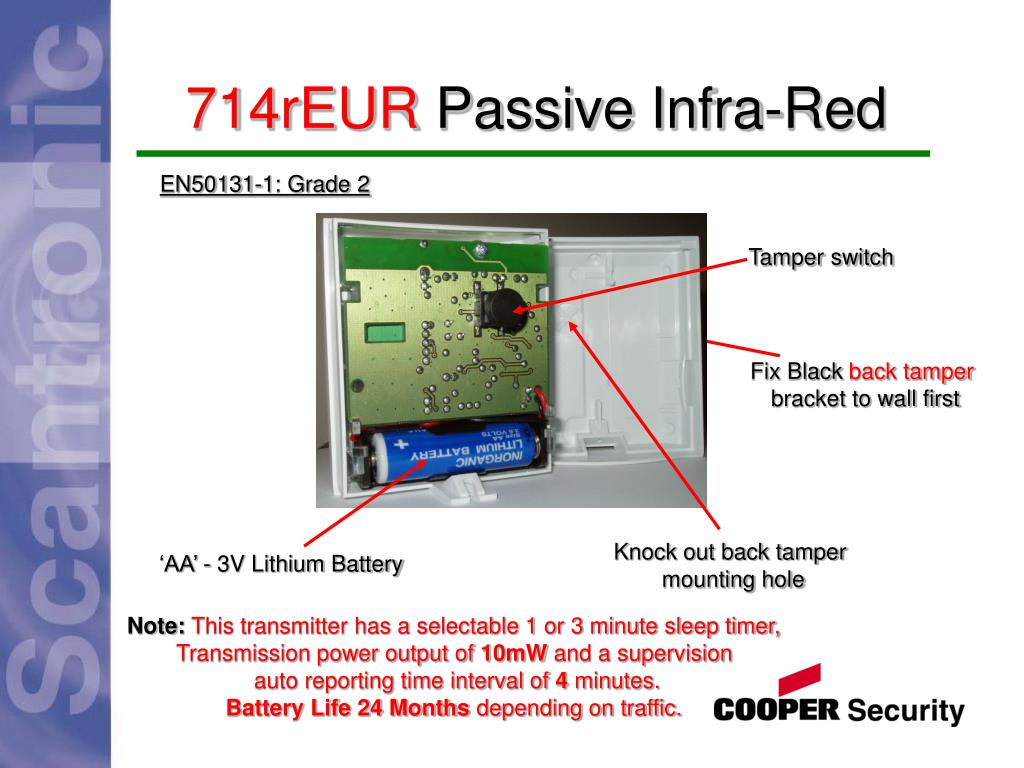

714reur passive infra red
714rEUR Passive Infra-Red

EN50131-1: Grade 2

Tamper switch

Fix Black back tamper

bracket to wall first

Knock out back tamper

mounting hole

‘AA’ - 3V Lithium Battery

Note:This transmitter has a selectable 1 or 3 minute sleep timer,

Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 24 Months depending on traffic.

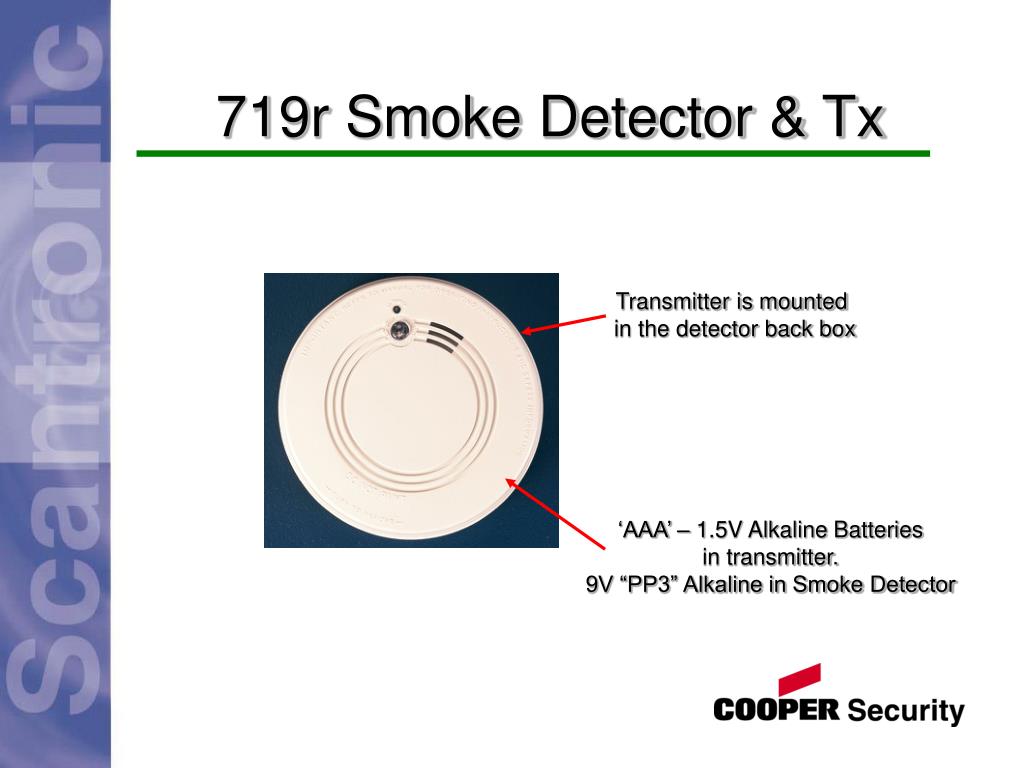

719r smoke detector tx
719r Smoke Detector & Tx

Transmitter is mounted

in the detector back box

‘AAA’ – 1.5V Alkaline Batteries

in transmitter.

9V “PP3” Alkaline in Smoke Detector

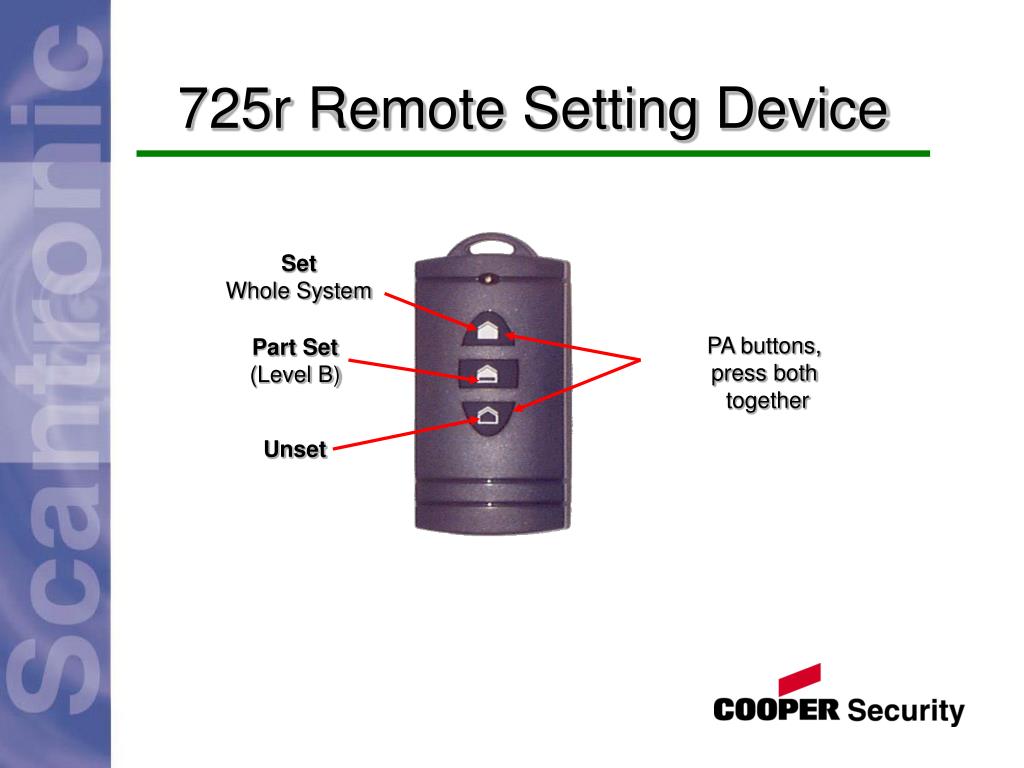

725r remote setting device

Set

Whole System

PA buttons,

press both

together

Part Set

(Level B)

Unset

725r Remote Setting Device
723reur remote setting device

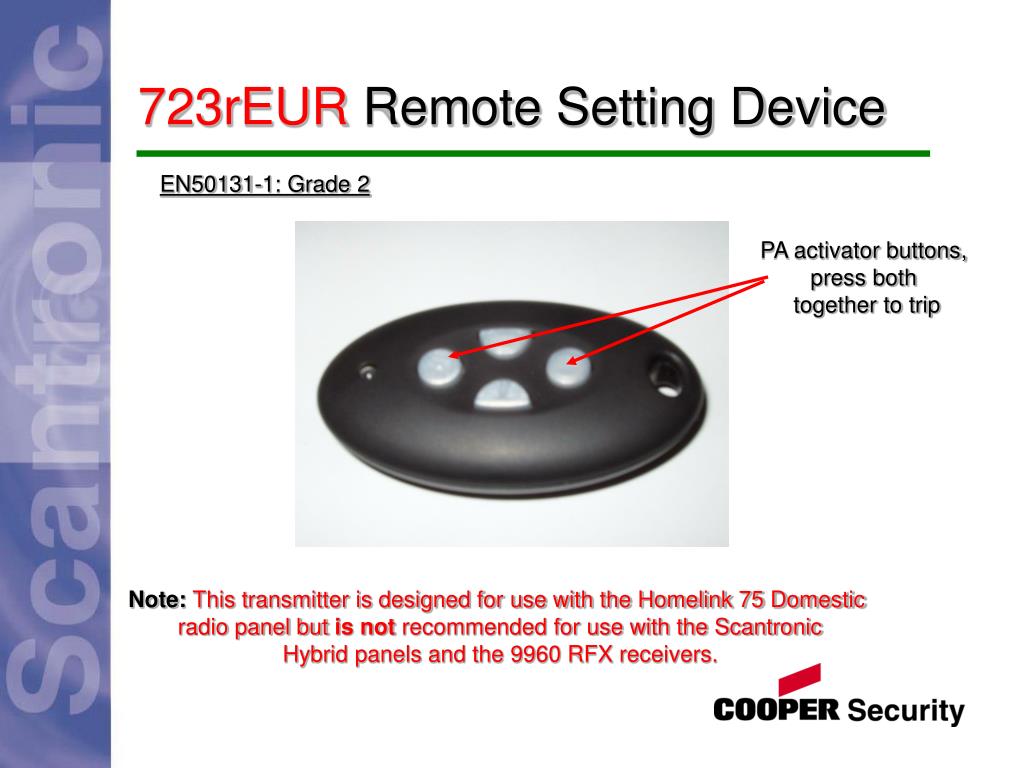

723rEUR Remote Setting Device

EN50131-1: Grade 2

PA activator buttons,

press both

together to trip

Note:This transmitter is designed for use with the Homelink 75 Domestic

radio panel but is not recommended for use with the Scantronic

Hybrid panels and the 9960 RFX receivers.

726r pa transmitter
726r PA Transmitter

Button lock,

slide down to unlock

PA activator buttons,

press both together to trip

735r 02 universal transmitter
735r-02 Universal Transmitter

Cut wire link if internal

reed contact NOT

required

Internal reed contact

under PCB

‘AAA’ 1.5V

Alkaline Batteries

4 wire connection for external

closed circuit alarm and tamper contacts

Note:This transmitter has a transmission power

output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 14 – 18 monthsdepending on traffic.

734r 00 universal transmitter

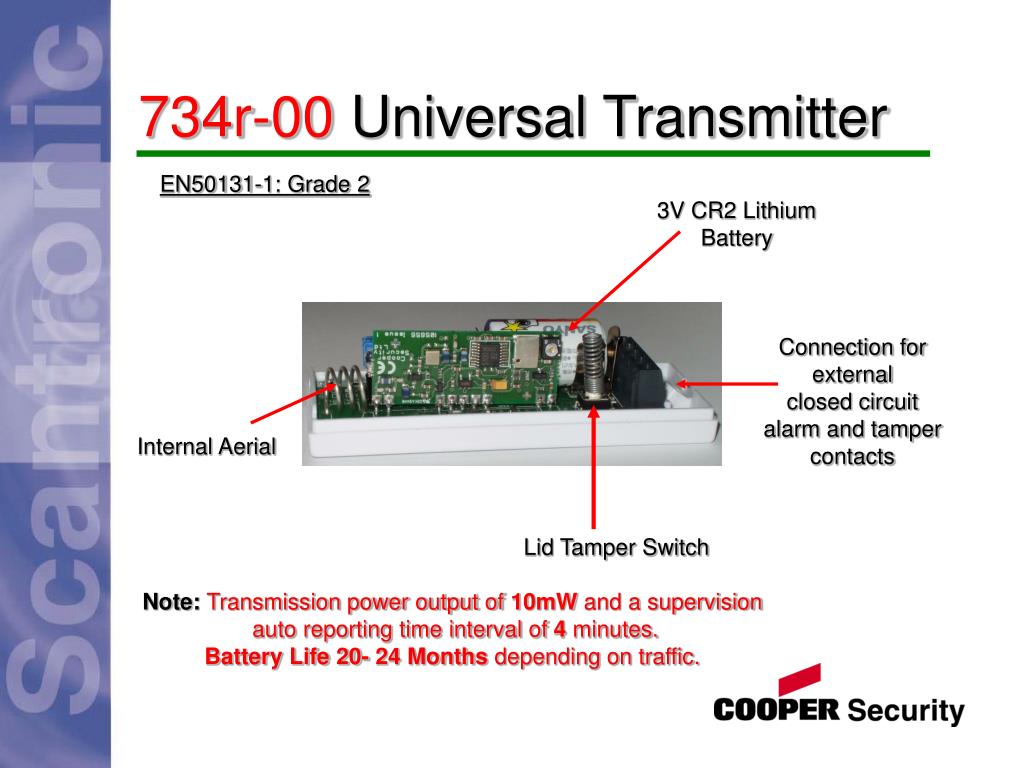

734r-00 Universal Transmitter

EN50131-1: Grade 2

3V CR2 Lithium Battery

Connection for external

closed circuit alarm and tamper contacts

Internal Aerial

Lid Tamper Switch

Note: Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 20- 24 Months depending on traffic.

734r 00 universal transmitter1

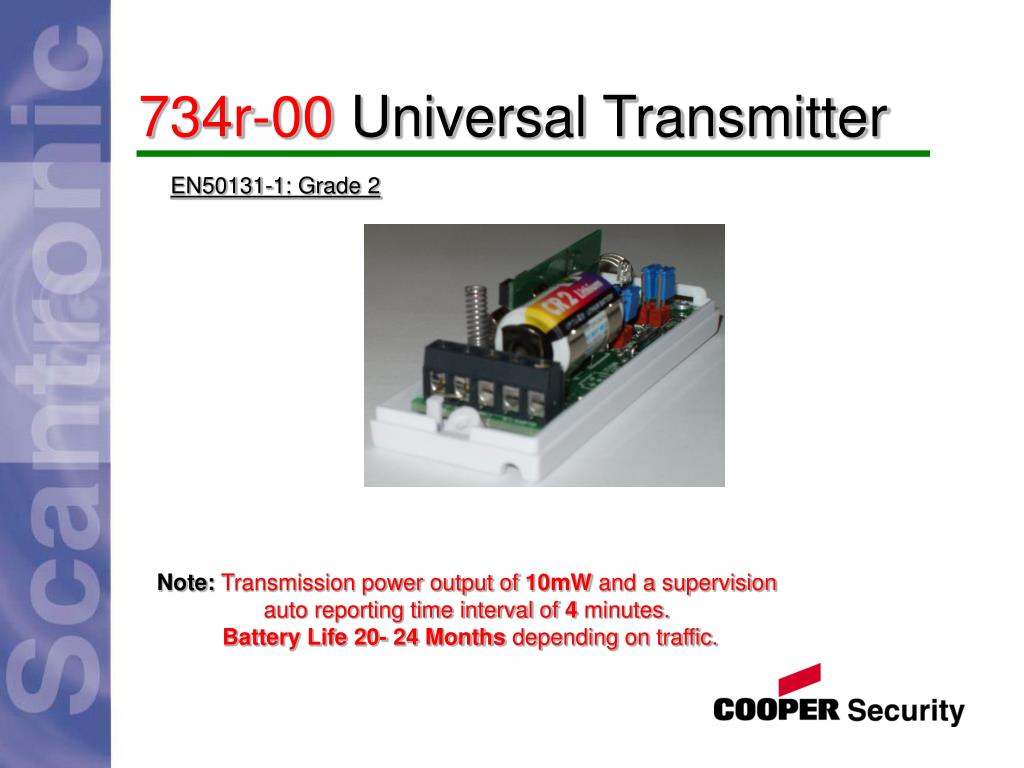

734r-00 Universal Transmitter

EN50131-1: Grade 2

LK1

LK3

LK2

LK4

Internal reed contact

Note:Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 20- 24 Months depending on traffic.

734r 00 universal transmitter2

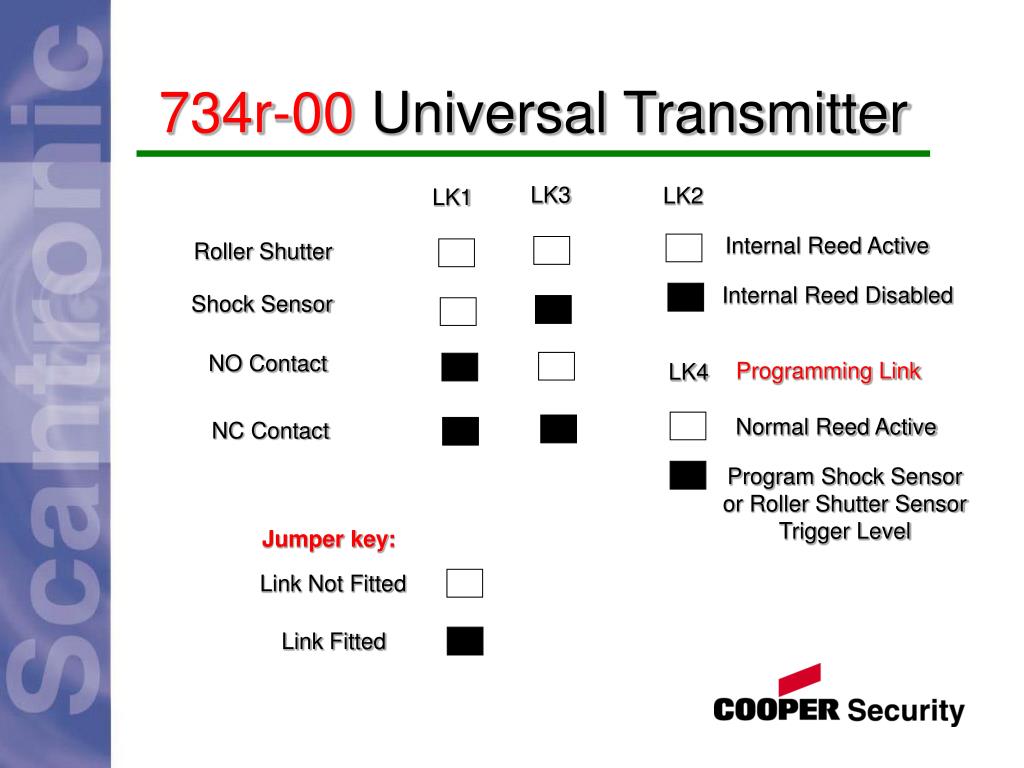

734r-00 Universal Transmitter

LK3

LK2

LK1

Internal Reed Active

Roller Shutter

Internal Reed Disabled

Shock Sensor

NO Contact

Programming Link

LK4

Normal Reed Active

NC Contact

Program Shock Sensor

or Roller Shutter Sensor

Trigger Level

Jumper key:

Link Not Fitted

Link Fitted

734r 00 universal transmitter3
734r-00 Universal Transmitter

EN50131-1: Grade 2

Note: Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 20- 24 Months depending on traffic.

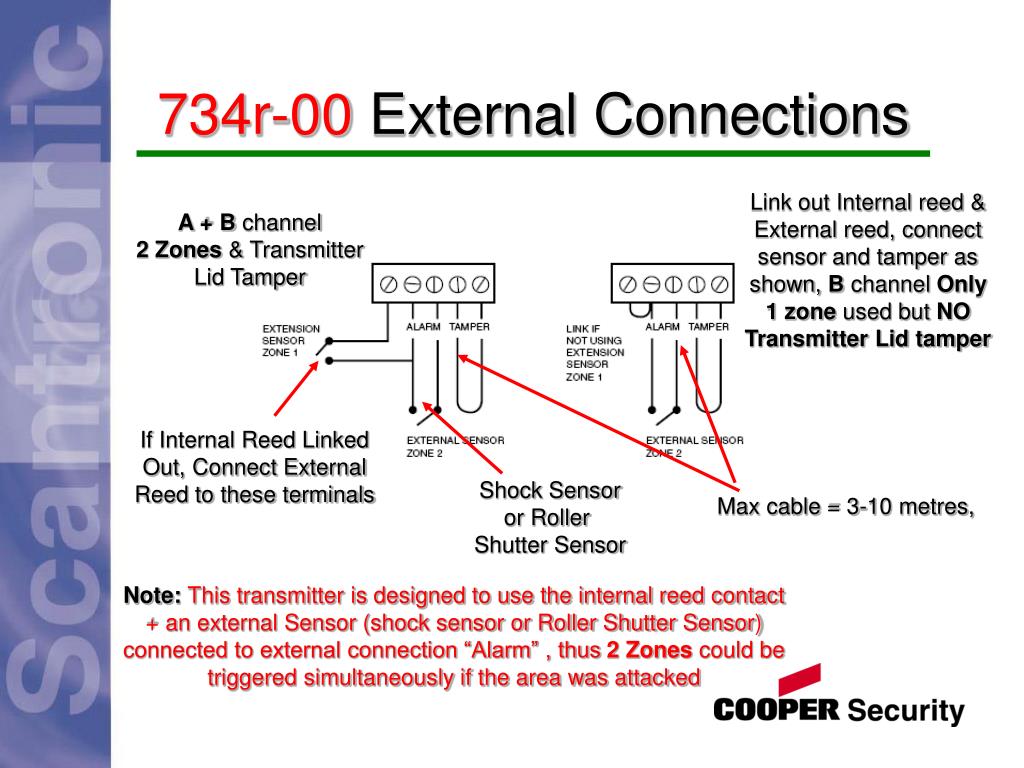

734r 00 external connections
734r-00 External Connections

Link out Internal reed & External reed, connect sensor and tamper as shown, B channel Only1 zone used but NO Transmitter Lid tamper

A + B channel

2 Zones & Transmitter

Lid Tamper

If Internal Reed Linked

Out, Connect External Reed to these terminals

Shock Sensor

or Roller

Shutter Sensor

Max cable = 3-10 metres,

Note:This transmitter is designed to use the internal reed contact + an external Sensor (shock sensor or Roller Shutter Sensor) connected to external connection “Alarm” , thus 2 Zones could be triggered simultaneously if the area was attacked

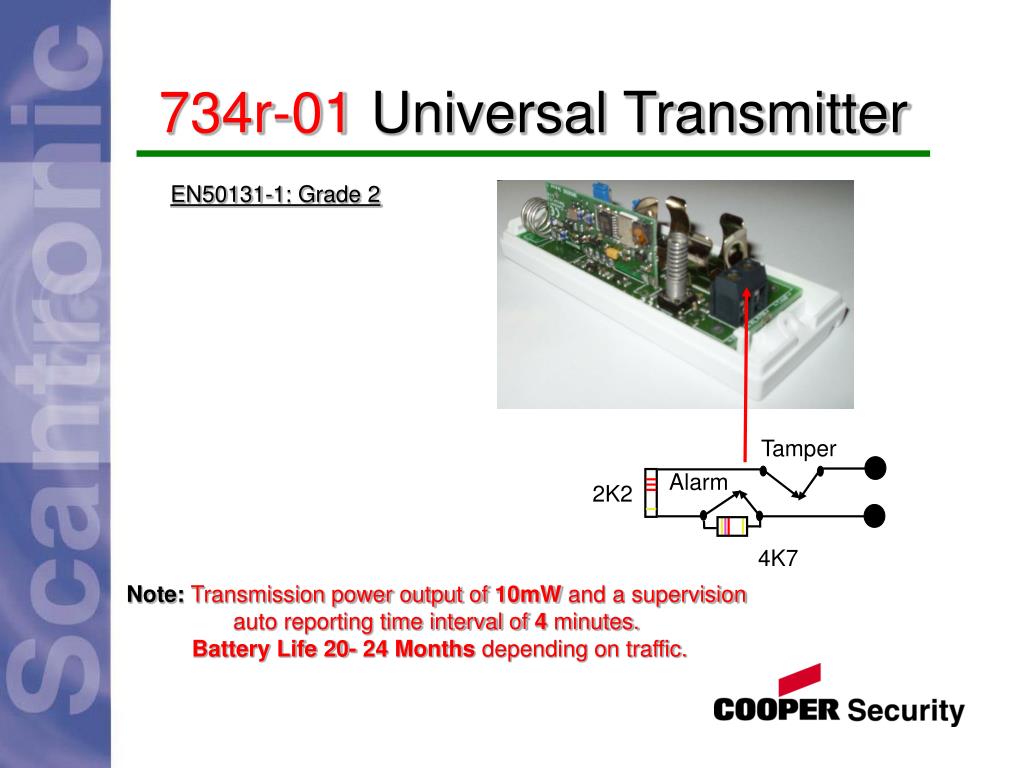

734r 01 universal transmitter

2K2

4K7

734r-01 Universal Transmitter

EN50131-1: Grade 2

Tamper

Alarm

Note: Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 20- 24 Months depending on traffic.

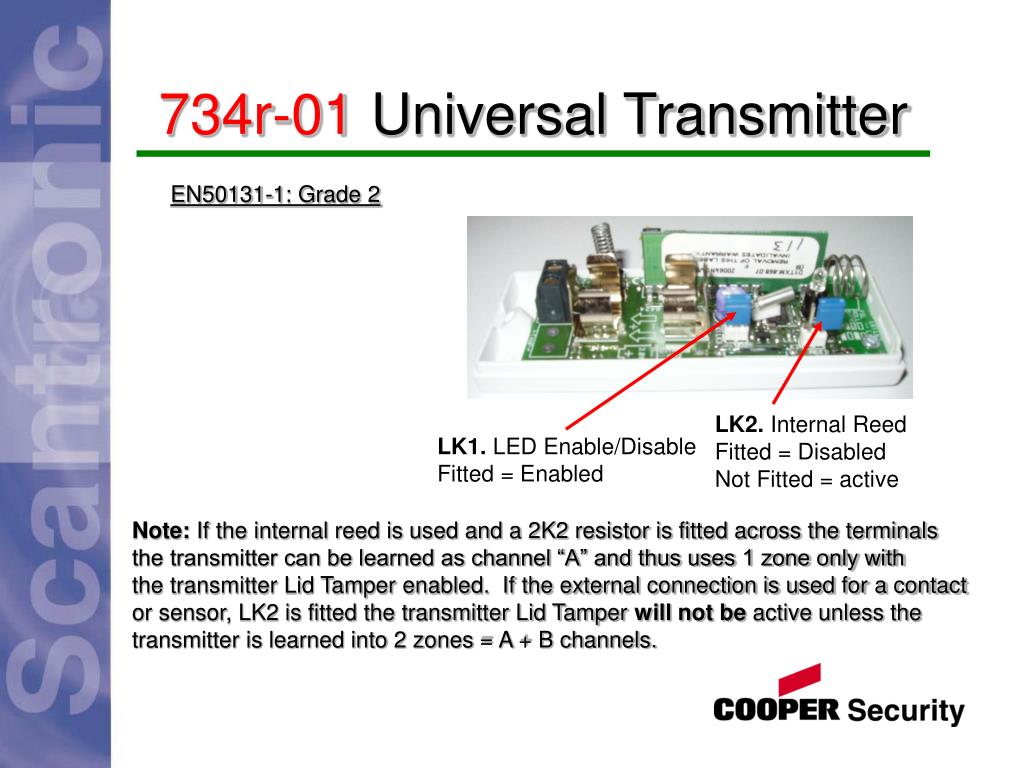

734r 01 universal transmitter1
734r-01 Universal Transmitter

EN50131-1: Grade 2

LK2. Internal Reed

Fitted = Disabled

Not Fitted = active

LK1. LED Enable/Disable

Fitted = Enabled

Note: If the internal reed is used and a 2K2 resistor is fitted across the terminals

the transmitter can be learned as channel “A” and thus uses 1 zone only with

the transmitter Lid Tamper enabled. If the external connection is used for a contact

or sensor, LK2 is fitted the transmitter Lid Tamper will not be active unless the

transmitter is learned into 2 zones = A + B channels.

739r break glass transmitter
739r Break Glass Transmitter

Invert Input jumper

Link to Enable

LED

Aritech/Sentrol Break Glass

Detector, 3V operation

Note:This Detector has NO enclosure Tamper switch thus is not EN50131-1 Grade 2

Note: Transmission power output of 10mW and a supervision

auto reporting time interval of 4 minutes.

Battery Life 20- 24 Months depending on traffic.

transmitter aerial
Transmitter Aerial
  • Transmitter Aerial Pattern

Plan View

Slice Thro

Transmitter Aerial Location

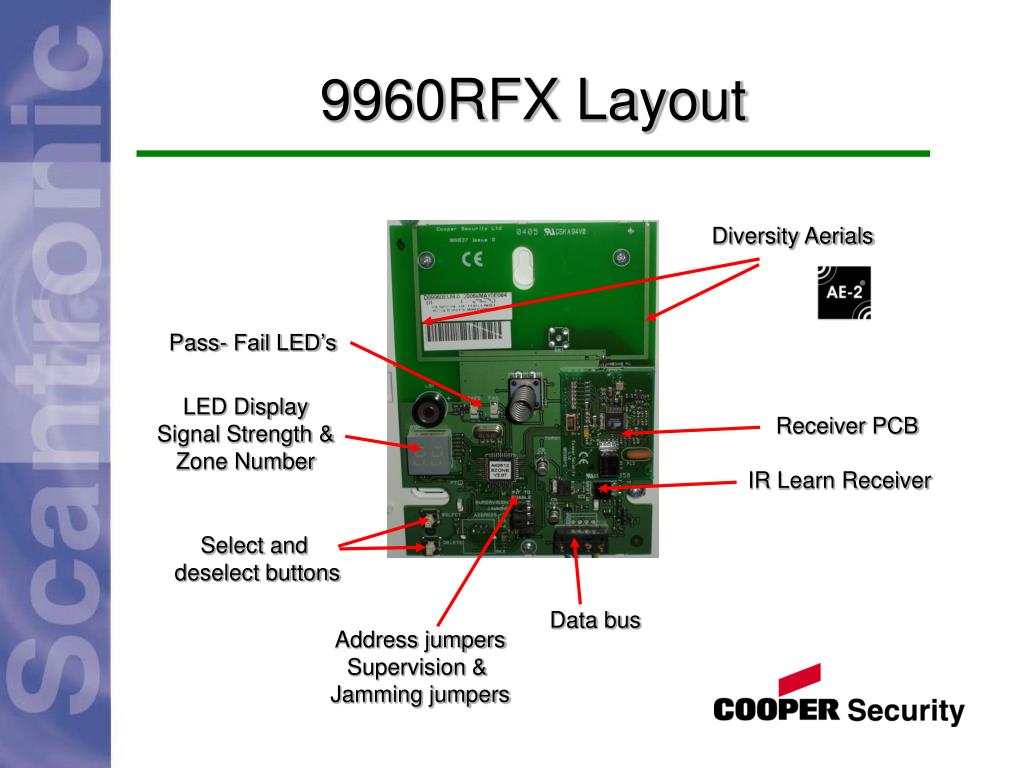

9960rfx layout
9960RFX Layout

Diversity Aerials

Pass- Fail LED’s

LED Display

Signal Strength &

Zone Number

Receiver PCB

IR Learn Receiver

Select and

deselect buttons

Data bus

Address jumpers

Supervision &

Jamming jumpers

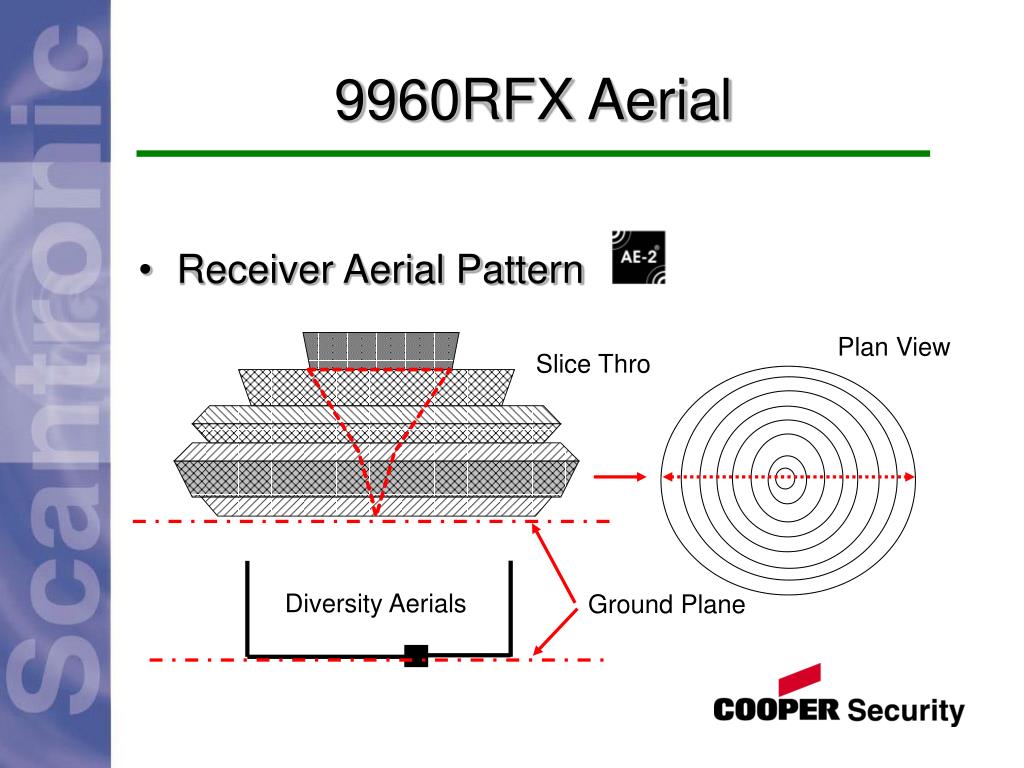

9960rfx aerial
9960RFX Aerial
  • Receiver Aerial Pattern

Plan View

Slice Thro

Diversity Aerials

Ground Plane

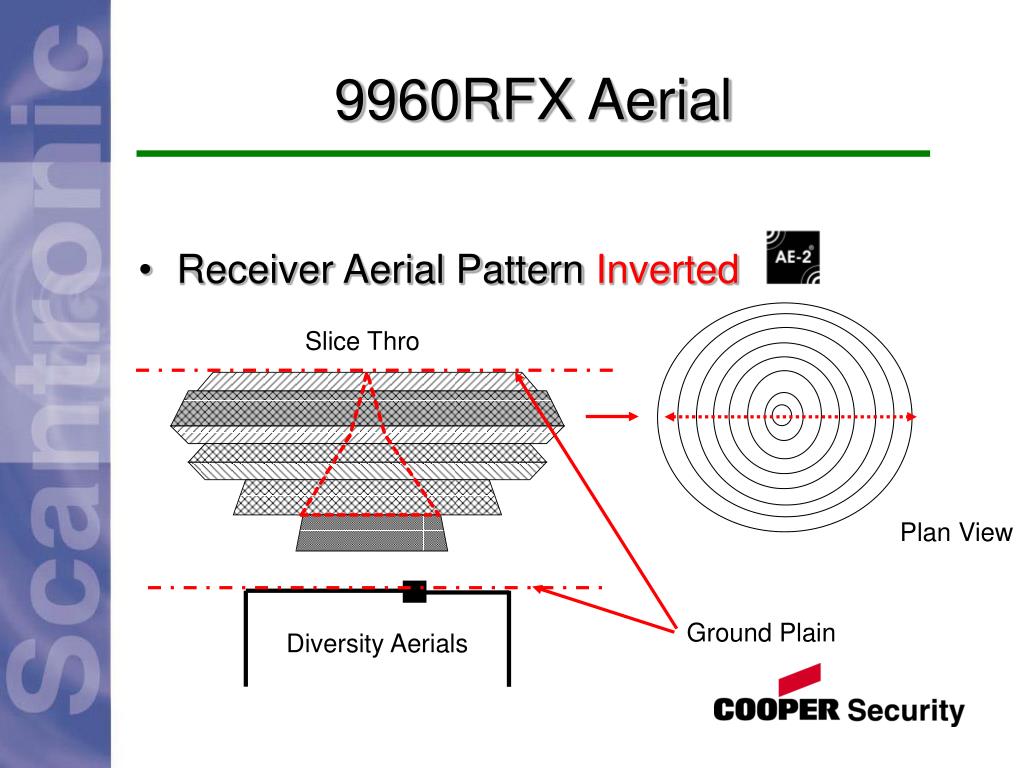

9960rfx aerial1
9960RFX Aerial
  • Receiver Aerial Pattern Inverted

Slice Thro

Plan View

Ground Plain

Diversity Aerials

what type of radio
What Type of Radio ?
  • Which is the best radio for use in a an Intruder Alarm System and why ?
    • Both AM & FM are used for low power telemetry
      • AM (Amplitude Modulation), where the message code is created by varying the size or amplitude, of the radio signal.
      • AM was the first method chosen, as it is easier and cheaper to build.
      • Radio reception on the AM bands, “long and medium wave” is often prone to interference, and at night sometimes totally impossible to listen to !
am transmission

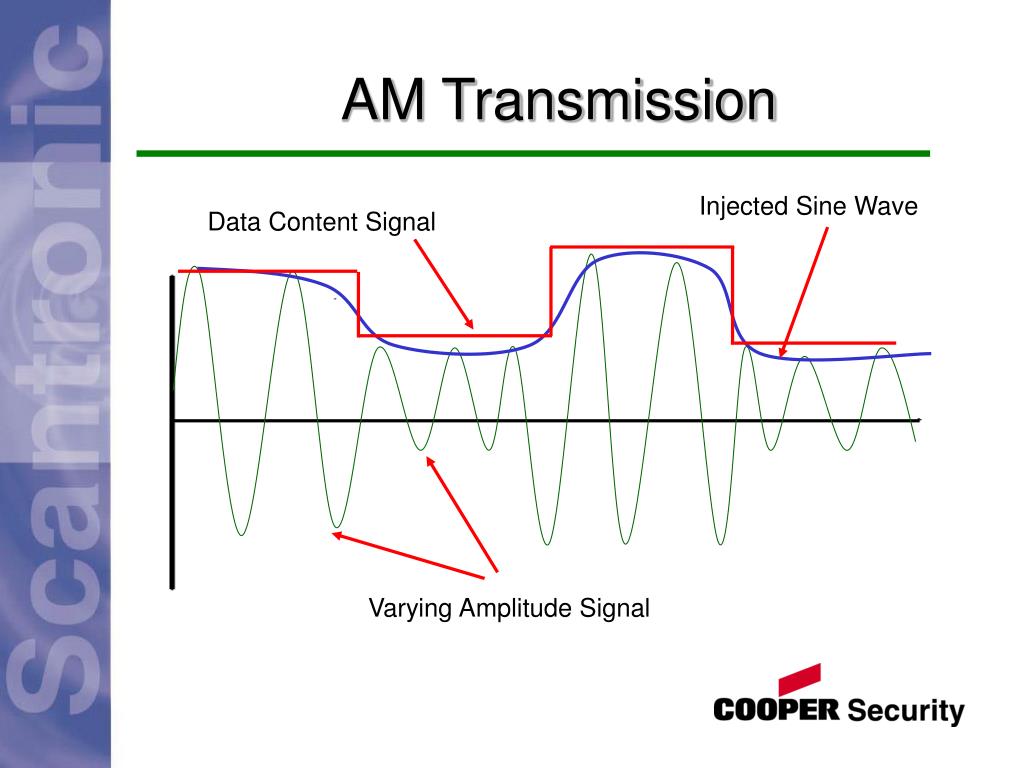

AM Transmission

Injected Sine Wave

Data Content Signal

Varying Amplitude Signal

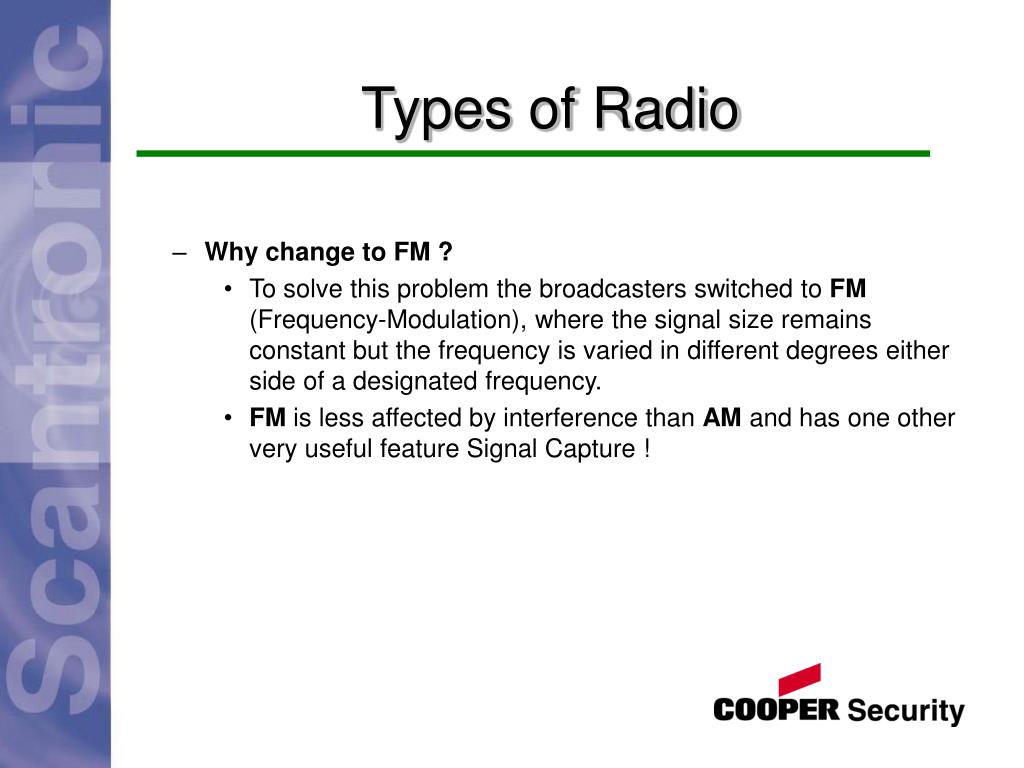

types of radio
Types of Radio
  • Why change to FM ?
    • To solve this problem the broadcasters switched to FM (Frequency-Modulation), where the signal size remains constant but the frequency is varied in different degrees either side of a designated frequency.
    • FM is less affected by interference than AM and has one other very useful feature Signal Capture !

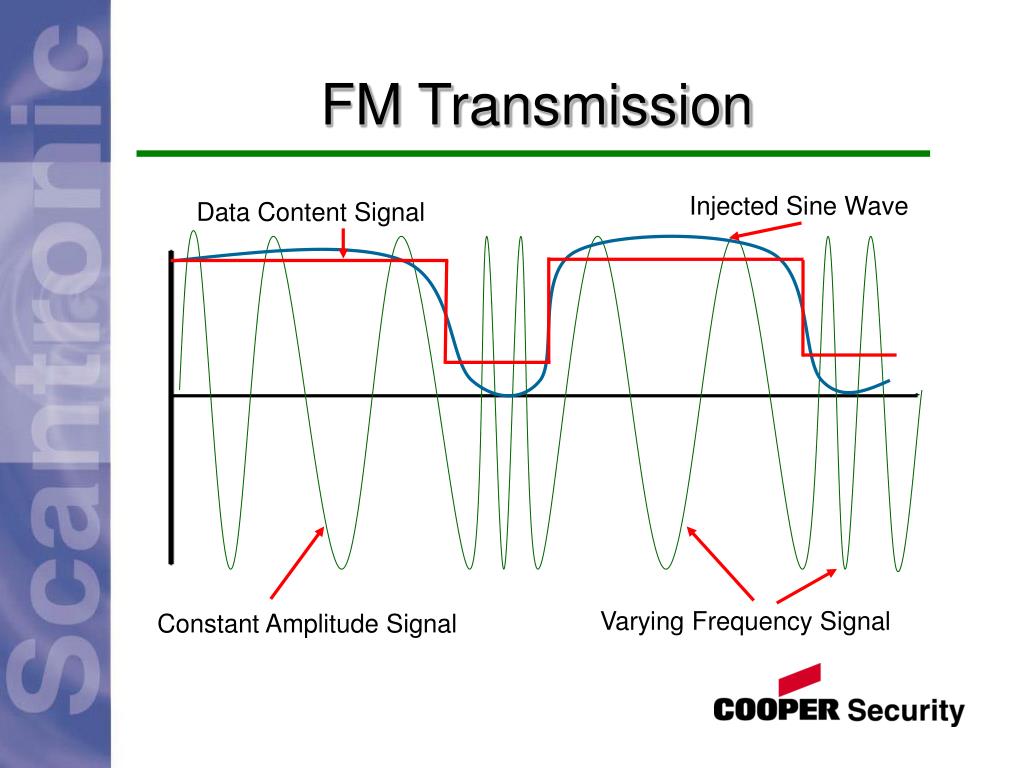

slide28

FM Transmission

Injected Sine Wave

Data Content Signal

Varying Frequency Signal

Constant Amplitude Signal

type of radio
Type of Radio

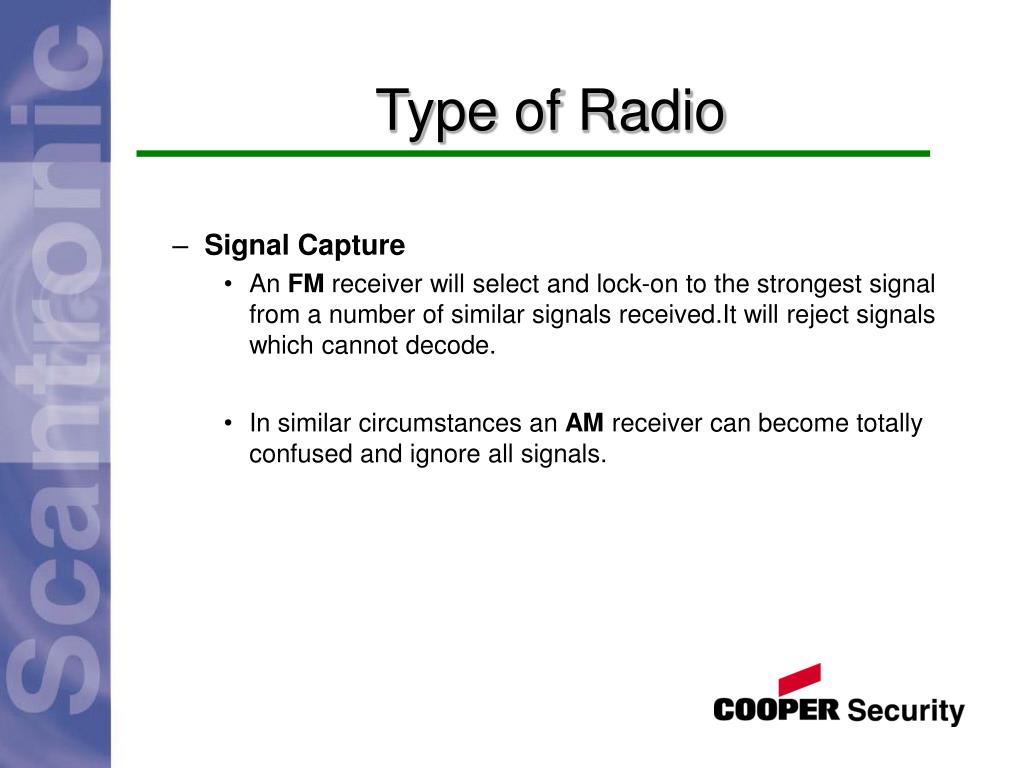

  • Signal Capture
    • An FM receiver will select and lock-on to the strongest signal from a number of similar signals received.It will reject signals which cannot decode.
    • In similar circumstances an AM receiver can become totally confused and ignore all signals.
why use 868mhz

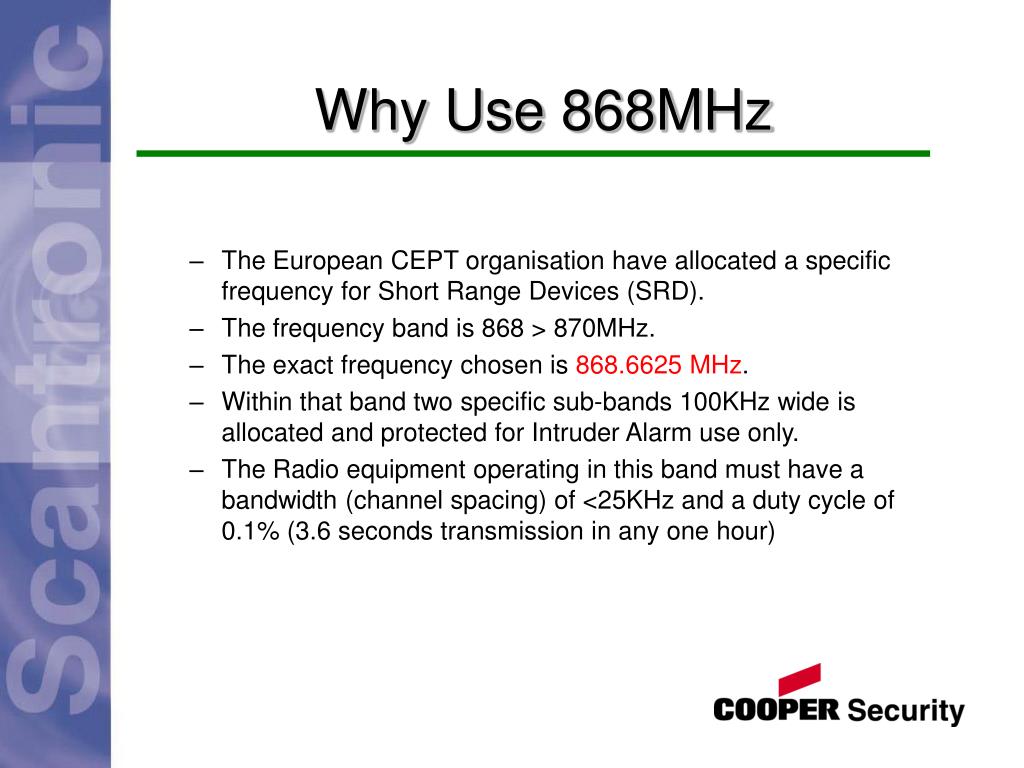

Why Use 868MHz
  • The European CEPT organisation have allocated a specific frequency for Short Range Devices (SRD).
  • The frequency band is 868 > 870MHz.
  • The exact frequency chosen is 868.6625 MHz.
  • Within that band two specific sub-bands 100KHz wide is allocated and protected for Intruder Alarm use only.
  • The Radio equipment operating in this band must have a bandwidth (channel spacing) of <25KHz and a duty cycle of 0.1% (3.6 seconds transmission in any one hour)

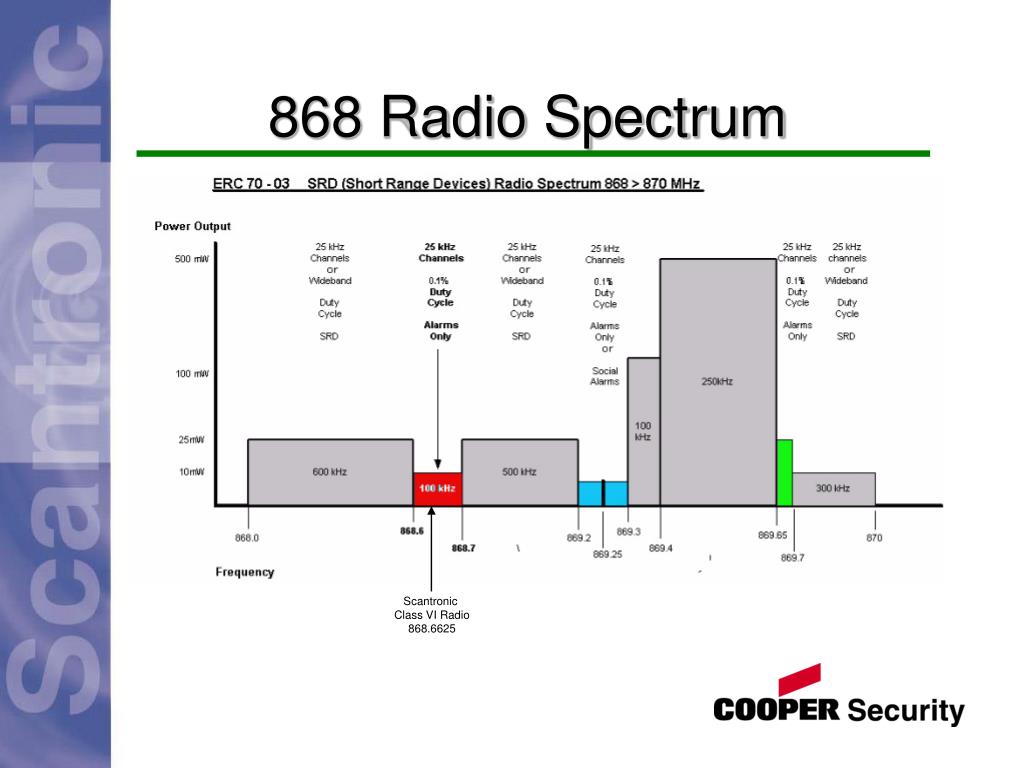

868 radio spectrum
868 Radio Spectrum

Scantronic

Class VI Radio

868.6625

operating range
Operating Range
  • Transmission in Free Space:
    • We would love to quote a maximum & minimum range, mother nature imposes certain rules that effectively means every site is different, however we will support a Tx > Rx free space (Clear line of Site - outdoors) range of “Plus 200 metres”.
attenuation
Attenuation
  • The affect of radio transmissions in a building:
    • Attenuation is the amount of reduction in a signal from the transmitter to the receiver, and can be caused by a wide variety of natural and man-made hazards.
attenuation1
Attenuation

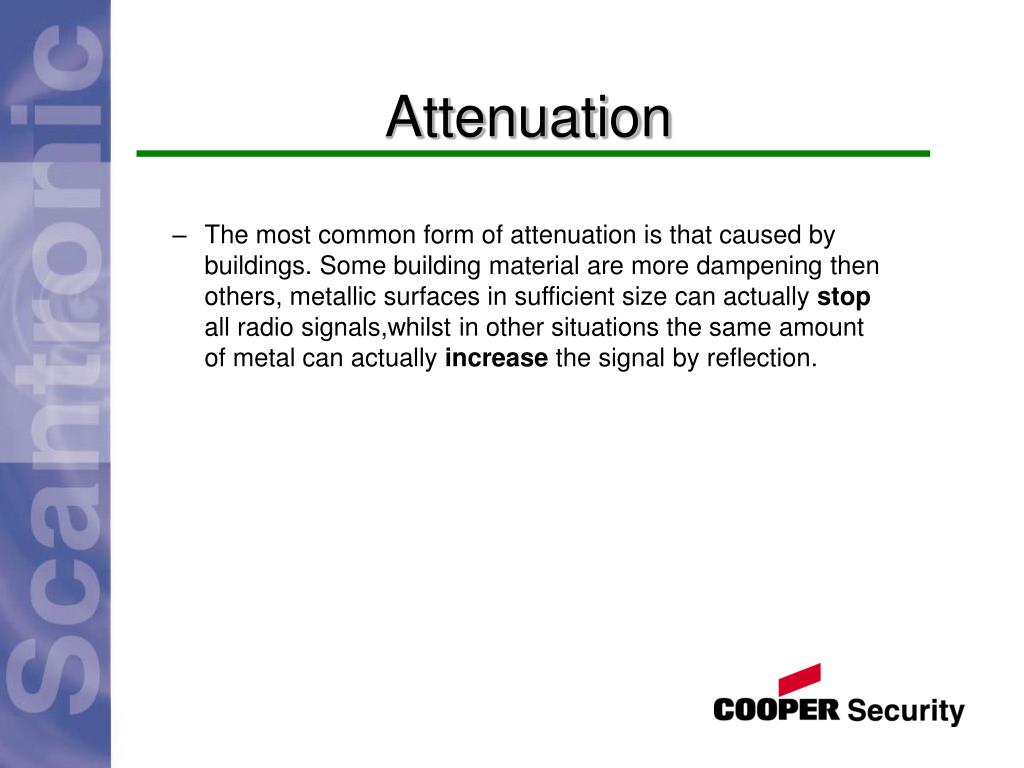

  • The most common form of attenuation is that caused by buildings. Some building material are more dampening then others, metallic surfaces in sufficient size can actually stop all radio signals,whilst in other situations the same amount of metal can actually increase the signal by reflection.
attenuation2
Attenuation

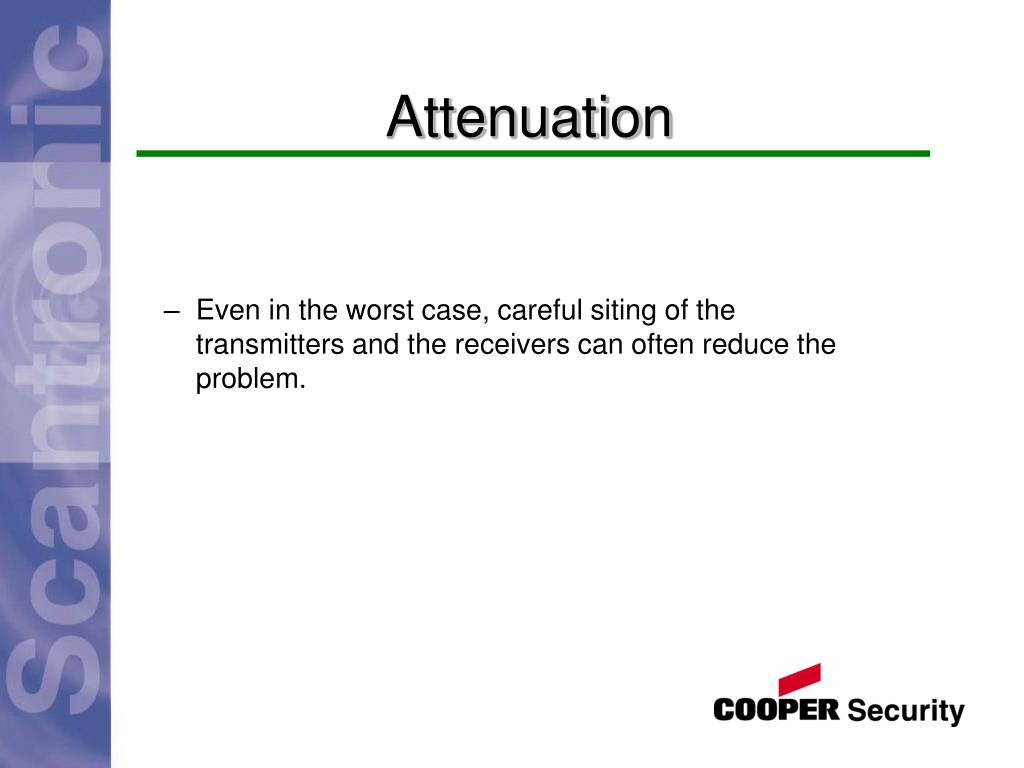

  • Even in the worst case, careful siting of the transmitters and the receivers can often reduce the problem.
868 radio site survey
868 Radio Site Survey
  • The Radio Site Survey will determine the correct location of each transmitter and ensure a reliable signal to the Radio Receiver (RFX).
    • Fit the batteries in the test transmitter and switch on the unit, it will start to transmit every 2-3 seconds.
    • Locate the transmitter where you want to mount the RFX
    • Switch on the 790rTest Meter/receiver, ensure that the battery is ok.
    • Learn the test transmitter into the 790r (see instructions)
    • Take 790r to each required transmitter location, note reading in a range 0-9.
    • Minimum signal strength acceptable is 3!
    • Ideal received signal strength 5 > 8/9.

Note: The signal strength reading is equivalent to the RFX

with the Lid on =Not Attenuated.

868 does don ts
868 Does & Don'ts
  • Do NOT site the RFX receiver
    • Outside the area covered by the alarm system.
    • Near ground level.
  • Do NOT site the RFX or Detectors
    • Close to or on large structures, for example: metal water or gas pipes.
    • Closer than one metre to mains wiring and metal water or gas pipes.
    • Next to high voltage electrical equipment, or electronic equipment. Computers - Photocopiers - other Radios.
868 does don ts1
868 Does & Don'ts
  • Do site the RFX
    • In a convenient location to connect to the control unit or a remote keypad.
    • Within a protected area.
    • Ensure that there is clear space around the RFX to allow it to receive a good quality radio signal.
scantronic radio
Scantronic Radio

This presentation was brought to you by Cooper Security Limited

the “Winner” of the

Security Excellence Awards

“Training Initiative for 2003”
