  1. PG&E’s 2009 Participating Load Pilot

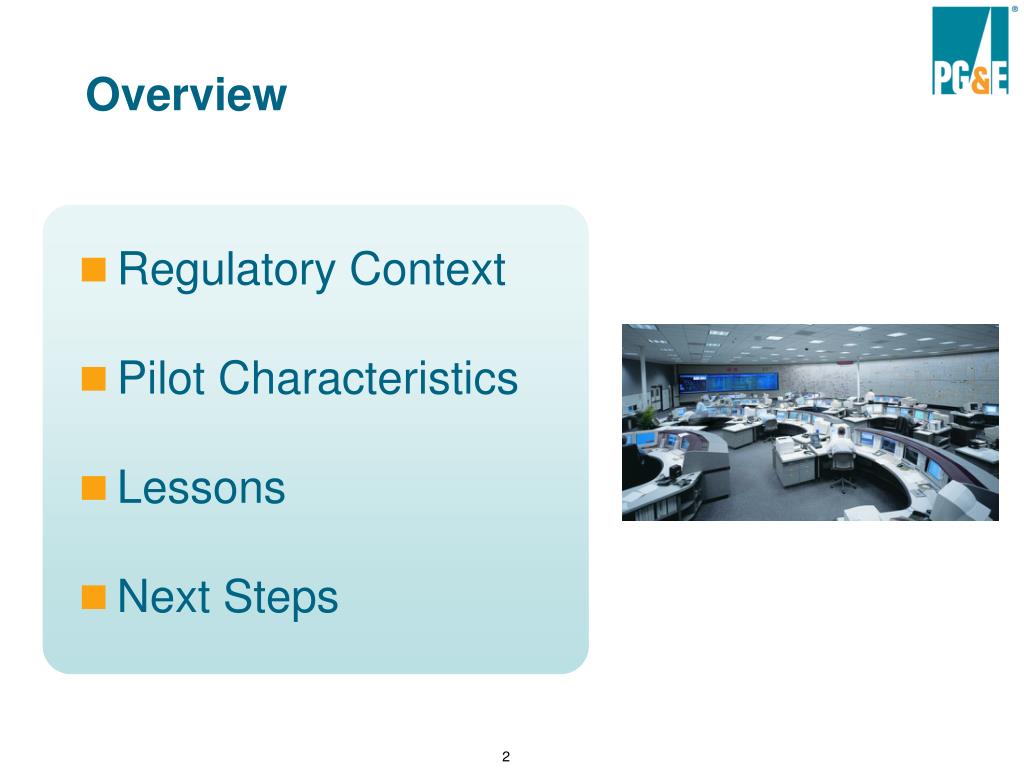

  2. Overview • Regulatory Context • Pilot Characteristics • Lessons • Next Steps

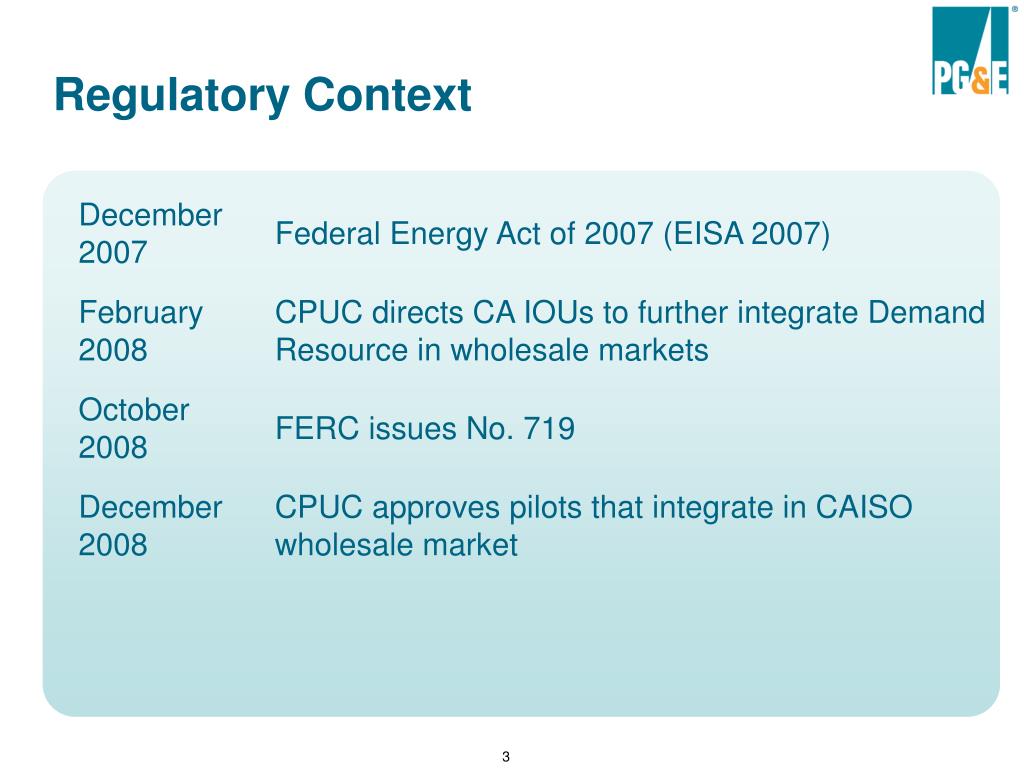

  3. Regulatory Context

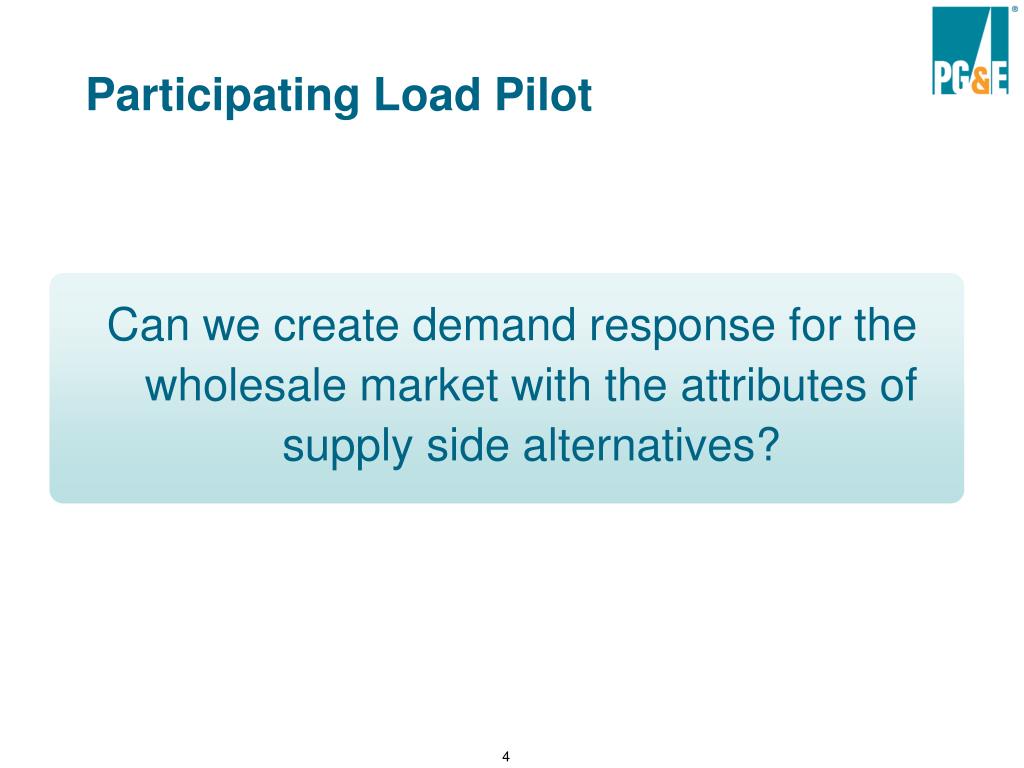

  4. Participating Load Pilot Can we create demand response for the wholesale market with the attributes of supply side alternatives?

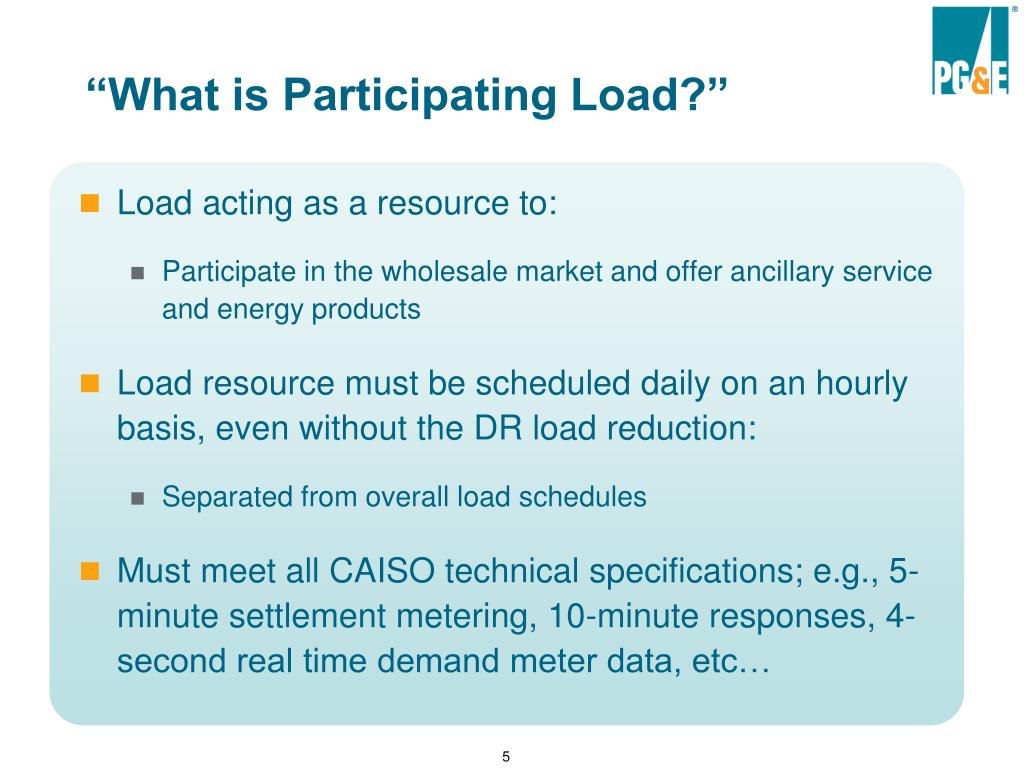

  5. “What is Participating Load?” • Load acting as a resource to: • Participate in the wholesale market and offer ancillary service and energy products • Load resource must be scheduled daily on an hourly basis, even without the DR load reduction: • Separated from overall load schedules • Must meet all CAISO technical specifications; e.g., 5-minute settlement metering, 10-minute responses, 4-second real time demand meter data, etc…

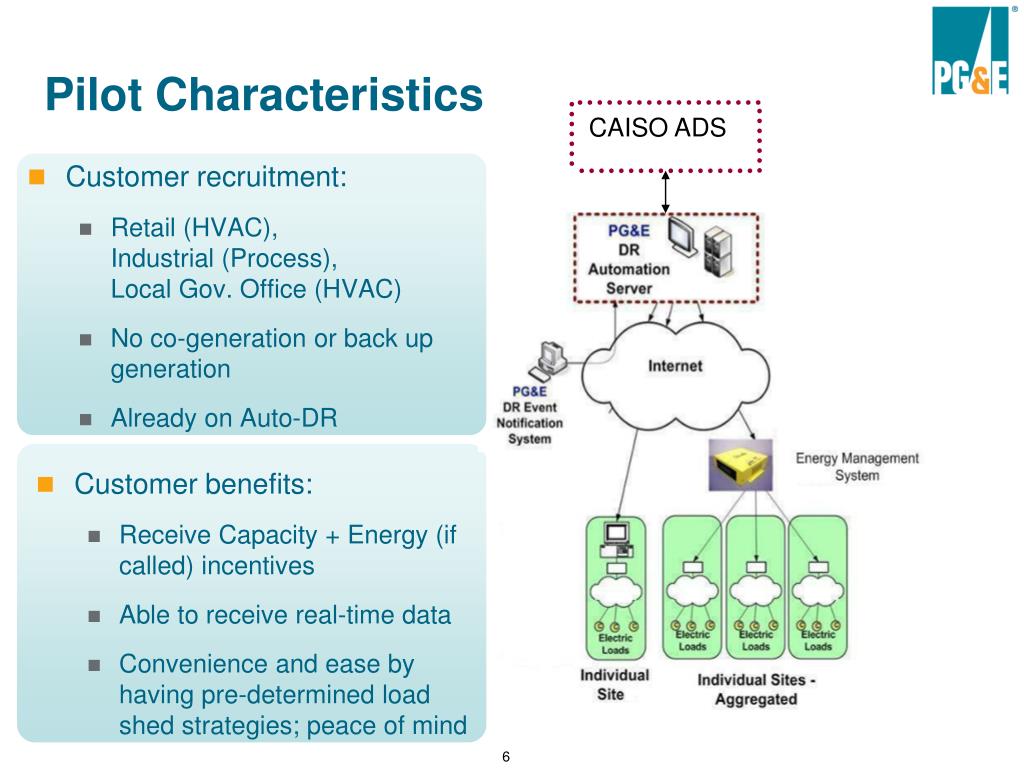

  6. Customer recruitment: Retail (HVAC), Industrial (Process),Local Gov. Office (HVAC) No co-generation or back up generation Already on Auto-DR Pilot Characteristics CAISO ADS • Customer benefits: • Receive Capacity + Energy (if called) incentives • Able to receive real-time data • Convenience and ease by having pre-determined load shed strategies; peace of mind

  7. Pilot Characteristics For real time meter data, PG&E used real time equipment to harvest meter data from end use sites transmit to the CAISO. Transmit meter data in 4-seconds. Communication must be running at all times even without DR bids. Setup node points in CAISO’s EMS and Full Network Model (FNM) database. For notification of a dispatch events, once CAISO initiates the event, Auto-DR triggers the customers’ pre-determined load shed strategies within the customers’ EMS and sends an email alerting the customer of an event.

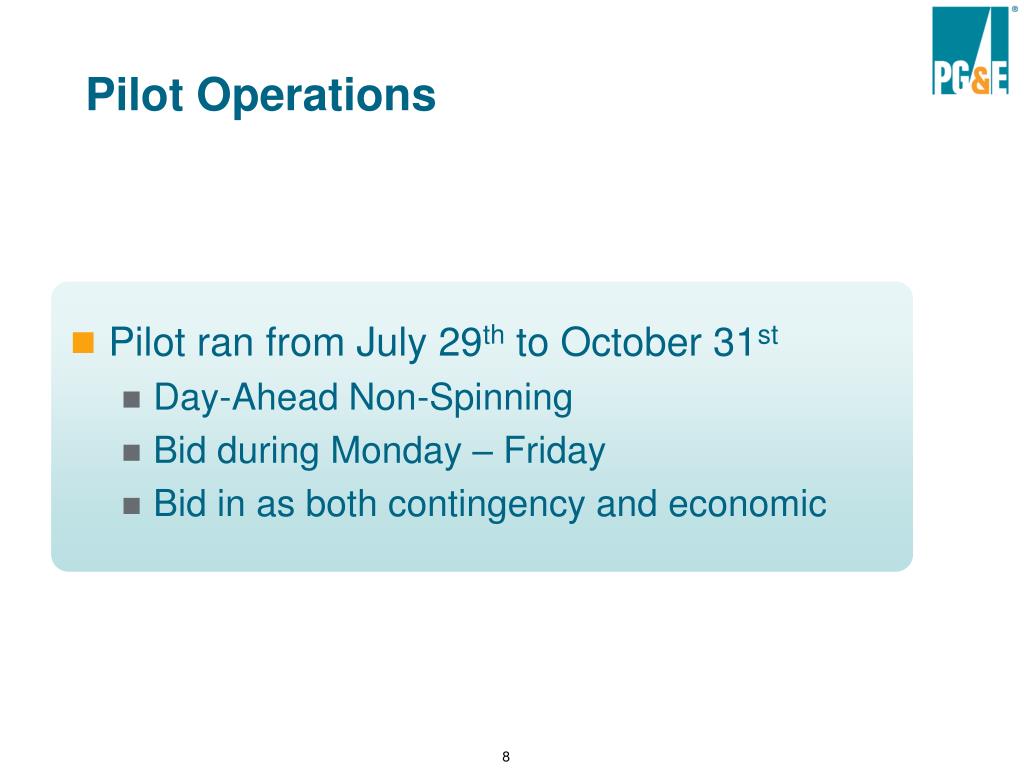

  8. Pilot Operations • Pilot ran from July 29th to October 31st • Day-Ahead Non-Spinning • Bid during Monday – Friday • Bid in as both contingency and economic

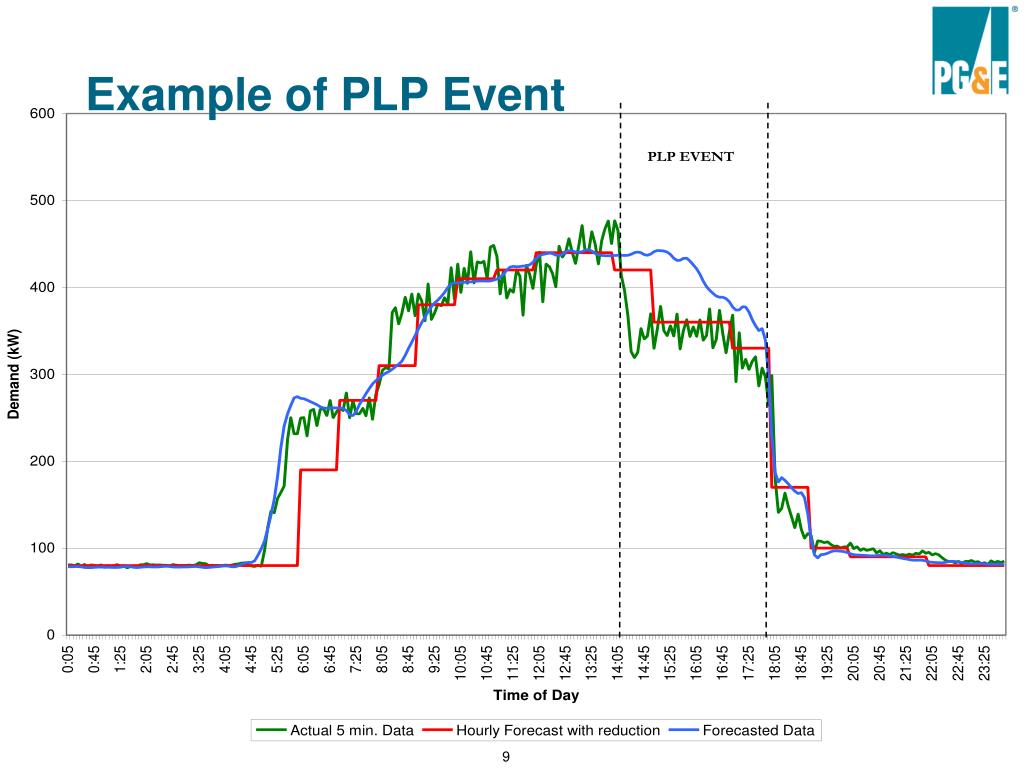

  9. Example of PLP Event

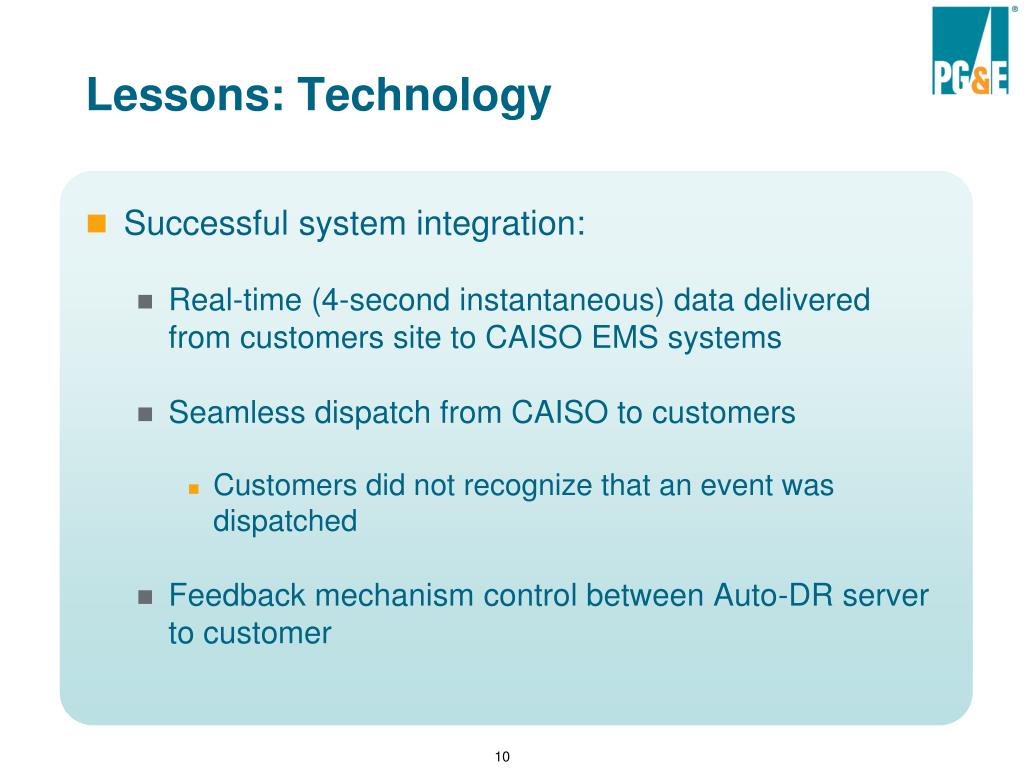

  10. Lessons: Technology • Successful system integration: • Real-time (4-second instantaneous) data delivered from customers site to CAISO EMS systems • Seamless dispatch from CAISO to customers • Customers did not recognize that an event was dispatched • Feedback mechanism control between Auto-DR server to customer

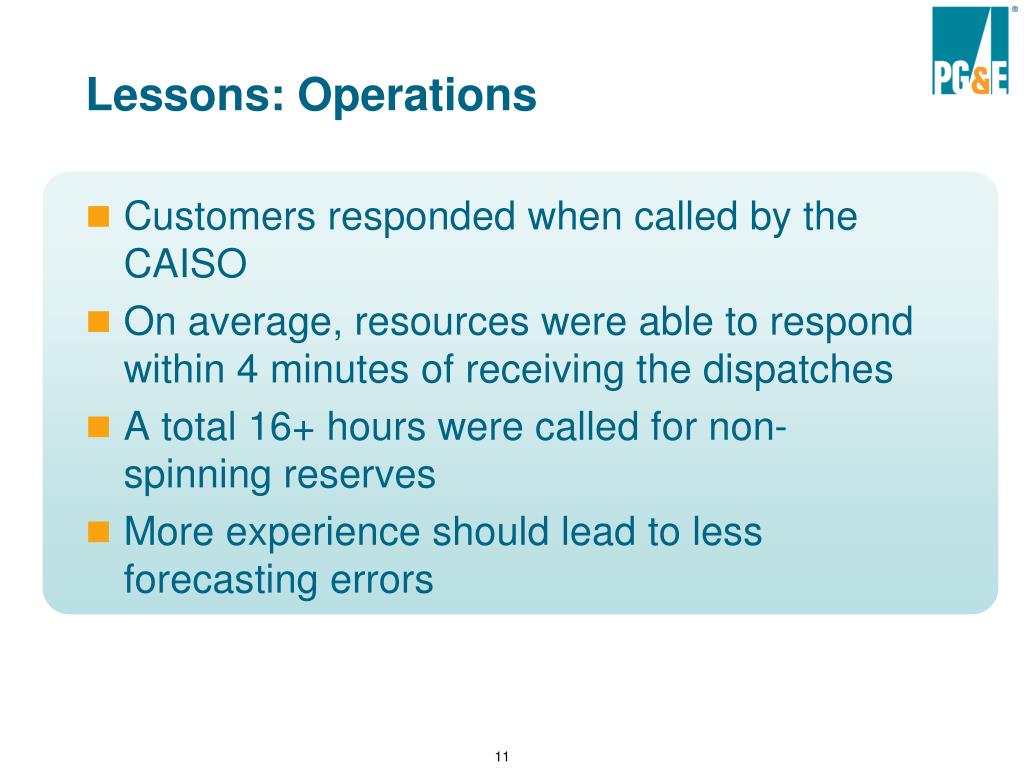

  11. Lessons: Operations • Customers responded when called by the CAISO • On average, resources were able to respond within 4 minutes of receiving the dispatches • A total 16+ hours were called for non-spinning reserves • More experience should lead to less forecasting errors

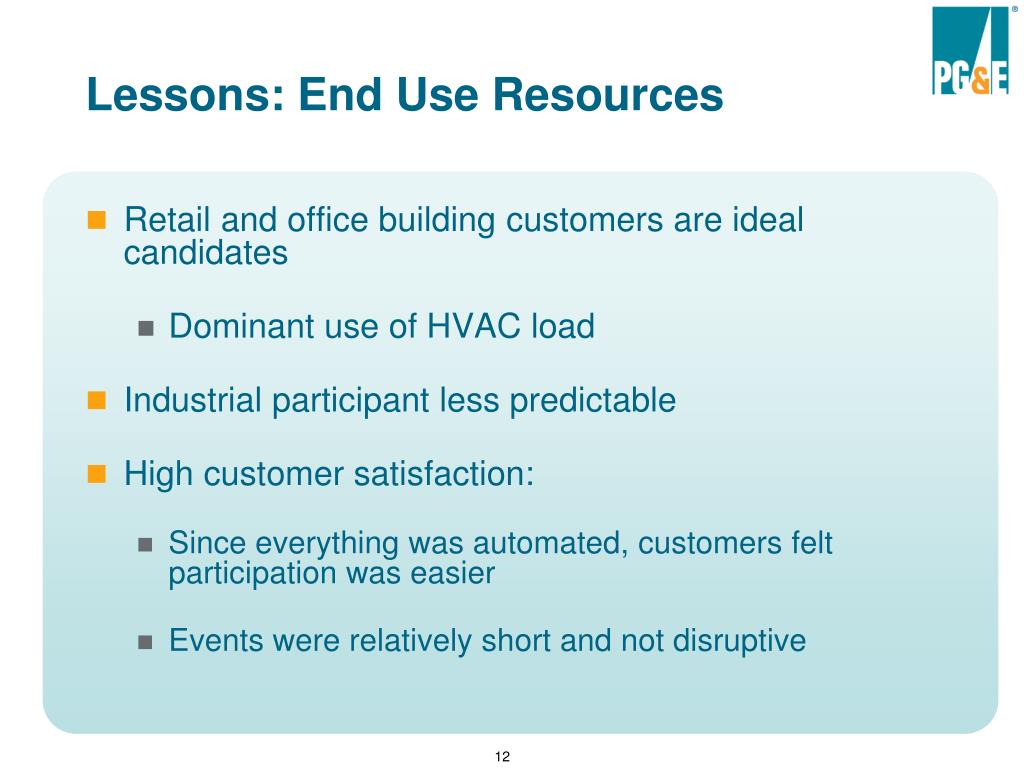

  12. Lessons: End Use Resources • Retail and office building customers are ideal candidates • Dominant use of HVAC load • Industrial participant less predictable • High customer satisfaction: • Since everything was automated, customers felt participation was easier • Events were relatively short and not disruptive

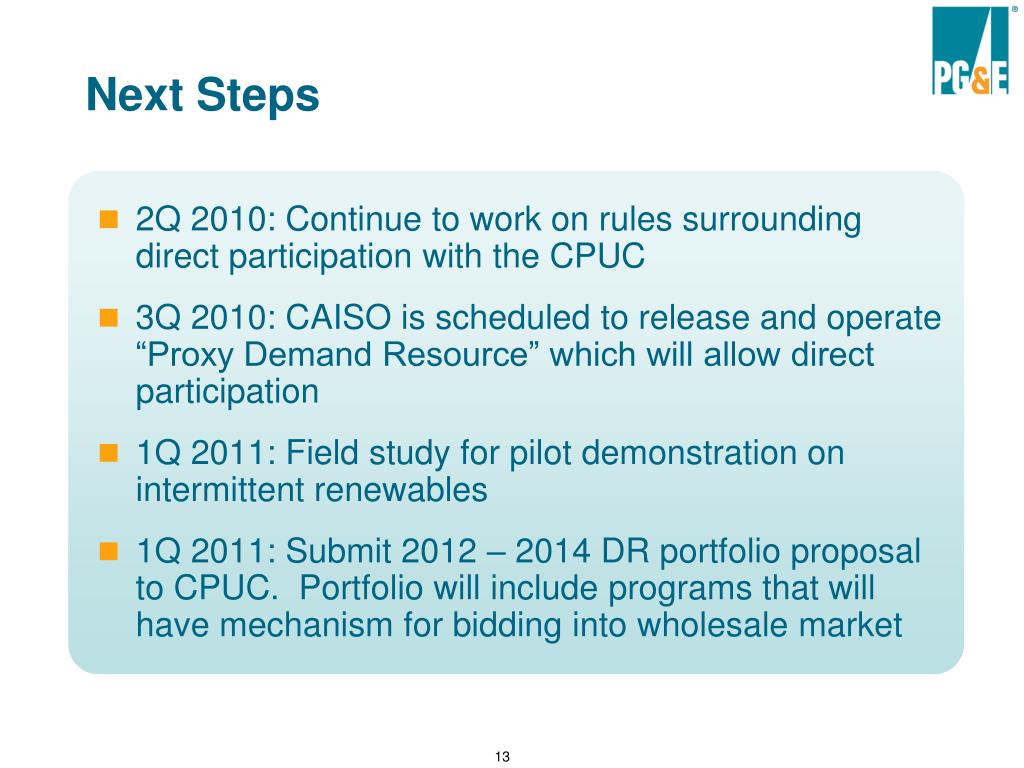

  13. Next Steps • 2Q 2010: Continue to work on rules surrounding direct participation with the CPUC • 3Q 2010: CAISO is scheduled to release and operate “Proxy Demand Resource” which will allow direct participation • 1Q 2011: Field study for pilot demonstration on intermittent renewables • 1Q 2011: Submit 2012 – 2014 DR portfolio proposal to CPUC. Portfolio will include programs that will have mechanism for bidding into wholesale market

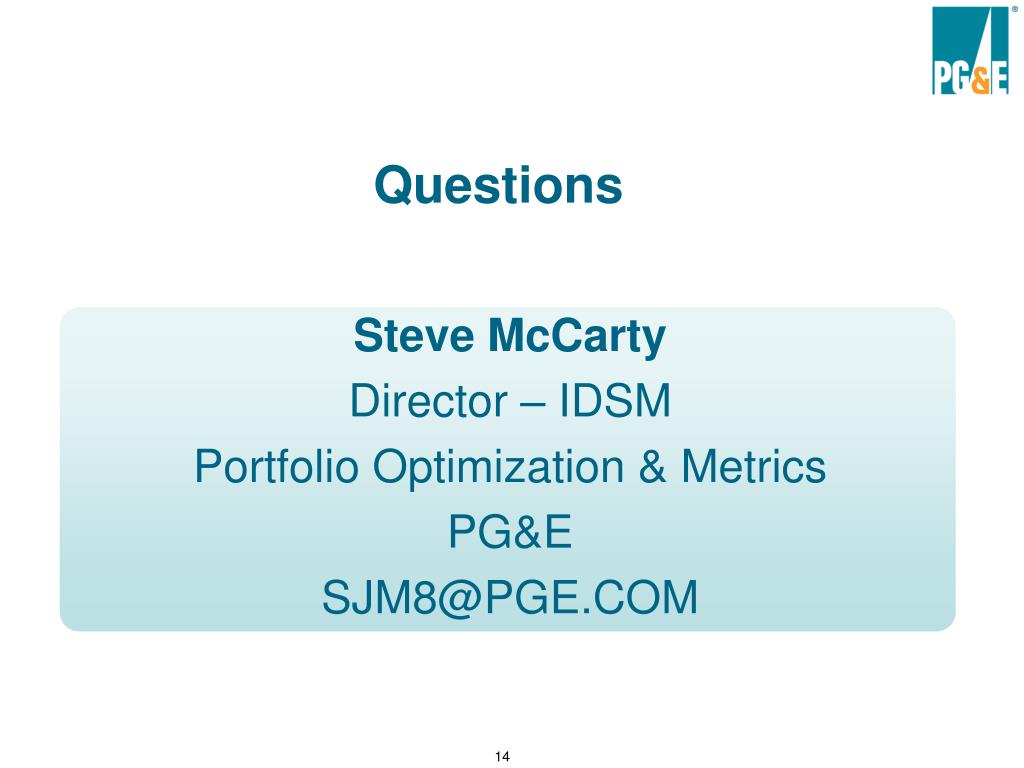

  14. Questions Steve McCarty Director – IDSM Portfolio Optimization & Metrics PG&E SJM8@PGE.COM
