  1. SMAG*A memory-bounded graph search Aisha Walcott

  2. Intro • A* can take space exponential in the depth of the search • Linear space searches: IDA*, IE • Memory-bounded searches, MA*, SMA*

  3. SMA* • Russell 1992 • 2 sets OPEN and CLOSED • Makes use of all available memory • Propagates f-cost backwards • By retaining backed up values then the algorithm still knows how worthwhile it is to go anywhere from n • Adds and prunes only one node at a time

  4. g + h = f Search Space Goal node SMA* Example

  5. g + h = f Search Space Goal node SMA* Example 2. Deepest lowest f-cost node, A, adds successor G Update f-cost of A to min of its children f(A) = 13 Memory is full 4. G is expanded Delete H and Add I G is completed its f-cost = 24 F cost of A becomes min(15,24) = 15 • A is best node and generates its • forgotten successor B • B is the best and generates C • C is not a goal and its at maximum • depth, set its f-cost = inf • Deepest lowest f-cost node, A, adds • successor B • G is chosen for expansion • Delete the shallowest highest f-cost leaf • A remembers the cost of its best forgotten successor • Add H, but not solution through H so set • its f-cost = inf • Delete C add D • then f-cost of D is backed up to B • and A 8. Deepest lowest F-cost node, D, is selected D is the goal Solution Found! [Russel, Norvig]

  6. SMA* Summary • Utilizes all memory available to it • Partially expanded nodes, one successor at a time • Complete if the memory is sufficient enough to store the shallowest solution • Optimal if the memory is sufficient enough to store the shallowest optimal solution • Russell & Norvig- “Most complicated search we have seen yet”

  7. Memory-bounded A* graph searches • Heuristic search in graphs is more complex than in trees because there can be more than one path to a node • When a shorter path to a node is found its g-value can change • If the node has already been expanded then the g-values of all its descendents may need to be revised

  8. Memory-bounded A* graph searches (cont.) • SMAG*, Kaindl and Khorsand 1994 • SMAG*-Reopen, Zhou and Hansen 2002 • SMAG*-Propagate, Zhou and Hansen 2002

  9. SMAG* • Bugs in pseudo code of Russell and Norvig • Extends to directed acyclic graphs • Prunes when there is a better path to a node Better path to n n Prune

  10. SMAG* (cont.) • Blocking/Cutting: • Prune a node from the CLOSED list if it does not occur on the best to any fringe node • If not pruned then “memory leak” • Consistency: h(n) ≤ h(n’) + c(n, n’) • Changing of g-value can be avoided if A* uses a consistent (monotone) heuristic • Does not extend to memory-bounded A* because the heuristic estimates are modifies during search

  11. SMAG*-2 • Analyze the problem of consistency • Provide an improved version of SMAG* • reopen nodes • propagate costs

  12. Original SMAG* • Heuristic estimates are backed-up, increasing h and f values • When nodes are pruned from OPEN set to free memory, their parent nodes are restored from CLOSED to OPEN set • The new estimates may be admissible but not consistent h’(A) = h’(C) + c(A, C) What is the best path to node C? h’(C) = h(d) + c(C, D) Node C is expanded for the first time 1 1 1 Through A Why? Because g(A) = 1 and the g(B)= 2 then the best path is through A Dashed lines are parts of the graph not expanded [Zhou and Hansen, 2002] 1 1 1

  13. 1 1 1 Which node A or B will be expanded first? (ii) Nodes C & D are pruned Node B is expanded before node A, although best path to C is through A. Why does this occur? 1 1 1 **The backed-up heuristic for node A is not consistent with the heuristic for node C Node C is expanded before the best path to it is found 1 1 1 [Zhou and Hansen, 2002]

  14. Consistency • Pathmax: used to restore consistency • When a node n is expanded the h-value of each child n’ is checked. • If h(n’)< h(n) – c(n, n’) then h(n’) = h(n) • Pathmax only works for the explicit graph (the graph in memory) • Figure (iii) shows nodes in OPEN that do no have all their arcs generated; thus, a node may be expanded before the best path to it is found

  15. SMAG* • A* propagates revised g-values to its descendents • Original SMAG* prunes the nodes descendents • Strategy is as many nodes in memory (to avoid re-expansions) and prune least promising nodes • SMAG*-2 adapts the propagation strategy by A* to memory- bounded graph search

  16. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 1 Used Counter to keep track of current number of nodes in memory Best Least-cost deepest node in Open succ Next unexamined successor of Best Max = 6 Max nodes in memory Start Open Nodes in memory with children being examined SMAG*-2 Example Closed Nodes in memory with all their children in memory Descriptions of Methods: BACKUP(n): if F(n)< min {F of its children} then F(n) = min{F of children} Recursively update parents Completed(n): all the succ’s of n examined CUT(n): carefully delete sub-optimal nodes on path to n GRAPH-CONTROL: multiple paths to a common node keep nest path to common node MEMORY-CONTROL: delete worst node in memory Goal

  17. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 1 Best A succ B Max = 6 Used 1 2 Open Start S(A) = {B} (A) = { } B g = 100, d=1 F = 105 A g = 0, d=0 F = 90 Select  the least cost nodes in OPEN  = { A } Select deepest node from  best = A Closed Set B values: g(B) = g(best) + c(A, B) depth(B)= depth(A)+1 F(B) = max( F(A), g(B) + h(B) )//pathmax S(n): successors of node n with known least-cost path via n (n): Forgotten successors of node n Goal

  18. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 2 Best A A succ B C Max = 6 Used 1,2 3 Open Start S(A) = {B,C} (A) = { } A g = 0, d=0 F = 90 C g = 10, d=1 F = 90 B g = 100, d=1 F = 105 the best path to B is through A the best path to C is through A All successors of A in memory Set C values: g(C) = g(A) + c(A, C) depth(C)= depth(A)+1 F(C) = max( F(A), g(C) + h(C) )//pathmax Closed -There are multiple paths to N8 -The node with the least cost path to N8 stores N8 in it’s S set N2 N1 N3 Goal N8 If Completed(A) Then BACKUP(A) BACKUP(n): if F(n)< min {F of its children} update Completed(n): all the succ’s of n examined

  19. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 3 Best A A C succ B C D Max = 6 Used 1,2 2,3 3 4 Open Start S(A) = {B,C} (A) = { } C g = 10, d=1 F = 90115 B g = 100, d=1 F = 105 D g = 100, d=2 F = 115 S(C) = {D} (C) = { } C is completed BACKUP C Closed //Reorder OPEN BACKUP A A g = 0, d=0 F = 90105 Set D values: g(D) = g(best) + c(C, D) depth(D)= depth(C)+1 F(D) = max( F(C), g(D) + h(D) )//pathmax Goal

  20. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 3 (cont) Best A A C succ B C D Max = 6 Used 1,2 2,3 3 4 Open Start S(A) = {B,C} (A) = { } B g = 100, d=1 F = 105 D g = 100, d=2 F = 115 C g = 10, d=1 F = 115 S(C) = {D} (C) = { } Closed A g = 0, d=0 F = 105 All successors of C in memory Goal

  21. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 4 Best A A C B succ B C D G Max = 6 Used 1,2 2,3 3,4 4 5 Open Start S(A) = {B,C} (A) = { } B g = 100, d=1 F=105145 D g = 100, d=2 F = 115 G g = 140, d=2 F = 145 S(B) = {G} (B) = { } S(C) = {D} (C) = { } B is completed BACKUP B BACKUP A Closed A g = 0, d=0 F=105115 C g = 10, d=1 F = 115 All successors of B in memory Goal

  22. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 Deleting nodes along the bad path to G 5 30 E Iteration # 5 Best A A C B D succ B C D G G Max = 6 Used 1,2 2,3 3,4 4,5 4 p(G)=B Open Start S(A) = {B,C} (A) = { } succ-hat parent G g = 140, d=2 F = 145 D g = 100, d=2 F = 115 bad path S(B) = {G} (B) = { } S(C) = {D} (C) = { } succ G g = 120, d=3 F = 125 Closed GRAPH-CONTROL(best:D,succ:G) A g = 0, d=0 F=115 C g = 10, d=1 F = 115 B g = 100, d=1 F =145 CUT (succ-hat) Take succ-hat out of its parent S(B) If parent(succ-hat), B, in CLOSED and parent(parent(succ-hat)), A, ≠ NULL Then CUT(B) CUT (B) //recursion Take B out of its parent S(A) S(D) = { } (C) = { } A is completed BACKUP A // does nothing b/c the F-cost of its children //are not greater than it’s F-cost Goal //At level of recursion after CUT(B) from CUT(succ-hat) Delete parent(G): Delete B 2 paths to node G found! Select best path to G

  23. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 5 (cont) Best A A C B D succ B C D G G Max = 6 Used 1,2 2,3 3,4 4,5 4 p(G)= D Open Start S(A) = {C} (A) = { } succ-hat parent D g = 100, d=2 F = 115 G g = 120, d=3 F = 125 S(C) = {D} (C) = { } succ G g = 120, d=3 F = 125 Closed A g = 0, d=0 F = 115 C g = 10, d=1 F = 115 GRAPH-CONTROL(D,G) CUT (succ-hat) Update values of succ-hat S(D) = {G} (C) = { } PROPAGATE (succ-hat) //because we may have zero cost edges Goal

  24. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 5 (cont) Best A A C B D succ B C D G G Max = 6 Used 1,2 2,3 3,4 4,5 4 p(G)= D Open Start S(A) = {C} (A) = { } succ-hat parent D g = 100, d=2 F = 115 G g = 120, d=3 F = 125 S(C) = {D} (C) = { } succ G g = 120, d=3 F = 125 Closed A g = 0, d=0 F = 115 C g = 10, d=1 F = 115 GRAPH-CONTROL(D,G) CUT (succ-hat) Update values of succ-hat S(D) = {G} (C) = { } PROPAGATE (succ-hat) //because we may have zero cost edges Reorder OPEN //because G is in open Delete succ Goal

  25. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 5 (cont) Best A A C B D succ B C D G G Max = 6 Used 1,2 2,3 3,4 4,5 4 Open Start S(A) = {C} (A) = { } D g = 100, d=2 F=115 G g = 120, d=3 F = 125 S(C) = {D} (C) = { } Continuing same iteration after GRAPH-CONTROL Closed A g = 0, d=0 F = 115 C g = 10, d=1 F = 115 S(D) = {G} (C) = { } D is NOT completed All the successors of D are NOT in memory Go to next iteration Goal

  26. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 6 Best A A C B D D succ B C D G G E Max = 6 Used 1,2 2,3 3,4 4,5 4 4 5 Open Start S(A) = {C} (A) = { } D g = 100, d=2 F=115 G g = 120, d=3 F = 125 S(C) = {D} (C) = { } Next Iteration E g = 130, d=3 F = 130 Closed A g = 0, d=0 F = 115 C g = 10, d=1 F = 115 S(D) = {G,E} (C) = { } Goal

  27. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 6 (cont) Best A A C B D D succ B C D G G E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 Open Start S(A) = {C} (A) = { } D g = 100, d=2 F=115125 G g = 120, d=3 F = 125 E g = 130, d=3 F = 130 S(C) = {D} (C) = { } Closed D is completed BACKUP D C completed BACKUP C//recursion A completed BACKUP A//recursion A g = 0, d=0 F=115125 C g = 10, d=1 F=115125 S(D) = {G,E} (C) = { } Goal B was Deleted by CUT What happens with B when backing up A? Nothing. It no longer exists.

  28. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 6 (cont) Best A A C B D D succ B C D G G E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 Open Start S(A) = {C} (A) = { } D g = 100, d=2 F=125 G g = 120, d=3 F = 125 E g = 130, d=3 F = 130 S(C) = {D} (C) = { } Closed A g = 0, d=0 F = 125 C g = 10, d=1 F = 125 All successors of D in memory S(D) = {G,E} (C) = { } Goal

  29. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 7 Best A A C B D D G succ B C D G G E E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 5 Open p(E)=D Start S(A) = {C} (A) = { } succ-hat parent G g = 120, d=3 F = 125 E g = 130, d=3 F = 130 S(C) = {D} (C) = { } Next Iteration succ E g = 125, d=4 F = 125 Closed A g = 0, d=0 F=125125 C g = 10, d=1 F=125125 D g = 100, d=2 F=125125 GRAPH-CONTROL(G,E) CUT (succ-hat) D is completed BACKUP D C completed BACKUP C //recursion A completed BACKUP A //recursion S(D) = {G,E} (C) = { } Goal

  30. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 7 (cont) Best A A C B D D G succ B C D G G E E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 5 Open p(E)=G Start S(A) = {C} (A) = { } succ-hat parent G g = 120, d=3 F = 125 E g = 125, d=4 F = 125 S(C) = {D} (C) = { } succ E g = 125, d=4 F = 125 Closed A g = 0, d=0 F = 125 C g = 10, d=1 F = 125 D g = 100, d=2 F=125 S(G) = {E} (G) = { } GRAPH-CONTROL(G,E) CUT (succ-hat) Update Values of succ PROPAGATE (succ-hat) S(D) = {G} (D) = { } Reorder Open Delete succ Goal

  31. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 7 (cont) Best A A C B D D G succ B C D G G E E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 5 Open Start S(A) = {C} (A) = { } G g = 120, d=3 F=125 E g = 125, d=4 F = 125 S(C) = {D} (C) = { } G is completed BACKUP G Closed A g = 0, d=0 F=125 C g = 10, d=1 F=125 D g = 100, d=2 F=125 S(G) = {E} (G) = { } S(D) = {G} (D) = { } All successors of G in memory Goal

  32. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 8 Best A A C B D D G E succ B C D G G E Max = 6 Used 1,2 2,3 3,4 4,5 4 5 5 5 Open p(E)=G Start S(A) = {C} (A) = { } E g = 125, d=4 F = 125 S(C) = {D} (C) = { } Next Iteration Closed p(C)=A p(D)=C Select  the least cost nodes in OPEN  = {E } Select deepest node from  best = E A g = 0, d=0 F = 125 C g = 10, d=1 F = 125 D g = 100, d=2 F=125 S(G) = {E} (G) = { } Test if best = goal return F( best ) p(G)=D S(D) = {G} (C) = { } G g = 120, d=3 F = 125 Goal Goal Reached! Cost of solution = 125 Traverse the backpointers( ptrs to parent) from goal to start

  33. Memory Control • What happens when there is not enough memory to store the solution? • 2 cases • there is a solution at depth 4 but it’s not the optimal solution • no solution paths with depth <= 4 • In both cases what does the algorithm return? When does it terminate?

  34. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 4 Best A A C B succ B C D G Max = 4 Used 1,2 3 4 3 4 Open S(A) = {B,C} (A) = { } Start worst B g = 100, d=1 F=105 D g = 100, d=2 F = 115 G g = 140, d=2 F = 145 S(B) = {G} (B) = { } S(C) = {D} (C) = { } Closed Used = Max Memory A g = 0, d=0 F=105 C g = 10, d=1 F = 115 Select worst: the highest cost leaf in OPEN, D Delete worst Goal Memory Control

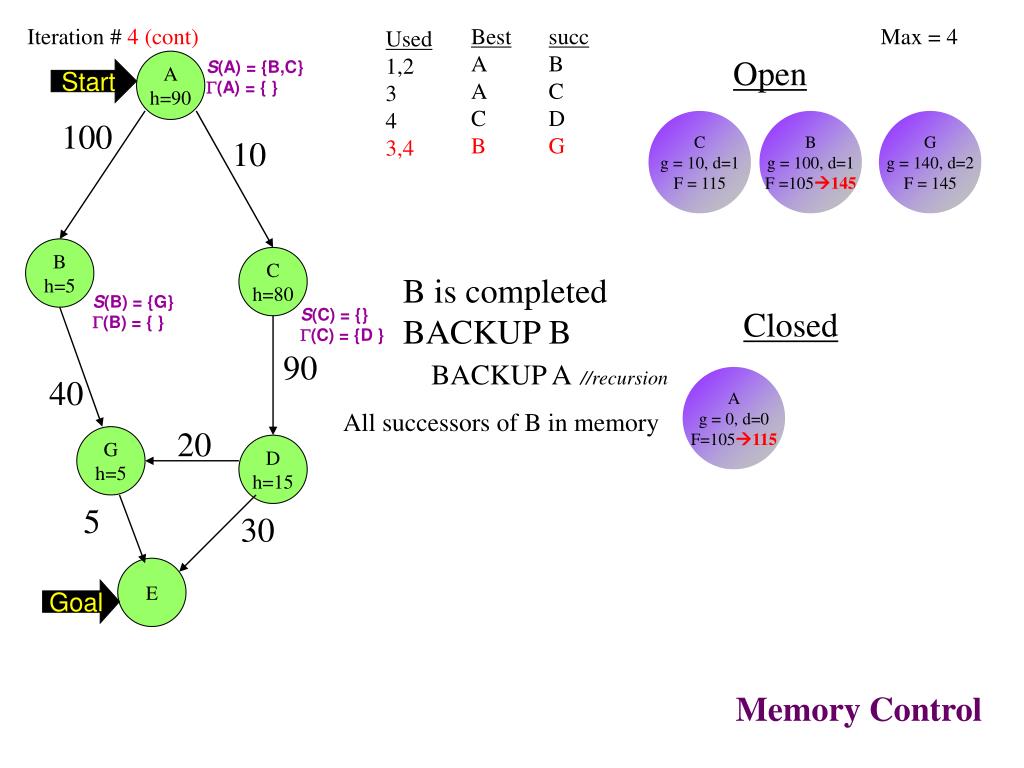

  35. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 4 (cont) Best A A C B succ B C D G Max = 4 Used 1,2 3 4 3,4 Open S(A) = {B,C} (A) = { } Start C g = 10, d=1 F = 115 B g = 100, d=1 F =105145 G g = 140, d=2 F = 145 B is completed BACKUP B BACKUP A//recursion S(B) = {G} (B) = { } S(C) = {} (C) = {D } Closed A g = 0, d=0 F=105115 All successors of B in memory Goal Memory Control

  36. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 5 Best A A C B C succ B C D G D Max = 4 Used 1,2 3 4 3,4 4, 3 4 Open S(A) = {B,C} (A) = { } Start worst G g = 140, d=2 F = 145 C g = 10, d=1 F = 115 D g = 100, d=2 F = 115 S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed A g = 0, d=0 F=115 B g = 100, d=1 F =145 Used = Max Memory worst = G Delete G Goal Memory Control

  37. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 5 (cont) Best A A C B C succ B C D G D Max = 4 Used 1,2 3 4 3,4 4,3 4 Open S(A) = {B,C} (A) = { } Start C g = 10, d=1 F = 115 D g = 100, d=2 F = 115 B g = 100, d=1 F =145 C is completed BACKUP C S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed A g = 0, d=0 F=115 All successors of C are in memory Goal Memory Control

  38. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 6 Best A A C B C D succ B C D G D G Max = 4 Used 1,2 3 4 4,3,4 4,3,4 4 Open S(A) = {B,C} (A) = { } Start D g = 100, d=2 F = 115 B g = 100, d=1 F =145 If succ != goal AND depth of succ = max-1 Then goto next iteration S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed A g = 0, d=0 F=115 C g = 10, d=1 F = 115 S(D) = { } (D) = { } Goal Memory Control

  39. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 7 Best A A C B C D D succ B C D G D G E Max = 4 Used 1,2 3 4 4,3,4 4,3,4 4 4, 3 4 Open S(A) = {C} (A) = {B } Start worst D g = 100, d=2 F = 115 B g = 100, d=1 F =145 S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed E g = 130, d=3 F=130 A g = 0, d=0 F=115 C g = 10, d=1 F = 115 Used = Max Memory worst = B S(D) = {E} (D) = { } Delete B Goal Memory Control

  40. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 7 (cont) Best A A C B C D D succ B C D G D G E Max = 4 Used 1,2 3 4 4,3,4 4,3,4 4 4, 3 4 Open S(A) = {C} (A) = {B } Start D g = 100, d=2 F=115130 A g = 0, d=0 F=115130 E g = 130, d=3 F=130 D is completed BACKUP D BACKUP C//recursion BACKUP A//recursion S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed C g = 10, d=1 F=115130 S(D) = {E} (D) = { } All successors of D in memory Goal Memory Control

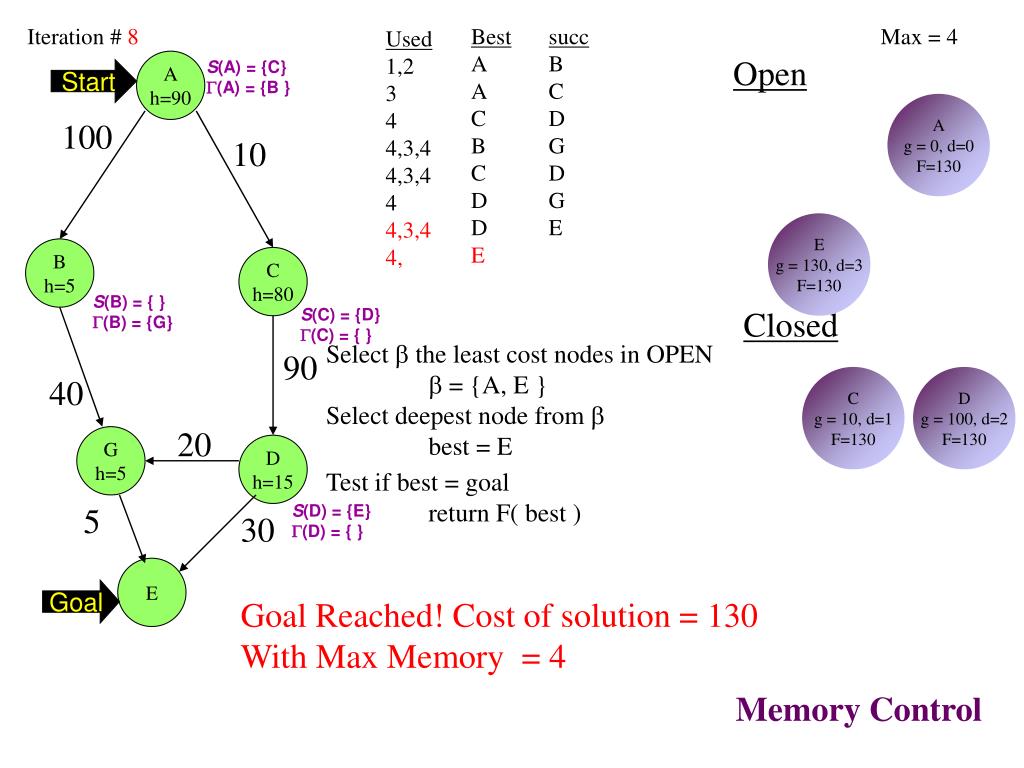

  41. A h=90 100 10 B h=5 C h=80 90 40 20 G h=5 D h=15 5 30 E Iteration # 8 Best A A C B C D D E succ B C D G D G E Max = 4 Used 1,2 3 4 4,3,4 4,3,4 4 4,3,4 4, Open S(A) = {C} (A) = {B } Start A g = 0, d=0 F=130 E g = 130, d=3 F=130 S(B) = { } (B) = {G} S(C) = {D} (C) = { } Closed Select  the least cost nodes in OPEN  = {A, E } Select deepest node from  best = E C g = 10, d=1 F=130 D g = 100, d=2 F=130 Test if best = goal return F( best ) S(D) = {E} (D) = { } Goal Goal Reached! Cost of solution = 130 With Max Memory = 4 Memory Control

  42. Memory Control • What happens when there is not enough memory to store the solution? • 2 cases • there is a solution at depth 4 but it’s not the optimal solution • no solution paths with depth <= 4 • In both cases what does the algorithm return? When does it terminate? Left as an exercise.

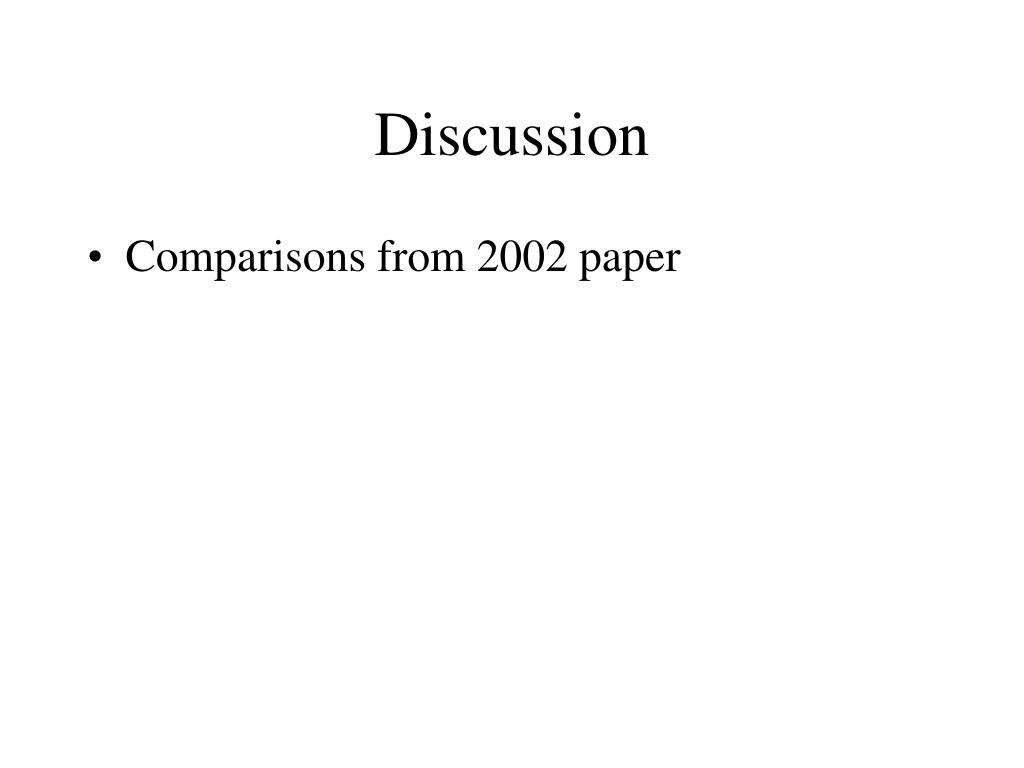

  43. Discussion • Comparisons from 2002 paper

  44. References • SMA 1992, Russell • AI, Russell and Norvig • SMAG* 1994, Chakrabarti et al. • SMAG*-2 2002, Zhou and Hansen
