  1. An Algorithm for ηＴPairing Calculation in Characteristic Three and its Hardware Implementation Jean-Luc Beuchat, Masaaki Shirase, Tsuyoshi Takagi, and Eiji Okamoto University of Tsukuba Future University-Hakodate

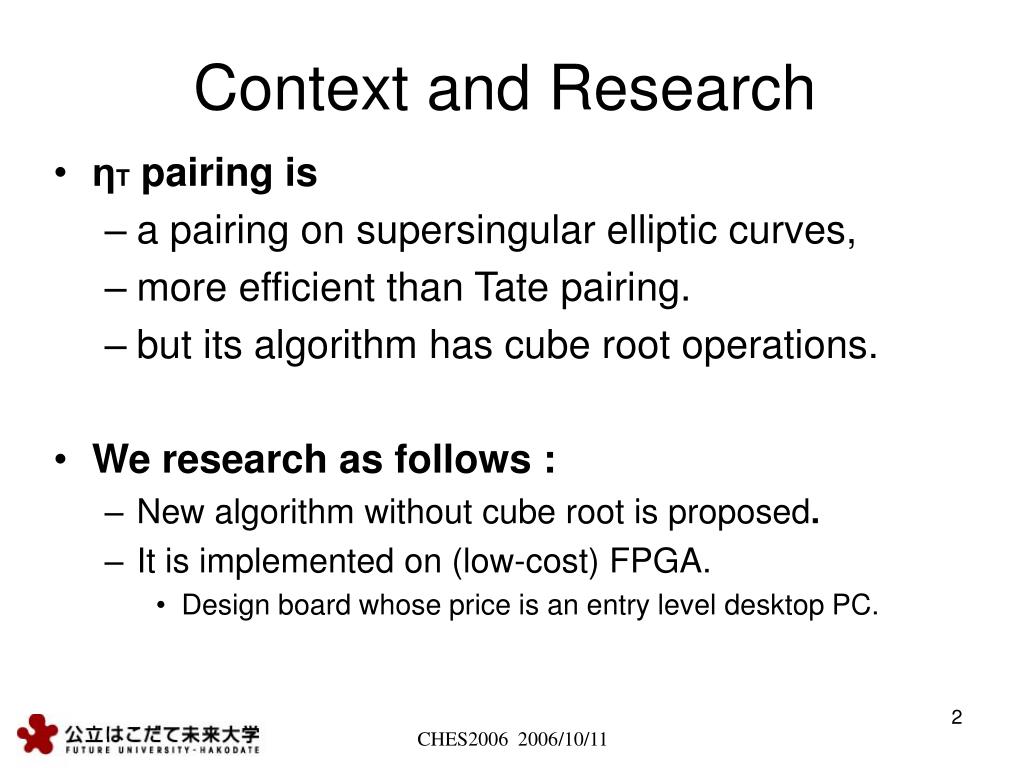

  2. Context and Research • ηT pairing is • a pairing on supersingular elliptic curves, • more efficient than Tate pairing. • but its algorithm has cube root operations. • We research as follows : • New algorithm without cube root is proposed. • It is implemented on (low-cost) FPGA. • Design board whose price is an entry level desktop PC.

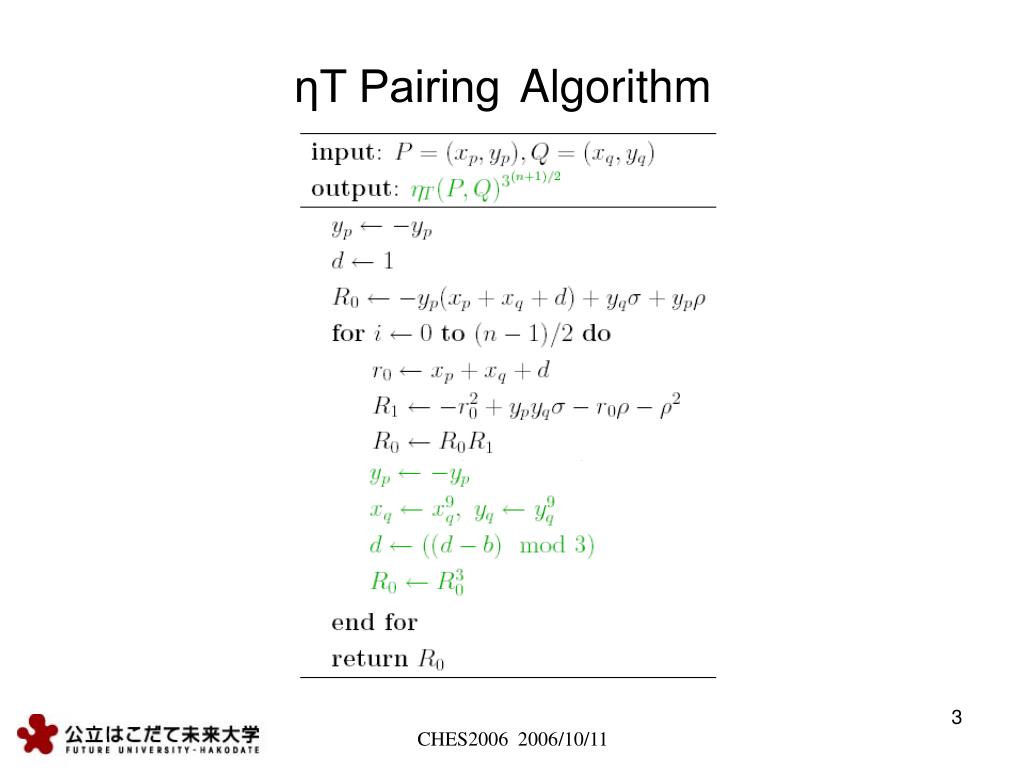

  3. ηT Pairing Algorithm

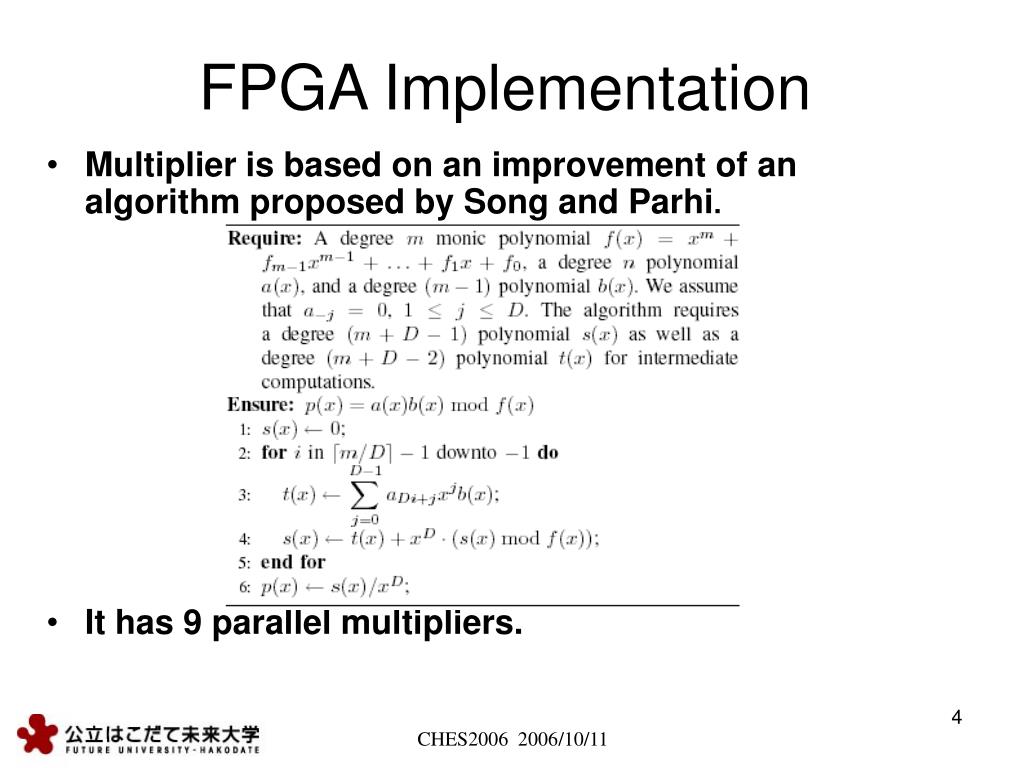

  4. FPGA Implementation • Multiplier is based on an improvement of analgorithm proposed by Song and Parhi. • It has 9 parallel multipliers.

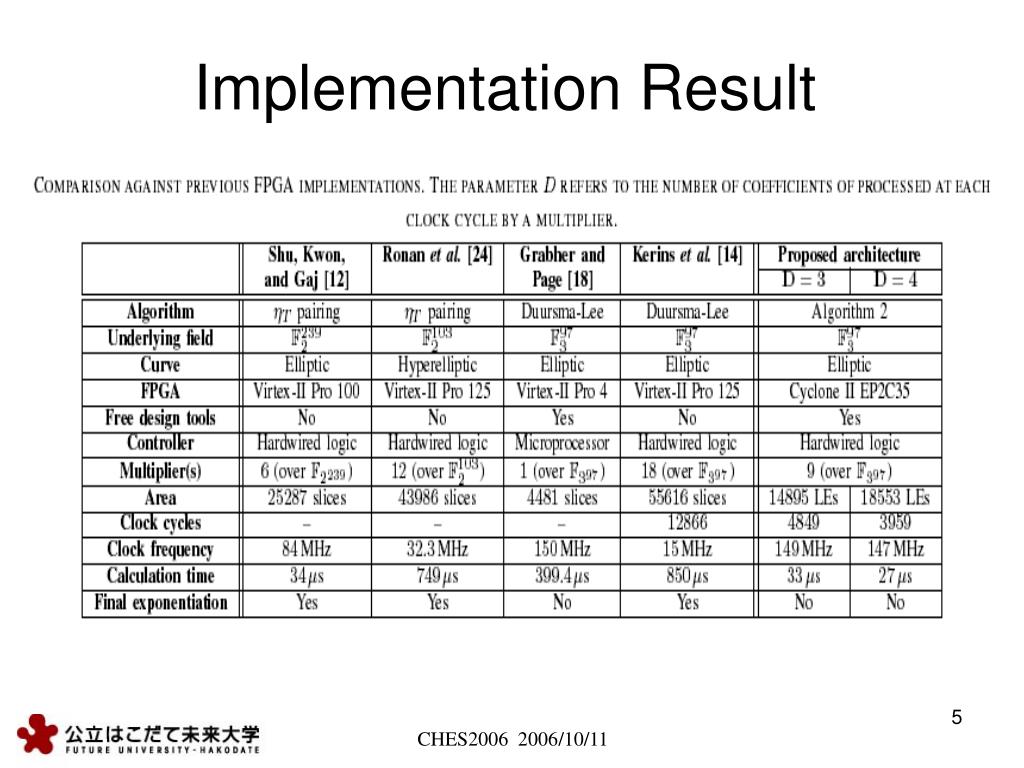

  5. Implementation Result

  6. See J-L.Beuchat, M.Shirase, T.Takagi, and E.Okamoto,　“An Algorithm for ηＴ　Pairing Calculation in Characteristic Three and its Hardware Implementation‘’Cryptology ePrint Archive, Report 2006/327, 2006. for details. Thank You!
