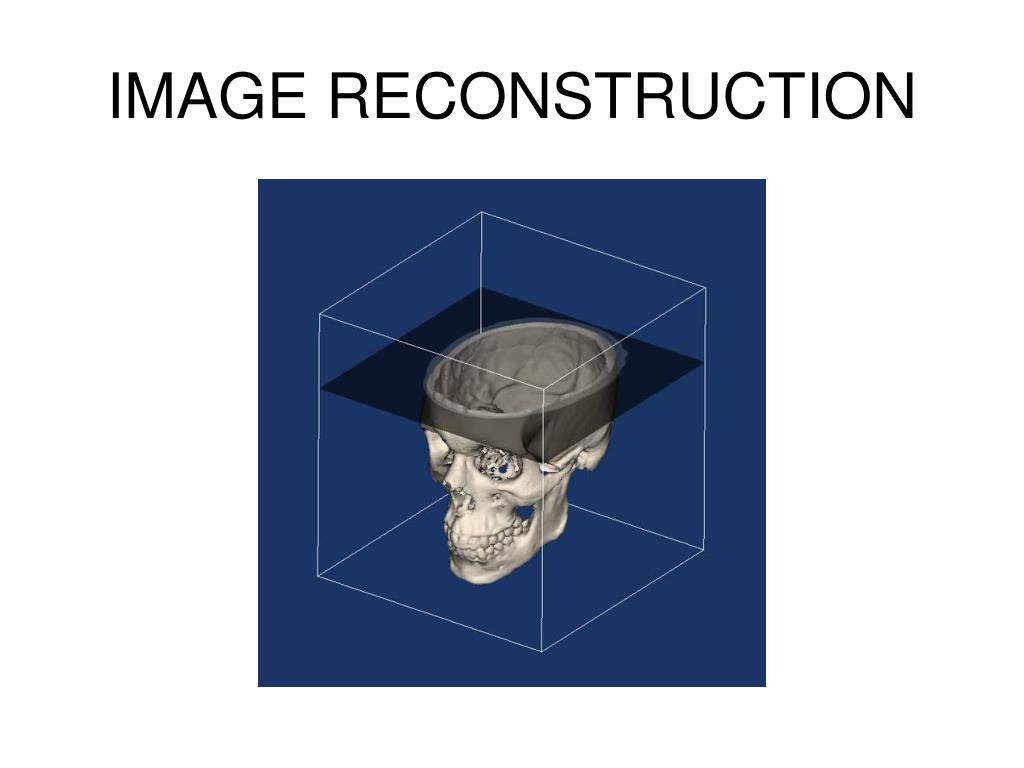

IMAGE RECONSTRUCTION PowerPoint Presentation
Download Presentation
IMAGE RECONSTRUCTION

Loading in 2 Seconds...

play fullscreen
1 / 45

IMAGE RECONSTRUCTION - PowerPoint PPT Presentation


  • 484 Views
  • Uploaded on

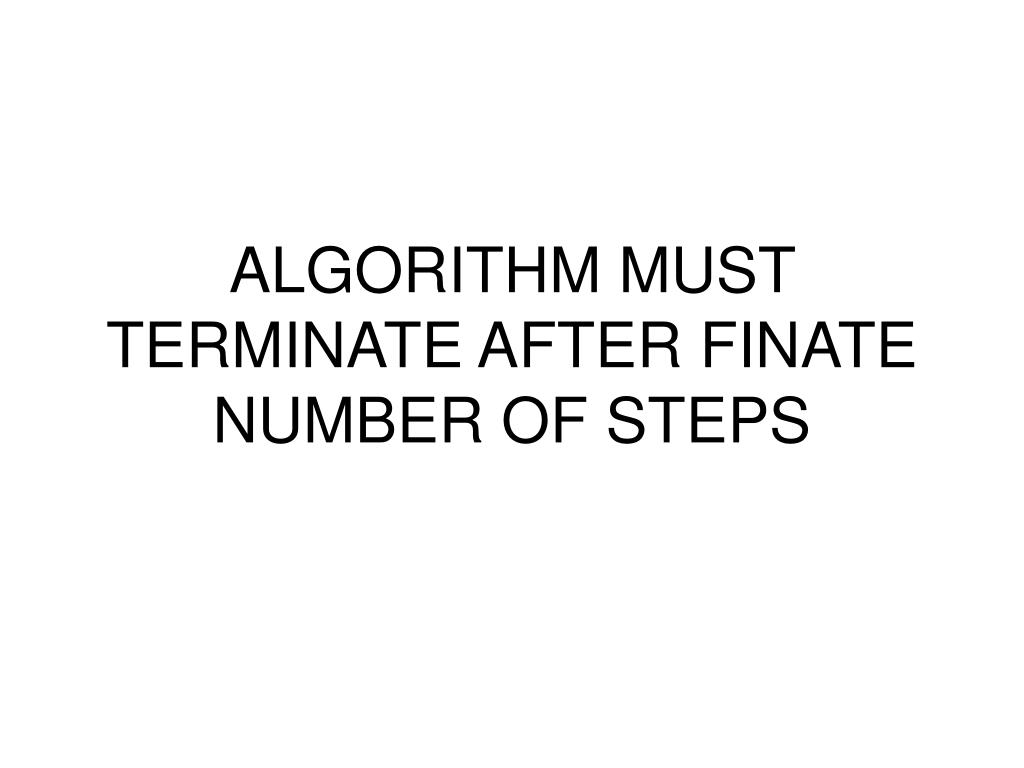

IMAGE RECONSTRUCTION. ALGORITHM -A SET OF RULES OR DIRECTIONS FOR GETTING SPECIFIC OUTPUT FROM SPECIFIC INPUT. ALGORITHM MUST TERMINATE AFTER FINATE NUMBER OF STEPS . DETECTORS. PRE-PROCESING. REFORMATTED RAW DATA. CONVOLUTION WITH FILTER. IMAGE RECONSTRUCTION ALGORITHM. IMAGE: STORAGE

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'IMAGE RECONSTRUCTION' - jana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

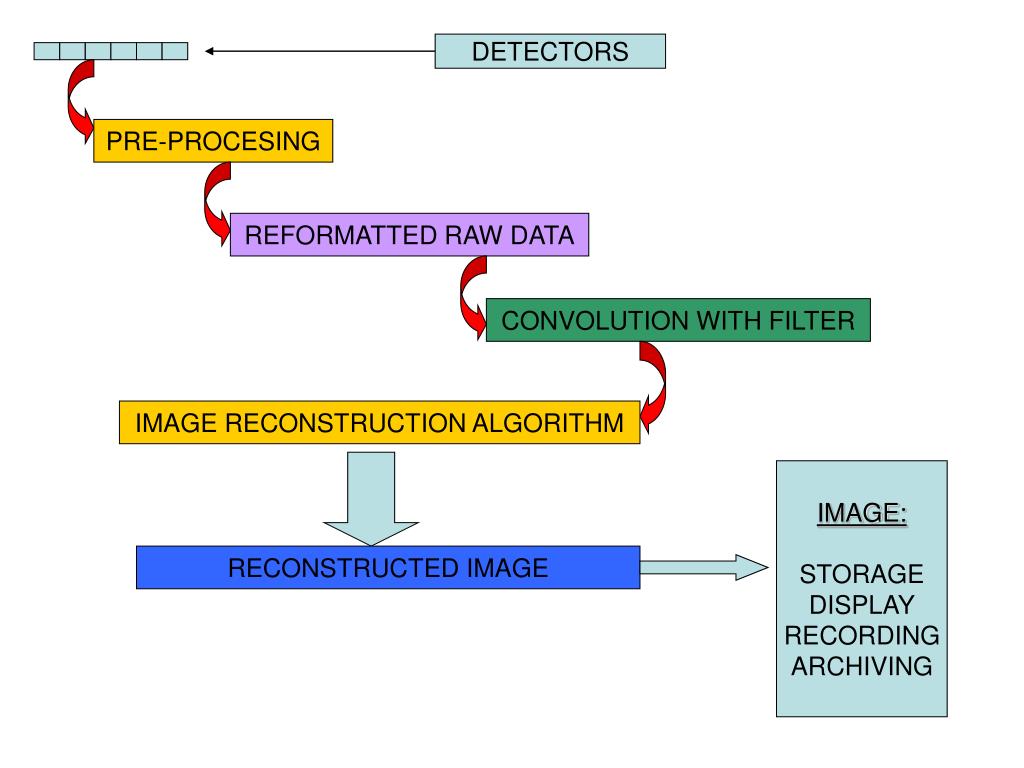

slide5

DETECTORS

PRE-PROCESING

REFORMATTED RAW DATA

CONVOLUTION WITH FILTER

IMAGE RECONSTRUCTION ALGORITHM

IMAGE:

STORAGE

DISPLAY

RECORDING

ARCHIVING

RECONSTRUCTED IMAGE

history of image reconstruction
HISTORY OF IMAGE RECONSTRUCTION
  • 1917 RADON DEVELOPED MATHEMATICALSOLUTIONS TO THE PROBLEM OF IMAGE RECONSTRUCTION FROM A SET OF PROJECTIONS. UTILIZED IN SOLVING PROBLEMS IN ASTRONOMY AND OPTICS.
  • 1961 FINALLY THESE TECHNIQUES WERE USED IN MEDICINE.
slide7

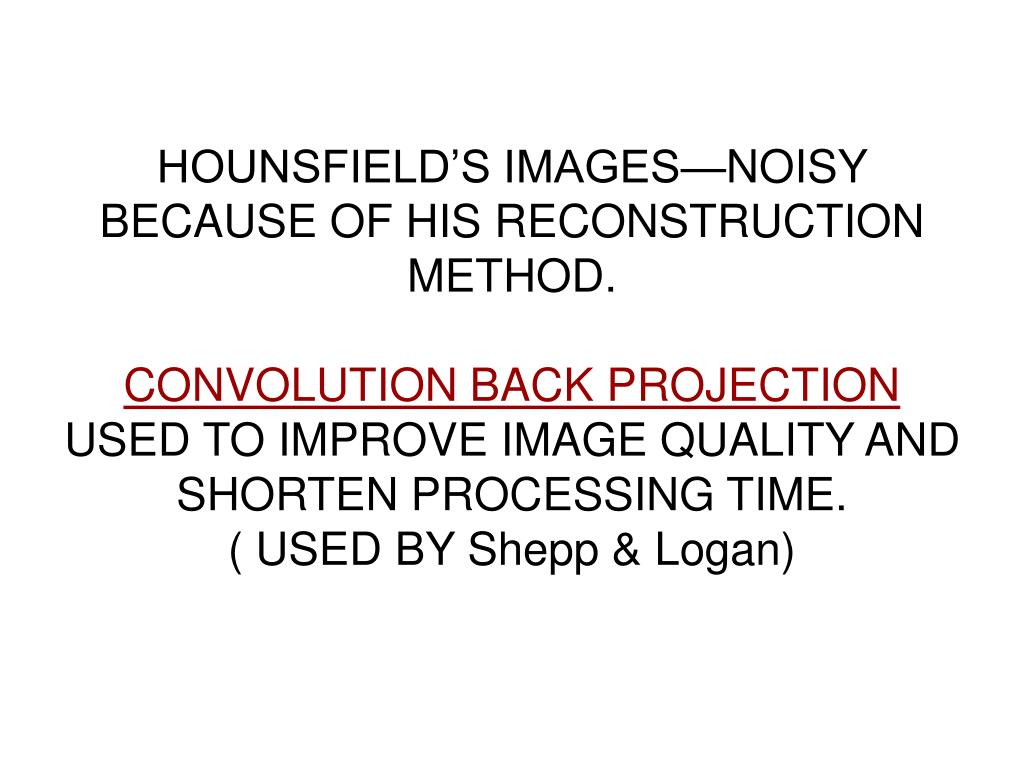

HOUNSFIELD’S IMAGES—NOISY BECAUSE OF HIS RECONSTRUCTION METHOD. CONVOLUTION BACK PROJECTION USED TO IMPROVE IMAGE QUALITY AND SHORTEN PROCESSING TIME.( USED BY Shepp & Logan)

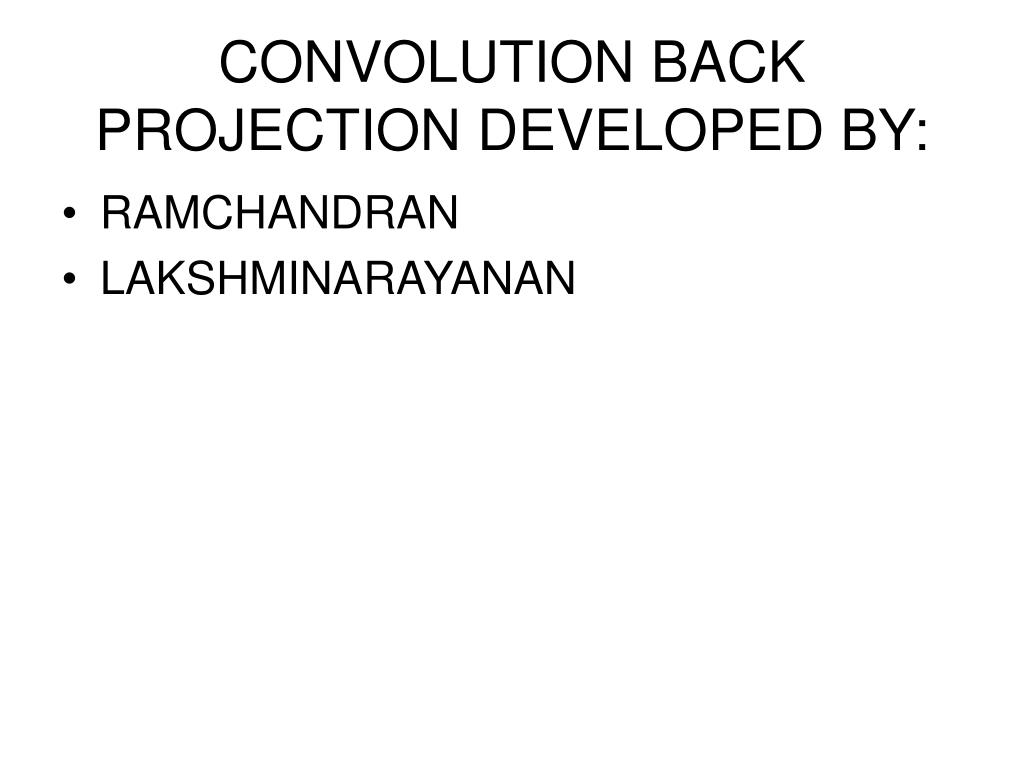

slide8

ORIGINAL DATA

FILTERED DATA

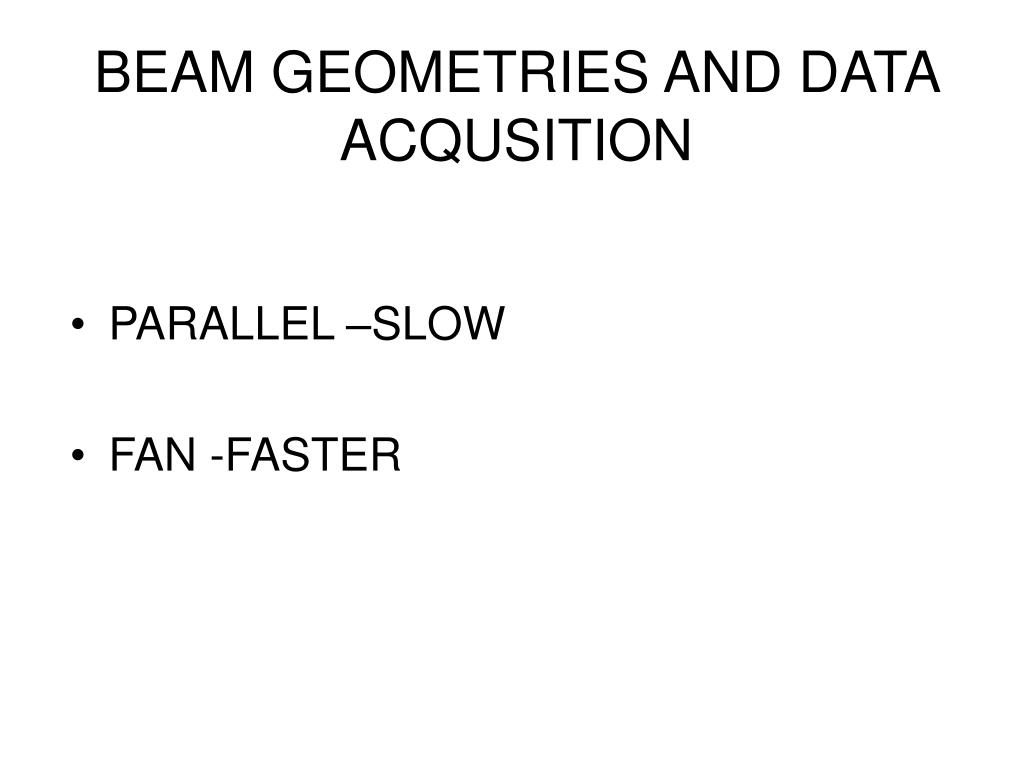

beam geometries and data acqusition
BEAM GEOMETRIES AND DATA ACQUSITION
  • PARALLEL –SLOW
  • FAN -FASTER

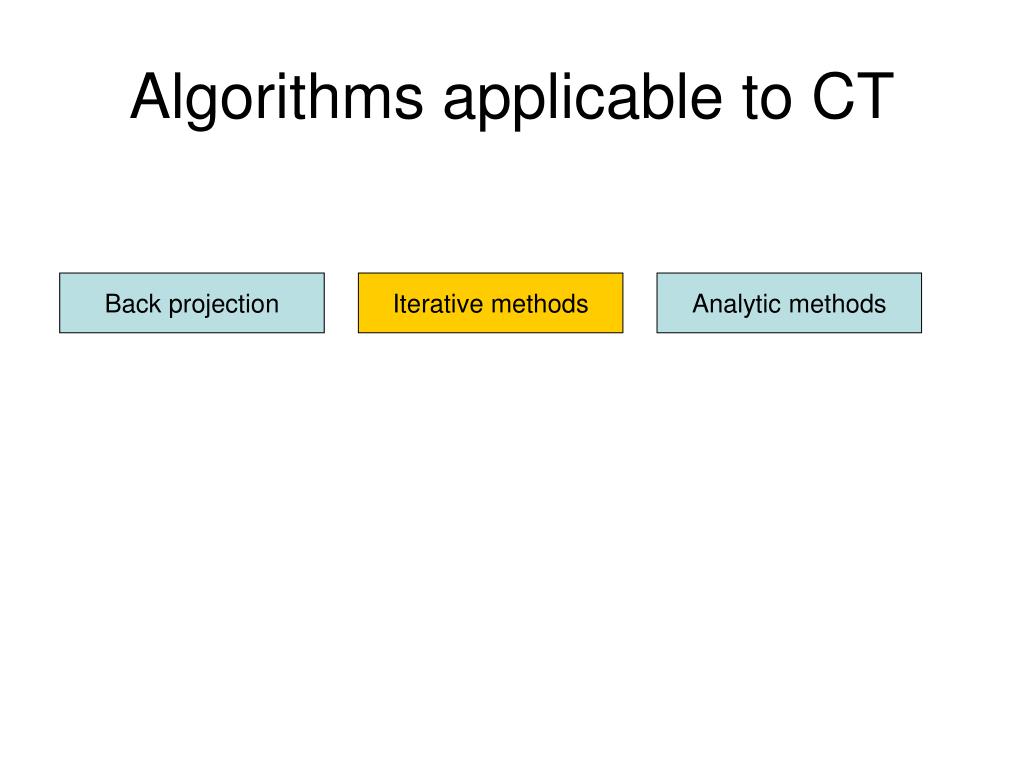

algorithms applicable to ct
Algorithms applicable to CT

Back projection

Iterative methods

Analytic methods

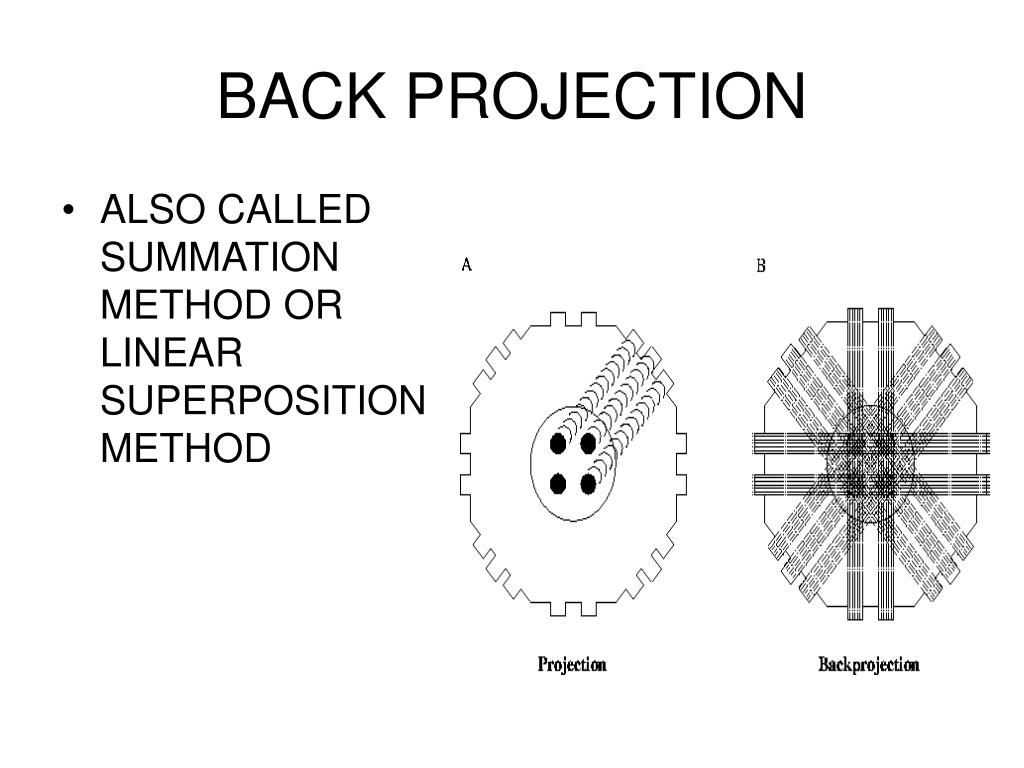

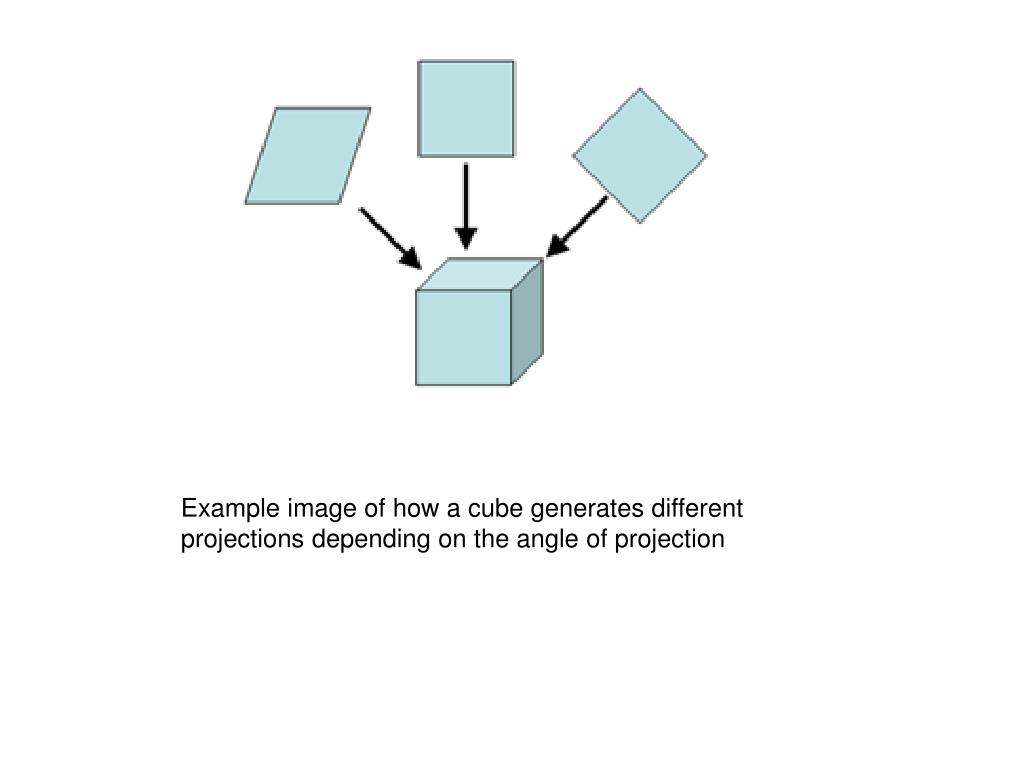

back projection
BACK PROJECTION
  • ALSO CALLED SUMMATION METHOD OR LINEAR SUPERPOSITION METHOD

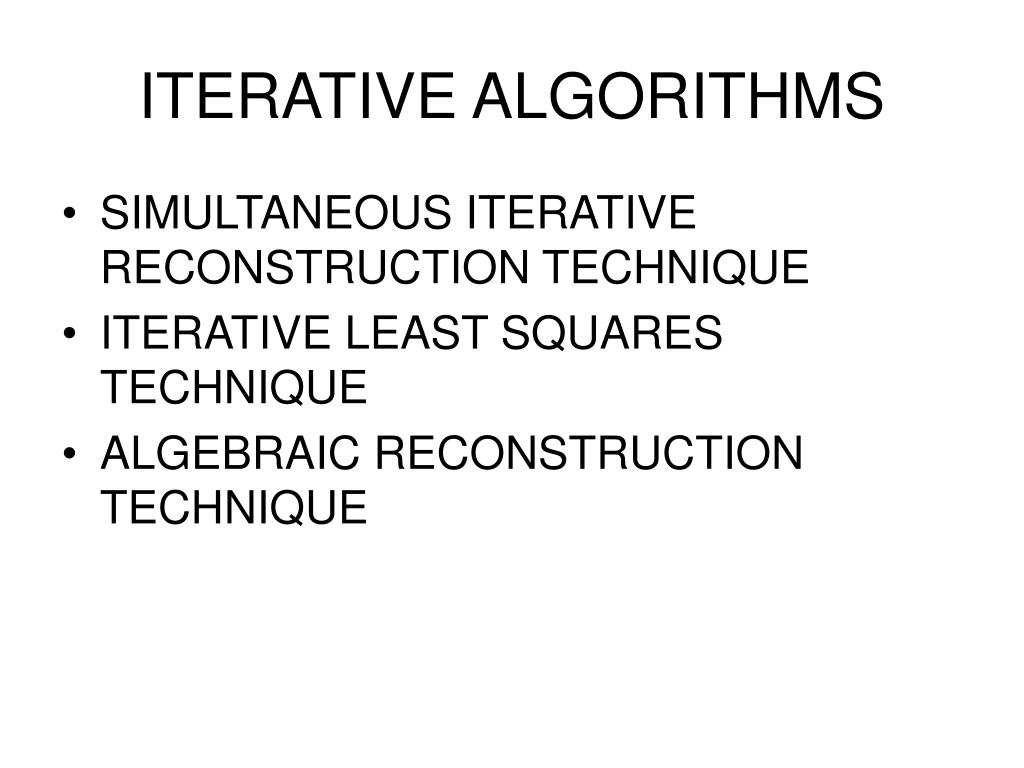

iterative algorithms
ITERATIVE ALGORITHMS
  • SIMULTANEOUS ITERATIVE RECONSTRUCTION TECHNIQUE
  • ITERATIVE LEAST SQUARES TECHNIQUE
  • ALGEBRAIC RECONSTRUCTION TECHNIQUE

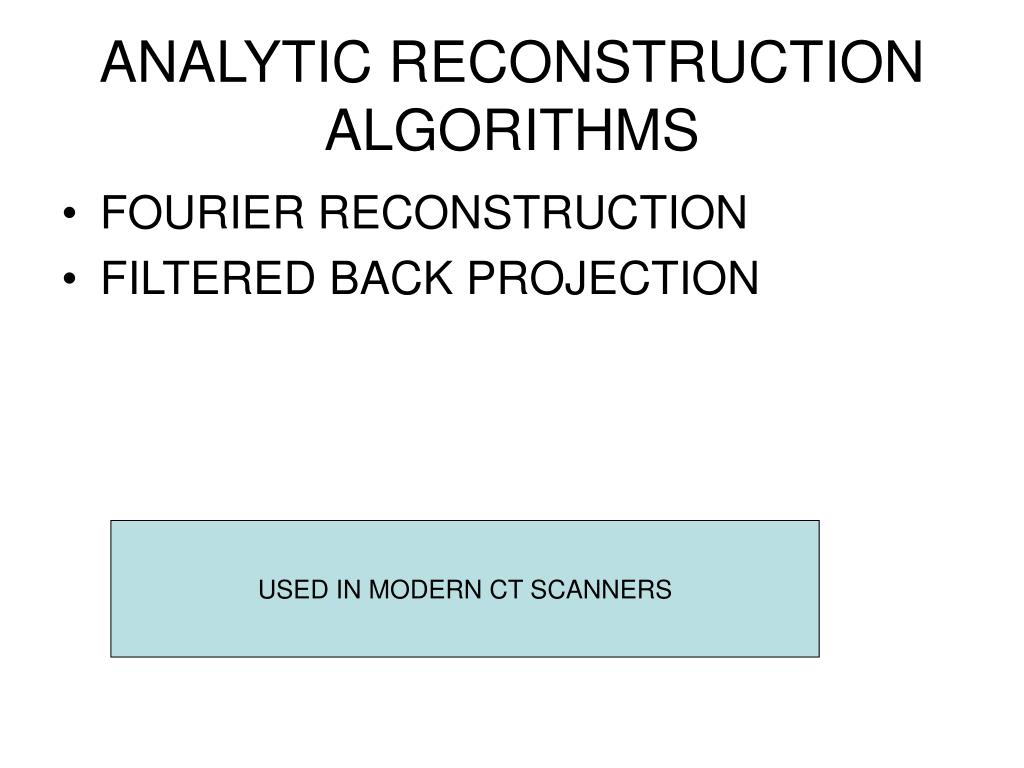

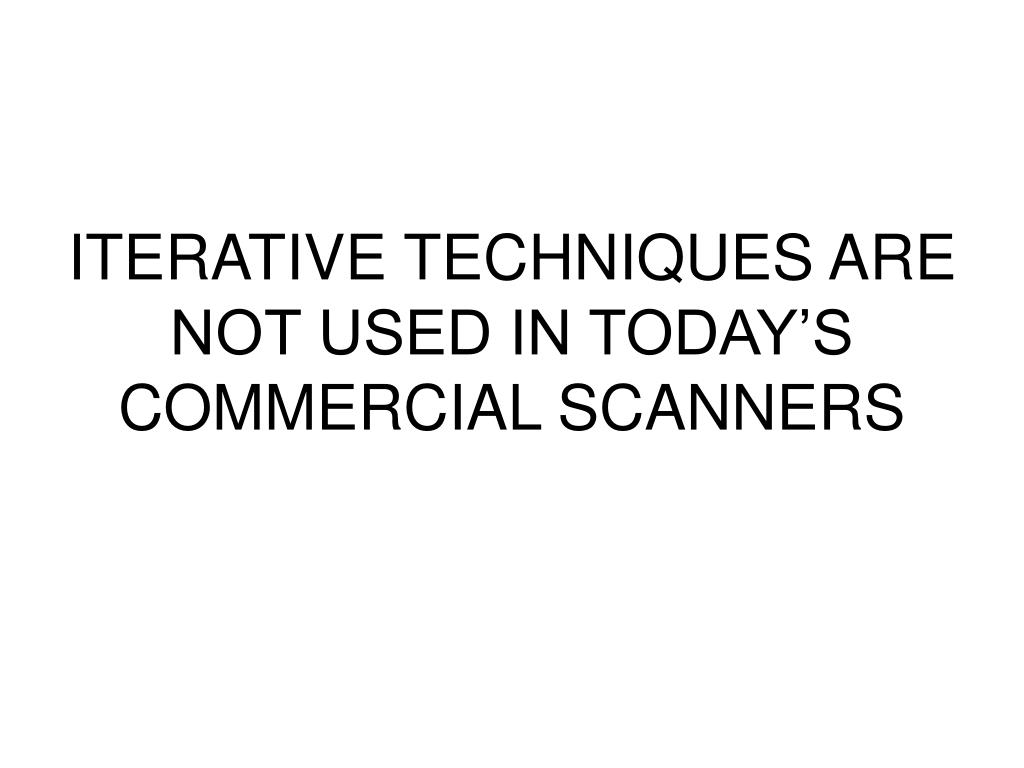

analytic reconstruction algorithms
ANALYTIC RECONSTRUCTION ALGORITHMS
  • FOURIER RECONSTRUCTION
  • FILTERED BACK PROJECTION

USED IN MODERN CT SCANNERS

filtered back projection convolution method
FILTERED BACK-PROJECTIONCONVOLUTION METHOD
  • PROJECTION PROFILE IS FILTERED OR CONVOLVED TO REMOVE THE TYPICAL STAR LIKE BLURRING THAT IS CHARACTERISTIC OF THE SIMPLE BACK PROJECTION.
steps in filtered back projection
STEPS IN FILTERED BACK PROJECTION
  • ALL PROJECTION PROFILES ARE OBTAINED
  • THE LOGARITHM OF DATA IS OBTAINED
  • LOGARITHMIC VALUES ARE MULTIPLIED BY DIGITAL FILTER
  • FILTERED PROFILES ARE BACKPROJECTED
  • THE FILTERED PROJECTIONS ARE SUMMED AND THE NEGATIVE AND POSITIVE COMPONENTS ARE CANCELLED
fourier reconstruction

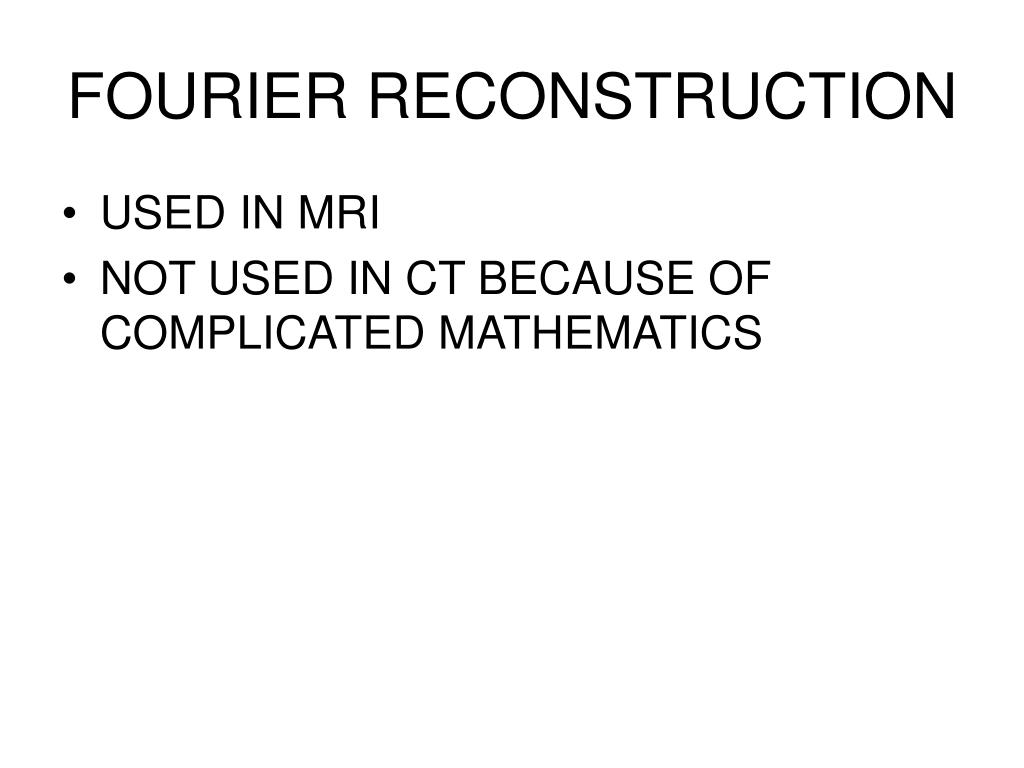

FOURIER RECONSTRUCTION
  • USED IN MRI
  • NOT USED IN CT BECAUSE OF COMPLICATED MATHEMATICS
fourier transform
FOURIER TRANSFORM
  • RADIOGRAPH –AN IMAGE IN SPATIAL DOMAIN
  • IN FOURIER TRANSFORM IMAGE IN FREQUENCY DOMAIN
  • CAN BE RETRANSFORMED BACK TO SPATIAL DOMAIN BY WITH THE INVERSE FOURIER

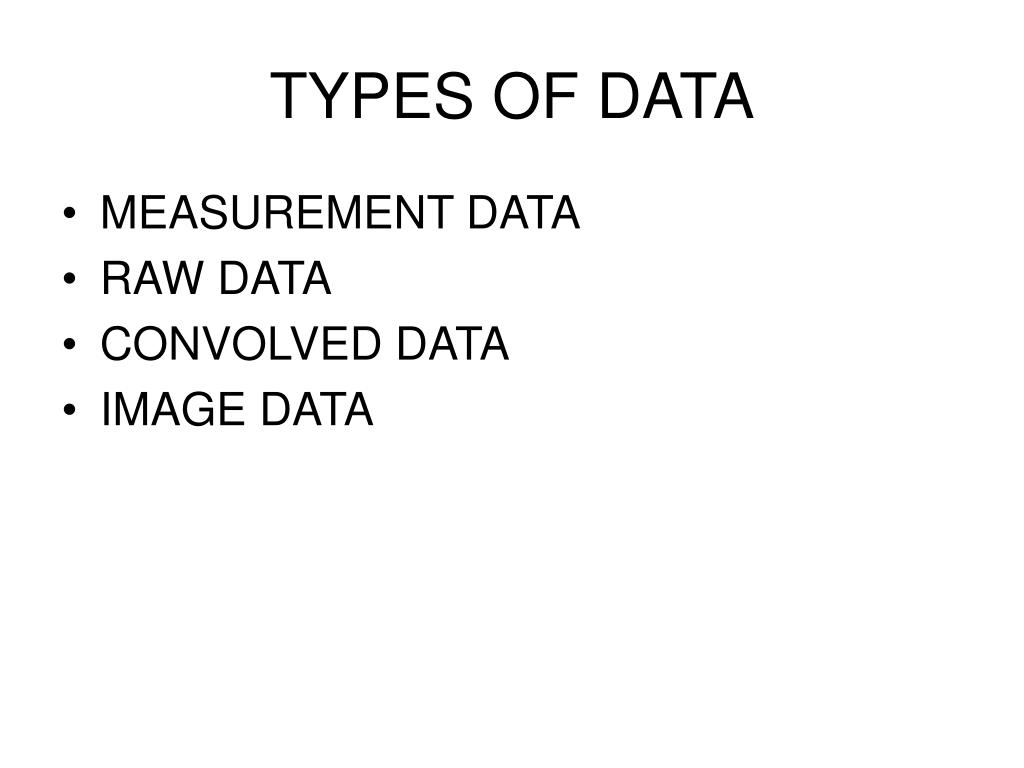

types of data
TYPES OF DATA
  • MEASUREMENT DATA
  • RAW DATA
  • CONVOLVED DATA
  • IMAGE DATA
measurement data scan data
MEASUREMENT DATA(SCAN DATA)
  • DATA THAT ARISES FROM DETECTORS. IT NEEDS TO BE PREPROCESSED TO ELIMINATE ARTIFACTS.
raw data
RAW DATA
  • IT’S THE RESULT OF SCAN DATA BEING PRE-PROCESSED
convolved data
CONVOLVED DATA
  • FILTERED BACKPROJECTION IS THE ALGORITHM USED BY MODERN CT.
  • IT REQUIRES FILTERING AND THEN BACKPROJECTION. RAW DATA IS FILTERED USING MATHEMATICAL FILTER OR KERNEL (CONVOLUTION)
  • IT REMOVES BLURR. CONVOLUTION CAN ONLY BE APPLIED TO RAW DATA.

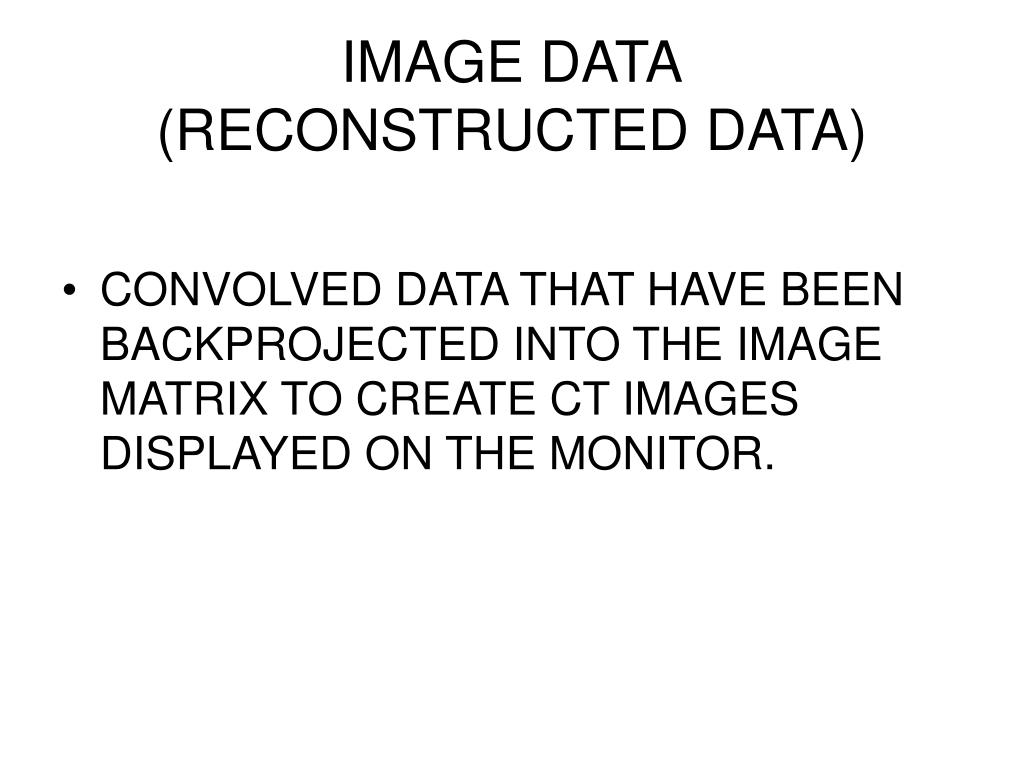

image data reconstructed data
IMAGE DATA(RECONSTRUCTED DATA)
  • CONVOLVED DATA THAT HAVE BEEN BACKPROJECTED INTO THE IMAGE MATRIX TO CREATE CT IMAGES DISPLAYED ON THE MONITOR.

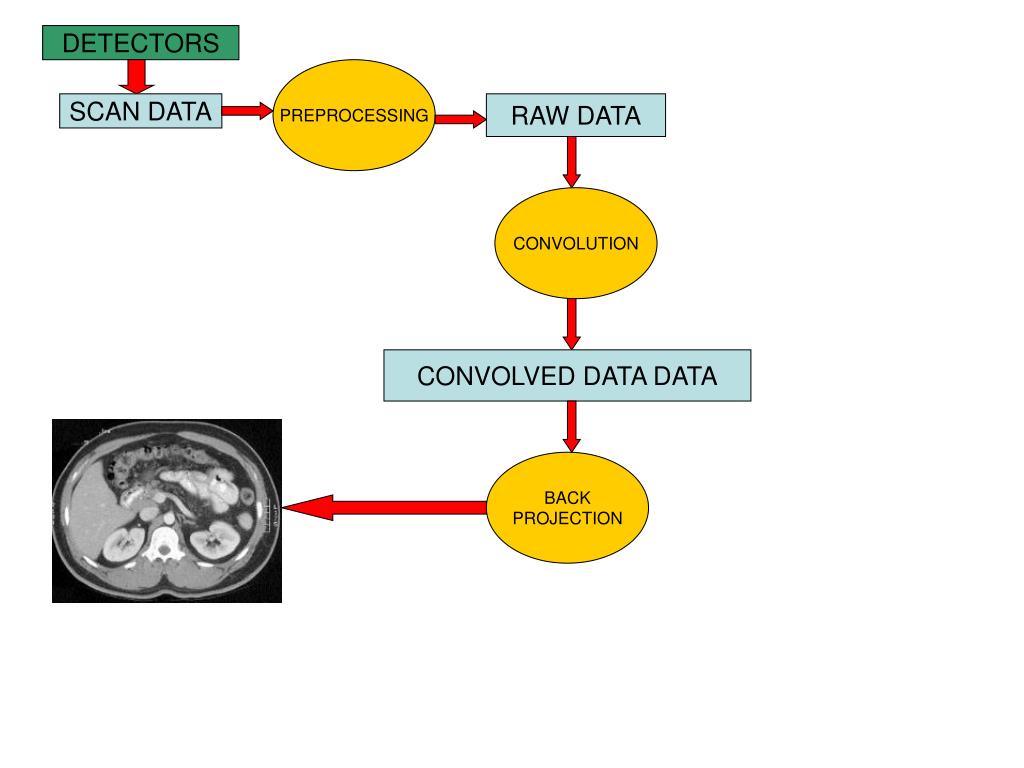

slide41

DETECTORS

PREPROCESSING

SCAN DATA

RAW DATA

CONVOLUTION

CONVOLVED DATA DATA

BACK

PROJECTION

algorithm vs noise
ALGORITHM vs NOISE

DETAIL

EDGE-ENHANCEMENT

STANDARD

SMOOTHING

NOISE

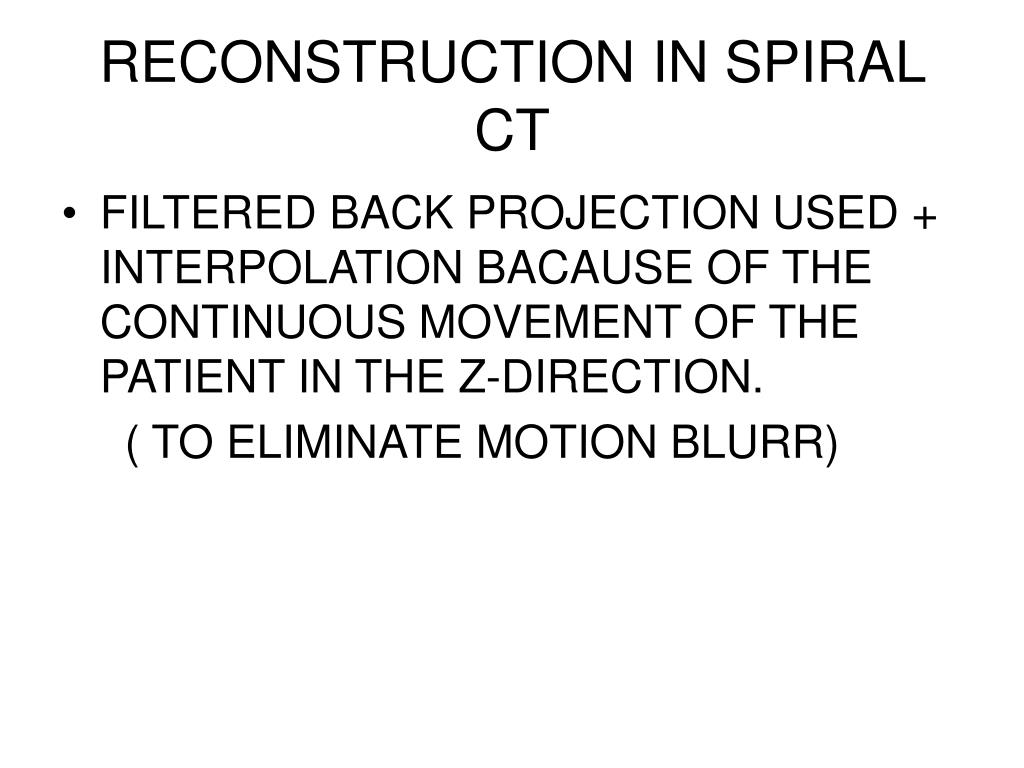

reconstruction in spiral ct
RECONSTRUCTION IN SPIRAL CT
  • FILTERED BACK PROJECTION USED + INTERPOLATION BACAUSE OF THE CONTINUOUS MOVEMENT OF THE PATIENT IN THE Z-DIRECTION.

( TO ELIMINATE MOTION BLURR)

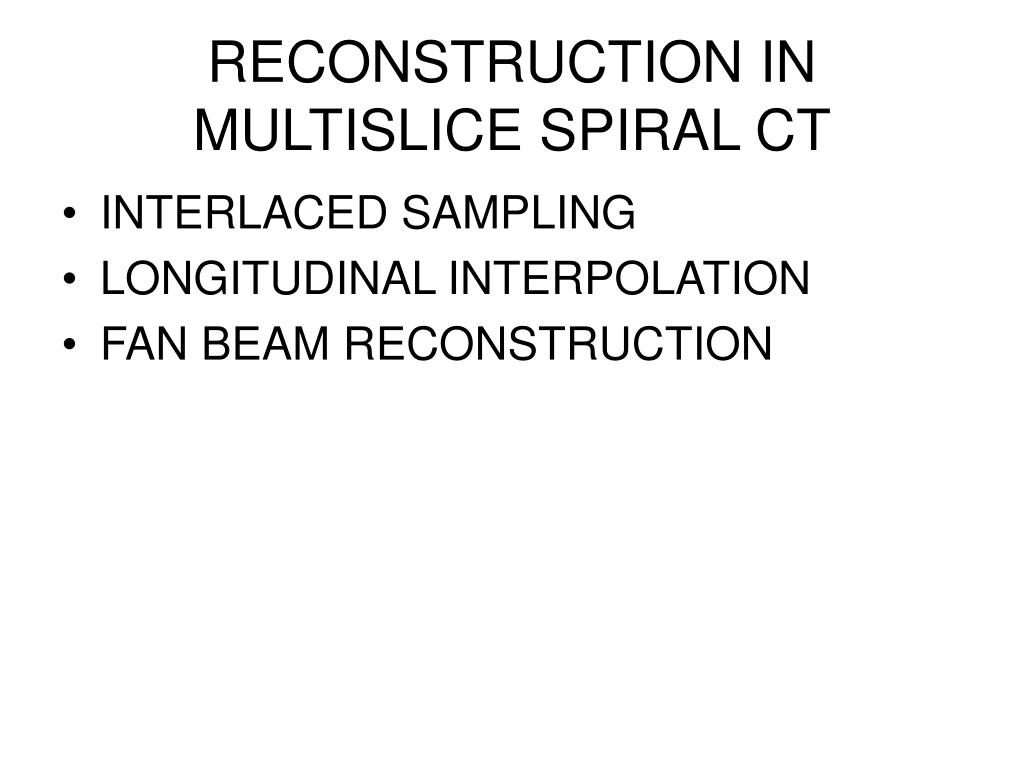

reconstruction in multislice spiral ct
RECONSTRUCTION IN MULTISLICE SPIRAL CT
  • INTERLACED SAMPLING
  • LONGITUDINAL INTERPOLATION
  • FAN BEAM RECONSTRUCTION
reconstruction algorithm comparison
RECONSTRUCTION ALGORITHM COMPARISON
  • ANALYTIC METHODS ARE FASTER THAN ITERATIVE ALGORITHMS.
  • FILTERED BACK PROJECTION IS USED IN MODERN CT SCANNERS
