    1. A New Approach to the Maximum-Flow Problem Andrew V. Goldberg, Robert E. Tarjan Presented by Andrew Guillory

    2. Outline • Background • Definitions • Push-Relabel Algorithm • Correctness / Termination Proofs • Sequential Implementation • Dynamic Tree Implementation

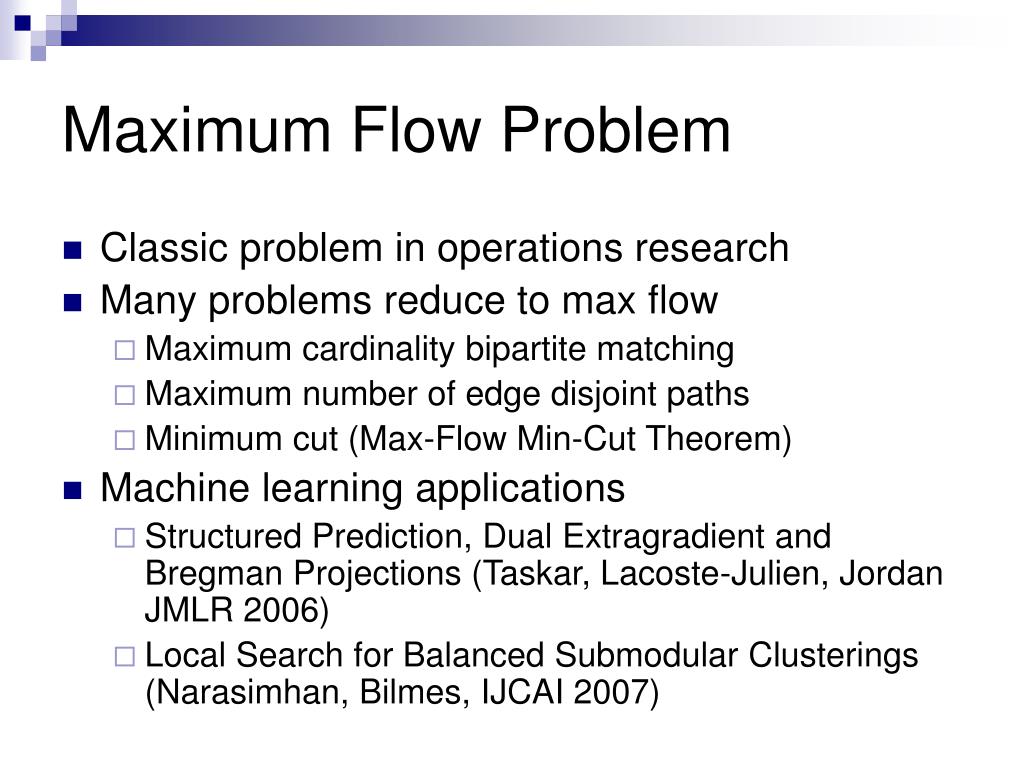

    3. Maximum Flow Problem • Classic problem in operations research • Many problems reduce to max flow • Maximum cardinality bipartite matching • Maximum number of edge disjoint paths • Minimum cut (Max-Flow Min-Cut Theorem) • Machine learning applications • Structured Prediction, Dual Extragradient and Bregman Projections (Taskar, Lacoste-Julien, Jordan JMLR 2006) • Local Search for Balanced Submodular Clusterings (Narasimhan, Bilmes, IJCAI 2007)

    4. Relation to Optimization • Special case of submodular function minimization • Special case of linear programming • Integer edge capacities permit integer maximum flows (constructive proof)

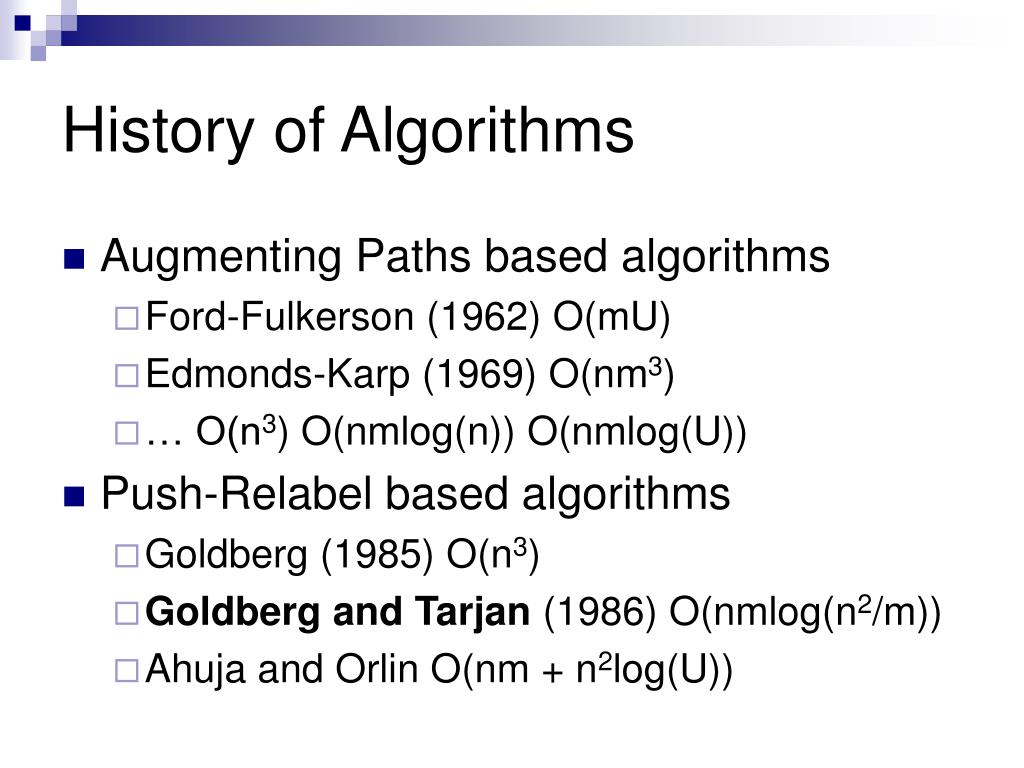

    5. History of Algorithms • Augmenting Paths based algorithms • Ford-Fulkerson (1962) O(mU) • Edmonds-Karp (1969) O(nm3) • … O(n3) O(nmlog(n)) O(nmlog(U)) • Push-Relabel based algorithms • Goldberg (1985) O(n3) • Goldberg and Tarjan (1986) O(nmlog(n2/m)) • Ahuja and Orlin O(nm + n2log(U))

    6. Outline • Background • Definitions • Push-Relabel Algorithm • Correctness / Termination Proofs • Sequential Implementation • Dynamic Tree Implementation

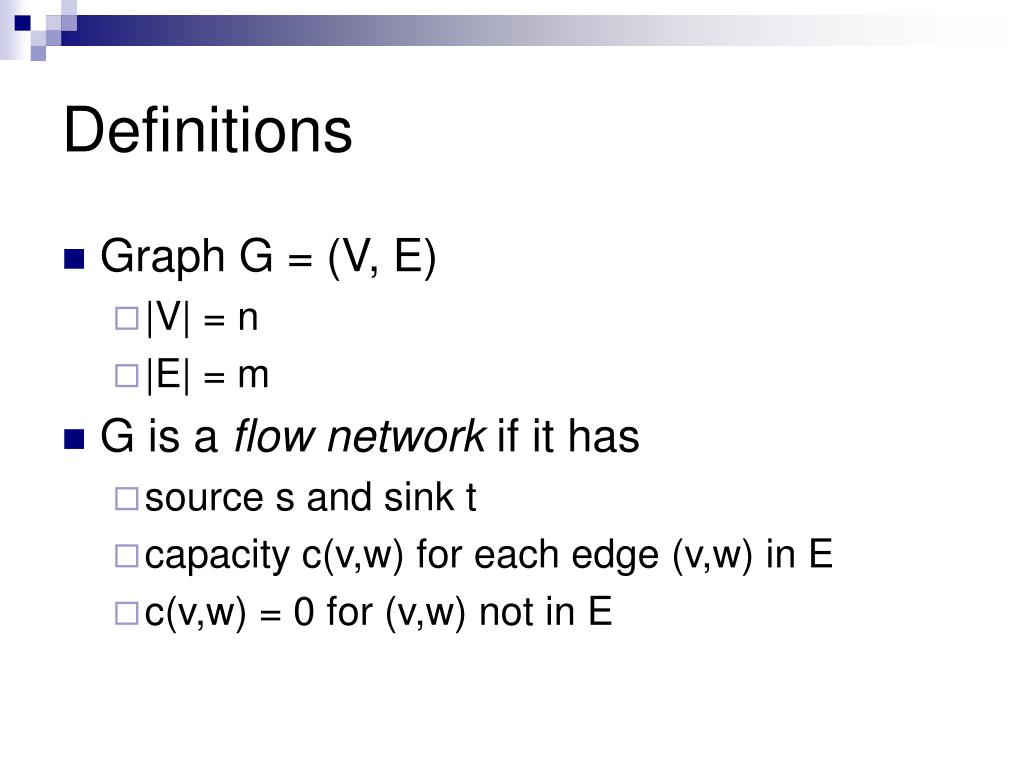

    7. Definitions • Graph G = (V, E) • |V| = n • |E| = m • G is a flow network if it has • source s and sink t • capacity c(v,w) for each edge (v,w) in E • c(v,w) = 0 for (v,w) not in E

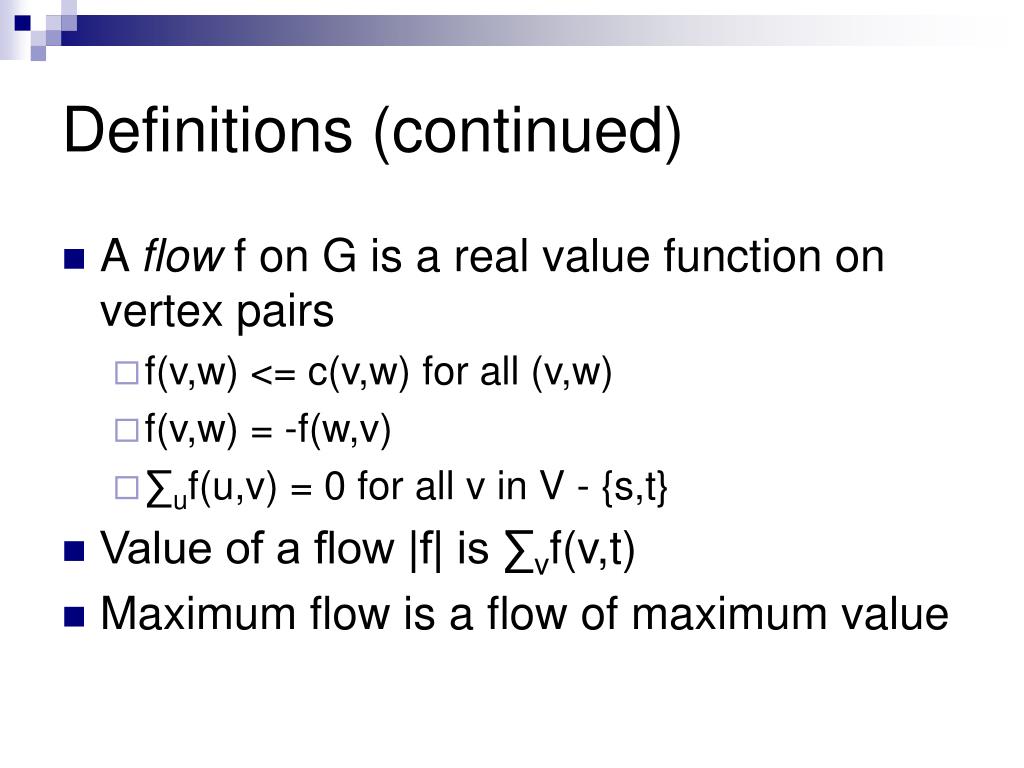

    8. Definitions (continued) • A flow f on G is a real value function on vertex pairs • f(v,w) <= c(v,w) for all (v,w) • f(v,w) = -f(w,v) • ∑uf(u,v) = 0 for all v in V - {s,t} • Value of a flow |f| is ∑vf(v,t) • Maximum flow is a flow of maximum value

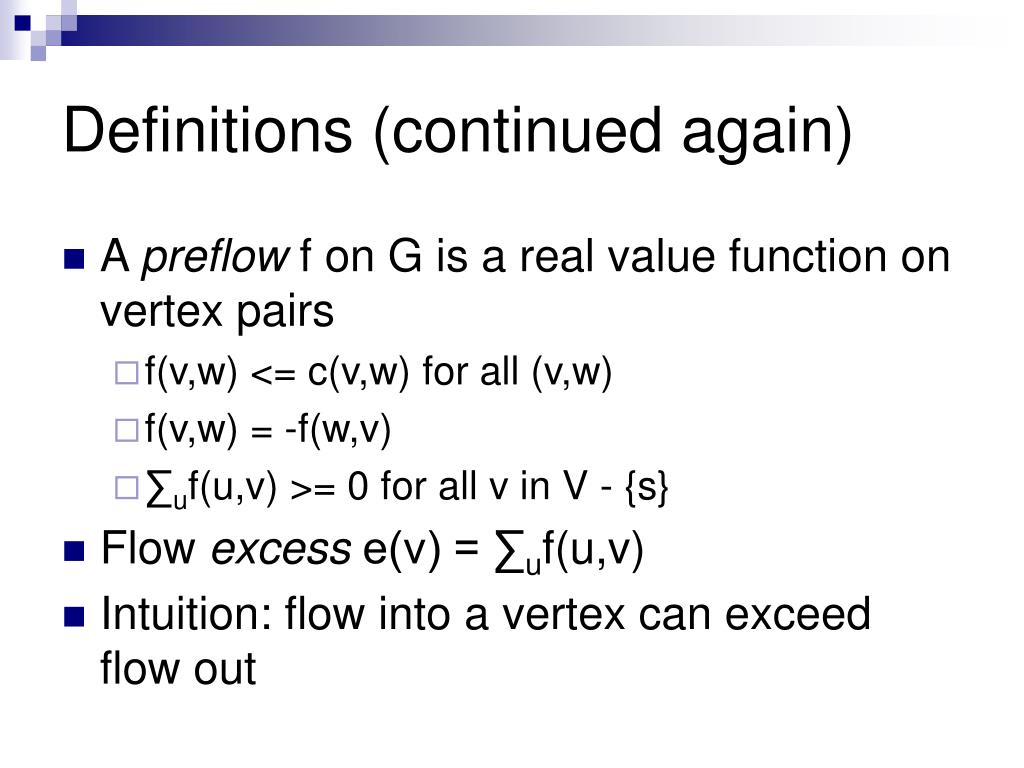

    9. Definitions (continued again) • A preflow f on G is a real value function on vertex pairs • f(v,w) <= c(v,w) for all (v,w) • f(v,w) = -f(w,v) • ∑uf(u,v) >= 0 for all v in V - {s} • Flow excess e(v) = ∑uf(u,v) • Intuition: flow into a vertex can exceed flow out

    10. Outline • Background • Definitions • Push-Relabel Algorithm • Correctness / Termination Proofs • Sequential Implementation • Dynamic Tree Implementation

    11. Intuition • Starting with a preflow, push excess flow closer towards sink • If excess flow cannot reach sink, push it backwards to source • Eventually, preflow becomes a flow and in fact the maximum flow

    12. Residual Graph • Residual capacity rf(v, w) of a vertex pair is c(v, w) – f(v, w) • If v has positive excess and (v,w) has residual capacity, can push δ = min(e(v), rf(v, w)) flow from v to w • Edge (v,w) is saturated if rf(v, w) = 0 • Residual graph Gf = (V, Ef) where Ef is the set of residual edges (v,w) with rf(v, w) > 0

    13. Labeling • A valid labeling is a function d from vertices to nonnegative integers • d(s) = n • d(t) = 0 • d(v) <= d(w) + 1 for every residual edge • If d(v) < n, d(v) is a lower bound on distance to sink • If d(v) >= n, d(v) - n is a lower bound on distance to source

    14. Push Operation Push(v,w) Precondition: v is active (e(v) > 0) and rf(v, w) > 0 and d(v) = d(w) + 1 Action: Push δ = min(e(v), rf(v, w)) from v to w f(v,w) = f(v,w) + δ; f(w,v) = f(w,v) – δ; e(v) = e(v) - δ; e(w) = e(w) + δ;

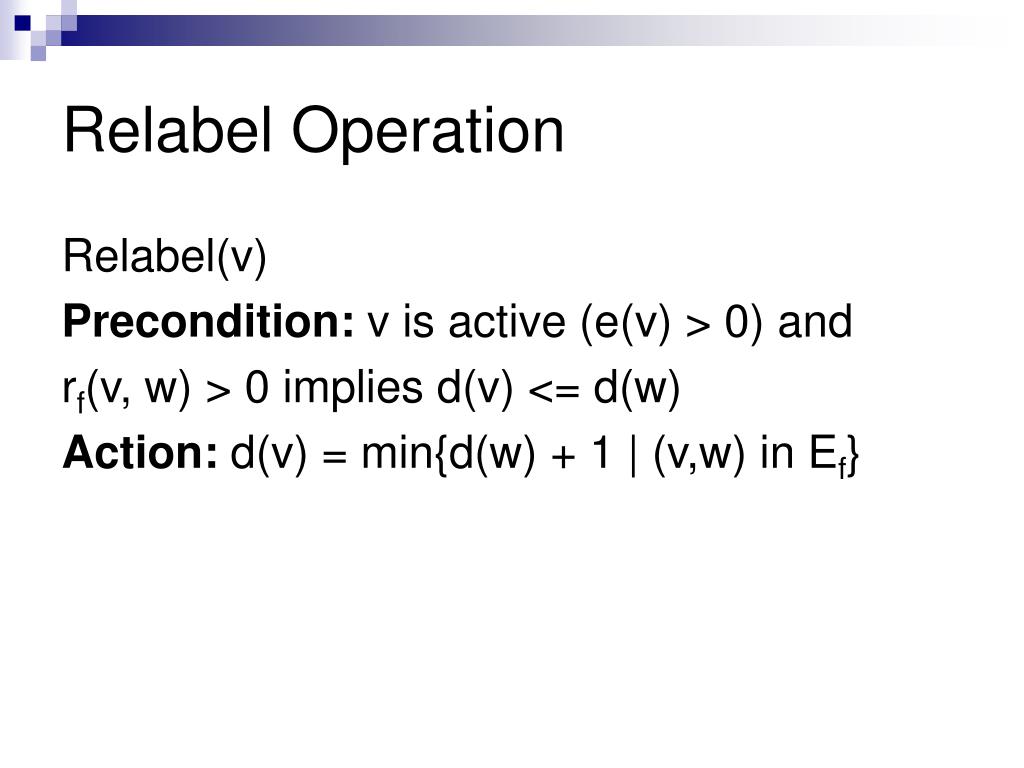

    15. Relabel Operation Relabel(v) Precondition: v is active (e(v) > 0) and rf(v, w) > 0 implies d(v) <= d(w) Action: d(v) = min{d(w) + 1 | (v,w) in Ef}

    16. Generic Push-Relabel Algorithm Starting from an initial preflow <<loop>> While there is an active vertex Chose an active vertex v Apply Push(v,w) for some w or Relabel(v)

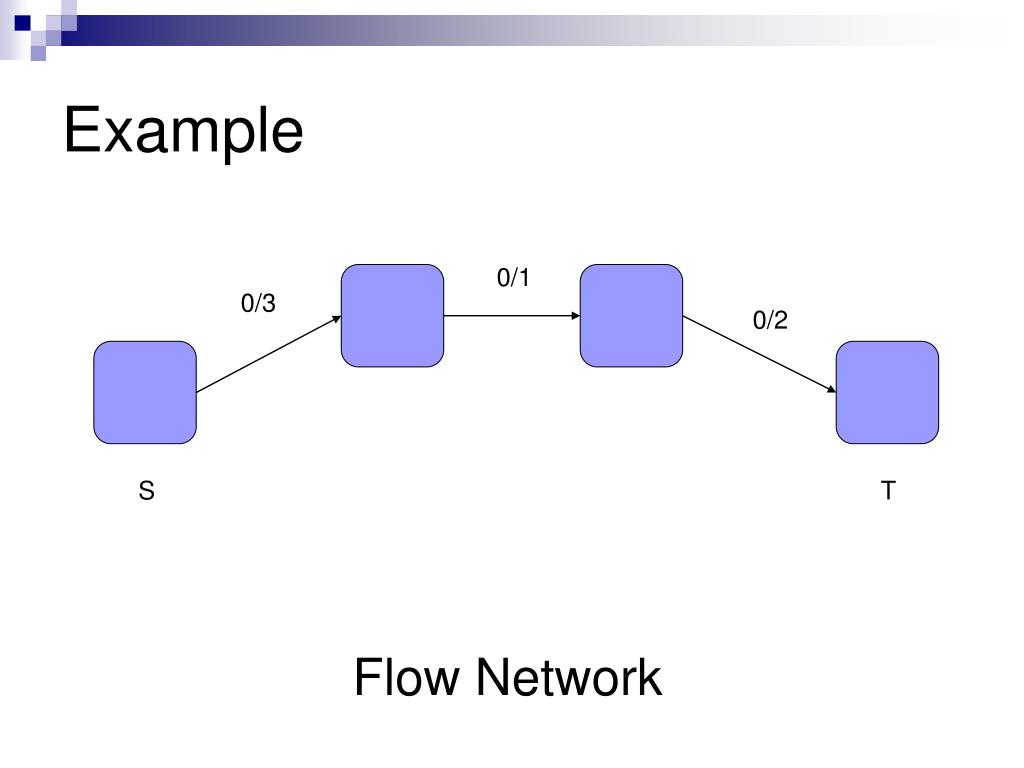

    17. Example 0/1 0/3 0/2 S T Flow Network

    18. Example 0/1 0 0 3/3 0/2 4 0 S T Initial preflow / labeling

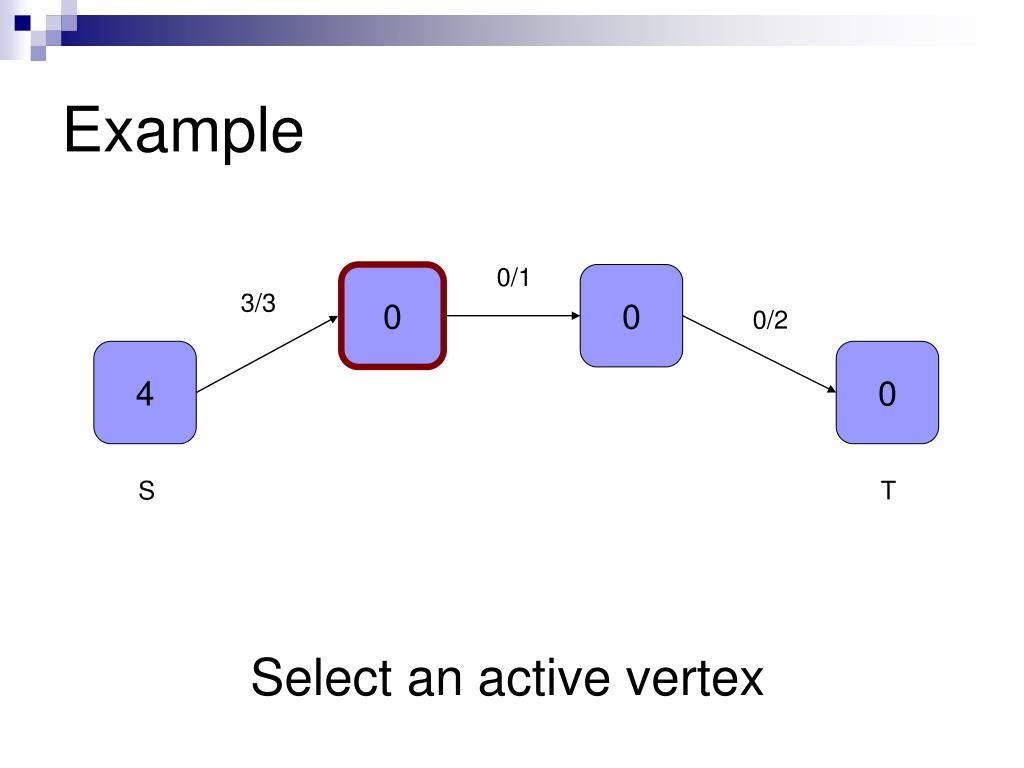

    19. Example 0/1 0 0 3/3 0/2 4 0 S T Select an active vertex

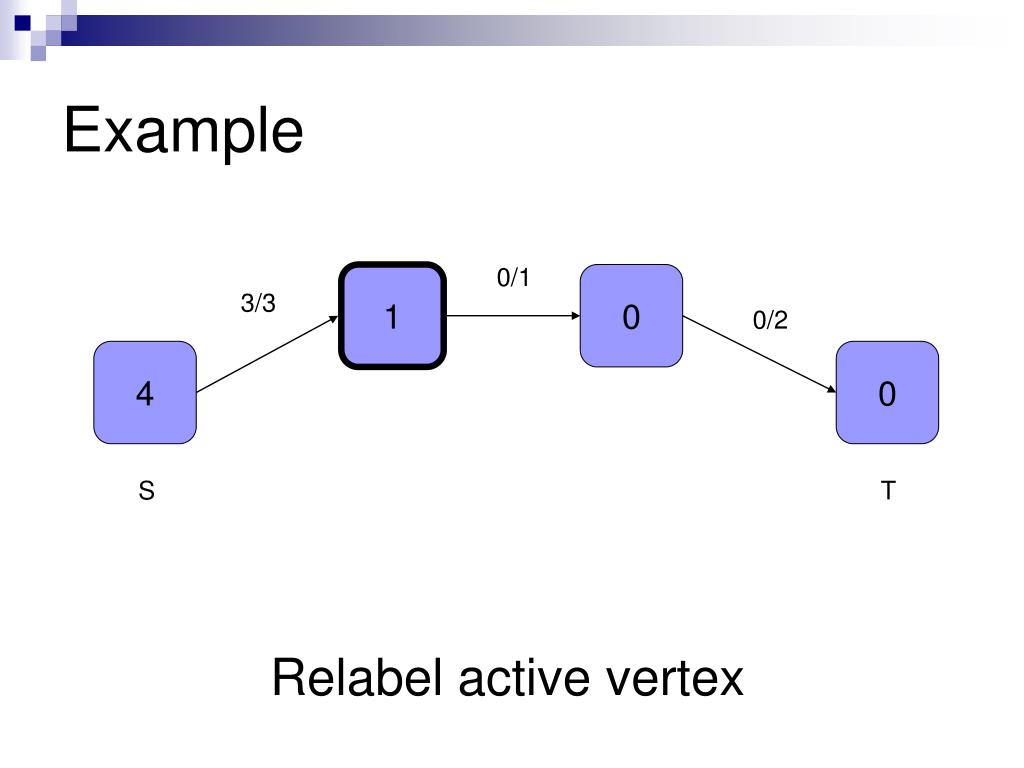

    20. Example 0/1 1 0 3/3 0/2 4 0 S T Relabel active vertex

    21. Example 0/1 1 0 3/3 0/2 4 0 S T Select an active vertex

    22. Example 1/1 1 0 3/3 0/2 4 0 S T Push excess from active vertex

    23. Example 1/1 1 0 3/3 0/2 4 0 S T Select an active vertex

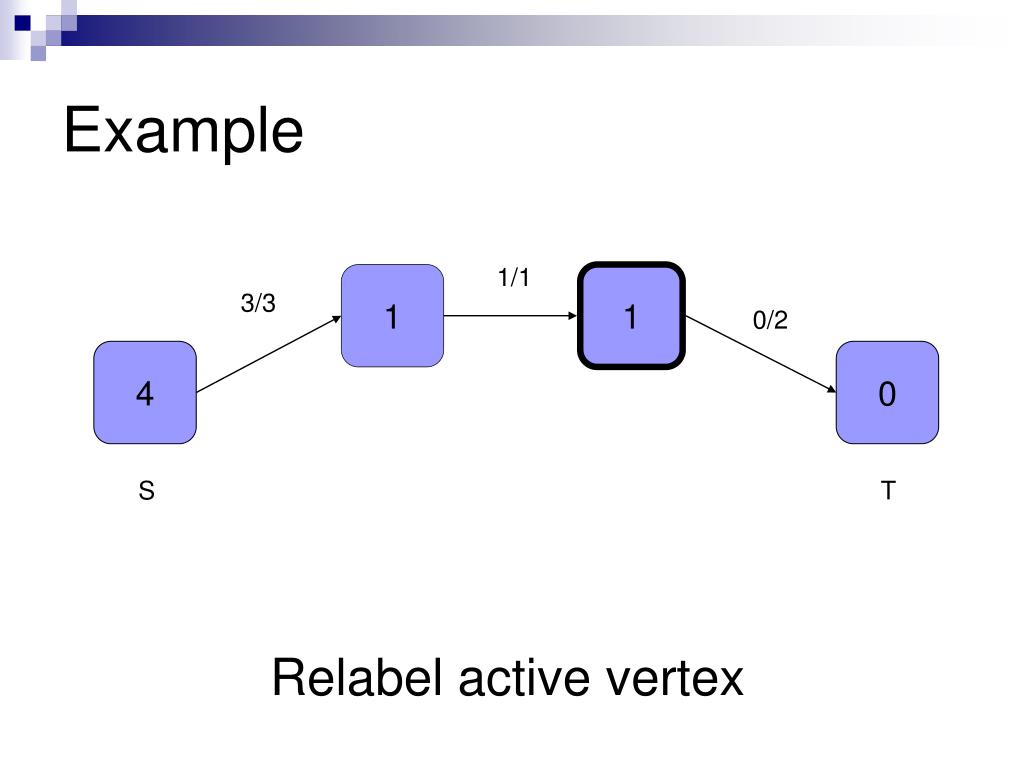

    24. Example 1/1 1 1 3/3 0/2 4 0 S T Relabel active vertex

    25. Example 1/1 1 1 3/3 0/2 4 0 S T Select an active vertex

    26. Example 1/1 1 1 3/3 1/2 4 0 S T Push excess from active vertex

    27. Example 1/1 1 1 3/3 1/2 4 0 S T Select an active vertex

    28. Example 1/1 5 1 3/3 1/2 4 0 S T Relabel active vertex

    29. Example 1/1 5 1 3/3 1/2 4 0 S T Select an active vertex

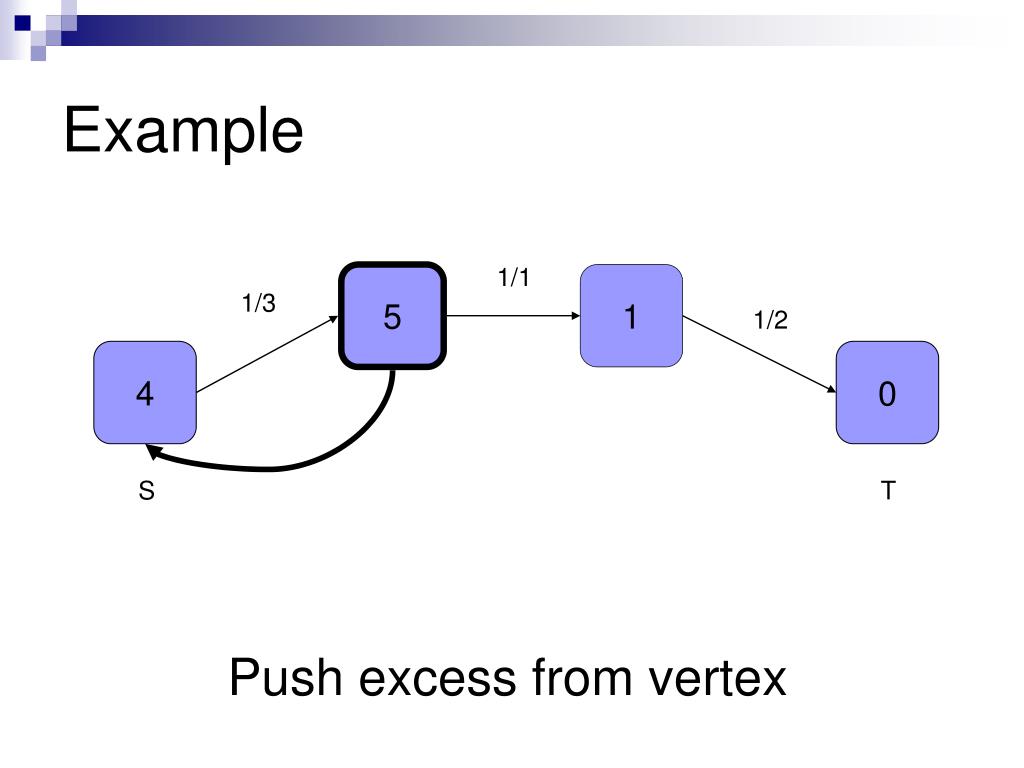

    30. Example 1/1 5 1 1/3 1/2 4 0 S T Push excess from vertex

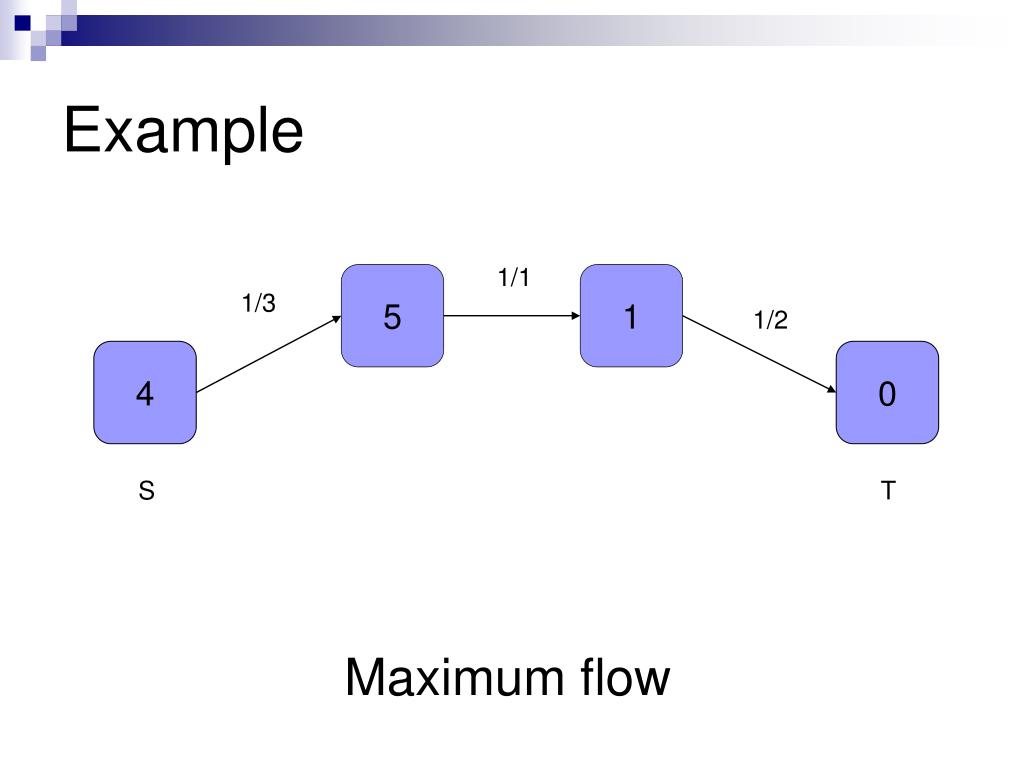

    31. Example 1/1 5 1 1/3 1/2 4 0 S T Maximum flow

    32. Outline • Background • Definitions • Push-Relabel Algorithm • Correctness / Termination Proofs • Sequential Implementation • Dynamic Tree Implementation

    33. Correctness • Lemma 2.1 If f is a preflow, d is a valid labeling, and v is active, either push or relabel is applicable to v • Lemma 3.1 The algorithm maintains a valid labeling d • Theorem 3.2 A flow is maximum iff there is no path from s to t in Gf (Ford and Fulkerson [7])

    34. Correctness (continued) • Lemma 3.3 If f is a preflow and d is a valid labeling for f, there is no path from s to t in Gf • Proof by contradiction • Path s, v0, v1, …, vl, t implies that d(s) <= d(v0) + 1 <= d(v1) + 2 <= … <= d(t) + l < n • Which contradicts d(s) = n

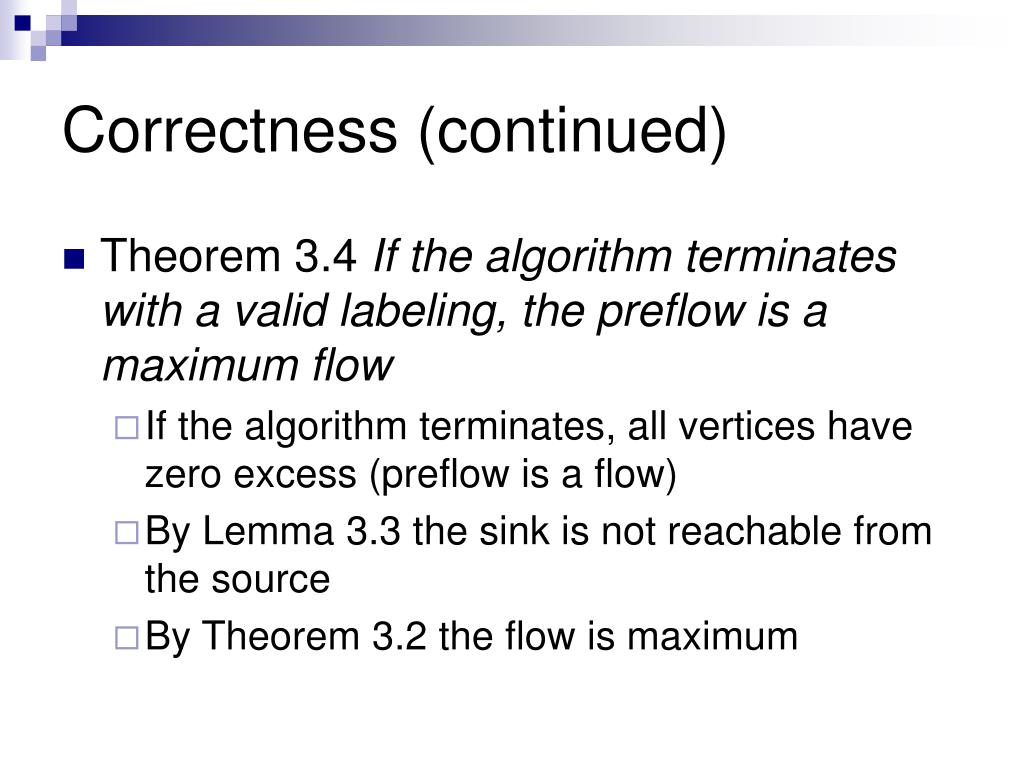

    35. Correctness (continued) • Theorem 3.4 If the algorithm terminates with a valid labeling, the preflow is a maximum flow • If the algorithm terminates, all vertices have zero excess (preflow is a flow) • By Lemma 3.3 the sink is not reachable from the source • By Theorem 3.2 the flow is maximum

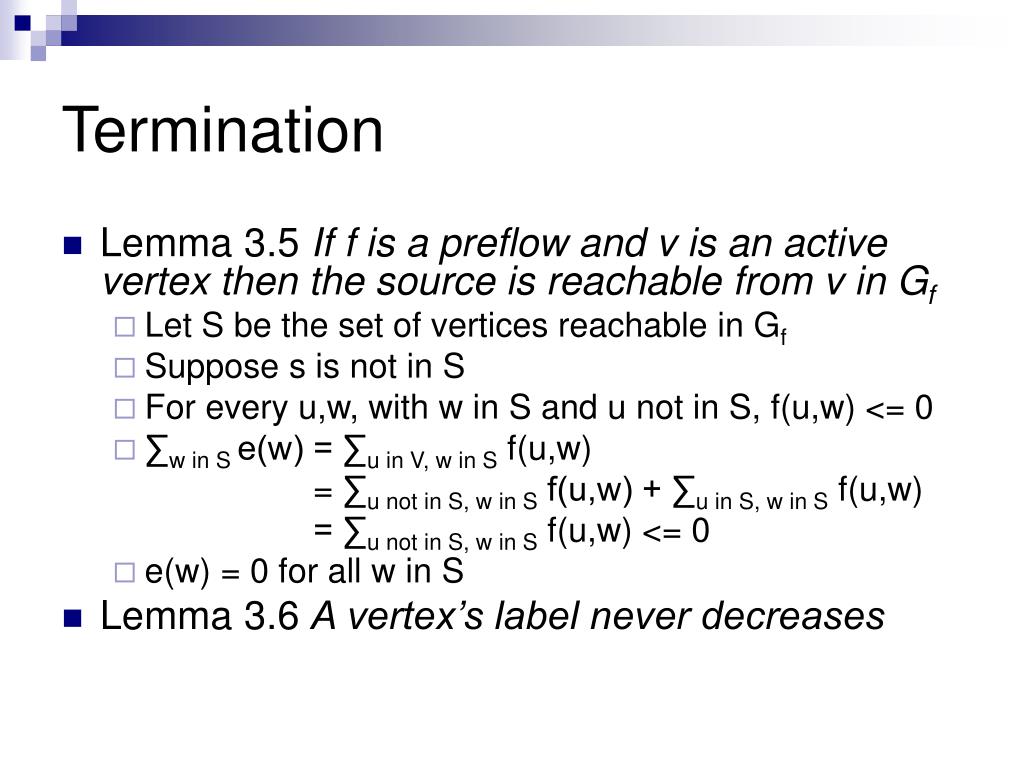

    36. Termination • Lemma 3.5 If f is a preflow and v is an active vertex then the source is reachable from v in Gf • Let S be the set of vertices reachable in Gf • Suppose s is not in S • For every u,w, with w in S and u not in S, f(u,w) <= 0 • ∑w in S e(w) = ∑u in V, w in S f(u,w) = ∑u not in S, w in S f(u,w) + ∑u in S, w in S f(u,w) = ∑u not in S, w in S f(u,w) <= 0 • e(w) = 0 for all w in S • Lemma 3.6 A vertex’s label never decreases

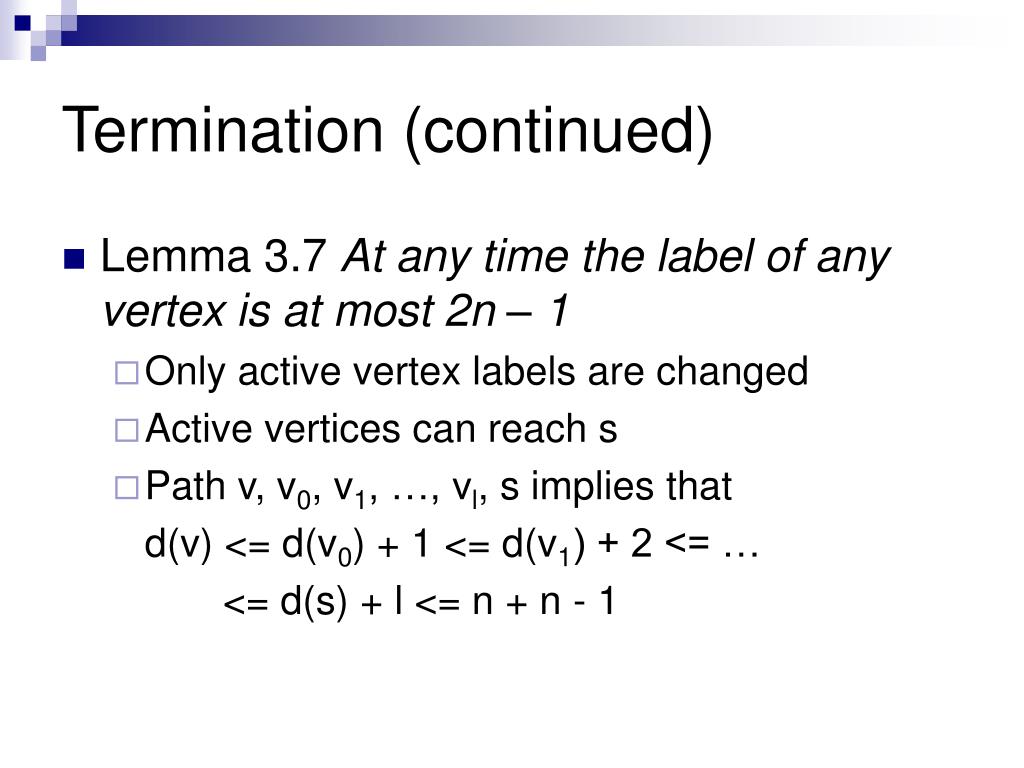

    37. Termination (continued) • Lemma 3.7 At any time the label of any vertex is at most 2n – 1 • Only active vertex labels are changed • Active vertices can reach s • Path v, v0, v1, …, vl, s implies that d(v) <= d(v0) + 1 <= d(v1) + 2 <= … <= d(s) + l <= n + n - 1

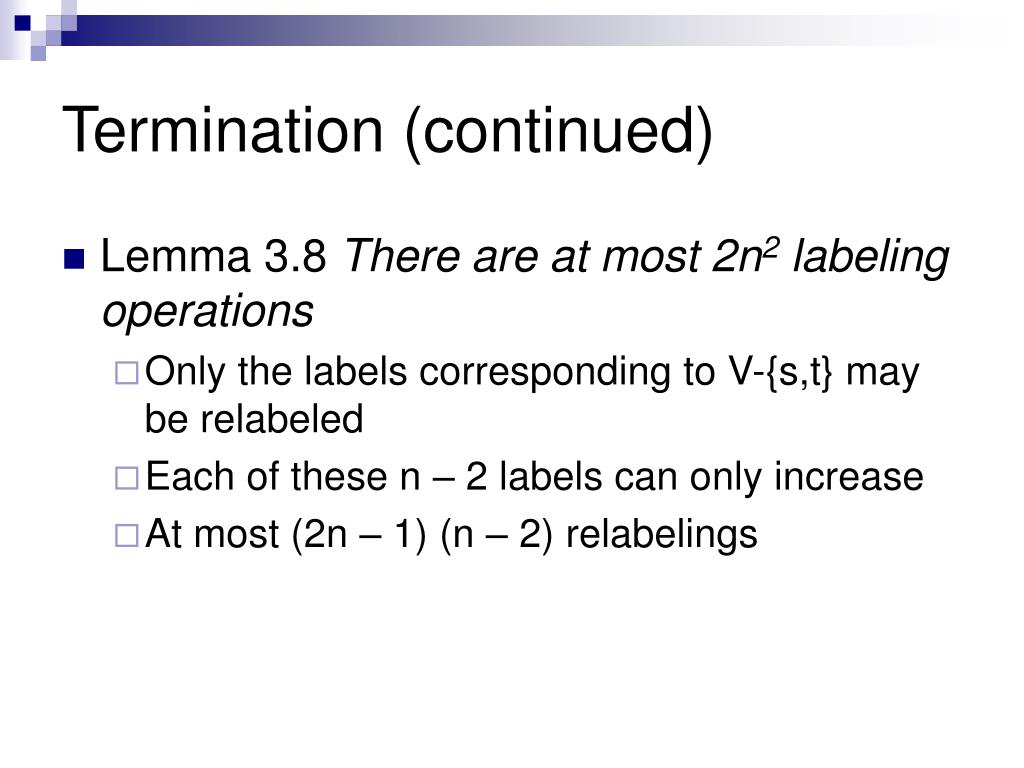

    38. Termination (continued) • Lemma 3.8 There are at most 2n2 labeling operations • Only the labels corresponding to V-{s,t} may be relabeled • Each of these n – 2 labels can only increase • At most (2n – 1) (n – 2) relabelings

    39. Termination (continued) • Lemma 3.9 The number of saturating pushes is at most 2nm • For any pair (v,w) d(w) must increase by 2 between saturating pushes from v to w • Similarly d(v) must increase by 2 between pushes from w to v • d(v) + d(w) >= 1 on the first saturating push • d(v) + d(w) <= 4n - 3 on the last • At most 2n - 1 saturating pushes per edge

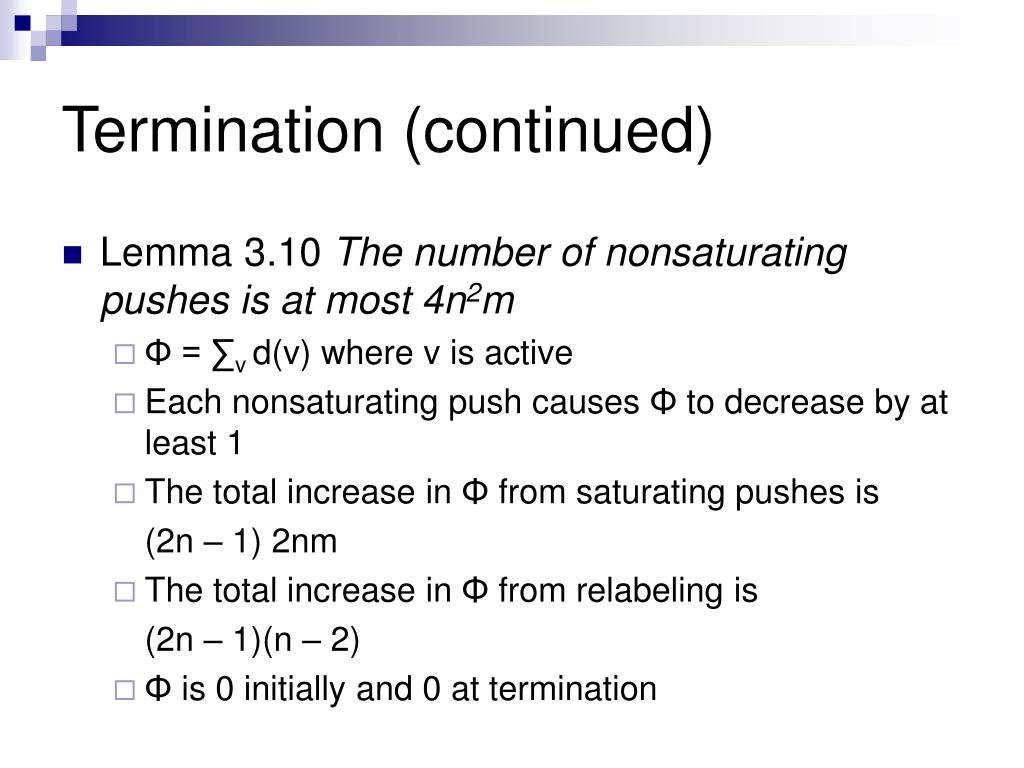

    40. Termination (continued) • Lemma 3.10 The number of nonsaturating pushes is at most 4n2m • Φ = ∑v d(v) where v is active • Each nonsaturating push causes Φ to decrease by at least 1 • The total increase in Φ from saturating pushes is (2n – 1) 2nm • The total increase in Φ from relabeling is (2n – 1)(n – 2) • Φ is 0 initially and 0 at termination

    41. Termination • Theorem 3.11 The algorithm terminates in O(n2m) Total time = # nonsaturating pushes + #saturating pushes + #relabeling operations 4n2m + 2nm + 2n2 =O(n2m)

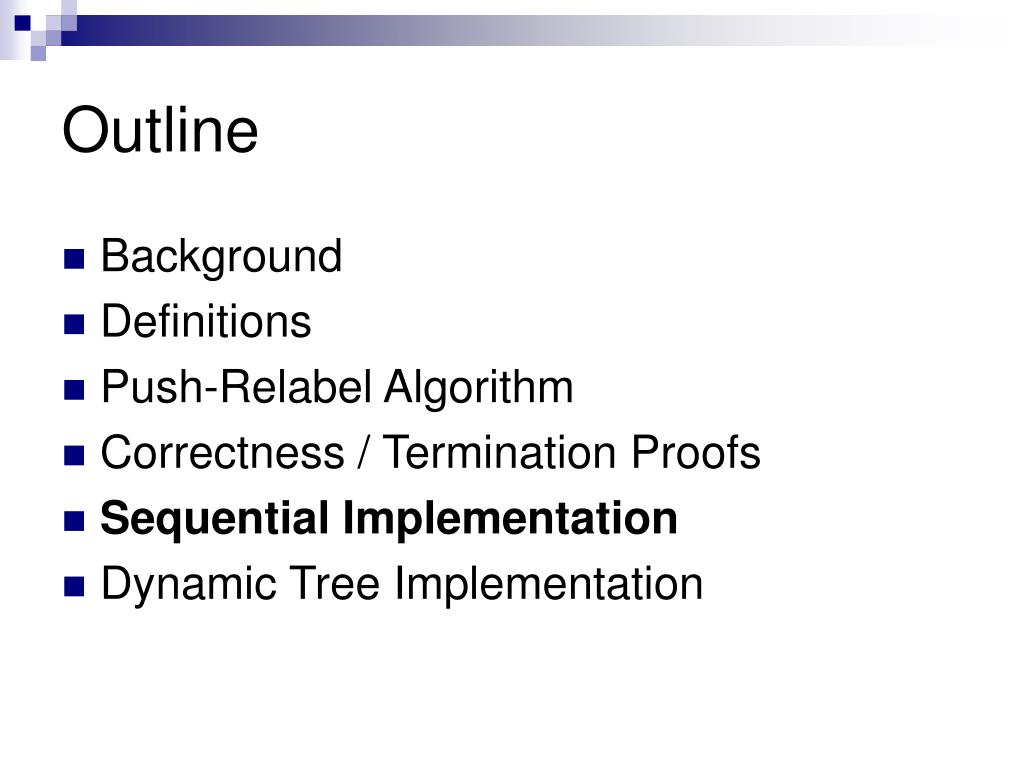

    42. Outline • Background • Definitions • Push-Relabel Algorithm • Correctness / Termination Proofs • Sequential Implementation • Dynamic Tree Implementation

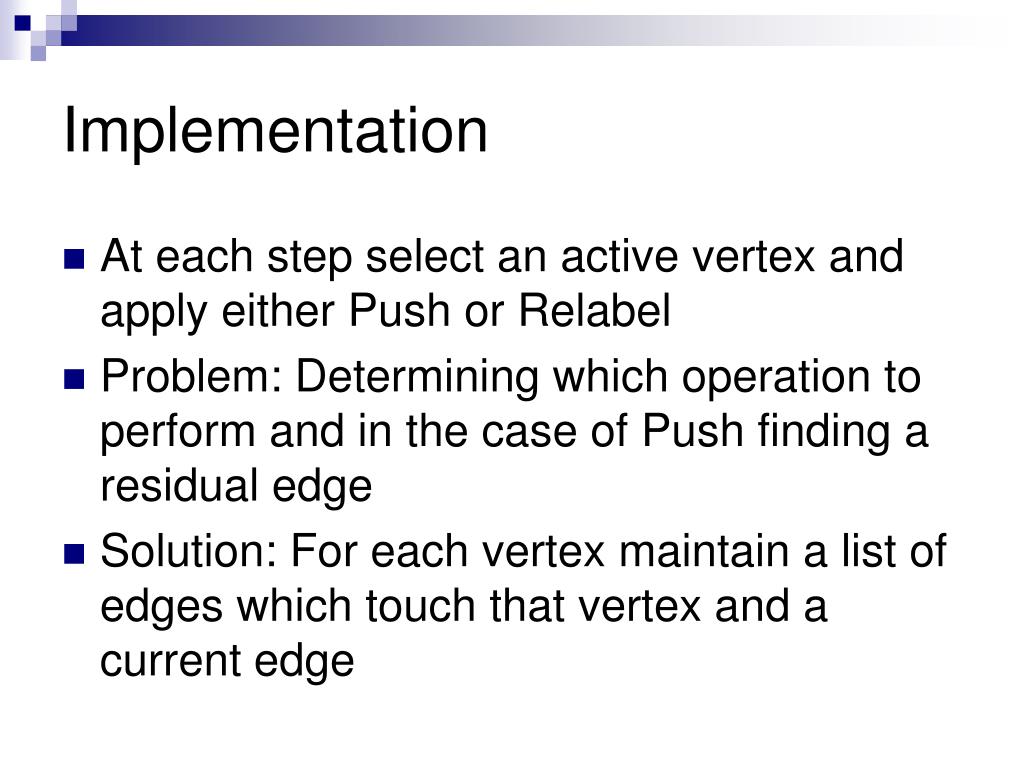

    43. Implementation • At each step select an active vertex and apply either Push or Relabel • Problem: Determining which operation to perform and in the case of Push finding a residual edge • Solution: For each vertex maintain a list of edges which touch that vertex and a current edge

    44. Push/Relabel Operation Push/Relabel(v) Precondition: v is active Action: If Push(v,w) is applicable to current edge (v,w) then Push(v,w) Else if (v,w) is not the last edge advance current edge Else reset the current edge and Relabel(v)

    45. Push/Relabel Operation • Lemma 4.1 The push/relabel operation does a relabeling only when relabeling is applicable • Theorem 4.2 The push/relabel implementation runs in O(nm) time plus O(1) time per nonsaturating push operation

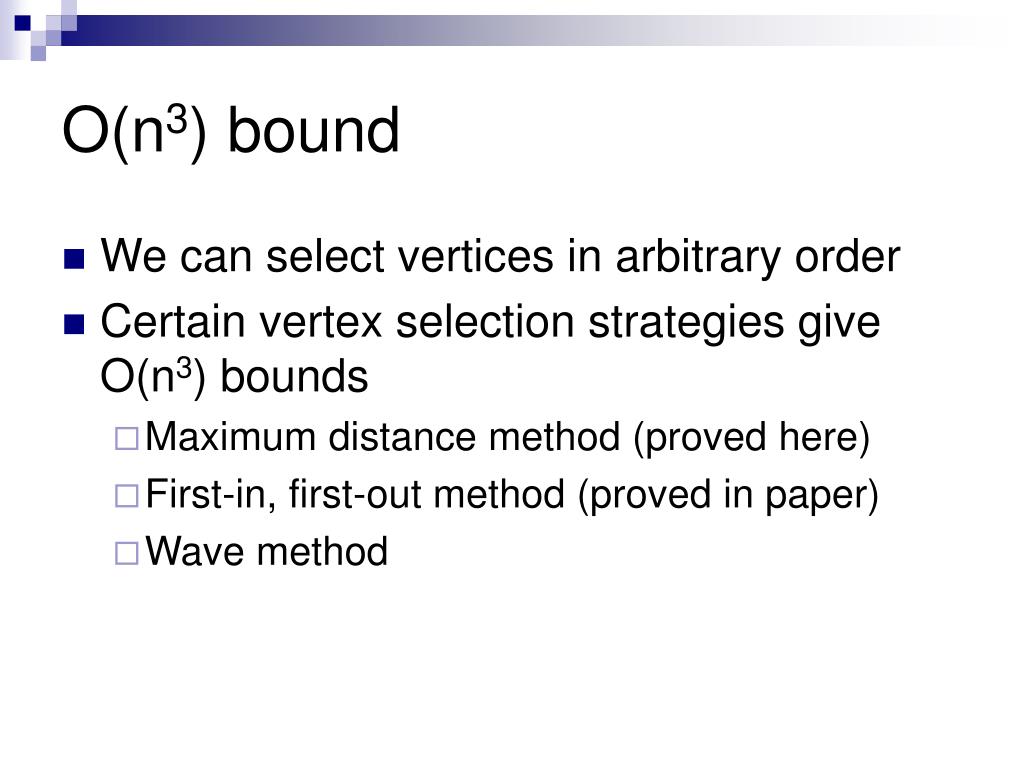

    46. O(n3) bound • We can select vertices in arbitrary order • Certain vertex selection strategies give O(n3) bounds • Maximum distance method (proved here) • First-in, first-out method (proved in paper) • Wave method

    47. Maximum distance method • At each step, select the active vertex with maximum distance d(v)

    48. Maximum distance method • Theorem The maximum distance method performs at most 4n3 nonsaturating pushes • Consider D = maxx d(x) where x is active • D only increases because of relabeling • D increases at most 2n2 times • D starts at 0 and ends nonnegative • D changes at most 4n2 times • There is at most one nonsaturating push per node per value of D

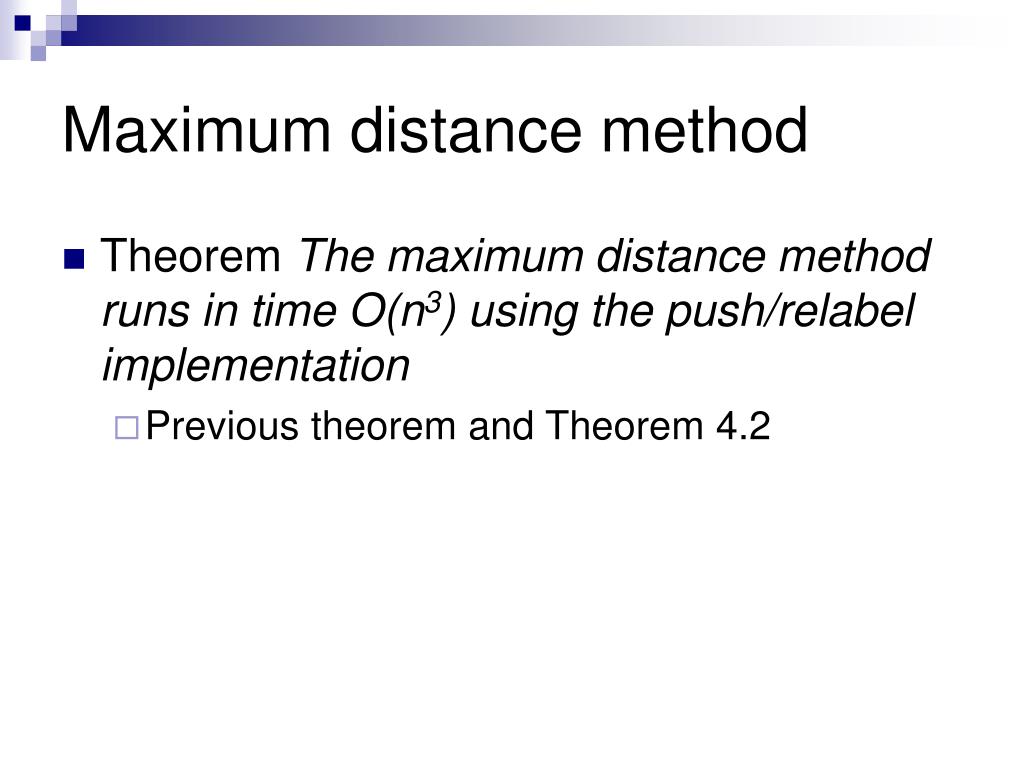

    49. Maximum distance method • Theorem The maximum distance method runs in time O(n3) using the push/relabel implementation • Previous theorem and Theorem 4.2

    50. First-In First-Out Method Discharge() Precondition: Queue is not empty Action: Push/Relabel the vertex v at the front of the queue until e(v) = 0 or d(v) increases If w becomes active during the Push/Relabel add w to the back of the Queue If v is still active add v to the back of the Queue
