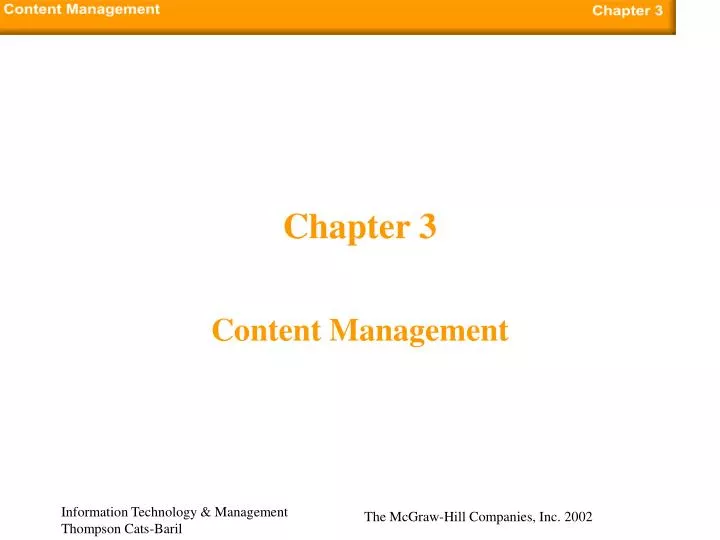

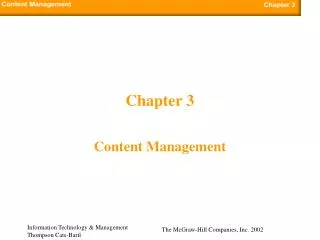

  1. Chapter 3 Content Management

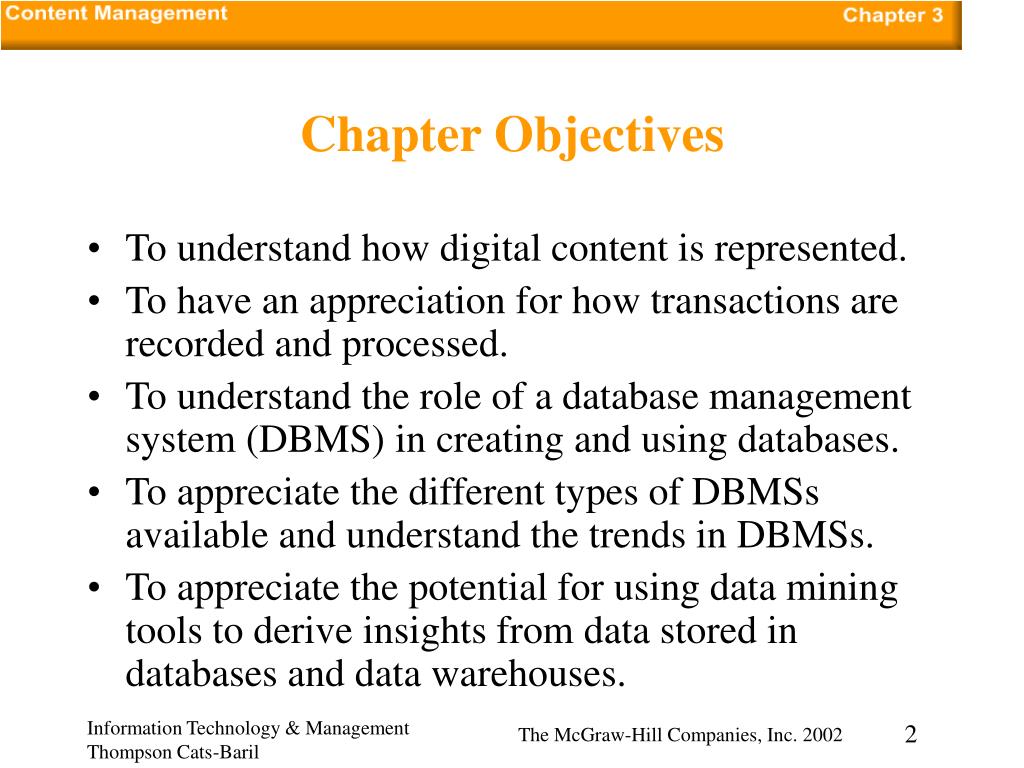

  2. Chapter Objectives • To understand how digital content is represented. • To have an appreciation for how transactions are recorded and processed. • To understand the role of a database management system (DBMS) in creating and using databases. • To appreciate the different types of DBMSs available and understand the trends in DBMSs. • To appreciate the potential for using data mining tools to derive insights from data stored in databases and data warehouses.

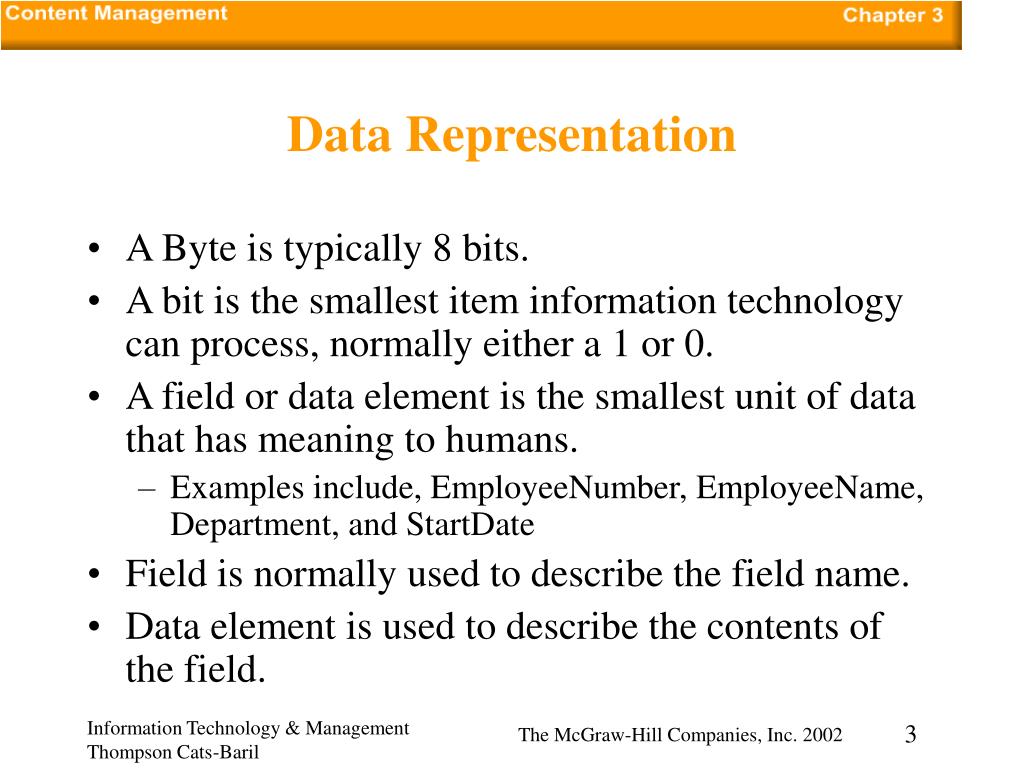

  3. Data Representation • A Byte is typically 8 bits. • A bit is the smallest item information technology can process, normally either a 1 or 0. • A field or data element is the smallest unit of data that has meaning to humans. • Examples include, EmployeeNumber, EmployeeName, Department, and StartDate • Field is normally used to describe the field name. • Data element is used to describe the contents of the field.

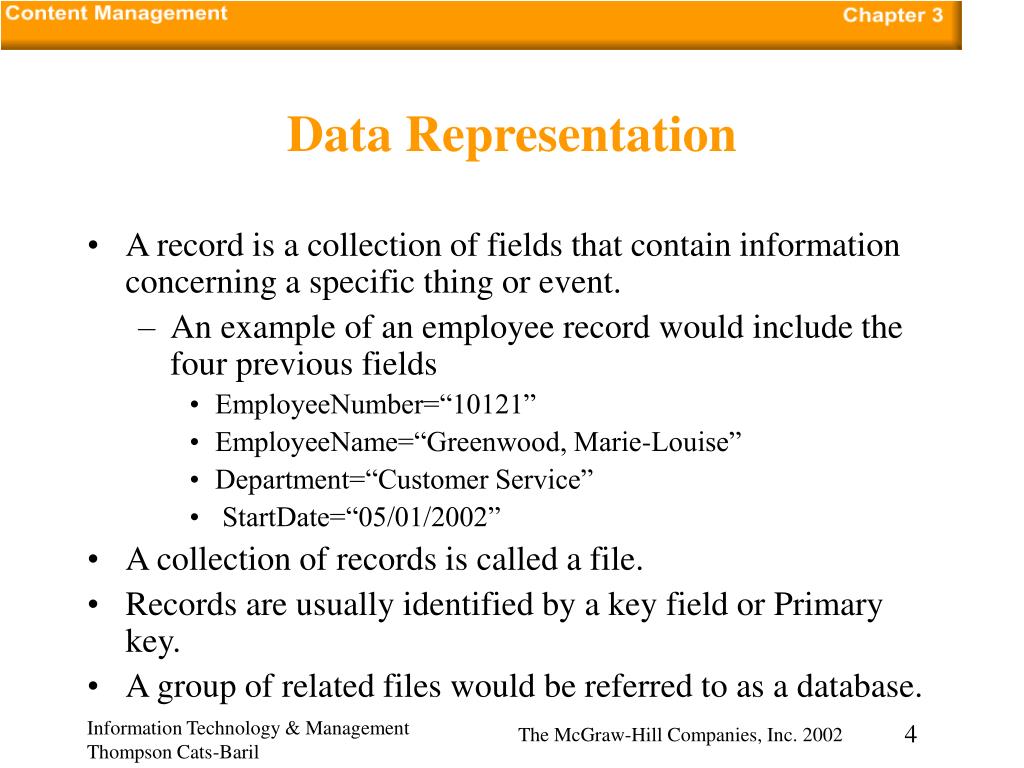

  4. Data Representation • A record is a collection of fields that contain information concerning a specific thing or event. • An example of an employee record would include the four previous fields • EmployeeNumber=“10121” • EmployeeName=“Greenwood, Marie-Louise” • Department=“Customer Service” • StartDate=“05/01/2002” • A collection of records is called a file. • Records are usually identified by a key field or Primary key. • A group of related files would be referred to as a database.

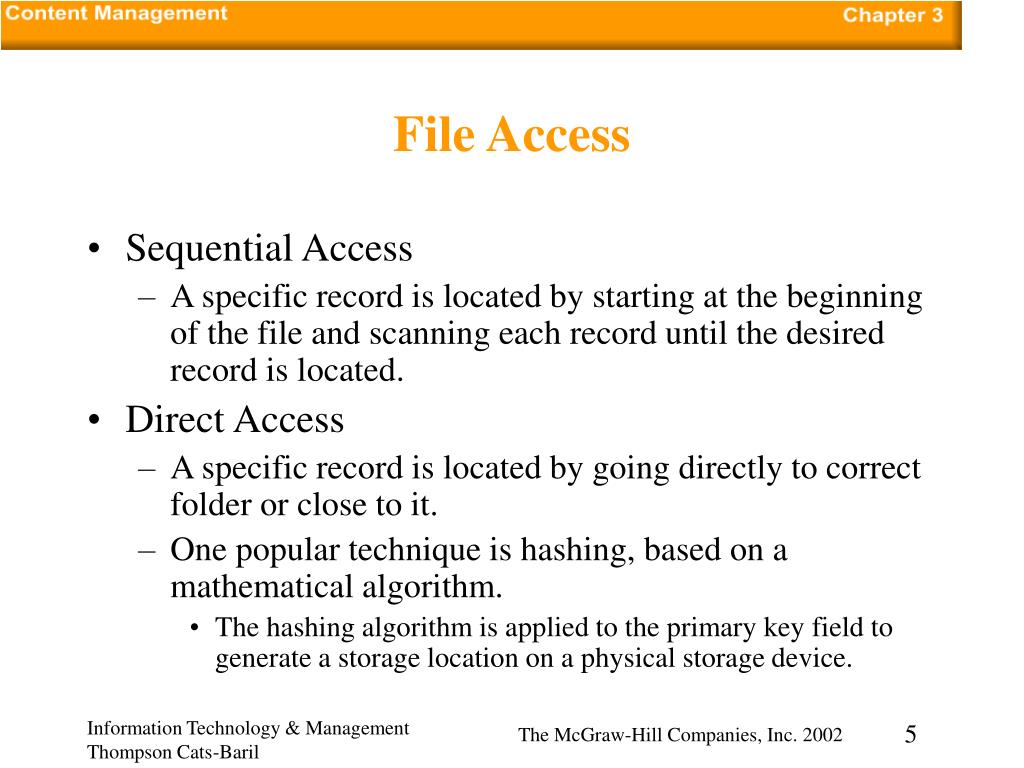

  5. File Access • Sequential Access • A specific record is located by starting at the beginning of the file and scanning each record until the desired record is located. • Direct Access • A specific record is located by going directly to correct folder or close to it. • One popular technique is hashing, based on a mathematical algorithm. • The hashing algorithm is applied to the primary key field to generate a storage location on a physical storage device.

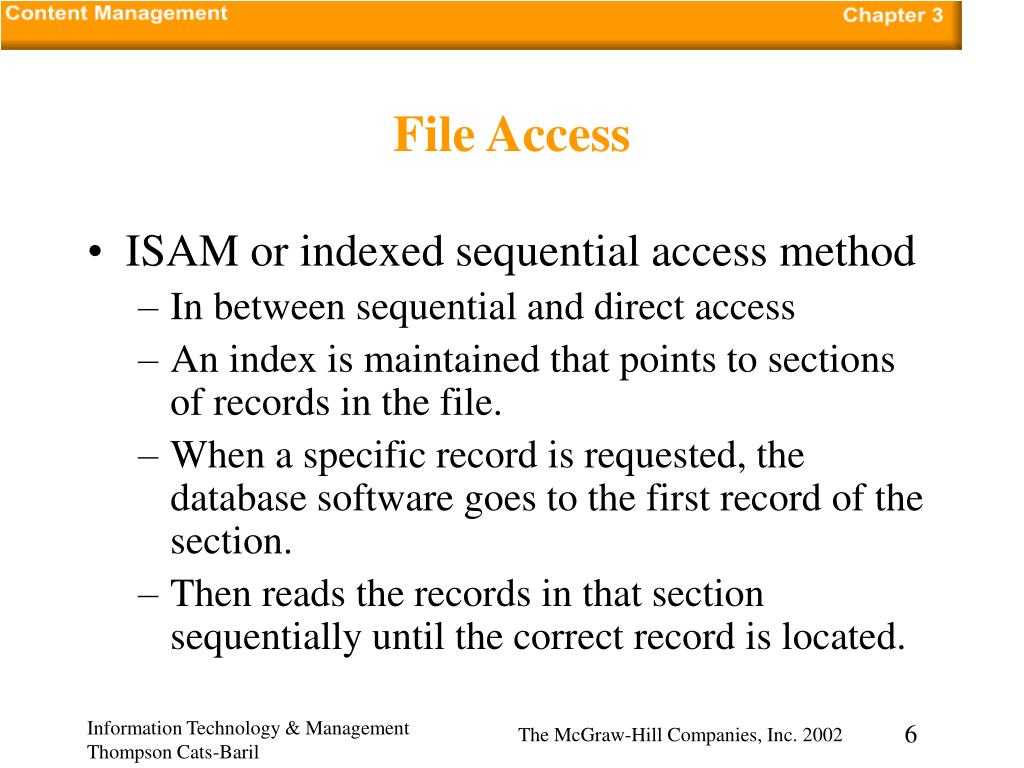

  6. File Access • ISAM or indexed sequential access method • In between sequential and direct access • An index is maintained that points to sections of records in the file. • When a specific record is requested, the database software goes to the first record of the section. • Then reads the records in that section sequentially until the correct record is located.

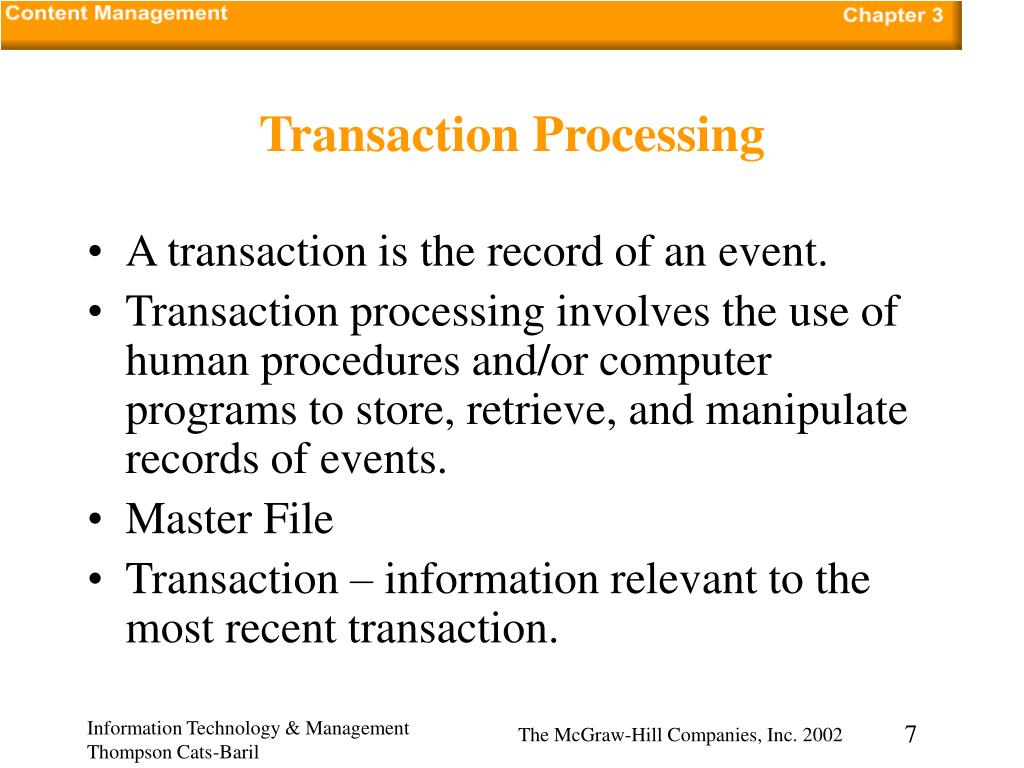

  7. Transaction Processing • A transaction is the record of an event. • Transaction processing involves the use of human procedures and/or computer programs to store, retrieve, and manipulate records of events. • Master File • Transaction – information relevant to the most recent transaction.

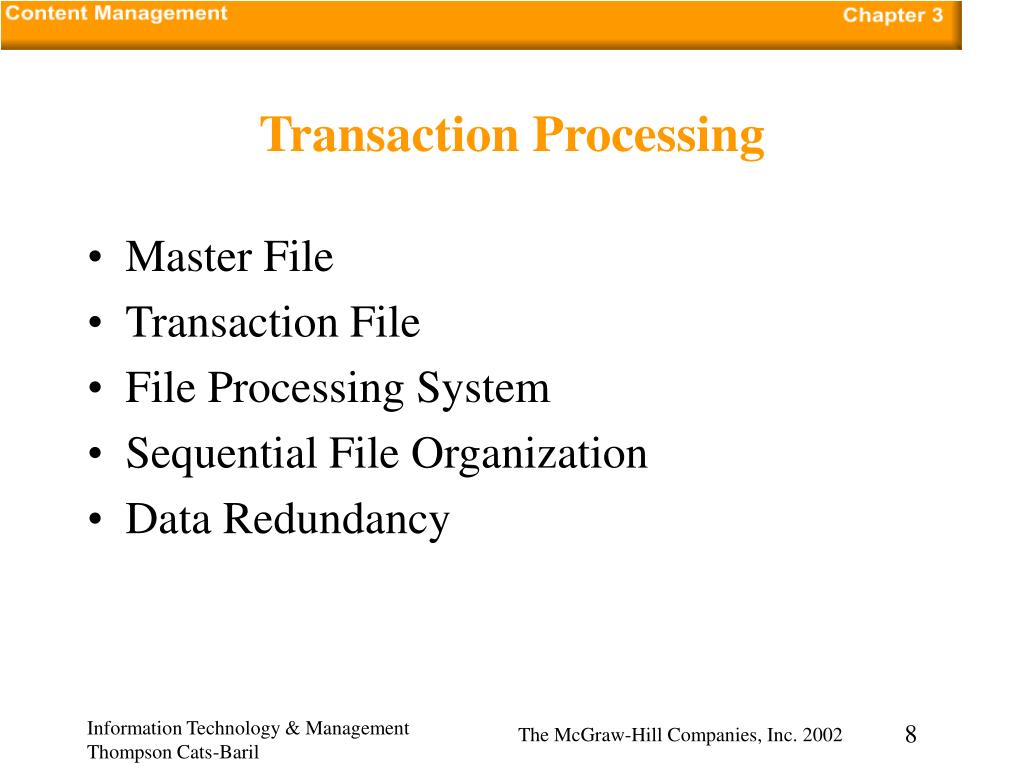

  8. Transaction Processing • Master File • Transaction File • File Processing System • Sequential File Organization • Data Redundancy

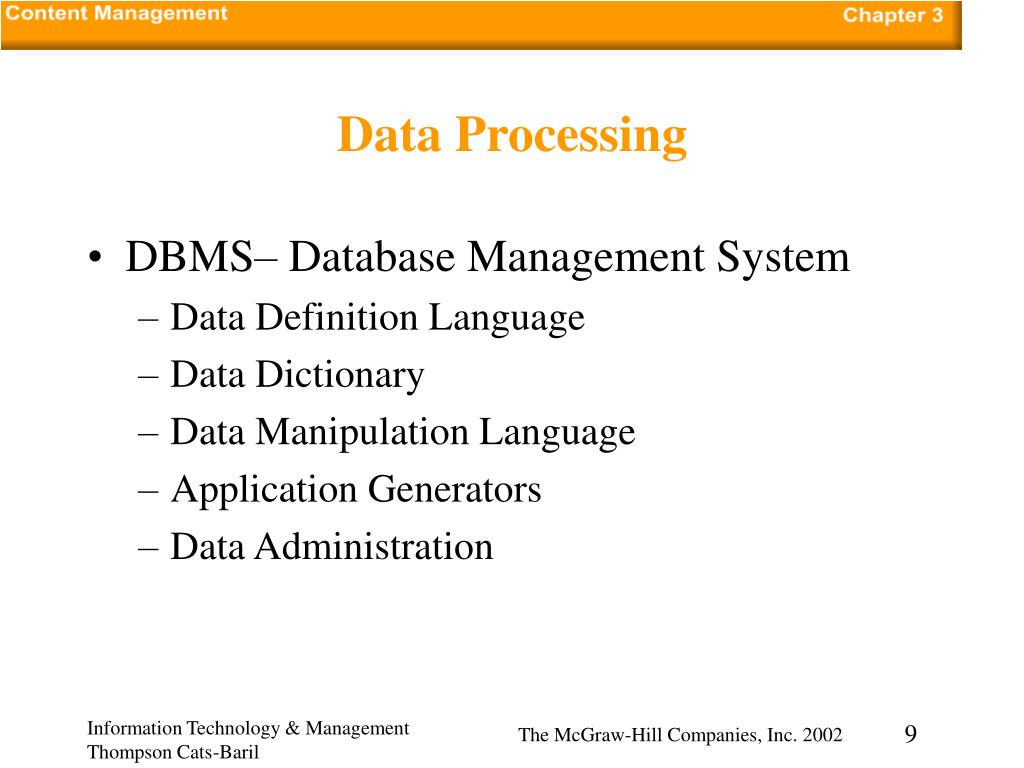

  9. Data Processing • DBMS– Database Management System • Data Definition Language • Data Dictionary • Data Manipulation Language • Application Generators • Data Administration

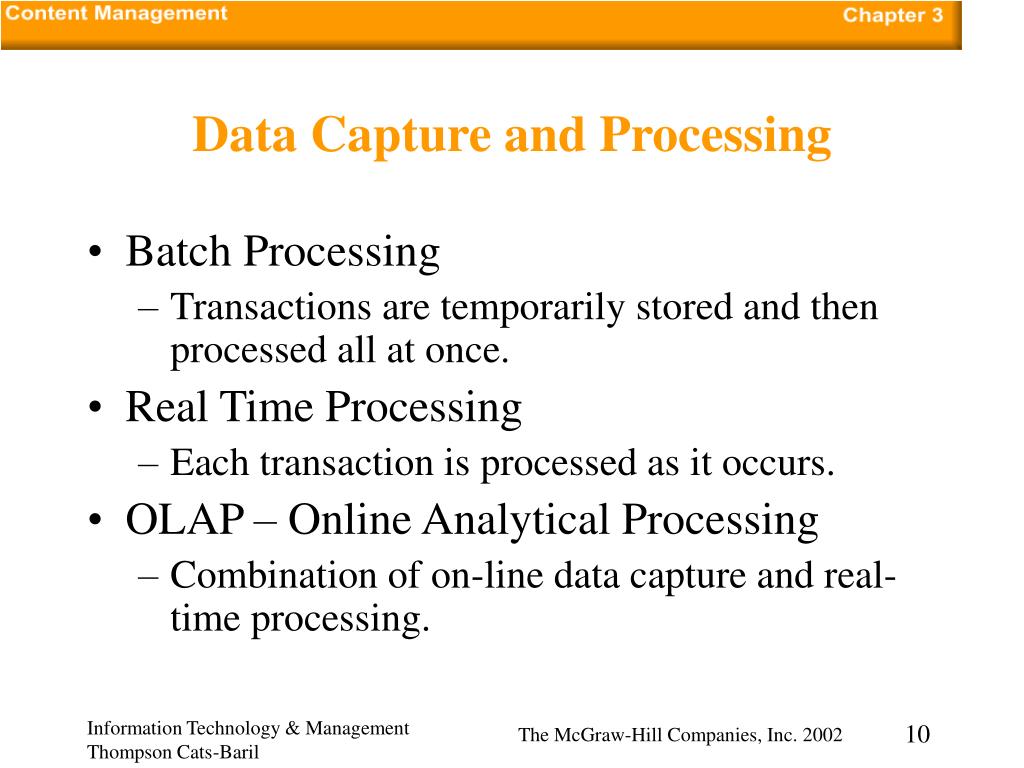

  10. Data Capture and Processing • Batch Processing • Transactions are temporarily stored and then processed all at once. • Real Time Processing • Each transaction is processed as it occurs. • OLAP – Online Analytical Processing • Combination of on-line data capture and real-time processing.

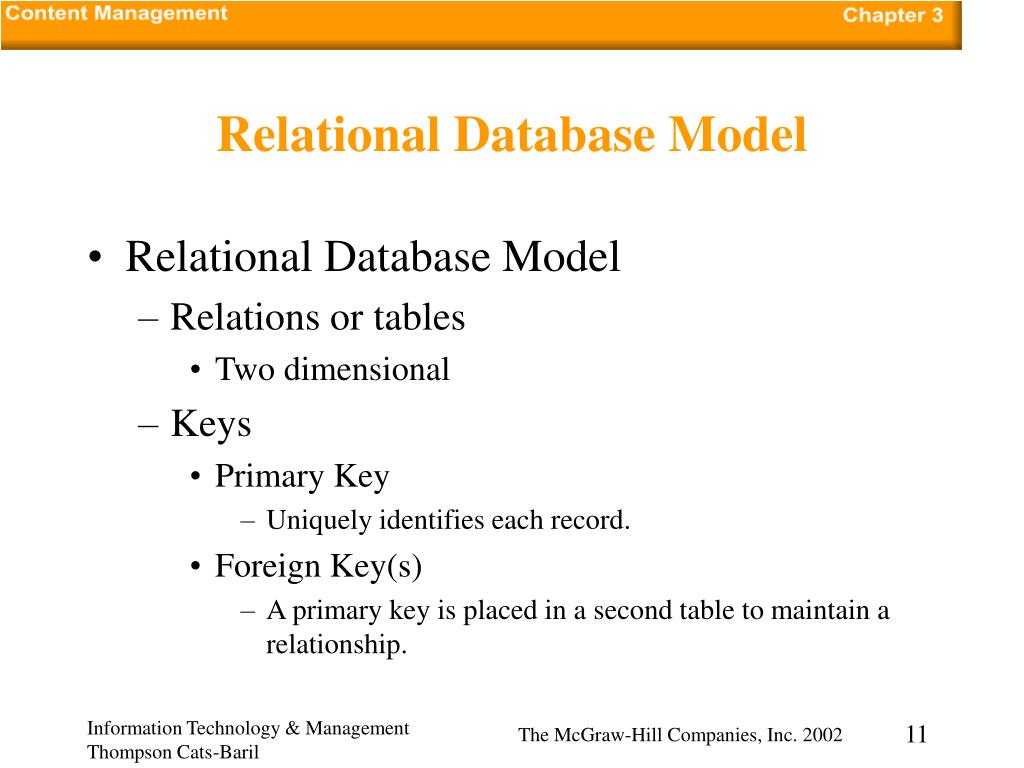

  11. Relational Database Model • Relational Database Model • Relations or tables • Two dimensional • Keys • Primary Key • Uniquely identifies each record. • Foreign Key(s) • A primary key is placed in a second table to maintain a relationship.

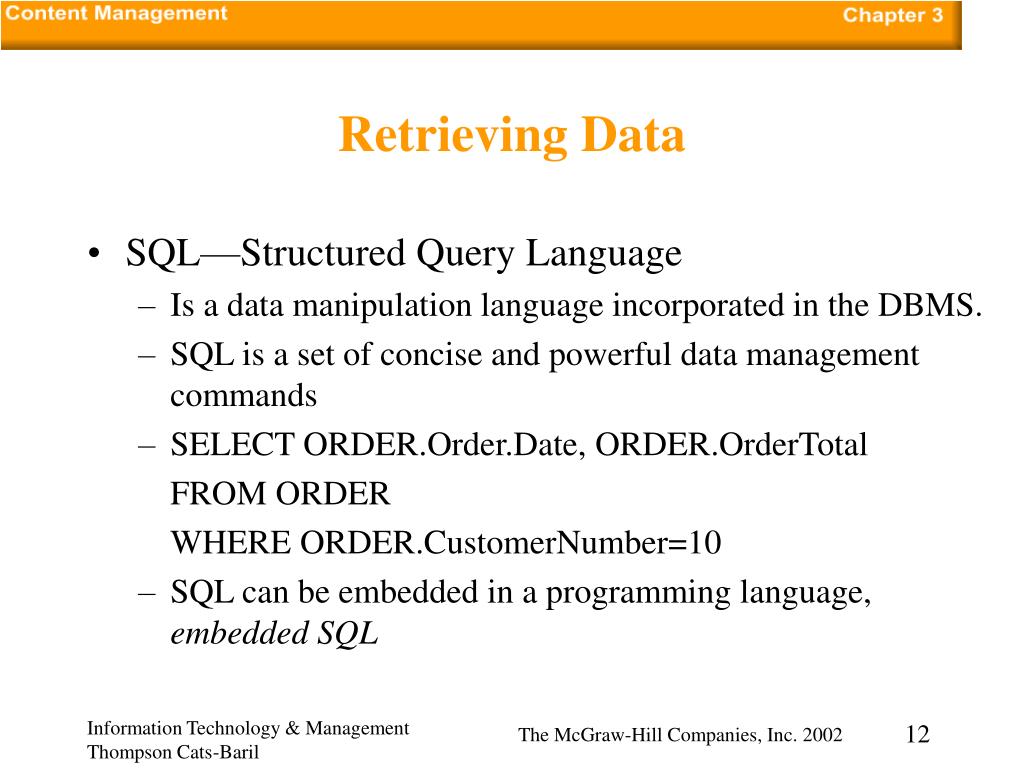

  12. Retrieving Data • SQL—Structured Query Language • Is a data manipulation language incorporated in the DBMS. • SQL is a set of concise and powerful data management commands • SELECT ORDER.Order.Date, ORDER.OrderTotal FROM ORDER WHERE ORDER.CustomerNumber=10 • SQL can be embedded in a programming language, embedded SQL

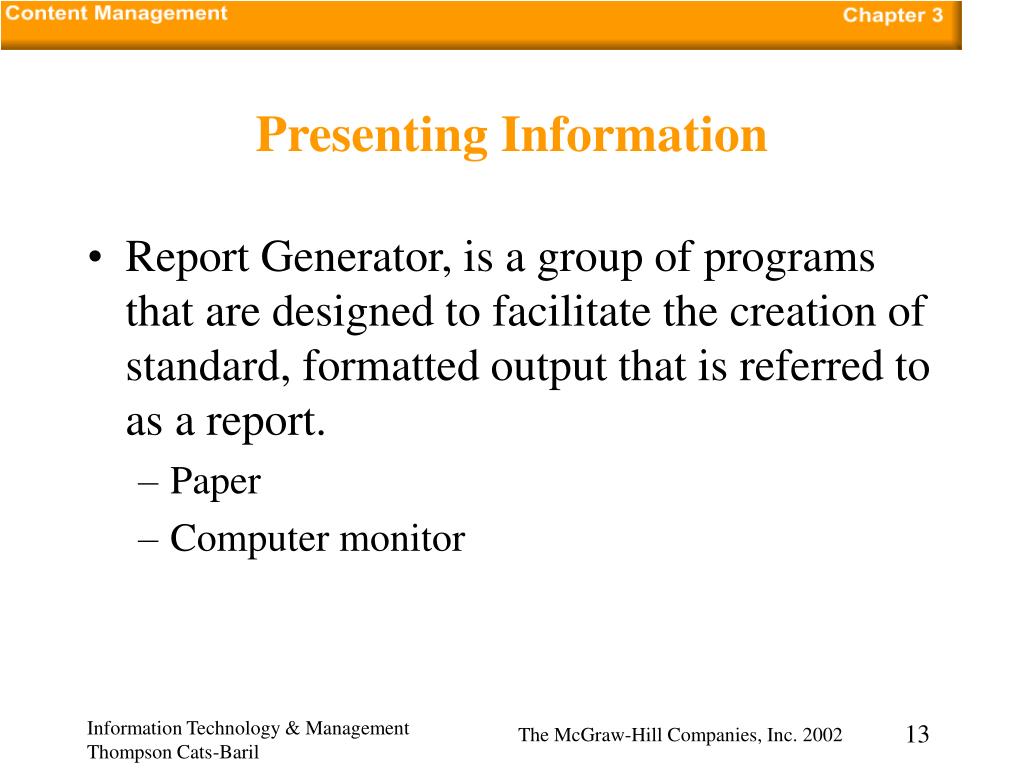

  13. Presenting Information • Report Generator, is a group of programs that are designed to facilitate the creation of standard, formatted output that is referred to as a report. • Paper • Computer monitor

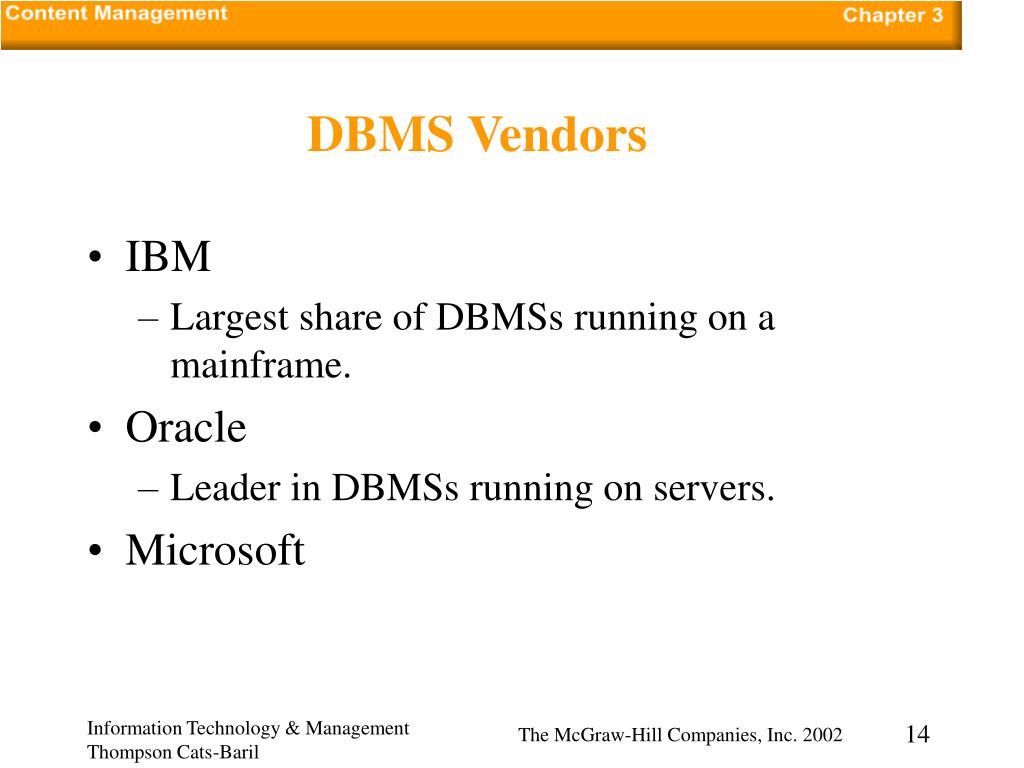

  14. DBMS Vendors • IBM • Largest share of DBMSs running on a mainframe. • Oracle • Leader in DBMSs running on servers. • Microsoft

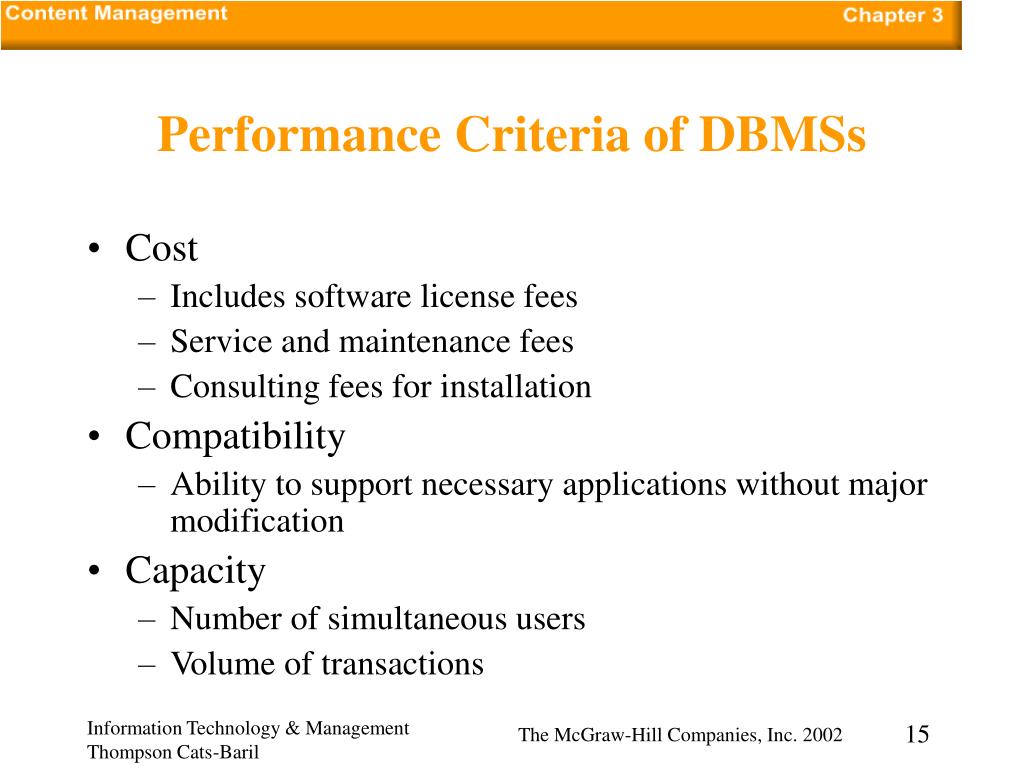

  15. Performance Criteria of DBMSs • Cost • Includes software license fees • Service and maintenance fees • Consulting fees for installation • Compatibility • Ability to support necessary applications without major modification • Capacity • Number of simultaneous users • Volume of transactions

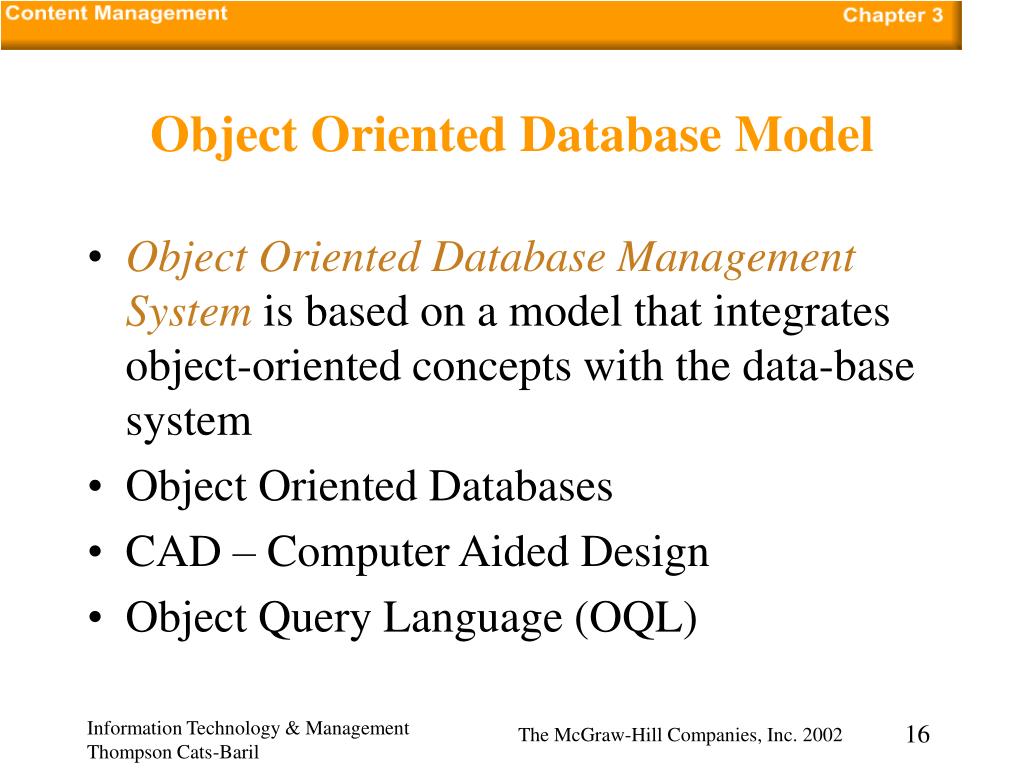

  16. Object Oriented Database Model • Object Oriented Database Management System is based on a model that integrates object-oriented concepts with the data-base system • Object Oriented Databases • CAD – Computer Aided Design • Object Query Language (OQL)

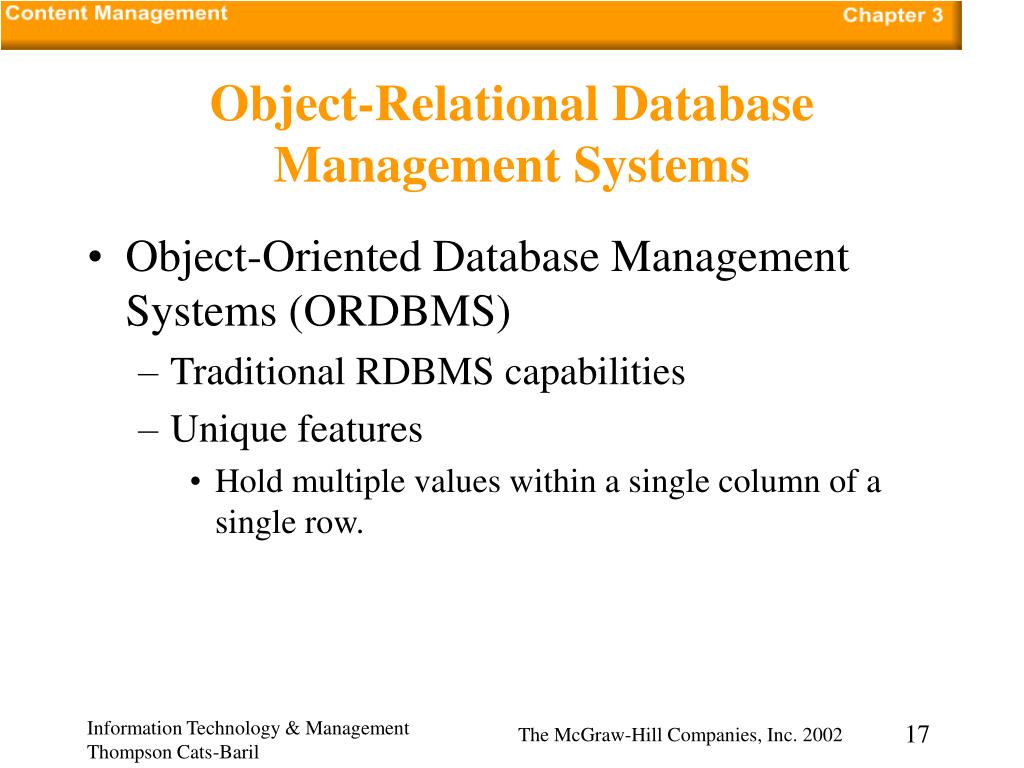

  17. Object-Relational Database Management Systems • Object-Oriented Database Management Systems (ORDBMS) • Traditional RDBMS capabilities • Unique features • Hold multiple values within a single column of a single row.

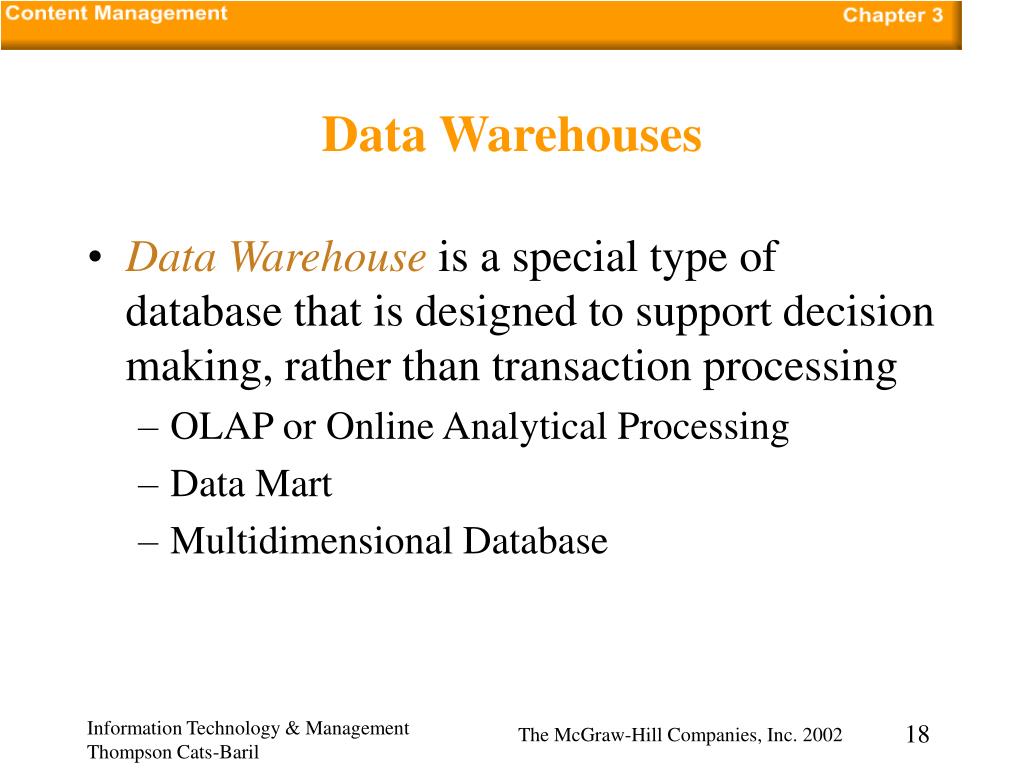

  18. Data Warehouses • Data Warehouse is a special type of database that is designed to support decision making, rather than transaction processing • OLAP or Online Analytical Processing • Data Mart • Multidimensional Database

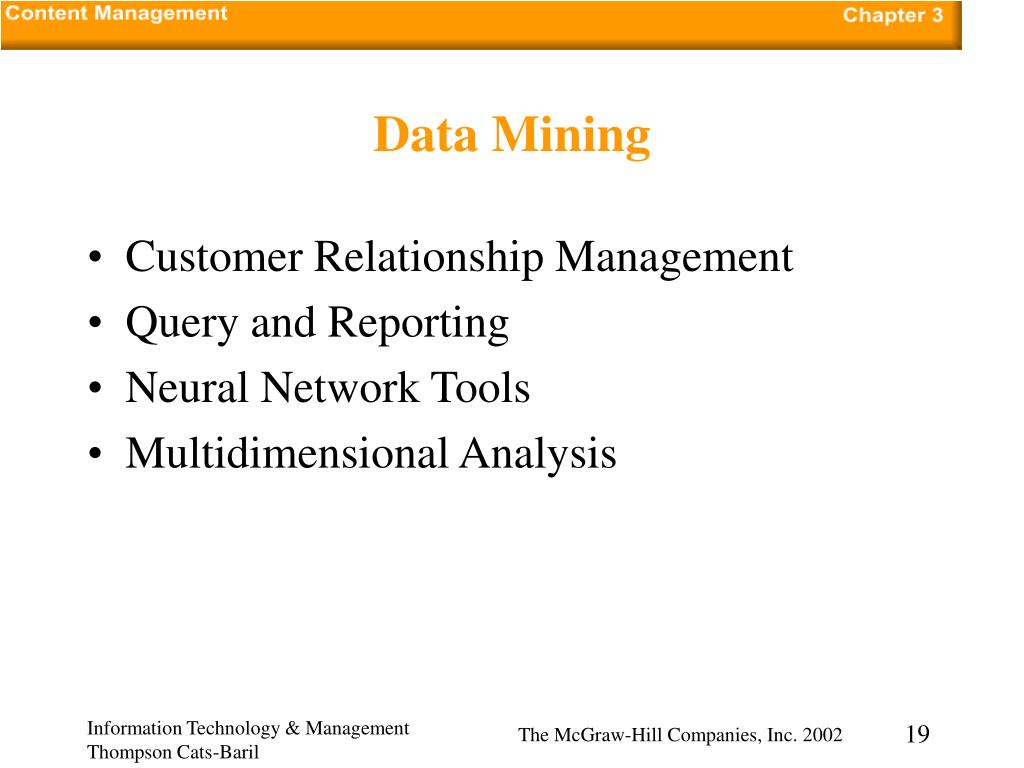

  19. Data Mining • Customer Relationship Management • Query and Reporting • Neural Network Tools • Multidimensional Analysis

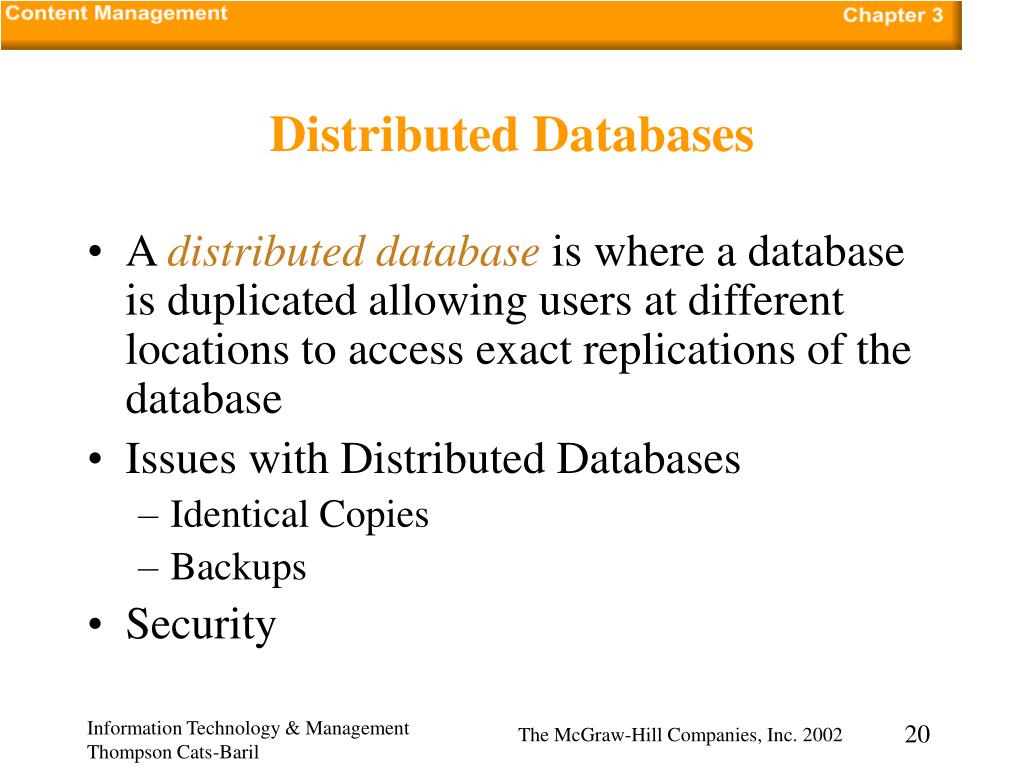

  20. Distributed Databases • A distributed database is where a database is duplicated allowing users at different locations to access exact replications of the database • Issues with Distributed Databases • Identical Copies • Backups • Security

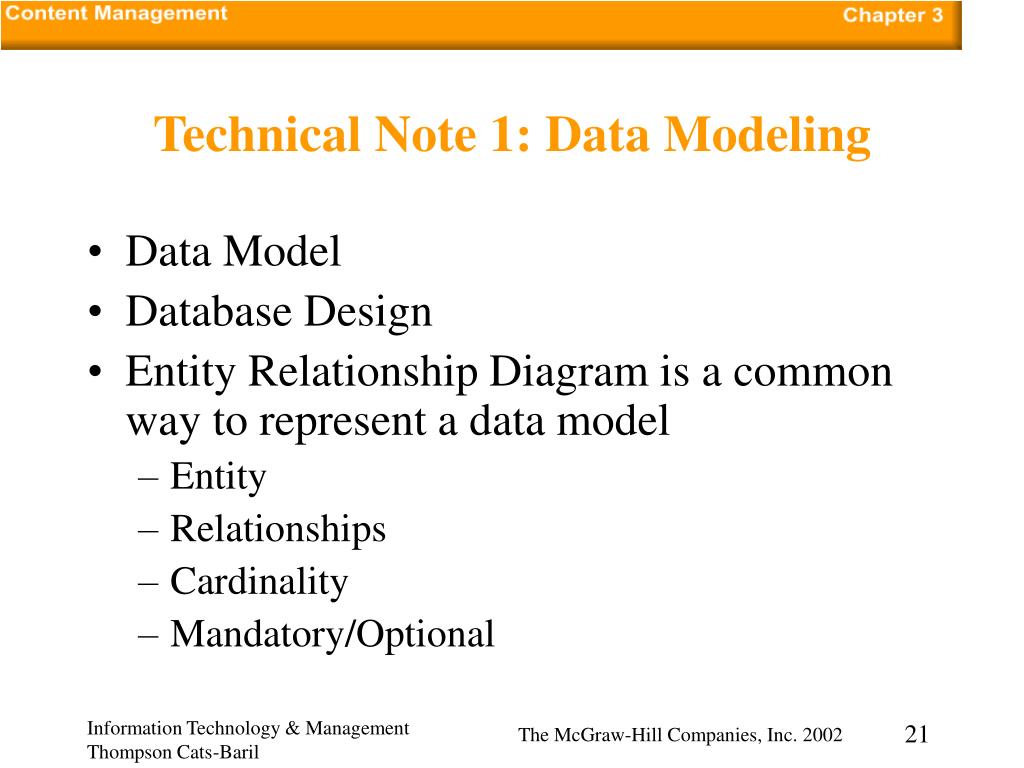

  21. Technical Note 1: Data Modeling • Data Model • Database Design • Entity Relationship Diagram is a common way to represent a data model • Entity • Relationships • Cardinality • Mandatory/Optional
