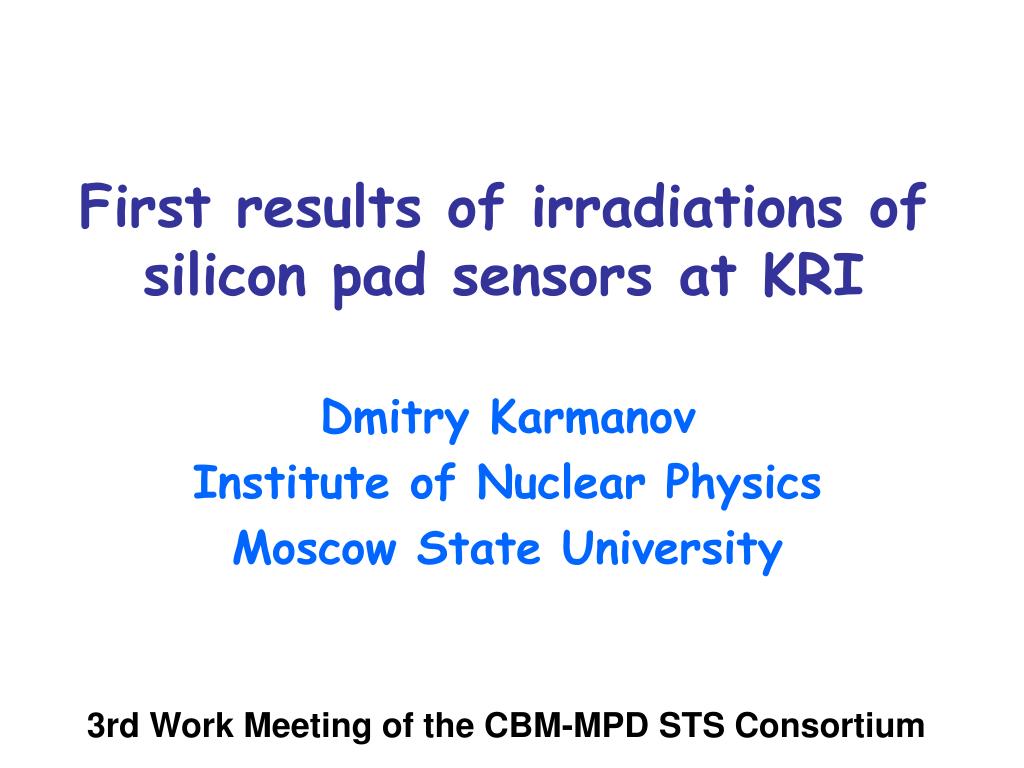

  1. First results of irradiations of silicon pad sensors at KRI Dmitry Karmanov Institute of Nuclear Physics Moscow State University 3rd Work Meeting of the CBM-MPD STS Consortium

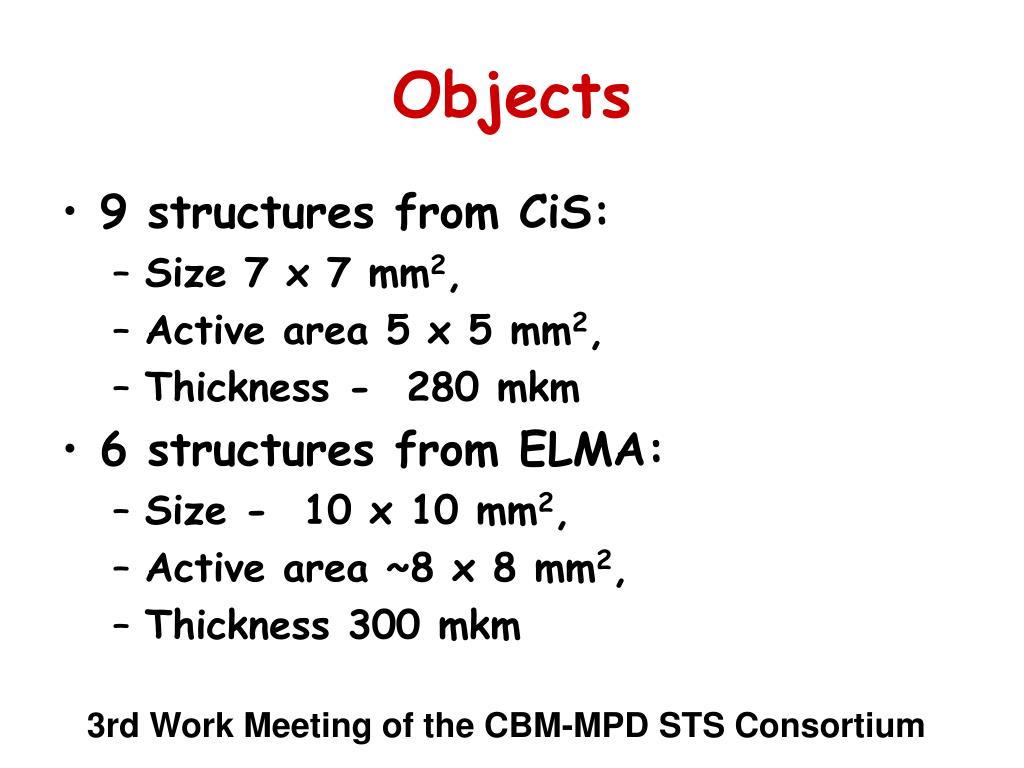

  2. Objects • 9 structures from CiS: • Size 7 x 7 mm2, • Active area 5х5 mm2, • Thickness - 280 mkm • 6 structures from ELMA: • Size - 10 x 10 mm2, • Active area ~8 x 8 mm2, • Thickness 300 mkm 3rd Work Meeting of the CBM-MPD STS Consortium

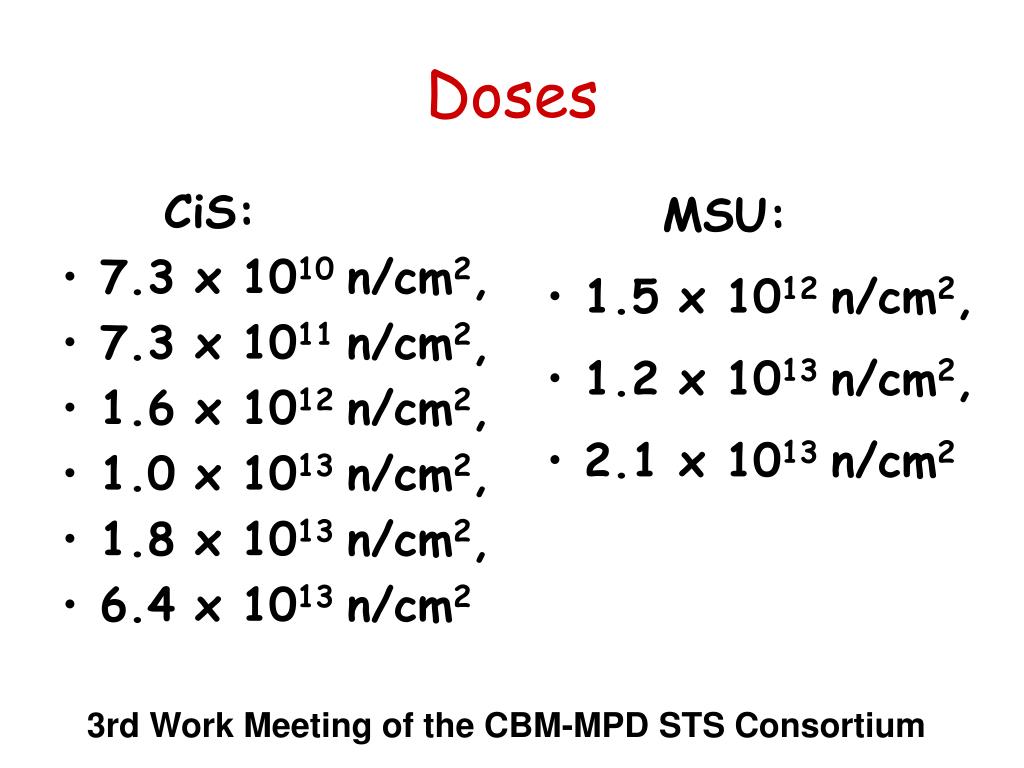

  3. Doses CiS: • 7.3х1010n/сm2, • 7.3х1011n/сm2, • 1.6х1012n/сm2, • 1.0х1013n/сm2, • 1.8х1013n/сm2, • 6.4х1013n/сm2 • MSU: • 1.5х1012n/сm2, • 1.2х1013n/сm2, • 2.1х1013n/сm2 3rd Work Meeting of the CBM-MPD STS Consortium

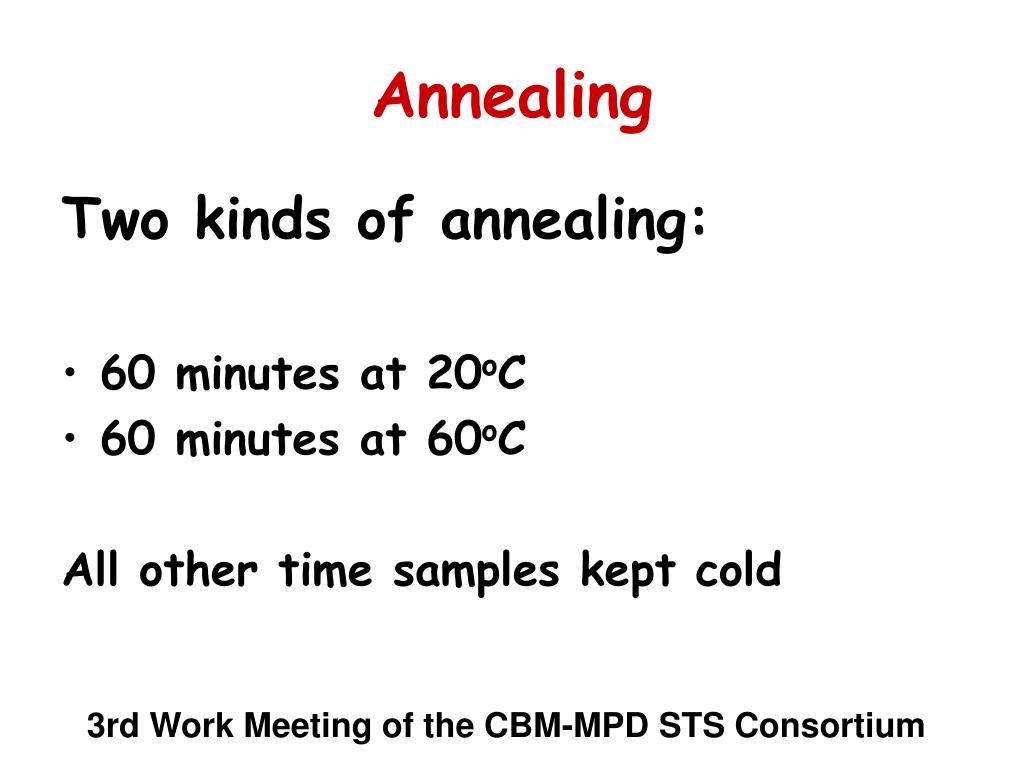

  4. Annealing Two kinds of annealing: • 60 minutes at 20oC • 60 minutes at 60oC All other time samples kept cold 3rd Work Meeting of the CBM-MPD STS Consortium

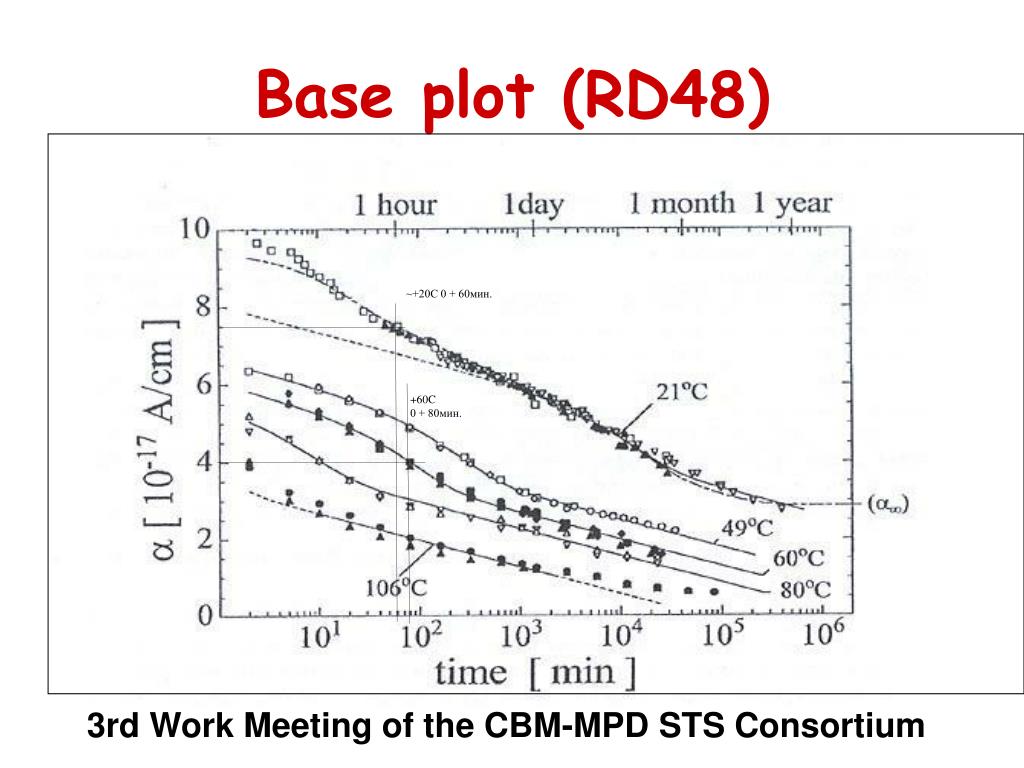

  5. ~+20C 0 + 60мин. +60C 0 + 80мин. Base plot (RD48) 3rd Work Meeting of the CBM-MPD STS Consortium

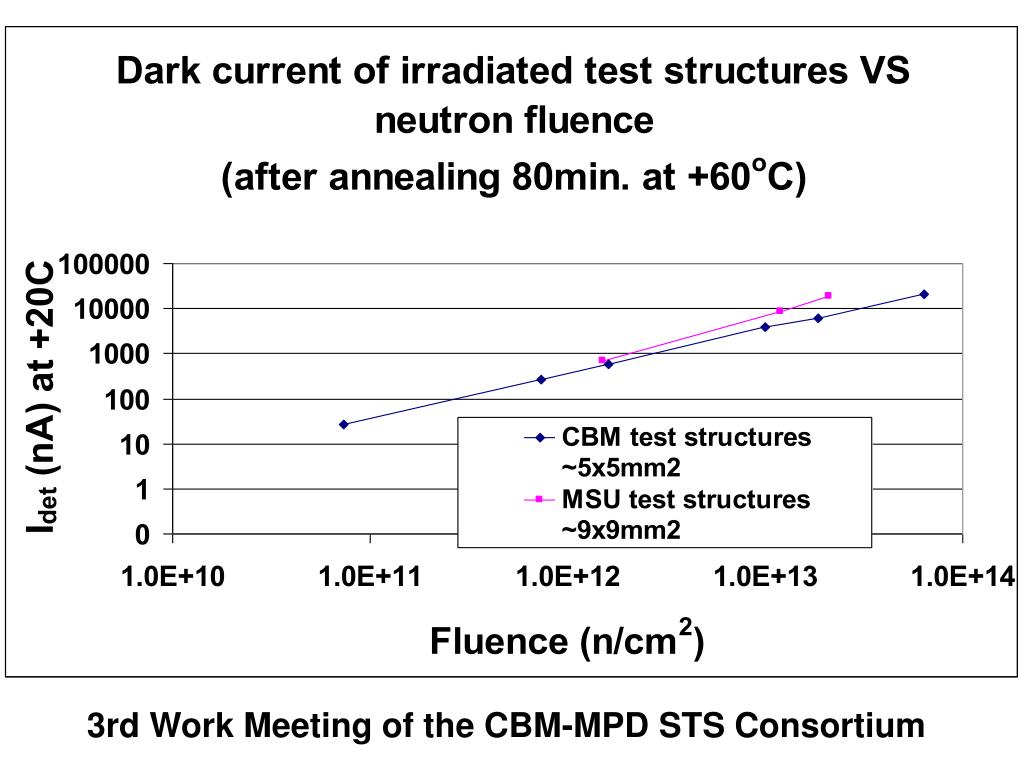

  6. 3rd Work Meeting of the CBM-MPD STS Consortium

  7. Results (1) 3rd Work Meeting of the CBM-MPD STS Consortium

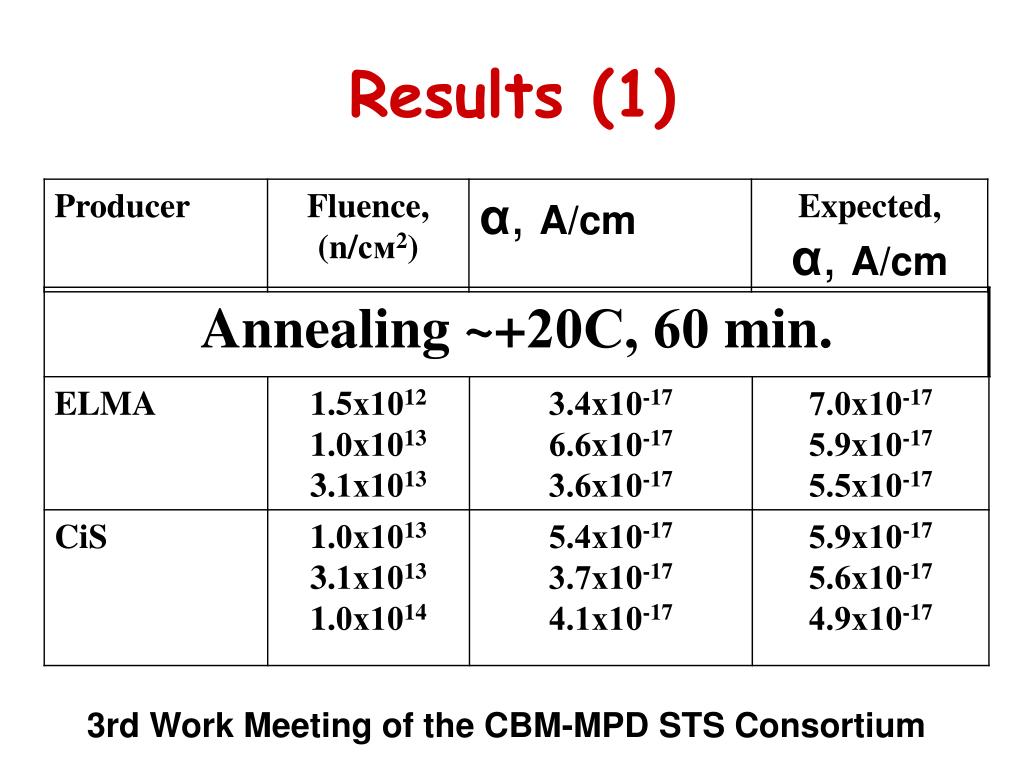

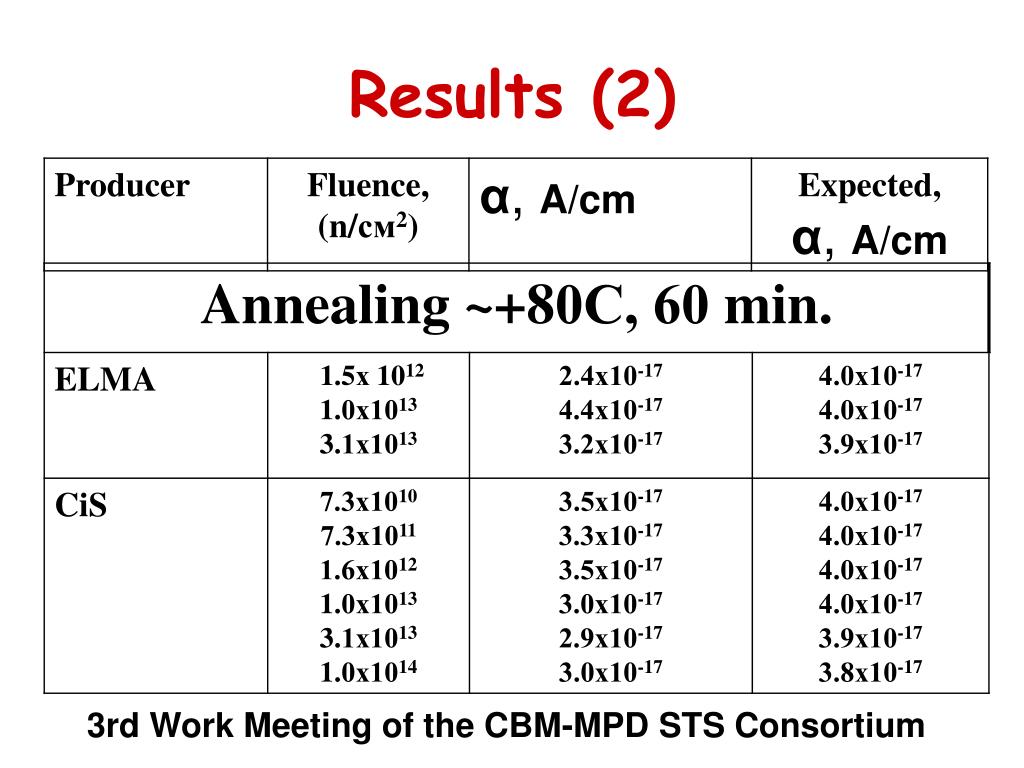

  8. Results (2) 3rd Work Meeting of the CBM-MPD STS Consortium

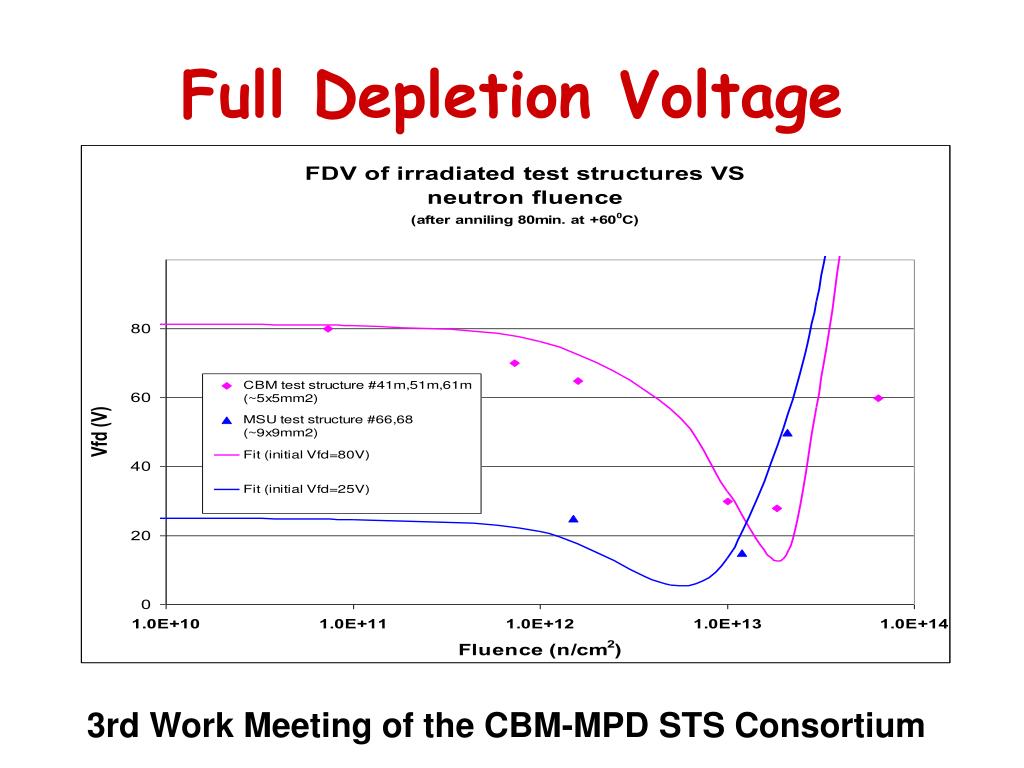

  9. Full Depletion Voltage 3rd Work Meeting of the CBM-MPD STS Consortium

  10. Summary • Good agreement with known data on current degradation for high doses . • Not so good for low doses, but might be it because of mistakes in dose measurements. • Expected behavior for full depletion voltage • We are almost ready for real work!!! 3rd Work Meeting of the CBM-MPD STS Consortium
