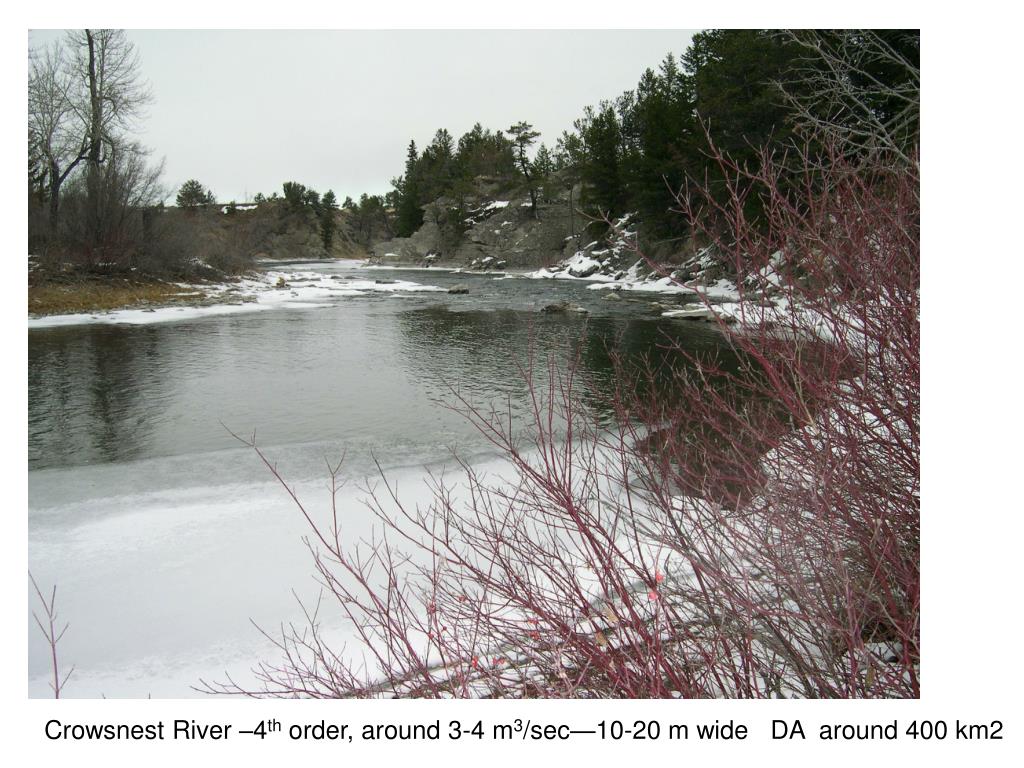

Crowsnest River –4 th order, around 3-4 m 3 /sec—10-20 m wide DA around 400 km2 PowerPoint Presentation
Download Presentation
Crowsnest River –4 th order, around 3-4 m 3 /sec—10-20 m wide DA around 400 km2

Loading in 2 Seconds...

play fullscreen
1 / 32

Crowsnest River –4 th order, around 3-4 m 3 /sec—10-20 m wide DA around 400 km2 - PowerPoint PPT Presentation


  • 182 Views
  • Uploaded on

Fish and other aquatic biota that live in rivers and streams have to contend with the variability of the flow regime. How variable is runoff/discharge? From year to year? From month to month From day to day. Crowsnest River –4 th order, around 3-4 m 3 /sec—10-20 m wide DA around 400 km2.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Crowsnest River –4 th order, around 3-4 m 3 /sec—10-20 m wide DA around 400 km2' - temira


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

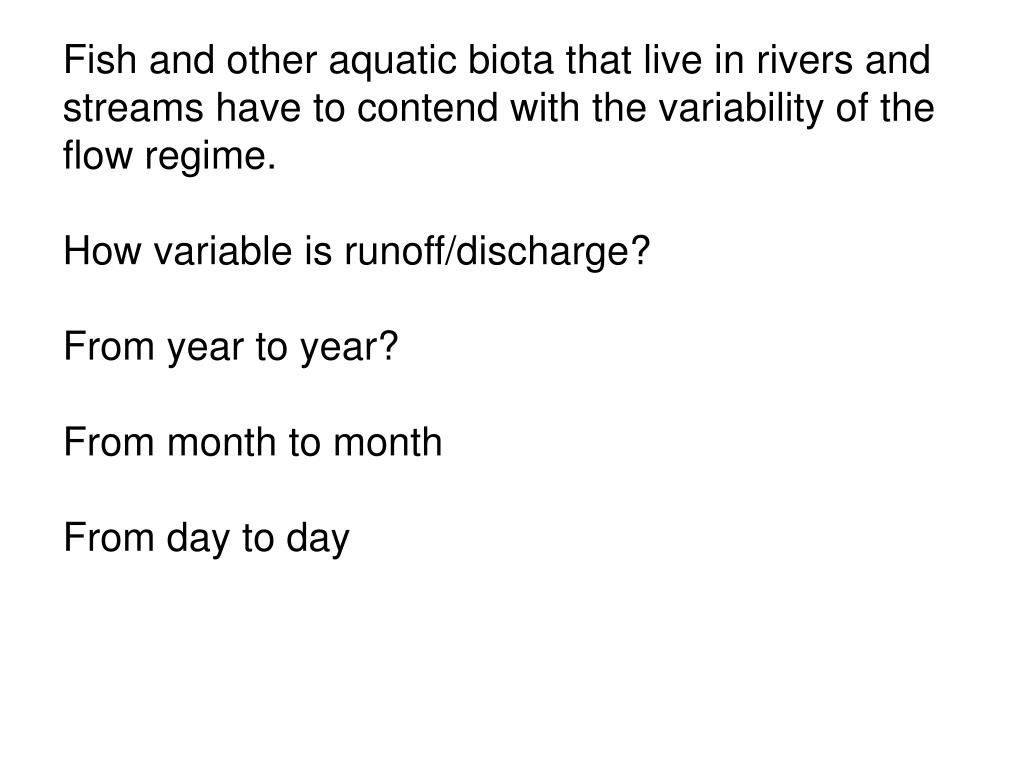

Fish and other aquatic biota that live in rivers and streams have to contend with the variability of the flow regime.

How variable is runoff/discharge?

From year to year?

From month to month

From day to day

slide4

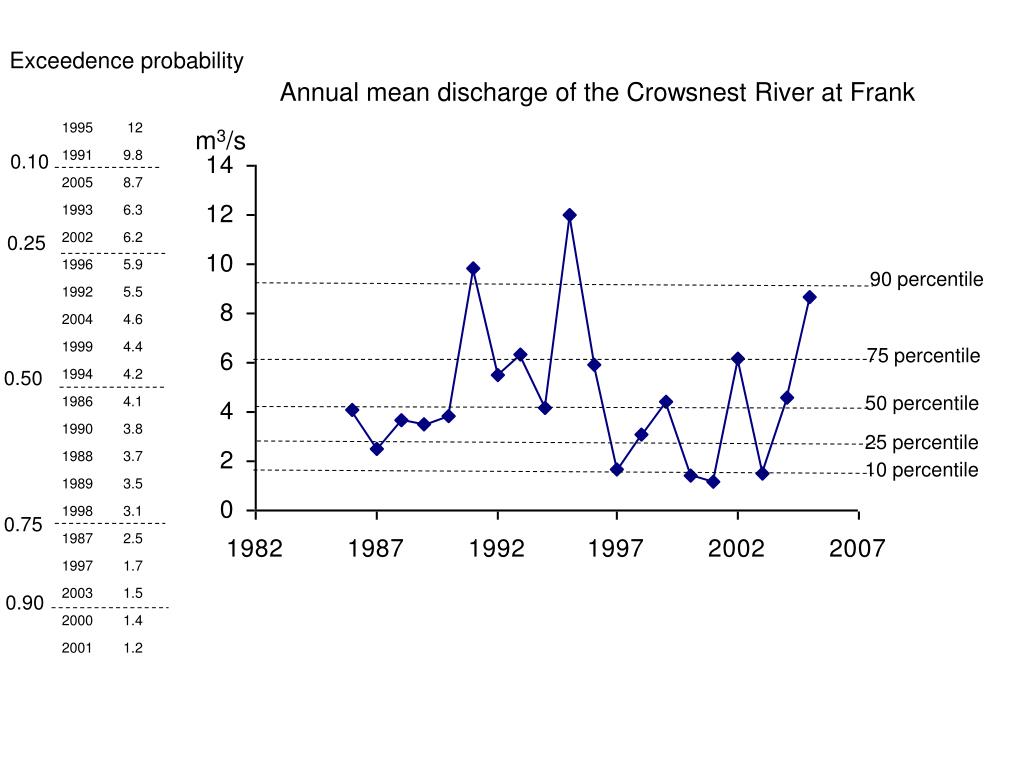

Exceedence probability

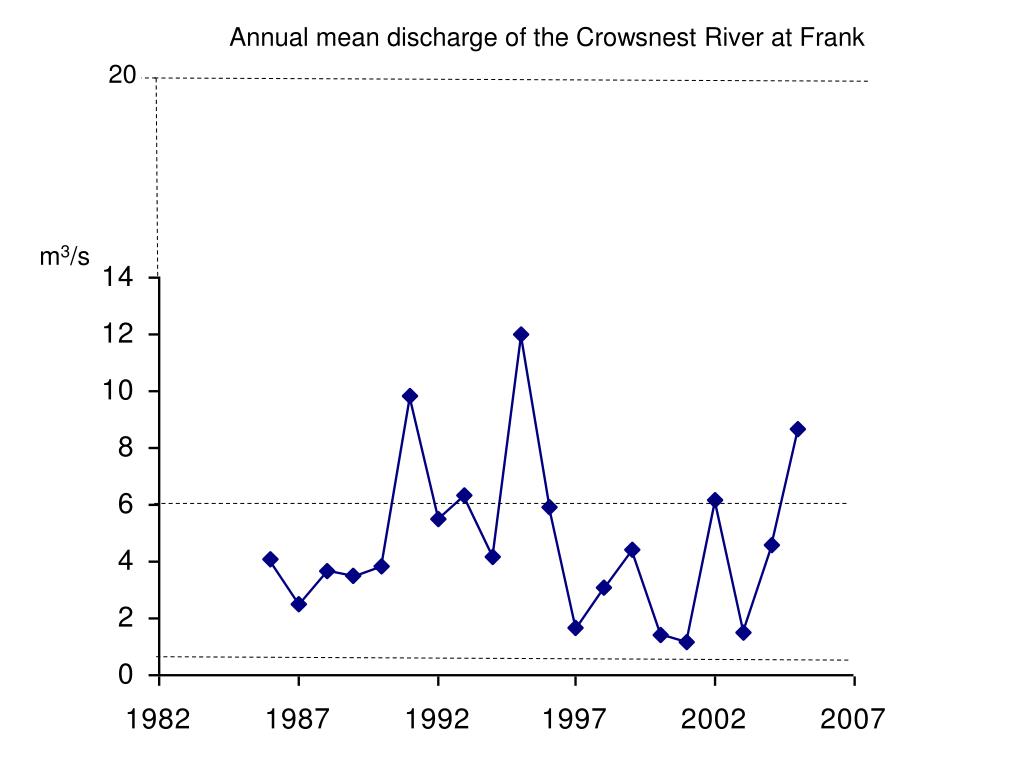

Annual mean discharge of the Crowsnest River at Frank

m3/s

0.10

0.25

90 percentile

75 percentile

0.50

50 percentile

25 percentile

10 percentile

0.75

0.90

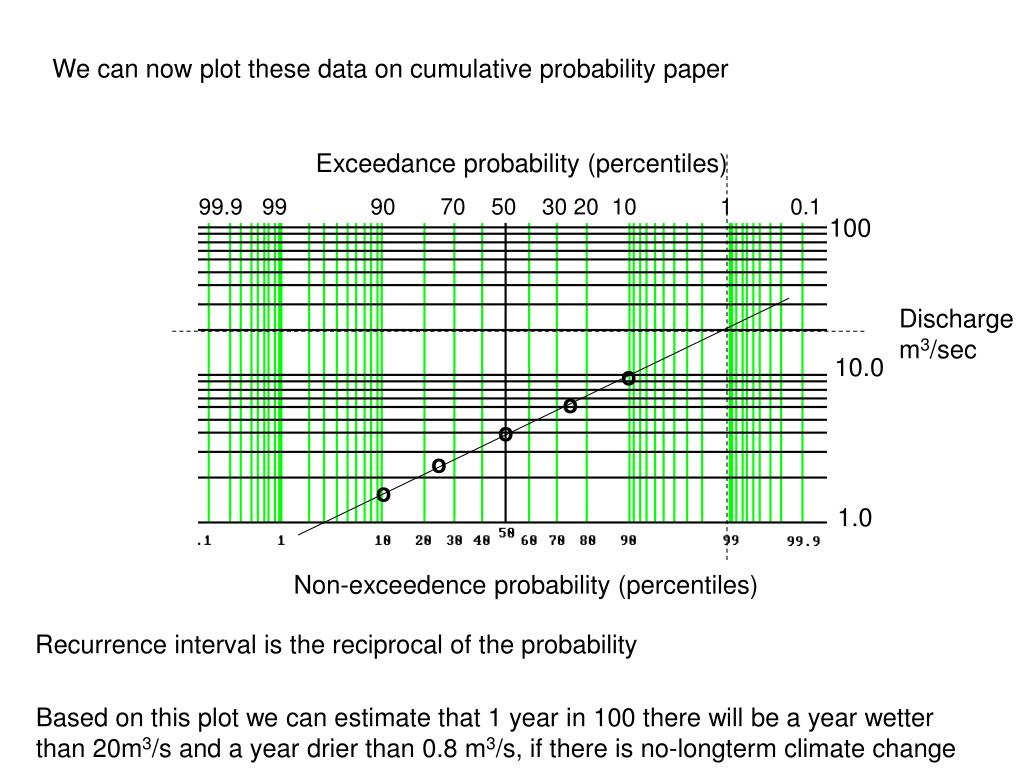

slide5

We can now plot these data on cumulative probability paper

Exceedance probability (percentiles)

99.9 99 90 70 50 30 20 10 1 0.1

100

Discharge

m3/sec

10.0

o

o

o

o

o

1.0

Non-exceedence probability (percentiles)

Recurrence interval is the reciprocal of the probability

Based on this plot we can estimate that 1 year in 100 there will be a year wetter than 20m3/s and a year drier than 0.8 m3/s, if there is no-longterm climate change

slide6

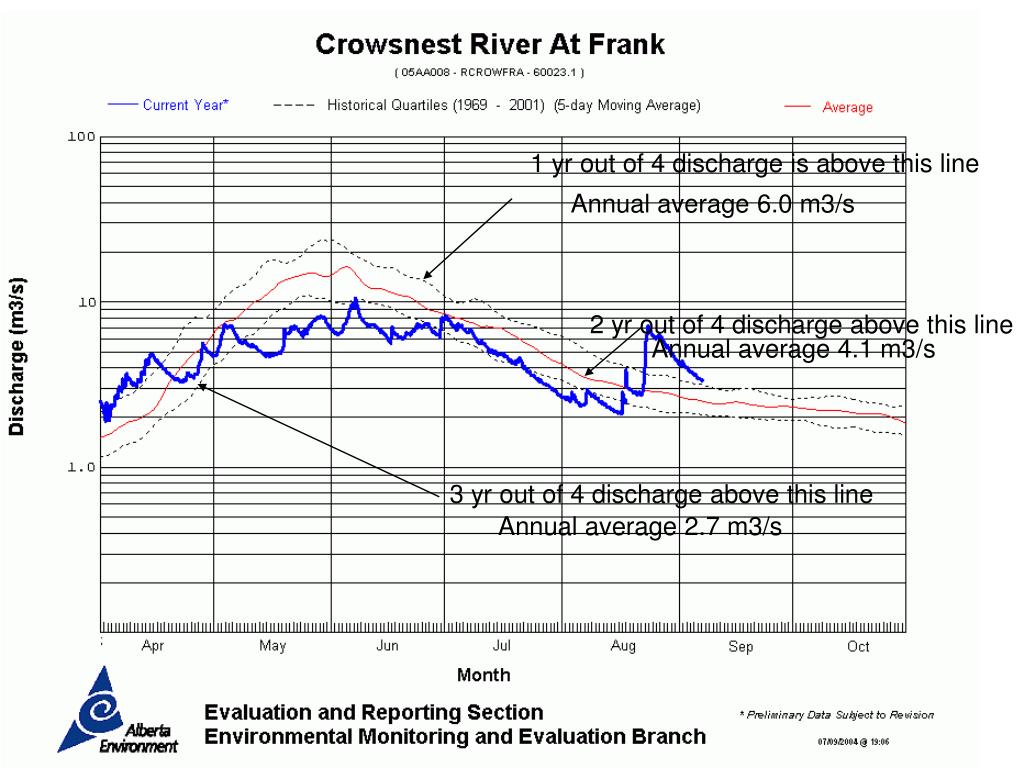

1 yr out of 4 discharge is above this line

Annual average 6.0 m3/s

2 yr out of 4 discharge above this line

Annual average 4.1 m3/s

3 yr out of 4 discharge above this line

Annual average 2.7 m3/s

slide7

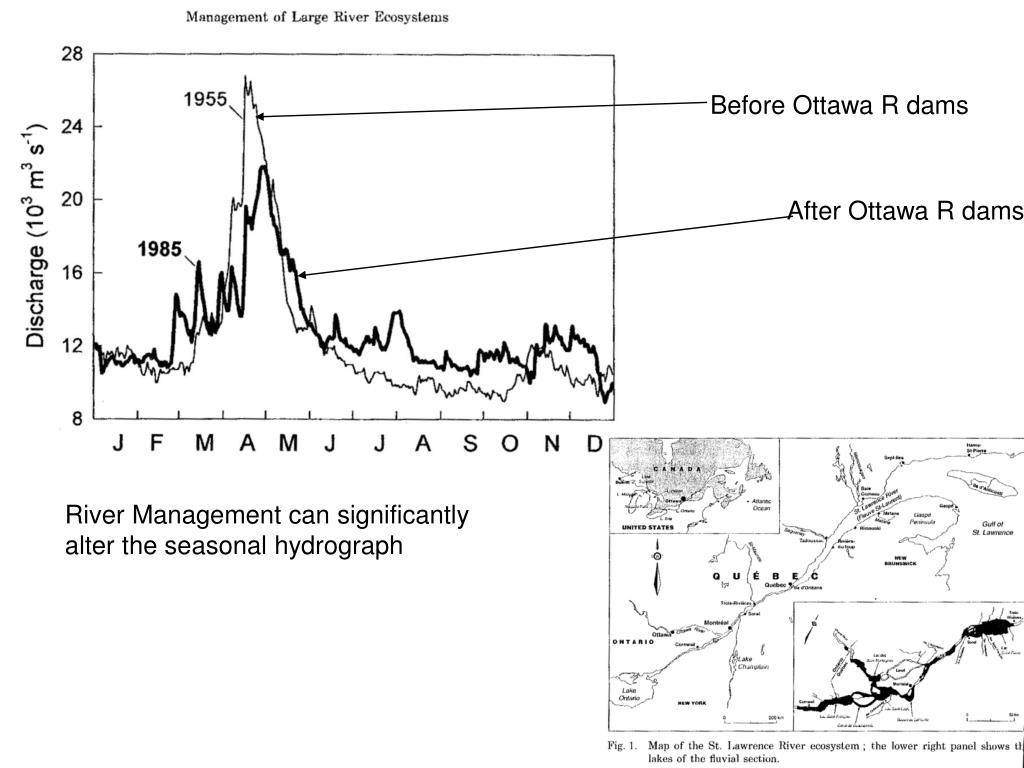

Before Ottawa R dams

After Ottawa R dams

River Management can significantly alter the seasonal hydrograph

slide8

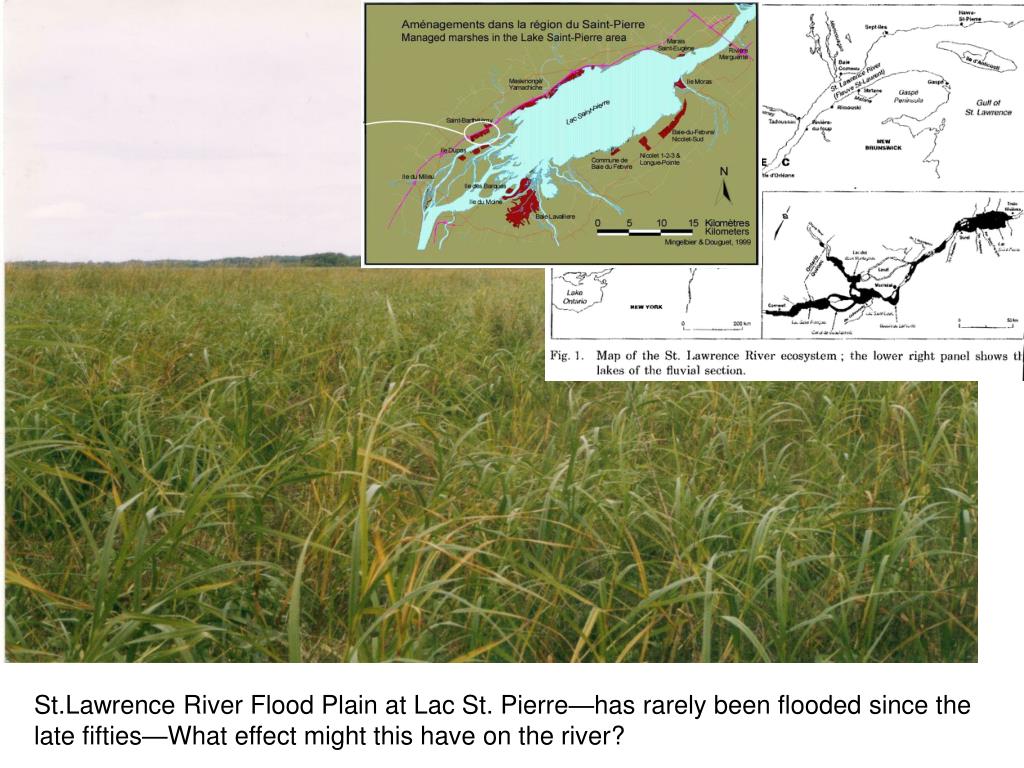

St.Lawrence River Flood Plain at Lac St. Pierre—has rarely been flooded since the late fifties—What effect might this have on the river?

slide10

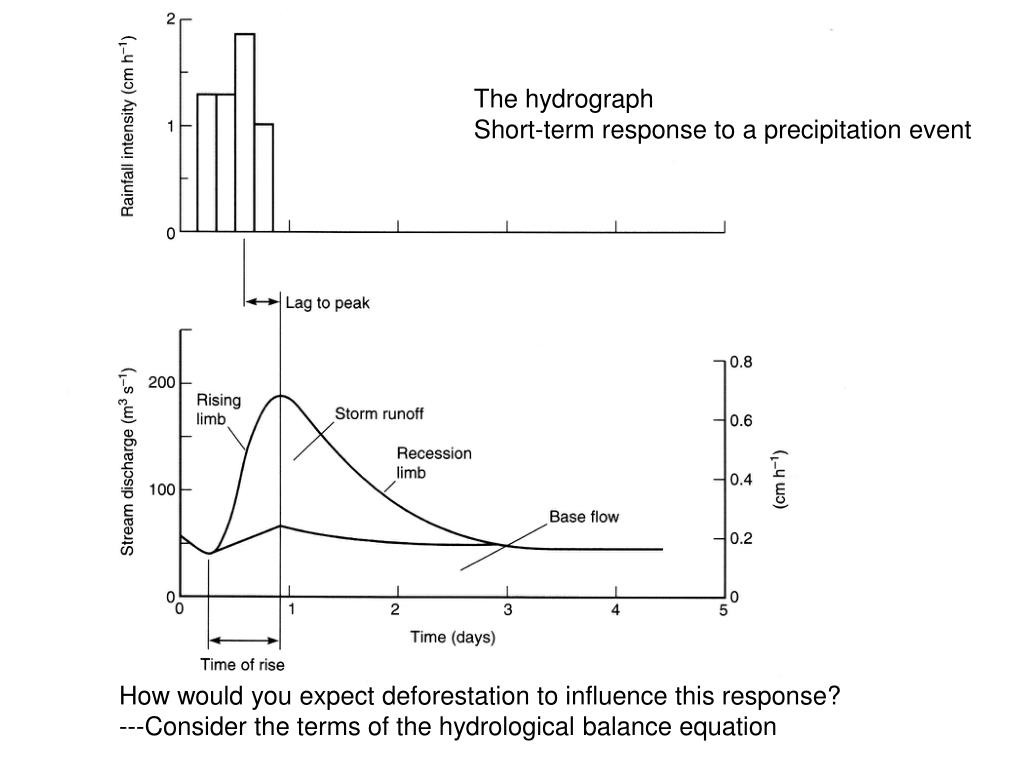

The hydrograph

Short-term response to a precipitation event

How would you expect deforestation to influence this response?

---Consider the terms of the hydrological balance equation

slide11

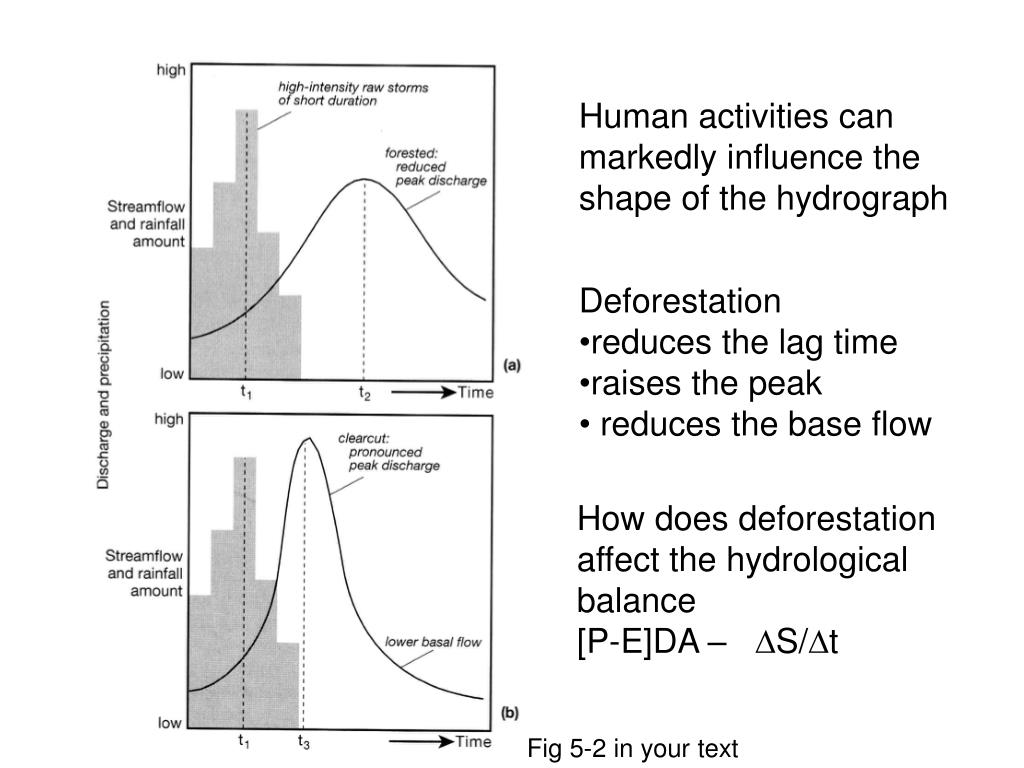

Human activities can markedly influence the shape of the hydrograph

  • Deforestation
  • reduces the lag time
  • raises the peak
  • reduces the base flow

How does deforestation affect the hydrological balance

[P-E]DA – DS/Dt

Fig 5-2 in your text

slide12

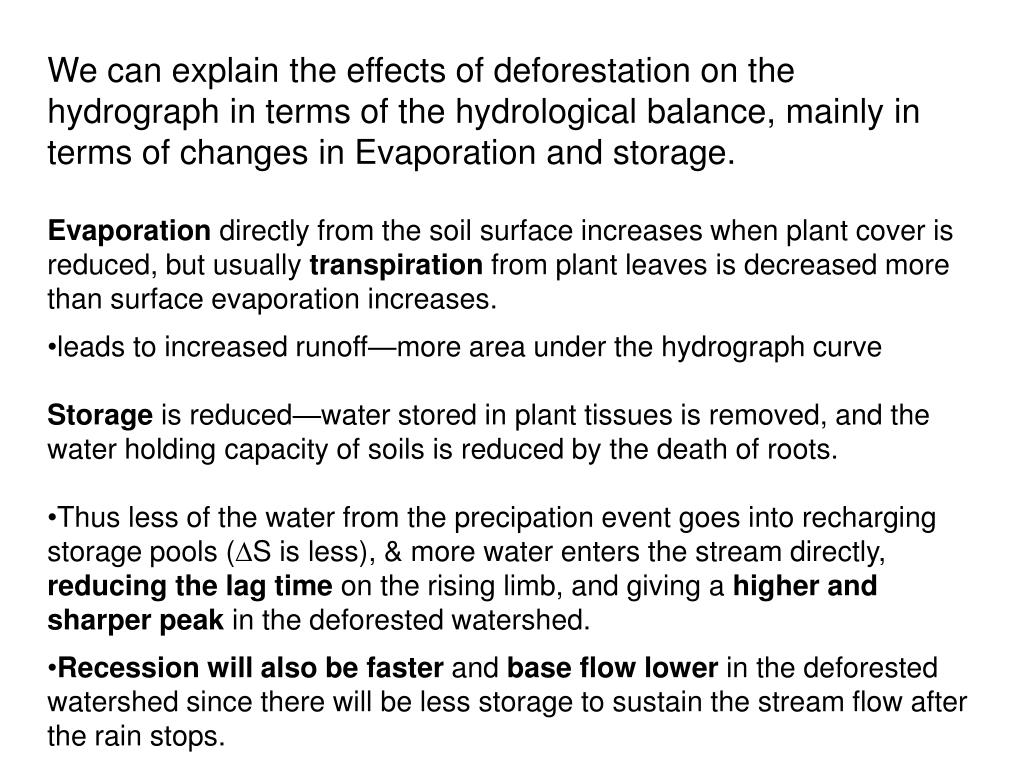

We can explain the effects of deforestation on the hydrograph in terms of the hydrological balance, mainly in terms of changes in Evaporation and storage.

  • Evaporation directly from the soil surface increases when plant cover is reduced, but usually transpiration from plant leaves is decreased more than surface evaporation increases.
  • leads to increased runoff—more area under the hydrograph curve
  • Storage is reduced—water stored in plant tissues is removed, and the water holding capacity of soils is reduced by the death of roots.
  • Thus less of the water from the precipation event goes into recharging storage pools (DS is less), & more water enters the stream directly, reducing the lag time on the rising limb, and giving a higher and sharper peak in the deforested watershed.
  • Recession will also be faster and base flow lower in the deforested watershed since there will be less storage to sustain the stream flow after the rain stops.
slide13

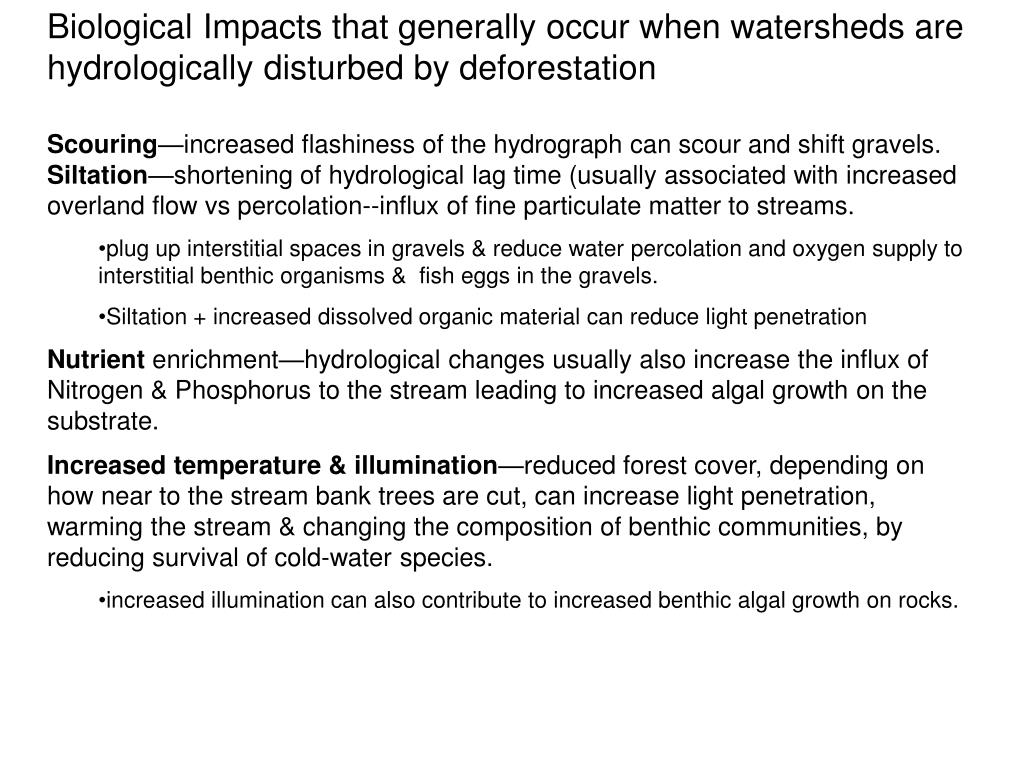

Biological Impacts that generally occur when watersheds are hydrologically disturbed by deforestation

  • Scouring—increased flashiness of the hydrograph can scour and shift gravels.
  • Siltation—shortening of hydrological lag time (usually associated with increased overland flow vs percolation--influx of fine particulate matter to streams.
    • plug up interstitial spaces in gravels & reduce water percolation and oxygen supply to interstitial benthic organisms & fish eggs in the gravels.
    • Siltation + increased dissolved organic material can reduce light penetration
  • Nutrient enrichment—hydrological changes usually also increase the influx of Nitrogen & Phosphorus to the stream leading to increased algal growth on the substrate.
  • Increased temperature &illumination—reduced forest cover, depending on how near to the stream bank trees are cut, can increase light penetration, warming the stream & changing the composition of benthic communities, by reducing survival of cold-water species.
    • increased illumination can also contribute to increased benthic algal growth on rocks.

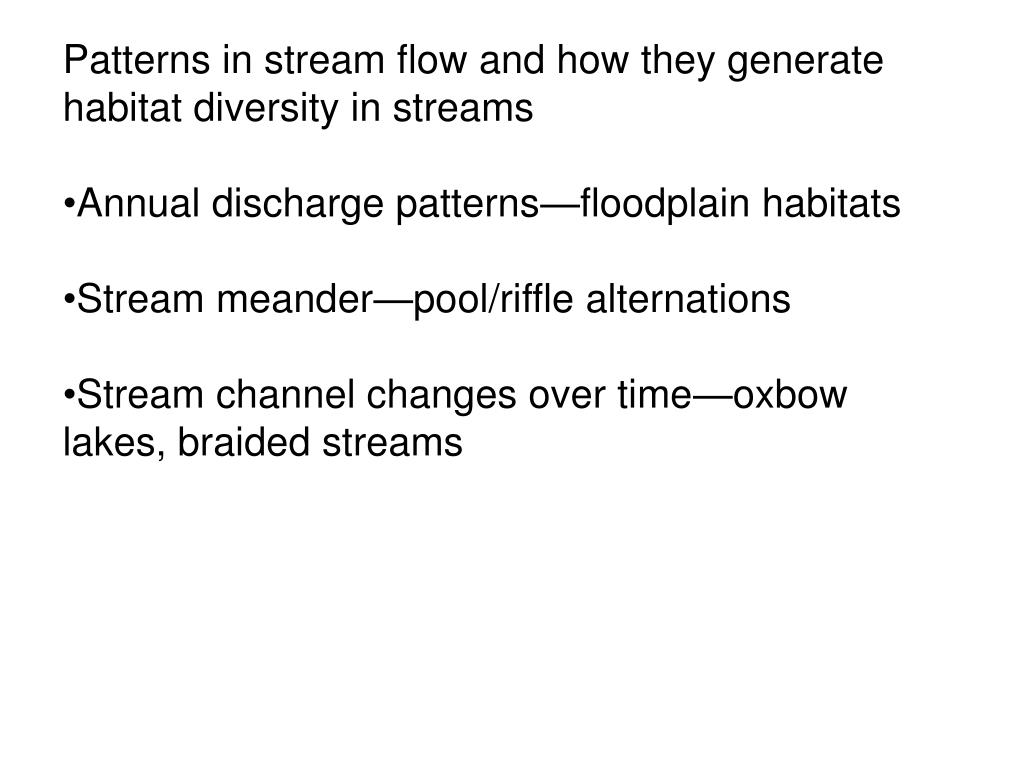

slide14

Patterns in stream flow and how they generate habitat diversity in streams

  • Annual discharge patterns—floodplain habitats
  • Stream meander—pool/riffle alternations
  • Stream channel changes over time—oxbow lakes, braided streams
slide15

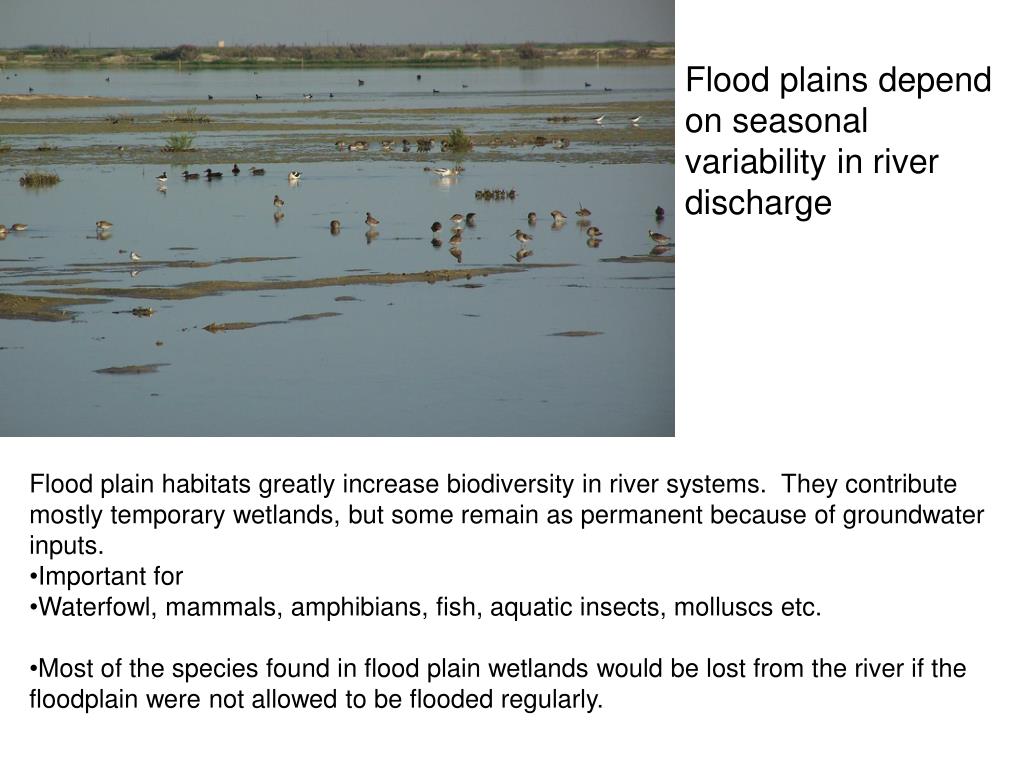

Flood plains depend on seasonal variability in river discharge

  • Flood plain habitats greatly increase biodiversity in river systems. They contribute mostly temporary wetlands, but some remain as permanent because of groundwater inputs.
  • Important for
  • Waterfowl, mammals, amphibians, fish, aquatic insects, molluscs etc.
  • Most of the species found in flood plain wetlands would be lost from the river if the floodplain were not allowed to be flooded regularly.
slide16

River flood plains often undergo extensive urban development

Oxbow lake and the Chippewa River. Eau Claire, Wisconsin.

http://www.uoregon.edu/~millerm/meander.html

slide18

Meander pattern of the Sacramento River, CA, note old abandoned channels and oxbows, and the encroachment of agriculture on the river channel.

http://www.uoregon.edu/~millerm/meander.html

slide19

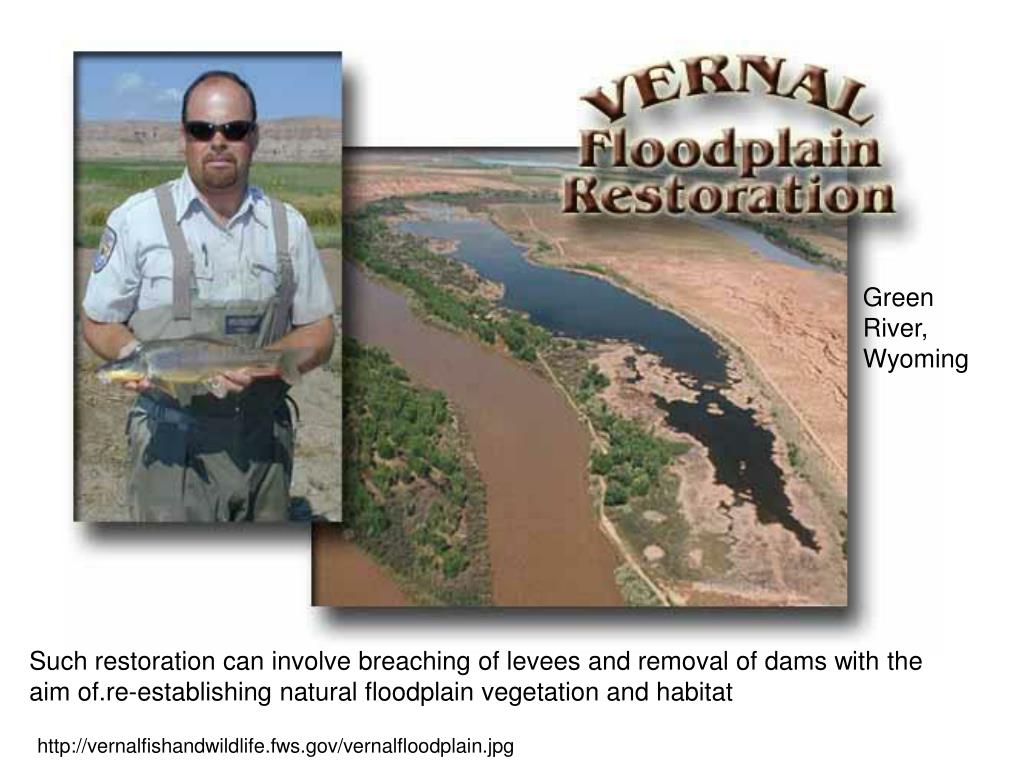

Green River, Wyoming

Such restoration can involve breaching of levees and removal of dams with the aim of.re-establishing natural floodplain vegetation and habitat

http://vernalfishandwildlife.fws.gov/vernalfloodplain.jpg

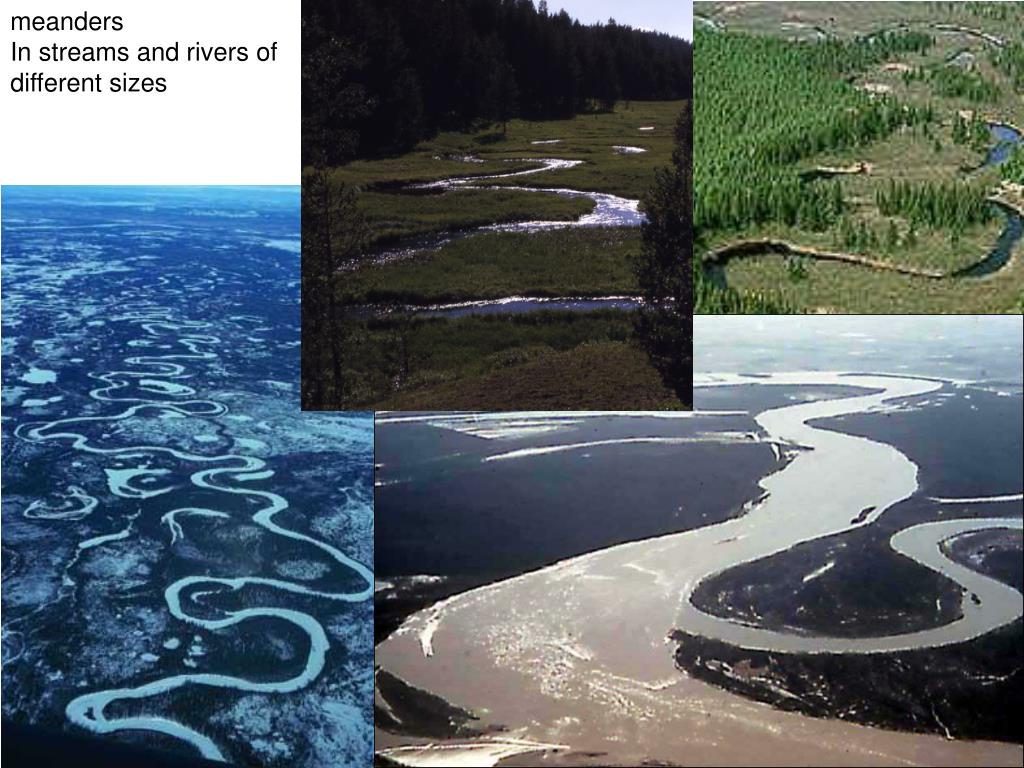

slide20

meanders

In streams and rivers of different sizes

slide21

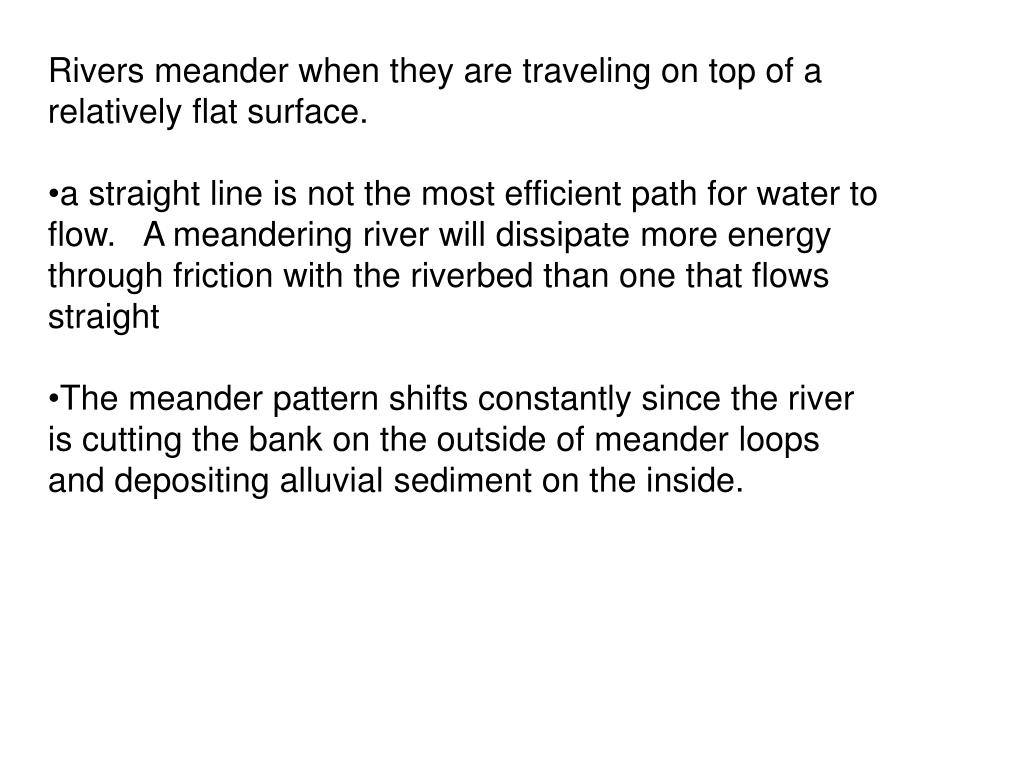

Rivers meander when they are traveling on top of a relatively flat surface.

  • a straight line is not the most efficient path for water to flow. A meandering river will dissipate more energy through friction with the riverbed than one that flows straight
  • The meander pattern shifts constantly since the river is cutting the bank on the outside of meander loops and depositing alluvial sediment on the inside.
slide22

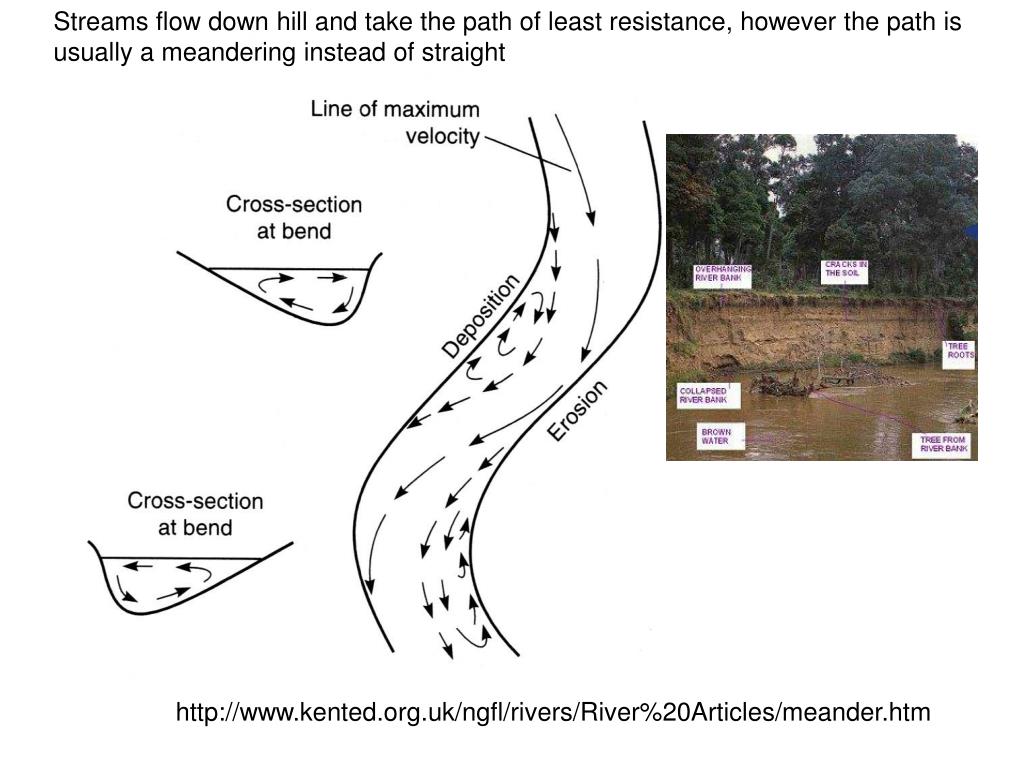

Streams flow down hill and take the path of least resistance, however the path is usually a meandering instead of straight

http://www.kented.org.uk/ngfl/rivers/River%20Articles/meander.htm

slide25

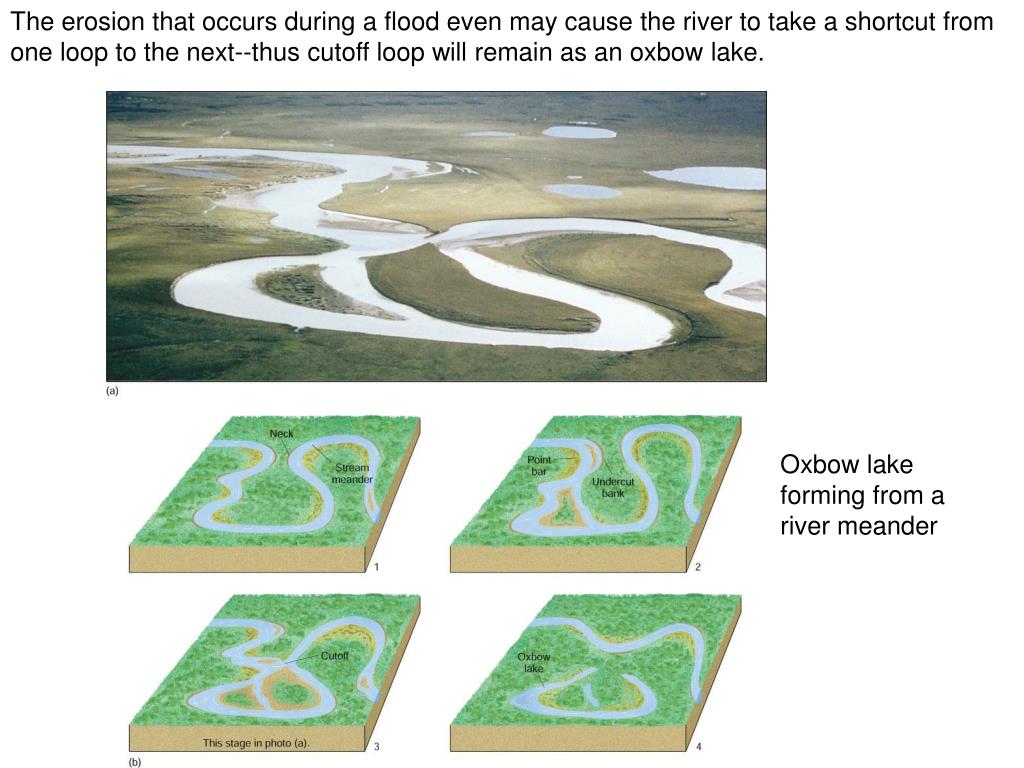

The erosion that occurs during a flood even may cause the river to take a shortcut from one loop to the next--thus cutoff loop will remain as an oxbow lake.

Oxbow lake forming from a river meander

slide26

Oxbow lakes and braided channels on the Upper Amazon River

http://muller.lbl.gov/travel_photos/AmazonWebPages/AmazonWebPages-Thumbnails/1.jpg

slide27

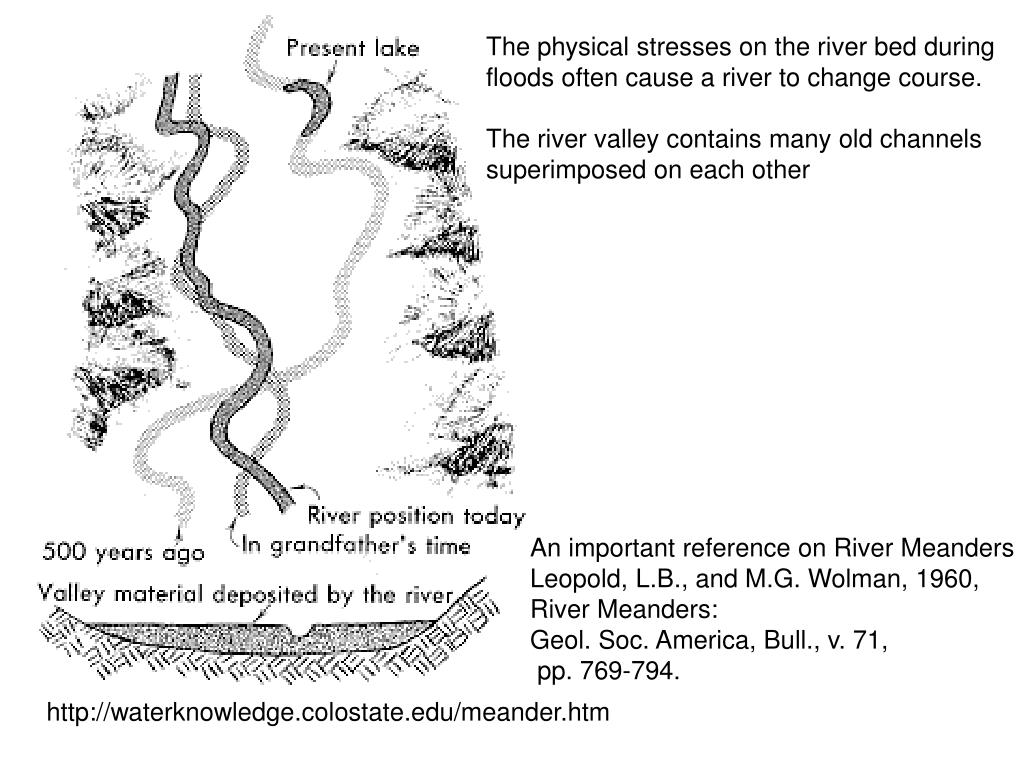

The physical stresses on the river bed during floods often cause a river to change course.

The river valley contains many old channels superimposed on each other

An important reference on River Meanders

Leopold, L.B., and M.G. Wolman, 1960,

River Meanders:

Geol. Soc. America, Bull., v. 71,

pp. 769-794.

http://waterknowledge.colostate.edu/meander.htm

slide28

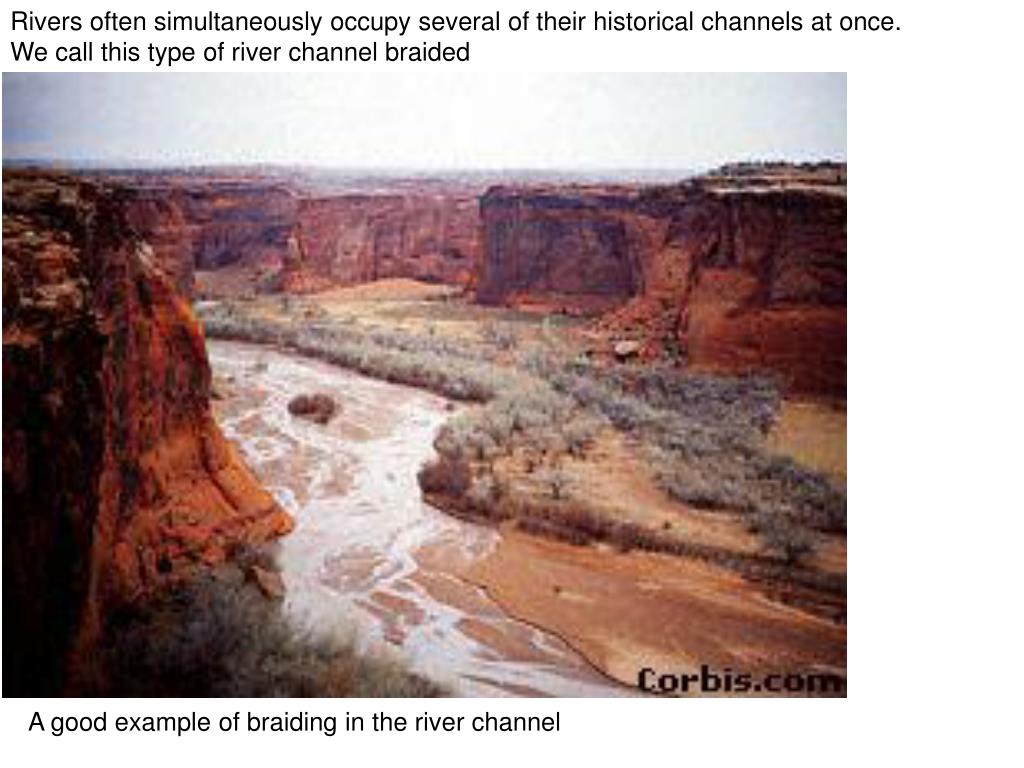

Rivers often simultaneously occupy several of their historical channels at once.

We call this type of river channel braided

A good example of braiding in the river channel

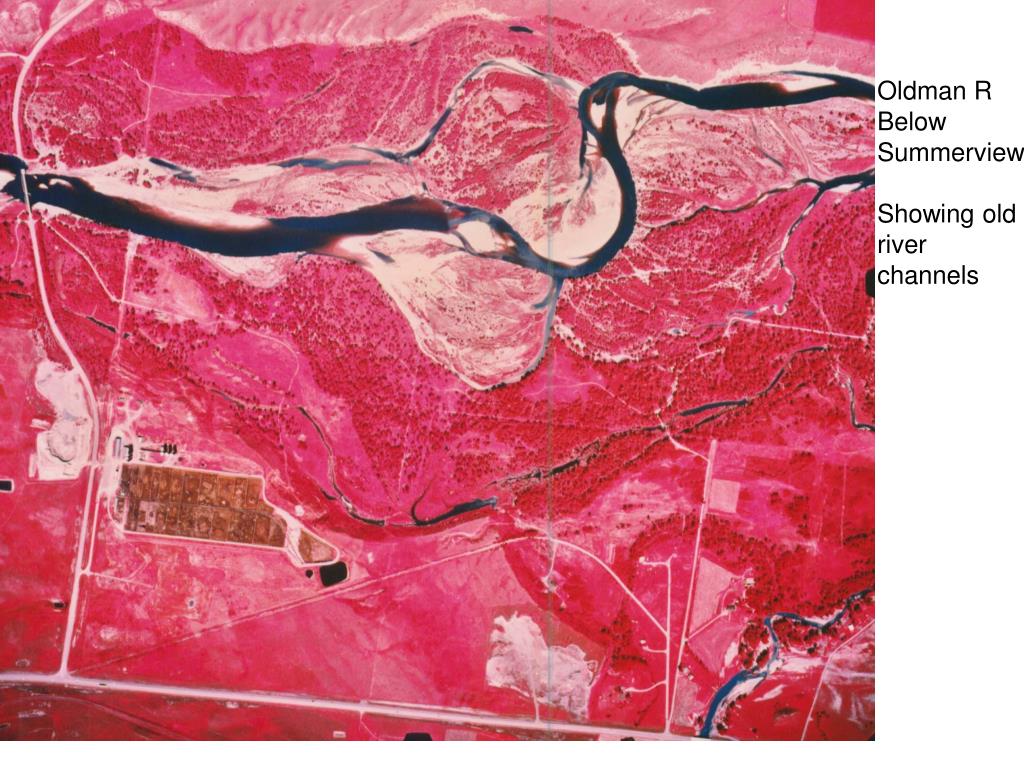

slide29

Oldman R

Below

Summerview

Showing old river channels

slide30

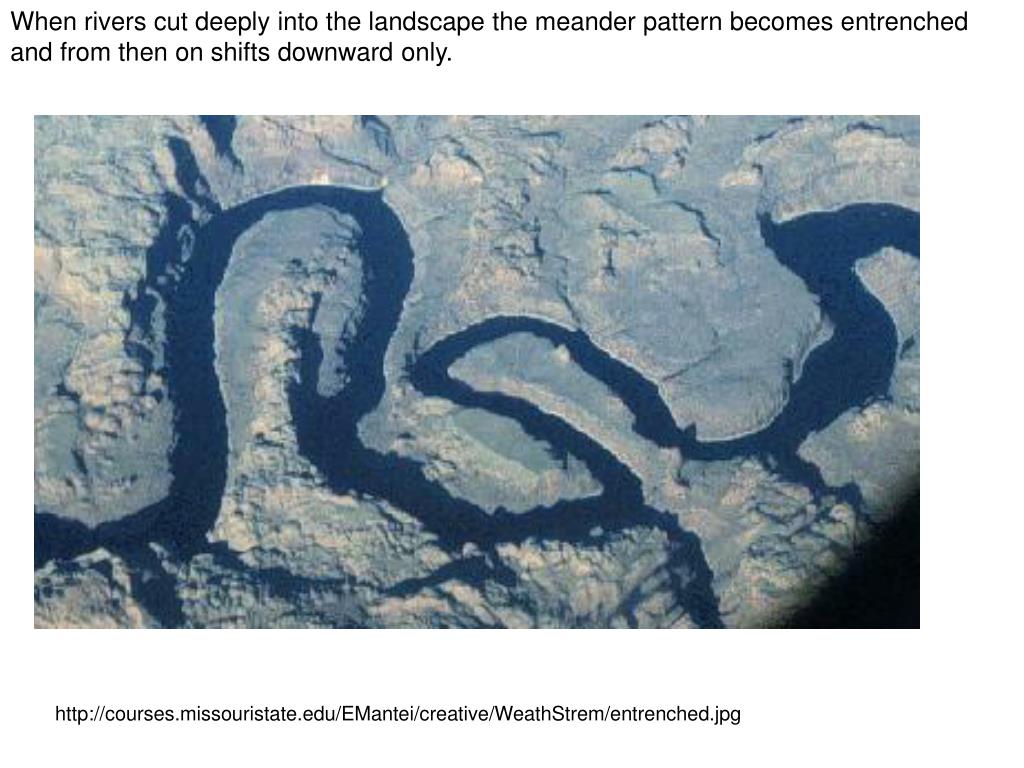

When rivers cut deeply into the landscape the meander pattern becomes entrenched and from then on shifts downward only.

http://courses.missouristate.edu/EMantei/creative/WeathStrem/entrenched.jpg

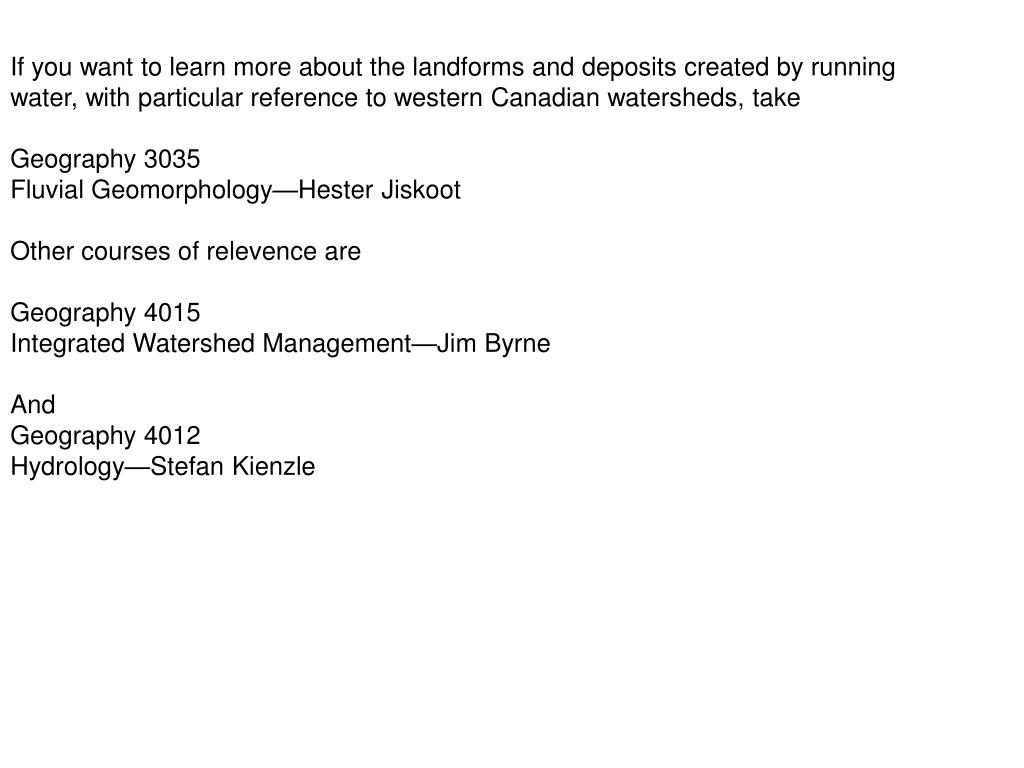

slide31

If you want to learn more about the landforms and deposits created by running water, with particular reference to western Canadian watersheds, take

Geography 3035

Fluvial Geomorphology—Hester Jiskoot

Other courses of relevence are

Geography 4015

Integrated Watershed Management—Jim Byrne

And

Geography 4012

Hydrology—Stefan Kienzle

slide32

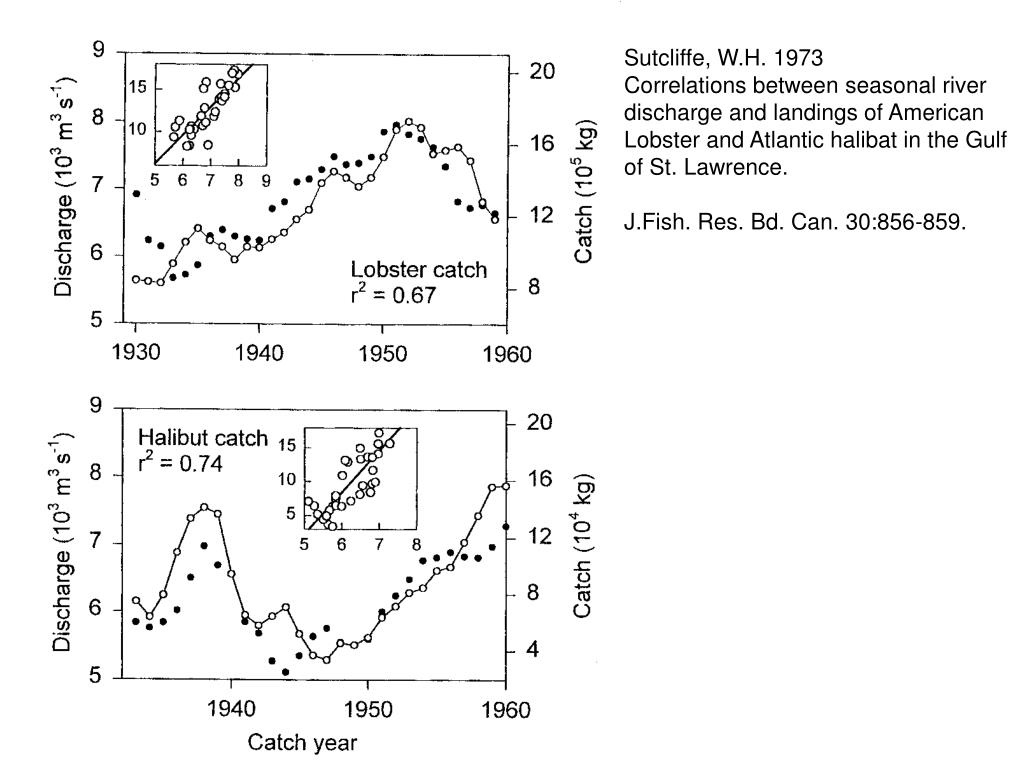

Sutcliffe, W.H. 1973

Correlations between seasonal river discharge and landings of American Lobster and Atlantic halibat in the Gulf of St. Lawrence.

J.Fish. Res. Bd. Can. 30:856-859.
