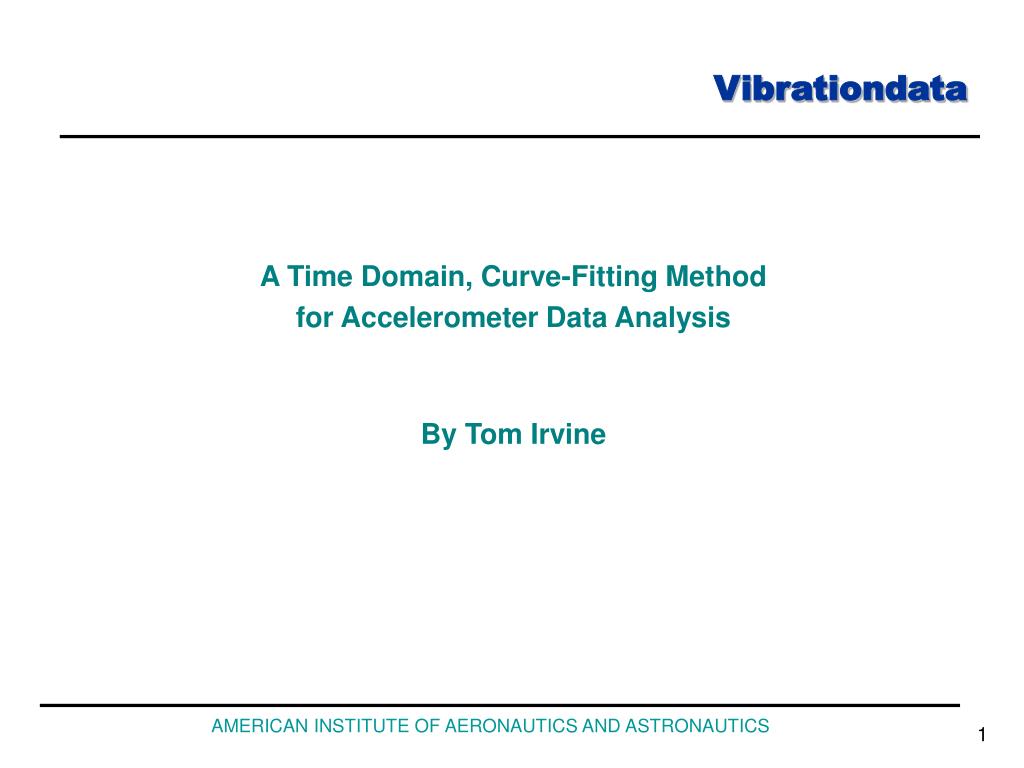

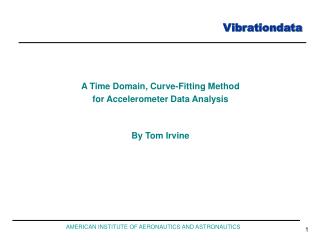

  1. A Time Domain, Curve-Fitting Method for Accelerometer Data Analysis By Tom Irvine AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  2. Objective Demonstrate a time-domain, curve-fitting method for analyzing accelerometer data. The method is innovative in that it uses random number generation to determine the characteristics of the measured data. These characteristics include the amplitude, frequency, phase angle, and damping ratio of the signal's components. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  3. Launch Vehicle Environments The Time-Domain, Curve-Fitting Method can be Applied to Data from: • Transportation Shock and Vibration • Launch Shock • Aerodynamic Flow Excitation • Motor Pressure Oscillation • Stage Separation Events • Anomalies AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  4. Variables AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  5. Candidate Functions for Data Curve-fit Pure Sine Series of Pure Sinusoids Lightly-damped Sine AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  6. Application Method • The curve-fitting method generates random numbers for each of the variables. • It then compares the resulting trial function with the measured data. • This is done in a trial-and-error manner, implemented via a computer program. • The final function is the one that produces the least error when subtracted from the measured signal. • This method tends to be more appropriate for brief, transient signals rather than longer signals. It can be used for a longer signal, however, if the signal is divided into segments. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  7. Notes The time-domain, curve-fitting method is intended to supplement frequency domain methods, particularly the Fourier transform. Each method has its own strengths, as shown in the following examples. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  8. Example 1: Pegasus Drop Transient Consider the Pegasus launch vehicle mounted underneath an L-1011. The most significant event for the payload is the drop transient from the carrier aircraft. The Pegasus vehicle is like a free-free beam subjected to an initial displacement that varies along its length. During the five-second free-fall interval, the initial strain energy is released, causing the Pegasus vehicle to experience a damped, transient oscillation. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  9. Example 1: Damped Sine Data AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  10. Example 1: Numerical Results AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  11. Example 2: M57A1 Motor Resonance The M57A1 motor is a solid-fuel motor originally developed as a third stage for the Minuteman missile program. This motor has since been used on a variety of suborbital vehicles, such as target vehicles. The M57A1 has a distinct pressure oscillation. The oscillation frequency sweeps downward from 530 Hz to 450 Hz over a 16-second duration. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  12. Example 2: Frequency Variation AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  13. Example 2: Time History AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  14. Example 2: Numerical Results AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  15. Example 3. Flight Anomaly AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  16. Example 3: Segment AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  17. Example 3: Numerical Results The data reveals the dominant forcing frequency and a 3X harmonic. This data could be used to troubleshoot the anomaly. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  18. Example 4: Launch Vehicle Transportation A suborbital launch vehicle is being integrated at a missile assembly building (MAB) at Vandenberg AFB. The distance from the MAB to the launch pad is 20 miles. The assembled launch vehicle will be mounted horizontally on a custom trailer for transportation from the MAB to the pad. The launch vehicle must withstand the lateral loading that occurs as the tractor-trailer crosses over potholes, railroad tracks, and joints at bridges. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  19. Example 4: Time History AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  20. Example 4: Synthesis Equation Steps: Synthesize the first damped sinusoid. Subtract it from the signal. Synthesize the next damped sinusoid. Repeat these steps until n sinusoids are synthesized. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  21. Example 4: Numerical Results The synthesis consisted of 30 damped sinusoids. Only the top five are shown for brevity. The sinusoids near 5 Hz were due to launch vehicle bending modes. The spectral components near 1 Hz and 2.5 Hz were primarily due to the trailer suspension, with the launch vehicle acting as a rigid-body. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  22. Example 4: Fourier Transform AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS

  23. Conclusion The time-domain, curve-fitting method presented in this report is a simple, powerful tool for analyzing accelerometer signals. It can be used to identify amplitude, frequency, damping, and other parameters. Interested parties may contact the author for copies of the software used in the previous examples. AMERICAN INSTITUTE OF AERONAUTICS AND ASTRONAUTICS
