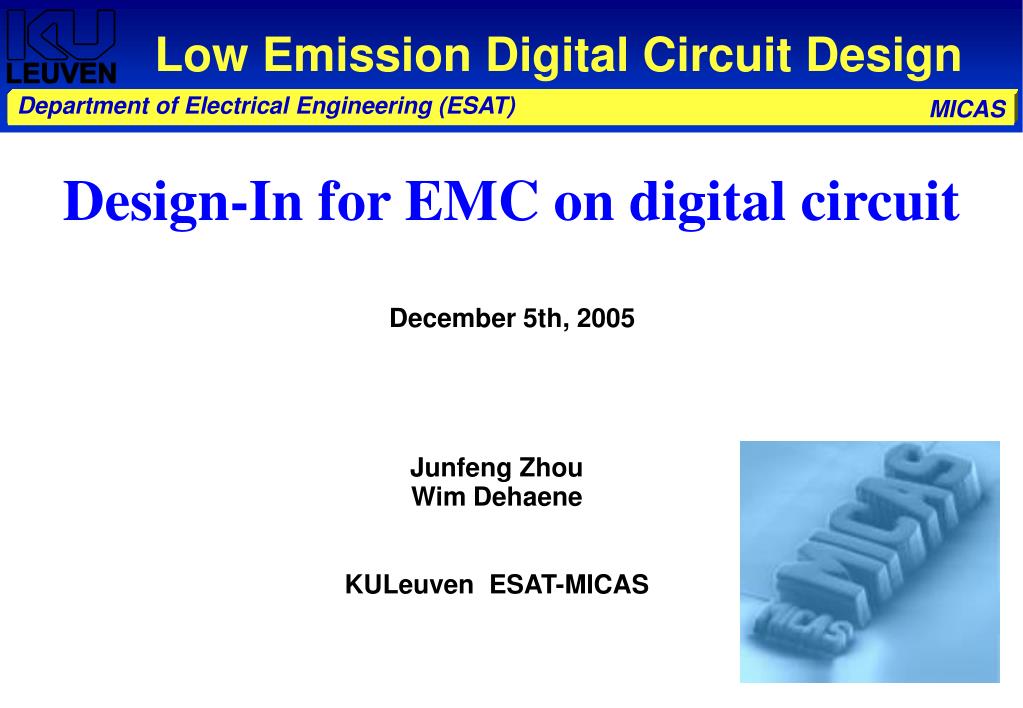

  1. Low Emission Digital Circuit Design Design-In for EMC on digital circuit December 5th, 2005 Junfeng Zhou Wim Dehaene KULeuven ESAT-MICAS

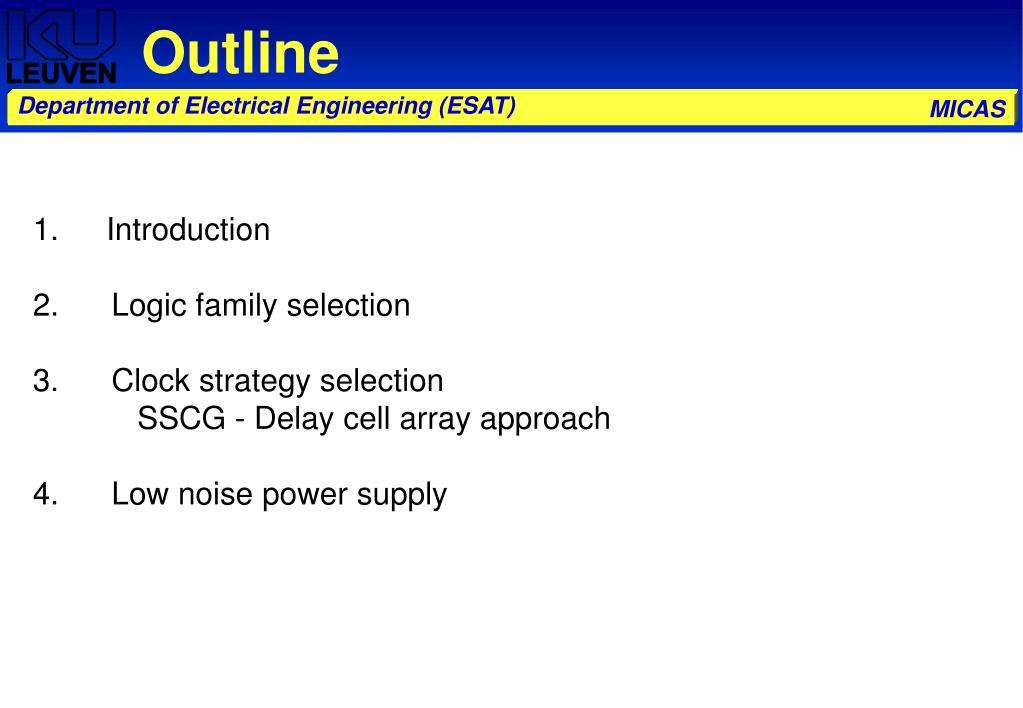

  2. Outline Introduction 2. Logic family selection 3. Clock strategy selection SSCG - Delay cell array approach 4. Low noise power supply

  3. Part I: Introduction • Electro-Magnetic Interference (EMI) and radiated emission have become a major problem for high speed digital circuit, • Most of them are due to power and ground fluctuation. • Although the detailed calculation of EMI noise is rather difficult , we can use the di/dt as the index, since the current loop contributes the EMI.

  4. Part 2: Logic Family Selection PNMOS RSBCMOS SCMOS MCML FSCL CSL

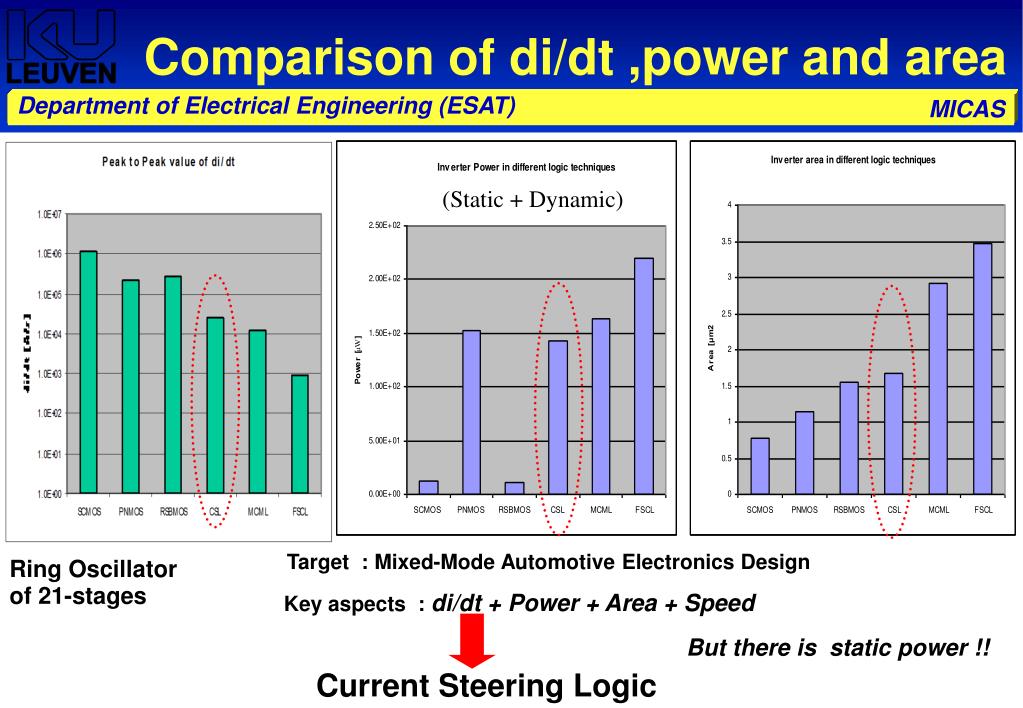

  5. Comparison of di/dt ,power and area (Static + Dynamic) Target : Mixed-Mode Automotive Electronics Design Key aspects : di/dt + Power + Area + Speed Ring Oscillator of 21-stages But there is static power !! Current Steering Logic

  6. Detailed comparison of CSL and SCMOS CSL One-bit Adder IT is a static power problem, Switching off when standby ? Note: The curve of CSL 16-bit RCA was obtained by calculating the real speed F of the circuit, given the different supply current I.

  7. Detailed comparison of CSL and SCMOS SCMOS CSL

  8. Problem with CSL • Mismatch sensitive, annoying for standard cells • rather slow/power hungry • Not full swing Matching required! M1 > M3

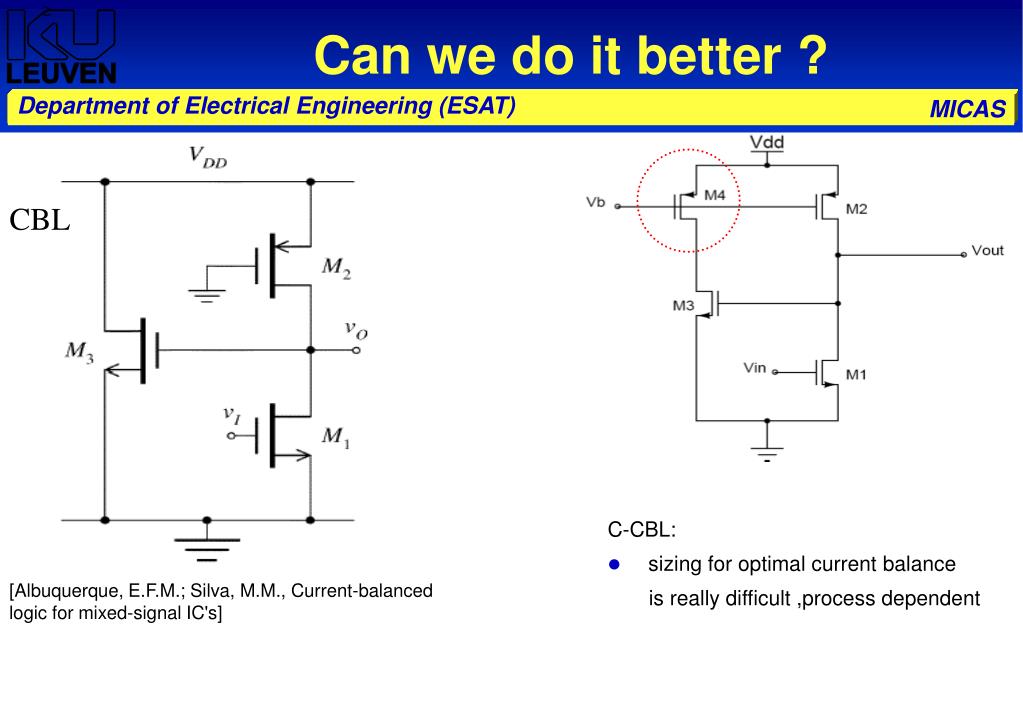

  9. Can we do it better ? CBL C-CBL: • sizing for optimal current balance is really difficult ,process dependent [Albuquerque, E.F.M.; Silva, M.M., Current-balanced logic for mixed-signal IC's]

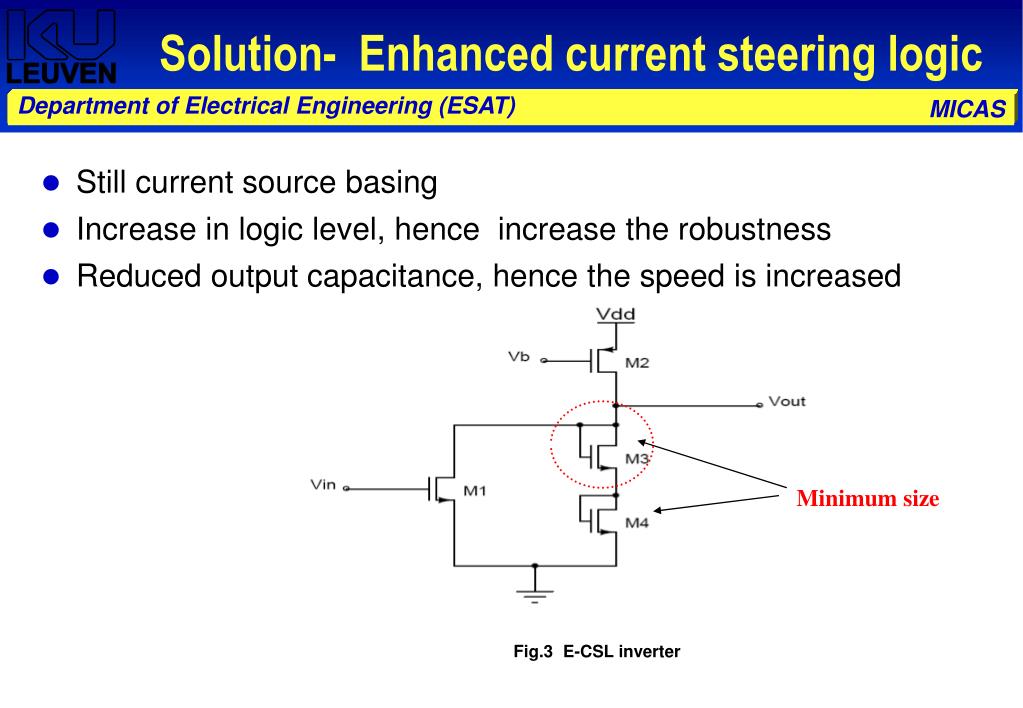

  10. Solution- Enhanced current steering logic • Still current source basing • Increase in logic level, hence increase the robustness • Reduced output capacitance, hence the speed is increased Minimum size Fig.3 E-CSL inverter

  11. Comparison of CSL, C-CBL, ECSL and SCMOS Ring Oscillator of 21-stages Fig.4 power vs. frequency Fig.5 di/dt vs. frequency

  12. di/dt performance vs. process variation MAX di/dt change MIN di/dt change Ring Oscillator of 21-stages Fig.6 di/dt vs. process corner

  13. Conclusion of Low noise Logic Families • CSL,E-CSL show a smaller area per logic function for complex digital gates and systems compared to SCMOS logic technique. • Current source ensures the major di/dt reduction, • Process variation sensitivity also becomes better due to the dominance of current source, • E-CSL gives comparable di/dt performance with CSL, • E-CSL is Faster and Less power consuming than CSL due to the lower area and lower capacitance. • Static power consumption remains the challenge for wide application of the CSL,E-CSL technique in very large digital systems. Can be solved by using power down strategies, which is highly application dependent Winner is E-CSL

  14. Part II: Clock strategy (SSCG) 1. Deviating the period of the clock signal from its fundamental by a small percentage(usually +/- 1% ) and in a predictable fashion(usually Triangular modulation profile ) 2. The total power of the clock signal remains the same. Implementation: 1. PLL-SSCG: VCO has its input voltage controlled by a modulation waveform. 2. DCA-SSCG: By controlling the temporal spacing of the edges, the clock’s frequency is indirectly controlled [Keith B. Hardin, Spread Spectrum Clock Generation for the Reduction of Radiated Emissions]

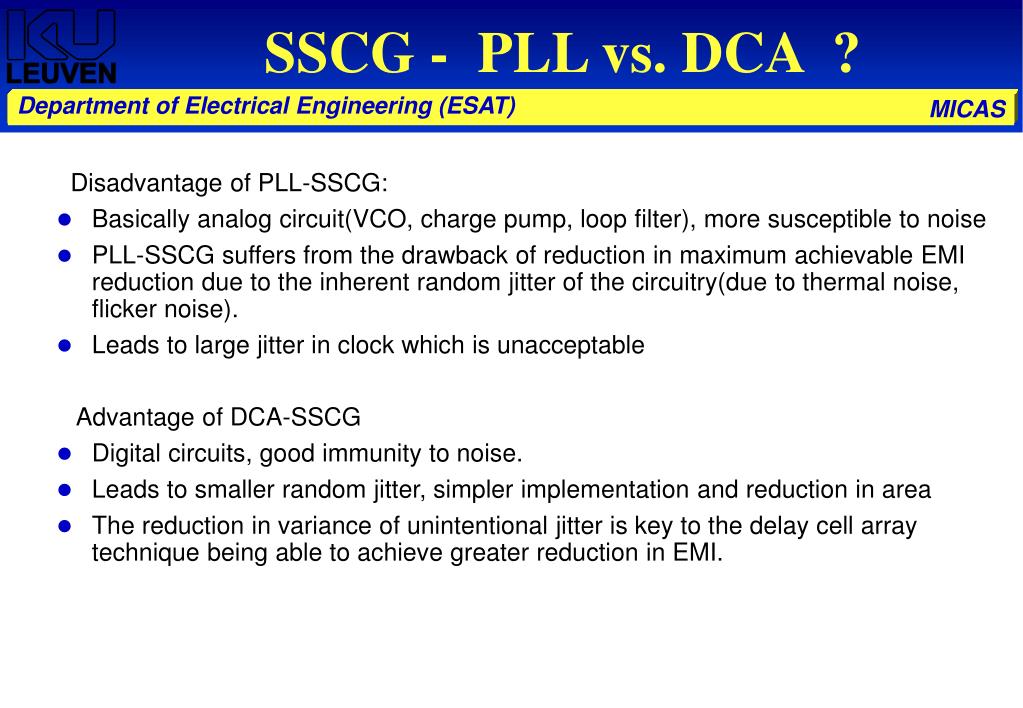

  15. SSCG - PLL vs. DCA ? Disadvantage of PLL-SSCG: • Basically analog circuit(VCO, charge pump, loop filter), more susceptible to noise • PLL-SSCG suffers from the drawback of reduction in maximum achievable EMI reduction due to the inherent random jitter of the circuitry(due to thermal noise, flicker noise). • Leads to large jitter in clock which is unacceptable Advantage of DCA-SSCG • Digital circuits, good immunity to noise. • Leads to smaller random jitter, simpler implementation and reduction in area • The reduction in variance of unintentional jitter is key to the delay cell array technique being able to achieve greater reduction in EMI.

  16. SSCG-DCA: How does it work? Each delay cell comprised of delay element and a positive latch: Q Q Q D D D EN EN EN Delay Cell #1 Delay Cell #2 Delay Cell #N Delay Cell Control … Q T T Flip-Flop N/2 Counter f0 SSC: f0 + ∆f Result: Edge-to-edge jitter varied in deterministic fashion.

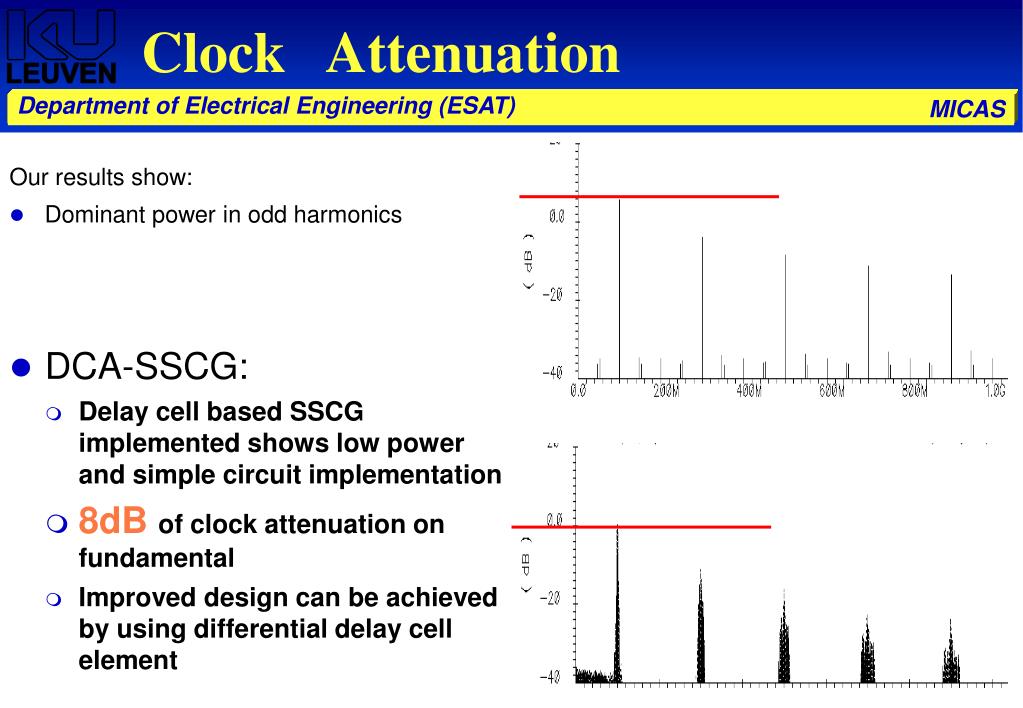

  17. Clock Attenuation Our results show: • Dominant power in odd harmonics • DCA-SSCG: • Delay cell based SSCG implemented shows low power and simple circuit implementation • 8dBof clock attenuation on fundamental • Improved design can be achieved by using differential delay cell element

  18. Part III: Low Noise Power supply design However 2 problems still remain: • Static power consumption • New logic family standard cell must be designed and characterised ?? Is there any global approach ??

  19. Questions Thank you for your attention
