Algorithms and Problem Solving

1. Algorithms andProblem Solving

2. Learn about problem solving skills Explore the algorithmic approach for problem solving Learn about algorithm development Become aware of problem solving process Lecture Objectives

3. Problem Solving • Programming is a process of problem solving • Problem solving techniques • Analyze the problem • Outline the problem requirements • Design steps (algorithm) to solve the problem • Algorithm: • Step-by-step problem-solving process • Solution achieved in finite amount of time

4. Problem Solving Process • Step 1 - Analyze the problem • Outline the problem and its requirements • Design steps (algorithm) to solve the problem • Step 2 - Implement the algorithm • Implement the algorithm in code • Verify that the algorithm works • Step 3 - Maintenance • Use and modify the program if the problem domain changes

5. Analyze the Problem • Thoroughly understand the problem • Understand problem requirements • Does program require user interaction? • Does program manipulate data? • What is the output? • If the problem is complex, divide it into subproblems • Analyze each subproblem as above

6. What is an algorithm? • The idea behind the computer program • Stays the same independent of • Which kind of hardware it is running on • Which programming language it is written in • Solves a well-specified problem in a general way • Is specified by • Describing the set of instances (input) it must work on • Describing the desired properties of the output

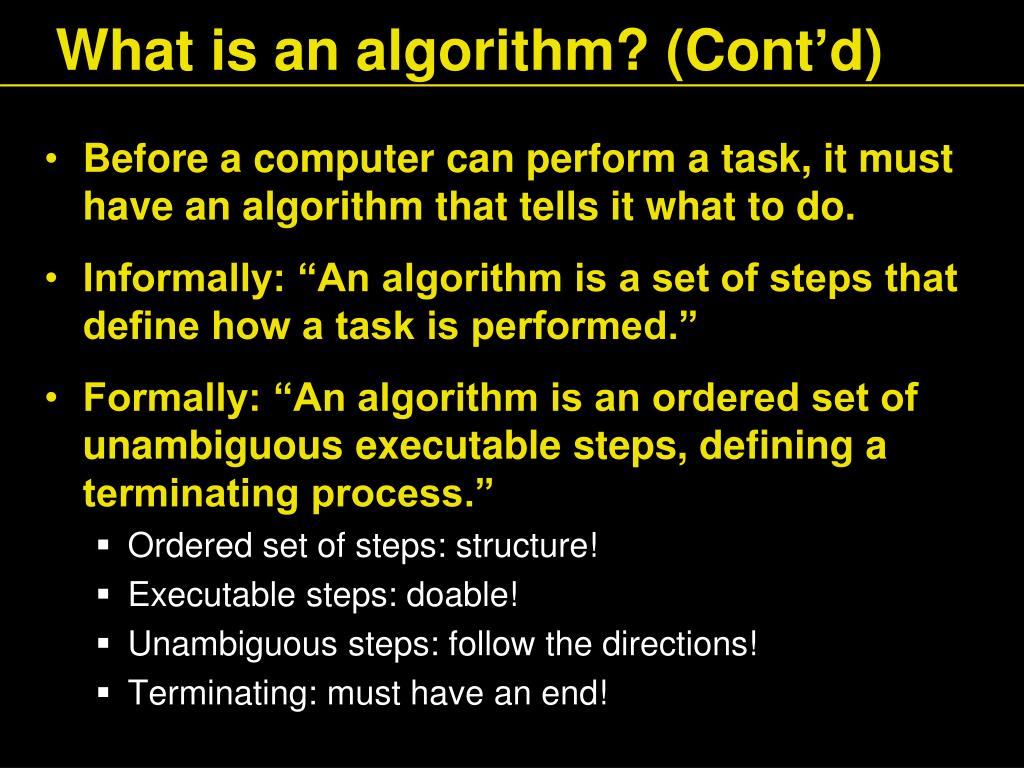

7. What is an algorithm? (Cont’d) • Before a computer can perform a task, it musthave an algorithm that tells it what to do. • Informally: “An algorithm is a set of steps that define how a task is performed.” • Formally: “An algorithm is an ordered set of unambiguous executable steps, defining a terminating process.” • Ordered set of steps: structure! • Executable steps: doable! • Unambiguous steps: follow the directions! • Terminating: must have an end!

8. What is an algorithm? (Cont’d)

9. Important Properties of Algorithms • Correct • always returns the desired output for all legal instances of the problem. • Unambiguous • Precise • Efficient • Can be measured in terms of • Time • Space • Time tends to be more important

10. Representation of Algorithms • A single algorithm can be represented in many ways: • Formulas: F = (9/5)C + 32 • Words: Multiply the Celsius by 9/5 and add 32. • Flow Charts. • Pseudo-code. • In each case, the algorithm stays the same; the implementation differs!

11. Representation of Algorithms (Cont’d) • A program is a representation of an algorithmdesigned for computer applications. • Process: Activity of executing a program, or execute the algorithm represented by the program •  Process: Activity of executing an algorithm.

12. Expressing Algorithms • English description • Pseudo-code • High-level programming language More precise More easily expressed

13. Pseudocode • Pseudocode is like a programming language but its rules are less stringent. • Written as a combination of English and programming constructs • Based on selection (if, switch) and iteration (while, repeat) constructs in high-level programming languages • Design using these high level primitives • Independent of actual programming language

14. Pseudocode (Cont’d) Example: The sequential search algorithm in pseudocode

15. Algorithm Discovery • The Two Steps of Program Development: • 1. Discover the algorithm. • 2. Represent the algorithm as a program. • Step 2 is the easy step! • Step 1 can be very difficult! • To discover an algorithm is to solve the problem!

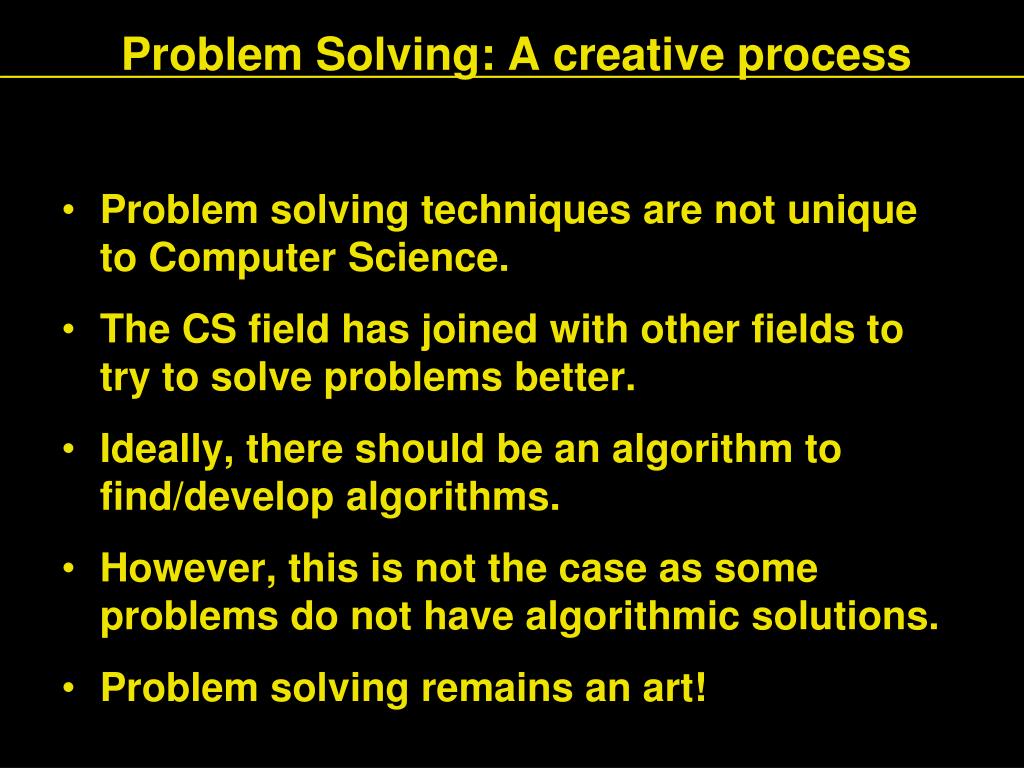

16. Problem Solving: A creative process • Problem solving techniques are not unique to Computer Science. • The CS field has joined with other fields to try to solve problems better. • Ideally, there should be an algorithm to find/develop algorithms. • However, this is not the case as some problems do not have algorithmic solutions. • Problem solving remains an art!

17. Problem Solving Strategies • Working backwards • Reverse-engineer • Once you know it can be done, it is much easier to do • What are some examples? • Look for a related problem that has been solved before • Java design patterns • Sort a particular list such as: David, Alice, Carol and Bob to find a general sorting algorithm • Stepwise Refinement • Break the problem into several sub-problems • Solve each subproblem separately • Produces a modular structure • K.I.S.S. = Keep It Simple Stupid!

18. Stepwise Refinement • Stepwise refinement is a top-down methodology in that it progresses from the general to the specific. • Bottom-up methodologies progress from the specific to the general. • These approaches complement each other • Solutions produced by stepwise refinement posses a natural modular structure - hence its popularity in algorithmic design.

19. Object-Oriented Design Methodology • Four stages to the decomposition process • Brainstorming • Filtering • Scenarios • Responsibility algorithms

20. Class-Responsibility-Collaboration (CRC) Cards

21. Brainstorming • A group problem-solving technique that involves the spontaneous contribution of ideas from all members of the group • All ideas are potential good ideas • Think fast and furiously first, and ponder later • A little humor can be a powerful force • Brainstorming is designed to produce a list of candidate classes

22. Filtering • Determine which are the core classes in the problem solution • There may be two classes in the list that have many common attributes and behaviors • There may be classes that really don’t belong in the problem solution

23. Scenarios • Assign responsibilities to each class • There are two types of responsibilities • What a class must know about itself (knowledge) • What a class must be able to do (behavior) • Encapsulation is the bundling of data and actions in such a way that the logical properties of the data and actions are separated from the implementation details

24. Responsibility Algorithms • The algorithms must be written for the responsibilities • Knowledge responsibilities usually just return the contents of one of an object’s variables • Action responsibilities are a little more complicated, often involving calculations

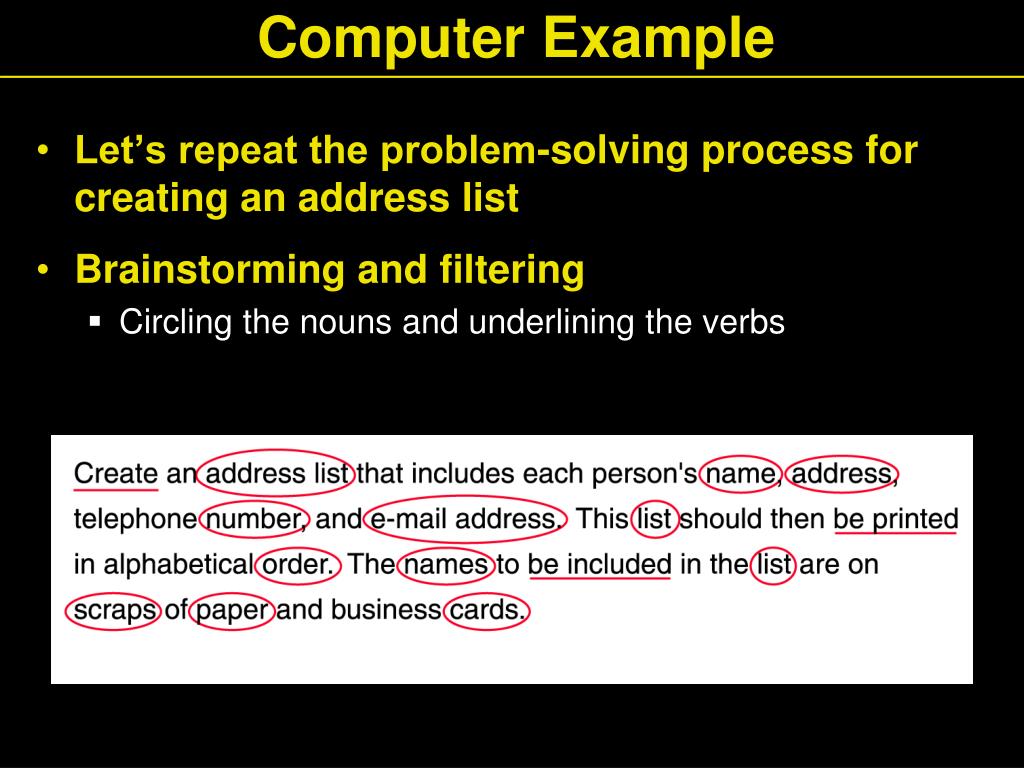

25. Computer Example • Let’s repeat the problem-solving process for creating an address list • Brainstorming and filtering • Circling the nouns and underlining the verbs

26. Computer Example (Cont’d) • First pass at a list of classes

27. Computer Example (Cont’d) • Filtered list

28. CRC Cards

29. Responsibility Algorithms
