  1. Digital Adaptive Equalizer Qin Zhang, Ph.D

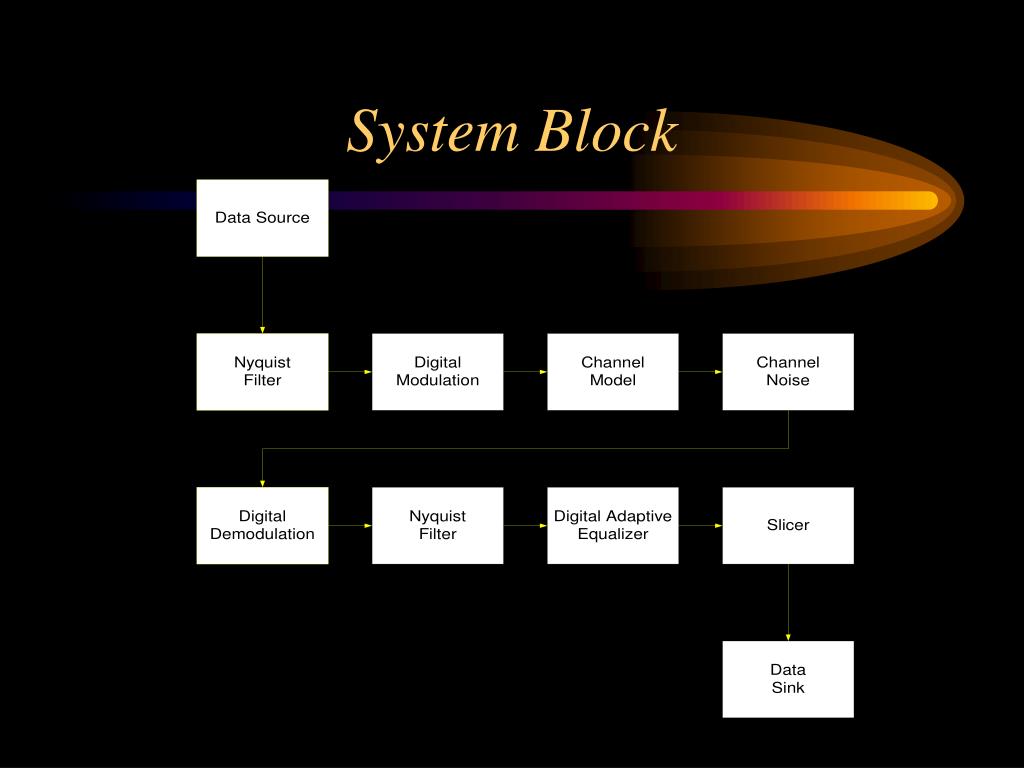

  2. System Block

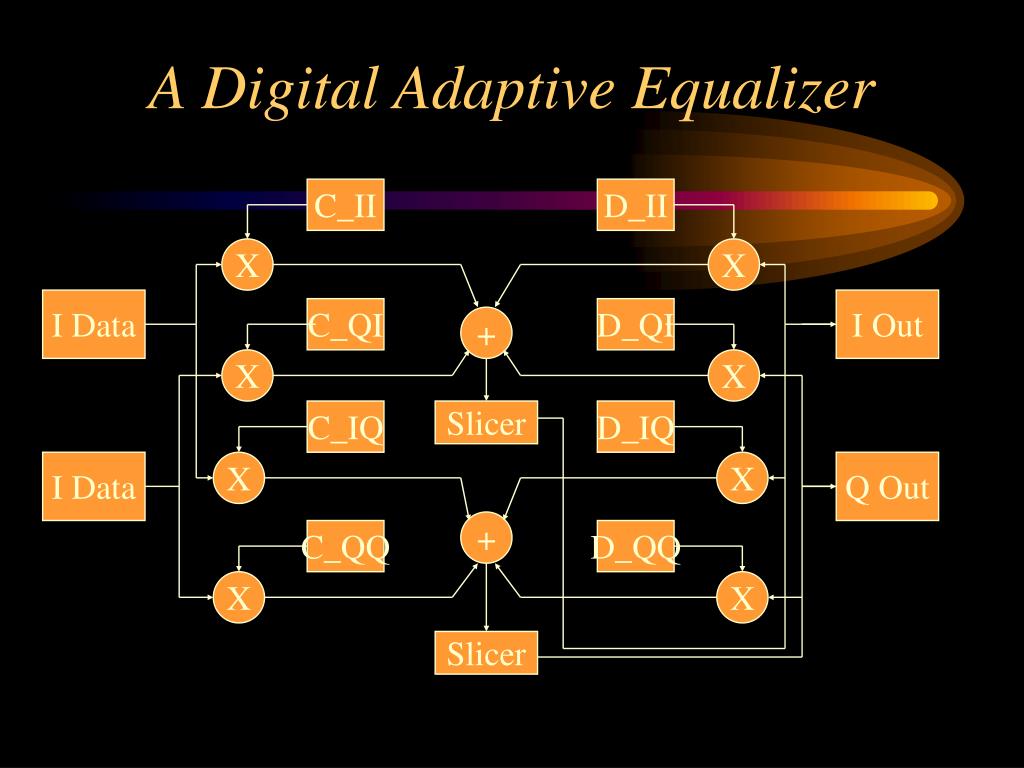

  3. C_II D_II X X I Out I Data D_QI C_QI + X X D_IQ C_IQ Slicer Q Out I Data X X + C_QQ D_QQ X X Slicer A Digital Adaptive Equalizer

  4. Digital PLL fe fin Kd + fo W_z a Kv Ka Z + Z + + Z a_z Z delay_z Nco_z f_z

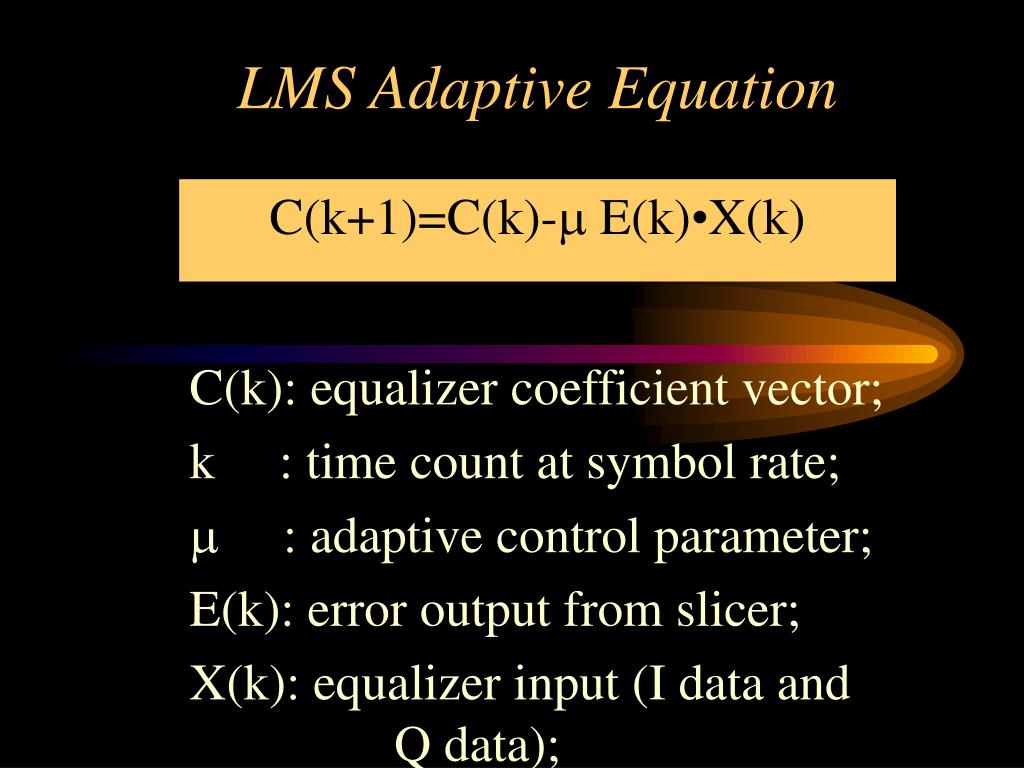

  5. LMS Adaptive Equation C(k): equalizer coefficient vector; k : time count at symbol rate;  : adaptive control parameter; E(k): error output from slicer; X(k): equalizer input (I data and Q data); C(k+1)=C(k)- E(k)•X(k)

  6. The Difference You Can Make! 7 dB Difference !
