  1. Computed Tomography DANGER DETECTOR production

  2. Typical CT scanner

  3. So how old is the CT scanner? http://www.impactscan.org/slides/impactcourse/basic_principles_of_ct/img24.html

  4. 2nd generation http://www.impactscan.org/slides/impactcourse/basic_principles_of_ct/img25.html

  5. 3rd generation http://www.impactscan.org/slides/impactcourse/basic_principles_of_ct/img26.html

  6. 4th generation http://www.impactscan.org/slides/impactcourse/basic_principles_of_ct/img27.html

  7. Projected X-Rays F1

  8. Tomographic Reconstruction • Projection at each θ is made up of line integrals • Each line integral represents total X-ray attenuation • We can relate the attenuation to the original image • Infinite 1D projections at infinite angles  perfect reconstruction

  9. Projection-Slice Theorem

  10. Filtered Back Projection • Only have finite number of projections • Approximate the original by “back projecting” • Run ray sums back through to simulate original • Krithika forbade me from discussing this further

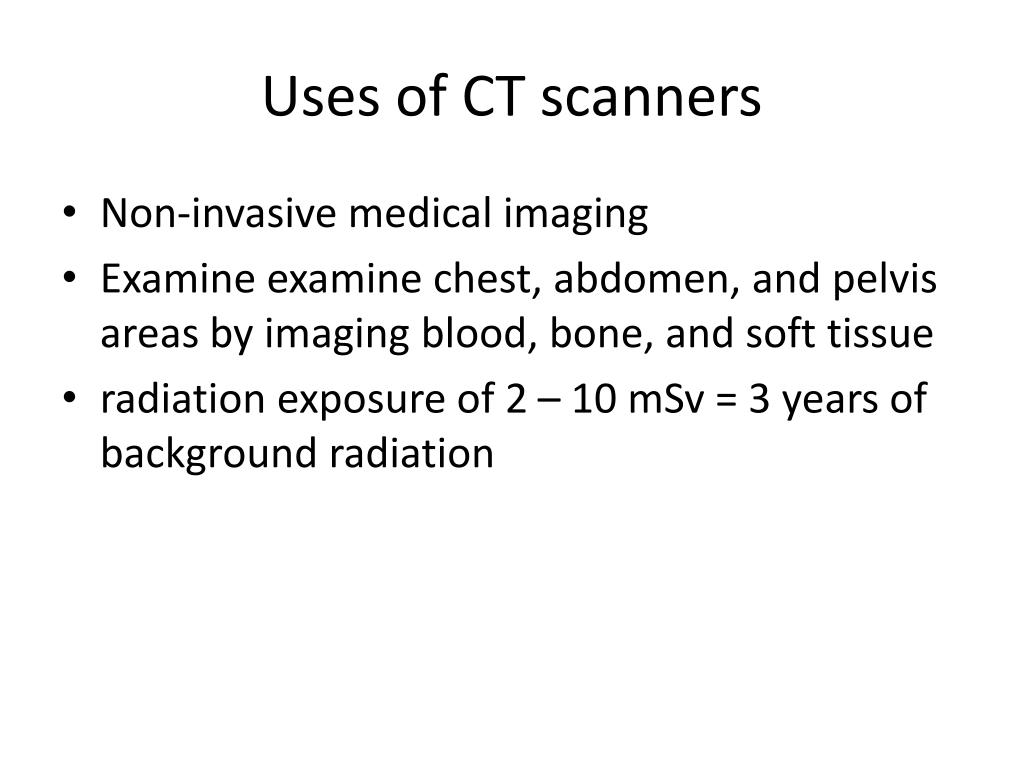

  11. Uses of CT scanners • Non-invasive medical imaging • Examine examine chest, abdomen, and pelvis areas by imaging blood, bone, and soft tissue • radiation exposure of 2 – 10 mSv = 3 years of background radiation

  12. Why do we care? • CT scanners are used to detect explosives in checked baggage • Can create detailed, cross-sectional slices of the baggage • The slices are the input to our program

  13. Pan Am Bomb Slice
