Presentation Transcript
iq analyzer 6400 6600 series

IQ Analyzer6400/6600 Series

Cutler-Hammer

Power Management Products

High End Metering Capabilities

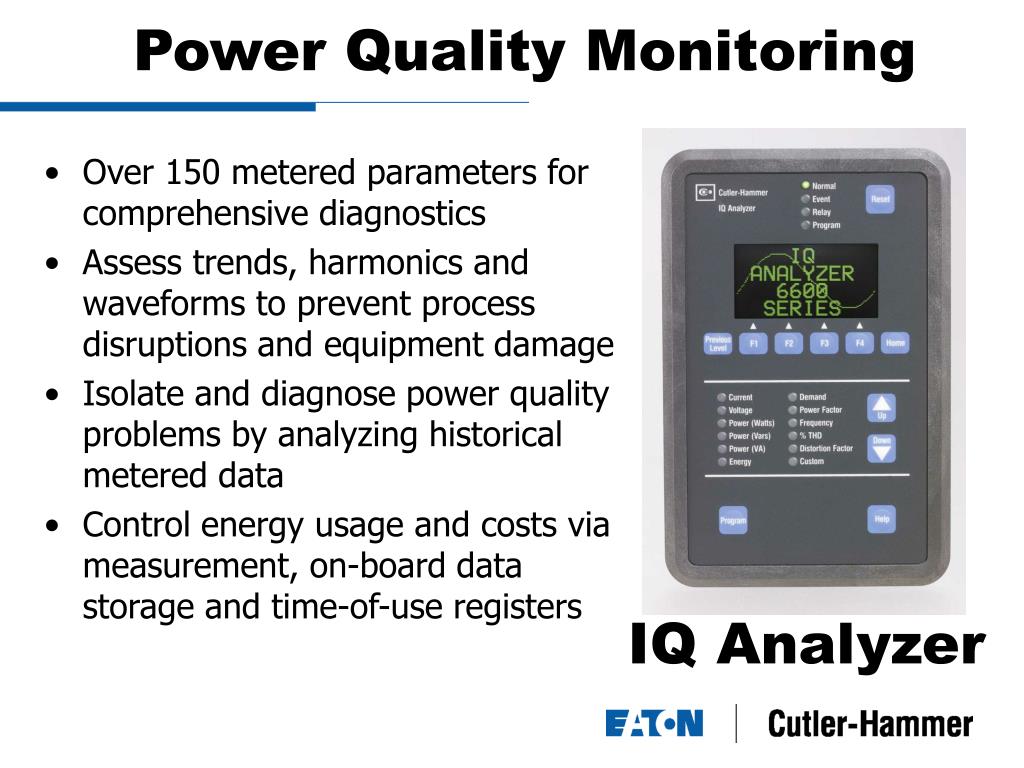

power quality monitoring
Power Quality Monitoring
  • Over 150 metered parameters for comprehensive diagnostics
  • Assess trends, harmonics and waveforms to prevent process disruptions and equipment damage
  • Isolate and diagnose power quality problems by analyzing historical metered data
  • Control energy usage and costs via measurement, on-board data storage and time-of-use registers

IQ Analyzer

overview

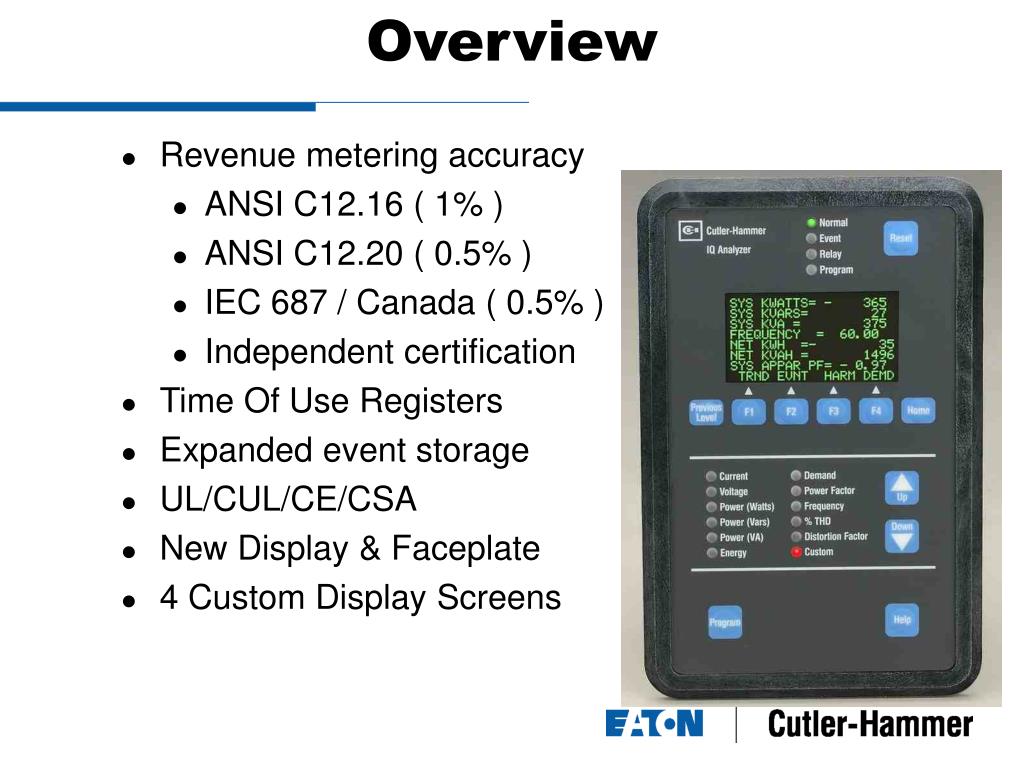

Overview
  • Revenue metering accuracy
    • ANSI C12.16 ( 1% )
    • ANSI C12.20 ( 0.5% )
    • IEC 687 / Canada ( 0.5% )
    • Independent certification
  • Time Of Use Registers
  • Expanded event storage
  • UL/CUL/CE/CSA
  • New Display & Faceplate
  • 4 Custom Display Screens
iq analyzer key features

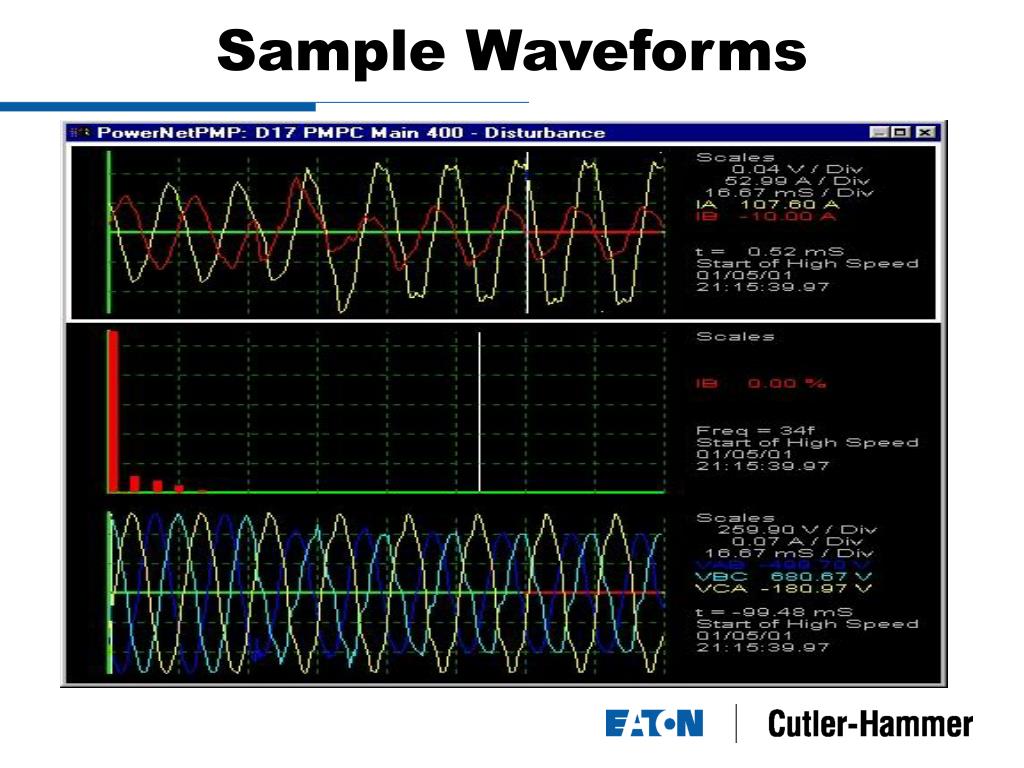

High-speed waveform capture

Programmable event triggers

2 cycles @ 128 samples/cycle & 6 cycles @ 32 samples/cycle

11 channels of voltage & current information are saved

Local display of waveform (6600 series only)

Measures current and voltage through 50th harmonic

Display harmonic spectrum on local display (6600 series only)

IQ Analyzer Key Features
iq analyzer key features8

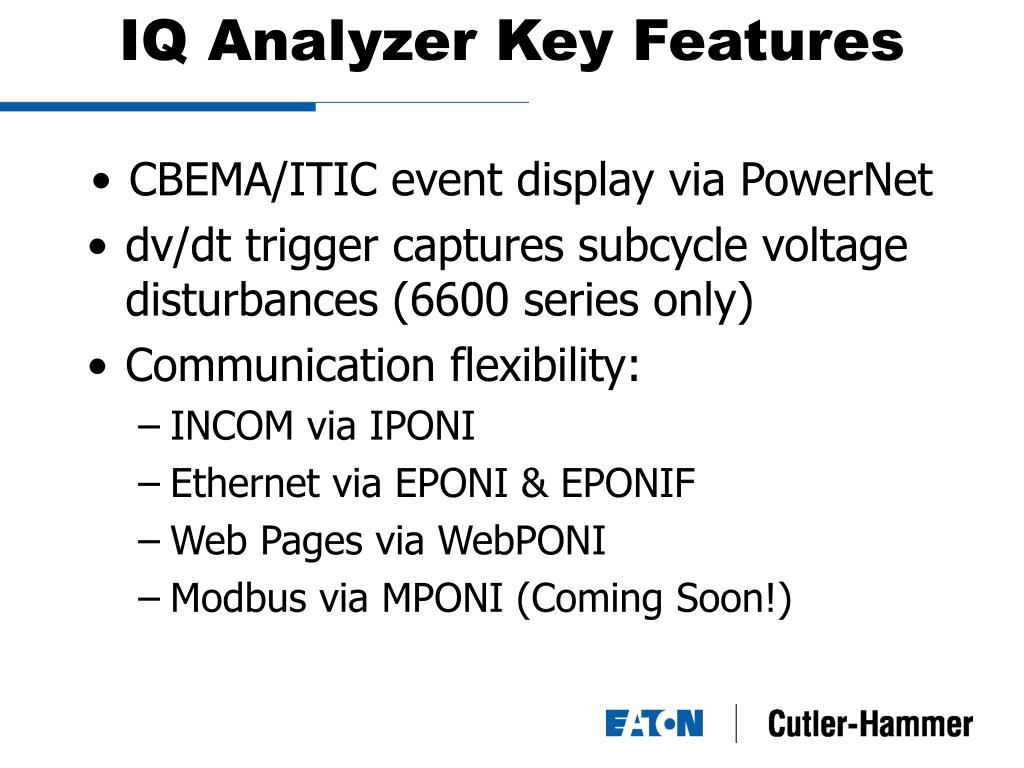

IQ Analyzer Key Features
  • CBEMA/ITIC event display via PowerNet
  • dv/dt trigger captures subcycle voltage disturbances (6600 series only)
  • Communication flexibility:
    • INCOM via IPONI
    • Ethernet via EPONI & EPONIF
    • Web Pages via WebPONI
    • Modbus via MPONI (Coming Soon!)
iq analyzer key features9

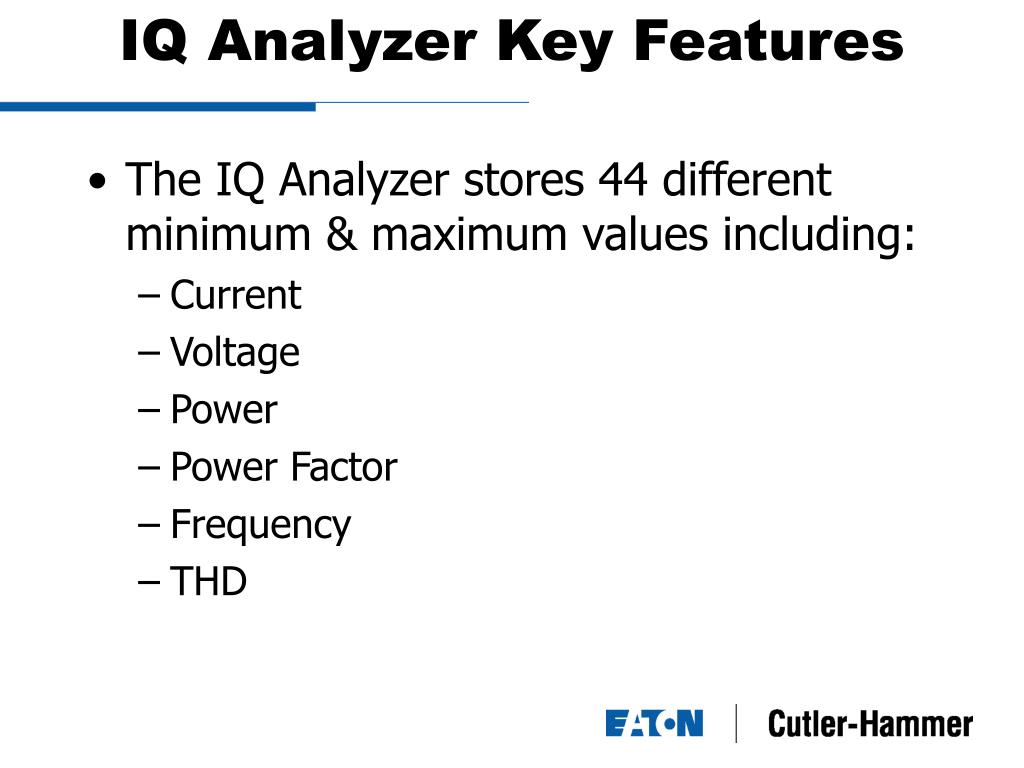

IQ Analyzer Key Features
  • The IQ Analyzer stores 44 different minimum & maximum values including:
    • Current
    • Voltage
    • Power
    • Power Factor
    • Frequency
    • THD
iq analyzer key features10
On-board event data logging

Auxiliary I/O capabilities

Analog Outputs (4) 0-20mA/4-20mA 1% accuracy

Added 4th output at the end of 2001

Analog Input (1) 0-20mA/4-20mA 1% accuracy

Digital Inputs (3) optically isolated +30Vdc

Digital Outputs (4) Form C contacts 10A @ 240Vac

IQ Analyzer Key Features
iq analyzer key features11
IQ Analyzer Key Features
  • Monitors L-L, L-N, L-G and N-G voltage
    • PT ratios from 1:1 to 5,000:1
  • Monitors phase, neutral and ground current
    • CT ratios from 5:5 to 10,000:5
    • Up to 40A continuous, 300A for 1 second
  • Measures % Total Harmonic Distortion (THD) for current and voltage
new features
New Features
  • New Trending Capabilities
    • 4 Independent trends
    • Up to 6 parameters per trend
    • Can chose from over 94 parameters
    • Total of 90K bytes of storage
      • Single parameter every 15 min. for 234 days
    • Independent memory allocation for each trend
    • Used with PowerNet for CBEMA/ITIC curve plotting utility
new features14
New Features
  • New Trending Capabilities
    • Sampling rate can be set from 8 cycles to 5040 minutes (3 1/2 days)
    • Trend 1-3 can save data on a discrete input
    • Trend 4 can save data on an event
    • If the time period is set for an integer divisor of 60 the period starts at the next full hour.
new features15

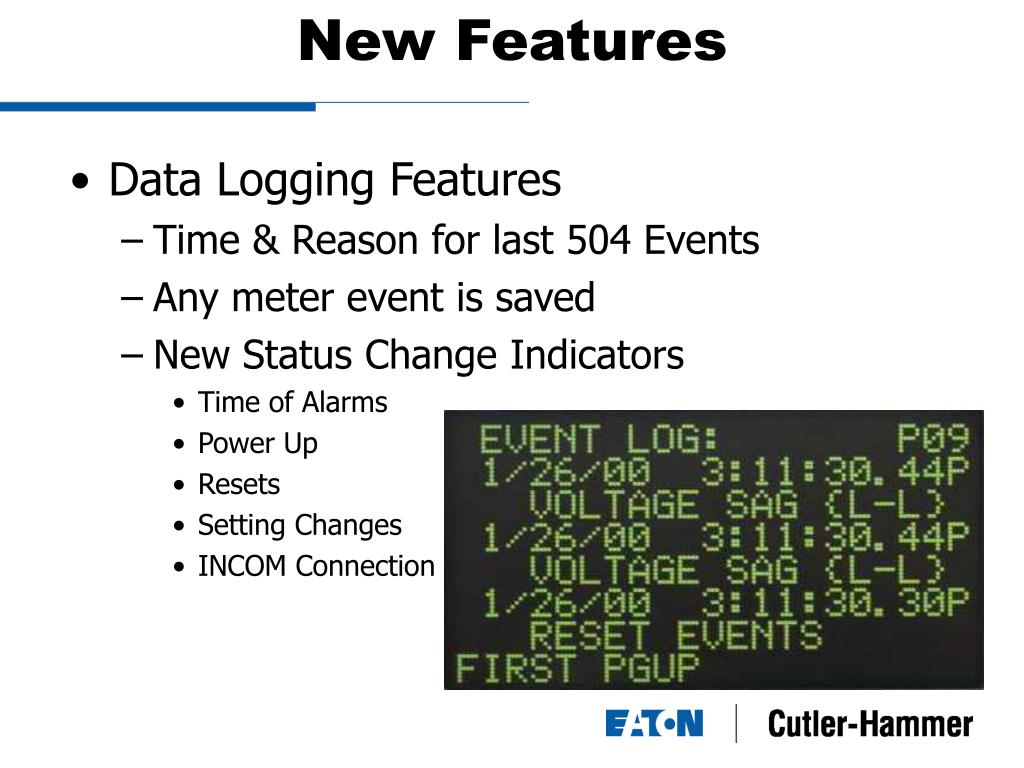

New Features
  • Data Logging Features
    • Time & Reason for last 504 Events
    • Any meter event is saved
    • New Status Change Indicators
      • Time of Alarms
      • Power Up
      • Resets
      • Setting Changes
      • INCOM Connection
new features16

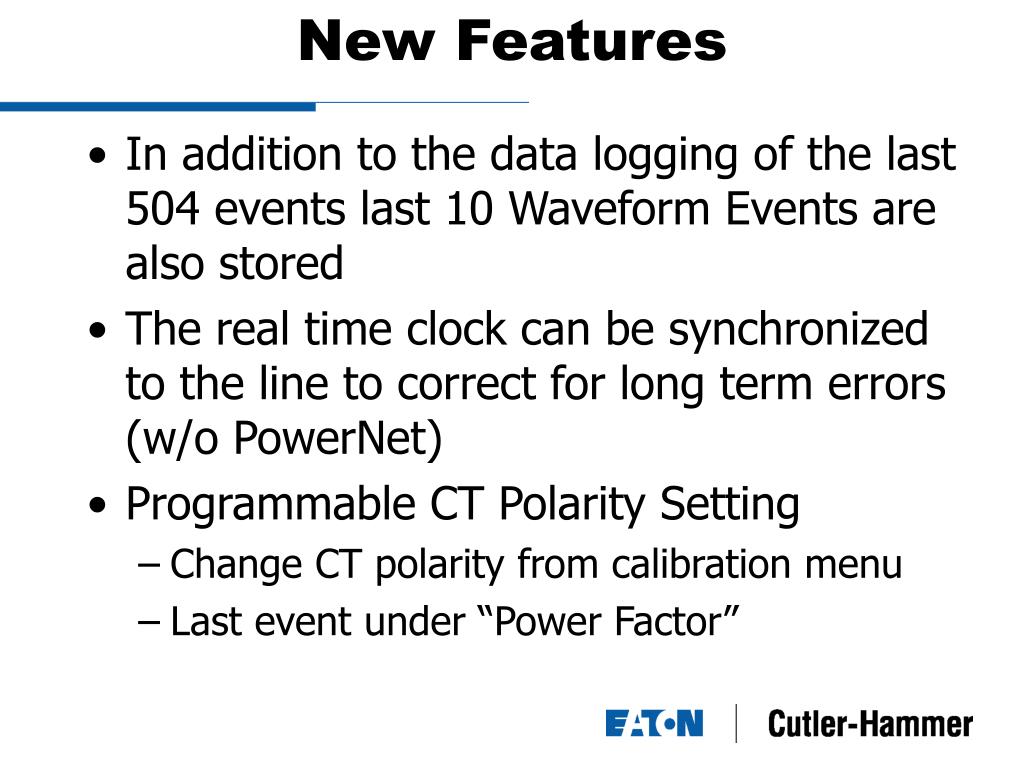

New Features
  • In addition to the data logging of the last 504 events last 10 Waveform Events are also stored
  • The real time clock can be synchronized to the line to correct for long term errors (w/o PowerNet)
  • Programmable CT Polarity Setting
    • Change CT polarity from calibration menu
    • Last event under “Power Factor”
new features17
New Features
  • Time Of Use (TOU) Energy Registers
    • 32 Schedules
      • 8 Weekday - 8 Holiday
      • 8 Saturday - 8 Seasons
      • 8 Sunday
    • Each schedule can change 9 times a day
    • 4 Different utility rates
    • Watt-hours, VAR-hours, VA-hours recorded
new features18

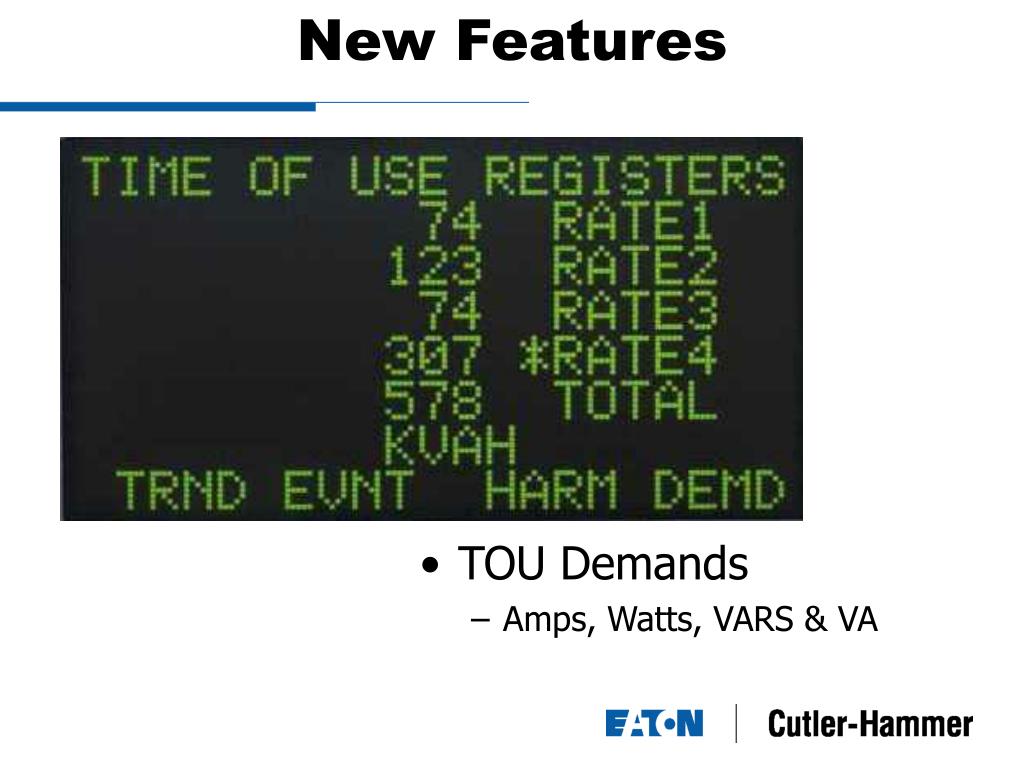

New Features
  • TOU Demands
    • Amps, Watts, VARS & VA
improvements
Improvements
  • New Case
    • Polycarbonate for higher durability & temperature
    • Rugged outer edge
    • Reset button changed from red to blue
  • New Display
    • Reverse mode, LED backlit LCD
    • Yellow on black
    • High reliability
improvements20
Improvements
  • Custom Screen Enhancements
    • Allows programming of 7 parameters per screen
    • Now 4 custom screens
    • List of programmable items extended
      • Clock
      • Min/Max Values since last trend
      • Magnitude THD (V and A)
    • Displays each screen for 5 seconds
new iq analyzer
New IQ Analyzer
  • Old IQA6000/6200 catalog numbers replaced with new 6400/6600 series
    • IQA6410 - Separate Source PS
    • IQA6420 - DC PS
    • IQA6430 - Self Powered Three Phase PS
    • IQA6610 - Separate Source PS w/waveform
    • IQA6620 - DC PS w/waveform
    • IQA6630 - Three Phase PS w/waveform
documentation
Documentation
  • Color Brochure
    • B.17C.01.S.E
  • Technical Data Sheet
    • TD.17.02A.T.E
  • Sales Notes
    • SN.17C.03A.S.E
  • Instruction Book
    • TD17530D

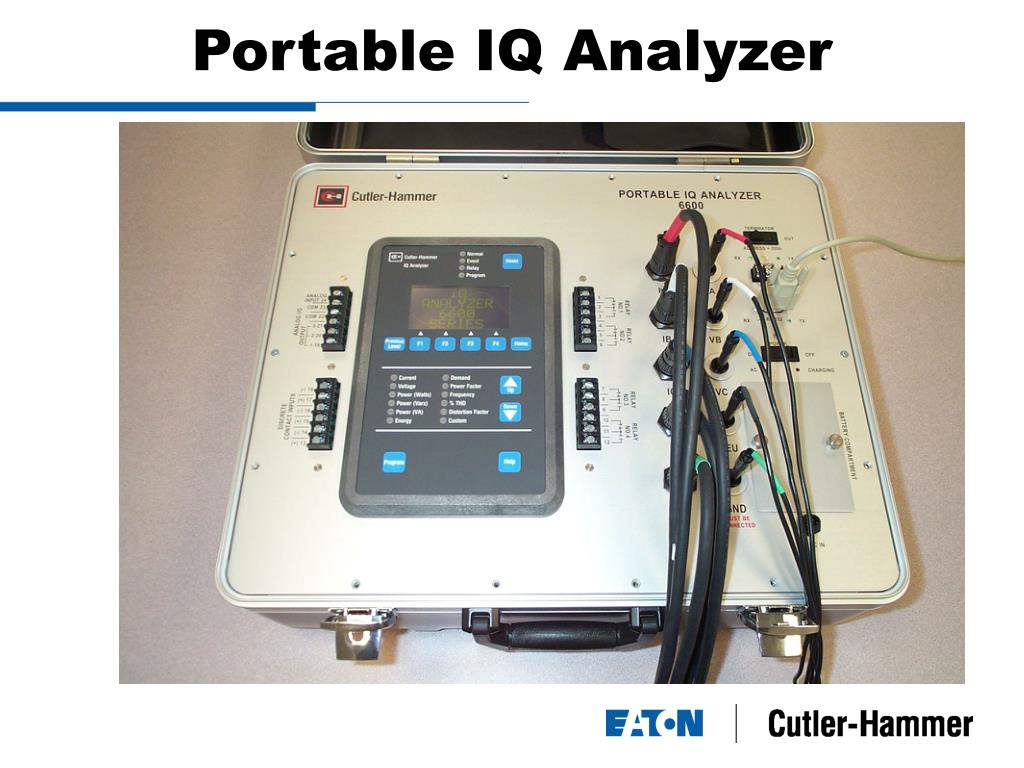

new portable iq analyzer
New Portable IQ Analyzer
  • New portable will be based upon the IQ Analyzer 6600
      • Waveform capture
      • On board data trending
    • New CT connectors
    • Both INCOM & RS-232 communications
    • New battery power supply
    • New heavy duty case with lead storage
    • Can be used with PowerPort
    • Optional clamp on CT’s
portable iq analyzer26
Portable IQ Analyzer
  • Three new optional multi-ratio clamp-on CT’s:
    • 150/300/600 Amp
    • 500/1000/1500 Amp
    • 1000/2000/3000 Amp
