arm soft microprocessor architectures

CMPE511

ARM Soft Microprocessor Architectures

CMPE511 Term Paper Presentation

Afşin ÖZPINAR

2003800835- EE Phd

overview
Overview

CMPE511

  • What is ARM?
  • The History of ARM
  • Why ARM?
  • ARM Overview and Market
  • Partners
  • Processor Cores and Development
  • ARM Product Family and Comparision
  • Key Features of the ARM
  • ARM Architecture ARM11TDMI
  • Multiprocessor Structure
  • AMBA Bus Structure
  • ARM Instruction set
  • ARM Based Products

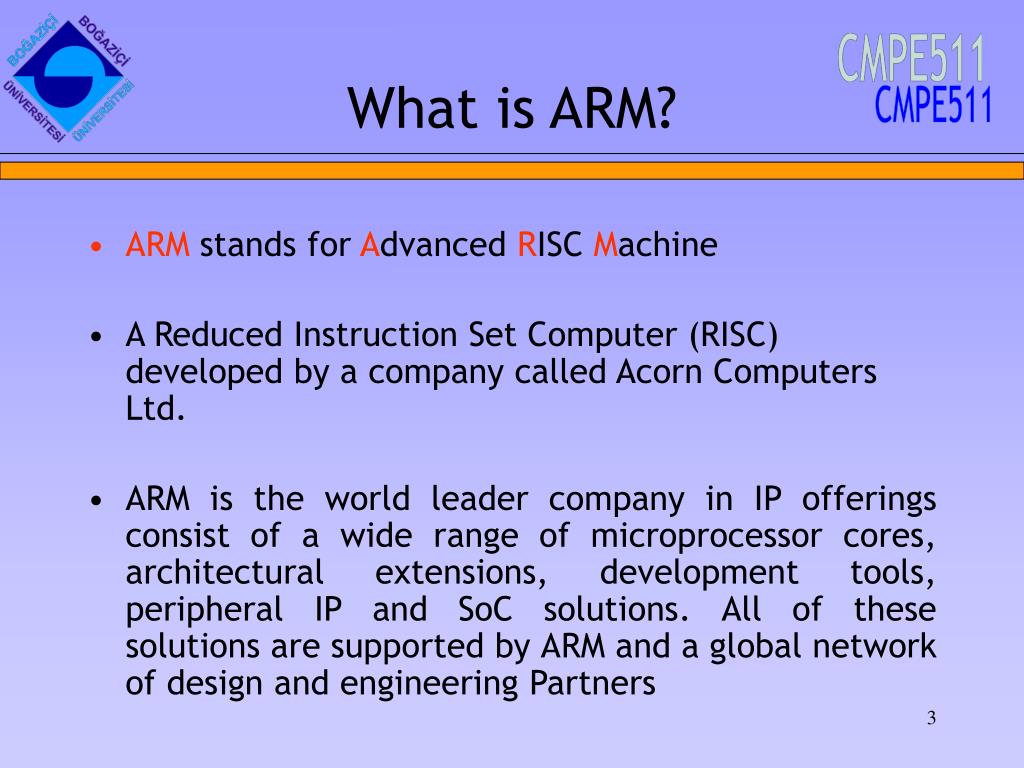

what is arm
What is ARM?

CMPE511

  • ARM stands for Advanced RISC Machine
  • A Reduced Instruction Set Computer (RISC) developed by a company called Acorn Computers Ltd.
  • ARM is the world leader company in IP offerings consist of a wide range of microprocessor cores,architectural extensions, development tools, peripheral IP and SoC solutions. All of these solutions are supported by ARM and a global network of design and engineering Partners
the history of arm
The History of ARM

CMPE511

  • ARM was established in November 1990 as Advanced RISC Machines Ltd., a UK-based joint venture between Apple Computer, Acorn Computer Group and VLSI Technology.
  • Acorn, developer of the world’s first commercial single-chip RISC processor, and Apple, intent on advancing the use of RISC technology in its own systems, chartered ARM with creating a new microprocessor standard.
  • With the introduction of its first embedded RISC core, the ARM6™ family of processors, in 1991, ARM signed VLSI as its initial licensee.

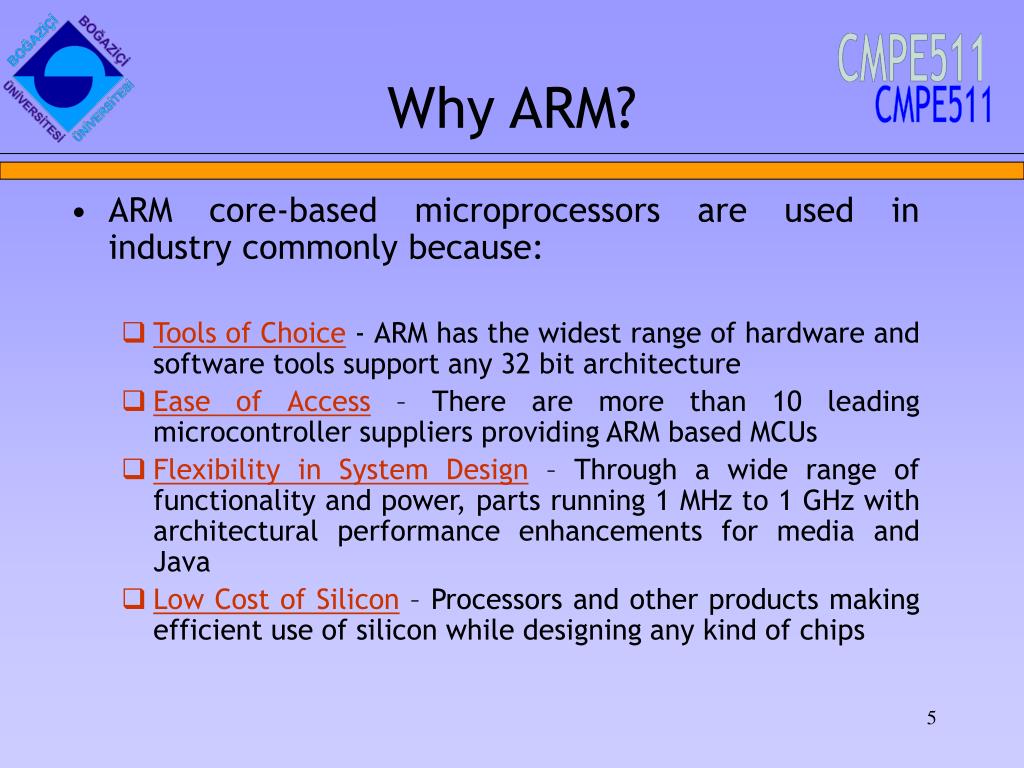

why arm
Why ARM?

CMPE511

  • ARM core-based microprocessors are used in industry commonly because:
    • Tools of Choice - ARM has the widest range of hardware and software tools support any 32 bit architecture
    • Ease of Access – There are more than 10 leading microcontroller suppliers providing ARM based MCUs
    • Flexibility in System Design– Through a wide range of functionality and power, parts running 1 MHz to 1 GHz with architectural performance enhancements for media and Java
    • Low Cost of Silicon – Processors and other products making efficient use of silicon while designing any kind of chips

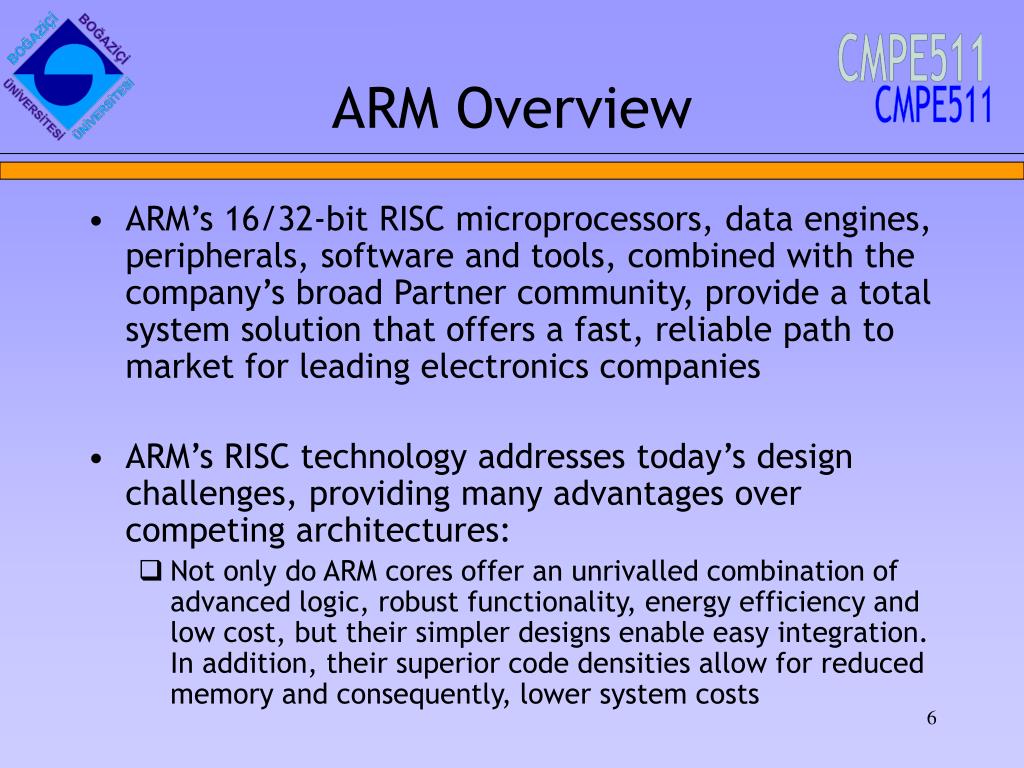

arm overview
ARM Overview

CMPE511

  • ARM’s 16/32-bit RISC microprocessors, data engines, peripherals, software and tools, combined with the company’s broad Partner community, provide a total system solution that offers a fast, reliable path to market for leading electronics companies
  • ARM’s RISC technology addresses today’s design challenges, providing many advantages over competing architectures:
    • Not only do ARM cores offer an unrivalled combination of advanced logic, robust functionality, energy efficiency and low cost, but their simpler designs enable easy integration. In addition, their superior code densities allow for reduced memory and consequently, lower system costs

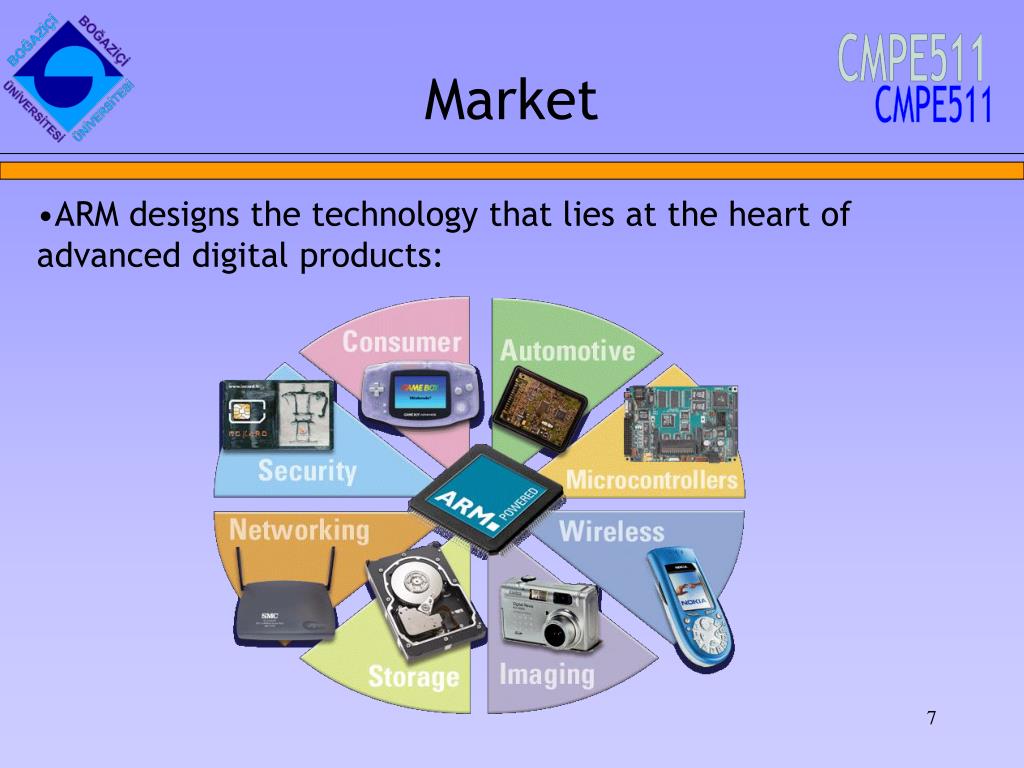

market
Market

CMPE511

  • ARM designs the technology that lies at the heart of advanced digital products:
arm general
ARM : General

CMPE511

  • As the industry’s leading provider of 32-bit embedded RISC microprocessors,with almost 75% of the market
    • ARM offers a wide range of processor cores,all using a common underlying architecture, to deliver high performance with low power consumption at minimal cost
    • The ARM architecture’s performance range extends to more than 1 GHz
    • ARM’s strength lies in the fact that it has over 100 partners throughout the world
a rm and the partners
ARM and the Partners

CMPE511

  • ARM is the number one semiconductor IP supplier in the world
  • ARM Powered® microprocessors are pervasive in the electronic products we use, driving key functions in a variety of applications in the market
  • ARM licenses its IP to a network of Partners, which includes some of the world’s leading semiconductor and system companies.
  • These Partners utilise ARM’s low -cost, power efficient core designs to create and manufacture microprocessors, peripherals and SoC solutions

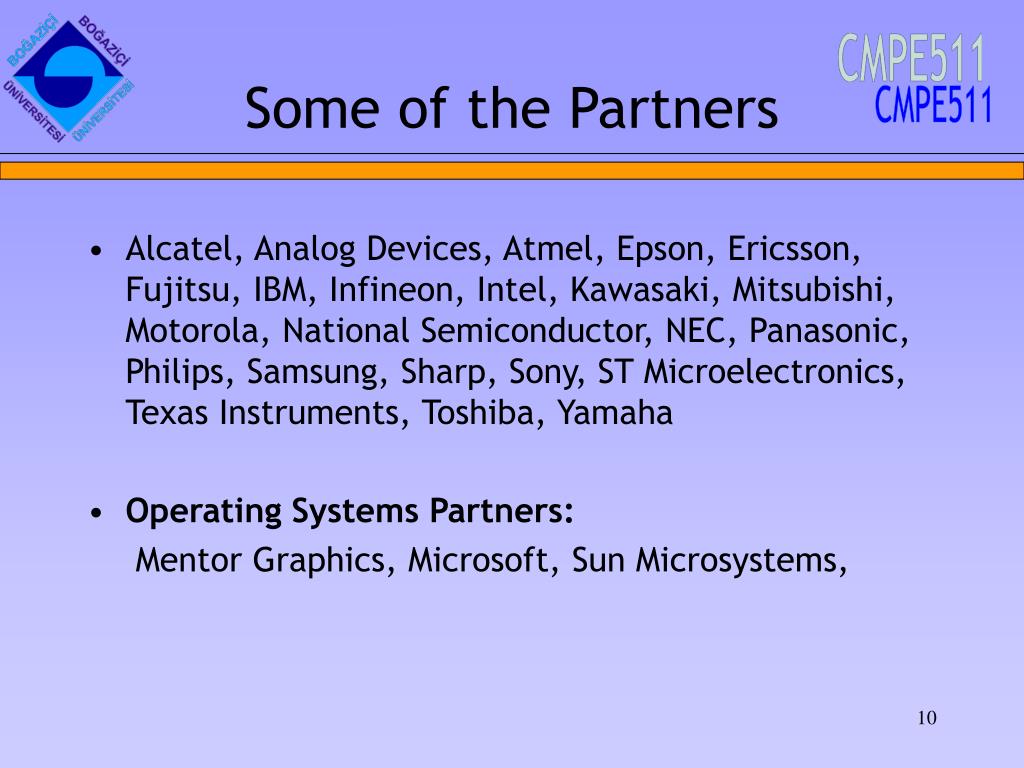

some of the partners
Some of the Partners

CMPE511

  • Alcatel, Analog Devices, Atmel, Epson, Ericsson, Fujitsu, IBM, Infineon, Intel, Kawasaki, Mitsubishi, Motorola, National Semiconductor, NEC, Panasonic, Philips, Samsung, Sharp, Sony, ST Microelectronics, Texas Instruments, Toshiba, Yamaha
  • Operating Systems Partners:

Mentor Graphics, Microsoft, Sun Microsystems,

processor cores
Processor Cores

CMPE511

  • ARM offers a wide range of processor cores & solutions based on a common architecture, that deliver high performance together with low power consumption and system cost:
    • Embedded Cores
    • Application Cores
    • Secure Cores
    • OptimoDE Data Engine

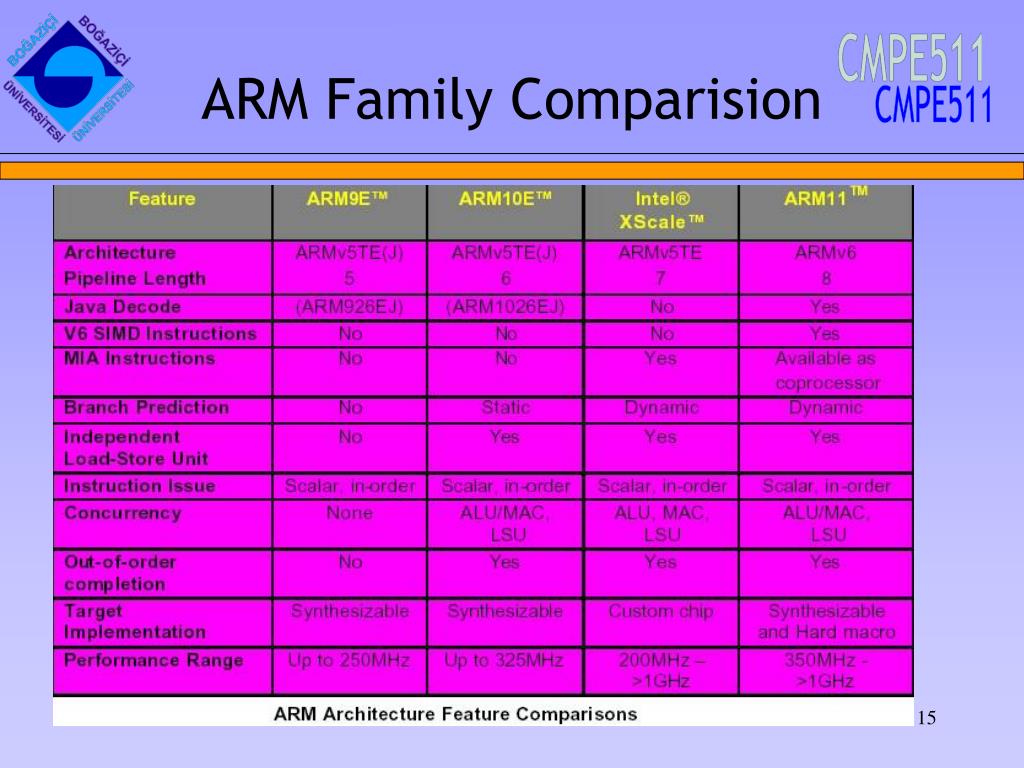

arm product family
ARM Product Family

CMPE511

  • There are currently seven main product families:
    • ARM7™
    • ARM9™
    • ARM9E™
    • ARM10™
    • ARM11™
    • SecurCore™
    • Cortex Families
  • Further implementations available from ARM’s partners (such as Intel® XScale™ technology and StrongARM® products) with available performance over 1 GHz

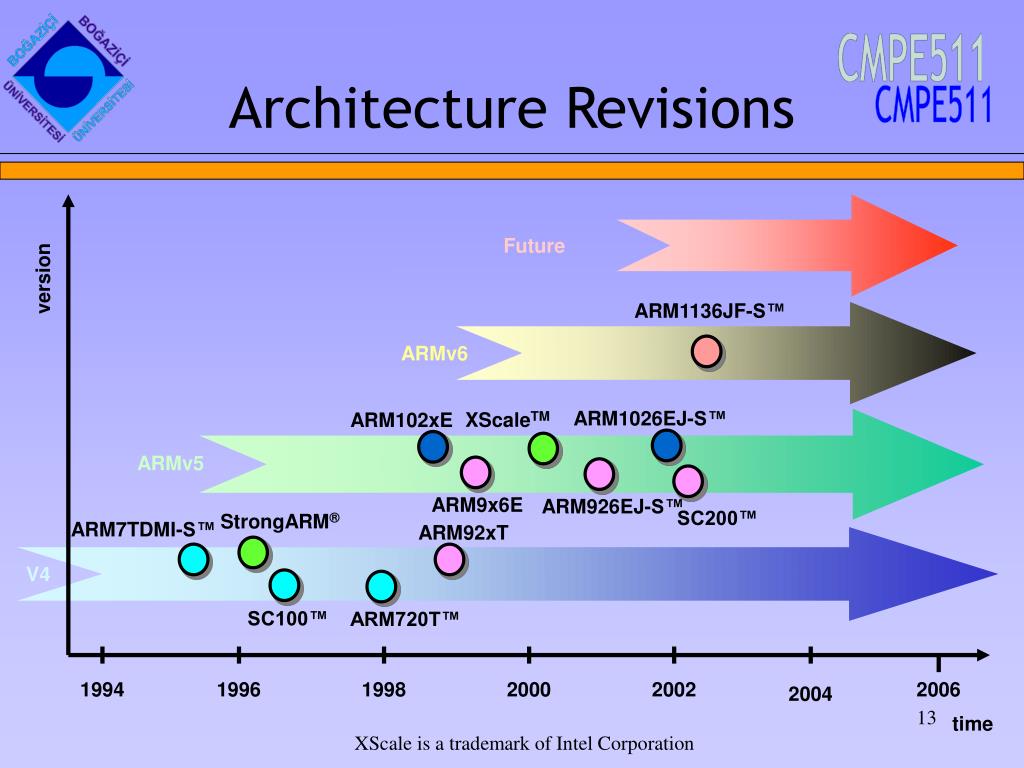

architecture revisions
Architecture Revisions

CMPE511

Future

version

ARM1136JF-S™

ARMv6

ARM1026EJ-S™

XScaleTM

ARM102xE

ARMv5

ARM9x6E

ARM926EJ-S™

SC200™

StrongARM®

ARM7TDMI-S™

ARM92xT

V4

SC100™

ARM720T™

1994

1996

1998

2000

2002

2006

2004

time

XScale is a trademark of Intel Corporation

performance architectures
Performance Architectures

CMPE511

Feature Set

  • ARM v4T
  • ARM v5TE
  • ARM v5TEJ
  • ARM v6

Architecture

v4T

v5TE

v5TEJ

v6

Thumb®

DSP

Jazelle®

Media

ARM7 and ARM9 Family

ARM10 Family

ARM10 Family

ARM11 Family

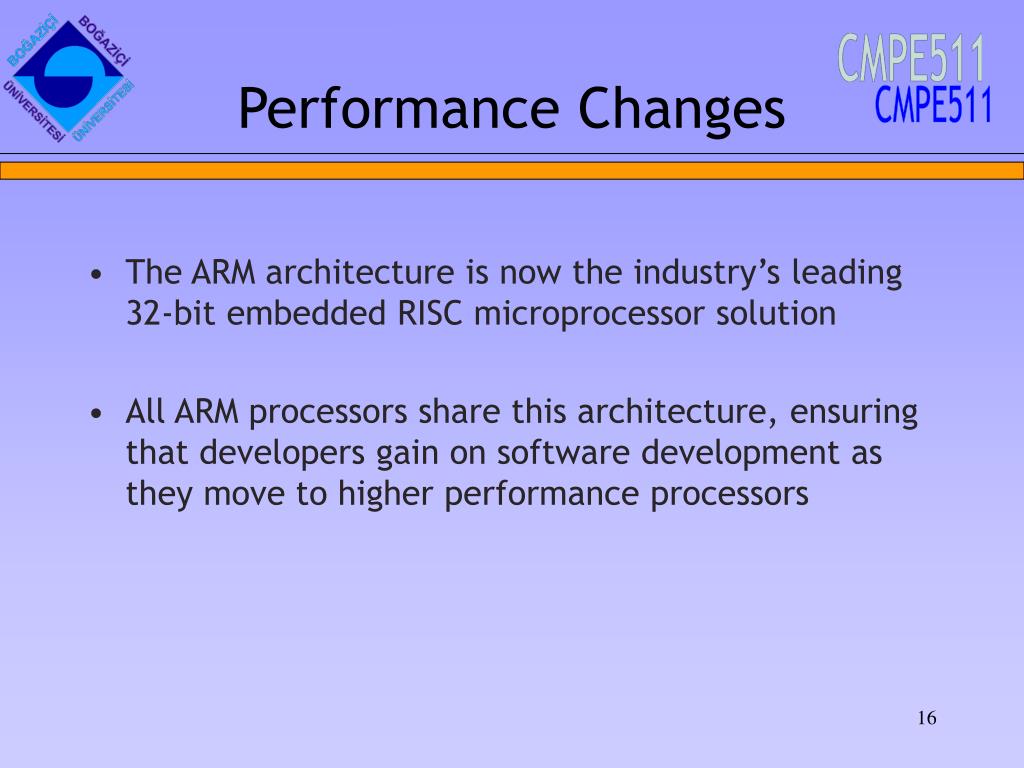

performance changes
Performance Changes

CMPE511

  • The ARM architecture is now the industry’s leading 32-bit embedded RISC microprocessor solution
  • All ARM processors share this architecture, ensuring that developers gain on software development as they move to higher performance processors
key features of the architecture 1
Key Features of The Architecture(1)

CMPE511

  • Some of the key features of the ARM architecture:
    • Thumb® : ARM processors are native 32-bit designs, but also incorporate the 16-bit Thumb instruction set which enables software to be coded as shorter 16-bit instructions. This provides typical memory savings of up to 35 while retaining all the benefits of a 32-bit system
    • SIMD Technology: The ARM SIMD (Single Instruction Multiple Data) media extensions increase the processing capability of ARM solutions
    • DSP : A set of arithmetic instructions for DSP applications. The addition of the DSP instruction set offers 16-bit and 32-bit arithmetic capabilities
    • Jazelle™ : An extension to enable direct execution of Java byte-codes in hardware
    • Media : 2-4x performance increase for audio and video processing
key features of the architecture 2
Key Features of The Architecture(2)

CMPE511

  • ARM TrustZone™ : Provides a secure foundation for systems running open Operating Systems (OS), to ensure that data downloaded or run on the device remains secure
  • The ARM Intelligent Energy Manager (IEM): Implements advanced algorithms to optimally balance processor workload and energy consumption. The Intelligent Energy Manager technology works with the operating system dynamically predict the required future CPU performance level for the applications running on the mobile phone
  • The ARM OptimoDE™ : An extremely configurable VLIW-styled data engine architecture, targeted at intensive non-stop data processing
  • ARM NEON™ : Presents an extensive set of new instructions for future ARM processors that is a 64/128-bit hybrid SIMD architecture

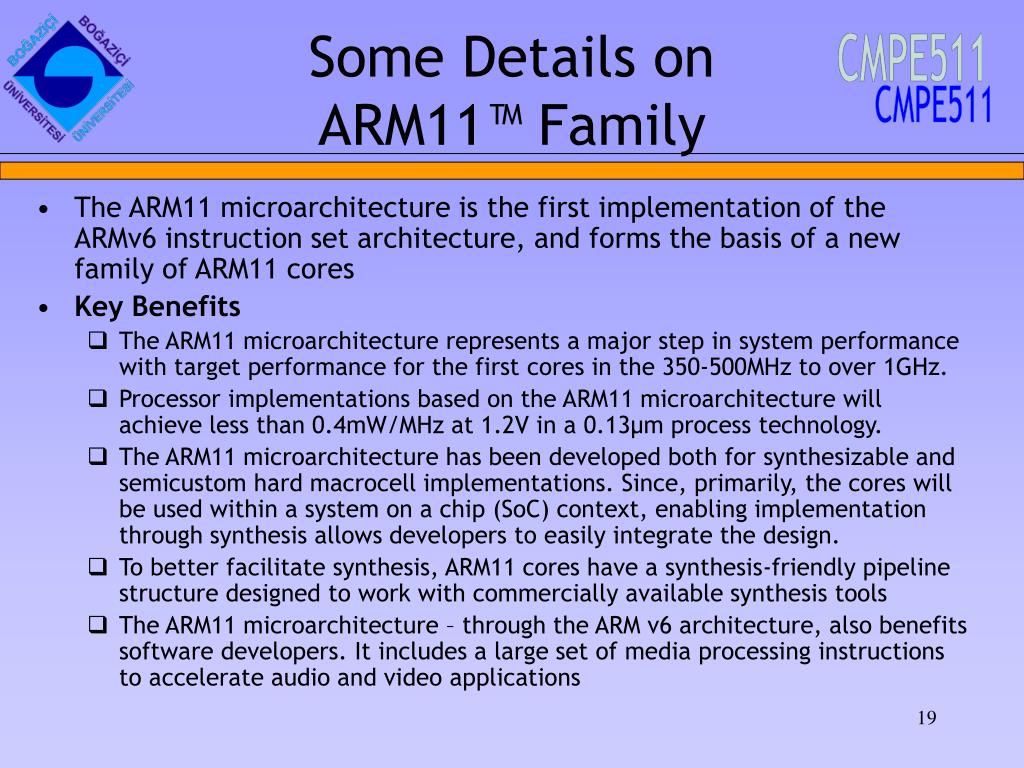

some details on arm 11 family
Some Details on ARM11™ Family

CMPE511

  • The ARM11 microarchitecture is the first implementation of the ARMv6 instruction set architecture, and forms the basis of a new family of ARM11 cores
  • Key Benefits
    • The ARM11 microarchitecture represents a major step in system performance with target performance for the first cores in the 350-500MHz to over 1GHz.
    • Processor implementations based on the ARM11 microarchitecture will achieve less than 0.4mW/MHz at 1.2V in a 0.13µm process technology.
    • The ARM11 microarchitecture has been developed both for synthesizable and semicustom hard macrocell implementations. Since, primarily, the cores will be used within a system on a chip (SoC) context, enabling implementation through synthesis allows developers to easily integrate the design.
    • To better facilitate synthesis, ARM11 cores have a synthesis-friendly pipeline structure designed to work with commercially available synthesis tools
    • The ARM11 microarchitecture – through the ARM v6 architecture, also benefits software developers. It includes a large set of media processing instructions to accelerate audio and video applications

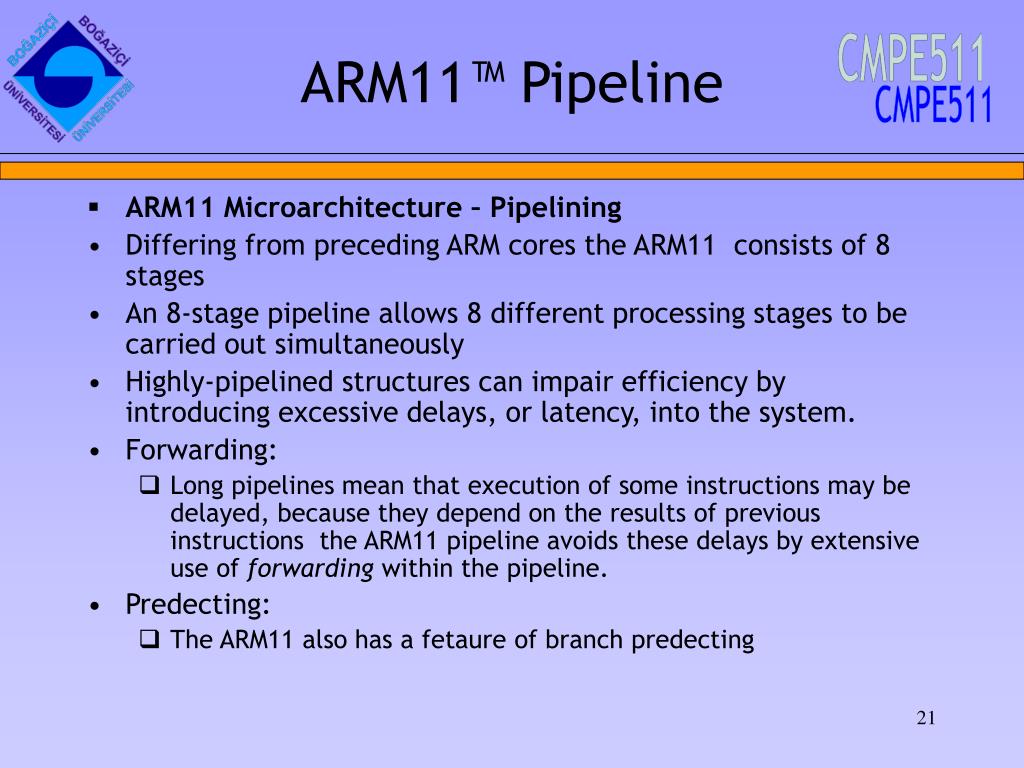

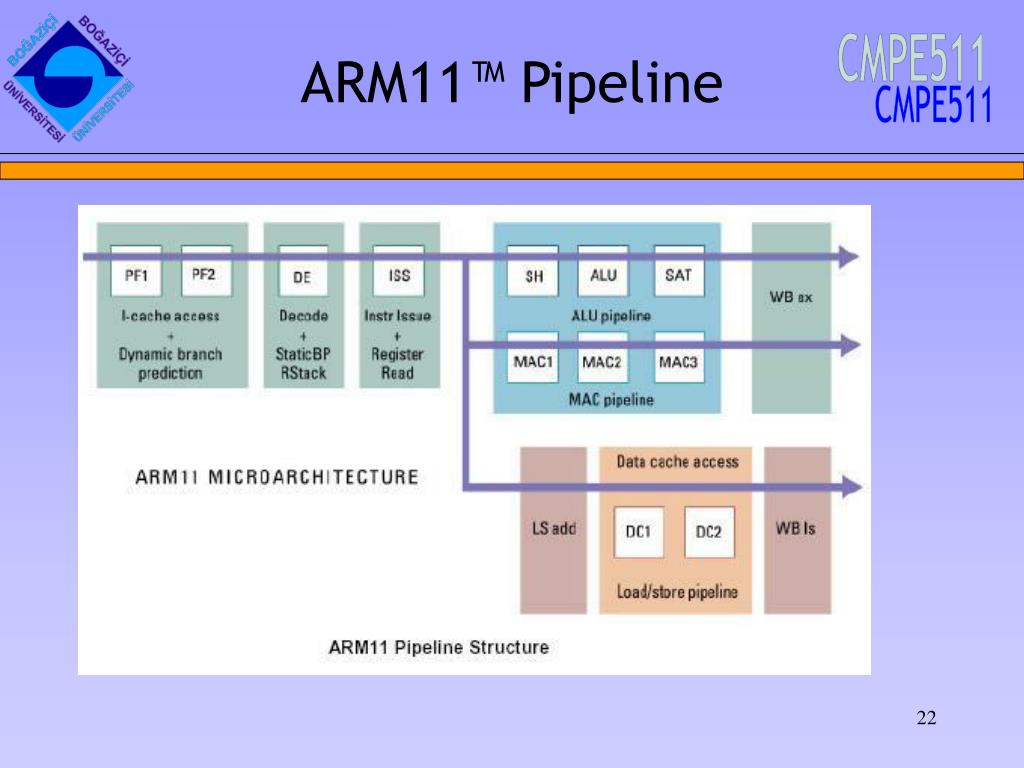

arm 11 pipeline
ARM11™ Pipeline

CMPE511

  • ARM11 Microarchitecture – Pipelining
  • Differing from preceding ARM cores the ARM11 consists of 8 stages
  • An 8-stage pipeline allows 8 different processing stages to be carried out simultaneously
  • Highly-pipelined structures can impair efficiency by introducing excessive delays, or latency, into the system.
  • Forwarding:
    • Long pipelines mean that execution of some instructions may be delayed, because they depend on the results of previous instructions the ARM11 pipeline avoids these delays by extensive use of forwarding within the pipeline.
  • Predecting:
    • The ARM11 also has a fetaure of branch predecting

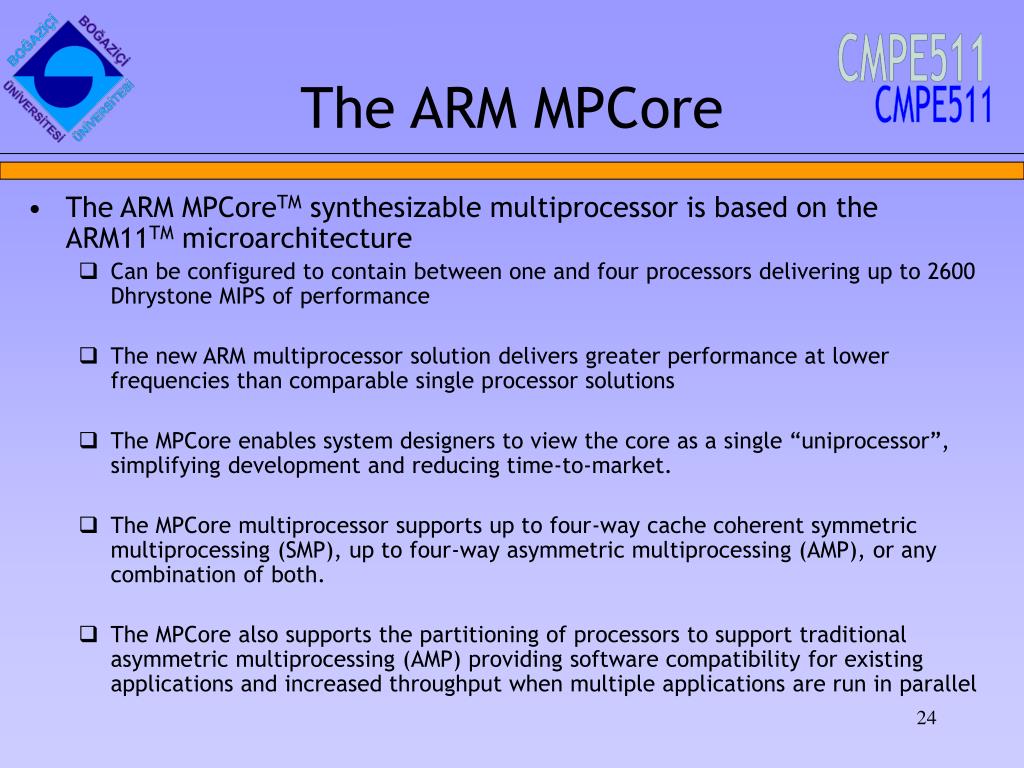

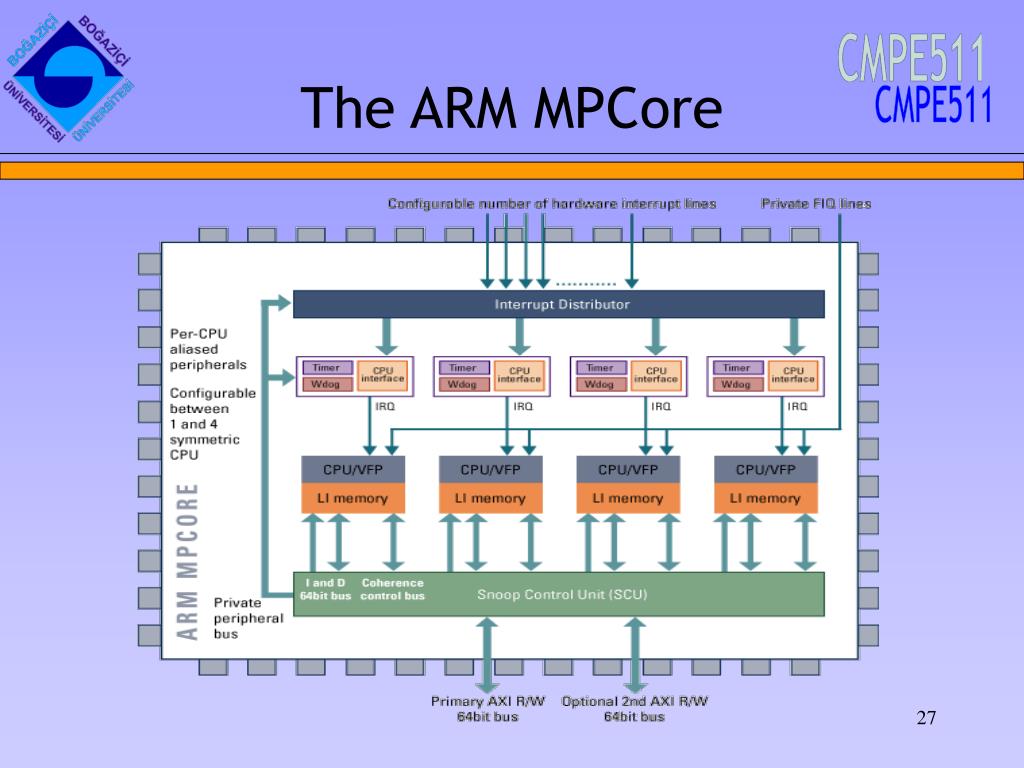

the arm m p core
The ARM MPCore

CMPE511

  • The ARM MPCoreTM synthesizable multiprocessor is based on the ARM11TM microarchitecture
    • Can be configured to contain between one and four processors delivering up to 2600 Dhrystone MIPS of performance
    • The new ARM multiprocessor solution delivers greater performance at lower frequencies than comparable single processor solutions
    • The MPCore enables system designers to view the core as a single “uniprocessor”, simplifying development and reducing time-to-market.
    • The MPCore multiprocessor supports up to four-way cache coherent symmetric multiprocessing (SMP), up to four-way asymmetric multiprocessing (AMP), or any combination of both.
    • The MPCore also supports the partitioning of processors to support traditional asymmetric multiprocessing (AMP) providing software compatibility for existing applications and increased throughput when multiple applications are run in parallel

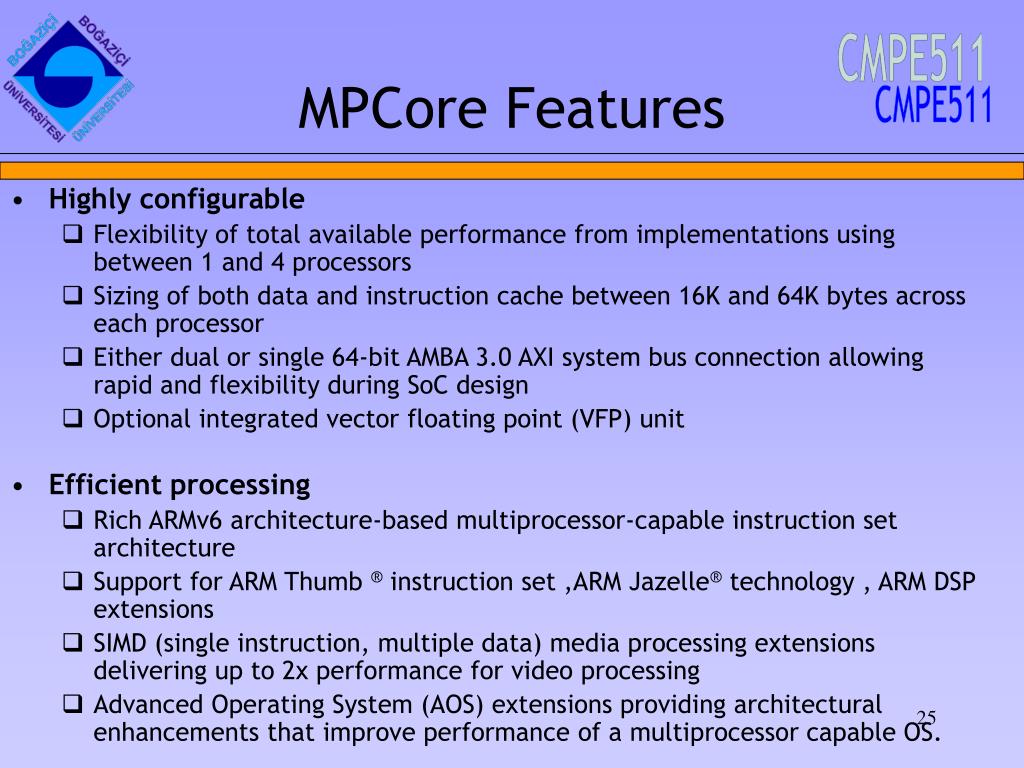

mpcore features
MPCore Features

CMPE511

  • Highly configurable
    • Flexibility of total available performance from implementations using between 1 and 4 processors
    • Sizing of both data and instruction cache between 16K and 64K bytes across each processor
    • Either dual or single 64-bit AMBA 3.0 AXI system bus connection allowing rapid and flexibility during SoC design
    • Optional integrated vector floating point (VFP) unit
  • Efficient processing
    • Rich ARMv6 architecture-based multiprocessor-capable instruction set architecture
    • Support for ARM Thumb® instruction set ,ARM Jazelle® technology , ARM DSP extensions
    • SIMD (single instruction, multiple data) media processing extensions delivering up to 2x performance for video processing
    • Advanced Operating System (AOS) extensions providing architectural enhancements that improve performance of a multiprocessor capable OS.

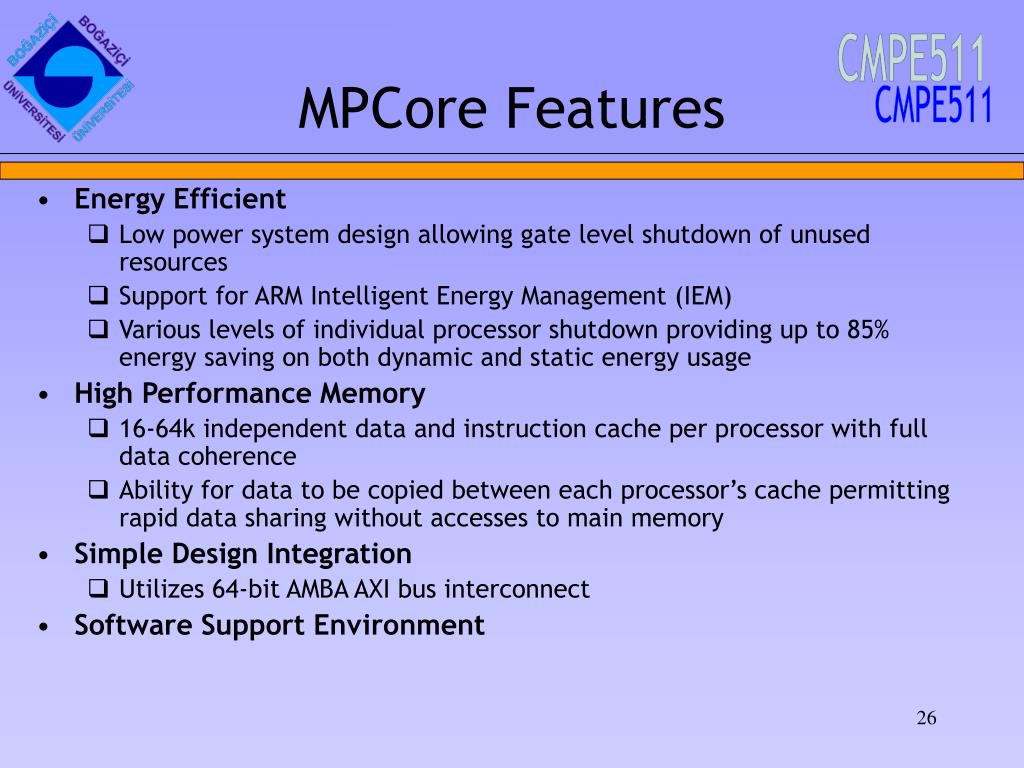

mpcore features26
MPCore Features

CMPE511

  • Energy Efficient
    • Low power system design allowing gate level shutdown of unused resources
    • Support for ARM Intelligent Energy Management (IEM)
    • Various levels of individual processor shutdown providing up to 85% energy saving on both dynamic and static energy usage
  • High Performance Memory
    • 16-64k independent data and instruction cache per processor with full data coherence
    • Ability for data to be copied between each processor’s cache permitting rapid data sharing without accesses to main memory
  • Simple Design Integration
    • Utilizes 64-bit AMBA AXI bus interconnect
  • Software Support Environment

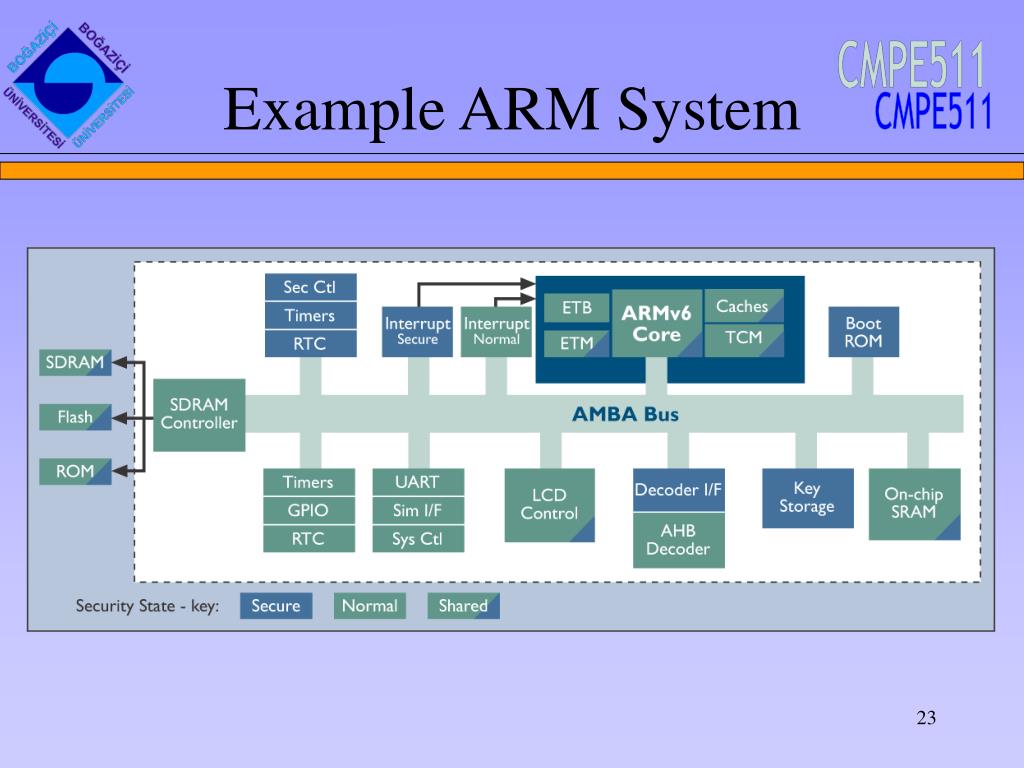

amba overview
AMBA Overview

CMPE511

  • Standard for On-Chip Bus
    • AMBA is an open standard, on-chip bus specification that details a strategy for the interconnection and management of functional blocks that makes up a System-on-Chip (SoC)
    • It facilitates "right-first-time" development of embedded processors with one or more CPU/signal processors and multiple peripherals
    • AMBA enhances a reusable design methodology by defining a common backbone for SoC modules
  • AMBA Flexibility
    • For the on-chip bus, flexibility is the key to reuse by enabling developers to select the optimal architecture to efficiently meet the performance requirements of a wide variety of systems.
    • AMBA enables the SoC designer to select the optimal combination of bus frequency (to match the peripherals) and number of channels (to achieve the bandwidth), using the AMBA Multi-layer architecture
amba overview29
AMBA Overview

CMPE511

  • AMBA Compatibility
    • The AMBA interface standards ensure that peripherals can be reused with confidence in a multitude of systems
    • AMBA compliance provides the mechanism to ensure reuse of peripherals between systems
  • AMBA Support
    • AMBA has been widely adopted throughout the industry and, as a consequence, there is support for the development of AMBA bus-based systems from a growing number of companies
the arm instruction set architecture
The ARM Instruction Set Architecture

CMPE511

  • The ARM architecture  provides  support for the 32-bit ARM and 16-bit Thumb® Instruction Set Architectures along witharchitecture extensions to provide support for Javaacceleration (Jazelle™) and security (TrustZone™)technologies
  • ARMv4ARMv4 can be considered a 32-bit ISA operating in a 32-bit address space.
  • ARMv4TThe ARMv4T architecture added the 16-bit Thumb instruction set which enabled compilers to generate more compact code while retaining all the benefits of a 32-bit system.
  • ARMv5TEThumb architecture, along with ARM ‘Enhanced’ DSP instruction set extensions to the ARM ISA.
  • ARMv5TEJThe Jazelle extension to support Java acceleration technology.

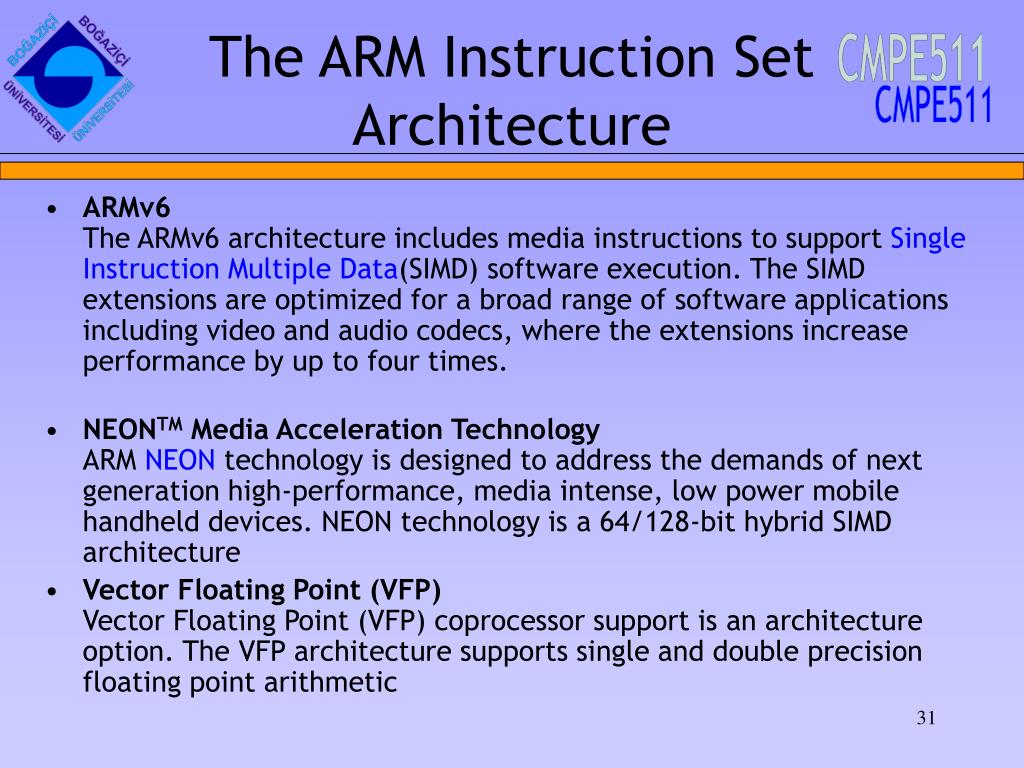

the arm instruction set architecture31
The ARM Instruction Set Architecture

CMPE511

  • ARMv6The ARMv6 architecture includes media instructions to support Single Instruction Multiple Data(SIMD) software execution. The SIMD extensions are optimized for a broad range of software applications including video and audio codecs, where the extensions increase performance by up to four times.
  • NEONTM Media Acceleration TechnologyARM NEON technology is designed to address the demands of next generation high-performance, media intense, low power mobile handheld devices. NEON technology is a 64/128-bit hybrid SIMD architecture
  • Vector Floating Point (VFP)Vector Floating Point (VFP) coprocessor support is an architecture option. The VFP architecture supports single and double precision floating point arithmetic

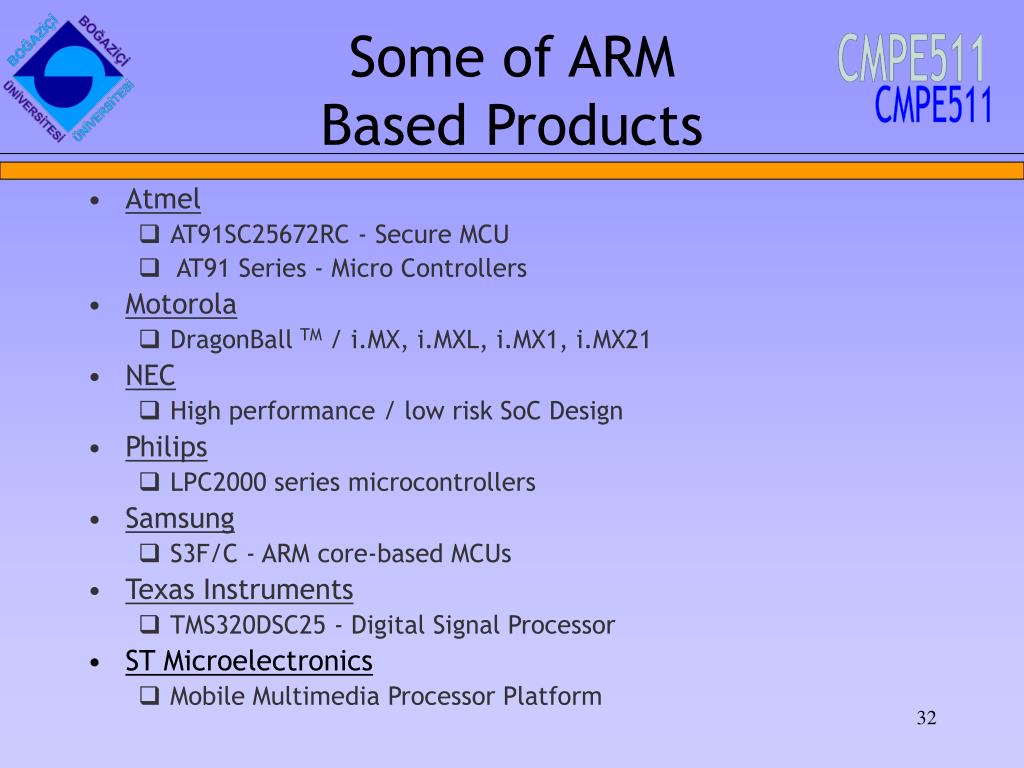

some of arm b ased products
Some of ARMBasedProducts

CMPE511

  • Atmel
    • AT91SC25672RC - Secure MCU
    • AT91 Series - Micro Controllers
  • Motorola
    • DragonBall TM / i.MX, i.MXL, i.MX1, i.MX21
  • NEC
    • High performance / low risk SoC Design
  • Philips
    • LPC2000 series microcontrollers
  • Samsung
    • S3F/C - ARM core-based MCUs
  • Texas Instruments
    • TMS320DSC25 - Digital Signal Processor
  • ST Microelectronics
    • Mobile Multimedia Processor Platform
slide33

CMPE511

Thanks For Listening !..

Questions?
