on the influence of weather forecast errors in short t erm load forecasting models

On the Influence of Weather Forecast Errors in Short-Term Load Forecasting Models

Damien Fay,

John V. Ringwood

IEEE POWER SYSTEMS, 2010

outline

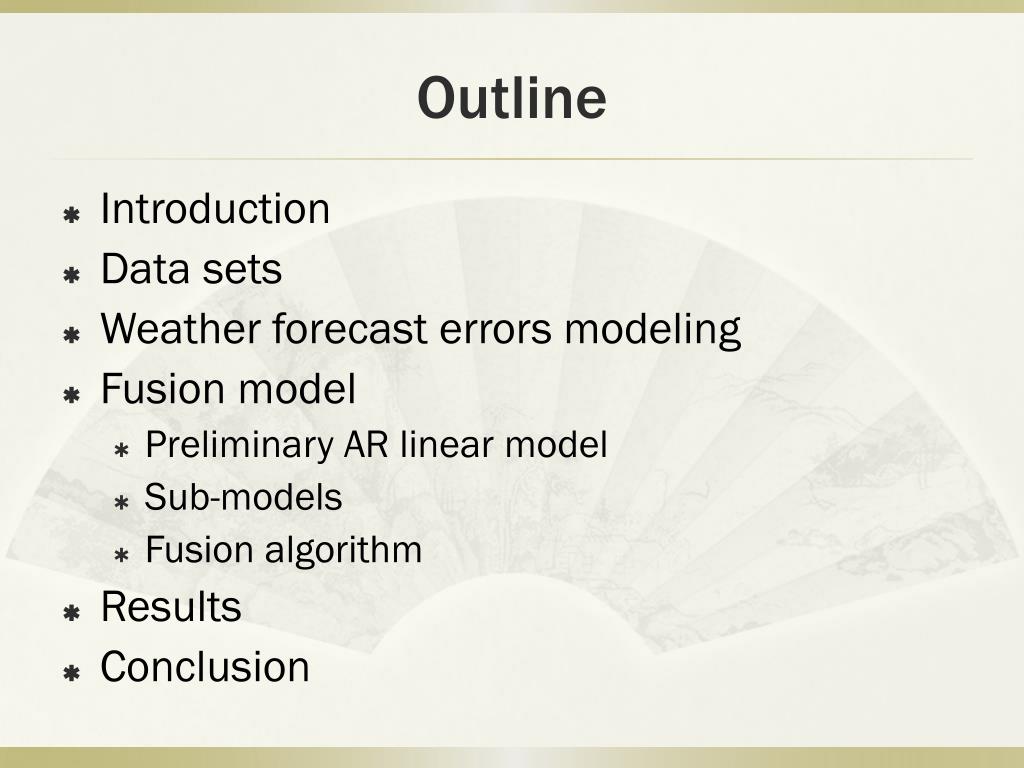

Outline
  • Introduction
  • Data sets
  • Weather forecast errors modeling
  • Fusion model
    • Preliminary AR linear model
    • Sub-models
    • Fusion algorithm
  • Results
  • Conclusion
introduction
Introduction

Short-term load forecasting(STLF) refers to forecast electricity demand on an hour basis from one to several days ahead.

STLF reduce the amount of excess electricity production by underestimate the load accurately.

In many electricity grid systems, “weather” is an important factor to estimate the load and has been proved that it will improve the prediction accuracy. However, weather forecasts often come with forecasting errors, and cause about 17% to 60% load forecasting errors.

introduction1
Introduction

Main idea in this paper is to combine several models(called sub-models), or model fusion, as a technique for minimizing the effect of weather forecast errors in load forecasting models.

Model fusion has been widely used in general field forecasting, but this is the first use to deal with forecast errors. The sub-models in fusion algorithm may be trained by actual weather data and the effect of weather forecasting error taken into account when combining models.

weather forecast errors modeling
Weather forecast errors modeling

Previous approach in STLF simply model the weather forecast errors as a IID Gaussian random variable

weather forecast errors modeling1

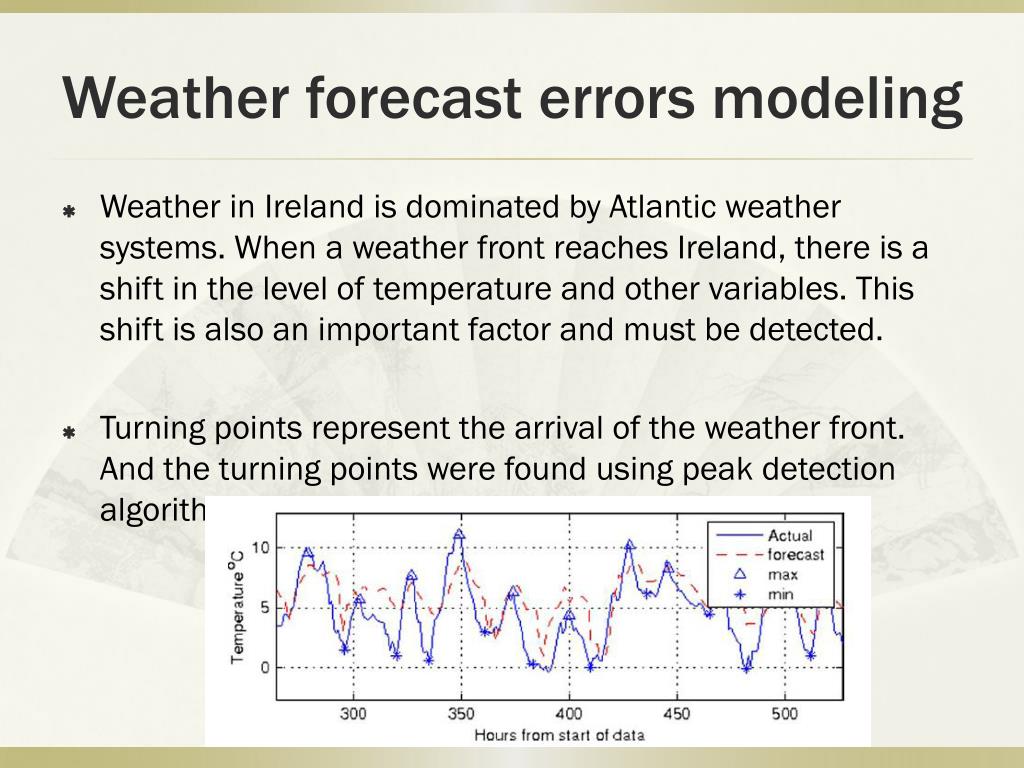

Weather forecast errors modeling

Weather in Ireland is dominated by Atlantic weather systems. When a weather front reaches Ireland, there is a shift in the level of temperature and other variables. This shift is also an important factor and must be detected.

Turning points represent the arrival of the weather front. And the turning points were found using peak detection algorithm.

weather forecast errors modeling2

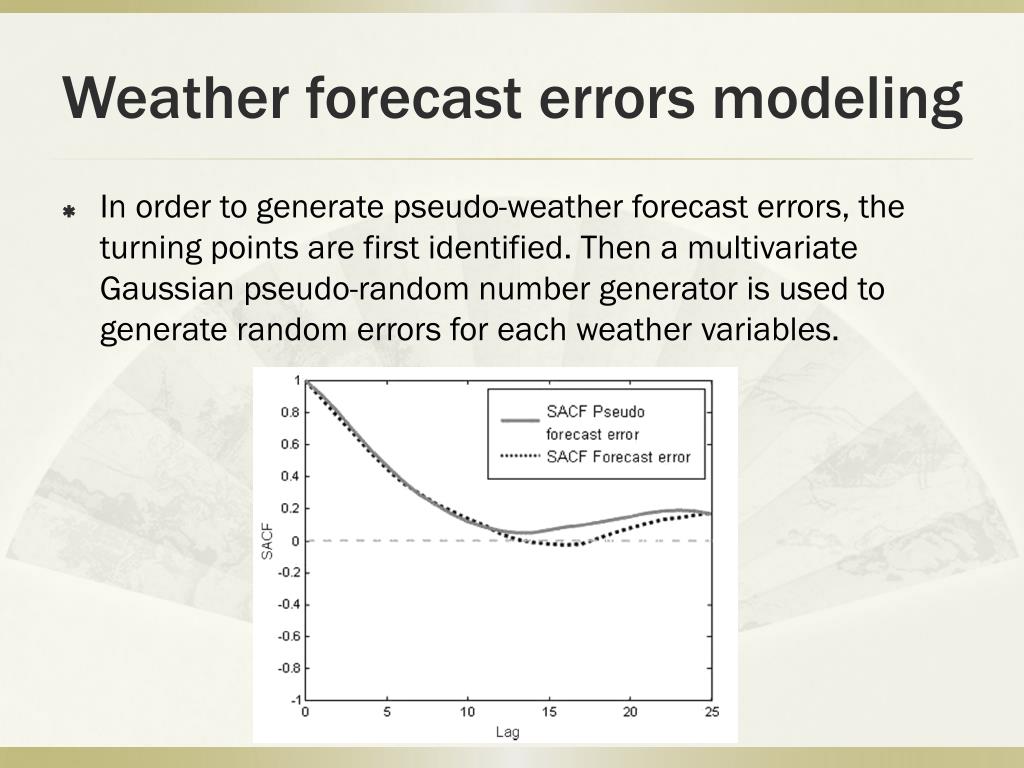

Weather forecast errors modeling

In order to generate pseudo-weather forecast errors, the turning points are first identified. Then a multivariate Gaussian pseudo-random number generator is used to generate random errors for each weather variables.

fusion model preliminary ar linear model

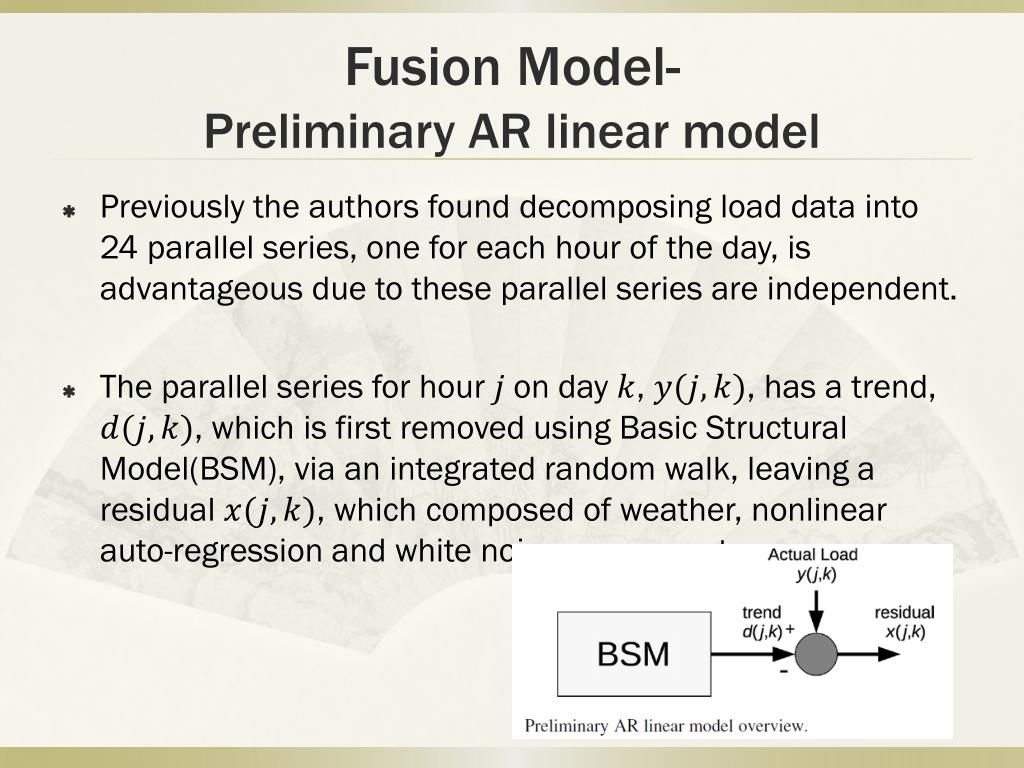

Fusion Model-Preliminary AR linear model

Previously the authors found decomposing load data into 24 parallel series, one for each hour of the day, is advantageous due to these parallel series are independent.

The parallel series for hour on day , , has a trend, , which is first removed using Basic Structural Model(BSM), via an integrated random walk, leaving a residual , which composed of weather, nonlinear auto-regression and white noise components

fusion model sub models

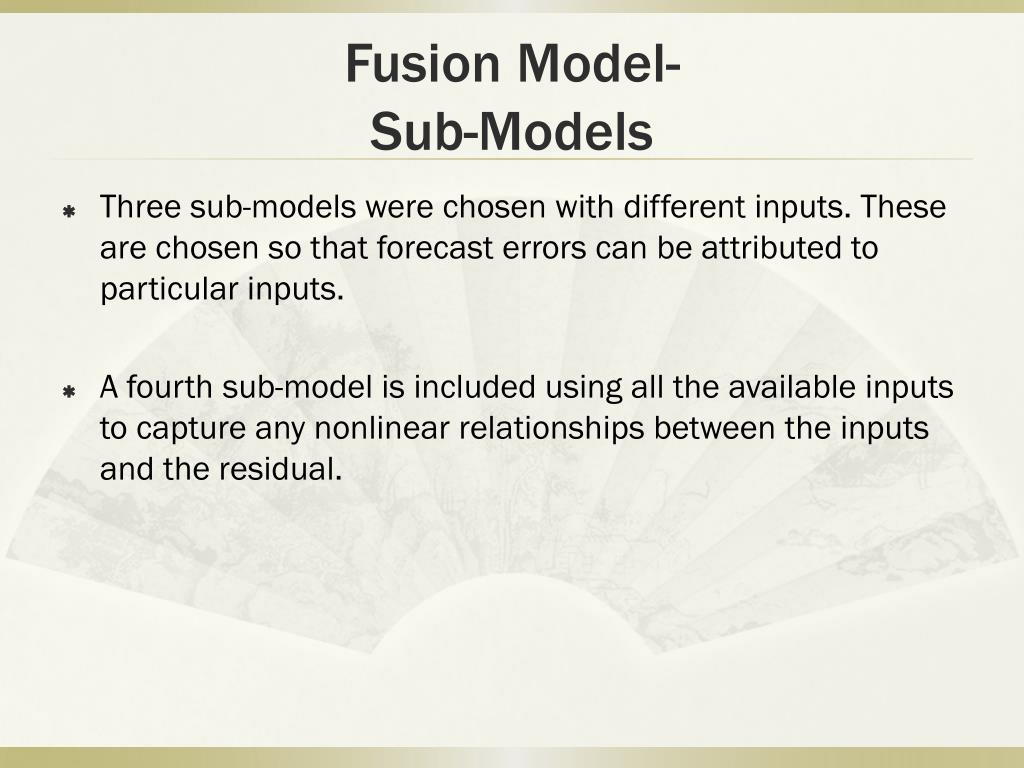

Fusion Model-Sub-Models

Three sub-models were chosen with different inputs. These are chosen so that forecast errors can be attributed to particular inputs.

A fourth sub-model is included using all the available inputs to capture any nonlinear relationships between the inputs and the residual.

fusion model sub models1

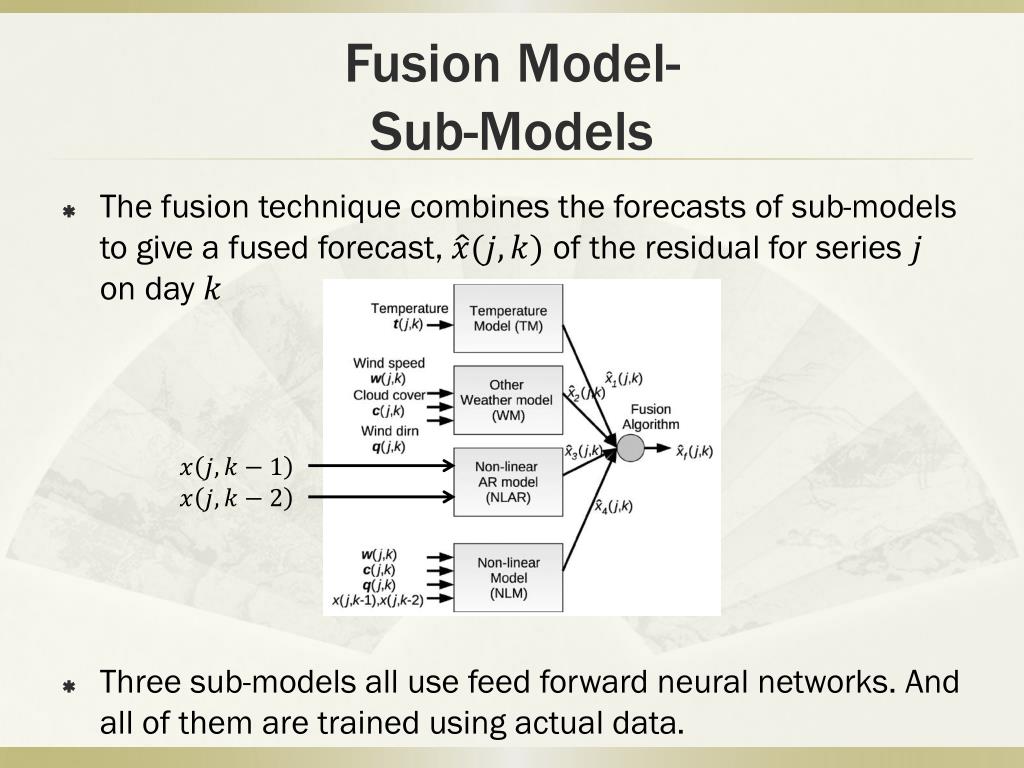

Fusion Model-Sub-Models

The fusion technique combines the forecasts of sub-models to give a fused forecast, of the residual for series on day

Three sub-models all use feed forward neural networks. And all of them are trained using actual data.

fusion model fusion algorithm

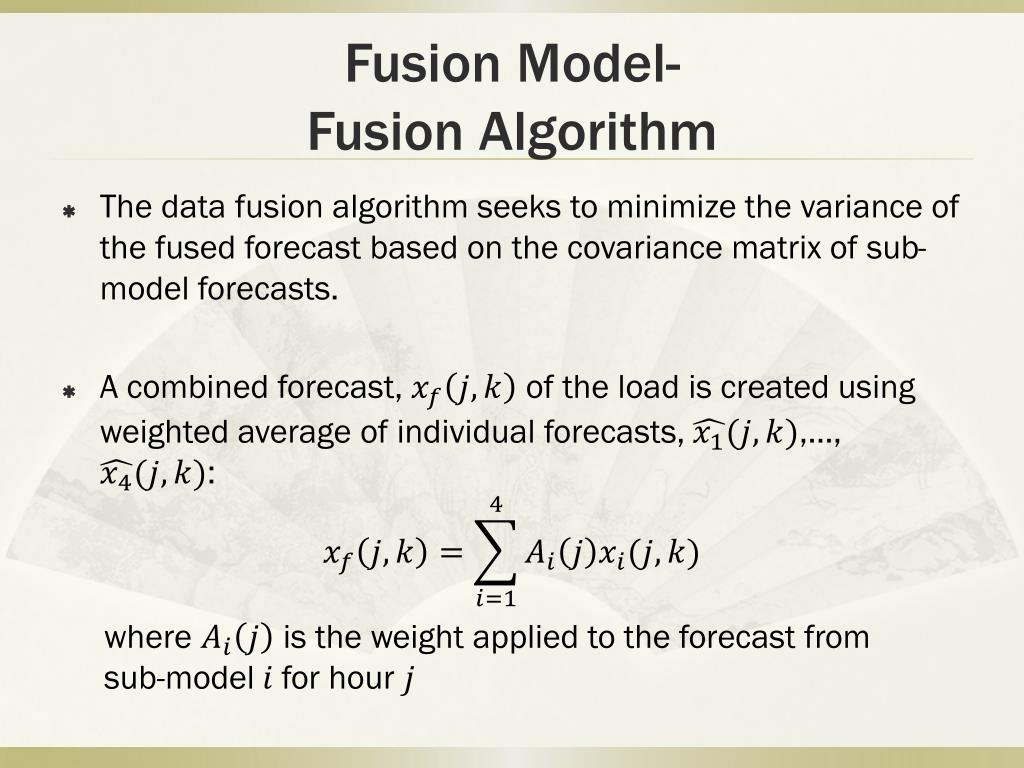

Fusion Model-Fusion Algorithm

The data fusion algorithm seeks to minimize the variance of the fused forecast based on the covariance matrix of sub-model forecasts.

A combined forecast, of the load is created using weighted average of individual forecasts, ,…,:

where is the weight applied to the forecast from sub-modelfor hour

fusion model fusion algorithm1

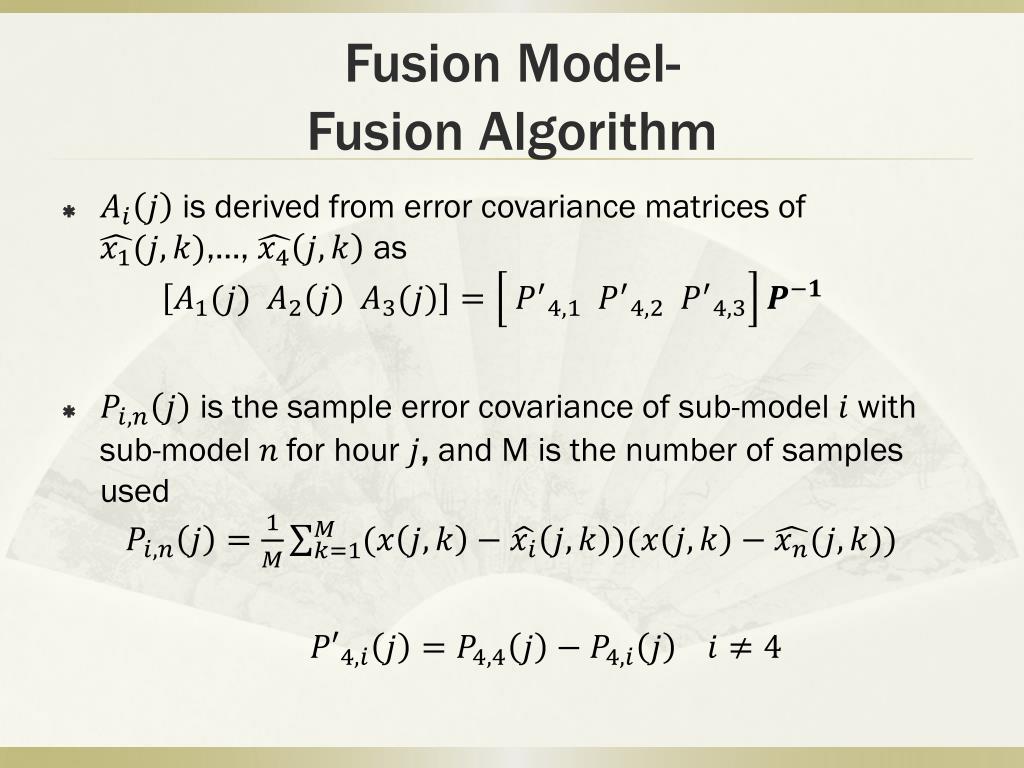

Fusion Model-Fusion Algorithm

is derived from error covariance matrices of ,…, as

is the sample error covariance of sub-model with sub-model for hour ,andM is the number of samples used

fusion model fusion algorithm2
Fusion Model-Fusion Algorithm

where

=

and the final weight is determined using the constraint that is unbiased:

fusion model fusion algorithm3

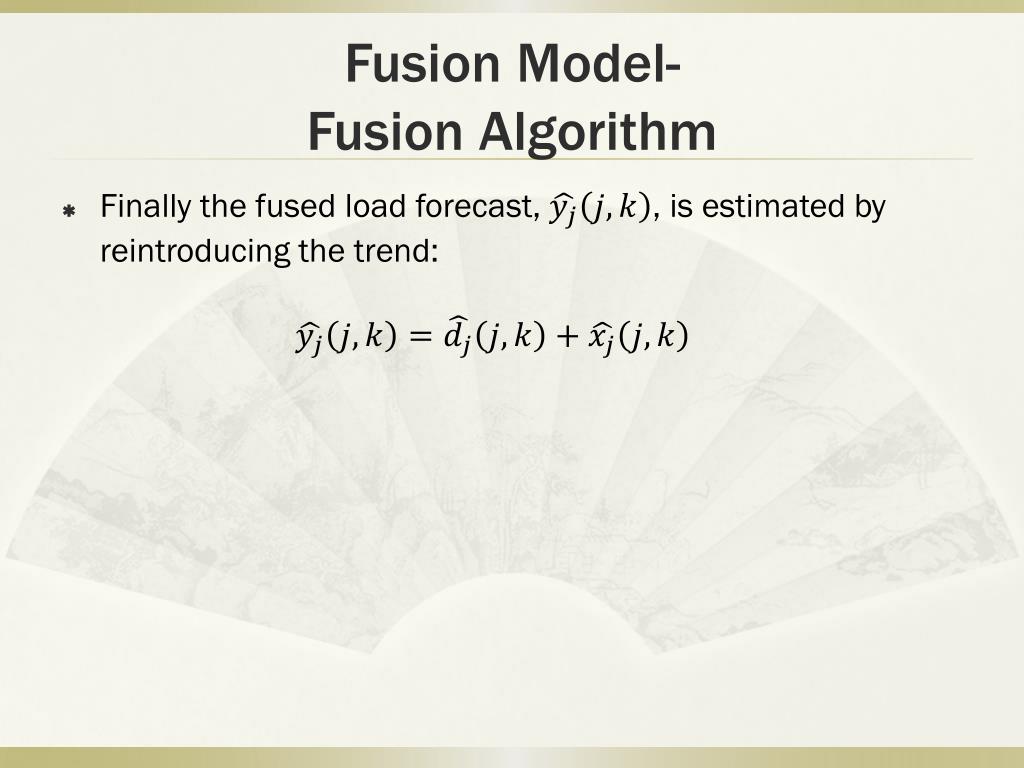

Fusion Model-Fusion Algorithm

Finally the fused load forecast, , is estimated by reintroducing the trend:

results cases

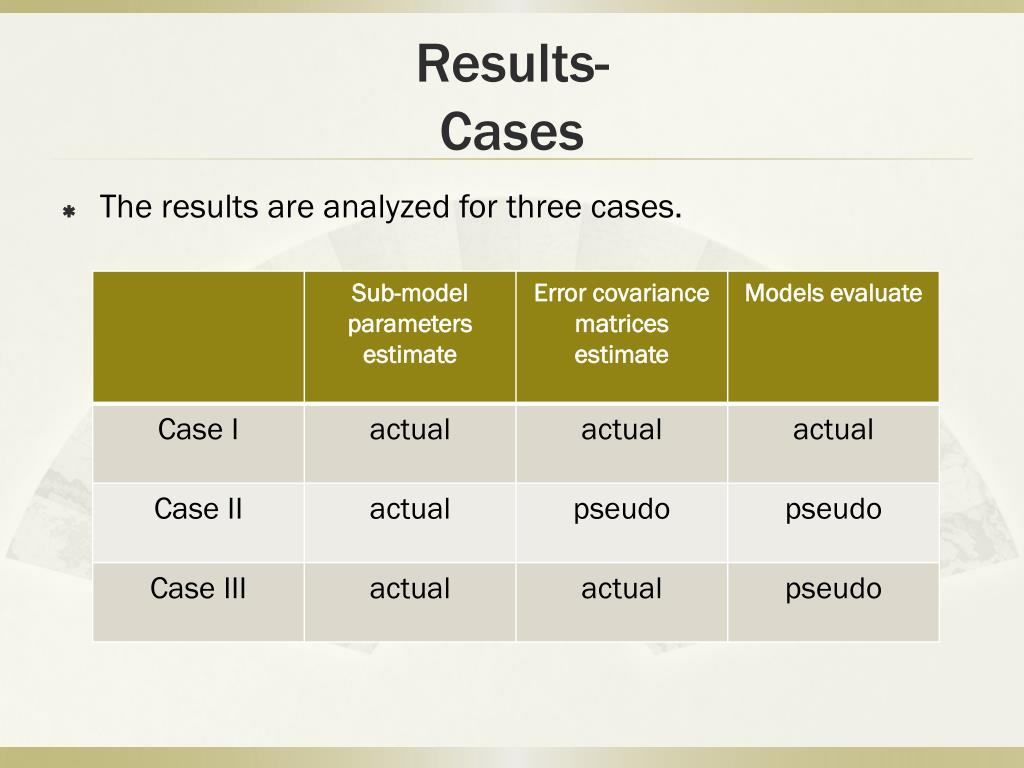

Results-Cases

The results are analyzed for three cases.

results cross covariance

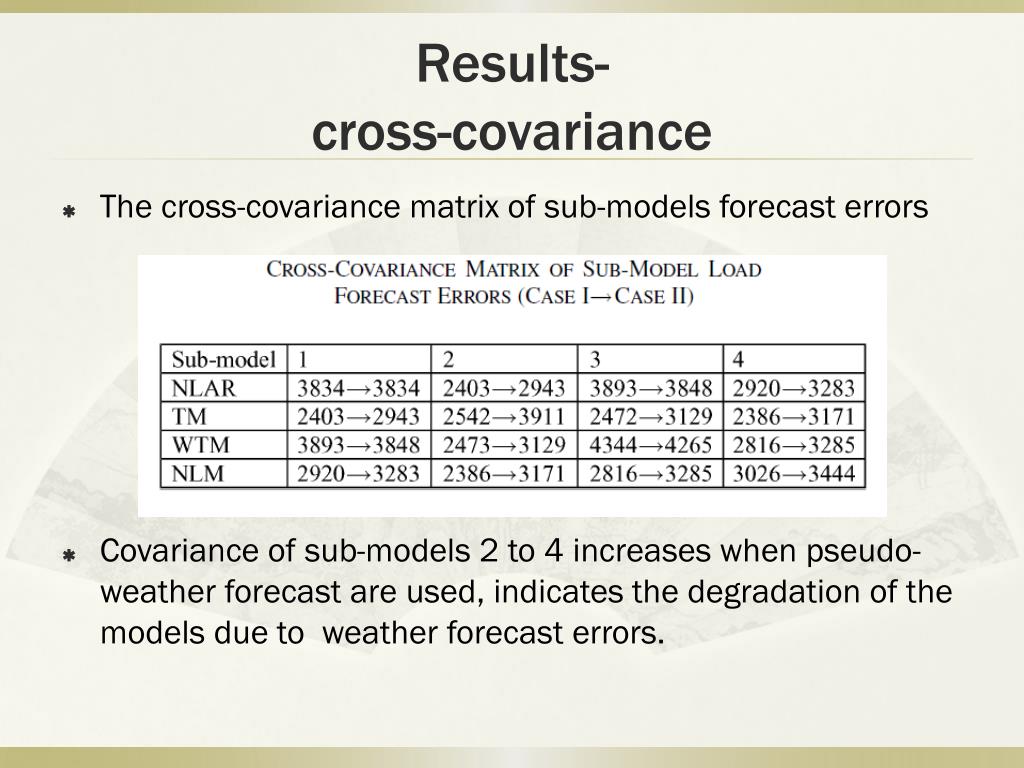

Results-cross-covariance

The cross-covariance matrix of sub-models forecast errors

Covariance of sub-models 2 to 4 increases when pseudo-weather forecast are used, indicates the degradation of the models due to weather forecast errors.

results weights
Results-weights

Corresponding values of , ,

results mape of cases

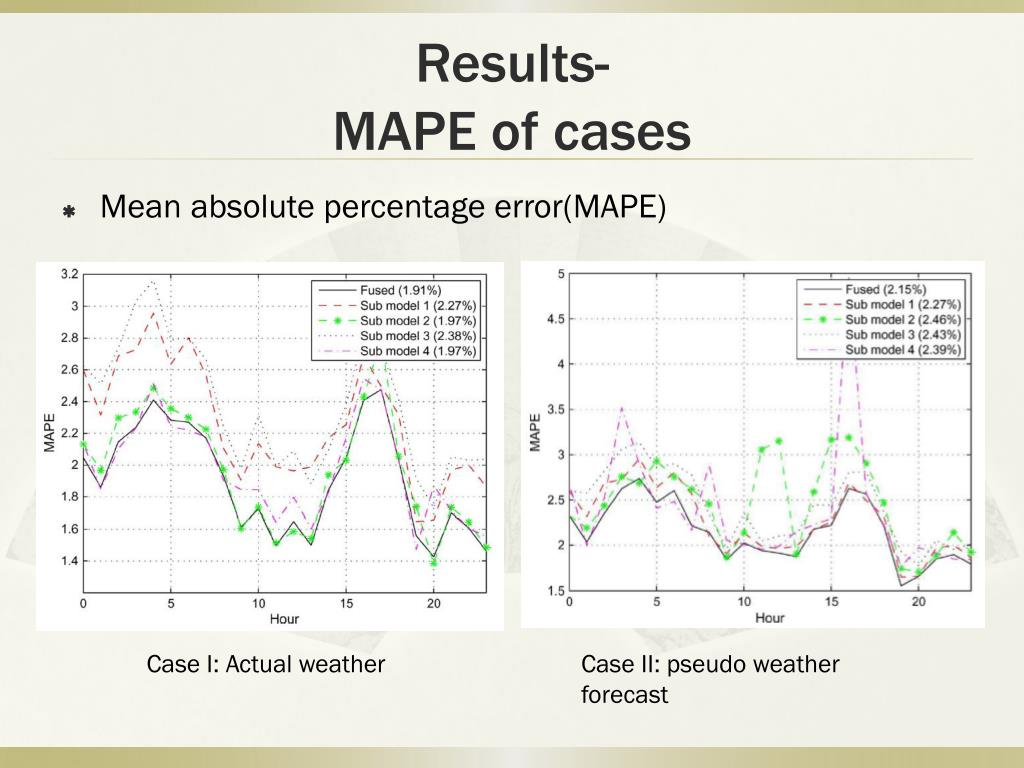

Results-MAPE of cases

Case I: Actual weather

Case II: pseudo weather forecast

Mean absolute percentage error(MAPE)

conclusion

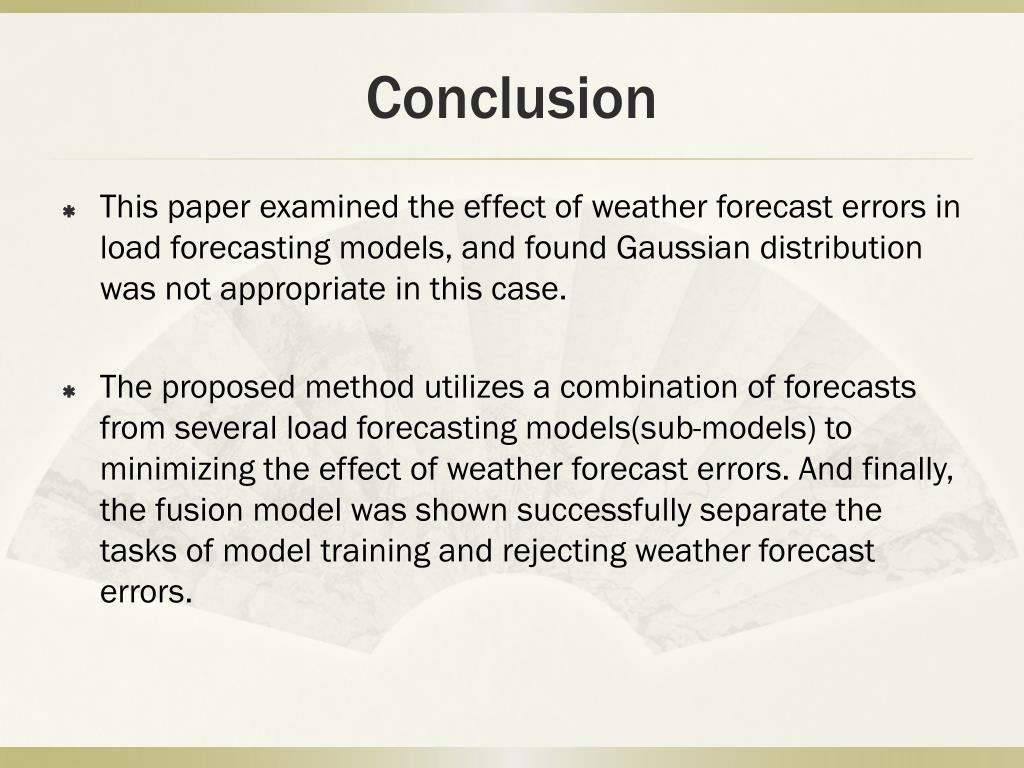

Conclusion

This paper examined the effect of weather forecast errors in load forecasting models, and found Gaussian distribution was not appropriate in this case.

The proposed method utilizes a combination of forecasts from several load forecasting models(sub-models) to minimizing the effect of weather forecast errors. And finally, the fusion model was shown successfully separate the tasks of model training and rejecting weather forecast errors.
