  1. Scaling To InfinityPartitioning Data Warehouses on Oracle DatabaseSession UGF-3587Sunday 28-Sep 2014 Tim Gorman - www.Delphix.com

  2. Agenda • Stating the problem • Brief overview of star schemas • Brief overview of star transformations • The virtuous cycle • The death spiral • EXCHANGE PARTITION load technique in detail • More EXCHANGE PARTITION ideas www.Delphix.com

  3. A short story… • Background: DBA support for about 70 data warehouse databases at a large telecommunications company • Emails about “out of space in TEMP tablespace” scraped out of “alert.log” file in a QA/TEST database • Offshore DBAs already reacting by killing sessions • QA/TEST database already has 56G temp, and PROD has almost 300G temp • Reviewing AWR reports reveals a parallel aggregated query against a view comprising a “star schema” between a fact table and 33 dimension tables • Further analysis reveals that none of the dimension-key columns on the fact table supported by bitmap indexes • Thus, the “star join” consists of a partition-pruned FULL table scan on the fact, followed by 33 HASH joins in parallel to the dimensions www.Delphix.com

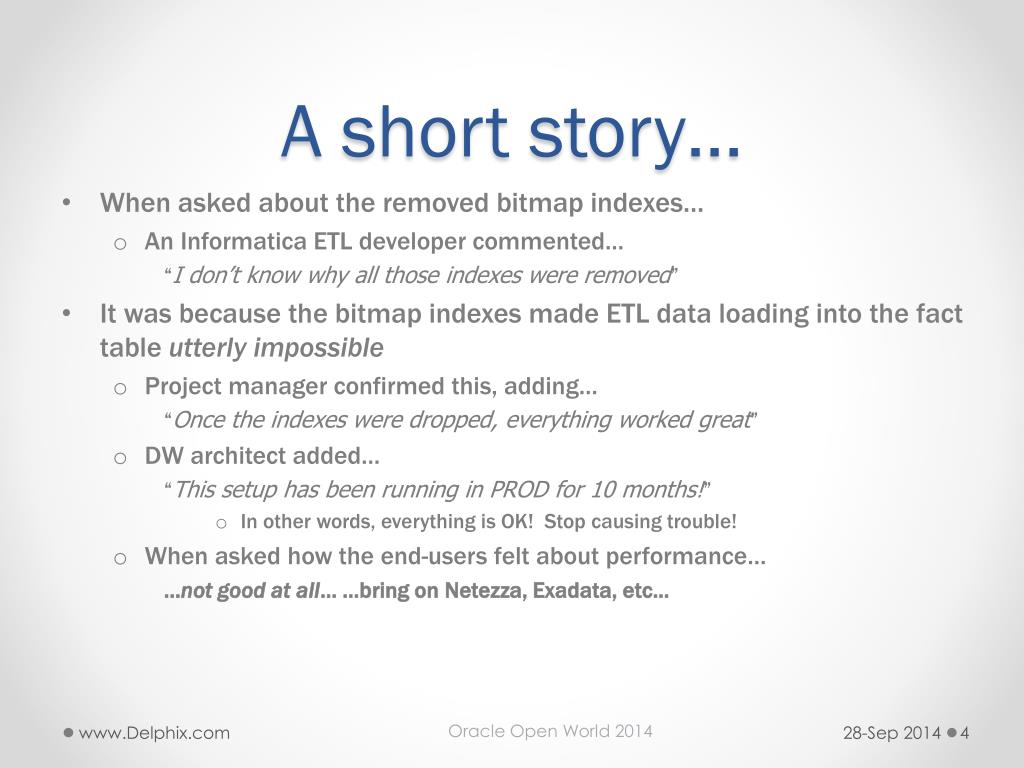

  4. A short story… • When asked about the removed bitmap indexes… • An Informatica ETL developer commented… “I don’t know why all those indexes were removed” • It was because the bitmap indexes made ETL data loading into the fact table utterly impossible • Project manager confirmed this, adding… “Once the indexes were dropped, everything worked great” • DW architect added… “This setup has been running in PROD for 10 months!” • In other words, everything is OK! Stop causing trouble! • When asked how the end-users felt about performance… …not good at all… …bring on Netezza, Exadata, etc... www.Delphix.com

  5. Why Star Schemas? • BI analysts just want a big spreadsheet • Lots and lots of attribute and measure columns • Attributes characterize the data • Measures are usually additive and numeric • Dimensional data model is really just that spreadsheet • Normalized to recursive depth of one • More sophisticated models might normalize further (snowflake) • Normalized entities are dimension tables • Columns are primary key and attribute columns • Original spreadsheet is the fact table • Columns are foreign-keys to dimensions and measures www.Delphix.com

  6. Why Star Schemas? Transactional Operational Entity-Relational Modeling Dimensional Modeling Customers Suppliers Suppliers Dim Products Dim Orders Products Order Facts Order Lines Customers Dim Time Dim www.Delphix.com

  7. Why Star Transformations? Star transformation compared to other join methods (NL, SM, HA): • Filter result set in one of the dimension tables • Join from that dimension table to the fact along a low-cardinality dimension key • Join back from fact to other dimensions using dimension PK • Filtering rows retrieved along the way • Wasteful and inefficient Fact table Dim Table 1 Dim Table 2 Dim Table 3 Dim Table 4 www.Delphix.com

  8. Why Star Transformations? Dim Table 1 Star transformation: • Filter on query set in each dimension • Merge result set from all dimensions • Join to the fact from merged result set, using BITMAP MERGE index scan Dim Table 2 Dim Table 3 Dim Table 4 www.Delphix.com

  9. Why Star Transformations? • Point: Single-column bitmap indexes on dimension-key columns are required for star transformation • Counter-point: Bitmap indexes become impossible to load/maintain when data volume increases past dozens of Gb • Catch-22? Does this mean that Oracle cannot handle large data warehouses? www.Delphix.com

  10. The Virtuous Cycle • Non-volatile time-variant data implies… • Data warehouses are INSERT only • Insert-only data warehouses implies… • Tables and indexes range-partitioned by a DATE column • Tables range-partitioned by DATE enables… • Data loading using EXCHANGE PARTITION load technique • Incremental statistics gathering and summarization • Data loading using EXCHANGE PARTITION enables… • Direct-path (a.k.a. append) inserts • Partitions organized into time-variant tablespaces • Data purging using DROP/TRUNCATE PARTITION instead of DELETE • Bitmap indexes and bitmap-join indexes • Elimination of ETL “load window” and 24x7 availability for queries www.Delphix.com

  11. The Virtuous Cycle • Direct-path (a.k.a. append) inserts enable… • Load more data, faster, more efficiently • Optional NOLOGGING on inserts • Basic table compression (9i and above) • Eliminates contention in Oracle Buffer Cache during data loading • Optional NOLOGGING inserts enable… • Option to generate less redo during data loads • Basic table compression enables… • Less space consumed for tables and indexes • Fewer I/O operations during queries • Partitions organized into time-variant tablespaces enable… • READ ONLY tablespaces for older, less-volatile data www.Delphix.com

  12. The Virtuous Cycle • READ ONLY tablespaces for older less-volatile data enables… • Tiered storage • Backup efficiencies • Data purging using DROP/TRUNCATE PARTITION enables… • Faster more efficient data purging than using DELETE statements • Bitmap indices enable… • Star transformations • Star transformations enable… • Optimal query-execution plan for dimensional data models • Bitmap-join indexes • Bitmap-join indexes enable… • Further optimization of star transformations www.Delphix.com

  13. The Death Spiral • ETL using “conventional-path” INSERT, UPDATE, and DELETE operations • Conventional-path operations are trouble with: • High-volume data loads • Contention in Shared Pool, Buffer Cache, global structures • Mixing of queries and loads simultaneously on table and indexes • Periodic rebuilds/reorgs of tables if deletions occur • Full redo and undo generation for all inserts, updates, and deletes • Bitmap indexes and bitmap-join indexes • Modifying bitmap indexes is slow • Prone to locking issues in concurrency situations • ETL will dominate the workload in the database • Queries will consist mainly of “dumps” or extracts to downstream systems • Query performance will be abysmal and worsening… www.Delphix.com

  14. The Death Spiral • Without partitioning and insert-only (insert mostly?) • Query performance worsens as tables/indexes grow larger • ETL performance worsens as… • Loads must be performed into “live” tables • Users must be locked out during “load cycle” • In-flight queries must be killed during “load cycle” • Bitmap indexes must be dropped/rebuilt during “load cycle” • Entire tables must be re-analyzed during “load cycle” • Entire database must be backed up frequently • No change for setting tablespaces to READ ONLY • Data cannot be “right-sized” to storage options according to IOPS • Everything just gets harder and harder to do… • …and that stupid Oracle software is to blame… • Bring on Exadataor Netezzaor <expensive-flavor-of-the-month> www.Delphix.com

  15. Exchange Partition • The technique of bulk-loading new data into a temporary “swap table”, which is then “published” using the EXCHANGE PARTITION operation, should be the default load technique for all large tables in a data warehouse • fact tables • slowly-changing dimensions • Assumptions for this upcoming example: • Composite partitioned fact table named TXN • Range partitioned on DATE column TXN_DATE • Hash sub-partitioned on NUMBER column ACCTKEY • Data to be loaded into partition P20140225 on TXN www.Delphix.com

  16. Exchange Partition, step 1 Hash-partitioned table TXN_SWAP Composite-partitioned table TXN CREATE TABLE TXN_SWAP … AS SELECT … FROM TXN PARTITION (P20140225) 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  17. Exchange Partition, step 2 Hash-partitioned table TXN_SWAP Composite-partitioned table TXN Load Load Load 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  18. Exchange Partition, step 3 Hash-partitioned table TXN_SWAP Composite-partitioned table TXN CREATE INDEX CREATE INDEX CREATE INDEX 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  19. Exchange Partition, step 4 Hash-partitioned table TXN_SWAP Composite-partitioned table TXN EXCHANGE PARTITION 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  20. Exchange Partition, step 5 Hash-partitioned table TXN_SWAP Composite-partitioned table TXN Gather partition statistics for table, columns, indexes 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  21. Exchange Partition • Create temporary table TXN_SWAP as a hash-partitioned table • Perform parallel, direct-path load of new data into TXN_SWAP • Perform any other DML needed to prepare data in TXN_SWAP for publishing into the TXN table • Create indexes on TXN_SWAP corresponding to the local indexes on TXN • Exchange partition to “publish” new data to TXN alter table TXN exchange partition P20140225 with table TXN_SWAP including indexes update global indexes; • Gather CBO statistics on table TXN partition P20140225 • DBMS_STATS preference INCREMENTAL will gather partition-level statistics as well as updating global-level statistics www.Delphix.com

  22. Exchange Partition • It is a good idea to encapsulate this logic inside PL/SQL packaged- or stored-procedures: SQL> execute exchpart.prepare(‘TXN’,’_SWAP’, - 2 ’25-FEB-2014’); SQL> alter session enable parallel dml; SQL> insert /*+ append parallel(n,4) */ 2 into txn_swap n 3 select /*+ full(x) parallel(x,4) */ * 4 from stage_txn_fact x; SQL> commit; SQL> execute exchpart.finish(‘TXN’,’_SWAP’); • EXCHPART package (“exchpart.sql”) posted at http://www.EvDBT.com/scripts www.Delphix.com

  23. The “dribble effect” • In real-life, data loading is often much messier than shown here… • For example, for a daily load frequency, data to be loaded during the 25-Feb load cycle might consist of: • 950,000 rows for the 25-Feb partition • 4,500 rows for the 24-Feb partition • 400 rows for the 23-Feb partition • 700 rows for the 22-Feb partition • 200 rows for the 21-Feb partition • 100 rows for the 20-Feb partition • …and 3rows for the 07-Jan partition… www.Delphix.com

  24. The “dribble effect” • How can this be handled? • One suggestion: • Use EXCHPART package to load the data for the 25-Feb and 24-Feb partitions • Load the data to the remainder of the partitions by just inserting (conventional-path) directly into the partitioned table • Must determine a threshold when to use EXCHPART, and when to simply insert rows • Data volume is the metric… • Threshold value of “N rows” varies due to many factors… • Number of bitmap indexes on partitioned table? • Using compression during load or not? • Degree of parallelism? • Are there any global indexes? www.Delphix.com

  25. The “dribble effect” Example: Use EXCHANGE PARTITION when rows-to-be-loaded >1000, else just use conventional INSERT for d in (select trunc(txn_dt) dt, count(*) cnt from EXT_STAGE_TXN group by trunc(txn_dt)) loop -- if d.cnt> 1000then -- exchpart.prepare(‘TXN’,’_SWAP’||to_char(d.dt,’YYYYMMDD’), d.dt); insert /*+ append parallel(n,16) */ into TXN_20140224 n select /*+ parallel(x,16) */ * from EXT_STAGE x where x.txn_dt >= d.dt and x.txn_dt < d.dt + 1; exchpart.finish(‘TXN’, ’TXN_’||to_char(d.dt,’YYYYMMDD’)); exchpart.drop_indexes(’TXN_’||to_char(d.dt,’YYYYMMDD’)); insert /*+ append parallel(n,16) */ into TXN_20140224 n select /*+ parallel(x,16) */ * from EXT_STAGE x where x.txn_dt >= d.dt and x.txn_dt < d.dt + 1; -- else -- insert into TXN select * from ext_stage where txn_dt >= d.dt and txn_dt < d.dt + 1; -- end if; -- end loop; www.Delphix.com

  26. Slowly-changing dimensions • Loading time-variant fact and dimension tables is not the only load activity in most data warehouses • Often, some tables contain current or point-in-time data • Example: type-1 dimension derived from type-2 dimension • With each load cycle loading new data into a new partition of the type-2 dimension, the type-1 dimension needs to be updated • Instead of performing transactional MERGE (i.e. Update or Insert) logic directly on the table • Rebuild the table into a temporary table, then “swap” it in using EXCHANGE PARTITION www.Delphix.com

  27. Merge logic to update SCDs • The MERGE statement to update the type-1 dimension (CURR_ACCT_DIM) from the just-loaded partition of the type-2 dimension (ACCT_DIM) could look like… merge into curr_acct_dim using (select * from acct_dim where eff_dt >= ‘25-FEB-2014’ and eff_dt < ‘26-FEB-2014’) when matched then update set ... when not matched then insert ...; • Simple to write, but sloooowwwwwwwww… www.Delphix.com

  28. ExchPart instead of MERGE CURR_ACCT_DIM (type-1 dimension) ACCT_DIM (type-2 dimension) ACCT_DIM_SWAP Truncated as we begin  • Data current as of 24-Feb 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014  Just loaded 25-Feb data www.Delphix.com

  29. ExchPart instead of MERGE INSERT /*+ append parallel(t,8) */ INTO TMP_CURR_ACCOUNT_DIM T SELECT /*+ parallel(x,8) */ …(list of columns)… FROM (SELECT /*+ parallel(y,8) */ …(list of columns)…, ROW_NUMBER() over (PARTITION BY acctkey ORDER BY effdtdesc) rn FROM (SELECT /*+ parallel(z1,8) */ …(list of columns)… FROM CURR_ACCOUNT_DIM z1 UNION ALL SELECT /*+ parallel(z2,8) */ …(list of columns)… FROM ACCOUNT_DIM partition(P20140225) z2) y) x WHERE x.RN = 1; • Inner-most query pulls changed data from type-2, merged with existing data from type-1 • Middle query ranks within ACCTKEY values, sorted by EFFDT DESC • Outer-most query selects only latest row for each ACCTKEY and passes to INSERT www.Delphix.com

  30. ExchPart instead of MERGE CURR_ACCT_DIM (type-1 dimension) ACCT_DIM (type-2 dimension) ACCT_DIM_SWAP union all filter All rows All rows 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  31. ExchPart instead of MERGE CURR_ACCT_DIM (type-1 dimension) ACCT_DIM (type-2 dimension) ACCT_DIM_SWAP CREATE INDEX CREATE INDEX CREATE INDEX 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  32. ExchPart instead of MERGE CURR_ACCT_DIM (type-1 dimension) ACCT_DIM (type-2 dimension) ACCT_DIM_SWAP EXCHANGE PARTITION 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  33. ExchPart instead of MERGE CURR_ACCT_DIM (type-1 dimension) ACCT_DIM (type-2 dimension) ACCT_DIM_SWAP Gather partition statistics for table, columns, indexes 22-Feb 2014 23-Feb 2014 24-Feb 2014 25-Feb 2014 www.Delphix.com

  34. Summary • Data warehouses use star schemas • Star schemas are best queried using star transformations • Star transformation requires bitmap indexes • Bitmap indexes or bitmap-join indexes • Large bitmap indexes become infeasible without using the EXCHANGE PARTITION load technique • INSERT is always faster than UPDATE, DELETE, or MERGE Data loading using EXCHANGE PARTITION is the key to unlock infinite scalability www.Delphix.com

  35. KScope15 http://www.KScope15.com #ODTUG #KScope15 Conference for EPM, APEX, ADF, BI, Oracle developers and DBAs www.Delphix.com

  36. Q & A • Session: UGF-3587 • Email: Tim.Gorman@Delphix.com • Twitter: @TimothyJGorman • Blog: EvDBT.com • Papers: EvDBT.com/papers including this presentation! • Scripts: EvDBT.com/scripts • Videos: EvDBT.com/videos www.Delphix.com
