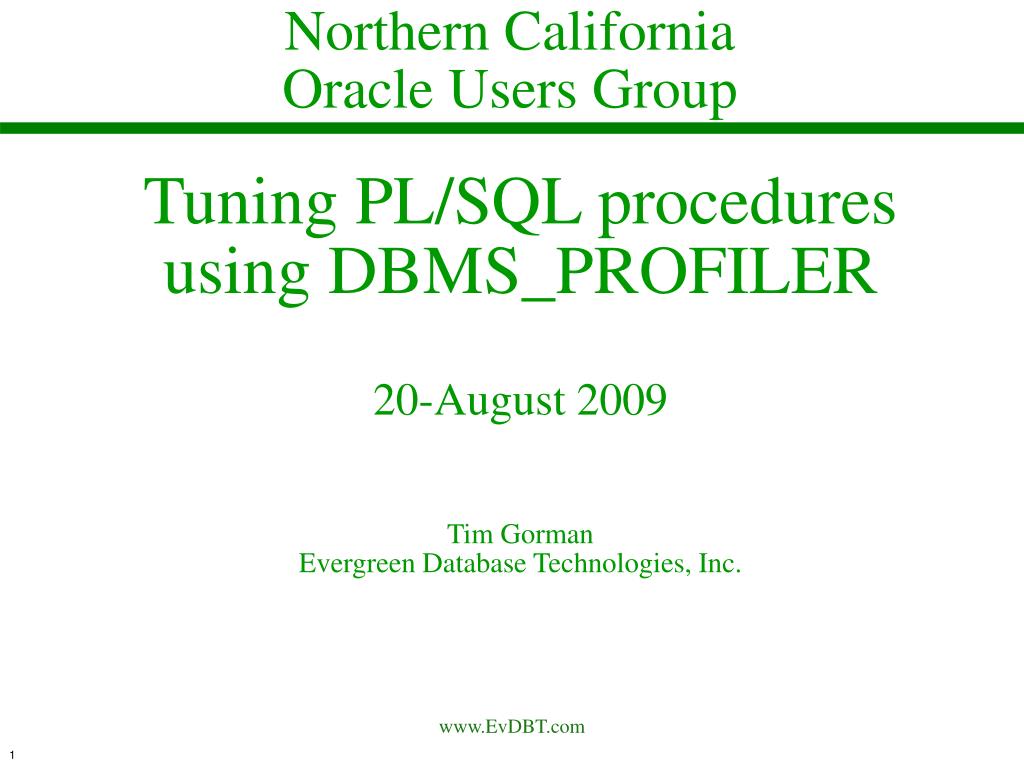

Northern CaliforniaOracle Users Group

Tuning PL/SQL procedures using DBMS_PROFILER20-August 2009Tim GormanEvergreen Database Technologies, Inc.


  • Overview of tuning tools in Oracle

    • Tuning SQL

      • SQL Trace

        • TKPROF

        • Oracle Trace Analyzer

        • Method-R Profiler (

    • Tuning PL/SQL


      • Log4plsql

      • ???

Overview of performance tuning
Overview of performance tuning

  • In order to improve anything, you have to measure it

    • Is it processing?

      • If so, what exactly is it doing?

    • Is it waiting on something?

      • If so, what exactly is it waiting for?

  • Performance tuning is not an art, but a science

    • Instrumentation is key

Understanding where time is spent
Understanding where time is spent

Wait Event

App server


DB Server

Web server




SQL*Net message from client (wait)

CPU (service)

db file sequential read (wait)

CPU (service)

SQL*Net message from client (wait)

Visual borrowed from Cary Millsap

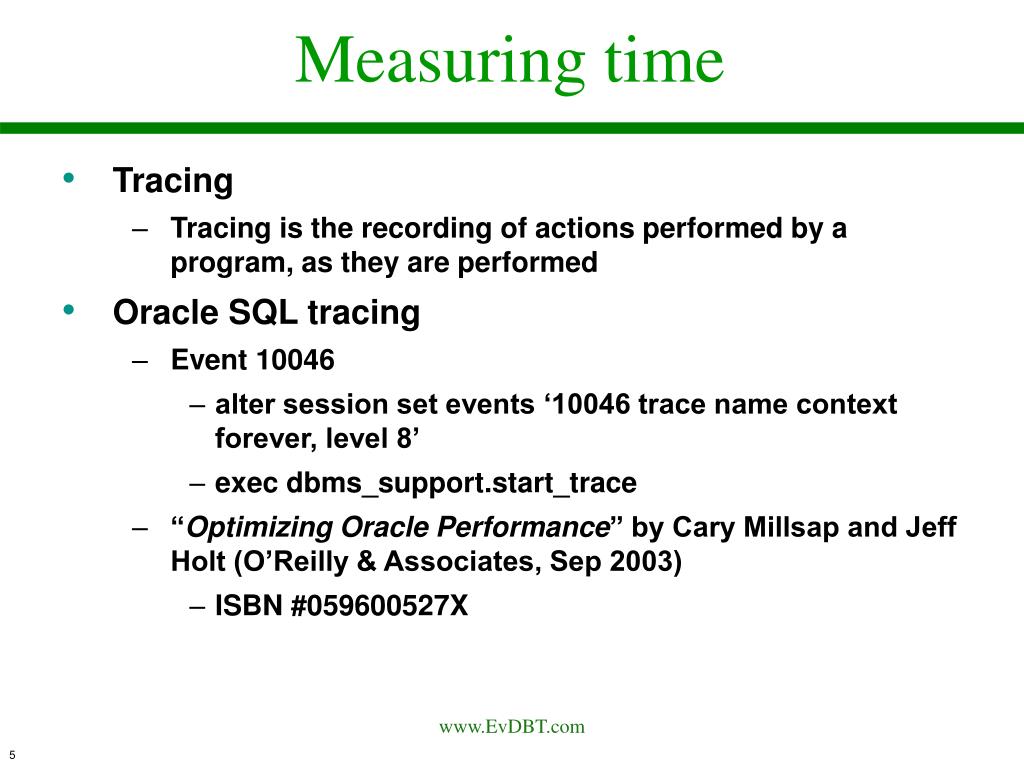

Measuring time
Measuring time

  • Tracing

    • Tracing is the recording of actions performed by a program, as they are performed

  • Oracle SQL tracing

    • Event 10046

      • alter session set events ‘10046 trace name context forever, level 8’

      • exec dbms_support.start_trace

    • “Optimizing Oracle Performance” by Cary Millsap and Jeff Holt (O’Reilly & Associates, Sep 2003)

      • ISBN #059600527X

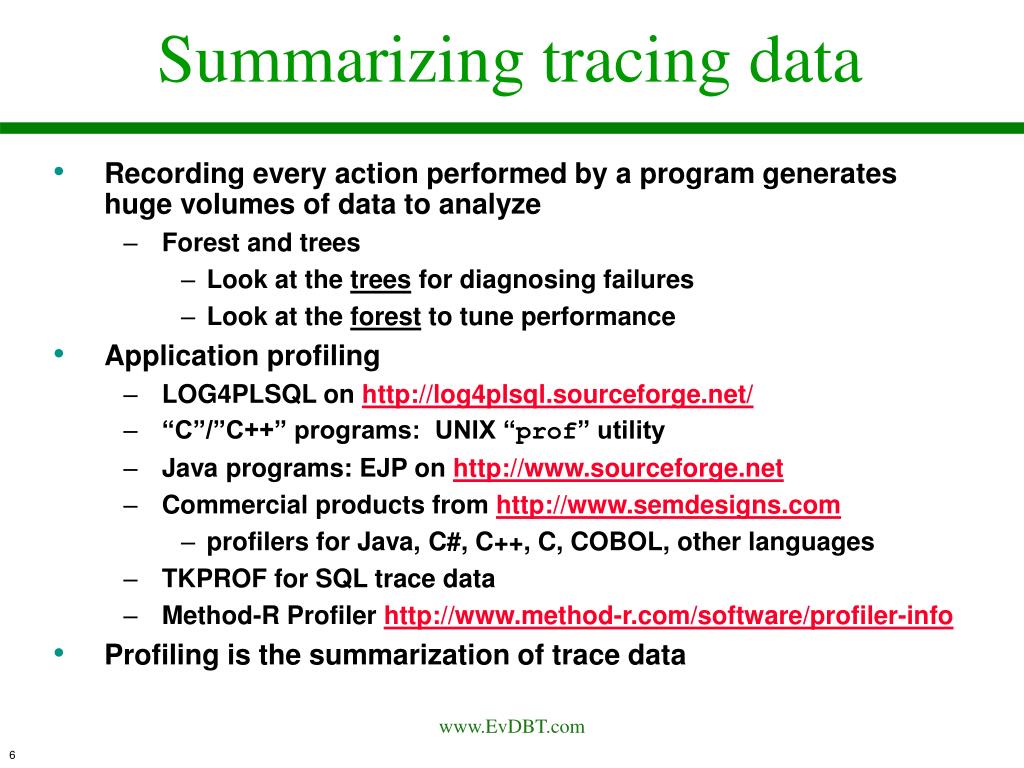

Summarizing tracing data
Summarizing tracing data

  • Recording every action performed by a program generates huge volumes of data to analyze

    • Forest and trees

      • Look at the trees for diagnosing failures

      • Look at the forest to tune performance

  • Application profiling

    • LOG4PLSQL on

    • “C”/”C++” programs: UNIX “prof” utility

    • Java programs: EJP on

    • Commercial products from

      • profilers for Java, C#, C++, C, COBOL, other languages

    • TKPROF for SQL trace data

    • Method-R Profiler

  • Profiling is the summarization of trace data


  • Using the UNIX “prof” utility as an example:

    • Compile a “C” program using the “-p” option to the “cc” compiler command

      • When compiled/linked program is executed, trace information is output to a file specified by $PROFDIR environment variable (default is “./mon.out”)

    • UNIX “prof” utility then reads trace information and produces a summarized “profile report” which summarizes:

      • Number of calls to functions

      • Amount of time spent in each function


  • SQL Trace is another example

    • SQL trace is enabled on a session

    • All SQL statements executed in that session dump trace information to a “.trc” file in USER_DUMP_DEST

    • TKPROF program simply reads information in the “.trc” file and summarizes it, displaying:

      • Execution counts

      • CPU and elapsed times

      • Number of physical, logical I/O

      • Number of rows fetched

      • Number of waits and time waited

What if the problem is not sql
What if the problem is not SQL?

  • SQL statements perform work in the database

    • Summarizing SQL trace info is the best tool for tuning SQL

  • What if the performance problem was in:

    • The network? Operating system? DB instance?

      • Database wait events can help

    • An application program, such as:

      • Java, C#, C++, C, COBOL, Fortran, Lisp?

      • PL/SQL?

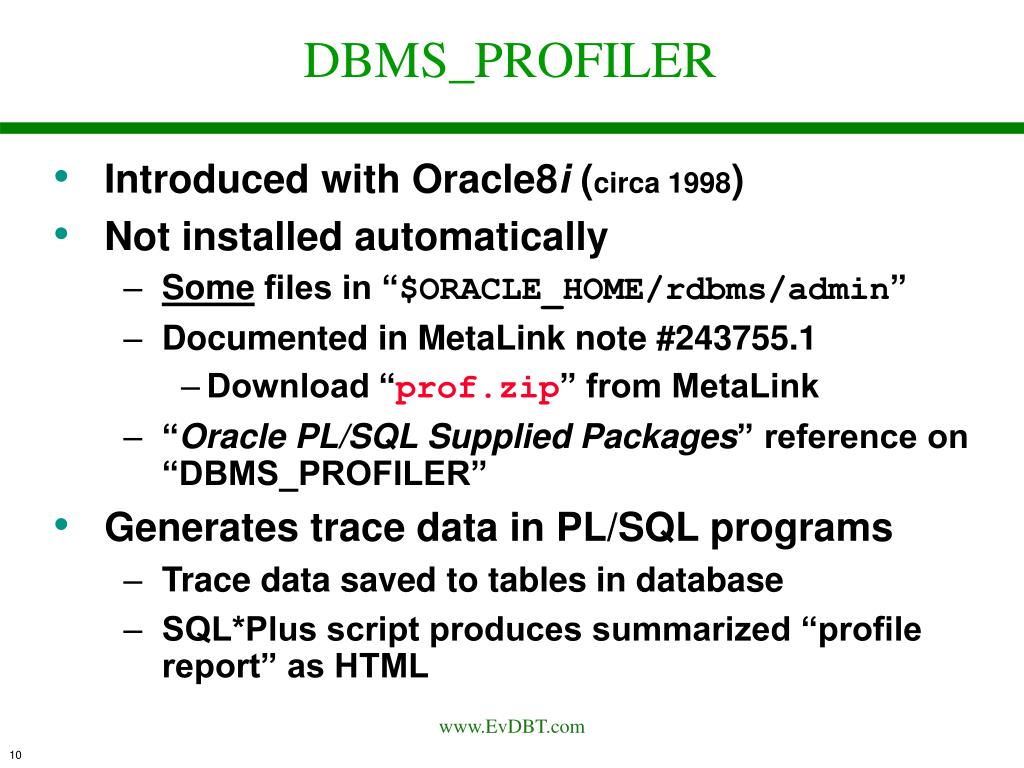

Dbms profiler

  • Introduced with Oracle8i (circa 1998)

  • Not installed automatically

    • Some files in “$ORACLE_HOME/rdbms/admin”

    • Documented in MetaLink note #243755.1

      • Download “” from MetaLink

    • “Oracle PL/SQL Supplied Packages” reference on “DBMS_PROFILER”

  • Generates trace data in PL/SQL programs

    • Trace data saved to tables in database

    • SQL*Plus script produces summarized “profile report” as HTML

Dbms profiler1

  • Files found in “$ORACLE_HOME/rdbms/admin”

  • SQL*Plus script “profload.sql” creates the package DBMS_PROFILER

    • Run once for global setup on database

    • Must be performed by SYS user

    • Also validates package after creation

  • SQL*Plus script “proftab.sql” creates tables to store trace data

    • Create private sets of tables for each user

      • Each user has the three tables and single sequence

    • Create a “global set” of tables for all users

      • DBA is responsible for granting appropriate permissions and creating synonyms for the three tables and the single sequence

Dbms profiler2

  • Important extra files provided in “”

    • SQL*Plus script “profiler.sql”

      • Queries data generated by runs of the DBMS_PROFILER package

      • Generates HTML profiler report as output

    • SQL*Plus script “profgsrc.sql”

      • Extracts the source of a stored package, procedure, or function to an ASCII text file for editing

        • So that DBMS_PROFILER procedures can be added to that source code…

Using dbms profiler

  • Initial setup:

    • DBMS_PROFILER package has been created by the DBA using “profload.sql”…

    • developer/user has created the tables using “proftab.sql”

  • Add profiler procedures to PL/SQL source

    • Procedure START_PROFILER(‘run-comment’)

    • Procedure STOP_PROFILER

  • Recompile and run the procedure

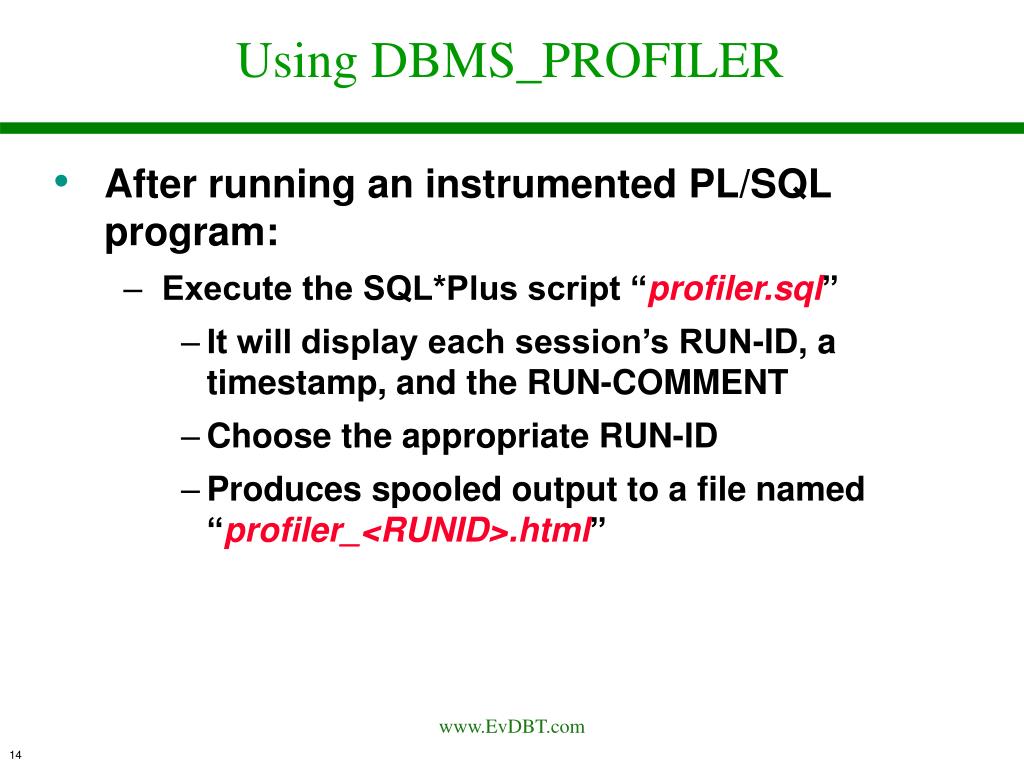

Using dbms profiler1

  • After running an instrumented PL/SQL program:

    • Execute the SQL*Plus script “profiler.sql”

      • It will display each session’s RUN-ID, a timestamp, and the RUN-COMMENT

      • Choose the appropriate RUN-ID

      • Produces spooled output to a file named “profiler_<RUNID>.html”

Case study 1
Case Study #1

  • A PL/SQL procedure named PROFTEST1

    • It queries data from a table

    • Stores the data in a comma-separated string

    • Then, repeatedly parses and displays each item in the string

  • There are (at least) two ways to call the INSTR() function here:

    • instr(string, ‘,’, 1, n)

    • instr(string, ‘,’, x, 1)

  • Which is faster??? Is there a difference?

Case study 11
Case Study #1

  • Files:

    • proftest1.sql

      • DDL to create stored procedure and table

        • Including use of DBMS_PROFILER

    • run_proftest1.sql

      • SQL*Plus script to run the test

    • proftest1.tkp

      • Output from tkprof <trc-file> <tkp-file> sort=prsela,exeela,fchela explain=<un>/<pwd>

    • proftest1_19.html

    • proftest1_20.html

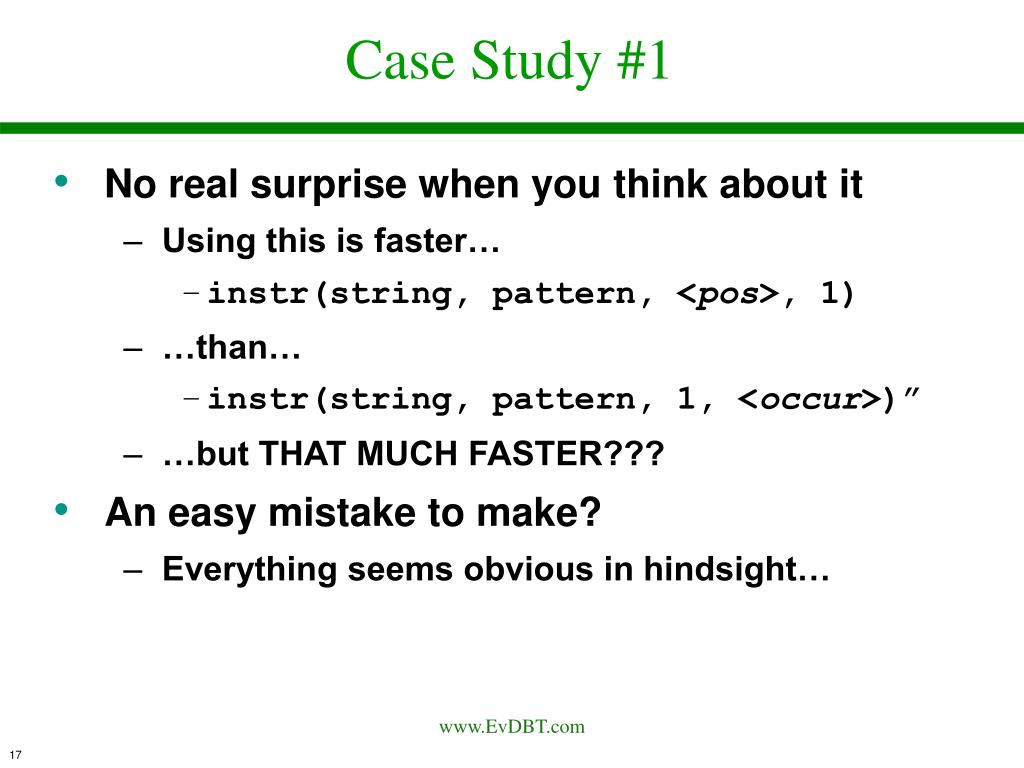

Case study 12
Case Study #1

  • No real surprise when you think about it

    • Using this is faster…

      • instr(string, pattern, <pos>, 1)

    • …than…

      • instr(string, pattern, 1, <occur>)”

    • …but THAT MUCH FASTER???

  • An easy mistake to make?

    • Everything seems obvious in hindsight…

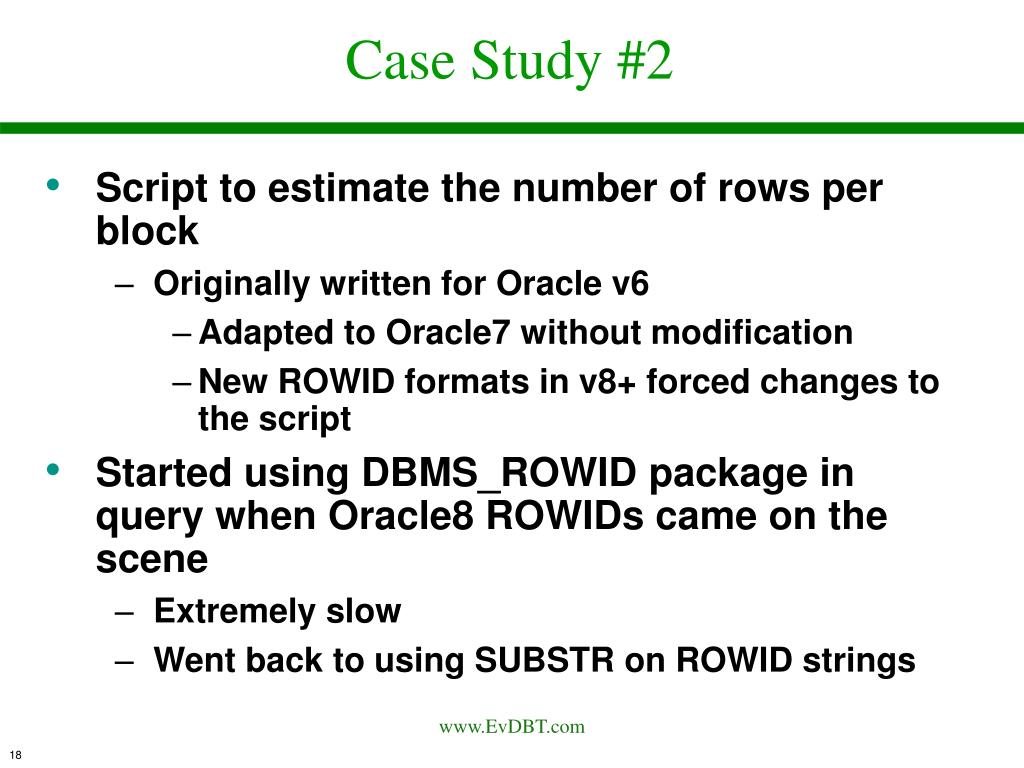

Case study 2
Case Study #2

  • Script to estimate the number of rows per block

    • Originally written for Oracle v6

      • Adapted to Oracle7 without modification

      • New ROWID formats in v8+ forced changes to the script

  • Started using DBMS_ROWID package in query when Oracle8 ROWIDs came on the scene

    • Extremely slow

    • Went back to using SUBSTR on ROWID strings

Case study 21
Case Study #2

  • Files:

    • proftest2.sql

      • DDL to create stored procedure and table

        • Including use of DBMS_SUPPORT and DBMS_PROFILER

    • run_proftest2.sql

      • SQL*Plus script to run the test

    • proftest2.tkp

      • Output from tkprof <trc-file> <tkp-file> sort=prsela,exeela,fchela explain=<un>/<pwd>

    • proftest2_1.html

    • proftest2_2.html

Case study 22
Case Study #2

  • DBMS_PROFILER is not recursive

    • PL/SQL modules called within instrumented procedures are not traced…

    • PL/SQL modules called within SQL statements are not traced…

    • …unless they themselves are instrumented with START/STOP_PROFILER calls…

  • The resolution of replacing DBMS_ROWID package calls with SUBSTR was easily determined using SQL Trace and TKPROF

    • But DBMS_PROFILER pinpointed the exact cause

      • Replacing DBMS_ROWID with SUBSTR was just a guess with SQL tracing…

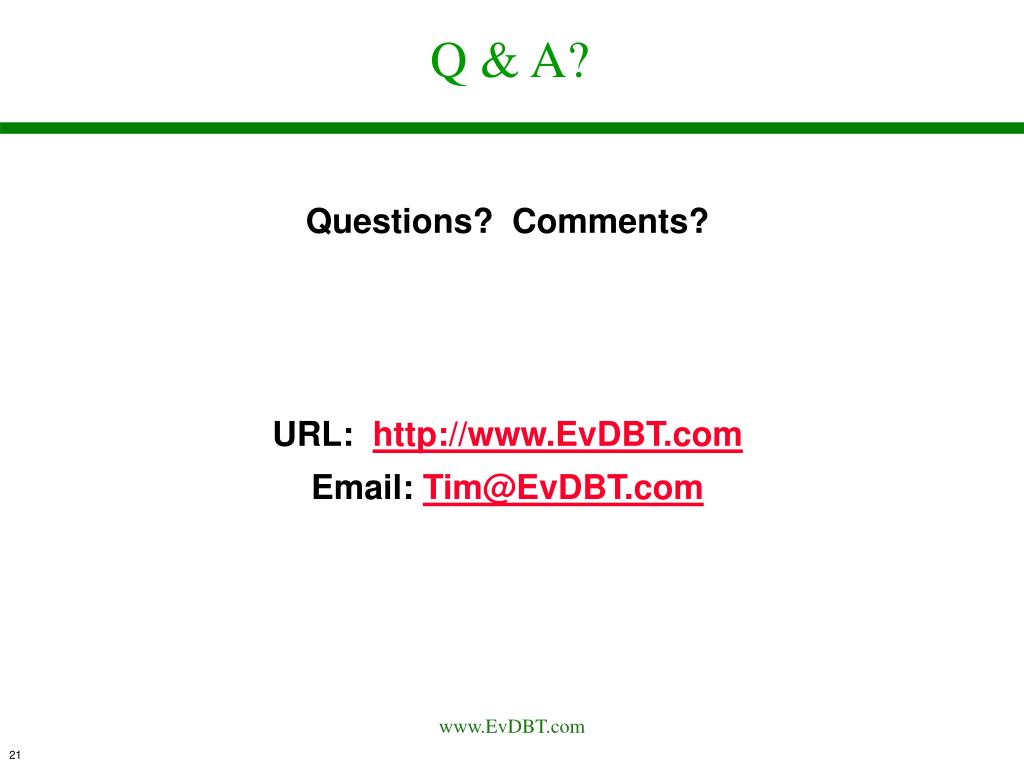

Q & A?

Questions? Comments?
