Presentation Transcript
vkk feed module market requirements
VKK Feed ModuleMarket Requirements

Your Requirements:

  • High-precision motion
  • Minimal dead weight
  • Dynamic feed
  • Compact design
  • Standard lengths
  • Simple installation
  • Optional configuration
  • Best in class features

Our Solution:

VKK 15-70 and VKK 25-100

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module construction
VKK Feed Module Construction
  • Ball Screw Drive
    • ball sizing eliminates backlash
    • choice of different leads
    • relubrication through opening in main structure
  • Motor Attachment
    • flange & coupling
    • side drive with timing belt
  • Extendable Thrust Rod
    • minimal dead weight
  • eLINE Guide System
    • ball sizing eliminates backlash
    • carriage fixed in main structure
    • 2 runner blocks in carriage
    • relubrication through the front seal of the thrust rod
  • Easy-2-Combine Connections
    • main structure on base
    • flange-mounted attachments

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module product sizes
VKK Feed Module Product Sizes

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module technical data
VKK Feed Module Technical Data

*The recommended load is an approximate value for a rough estimation. Sizing calculations should be done in order to select the proper module and size.

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module mounting
VKK Feed Module Mounting
  • Attached to main structure with clamps
  • Alignment with centering rings
  • Mounting only on side with centering holes

clamp

centering for easy-2-combineconnections

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module switch mounting

sensor cable

sensor

VKK Feed ModuleSwitch Mounting
  • Sensor mounted in groove on main structure
    • reed sensor
    • hall sensor
  • Actuating magnet embedded in thrust rod
  • Sensor cable routed through switch groove

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module attachments
VKK Feed Module Attachments
  • Other Rexroth components can be attached
  • direct attachment of RCM rotary module

standard flange

adapter plate

  • gripper with adapter plate

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

slide9

VKK Feed Module Motor Mounting

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module applications target industries
VKK Feed Module Applications / Target Industries
  • Target Industries
    • Packaging
    • Automotive
    • General handling and assembly
  • Ideal for
    • Z axes in Cartesian and gantry systems
    • Feeding applications
    • Insertion applications

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

vkk feed module summary
VKK Feed Module Summary

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

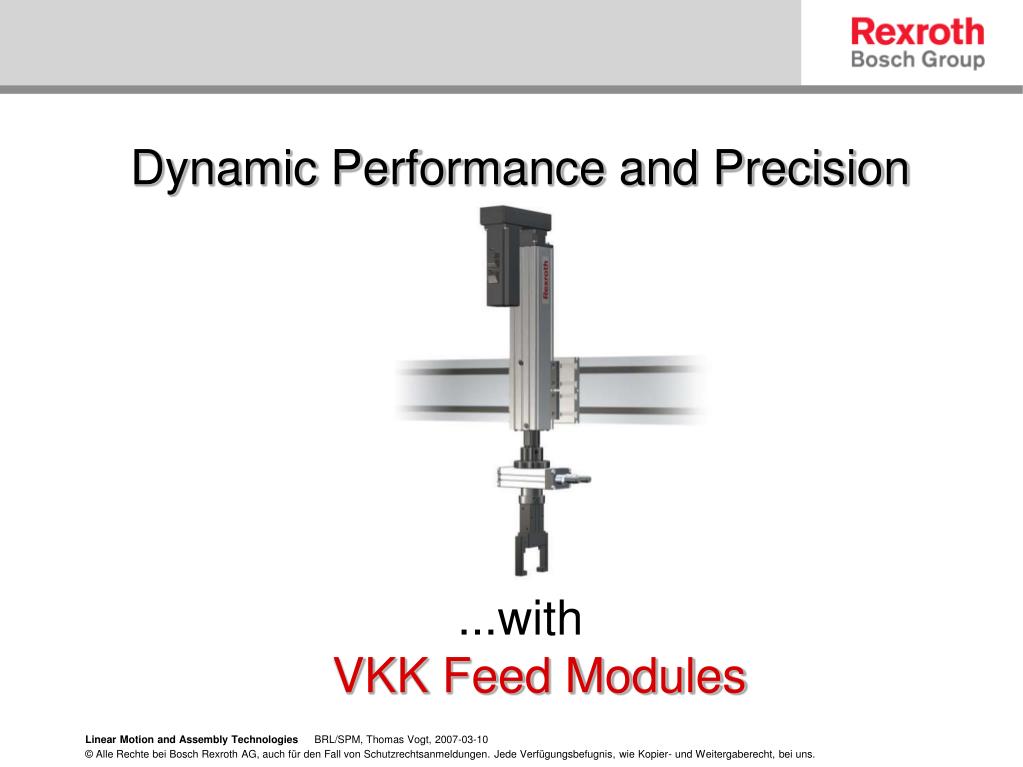

slide12
Dynamic Performance and Precision

...with VKK Feed Modules

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10

for more information
For More Information…

Application Engineering

Bosch Rexroth

  • Contact Information
    • BRL-US / Charlotte, NC
    • 800-438-5983
    • appengreq.brl@boschrexroth-us.com

Danielle Collins

Product Manager – Linear Modules

Application Engineering Manager

  • Contact Information
    • BRL-US / Charlotte, NC
    • 704-714-8567
    • danielle.collins@boschrexroth-us.com

OR

Thank You!

Linear Motion and Assembly Technologies BRL/SPM, Thomas Vogt, 2007-03-10
