  1. Expression Modules Brian S. Yandell (with slides from Steve Horvath, UCLA, and Mark Keller, UW-Madison)

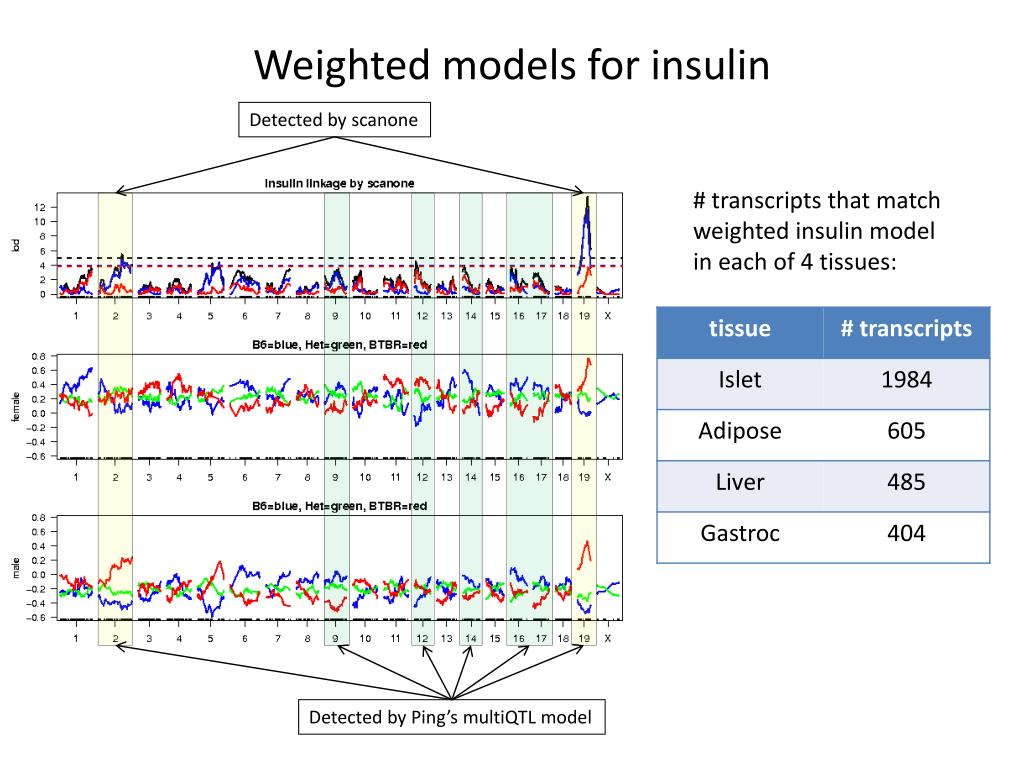

  2. Detected by scanone # transcripts that match weighted insulin model in each of 4 tissues: Weighted models for insulin Detected by Ping’s multiQTL model

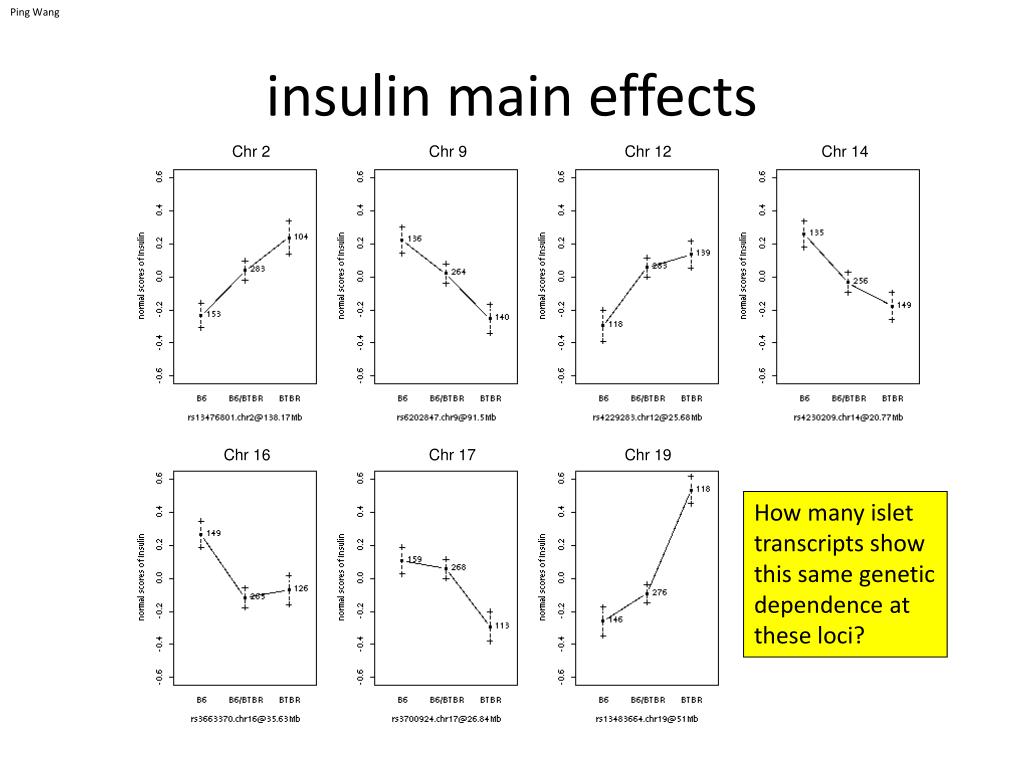

  3. Ping Wang insulin main effects Chr 2 Chr 9 Chr 12 Chr 14 Chr 16 Chr 17 Chr 19 How many islet transcripts show this same genetic dependence at these loci?

  4. Expression NetworksZhang & Horvath (2005)www.genetics.ucla/edu/labs/horvath/CoexpressionNetwork • organize expression traits using correlation • adjacency • connectivity • topological overlap

  5. Using the topological overlap matrix (TOM) to cluster genes • modules correspond to branches of the dendrogram TOM plot Genes correspond to rows and columns TOM matrix Hierarchical clustering dendrogram Module: Correspond to branches

  6. module traits highly correlated • adjacency attenuates correlation • can separate positive, negative correlation • summarize module • eigengene • weighted average of traits • relate module • to clinical traits • map eigengene www.genetics.ucla/edu/labs/horvath/CoexpressionNetwork

  7. advantages of Horvath modules • emphasize modules (pathways) instead of individual genes • Greatly alleviates the problem of multiple comparisons • ~20 module comparisons versus 1000s of gene comparisons • intramodular connectivity ki finds key drivers (hub genes) • quantifies module membership (centrality) • highly connected genes have an increased chance of validation • module definition is based on gene expression data • no prior pathway information is used for module definition • two modules (eigengenes) can be highly correlated • unified approach for relating variables • compare data sets on same mathematical footing • scale-free: zoom in and see similar structure

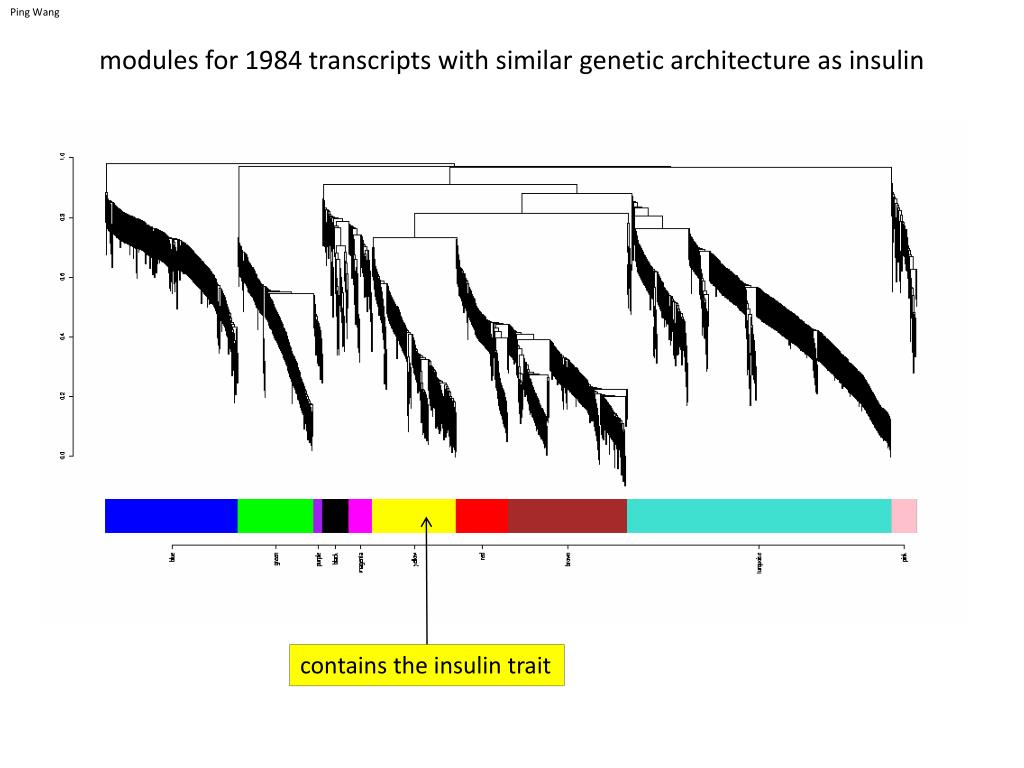

  8. Ping Wang modules for 1984 transcripts with similar genetic architecture as insulin contains the insulin trait

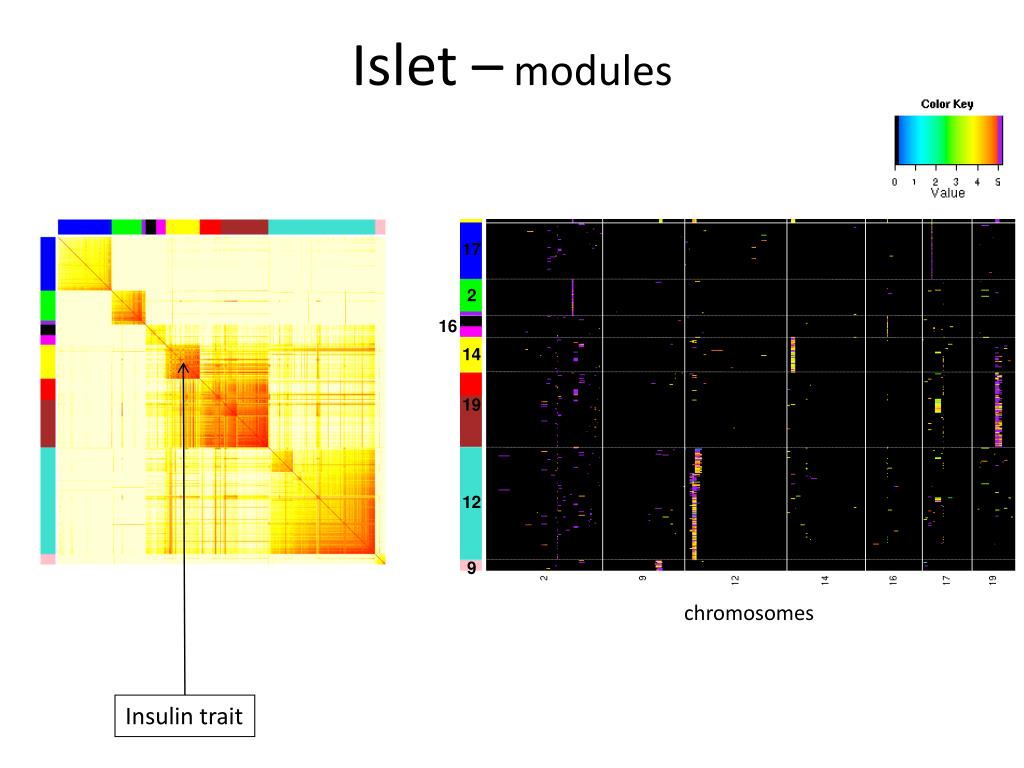

  9. 17 Islet – modules 2 16 14 19 12 9 chromosomes Insulin trait

  10. Islet – enrichment for modules Insulin chromosomes

  11. www.geneontology.org • ontologies • Cellular component (GOCC) • Biological process (GOBP) • Molecular function (GOMF) • hierarchy of classification • general to specific • based on extensive literature search, predictions • prone to errors, historical inaccuracies
