  1. LING 388: Language and Computers Sandiway Fong 10/10 Lecture 14

  2. Administrivia Did you attempt Homework 3 as recommended?

  3. Administrivia • Today is a lab class • want to pick up where we left off two lab classes ago..

  4. Prepositional Phrase Attachment • Two lab classes ago, we discussed how to handle left recursion for prepositional phrase (PP) attachment for examples like: • John saw the boy with a telescope • Left recursive rules: • NP  NP PP • VP  VP PP

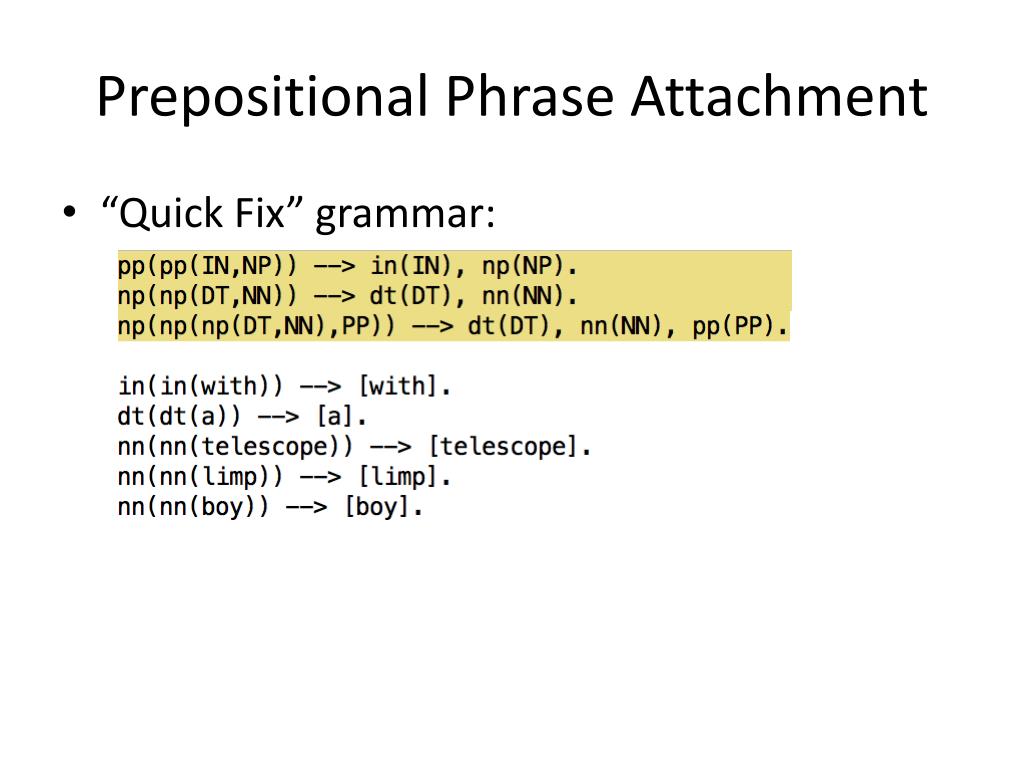

  5. Prepositional Phrase Attachment • “Quick Fix” grammar:

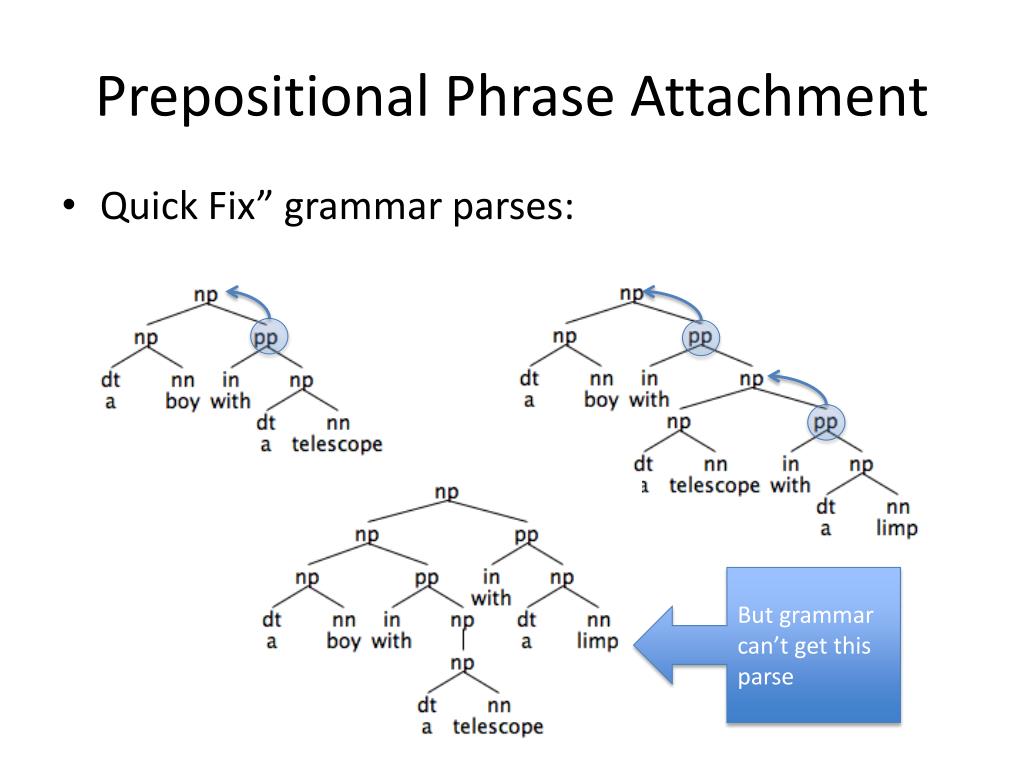

  6. Prepositional Phrase Attachment • Quick Fix” grammar parses: But grammar can’t get this parse

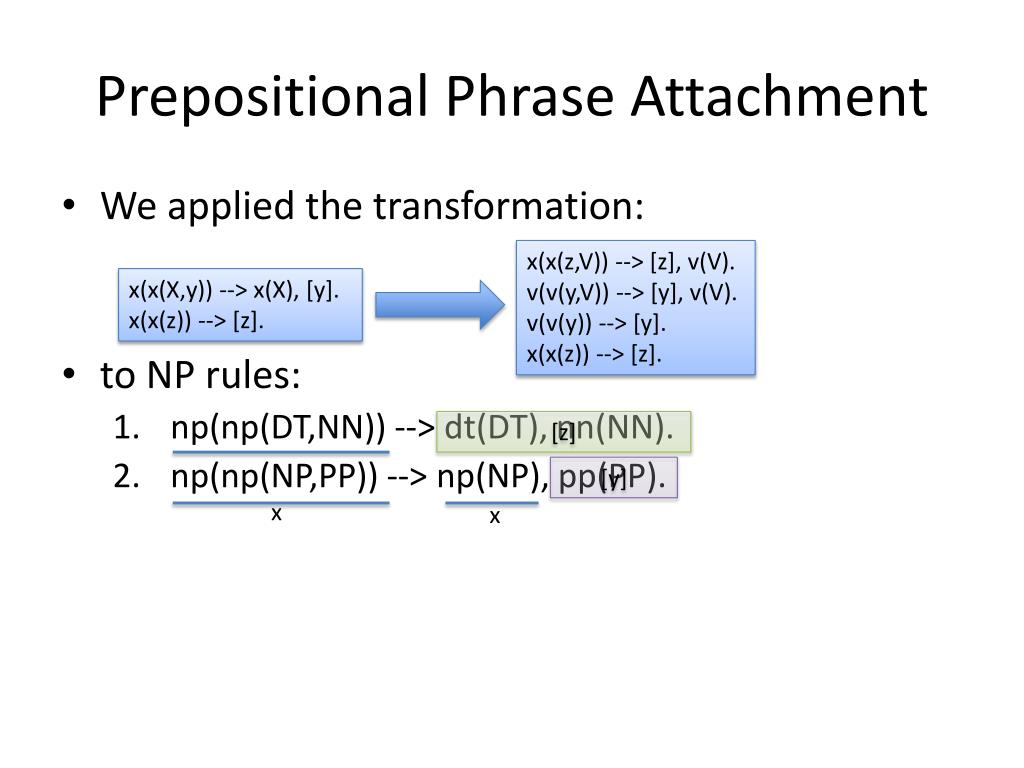

  7. Prepositional Phrase Attachment • We applied the transformation: • to NP rules: • np(np(DT,NN)) --> dt(DT), nn(NN). • np(np(NP,PP)) --> np(NP), pp(PP). x(x(z,V)) --> [z], v(V). v(v(y,V)) --> [y], v(V). v(v(y)) --> [y]. x(x(z)) --> [z]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z]. [z] [y] x x

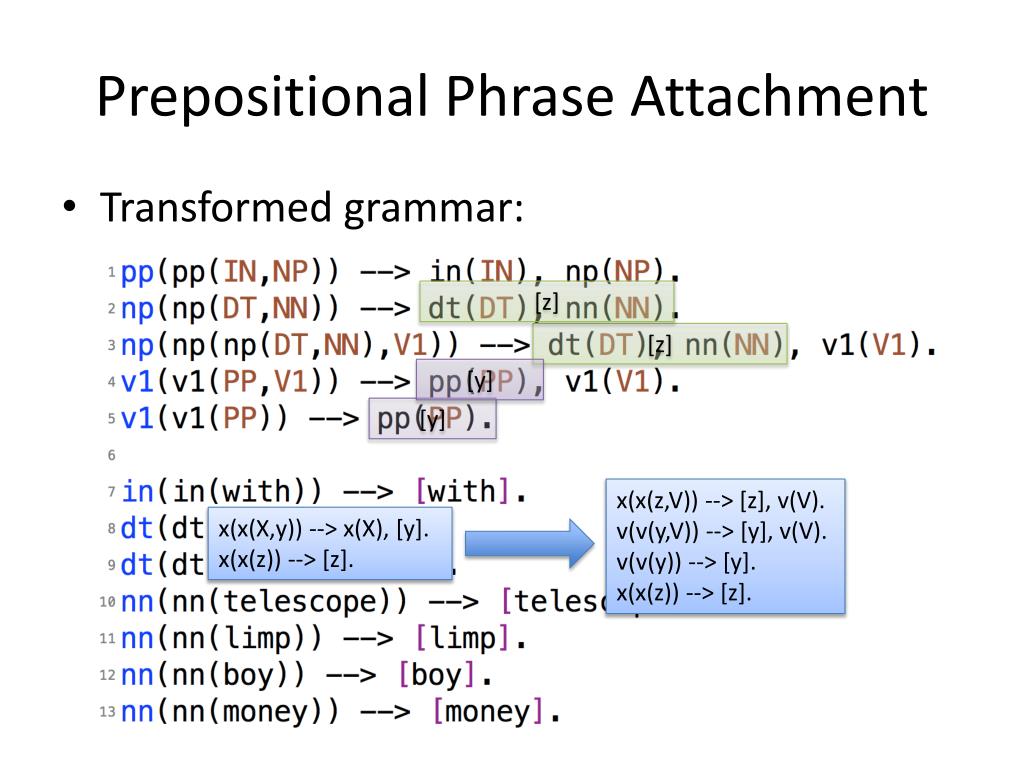

  8. Prepositional Phrase Attachment • Transformed grammar: [z] [z] [y] [y] x(x(z,V)) --> [z], v(V). v(v(y,V)) --> [y], v(V). v(v(y)) --> [y]. x(x(z)) --> [z]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z].

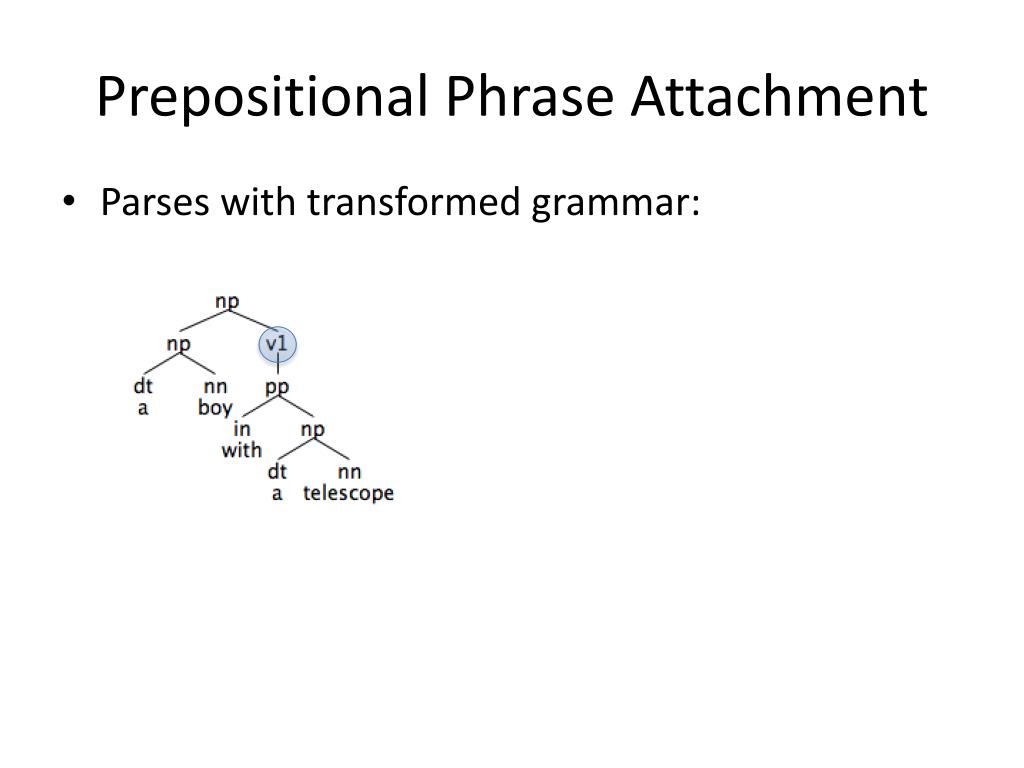

  9. Prepositional Phrase Attachment • Parses with transformed grammar:

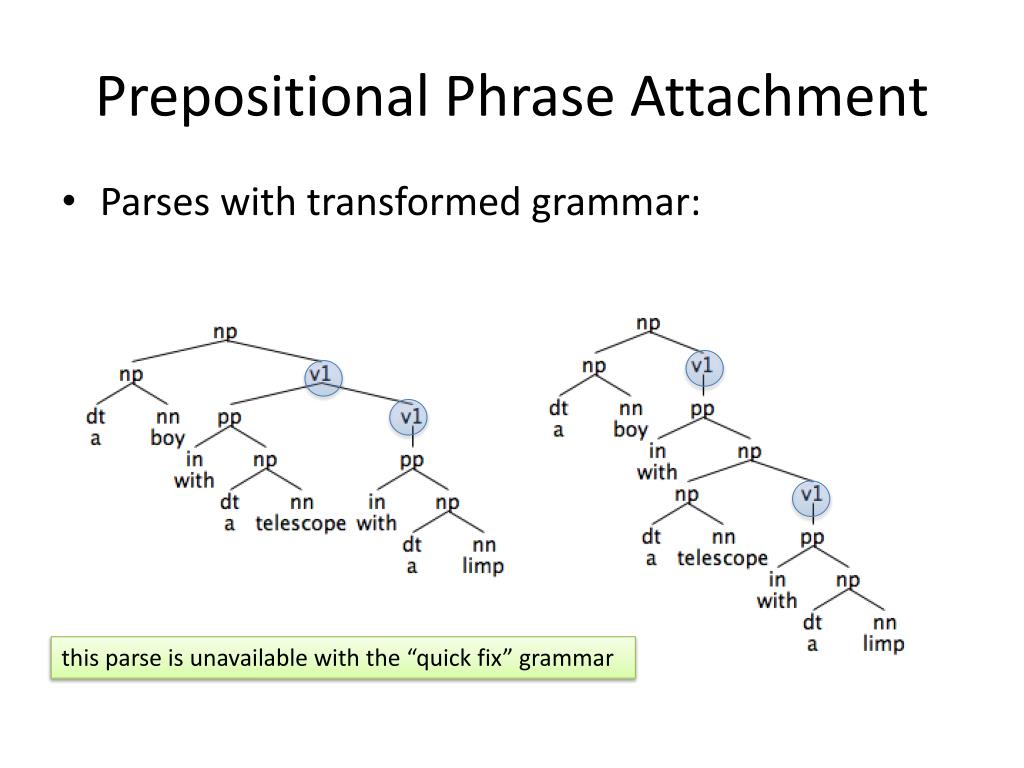

  10. Prepositional Phrase Attachment • Parses with transformed grammar: this parse is unavailable with the “quick fix” grammar

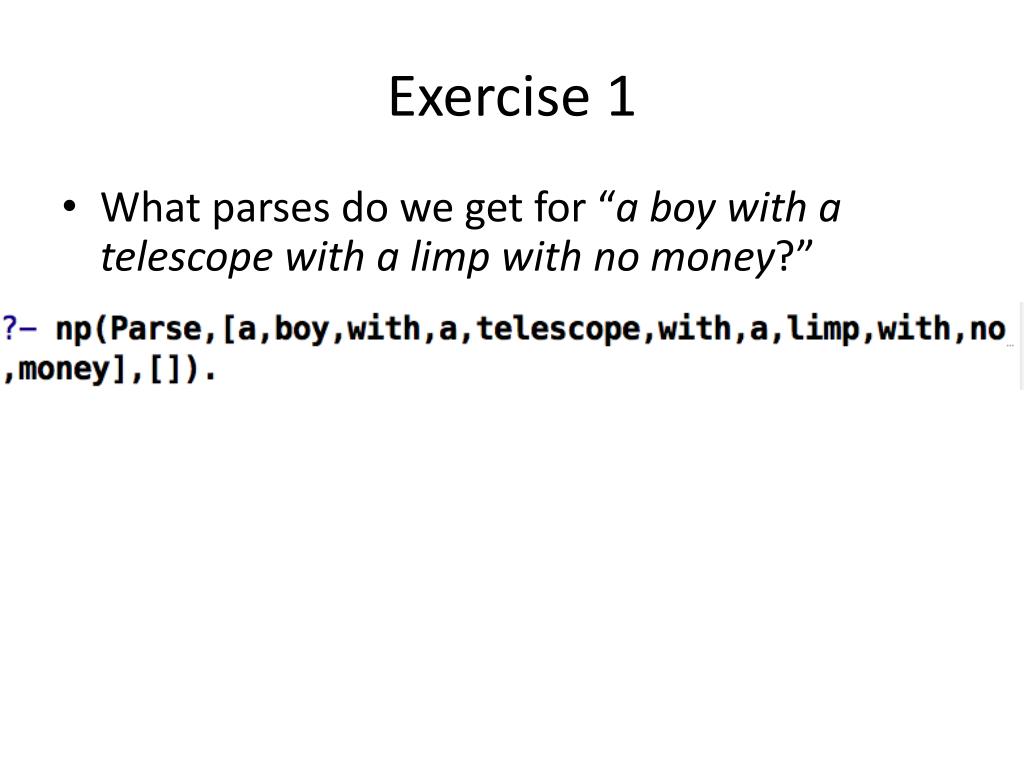

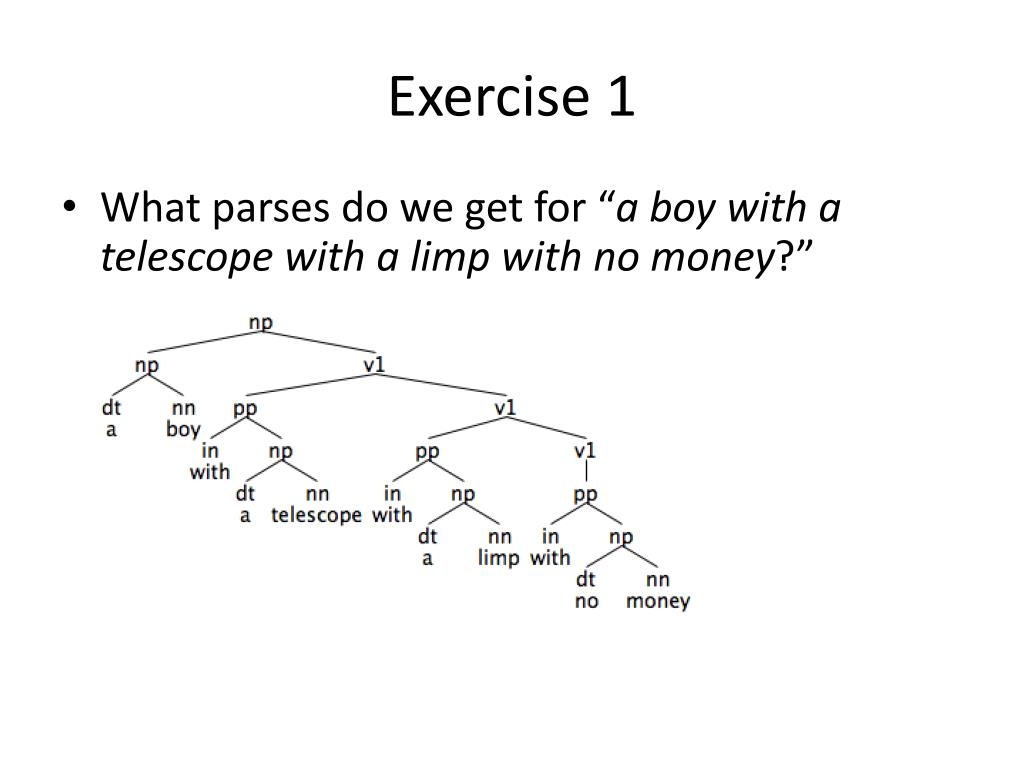

  11. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money?”

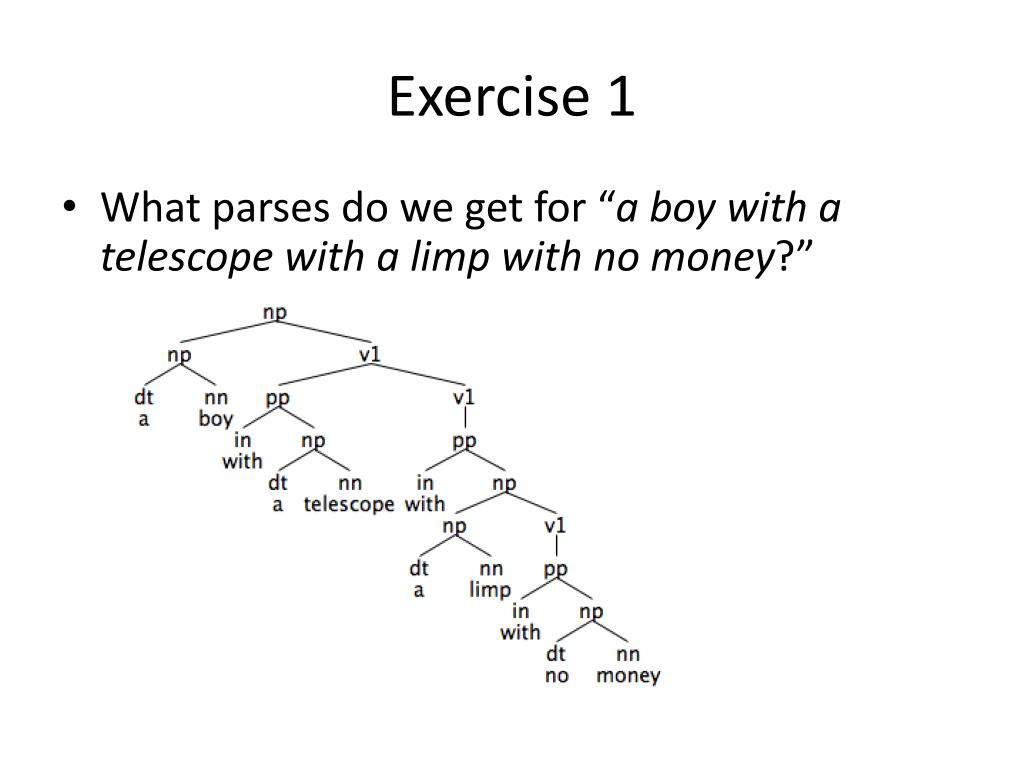

  12. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money?”

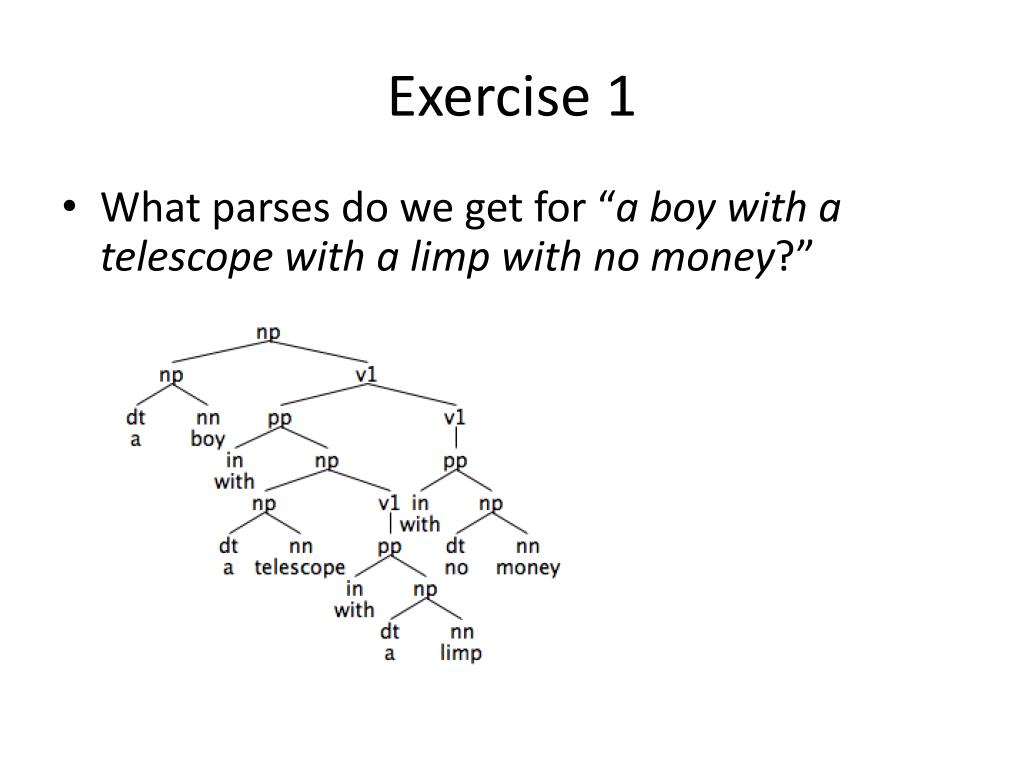

  13. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money?”

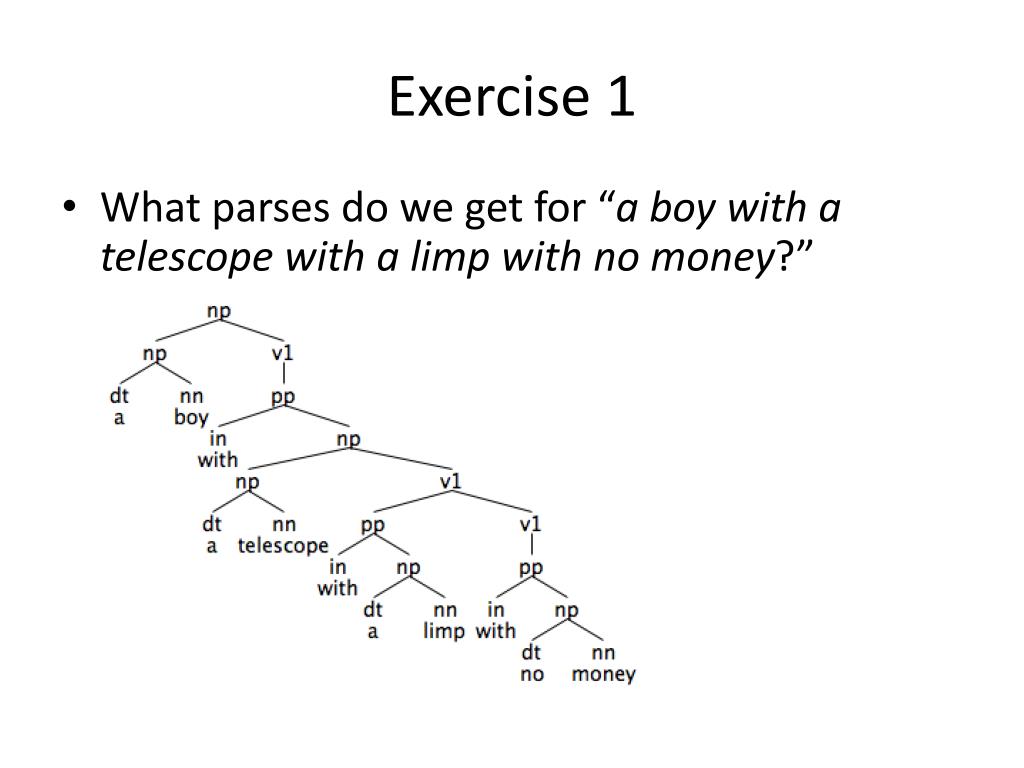

  14. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money?”

  15. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money?”

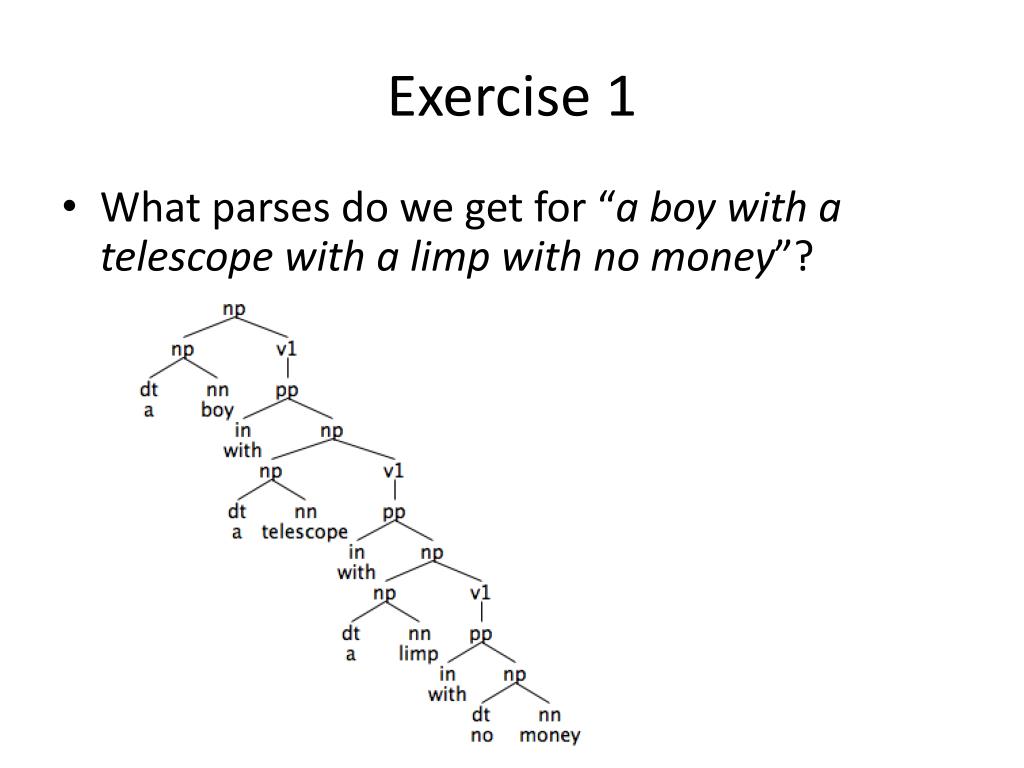

  16. Exercise 1 • What parses do we get for “a boy with a telescope with a limp with no money”?

  17. Exercise 2 • We’ve learnt the first transform: • turn left recursion into right recursion • (that Prolog can deal with) x(x(z,V)) --> [z], v(V). v(v(y,V)) --> [y], v(V). v(v(y)) --> [y]. x(x(z)) --> [z]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z]. • There’s a second type of transform: • turn left recursion into right recursion • but produces a left recursive parse x(X) --> [z], w(X,x(z)). x(x(z)) --> [z]. w(W,X) --> [y], w(W,x(X,y)). w(x(X,y),X) --> [y]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z].

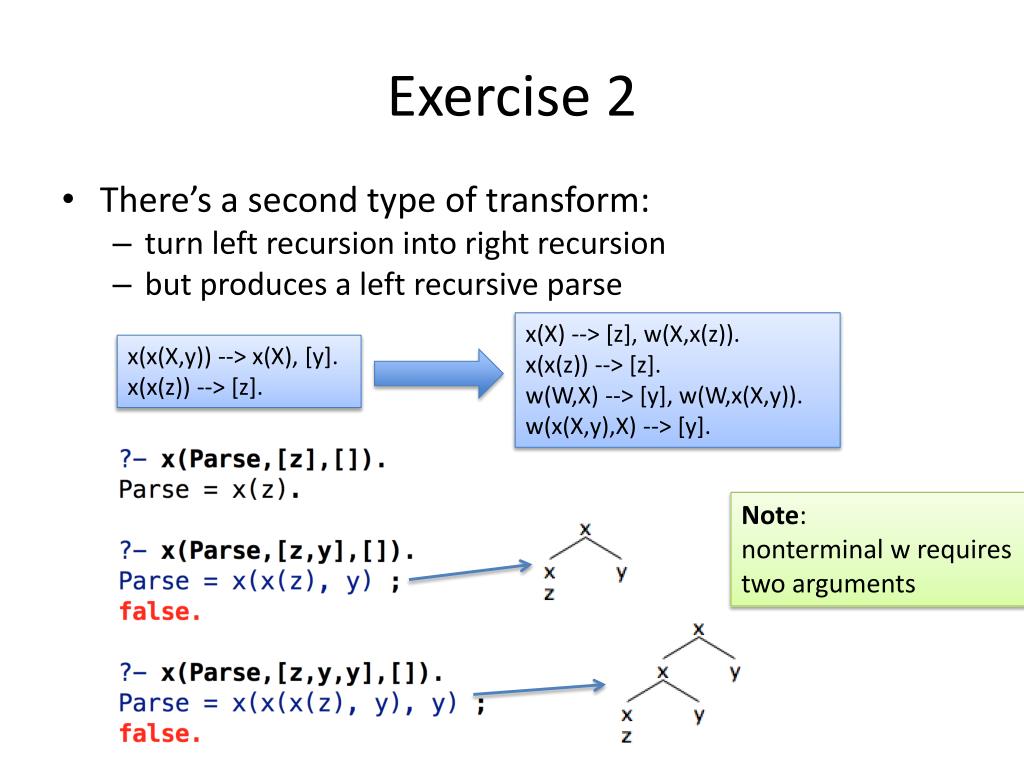

  18. Exercise 2 • There’s a second type of transform: • turn left recursion into right recursion • but produces a left recursive parse x(X) --> [z], w(X,x(z)). x(x(z)) --> [z]. w(W,X) --> [y], w(W,x(X,y)). w(x(X,y),X) --> [y]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z]. Note: nonterminal w requires two arguments

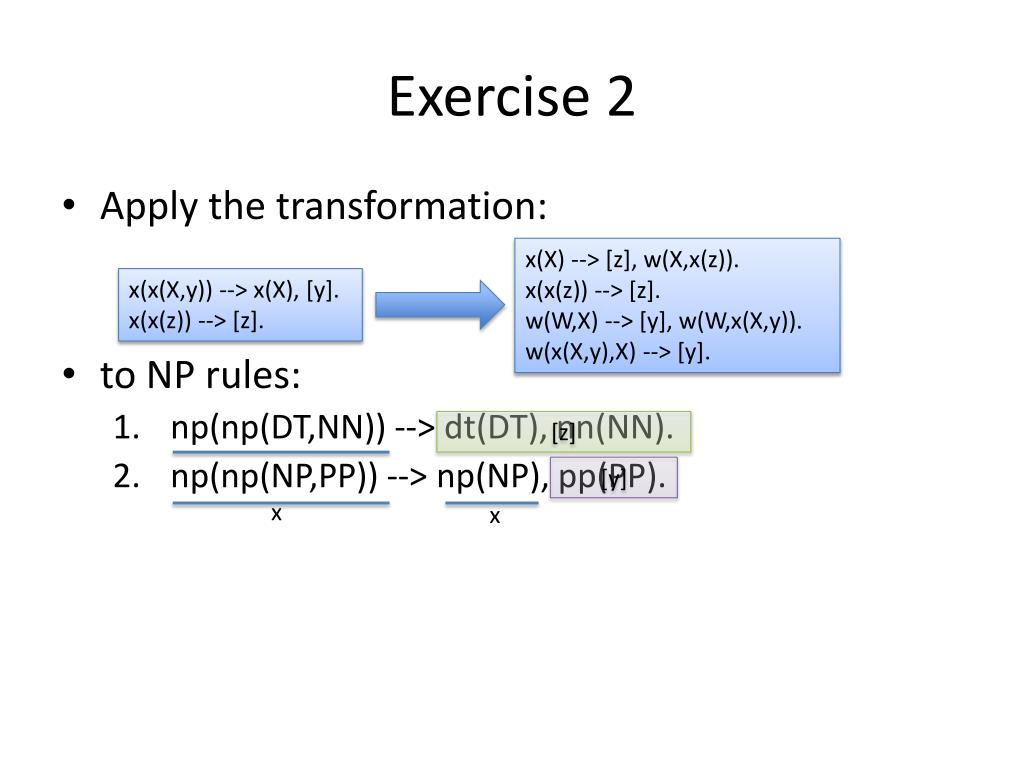

  19. Exercise 2 • Apply the transformation: • to NP rules: • np(np(DT,NN)) --> dt(DT), nn(NN). • np(np(NP,PP)) --> np(NP), pp(PP). x(X) --> [z], w(X,x(z)). x(x(z)) --> [z]. w(W,X) --> [y], w(W,x(X,y)). w(x(X,y),X) --> [y]. x(x(X,y)) --> x(X), [y]. x(x(z)) --> [z]. [z] [y] x x

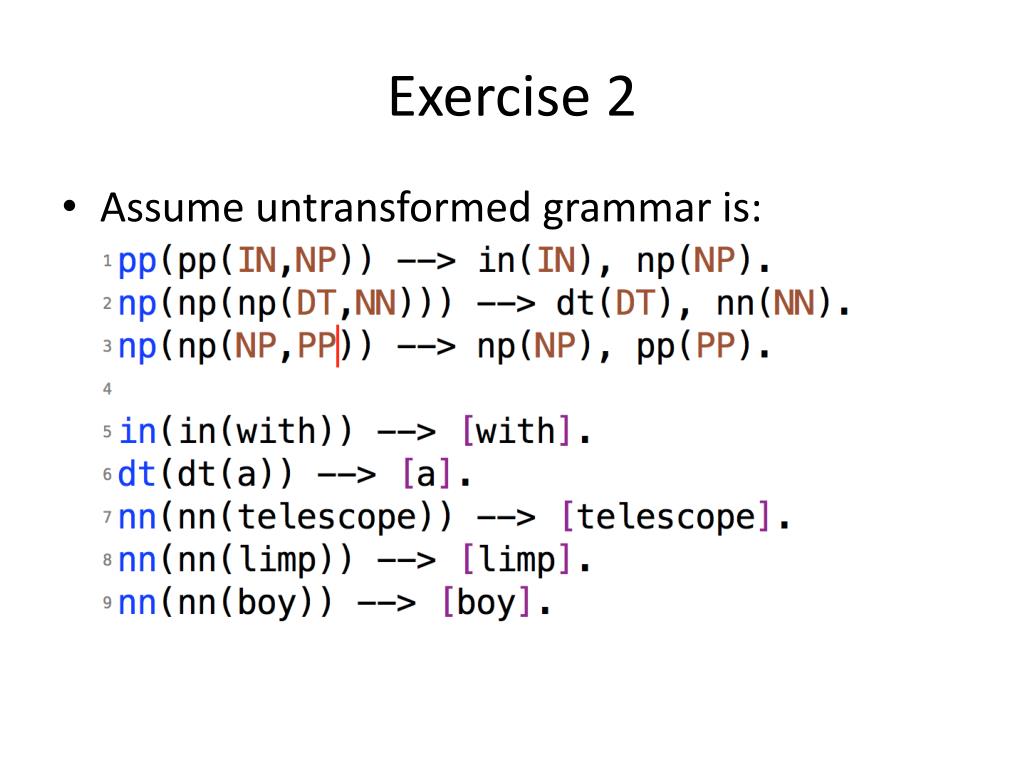

  20. Exercise 2 • Assume untransformed grammar is:

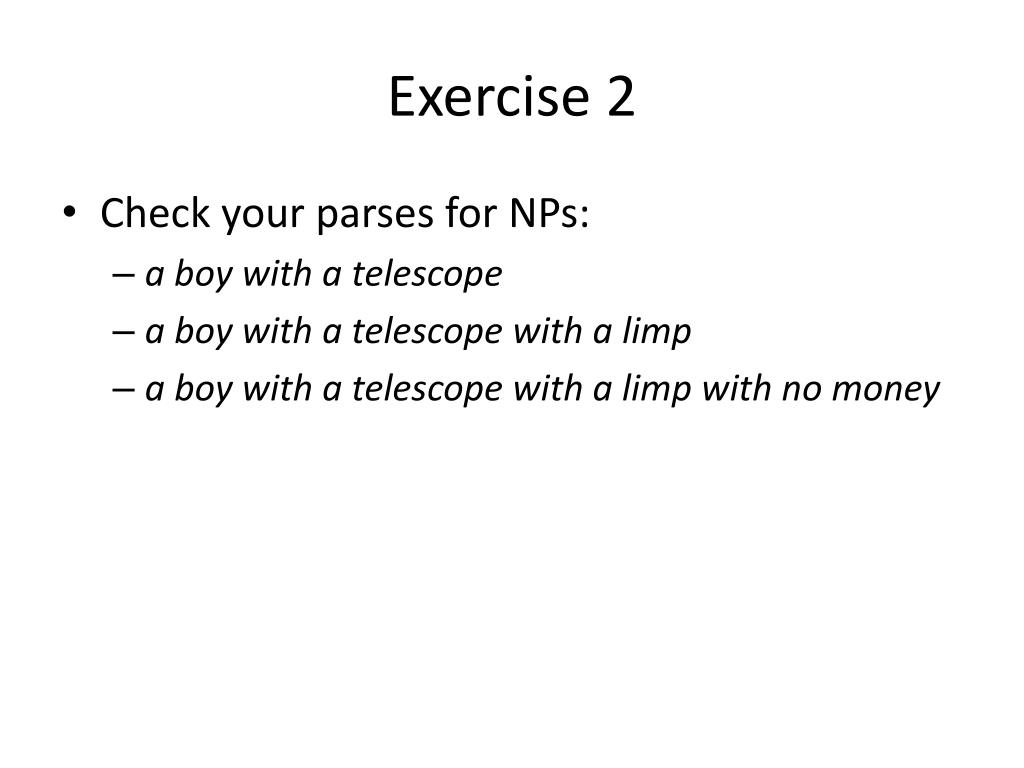

  21. Exercise 2 • Check your parses for NPs: • a boy with a telescope • a boy with a telescope with a limp • a boy with a telescope with a limp with no money

  22. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp

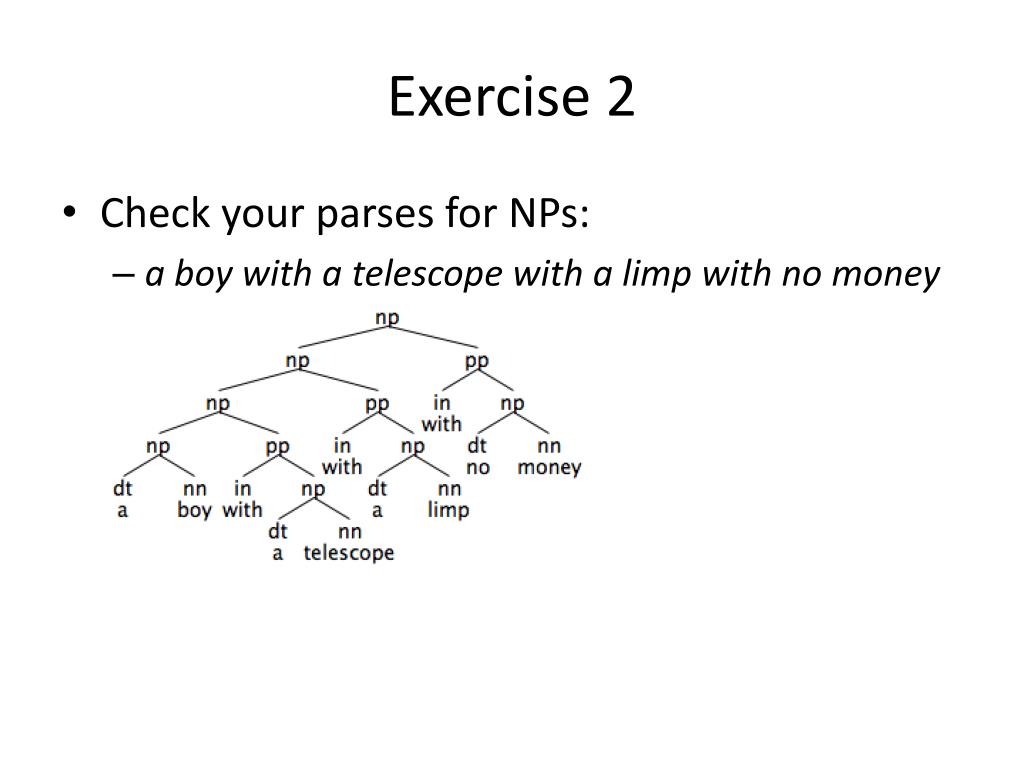

  23. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp with no money

  24. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp with no money

  25. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp with no money

  26. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp with no money

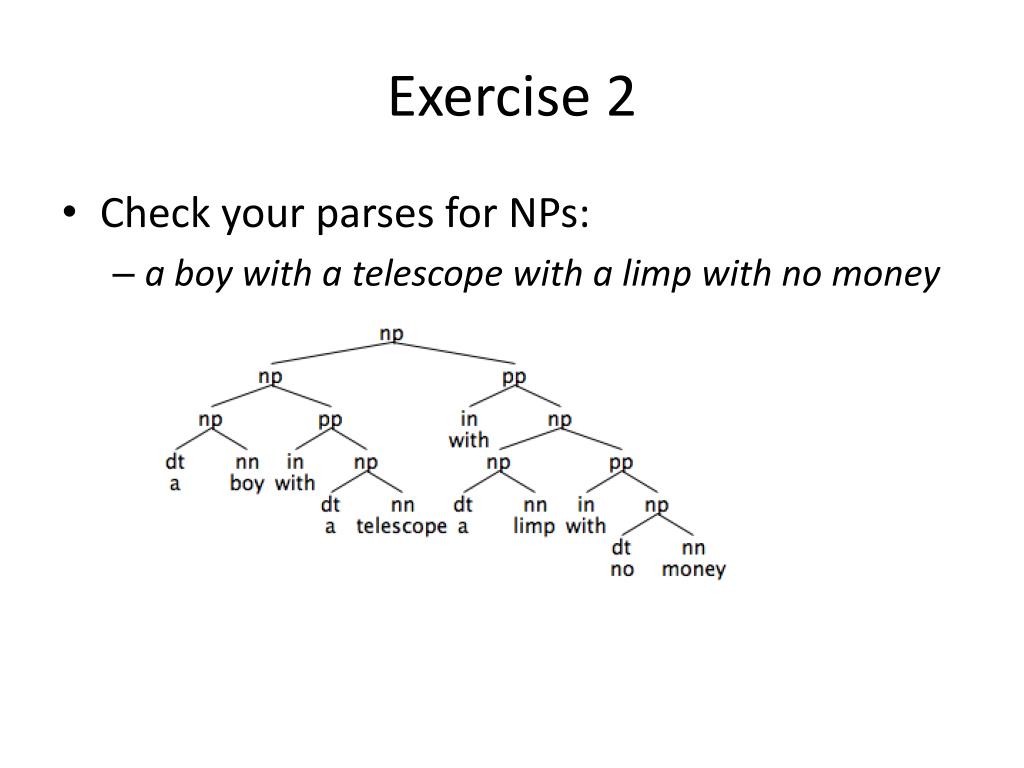

  27. Exercise 2 • Check your parses for NPs: • a boy with a telescope with a limp with no money

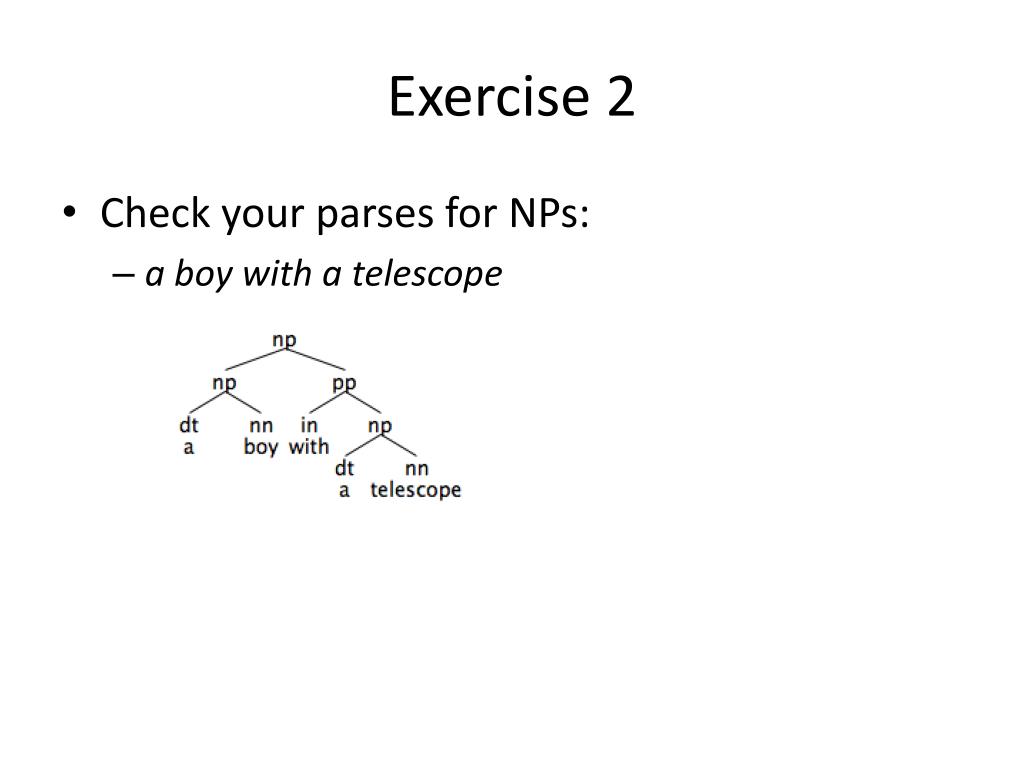

  28. Exercise 2 • Check your parses for NPs: • a boy with a telescope

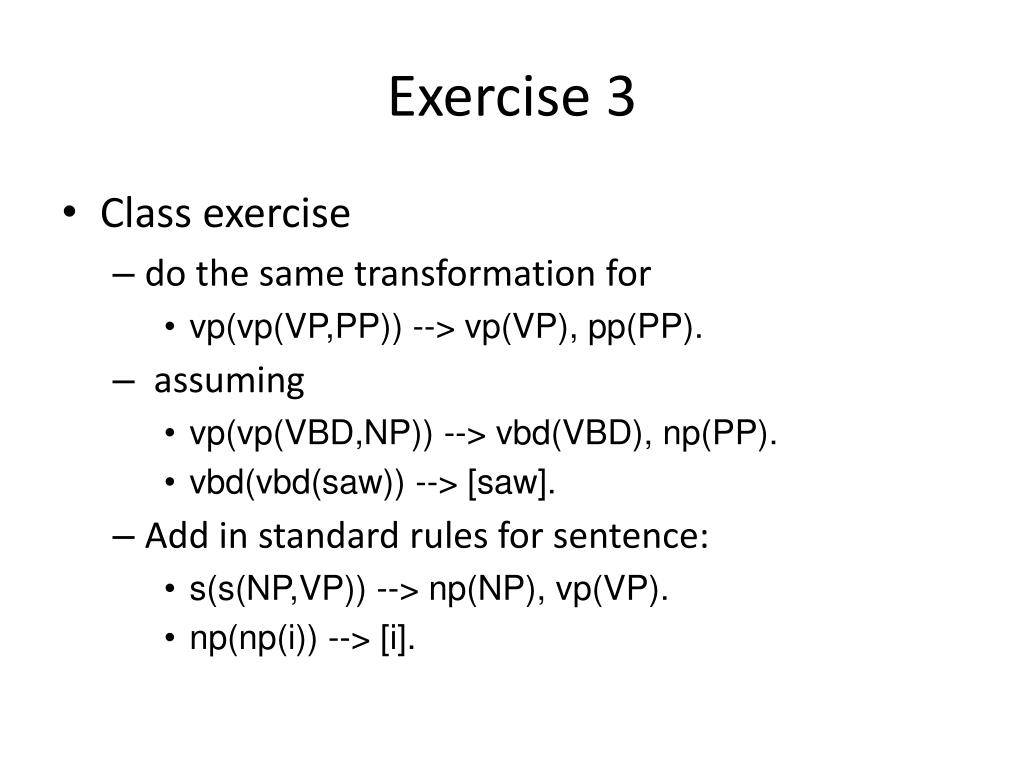

  29. Exercise 3 • Class exercise • do the same transformation for • vp(vp(VP,PP)) --> vp(VP), pp(PP). • assuming • vp(vp(VBD,NP)) --> vbd(VBD), np(PP). • vbd(vbd(saw)) --> [saw]. • Add in standard rules for sentence: • s(s(NP,VP)) --> np(NP), vp(VP). • np(np(i)) --> [i].

  30. Exercise 3 • Test on: • I saw a boy with a telescope • I saw a boy with a telescope with a limp • I saw a boy with a telescope with a limp with no money • How many parses do you get for each case?
