vle calculations
VLE Calculations
  • Purpose of this lecture:
  • To demonstrate how Raoult’s law can be used in the prediction of the VLE behaviour of ideal mixtures
  • Highlights
  • Phase rules gives the number of variables we need in order to determine the intensive state of a system at equilibrium
  • Saturation pressures can be calculated by means of the Antoine Eqn.
  • Raoult’s law can be used for constructing Pxy, Txy diagrams and performing dew point and bubble point calculations
  • Reading assignment: Section 10.4, pp. 347-357 (7th edition), or
  • Section 10.4, pp. 338-348 (6th edition)

Lecture 2

phase rule for intensive variables svna 10 2
Phase Rule for Intensive Variables SVNA-10.2
  • For a system of  phases and N species, the degree of freedom is:
  • F = 2 -  + N
    • # variables that must be specified to fix the intensive state of the system at equilibrium
  • Phase Rule Variables:
  • The system is characterized by T, P and (N-1) mole fractions for each phase
    • Requires knowledge of 2 + (N-1) variables
  • Phase Rule Equations:
  • At equilibrium i = i  = i  for all N species
    • These relations provide (-1)N equations
  • The difference is F = 2 + (N-1) - (-1)N
  • = 2-  +N

Lecture 2

phase rule in vle single component systems

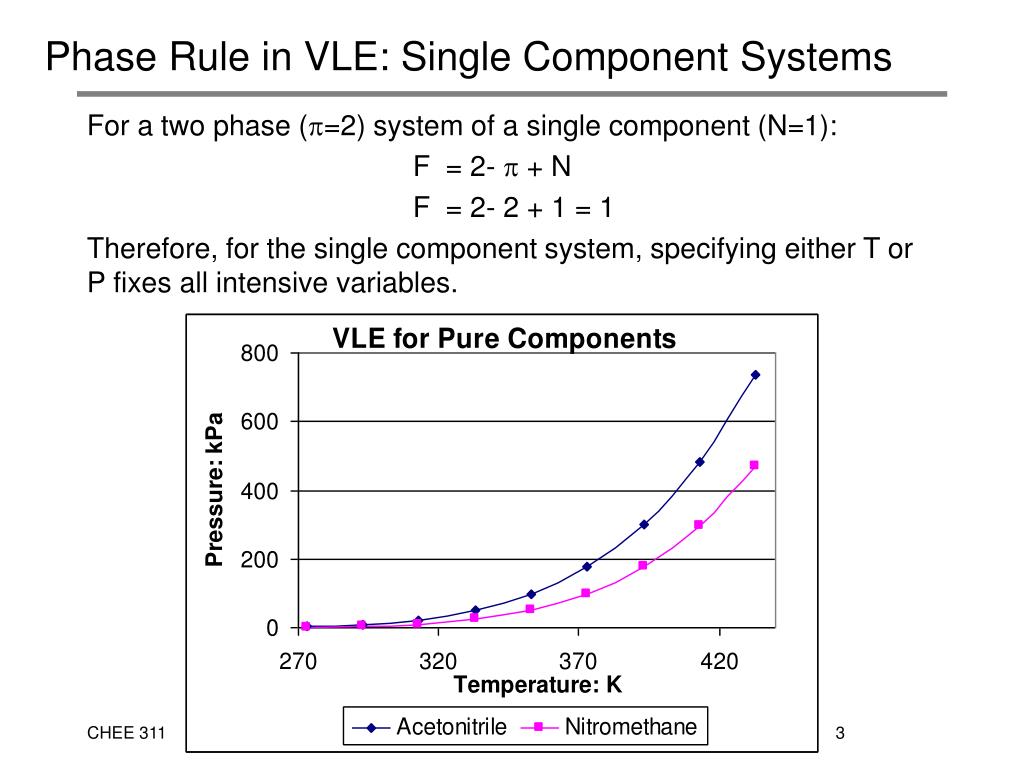

Phase Rule in VLE: Single Component Systems
  • For a two phase (p=2) system of a single component (N=1):
  • F = 2-  + N
  • F = 2- 2 + 1 = 1
  • Therefore, for the single component system, specifying either T or P fixes all intensive variables.

Lecture 2

correlation of vapour pressure data
Correlation of Vapour Pressure Data
  • Pisat, or the vapour pressure of component i, is commonly represented by Antoine Equation (Appendix B, Table B.2, SVNA 7th ed.):
  • For acetonitrile (Component 1):
  • For nitromethane (Component 2):
  • These functions are the only component properties needed to characterize ideal VLE behaviour

Lecture 2

phase rule in vle ideal binary mixtures
Phase Rule in VLE: Ideal Binary Mixtures
  • (General Case)
  • For a two phase (=2), binary system (N=2):
  • F = 2- 2 + 2 = 2
  • Therefore, for the binary case, two intensive variables must be specified to fix the state of the system.

Lecture 2

phase rule in vle binary systems pxy diagrams
Phase Rule in VLE: Binary Systems (Pxy diagrams)
  • Example: Acetonitrile (1) / Nitromethane (2) system

Lecture 2

phase rule in vle binary systems txy diagrams

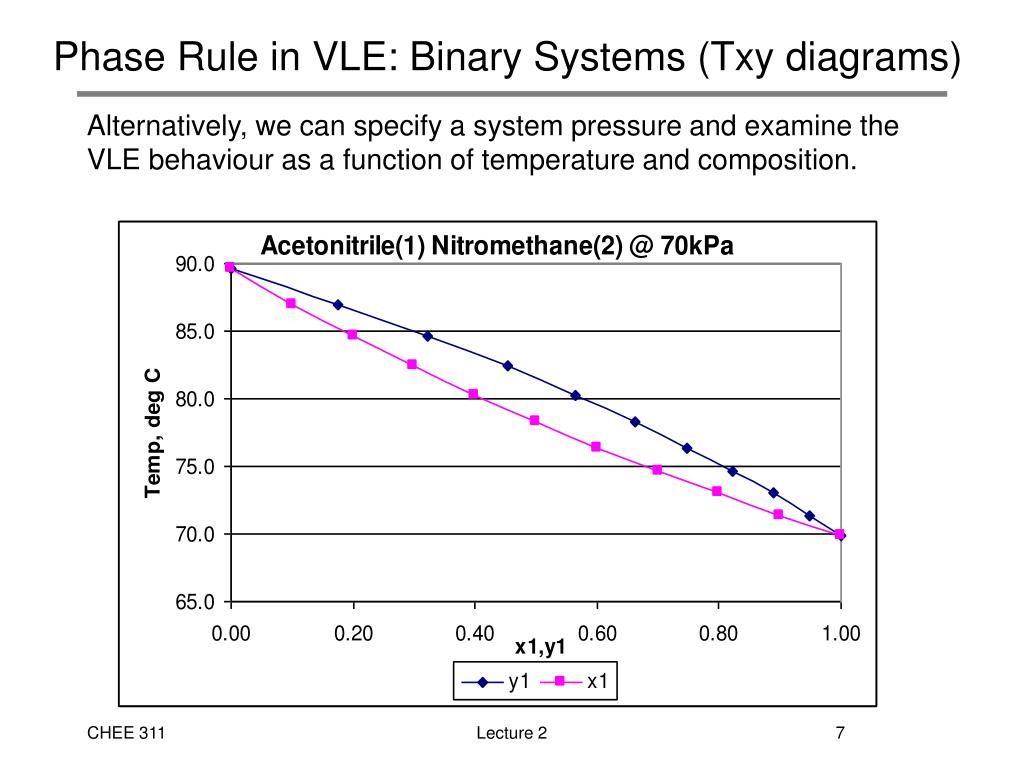

Phase Rule in VLE: Binary Systems (Txy diagrams)
  • Alternatively, we can specify a system pressure and examine the VLE behaviour as a function of temperature and composition.

Lecture 2

vle calculations using raoult s law
VLE Calculations using Raoult’s Law
  • Raoult’s Law for ideal phase behaviour relates the composition of liquid and vapour phases at equilibrium through the component vapour pressure, Pisat.
  • Given the appropriate information, we can apply Raoult’s law to the solution of 5 types of problems:
    • Dew Point: Pressure or Temperature
    • Bubble Point: Pressure or Temperature
    • P,T Flash: calculation of equilibrium composition (P, T, zi given)

Lecture 2

dew and bubble point calculations

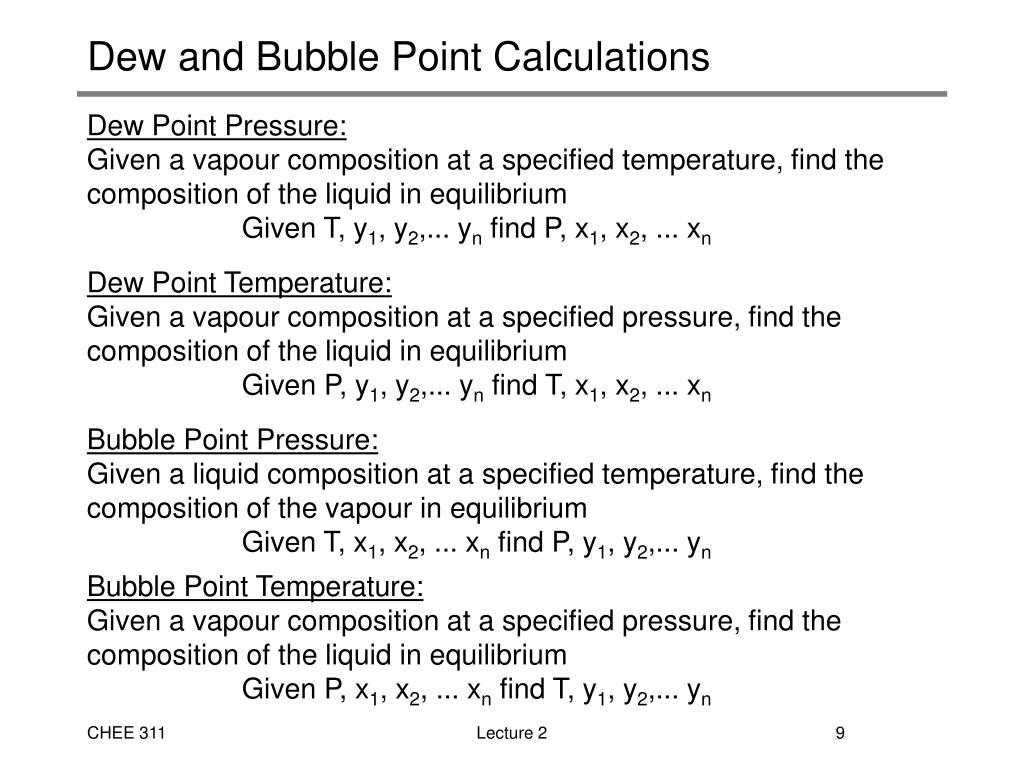

Dew and Bubble Point Calculations
  • Dew Point Pressure:
  • Given a vapour composition at a specified temperature, find the composition of the liquid in equilibrium
  • Given T, y1, y2,... yn find P, x1, x2, ... xn
  • Dew Point Temperature:
  • Given a vapour composition at a specified pressure, find the composition of the liquid in equilibrium
  • Given P, y1, y2,... yn find T, x1, x2, ... xn
  • Bubble Point Pressure:
  • Given a liquid composition at a specified temperature, find the composition of the vapour in equilibrium
  • Given T, x1, x2, ... xn find P, y1, y2,... yn
  • Bubble Point Temperature:
  • Given a vapour composition at a specified pressure, find the composition of the liquid in equilibrium
  • Given P, x1, x2, ... xn find T, y1, y2,... yn

Lecture 2

vle calculations introduction
VLE Calculations - Introduction
  • For now, we are going to employ these calculations only for
  • identifying the state and composition of binary and ideal mixtures
  • As we are going to see later in the course, the aforementioned
  • VLE calculations are also applicable to non-ideal or/and
  • multi-component mixtures
  • The calculations revolve around the use of 2 key equations:
  • 1) Raoult’s law for ideal phase behaviour:
  • 2) Antoine’s Equation

(1)

(2)

Lecture 2

bubl p calculation t x 1 known
BUBL P Calculation (T, x1 known)
  • - Calculate and from Antoine’s Equation
  • For the vapour-phase composition (bubble) we can write:
  • y1+y2=1 (3)
  • Substitute y1 and y2 in Eqn (3) by using Raoult’s law:
  • (4)
  • - Re-arrange and solve Eqn. (4) for P
  • Now you can obtain y1 from Eqn (1)
  • Finally, y2 = 1-y1

Lecture 2

dew p calculation t y 1 known

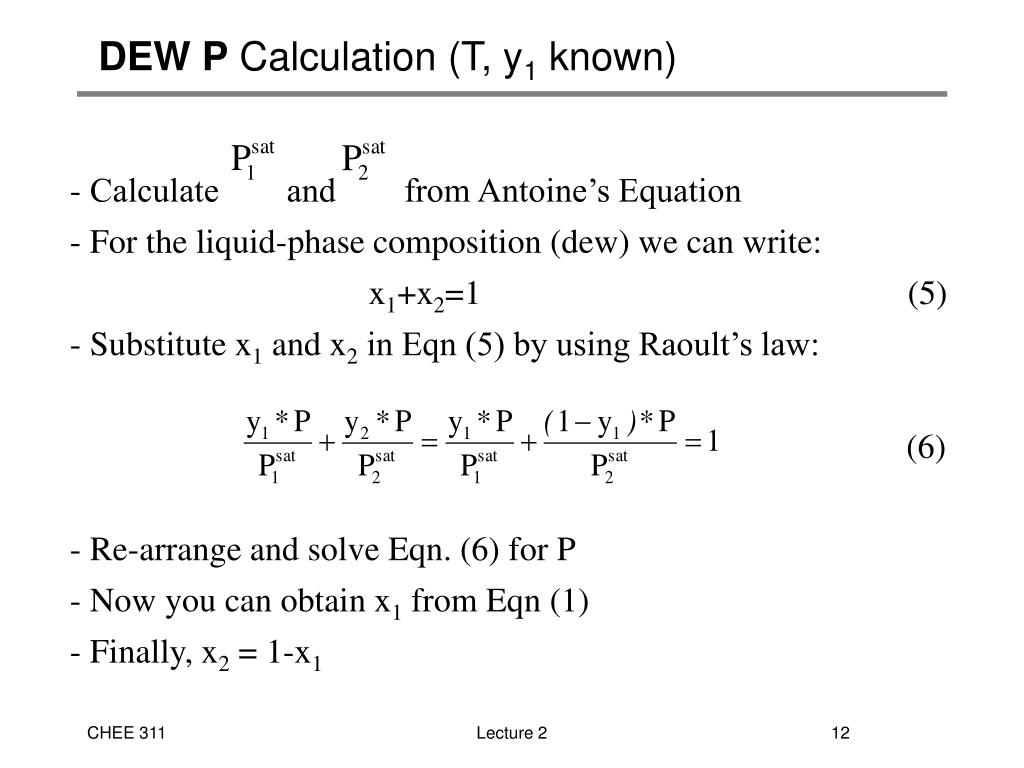

DEW P Calculation (T, y1 known)
  • - Calculate and from Antoine’s Equation
  • For the liquid-phase composition (dew) we can write:
  • x1+x2=1 (5)
  • Substitute x1 and x2 in Eqn (5) by using Raoult’s law:
  • (6)
  • - Re-arrange and solve Eqn. (6) for P
  • Now you can obtain x1 from Eqn (1)
  • Finally, x2 = 1-x1

Lecture 2

bubl t calculation p x 1 known

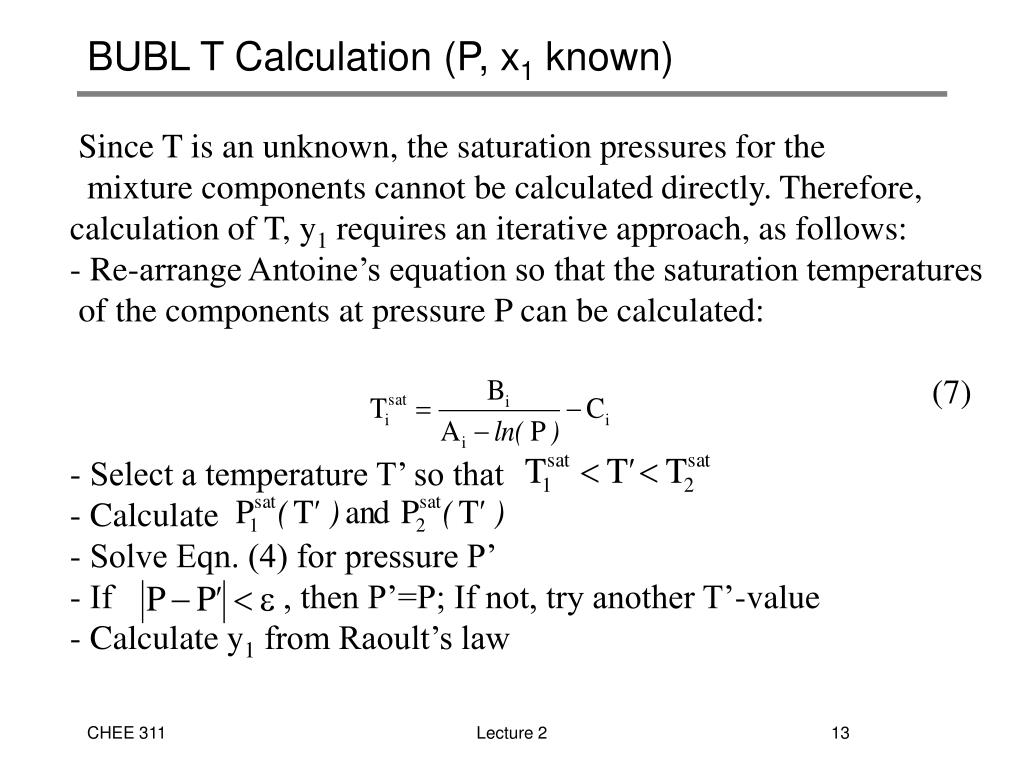

BUBL T Calculation (P, x1 known)
  • Since T is an unknown, the saturation pressures for the
  • mixture components cannot be calculated directly. Therefore,
  • calculation of T, y1 requires an iterative approach, as follows:
  • Re-arrange Antoine’s equation so that the saturation temperatures
  • of the components at pressure P can be calculated:
  • (7)
  • Select a temperature T’ so that
  • Calculate
  • Solve Eqn. (4) for pressure P’
  • If , then P’=P; If not, try another T’-value
  • Calculate y1 from Raoult’s law

Lecture 2

dew t calculation p y 1 known
DEW T Calculation (P, y1 known)
  • Same as before, calculation of T, x1 requires an iterative approach:
  • Re-arrange Antoine’s equation so that the saturation temperatures
  • of the components at pressure P can be calculated from Eqn. (7):
  • - Select a temperature T’ so that
  • Calculate from Antoine’s Eqn.
  • Solve Eqn. (6) for pressure P’
  • If , then P’=P; If not, try another T’-value
  • Calculate x1 from Raoult’s law

Lecture 2

p t flash calculation
P, T Flash Calculation
  • - Calculate and from Antoine’s Equation
  • Use Raoult’s law in the following form:
  • (8)
  • - Re-arrange and solve Eqn. (8) for x1
  • Now you can obtain y1 from Eqn (1), i.e.,

Lecture 2

example

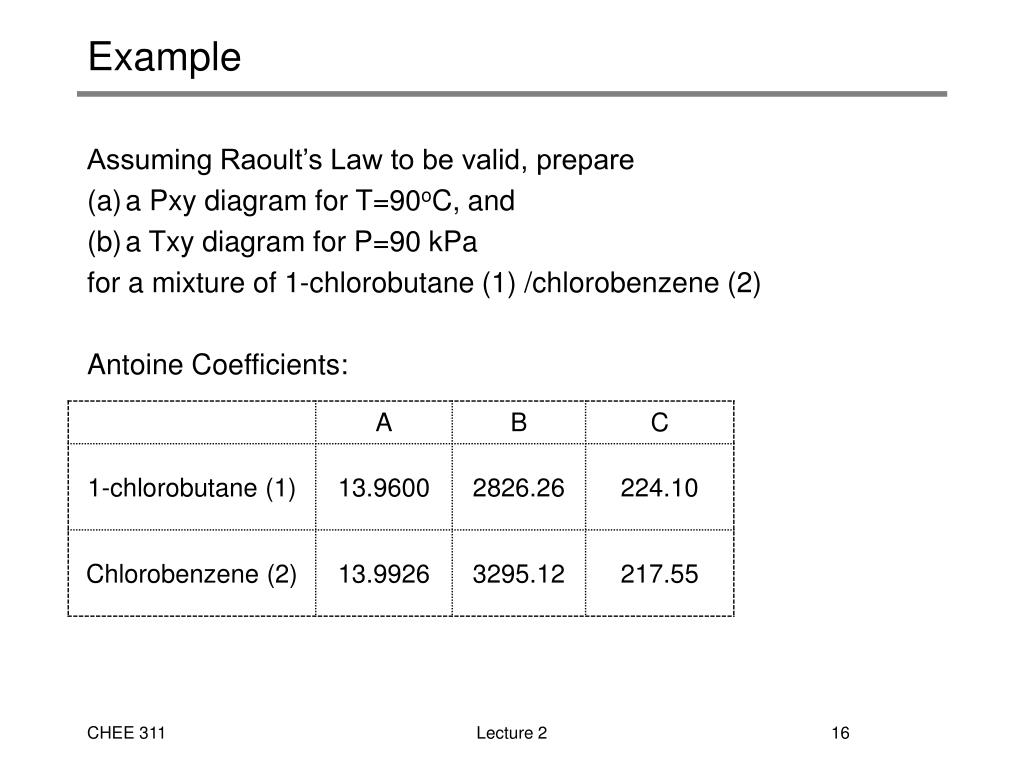

Example
  • Assuming Raoult’s Law to be valid, prepare
  • a Pxy diagram for T=90oC, and
  • a Txy diagram for P=90 kPa
  • for a mixture of 1-chlorobutane (1) /chlorobenzene (2)
  • Antoine Coefficients:

Lecture 2

construction of pxy diagrams
Construction of Pxy diagrams
  • The construction of Pxy diagram requires multiple P, T Flash
  • calculations, where T is held constant and P is varied from P2sat to P1sat.
  • The results can be tabulated as shown below:

This type of calculations can also be performed by keeping T constant

and varying x1 or y1 from 0.0 to 1.0

Lecture 2

slide19

160.00

140.00

120.00

liquid

100.00

x1

P (kPa)

80.00

y1

VLE

60.00

40.00

vapor

20.00

0.00

0.00

0.20

0.40

0.60

0.80

1.00

Example – (a) Construction of a Pxy Plot

Lecture 2

construction of txy diagrams

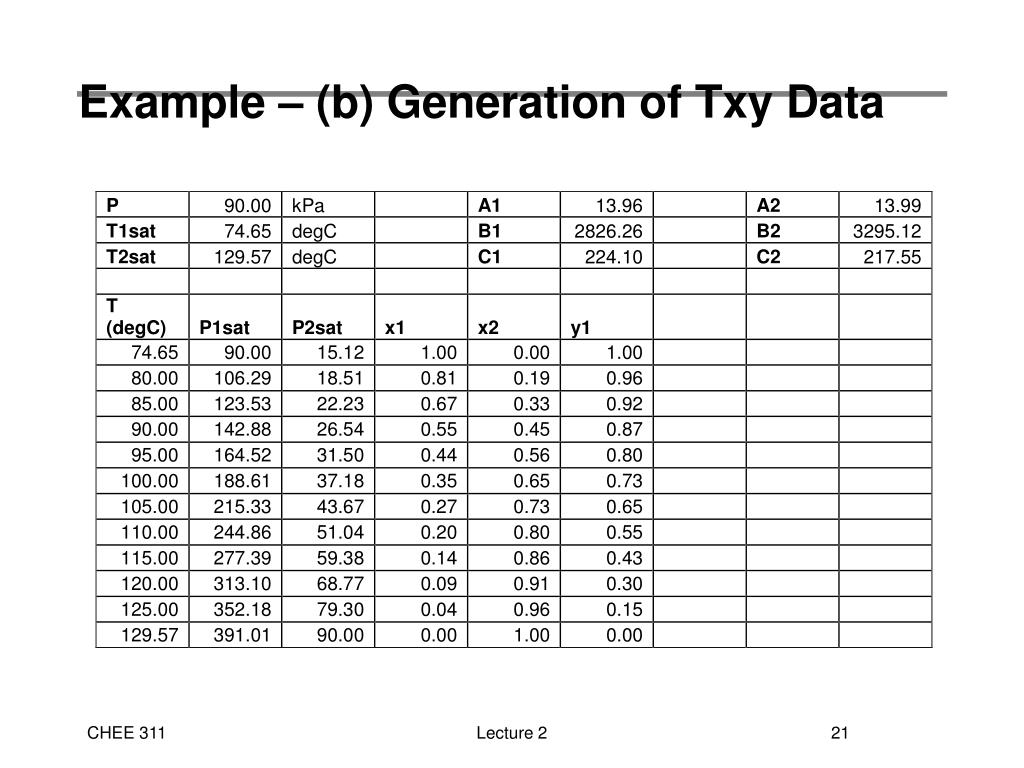

Construction of Txy diagrams
  • The construction of Txy, diagram requires multiple P, T, Flash
  • calculations, each one of which provides a set of equilibrium y1, x1
  • values for a given value of temperature (at fixed P)
  • The results can be tabulated as shown below:

This type of calculations can also be performed by keeping P constant

and varying x1 or y1 from 0.0 to 1.0

Lecture 2

vle calculations summary
VLE Calculations - Summary
  • Why? To completely identify the thermodynamic state
  • of a mixture at equilibrium (single phase, 2 phases..?)
  • How? Through the calculation of its P, T, and composition
  • - The type of calculation that we need to perform is subject
  • to the variables we are looking to evaluate
  • - These calculations are classified as follows:

Lecture 2
