Presentation Transcript

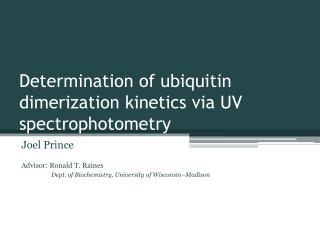

Determination of ubiquitin dimerization kinetics via uv spectrophotometry

Determination of ubiquitin dimerization kinetics via UV spectrophotometry

Joel Prince

Advisor: Ronald T. Raines

Dept. of Biochemistry, University of Wisconsin–Madison


Outline
Outline spectrophotometry

  • Background

    • Ubiquitin

    • Ubiquitin code and signals

    • Research goal

  • Experimental Approach

    • Synthesizing Ub with C-terminal cysteine

    • Synthesizing Ub K C variants

  • Results

    • Kinetics plot

  • Future Plans


Ubiquitin
Ubiquitin spectrophotometry

Yeast/Human Ubiquitin

(1UBQ)

  • Highly conserved (ubiquitous) in eukaryotes

  • Important post-translational modification

  • > 4% of genes in the human genome encode proteins involved in ubiquitin signaling


Cracking the ubiquitin code
Cracking the Ubiquitin Code spectrophotometry

Heterotypic Polyubiquitination

Monoubiquitination

S

S

S

HomotypicPolyubiquitination

with respective % linkages in vivo

S

S

S

S

K11 (28.0%)

K27 (9.0%)

K6 (10.9%)

K29 (3.2%)

S

S

S

S

K48 (29.1%)

K33 (3.5%)

K63 (16.3%)

Xu, P. et. al. J. Cell.2009. 137, 133–145.


Ubiquitin cellular signals
Ubiquitin Cellular Signals spectrophotometry

F. Ikeda, I. Dikic. EMBO Reports. 2008. 9, 536–542


Determination of ubiquitin dimerization kinetics via uv spectrophotometry
Goal spectrophotometry

  • Is the distribution of linkages due to:

    • Specificity of E3 ligases

      OR

    • Favorable interactions between monomers

      • Promiscuous ligases


Linkage formation in vivo
Linkage formation spectrophotometryin vivo

  • Reaction between:

    • C-terminal carboxyl

    • Amine of Lys side chain

      • Seven lysine residues

  • In vivo catalyzed by E3 ligases


In vitro representation of dimerization
In vitro spectrophotometry representation of dimerization

UbwithC-terminal

cysteine

Ub76 K C variant

Native Dimer


Synthesizing ub with a c terminal cysteine
Synthesizing spectrophotometryUb with a C-terminal cysteine

  • Quikchange mutagenesis

    • Add 77th residue: cysteine

  • NTB-protected thiol

    • Important for

      colorimetric analysis

DTNB

NTB-protection

Displacement via

thiol

NTB

(412 nm)


Synthesizing ub k c variants
Synthesizing spectrophotometryUb K C variants

  • Quikchange mutagenesis

    • Site-directed technique

      • Mutate Lys 6, 11, 27, 29, 33, 48, and 63

  • Result in cysteine mutants

    • Reactive thiol necessary for displacing NTB

NTB (412 nm)


Results
Results spectrophotometry

  • Initial reaction velocity (ν0)

  • K11C, K27C,

  • and K63C at

  • too low of a

  • concentration


Results1
Results spectrophotometry

  • ν0=k[A0][B0]

    • [A0] and [B0]

      • Considered constant (<5% decrease in reactants)

      • Measured initially with DTNB assay

  • Calculate rate constants (k)


Future plans
Future Plans spectrophotometry

  • Analyze kinetics of reaction of DTNB and Ub K C variants

    • Hypothesis: observation of similar rate constants

  • Re-express oxidized variants

    • Remedy observed linear kinetic trends

  • Compare kinetics to thermodynamic


Acknowledgements
Acknowledgements spectrophotometry

  • Prof. Ronald T. Raines

  • Dr. Langdon J. Martin

  • Kristen Andersen

  • The Raines Lab
