EDINA Digimap’s OS Collection: Boundary Download Vivienne Carr James Crone

EDINA Digimap’s OS Collection: Boundary Download Vivienne Carr James Crone

Meeting content • Digimap’s OS Collection Data Download Services • Digimap’s OS Collection Boundary Download: • What’s available? • Code-point • Code-point Polygons • OS Boundary Line • GB National Boundaries and GB National Grids • Onward use of data • Unzip data files • Data formats & conversion • Desktop sharing Digimap Training Workshops

Data Download Services • Accessed from Digimap’s OS Collection Home page Digimap Training Workshops

Data Download Services • Data Download • MasterMap Download • Boundary Download • Gazetteer Download • Gazetteer Plus Digimap Training Workshops

OS Products available http://www.edina.ac.uk/digimap/description/products/ Digimap Training Workshops

Boundary Download Home Page • OS Code-Point – postcode listings or postcode polygons • OS Boundary lines – e.g. counties, unitary authorities, electoral areas • National GB boundaries Digimap Training Workshops

Date of last updates by OS • Code-Point, March 2009 • Boundary Line: • April 2009, NTF format • May 2009, other formats • Put into Digimap service in September 2009 Digimap Training Workshops

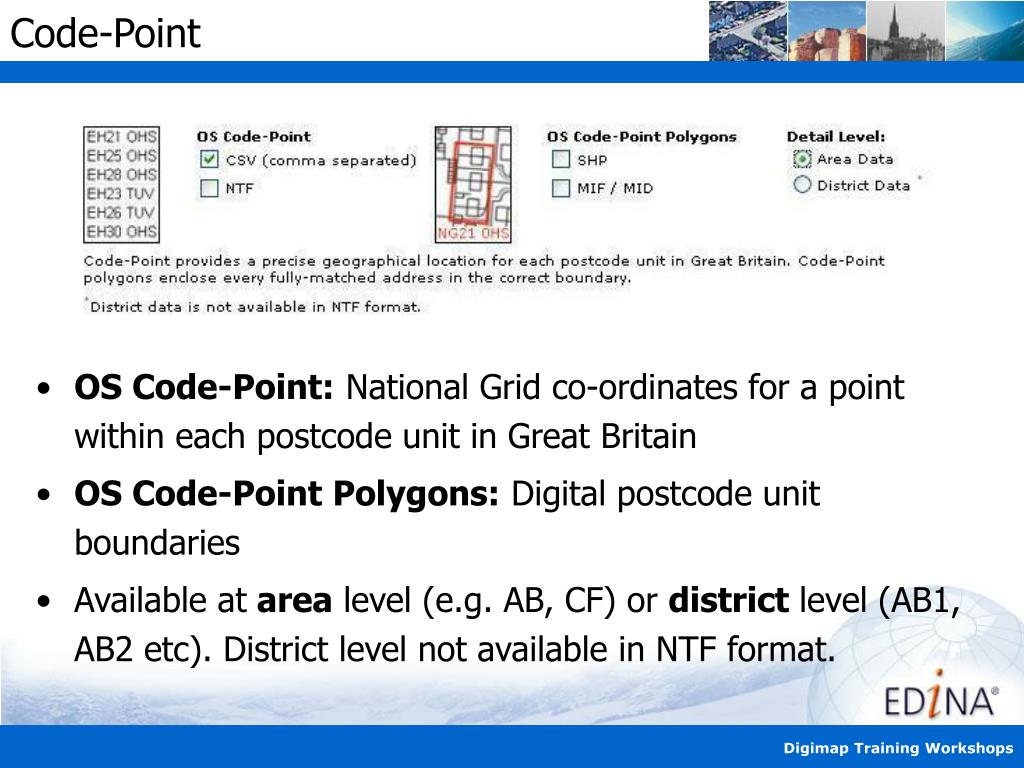

Code-Point • OS Code-Point: National Grid co-ordinates for a point within each postcode unit in Great Britain • OS Code-Point Polygons: Digital postcode unit boundaries • Available at area level (e.g. AB, CF) or district level (AB1, AB2 etc). District level not available in NTF format. Digimap Training Workshops

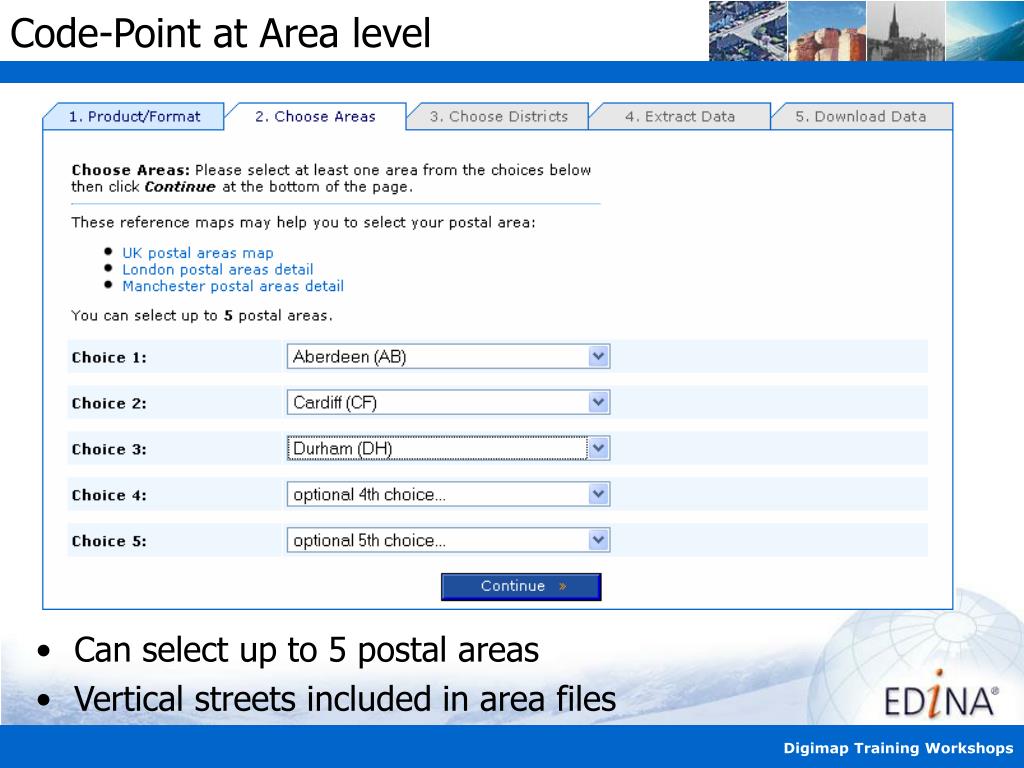

Code-Point at Area level • Can select up to 5 postal areas • Vertical streets included in area files Digimap Training Workshops

Code-Point at District level • First, select an area Digimap Training Workshops

Code-Point at District level • Then select the districts of interest • Separate vertical street file provided for entire area, when you download district files Digimap Training Workshops

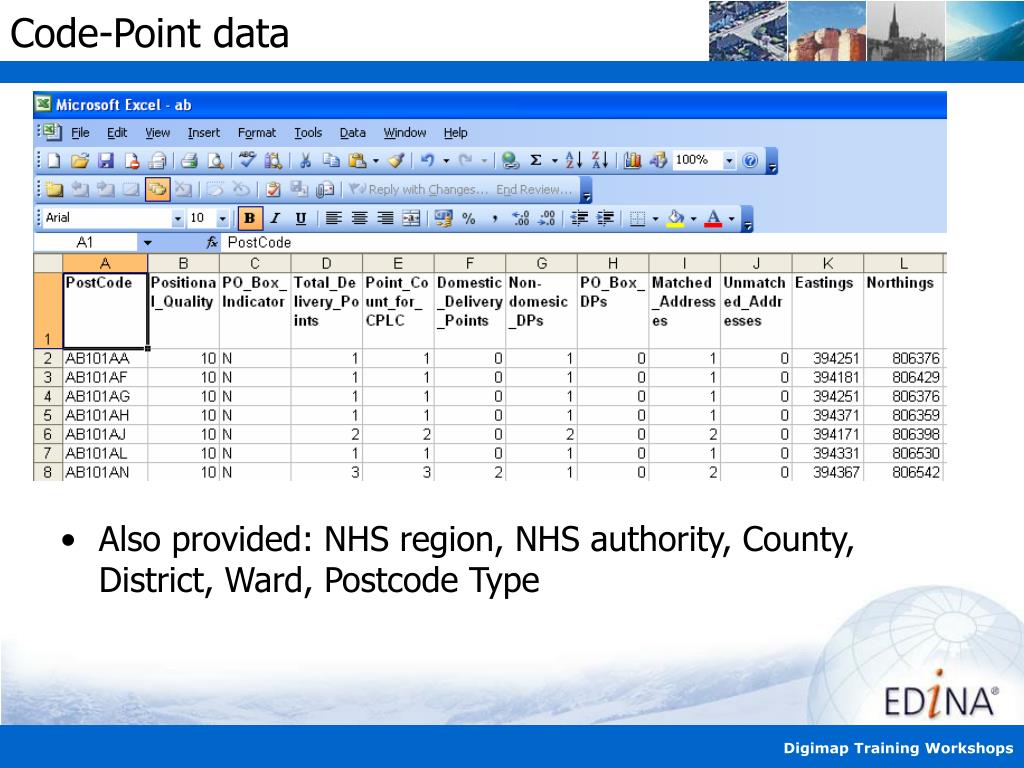

Code-Point data • Also provided: NHS region, NHS authority, County, District, Ward, Postcode Type Digimap Training Workshops

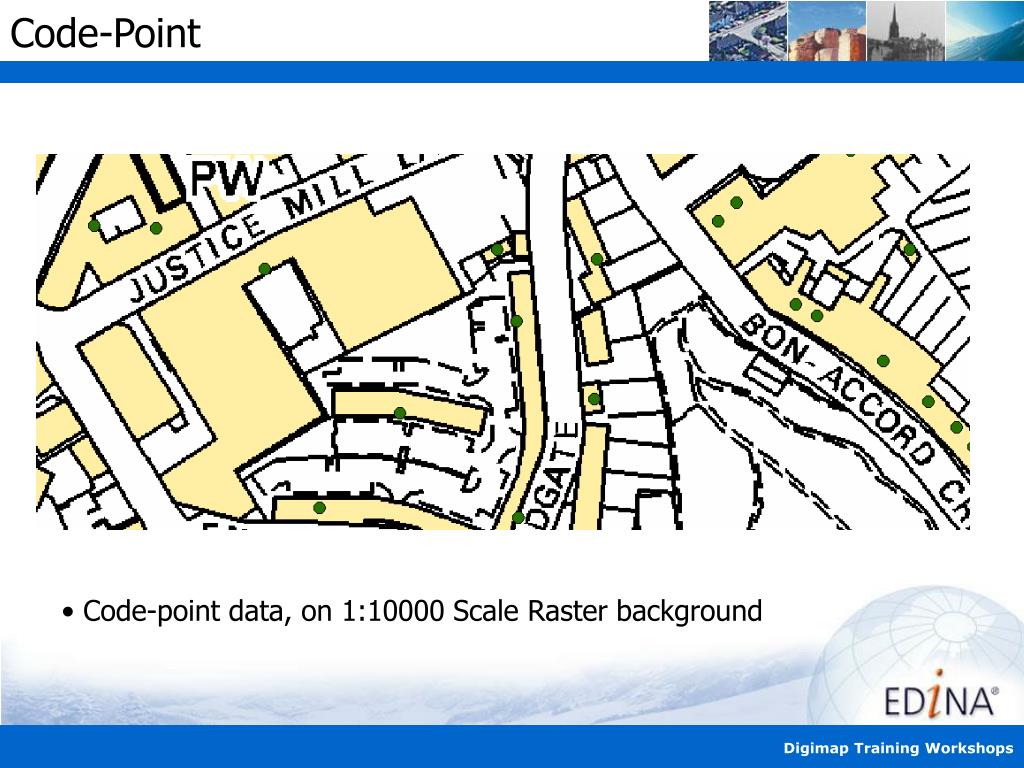

Code-Point • Code-point data, on 1:10000 Scale Raster background Digimap Training Workshops

Code-Point Polygons • Code-Point data and Code-Point Polygons, on 1:10000 Scale Raster background Digimap Training Workshops

Meeting content • Digimap’s OS Collection Data Download Services • Digimap’s OS Collection Boundary Download: • What’s available? • Code-point • Code-point Polygons • OS Boundary Line • GB National Boundaries and GB National Grids • Onward use of data • Unzip data files • Data formats & conversion • Desktop Sharing Digimap Training Workshops

Boundary Line • Available: County, European constituencies, Greater London Authority, Metropolitan districts, Scottish parliamentary electoral region, Unitary Authorities, Westminster constituencies, Extent of the realm • Boundary datasets for use with census datasets, available in UKBORDERS: http://edina.ac.uk/ukborders/ Digimap Training Workshops

OS Boundary Line – SHP or MIF/MID • Select boundary type > Receive one chosen boundary type for all areas Digimap Training Workshops

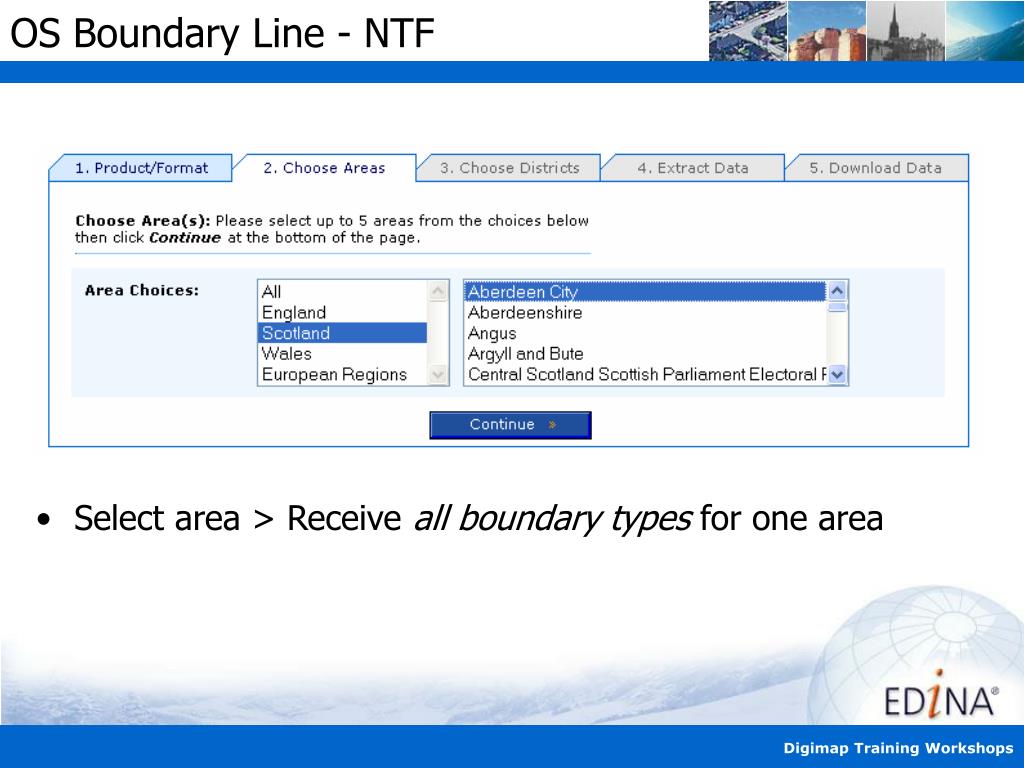

OS Boundary Line - NTF • Select area > Receive all boundary types for one area Digimap Training Workshops

Boundary Line • Scotland and Wales Constituencies, 1:25000 Raster background of Edinburgh area Digimap Training Workshops

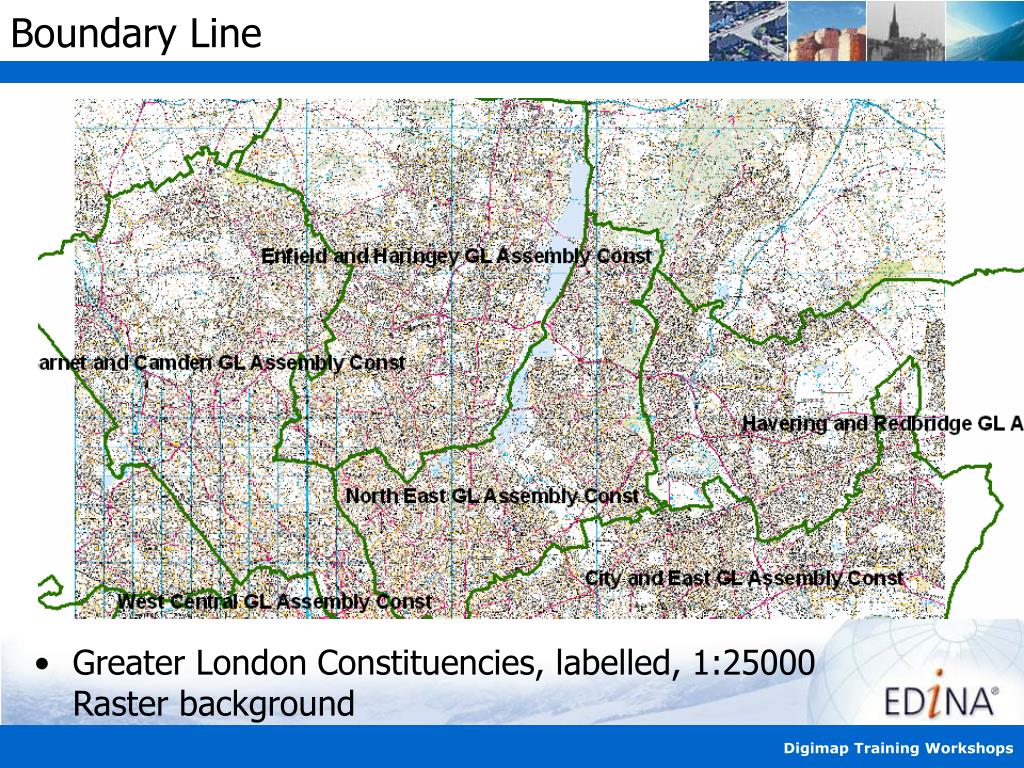

Boundary Line • Greater London Constituencies, labelled, 1:25000 Raster background Digimap Training Workshops

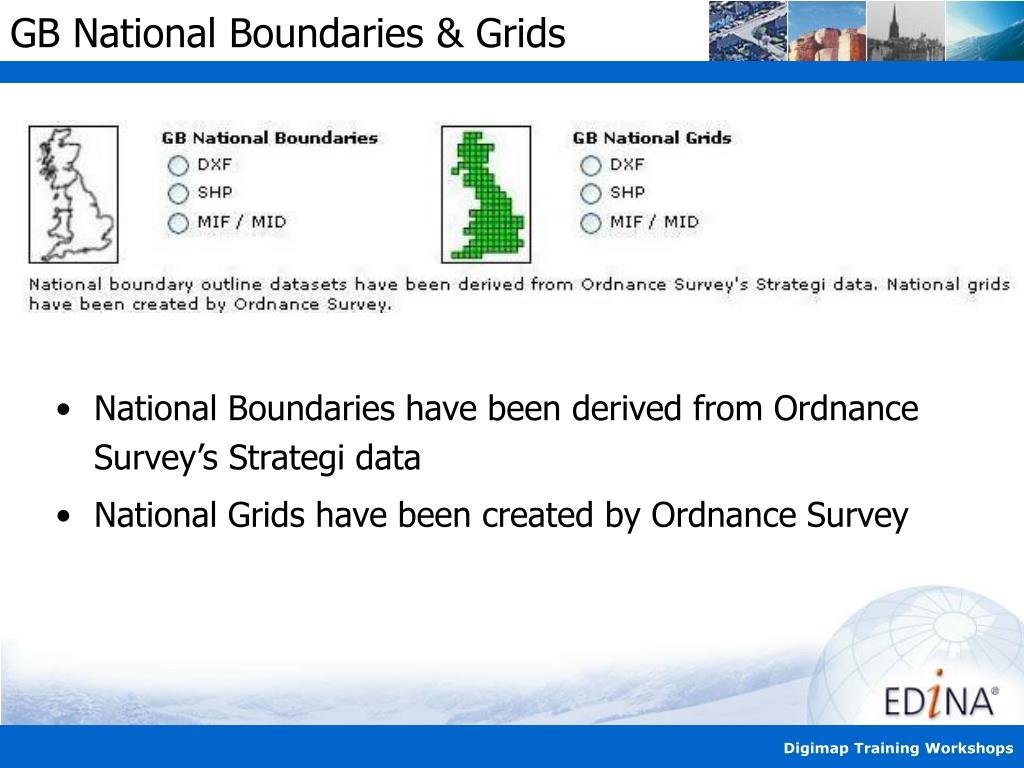

GB National Boundaries & Grids • National Boundaries have been derived from Ordnance Survey’s Strategi data • National Grids have been created by Ordnance Survey Digimap Training Workshops

GB National Boundaries • 4 options – GB, England, Scotland, Wales Digimap Training Workshops

GB National Grids • 4 options – 1km, 5km, 10km, 100km Digimap Training Workshops

Unzip process 1. Data.zip • 2. Unzip Data.zip: • Contents.txt, • Conditions.txt, • Data files Digimap Training Workshops

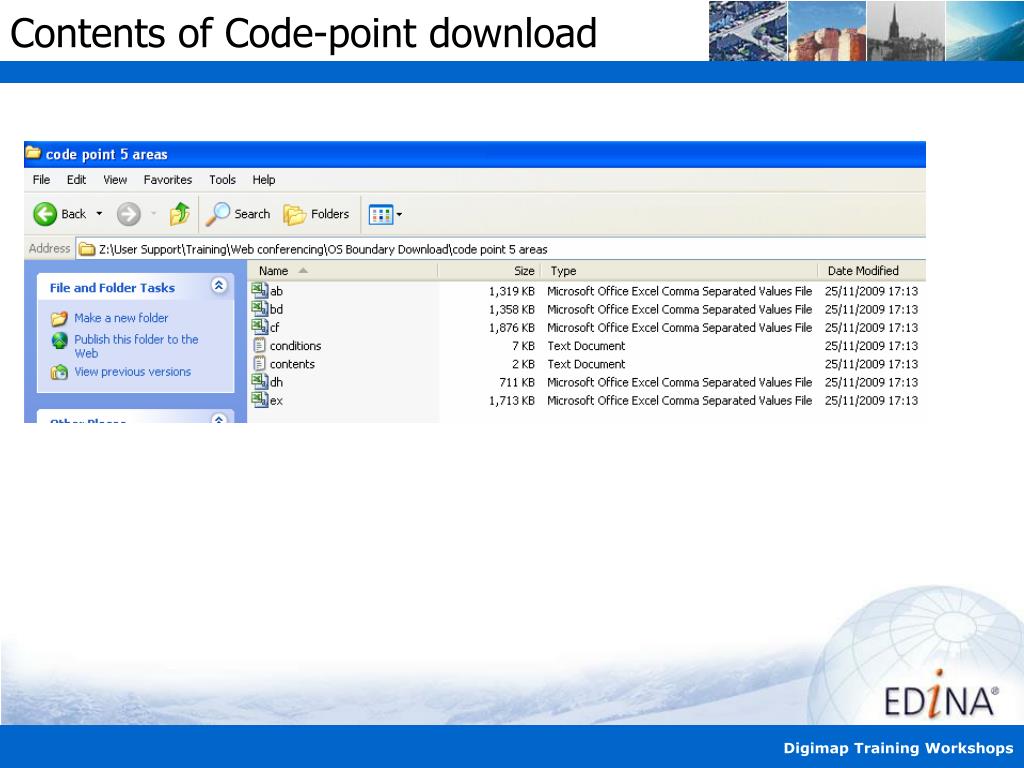

Contents of Code-point download Digimap Training Workshops

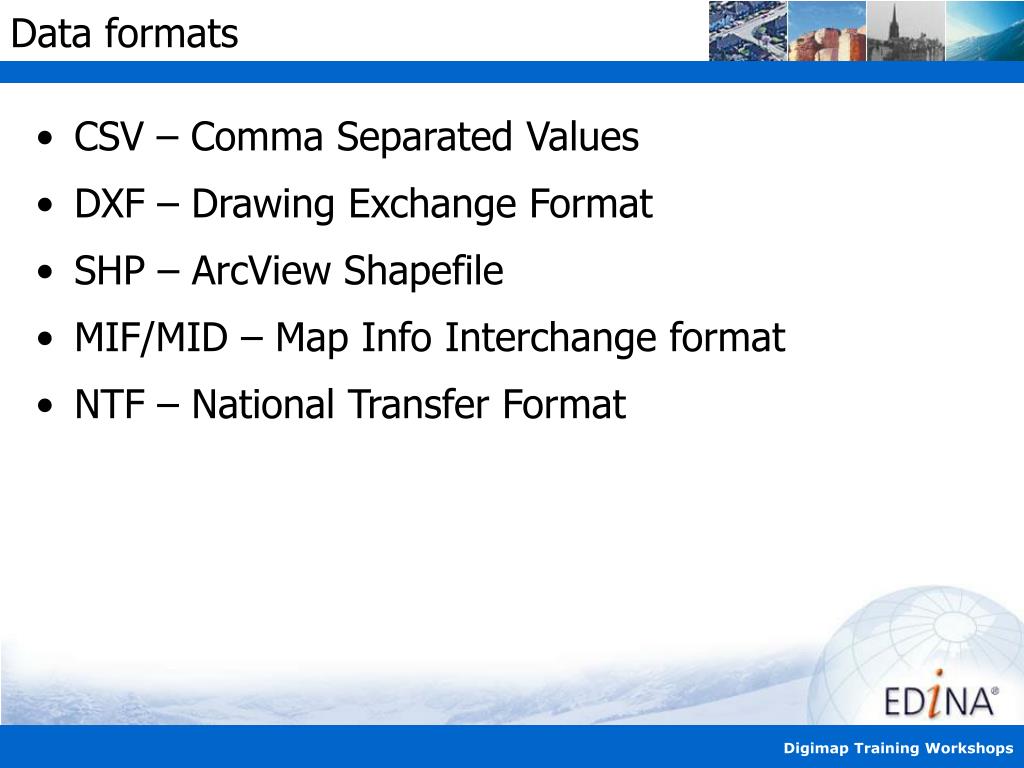

Data formats • CSV – Comma Separated Values • DXF – Drawing Exchange Format • SHP – ArcView Shapefile • MIF/MID – Map Info Interchange format • NTF – National Transfer Format Digimap Training Workshops

CSV format • Necessary to convert a CSV file to a DBF 4 file, prior to import to ArcGIS • Can do this in MS Office 2003, but not in MS Office 2007 • A possible workaround is to open the CSV file with Open Office, then save as DBF Digimap Training Workshops

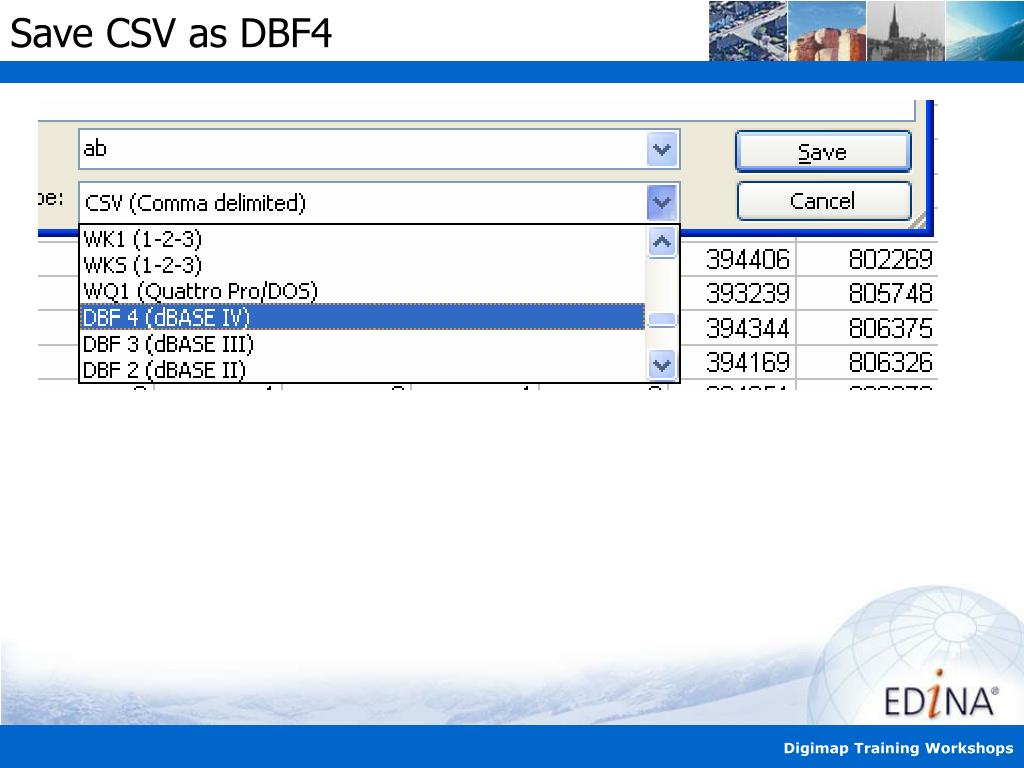

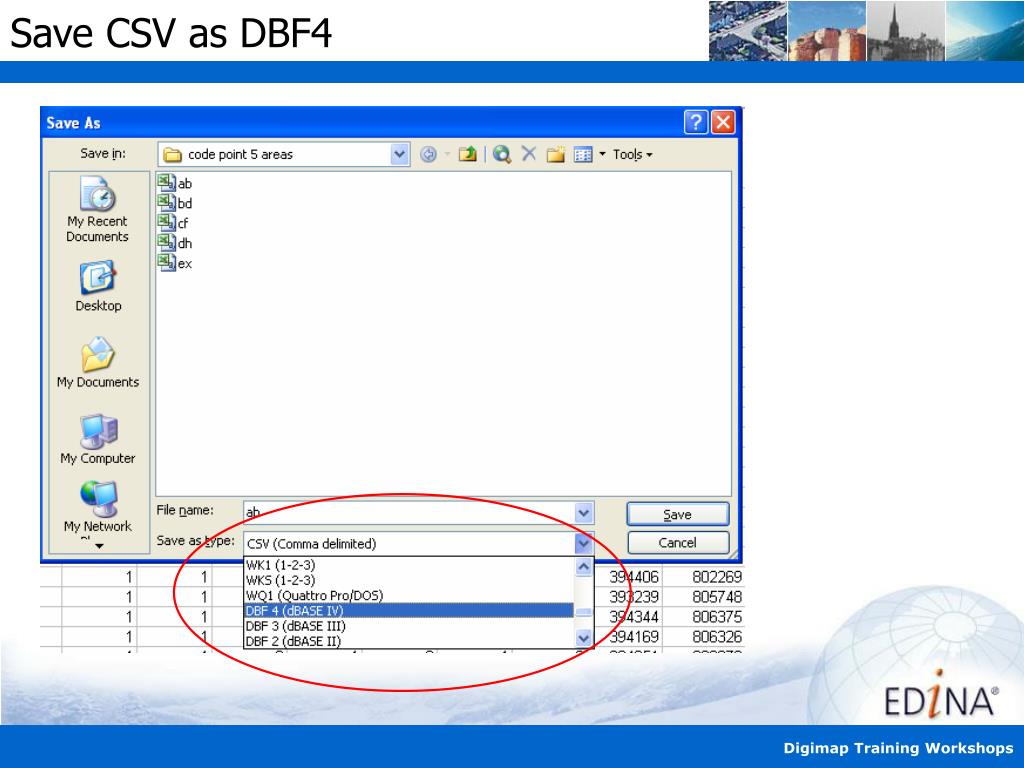

Save CSV as DBF4 Digimap Training Workshops

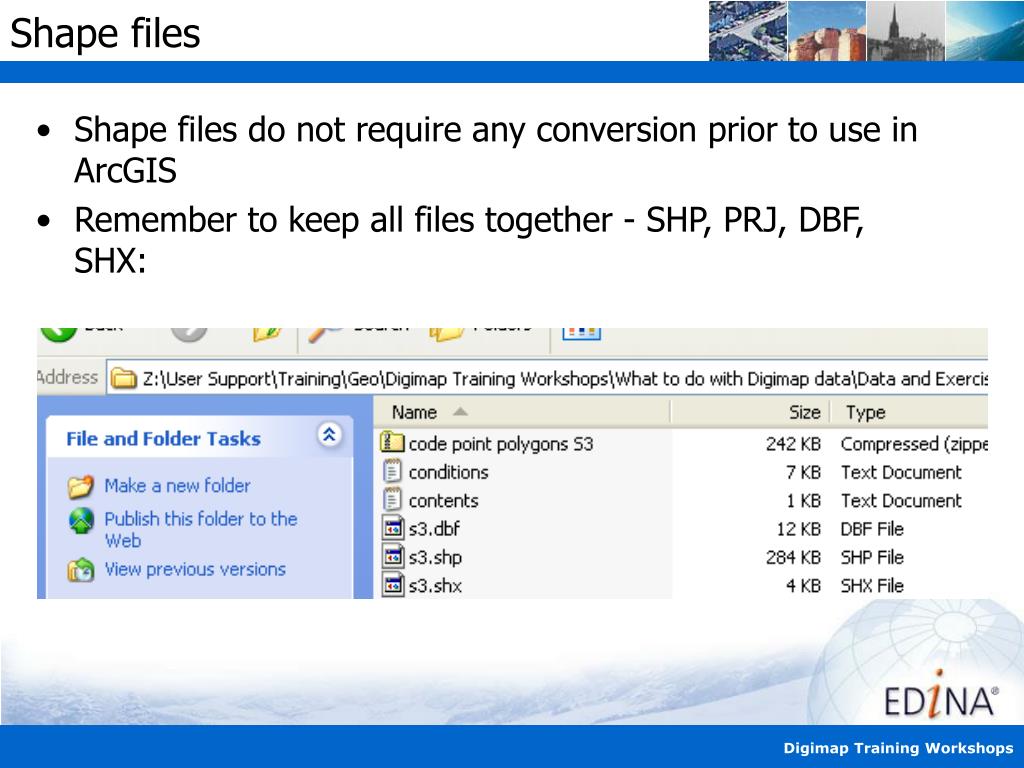

Shape files • Shape files do not require any conversion prior to use in ArcGIS • Remember to keep all files together - SHP, PRJ, DBF, SHX: Digimap Training Workshops

NTF format • Conversion will be required before use in ArcGIS • ESRI Productivity Suite (ArcGIS V9.2 or later) – this must be requested from CHEST separately, via your institutional CHEST representative. • Map Manager (ArcGIS V9.1 or earlier) • Either of these tools can be used to convert NTF files to ESRI Personal Geodatabase format Digimap Training Workshops

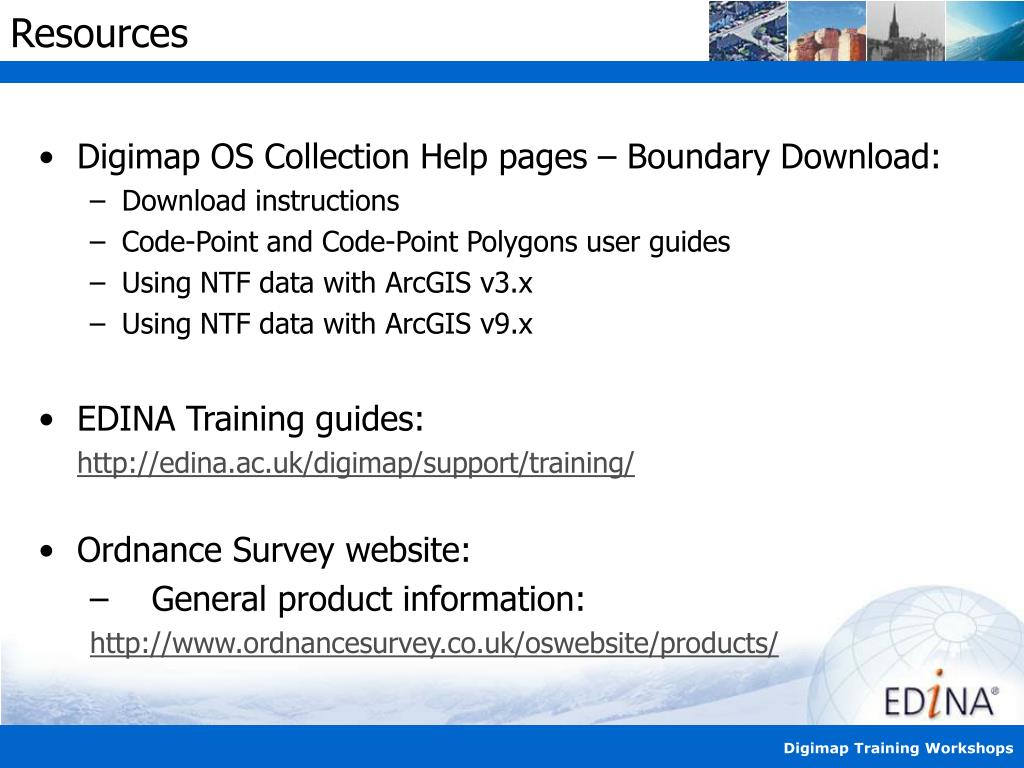

Resources • Digimap OS Collection Help pages– Boundary Download: • Download instructions • Code-Point and Code-Point Polygons user guides • Using NTF data with ArcGIS v3.x • Using NTF data with ArcGIS v9.x • EDINA Training guides: http://edina.ac.uk/digimap/support/training/ • Ordnance Survey website: • General product information: http://www.ordnancesurvey.co.uk/oswebsite/products/ Digimap Training Workshops
