  1. Lighting in the 21st Century Dana Taylor www.mvhsfinearts.com

  2. Sponsored by 1-800-922-5356 www.vls.com

  3. Design will continue to be driven by technology.Stefan Sagmeister

  4. It is a bit like… • This becomes…

  5. What We’ll Cover • Solid State Lighting (LED's) and How To Incorporate SSL Into Your Lighting Design • Patching Fixtures • Basic Console Control • Color and Color Issues • Electrical and Data Requirements • Differences Between LED's and Conventional Lighting • Basic Programming

  6. Painting With a New Palette

  7. Differences Between LED’s and Conventional Fixtures • The light source

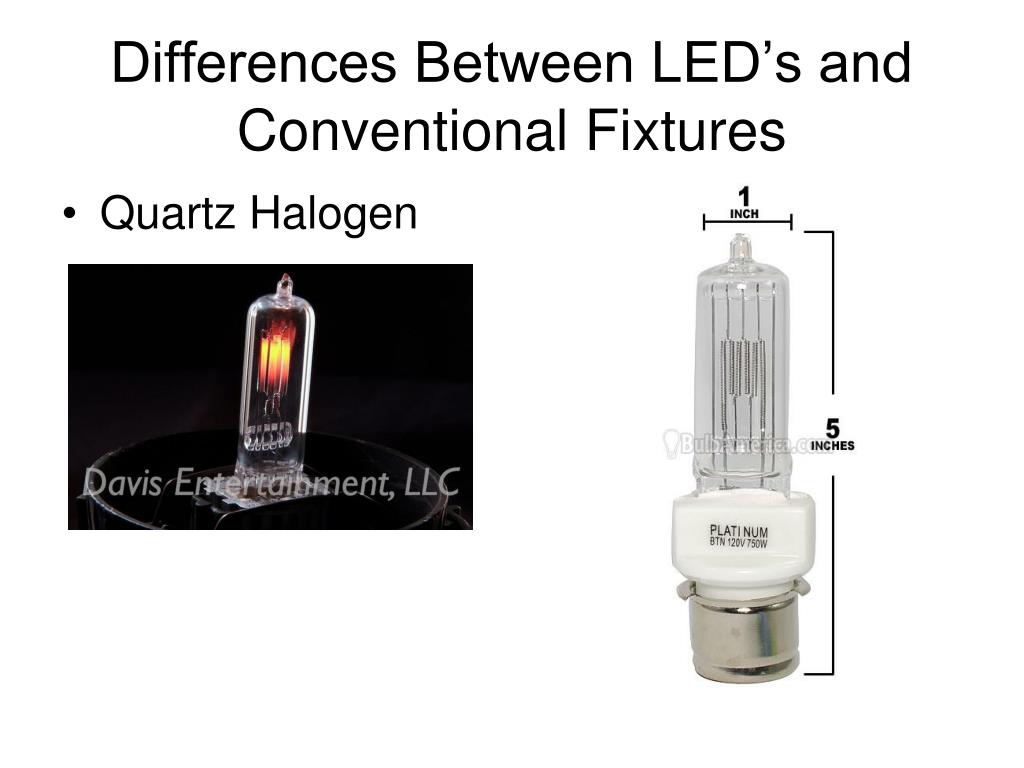

  8. Differences Between LED’s and Conventional Fixtures • Quartz Halogen

  9. Differences Between LED’s and Conventional Fixtures • Temperature • LED fixtures do produce heat (the Source 4 LED Series 2 shows a 104 degree operating temperature) • A traditional S4 in Flat field - 595˚F and Peak field 905˚F • Low power consumption

  10. Differences Between LED’s and Conventional Fixtures • Use additive color mixing rather than gel (although you can use gel). In short, adding color does not impact intensity • Use multiple channels of DMX rather than one • Lightweight (not so much the profile fixtures) • Life calculated in tens of thousands of hours compared to 1500-2000 hours

  11. “You buy an RGB LED fixture that claims 16.7 million colours. You plug it in... yet out of those 16.7 million available colours, you seem unable to find any of the subtle hues, deep blue or even white or amber.... In fact, any colour except red, green, blue, cyan or magenta.”Blake GarnerLighting Applications Engineer – Jands Pty Ltd

  12. Differences Between LED’s and Conventional Fixtures • The visible spectrum of light

  13. Differences Between LED’s and Conventional Fixtures • The visible spectrum of light is different

  14. Differences Between LED’s and Conventional Fixtures • The visible spectrum of light is different

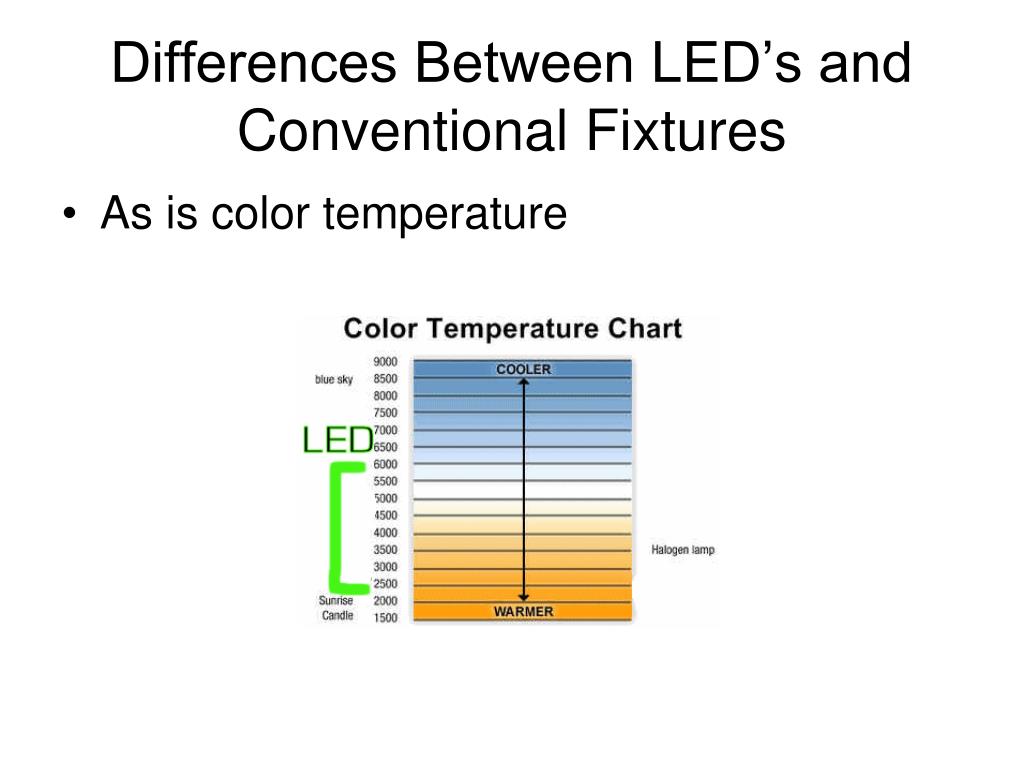

  15. Differences Between LED’s and Conventional Fixtures • As is color temperature

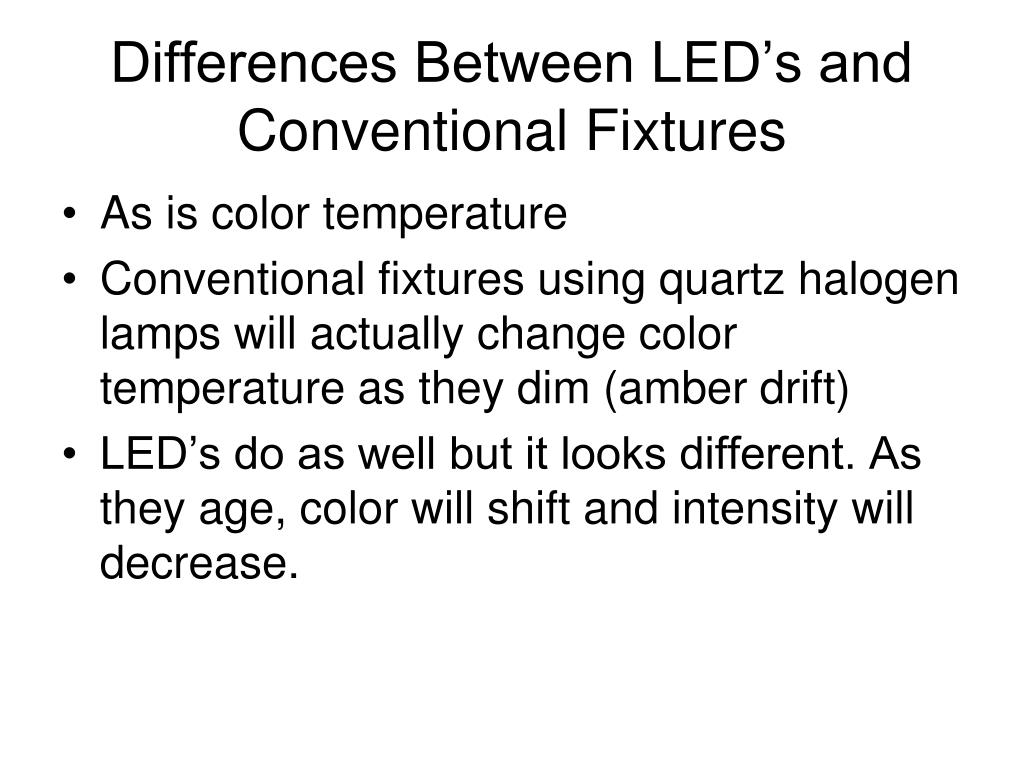

  16. Differences Between LED’s and Conventional Fixtures • As is color temperature • Conventional fixtures using quartz halogen lamps will actually change color temperature as they dim (amber drift) • LED’s do as well but it looks different. As they age, color will shift and intensity will decrease.

  17. Differences Between LED’s and Conventional Fixtures • Light Sources RGB

  18. Differences Between LED’s and Conventional Fixtures • Light Sources RGBW

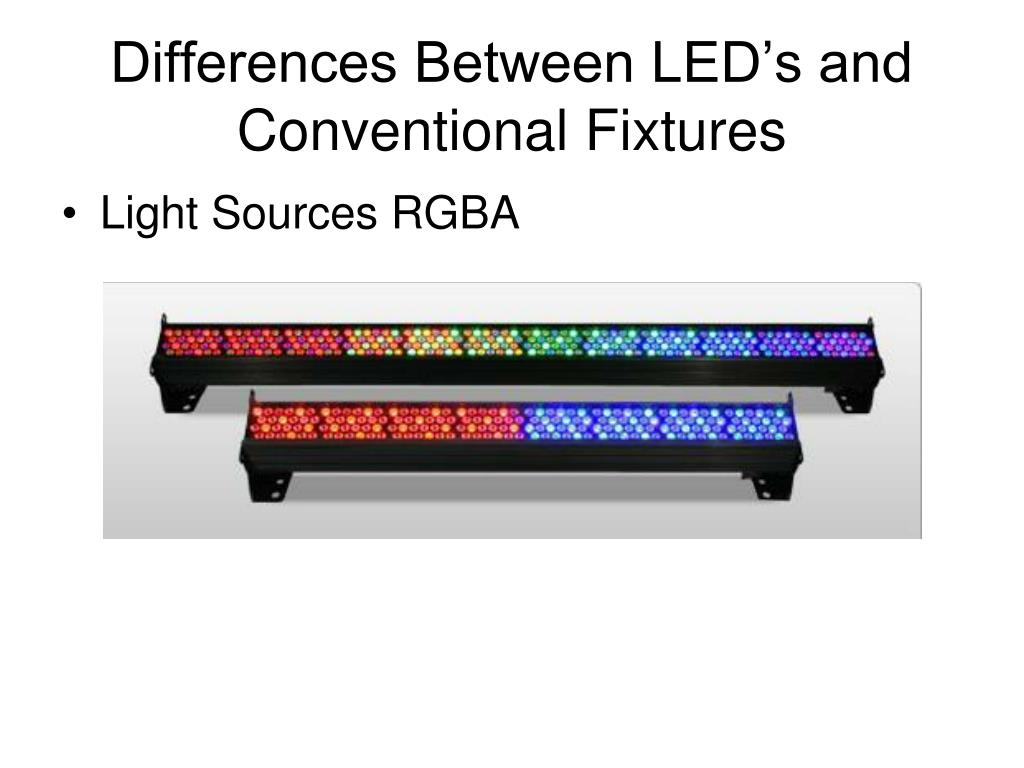

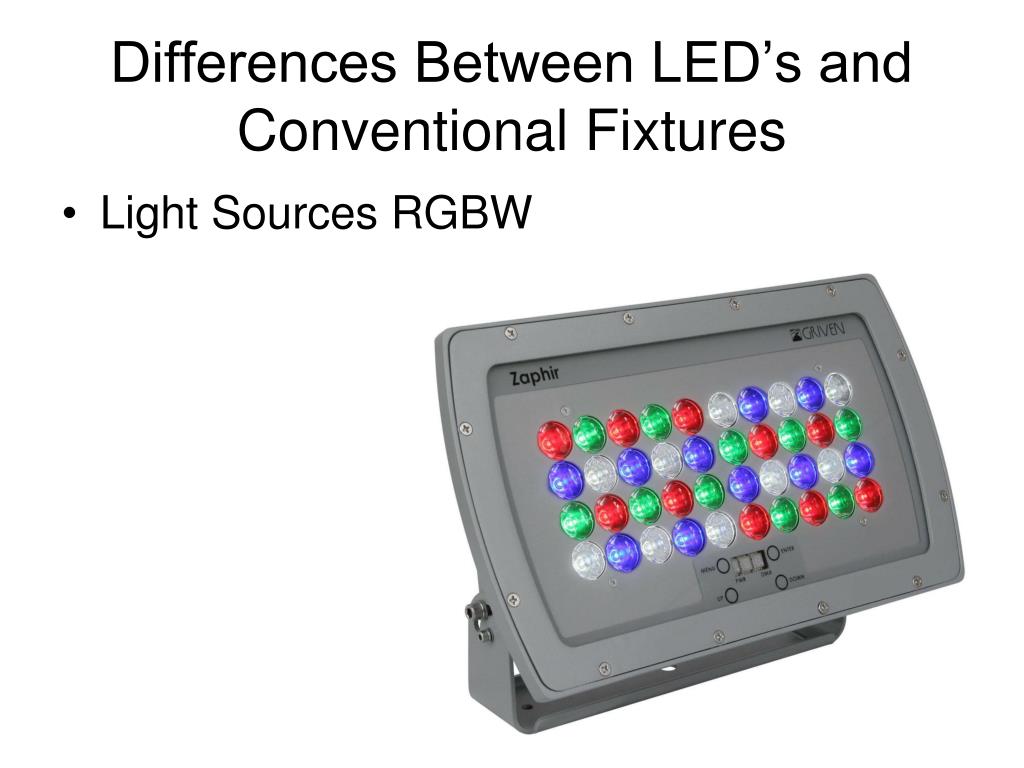

  19. Differences Between LED’s and Conventional Fixtures • Light Sources RGBA

  20. Differences Between LED’s and Conventional Fixtures • Light Sources: Seven Colors! Red, Lime, Amber, Green, Cyan, Blue, Indigo

  21. Differences Between LED’s and Conventional Fixtures • Shadows can be an issue

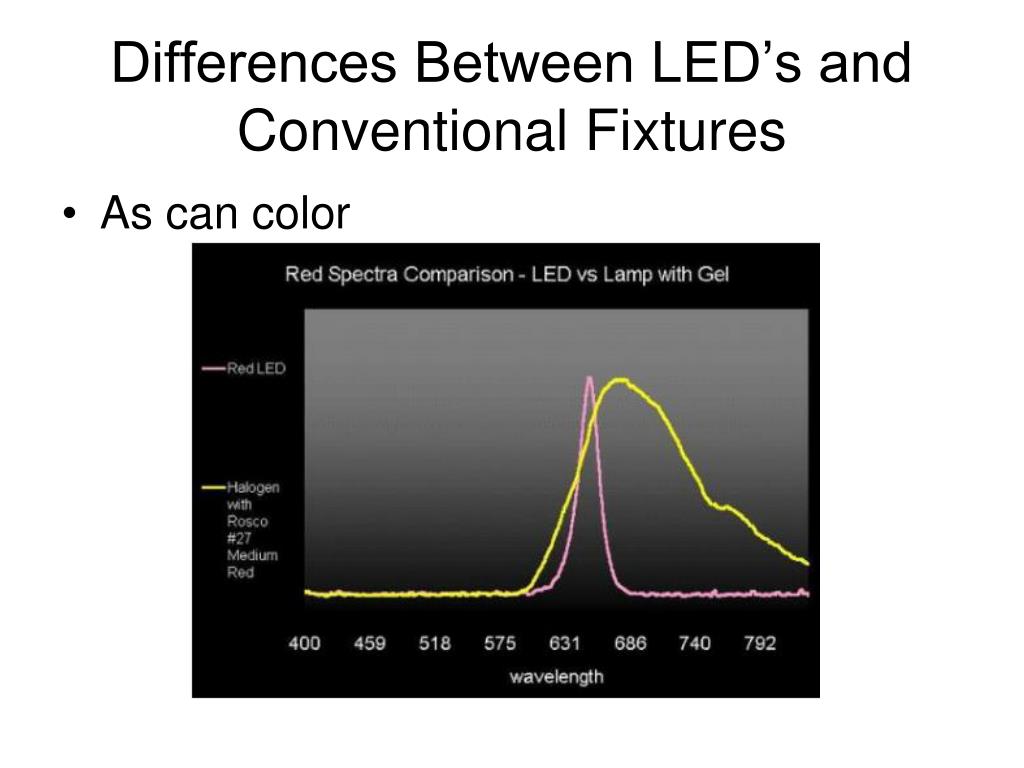

  22. Differences Between LED’s and Conventional Fixtures • As can color

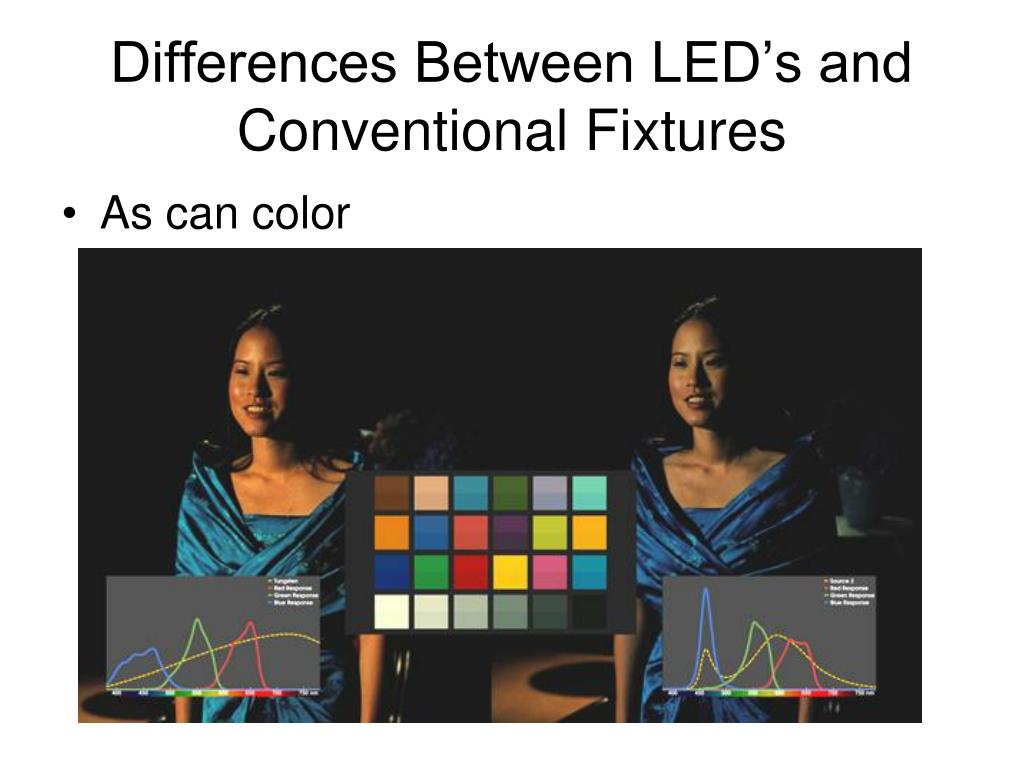

  23. Differences Between LED’s and Conventional Fixtures • As can color

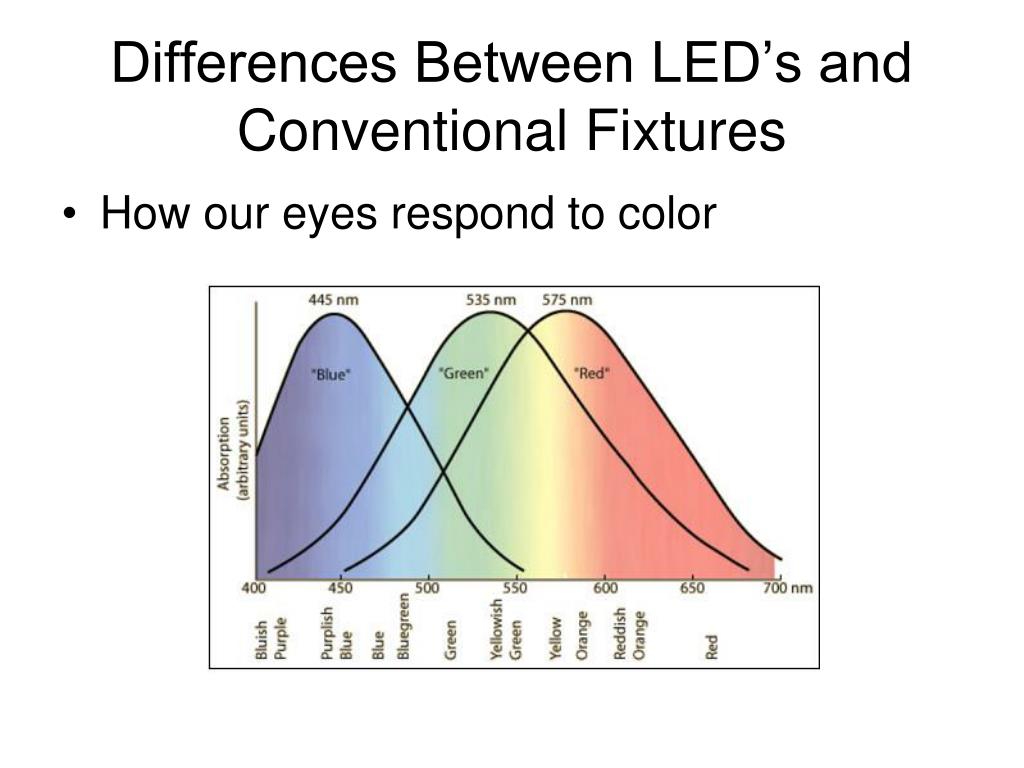

  24. Differences Between LED’s and Conventional Fixtures • How our eyes respond to color

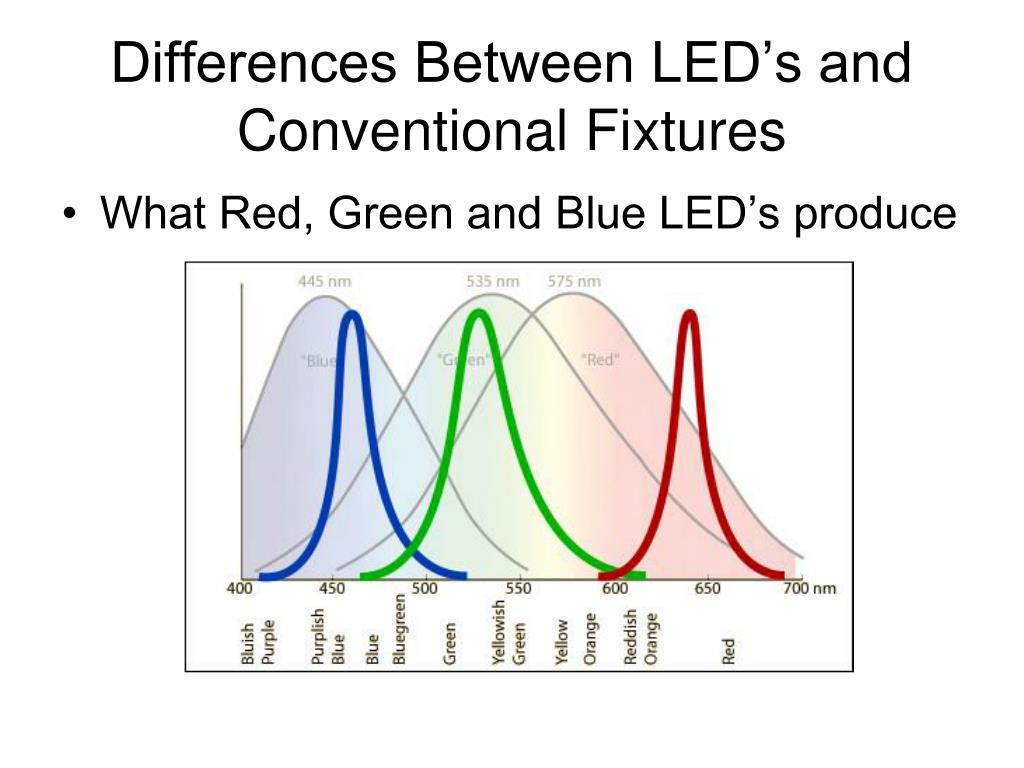

  25. Differences Between LED’s and Conventional Fixtures • What Red, Green and Blue LED’s produce

  26. Differences Between LED’s and Conventional Fixtures • What Red, Green and Blue LED’s produce, then add four more colors

  27. Patching • Although the process varies from console to console, you will need to patch an LED (or any other multi-channel fixture) to your console. • On newer consoles, patching allows you to communicate with the fixture using a single physical channel on your board, the patch then organizes that fixtures attributes, assigning them to different controllers in the board.

  28. DMX

  29. Patching

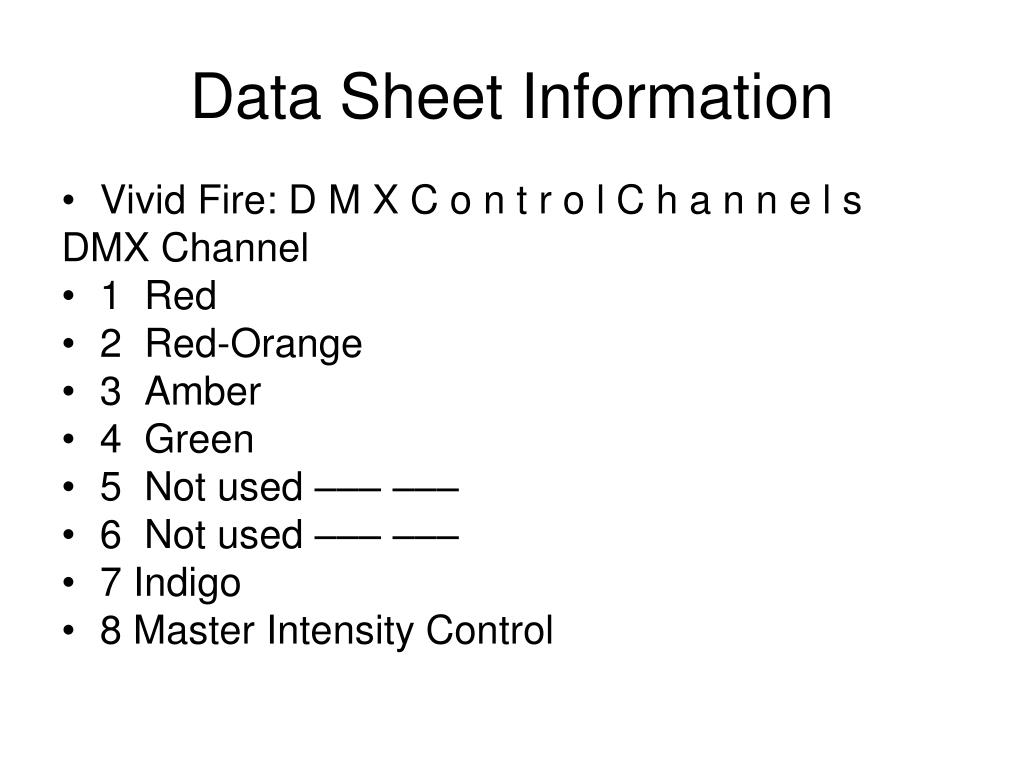

  30. Data Sheet Information • Vivid Fire: D M X C o n t r o l C h a n n e l s DMX Channel • 1 Red • 2 Red-Orange • 3 Amber • 4 Green • 5 Not used ––– ––– • 6 Not used ––– ––– • 7 Indigo • 8 Master Intensity Control

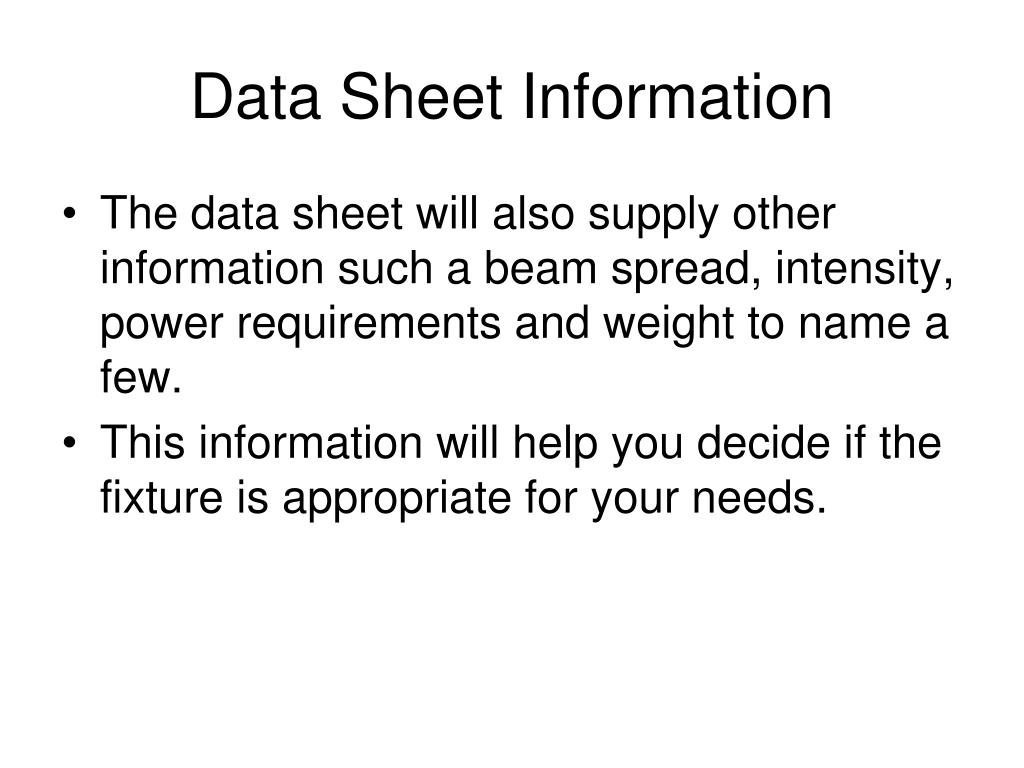

  31. Data Sheet Information • The data sheet will also supply other information such a beam spread, intensity, power requirements and weight to name a few. • This information will help you decide if the fixture is appropriate for your needs.

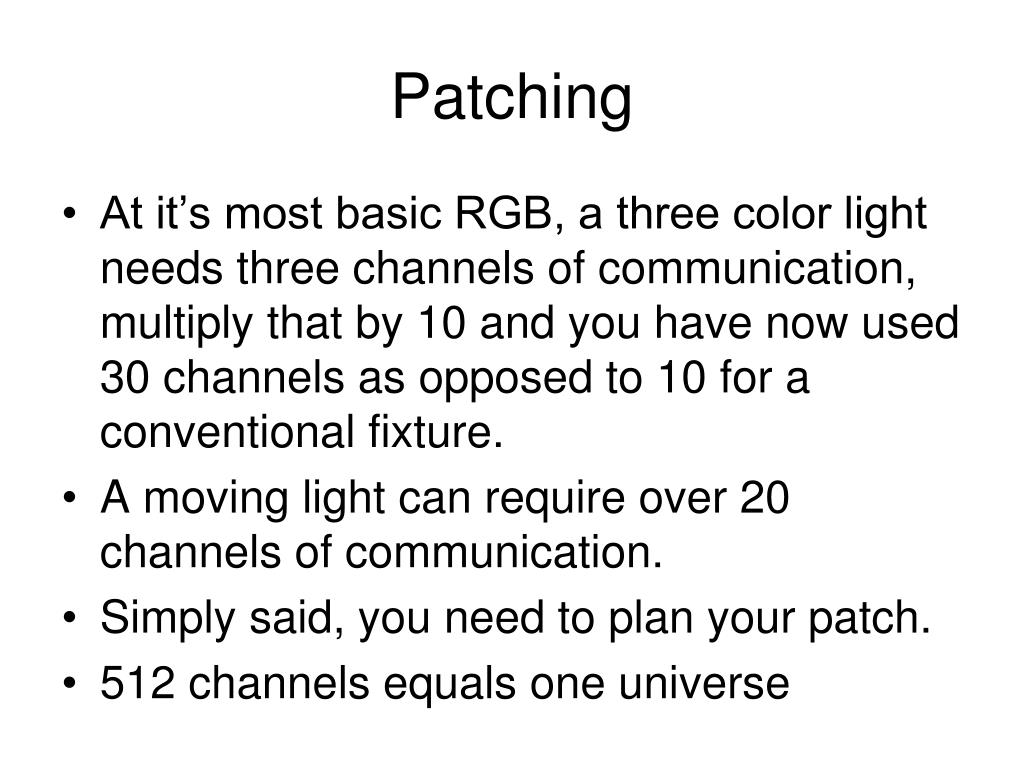

  32. Patching • At it’s most basic RGB, a three color light needs three channels of communication, multiply that by 10 and you have now used 30 channels as opposed to 10 for a conventional fixture. • A moving light can require over 20 channels of communication. • Simply said, you need to plan your patch. • 512 channels equals one universe

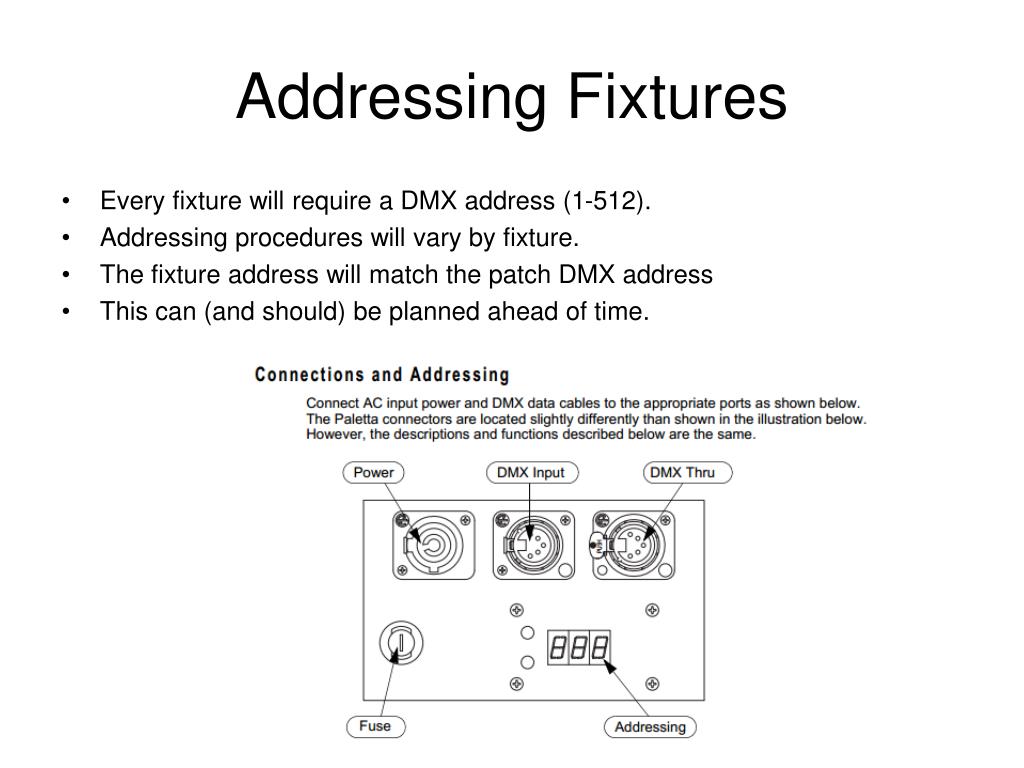

  33. Addressing Fixtures • Every fixture will require a DMX address (1-512). • Addressing procedures will vary by fixture. • The fixture address will match the patch DMX address • This can (and should) be planned ahead of time.

  34. Addressing Fixtures • In some instances, such as cyc lights, you may apply the same address to each of the cyc fixtures. This will allow them to function as one fixture. Although using multiple addresses will give you many more possibilities • If you have cyc lights both on the floor and on a batten, likely you would address them by position. • If you are using a second universe to control your led’s, fixtures will still be addressed 1-512. Your patch will determine which fixtures use the second universe.

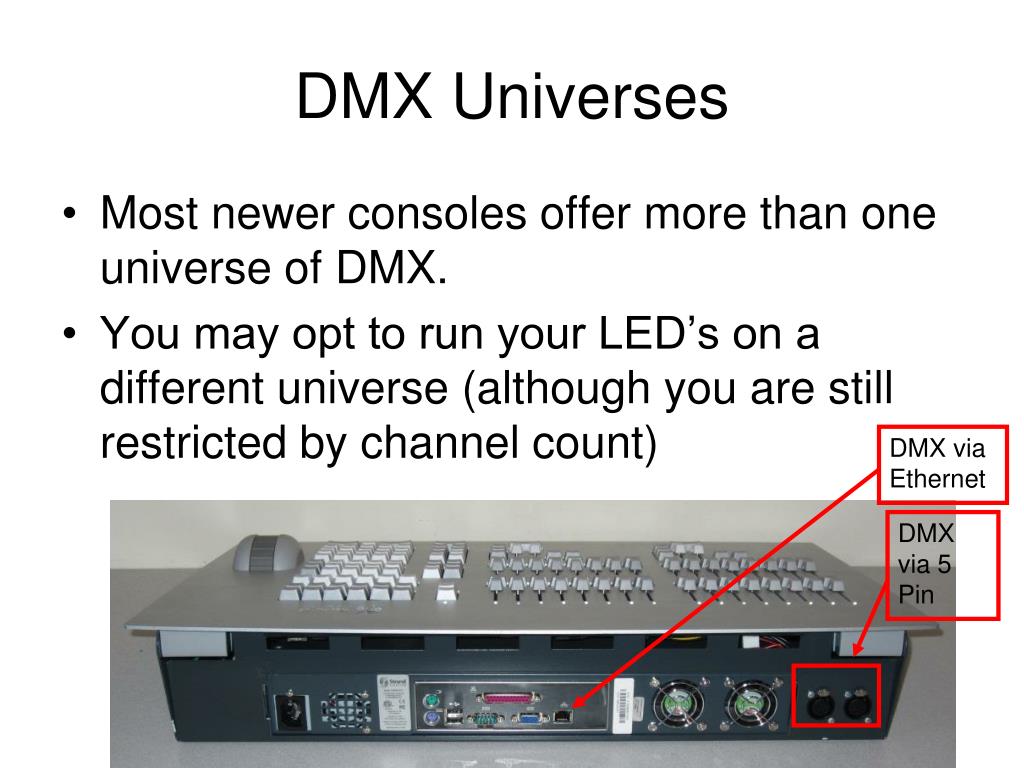

  35. DMX Universes • Most newer consoles offer more than one universe of DMX. • You may opt to run your LED’s on a different universe (although you are still restricted by channel count) DMX via Ethernet DMX via 5 Pin

  36. Patching • To use a splitter, you will need a DMX out at stage level or run cable from your board to the stage. A single run of DMX is limited to 32 fixtures and 1000’. This device allows you to have multiple runs and more fixtures.

  37. Electrical Issues • Although you don’t need more dimmers, you still will want dedicated power. • You can select to replace some dimmers with constants or non-dim units. You should never run these off a normal dimmer. • Limited applications can use “house” electric • LED fixtures can pull very low amperage allowing you to daisy chain power as well as data.

  38. Electrical Issues • Example: a 200 watt Altman Spectra Cyc would pull only 1.66 amps (most circuits are 20 amps) Watts/Volts = Amps (Watts = Volts * Amps) • In this case, you could safely run an typical cyc wash of 5 fixtures on 8’ centers on a single circuit.

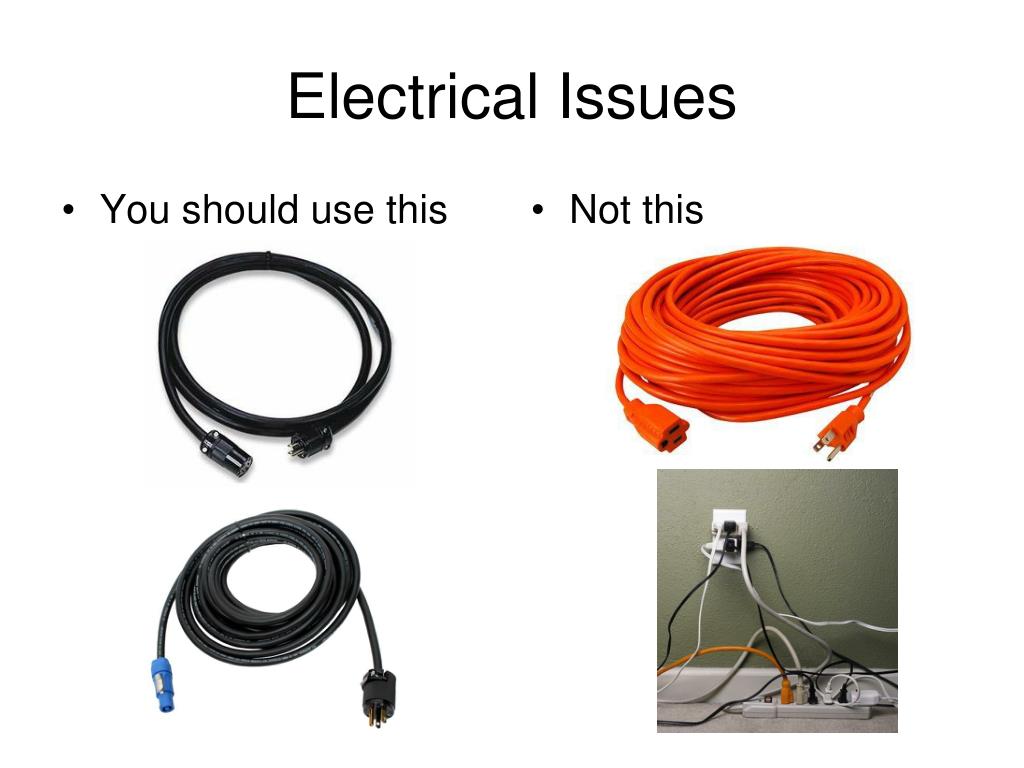

  39. You should use this Not this Electrical Issues

  40. Pros for Renting Lower cost Equipment is used but well maintained If something doesn’t work, they will usually will send a replacement. Technical help is readily available You get what you pay for. Cons of Renting You lack experience with the equipment Costs will likely be your department’s responsibilty Limited programming time Uncertainty if you have rented the equipment that will do the job. The rental house will help but is dependent on you knowing what you want it to do and being able to communicate your needs. Infrastructure may not support the equipment. (Do you know how many separate circuits are available on your stage beyond the dimmers?) Pros for Purchasing Larger cash outlay (but more likely from your school district and not your department) Equipment is new. A theatre consultant (we hope) has helped select the appropriate equipment You can up the training of your students Cons for Purchasing May be difficult to convince your school district to spend more for LED’s Can you maintain the equipment? You may have to live with a manufacturer's error. You get what you pay for. Buying or Renting

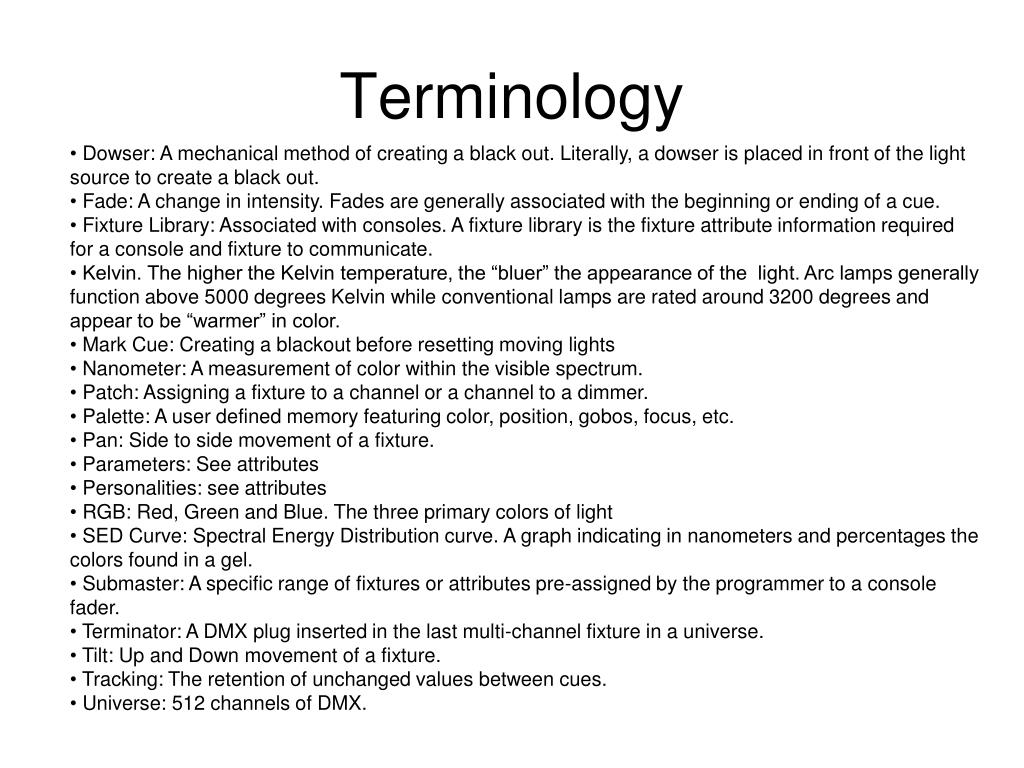

  41. Terminology • Additive Color Mixing: Adding color to create a new color. • Attributes: Any of the functions of a light. This will include pan/tilt, color, iris, shutter, etc. • Beamage: Refers to the visible beam of light in the air. Beamage is increased by the use of hazer or other atmospheric effects. • Block Cue: A cue with all values set to zero. Designed to stop unwanted tracking of values between cues. • Busking: Changing attributes such as color or position “on the fly”. • Color Correction: Changing the color temperature of a lamp by virtue of color media. • CMY Mixing: Subtractive mixing using the secondary colors cyan, magenta and yellow. • Cut Sheet: A data sheet relating to a fixture or other equipment. • Daisy Chain: Connecting fixtures in a series. Fixture one is plugged into fixture two, which is plugged into fixture three, etc. (Can apply to power as well as data) • Dichoric Filter: Color media typically used in moving fixtures. Unlike standard gel, these filters reflect unwanted colors back to the light source rather than absorbing them. • Dimmer Per Circuit: patching dimmer 1 to channel 1, dimmer 2 to channel 2, etc. (1:1) • DMX512: Digital Multiplex. A communications protocol. • DMX Splitter: Splitters are distribution products that provide many outputs from one input to distribute DMX512 to multiple locations such as stage left, stage right, first electric, and dimmer room.

  42. Terminology • Dowser: A mechanical method of creating a black out. Literally, a dowser is placed in front of the light source to create a black out. • Fade: A change in intensity. Fades are generally associated with the beginning or ending of a cue. • Fixture Library: Associated with consoles. A fixture library is the fixture attribute information required for a console and fixture to communicate. • Kelvin. The higher the Kelvin temperature, the “bluer” the appearance of the light. Arc lamps generally function above 5000 degrees Kelvin while conventional lamps are rated around 3200 degrees and appear to be “warmer” in color. • Mark Cue: Creating a blackout before resetting moving lights • Nanometer: A measurement of color within the visible spectrum. • Patch: Assigning a fixture to a channel or a channel to a dimmer. • Palette: A user defined memory featuring color, position, gobos, focus, etc. • Pan: Side to side movement of a fixture. • Parameters: See attributes • Personalities: see attributes • RGB: Red, Green and Blue. The three primary colors of light • SED Curve: Spectral Energy Distribution curve. A graph indicating in nanometers and percentages the colors found in a gel. • Submaster: A specific range of fixtures or attributes pre-assigned by the programmer to a console fader. • Terminator: A DMX plug inserted in the last multi-channel fixture in a universe. • Tilt: Up and Down movement of a fixture. • Tracking: The retention of unchanged values between cues. • Universe: 512 channels of DMX.

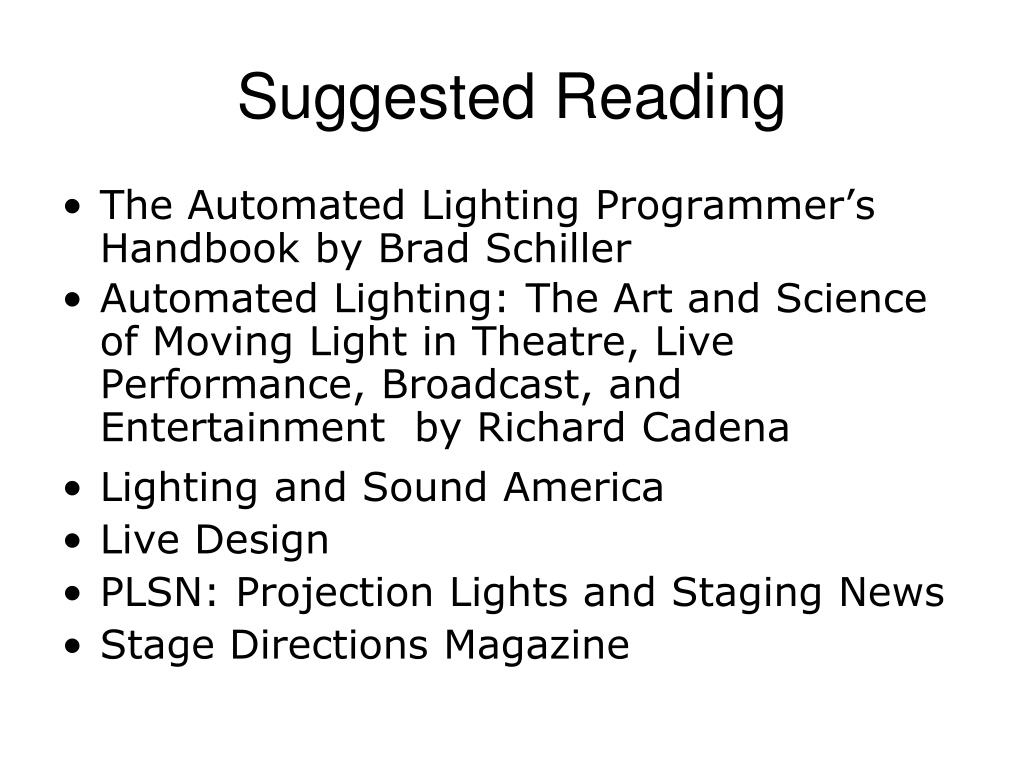

  43. Suggested Reading • The Automated Lighting Programmer’s Handbook by Brad Schiller • Automated Lighting: The Art and Science of Moving Light in Theatre, Live Performance, Broadcast, and Entertainment by Richard Cadena • Lighting and Sound America • Live Design • PLSN: Projection Lights and Staging News • Stage Directions Magazine

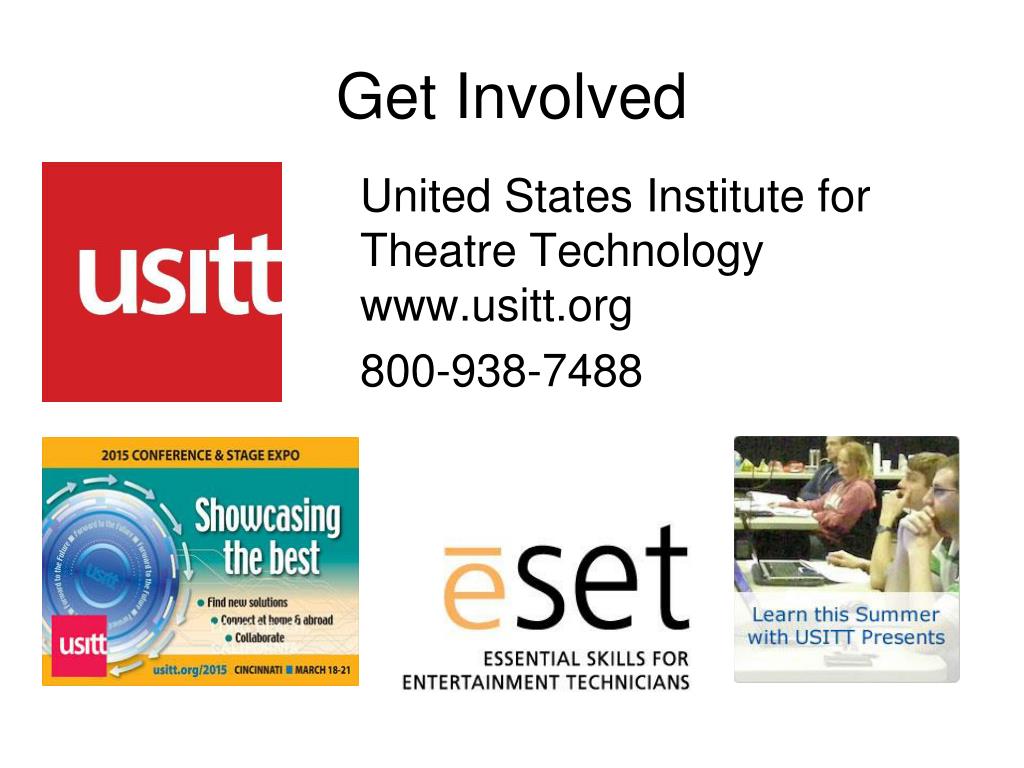

  44. Get Involved United States Institute for Theatre Technology www.usitt.org 800-938-7488
