Presentation Transcript
Sensing sensors cmu scs ri 16722 s2009 th 13 30 14 50 nsh1305 l.jpg

sensing & sensorsCMU SCS RI 16722 S2009 TH 13:30 -14:50 NSH1305

Cheow Hin Sim <[email protected]>

Nanosensors for Chemical Analysis by Exploration Robots


Nanosensors for chemical analysis by exploration robots l.jpg

Nanosensors for Chemical Analysis by Exploration Robots

Nanosensors for Chemical Analysis by Exploration Robots

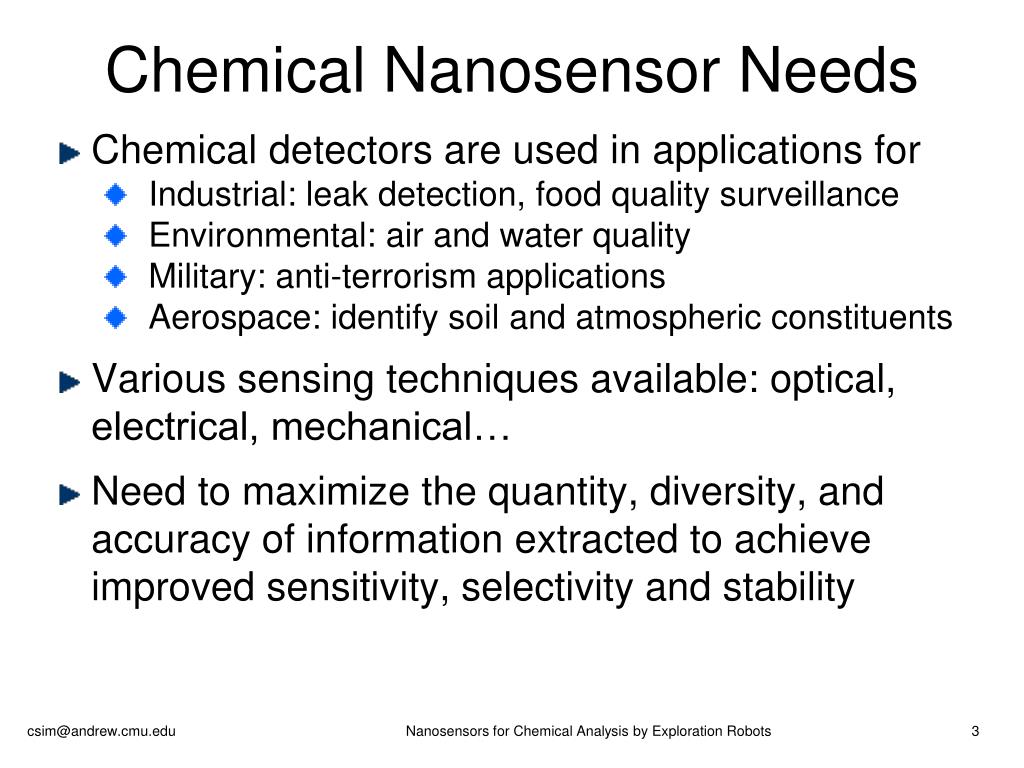

Chemical nanosensor needs l.jpg
Chemical Nanosensor Needs

  • Chemical detectors are used in applications for

    • Industrial: leak detection, food quality surveillance

    • Environmental: air and water quality

    • Military: anti-terrorism applications

    • Aerospace: identify soil and atmospheric constituents

  • Various sensing techniques available: optical, electrical, mechanical…

  • Need to maximize the quantity, diversity, and accuracy of information extracted to achieve improved sensitivity, selectivity and stability

Nanosensors for Chemical Analysis by Exploration Robots


Miniaturization l.jpg
Miniaturization

Micro technology

Nano technology

  • Nanostructures have high catalytic surface area: High sensitivity, selectivity and response time

  • Reduction in size, weight and power consumption

  • Multiplexing capability to distinguish multiple chemical species.

Shrinking technology

Rack sized measuring instrument

Hydrogen sensor using palladium nanoparticles

Micro Gas Chromatograph

Nanosensors for Chemical Analysis by Exploration Robots


Principle of chemical sensing l.jpg
Principle of chemical sensing

  • Absorption of gas/liquid molecules

    • Large surface to volume ratio traps pollutants

  • Molecules modify physical and/or chemical properties of active layer:

    • Electrochemical: H-bond formation, electrostatic interaction..

    • Optical: refractive index

    • Physical: mass..

  • Transduction into a measurable signal that is proportional to analyte concentration.

Nanosensors for Chemical Analysis by Exploration Robots


Classification of chemical sensors l.jpg
Classification of Chemical Sensors

Electrochemical reactions

Mass loading

Conducting pathways

Heat transfer

Mechanical

Electrical

Optical

Thermal

fluorescence

Components of a chemical/ biological environment

Refractive index

Non-exhaustive list…

Nanosensors for Chemical Analysis by Exploration Robots


Conductivity sensors l.jpg
Conductivity Sensors

  • Common sensing materials: conducting polymer composites and metal oxides and CNTs

  • n-type metal oxide sensor operation:

    • ambient O2 moelcules chemisorb onto the sensing film surface

    • Reducing target gas (e.g. CO) reacts with O-and release e-

    • Oxidizing agents (e.g. NO2) remove more e-

Nanosensors for Chemical Analysis by Exploration Robots


Conductive polymer composite l.jpg
Conductive Polymer Composite

Conductive polymer composite

1. Vapors pass over the polymer and swelling produces a change in resistance

2. Resistance change is measured for each sensor.

3. Using pattern recognition algorithms, the data is converted into a unique response pattern.

Nanosensors for Chemical Analysis by Exploration Robots

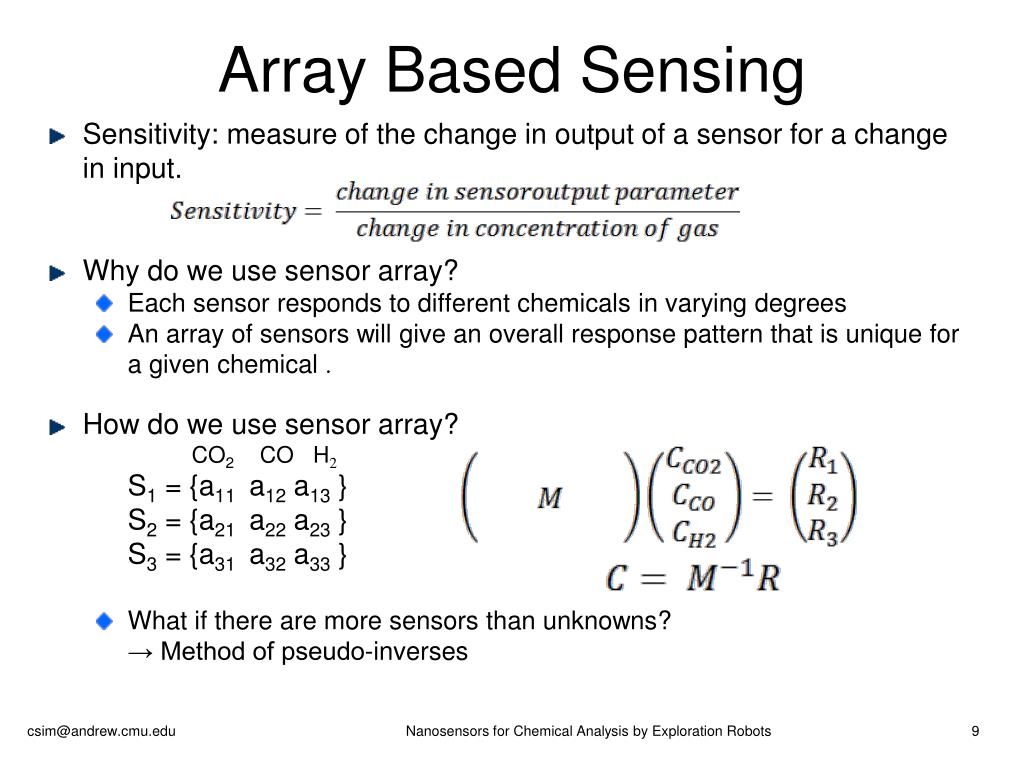

Array based sensing l.jpg
Array Based Sensing

  • Sensitivity: measure of the change in output of a sensor for a change in input.

  • Why do we use sensor array?

    • Each sensor responds to different chemicals in varying degrees

    • An array of sensors will give an overall response pattern that is unique for a given chemical .

  • How do we use sensor array?

    S1 = {a11 a12 a13 }

    S2 = {a21 a22 a23 }

    S3 = {a31 a32 a33 }

    • What if there are more sensors than unknowns?

      → Method of pseudo-inverses

CO2 CO H2

Nanosensors for Chemical Analysis by Exploration Robots


Assignment l.jpg
Assignment

(a) The figure below shows two single sensor radar plots (MoO3-HT and WO3) comparing their relative sensitivities to different gases. Identify which sensor is better for identifying NO2, CO and NH3. Explain your answer.

Nanosensors for Chemical Analysis by Exploration Robots


Assignment11 l.jpg
Assignment

(b) The figure shows the response of a sensor array to acetone. Calculate the overall sensitivity of the sensor array to acetone. Explain why a sensor array is useful for identifying a mixture of gases for this particular situation.

Nanosensors for Chemical Analysis by Exploration Robots


Commerical sensors l.jpg
Commerical Sensors

NoseChipTMSensor Technology: nanocomposite sensor array weight: ~0.5 oz

Power: nanowatts

Cyranose 320

ArtinosSensor Technology: nanocrystalline tin oxide gradient microarray

Size: 3x4 mm2power [email protected] 300oC: 1 W

Nanosensors for Chemical Analysis by Exploration Robots


Carbon nanotube sensor l.jpg
Carbon Nanotube Sensor

  • Hollow nanostructure and high specific surface area provides excellent sensitivities and fast response.

  • Can be functionalized to reversibly adsorb molecules of pollutants undergoing a modulation of electrical, geometrical and optical properties.

NASA SWNT conductive gas and organic vapor detector

Nanomix: Sensation Technology

Nanosensors for Chemical Analysis by Exploration Robots

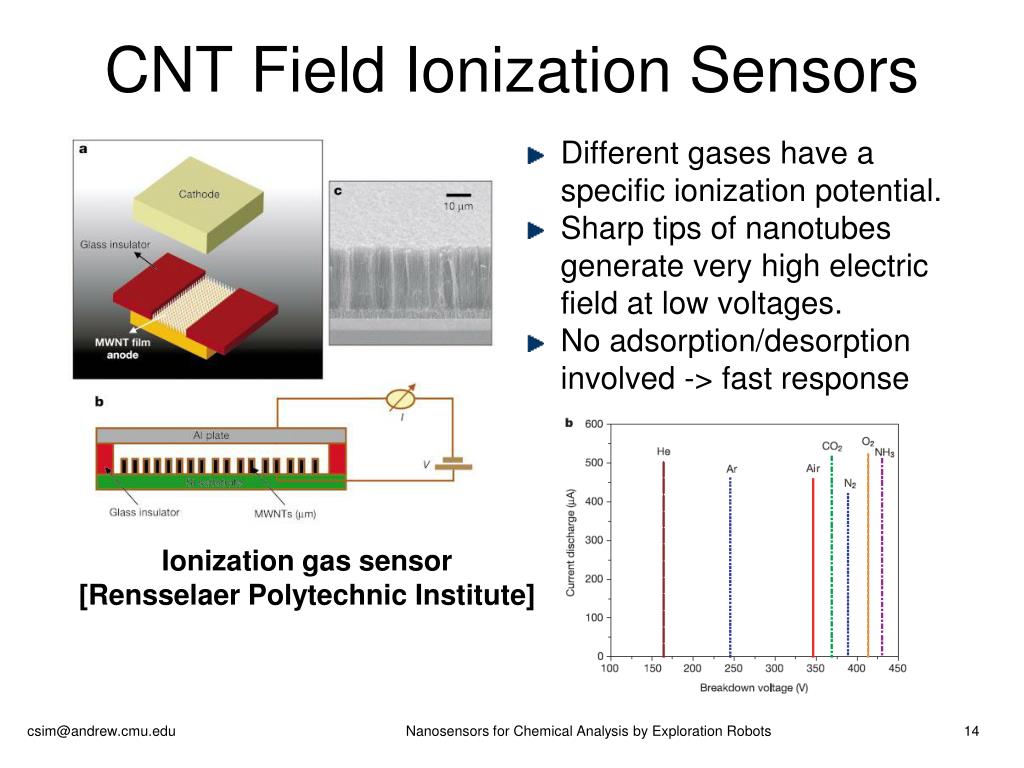

Cnt field ionization sensors l.jpg
CNT Field Ionization Sensors

  • Different gases have a specific ionization potential.

  • Sharp tips of nanotubes generate very high electric field at low voltages.

  • No adsorption/desorption involved -> fast response

Ionization gas sensor [Rensselaer Polytechnic Institute]

Nanosensors for Chemical Analysis by Exploration Robots


Cantilever based sensors l.jpg
Cantilever based Sensors

Nanomechanical Sensor

Surface Acoustic Wave Sensor

  • A surface acoustic wave propagates over a coated surface.

  • Absorption of gas molecules change in the mass of the sensor coating -> change in the resonant frequency

  • Cantilever is coated with a chemically selective layer.

  • Cantilever bends due to surface stress

  • Deflection of cantilever can be measured precisely by deflecting a light beam from the surface.

HAZMATCAD™ by Microsensor Systems

Cantilever sensor array by Concentris

Nanosensors for Chemical Analysis by Exploration Robots


Slide16 l.jpg

Micromachining

  • Microfabrication using MEMs-based technology allows minimal size, weight and power consumption.

  • Construction of three dimensional structures are highly desirable for chemical and electrochemical sensors and microsystems.

  • Enable ease of integration with electronic circuitry

MEMS for rapid localized temperature control in Micro-hotplate (NIST)

Nanosensors for Chemical Analysis by Exploration Robots


Analysis system architecture l.jpg
Analysis System Architecture

  • Pumps & valves

  • Fluidic interfaces

Sample Acquisition

Data Acquisition

Analytical system

Calibration,

Self-check

Commu-nication

Sample

concentration

Analyte

separation

Chemical

detection

Extraction,

pyrolysis

Display

  • Chromatography

  • Electrophoresis

  • Nanosensors

Environmental

sampling

Refresh Regeneration

Nanosensors for Chemical Analysis by Exploration Robots


Chromatography l.jpg

Sulfate

Nitrite

Nitrate

Phosphate

Bromide

Oxalate

Chloride

Fluoride

Chromatography

  • Multi-component samples are separated in specially treated separation columns before measurement with a detector.

  • Samples are separated by different migration speed inside column due to differing adsorption characteristics.

Nanosensors for Chemical Analysis by Exploration Robots


Chemlab tm l.jpg
µChemLabTM

Preconcentrator accumulates species of interest

Gas chromatograph separates species in time

SAW sensor detects gas

Nanosensors for Chemical Analysis by Exploration Robots

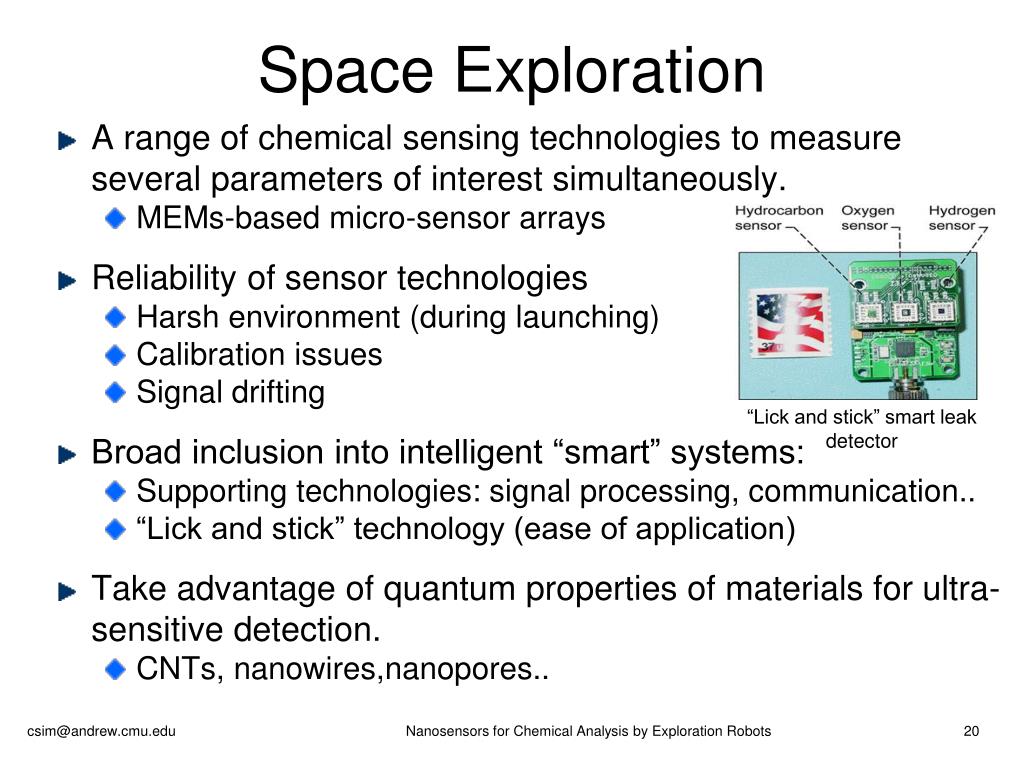

Space exploration l.jpg
Space Exploration

  • A range of chemical sensing technologies to measure several parameters of interest simultaneously.

    • MEMs-based micro-sensor arrays

  • Reliability of sensor technologies

    • Harsh environment (during launching)

    • Calibration issues

    • Signal drifting

  • Broad inclusion into intelligent “smart” systems:

    • Supporting technologies: signal processing, communication..

    • “Lick and stick” technology (ease of application)

  • Take advantage of quantum properties of materials for ultra-sensitive detection.

    • CNTs, nanowires,nanopores..

“Lick and stick” smart leak detector

Nanosensors for Chemical Analysis by Exploration Robots


Astrobiolab for mars exploration l.jpg
AstroBioLab for Mars Exploration

ExoMars Rover

  • Mobile laboratory that uses a suite of in situ instruments: Mars Organic Detector and Oxidant detector, micro-capillary electrophoresis analyzer.

  • Target compounds are amino acids and Polycyclic Aromatic Hydrocarbons

  • Electronics designed for Martian ambient survivability (-145 to 100oC)

  • Low power consumption with broad chemical extraction ability.

Nanosensors for Chemical Analysis by Exploration Robots


Mars organic detector l.jpg
Mars Organic Detector

  • Uses sublimation at Mars ambient pressure and temperatures to release organic components of retrieved samples.

  • Highly sensitive fluorescent detection, detects presence/ absence of amino acids and PAH

  • Interfaced with microchip-based capillary electrophoresis for identification of amino acids

Specifications:

Mass:~ 2 kg

Power: 24 W

Size: 145 x 193 x 112 mm

Nanosensors for Chemical Analysis by Exploration Robots


Mars oxidant detector l.jpg
Mars Oxidant Detector

  • Test the Martian samples and environment for their ability to degrade organic compounds through oxidation

  • Monitor reaction with well-characterized reactants over days/weeks exposure.

  • The chemical state is monitored by measuring electrical resistivity via a chemiresistortransducer.

Mars Oxidant Instrument (MOI) sensor arrays configured into a soil cup

Nanosensors for Chemical Analysis by Exploration Robots


Slide24 l.jpg

UK team builds robot fish to detect pollution

Fri Mar 20, 2009 6:11am EDT

LONDON (Reuters) - Robot fish developed by British scientists are to be released into the sea off north Spain to detect pollution.

If next year's trial of the first five robotic fish in the northern Spanish port of Gijon is successful, the team hopes they will be used in rivers, lakes and seas across the world.

The carp-shaped robots, costing 20,000 pounds ($29,000) apiece, mimic the movement of real fish and are equipped with chemical sensors to sniff out potentially hazardous pollutants, such as leaks from vessels or underwater pipelines.

They will transmit the information back to shore using Wi-Fi technology.

Unlike earlier robotic fish, which needed remote controls, they will be able to navigate independently without any human interaction.

Rory Doyle, senior research scientist at engineering company BMT Group, which developed the robot fish with researchers at Essex University, said there were good reasons for making a fish-shaped robot, rather than a conventional mini-submarine.

"In using robotic fish we are building on a design created by hundreds of millions of years' worth of evolution which is incredibly energy efficient," he said.

"This efficiency is something we need to ensure that our pollution detection sensors can navigate in the underwater environment for hours on end."

The robot fish will be 1.5 meters (nearly 5 feet) long -- roughly the size of a seal.

Nanosensors for Chemical Analysis by Exploration Robots


References l.jpg
References

  • http://www.eetimes.com/showArticle.jhtml?articleID=212000236

  • Liu H., Kameoka J., Czaplewski D.A., Craighead H.G., “Polymeric Nanowire Chemical Sensor”, Nano Lett., 4(4), 2004.

  • Sugiyasu K. and Swager T.M., “Conducting-Polymer-Based Chemical Sensors: Transduction Mechanisms”, Bull. Chem. Soc. Jpn., 80(11), 2074-2083 (2007).

  • http://www.technologyreview.com/Nanotech/19003/

  • http://www.sandia.gov/mstc/technologies/microsensors/micro-chem-lab.html

  • S. Joo and R. B. Brown, “Chemical Sensors with Integrated Electronics”, Chem. Rev. 108 (2), 2008

  • http://www.specs.com/products/Kamina/electronic-nose.pdf

  • K. Arshak, E. Moore, G. M. Lyons, F. Harris and S. Clifford, “A review of gas sensors employed in electronic nose applications”, Sensor Review 24 (2), 181-198, 2004

  • NASA Ames research Center, http://www.nasa.gov/centers/ames/research/2007/mars_sensor.html

Nanosensors for Chemical Analysis by Exploration Robots


References26 l.jpg
References

  • J. Bryzek, S. Roundy, B. Bircumshaw, C. Chung, K. Castellino, J. R. Stetter and M. Vestel, ”Marvelous MEMs”, IEEE Circuits & Devices Mag., March/April 2006

  • A. Modi, N. Koratkar, E. Lass, B. Wei & P. M. Ajayan, “Miniaturized gas ionization sensors using carbon nanotubes”, Nature 424, 171 (2003).

  • C. Hagleitner, A. Hierlemann, D. Lange, A. Kummer, N. Kerness, O. Brand & H. Balters, “Smart single-chip gas sensor Microsystems”, Nature 414, 293 (2001).

  • N. V. Lavrik, M. J. Sepaniak, P. G. Datskos, “Cantilever transducers as a platform for chemical and biological sensors”, Review of Scientific Instruments 75 (7), 2229 (2004)

  • Nanomix, http://www.nano.com/

  • Concentris, http://www.concentris.ch/

  • Microsensor Systems Inc., http://www.microsensorsystems.com/aboutus.html

Nanosensors for Chemical Analysis by Exploration Robots
