Sideband Modulations

Sideband Modulations. Reduction in transmitted power Reduction in Bandwidth (B) Reduction in kTB Sideband modulators are more complex Sideband demodulators can be extremely complex. Alphabet Soup. __SB - __C. (Side Band). (Carrier). S : Single D : Double V : Vestigial. F : Full

leda
Download Presentation

Sideband Modulations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Sideband Modulations • Reduction in transmitted power • Reduction in Bandwidth (B) • Reduction in kTB • Sideband modulators are more complex • Sideband demodulators can be extremely complex

  2. Alphabet Soup __SB - __C (Side Band) (Carrier) S : Single D : Double V : Vestigial F : Full R : Reduced S : Suppressed

  3. Vestigial Sideband VSB Filter + x e(t) (Vestigial Side Band) a(t) + cos(wct) 1 wc • Less Transmitted Bandwidth • Most of lower sideband power eliminated • Less Carrier Power wc

  4. VSB Receiver IF Compensation Low Frequency Content in LSB wIF VSB Compensation Filter de-emphasizes the additional low frequency content introduced by the LSB

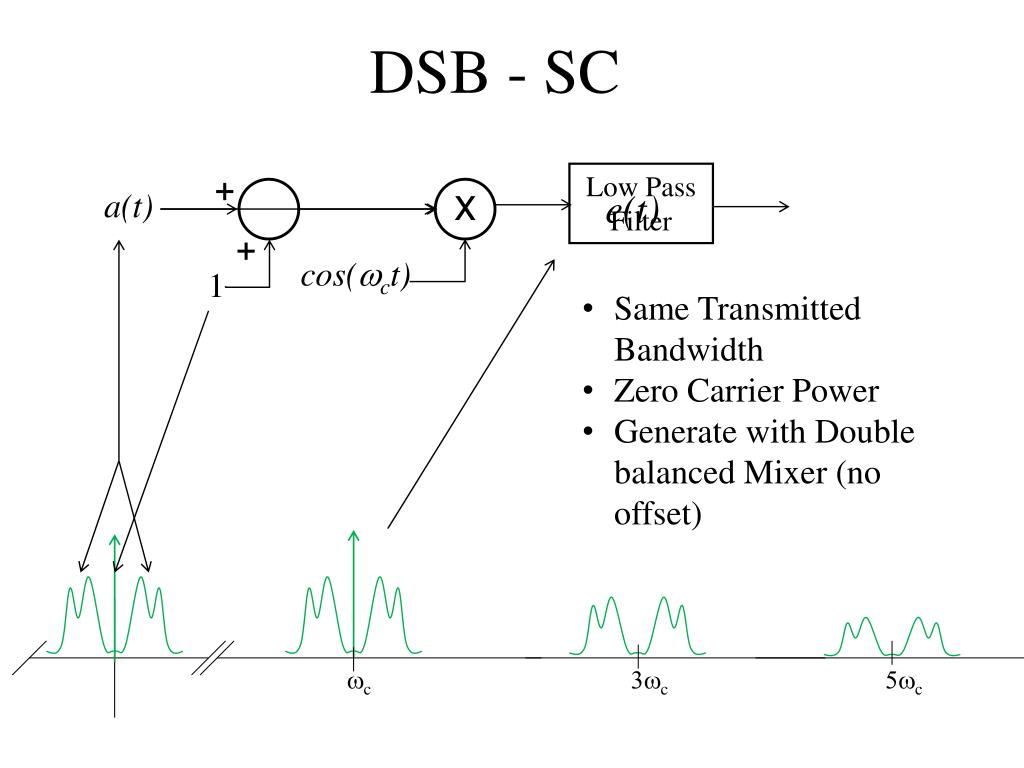

  5. DSB - SC + Low Pass Filter x a(t) e(t) + cos(wct) 1 • Same Transmitted Bandwidth • Zero Carrier Power • Generate with Double balanced Mixer (no offset) wc 3wc 5wc

  6. MC1596 Analog Multiplier G+ = kS+ , and G- = kS- -Vo(+) = (C+ - C-)G- + (C- - C+)G+ -Vo(-) = (C+ - C-)G + + (C- - C+)G- Vo(+) - Vo(-) = -2[(C+ - C-)G- + (C- - C+)G+] =2(C- - C+)(G+ - G-) But C- = - C+ , S- = - S+ Vo(+) - Vo(-) = 8kS+C+ G - G +
