  1. Computational Lexicology, Morphology and Syntax Diana Trandabăț 2013-2014

  2. NLP with Regular Expressions Transcript with Eliza, simulation of a Rogerian psychotherapist (Weizenbaum, 1966) User: Men are all alike ELIZA: IN WHAT WAY User: They’re always bugging us about something or other ELIZA: CAN YOU THINK OF A SPECIFIC EXAMPLE? User: Well, my boyfriend made me come here ELIZA: YOUR BOYFRIEND MADE YOU COME HERE User: He says I’m depressed much of the time ELIZA: I AM SORRY TO HEAR THAT YOU ARE DEPRESSED

  3. How did it work? • .* all .* →IN WHAT WAY • .* always .* →CAN YOU THINK OF A SPECIFIC EXAMPLE • .* I’m (depressed|sad) .* → I AM SORRY TO HEAR YOU ARE \1 • .* I’m (depressed|sad) .* →WHY DO YOU THINK YOU ARE \1?

  4. Aside… • What is intelligence? • What does Eliza tell us about intelligence?

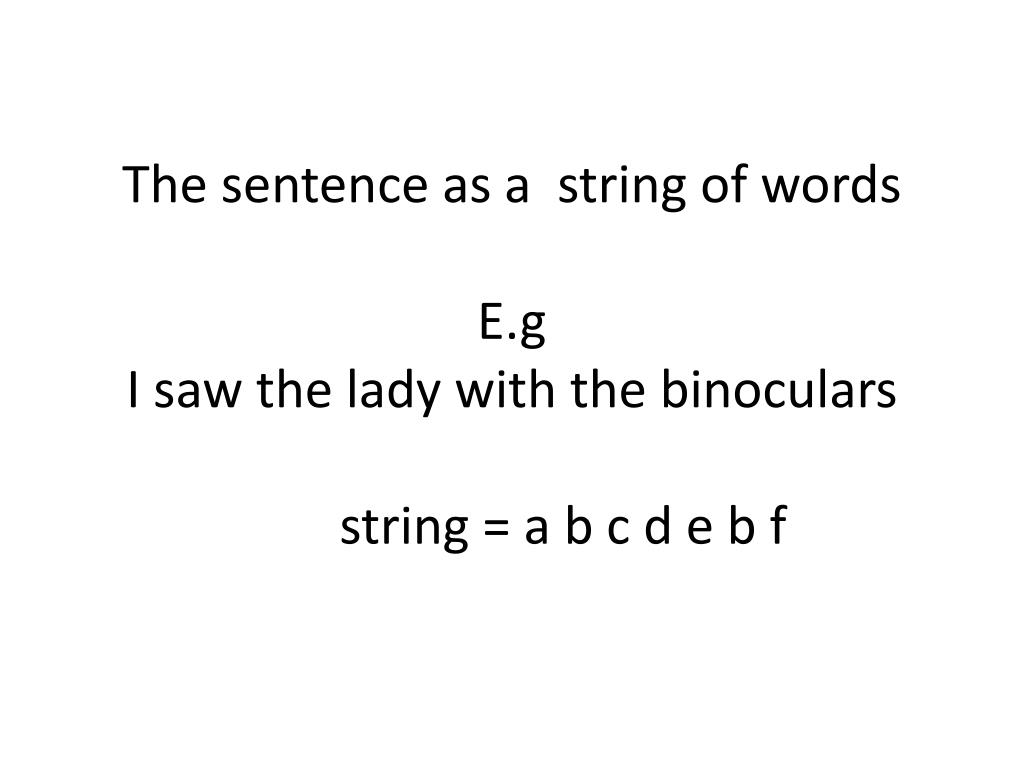

  5. The sentence as a string of wordsE.g I saw the lady with the binoculars string = a b c d e b f

  6. The relations of parts of a string to each other may be different I saw the lady with the binoculars is stucturally ambiguous Who has the binoculars?

  7. [I] saw the lady [ with the binoculars]= [a] b c d [e b f]I saw[ the lady with the binoculars]= a b [c d e b f]

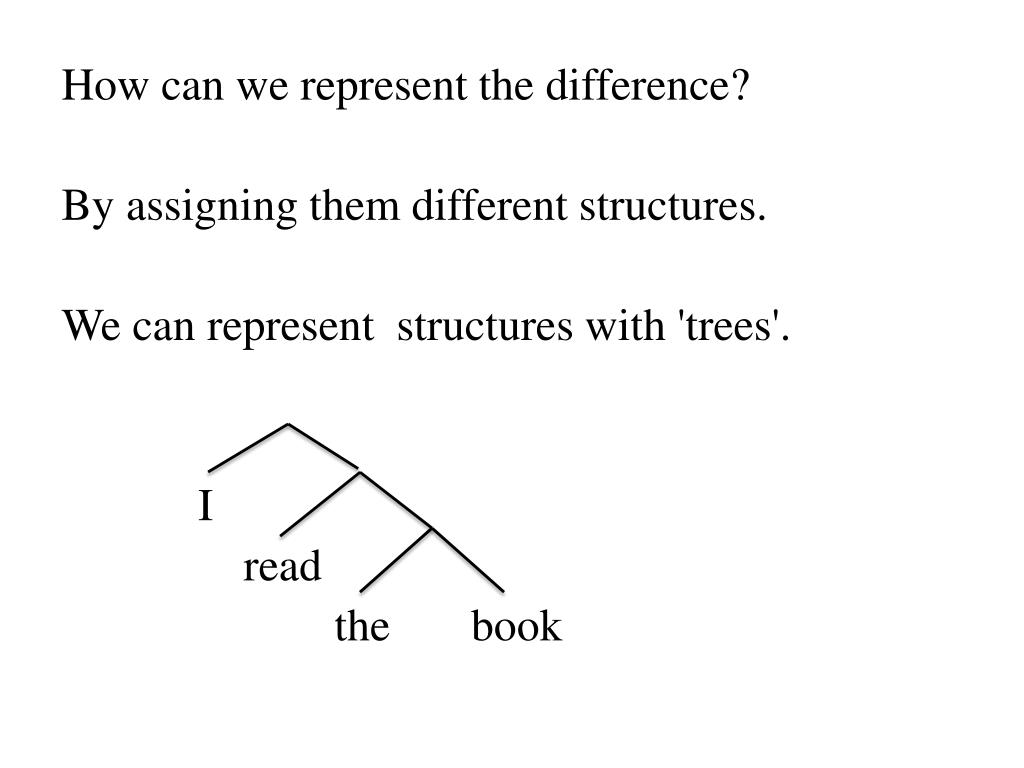

  8. How can we represent the difference? By assigning them different structures. We can represent structures with 'trees'. I read the book

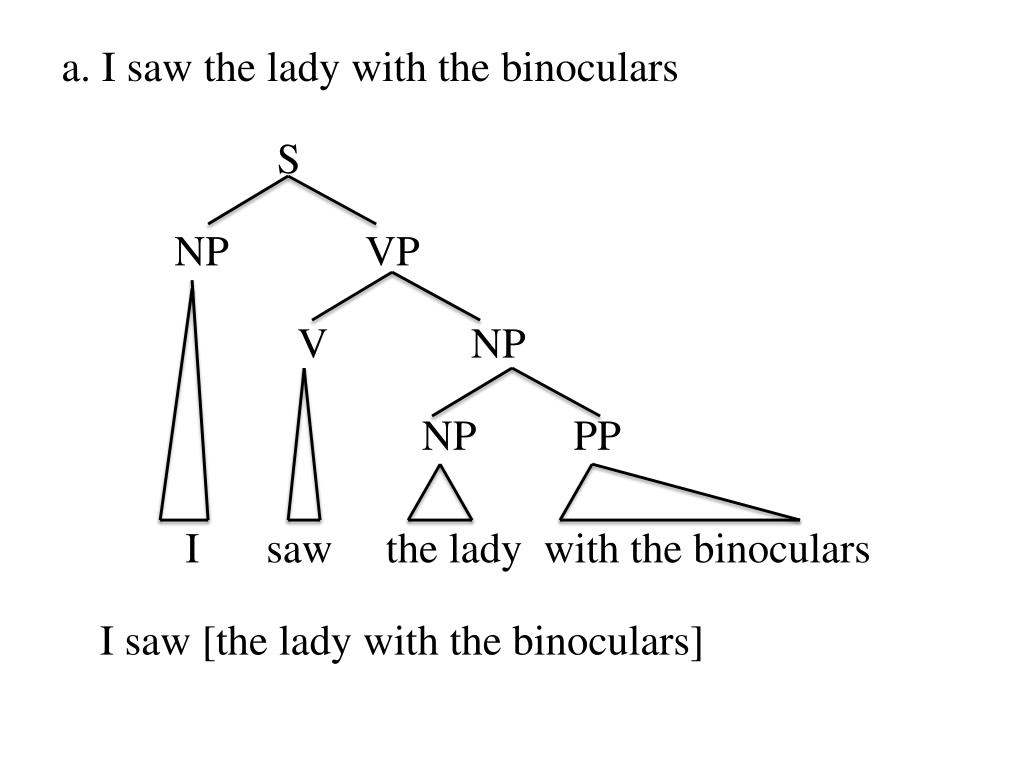

  9. a. I saw the lady with the binoculars S NPVPVNPNP PP I saw the ladywith the binocularsI saw [the lady with the binoculars]

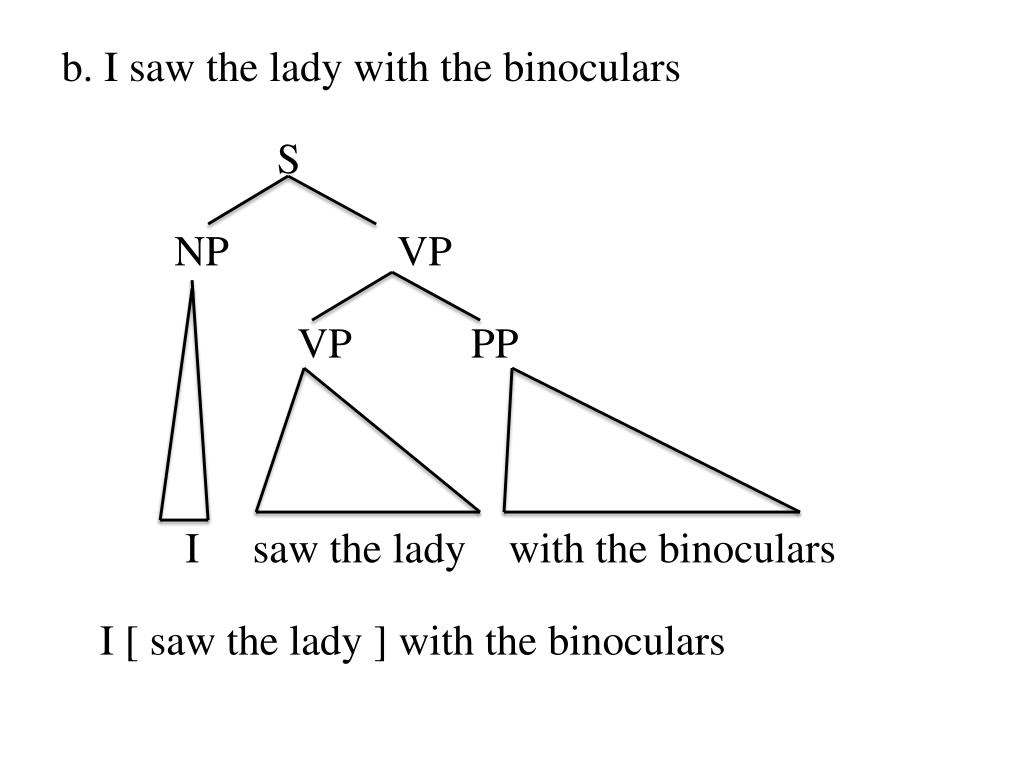

  10. b. I saw the lady with the binoculars S NPVPVP PP Isaw the ladywith the binocularsI[ saw the lady ] with the binoculars

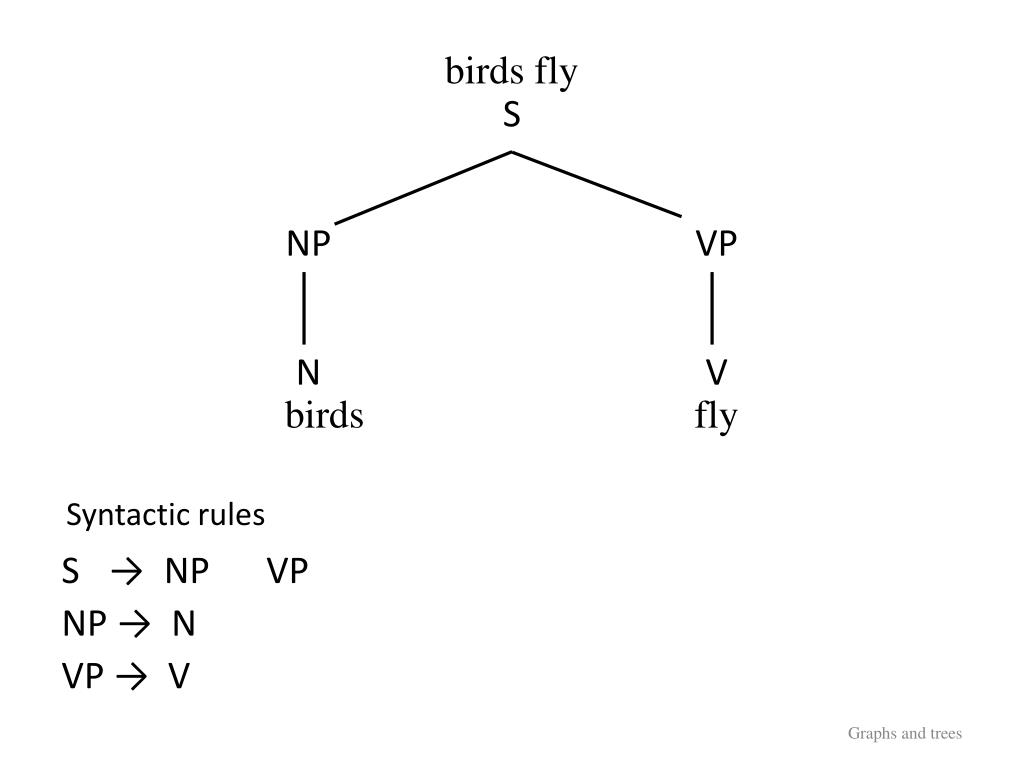

  11. birdsfly S NP VP N V birdsfly S → NP VP NP → N VP → V Syntactic rules

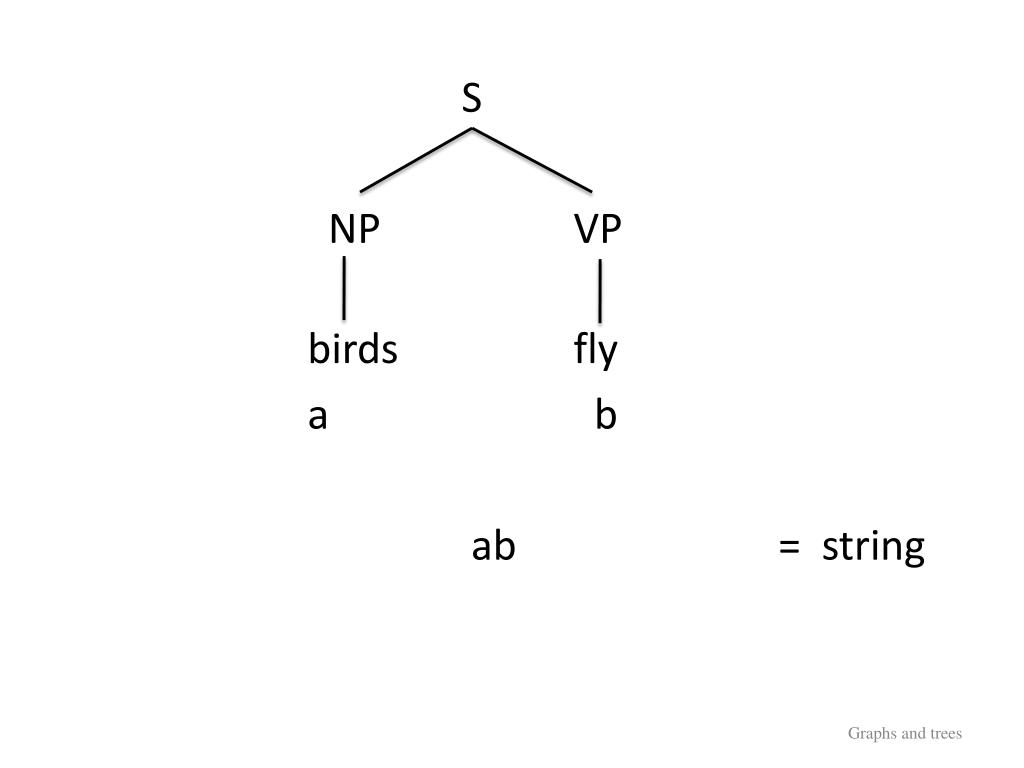

  12. S NP VP birdsfly a b ab = string

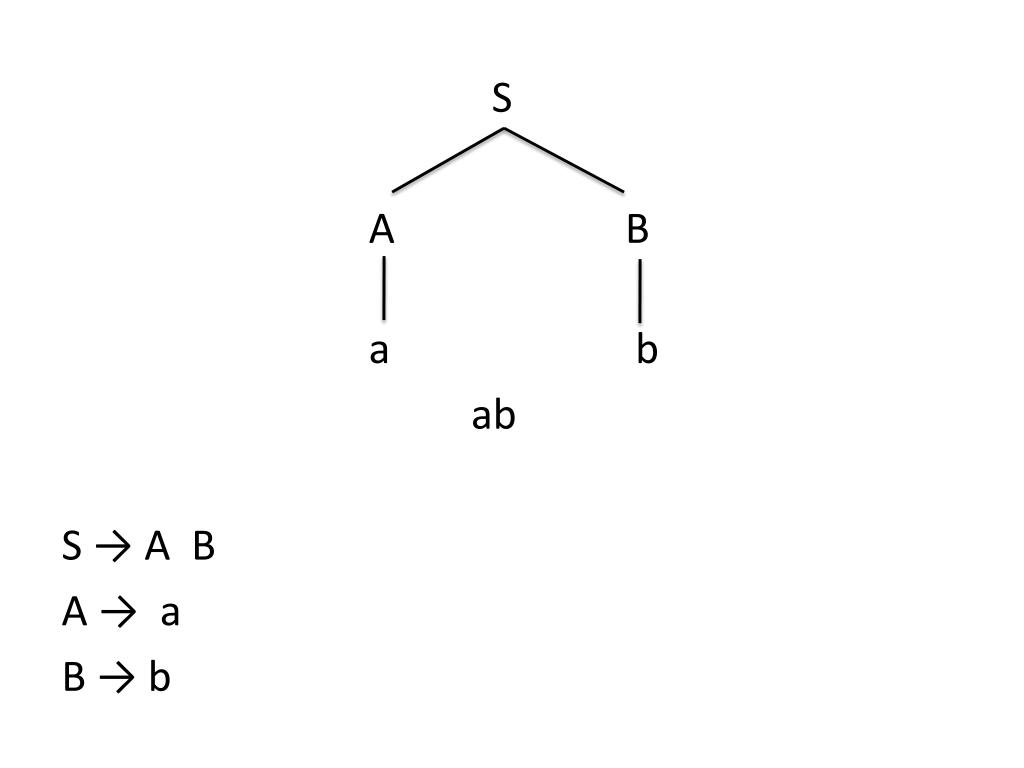

  13. S A B a b ab S → A B A → a B → b

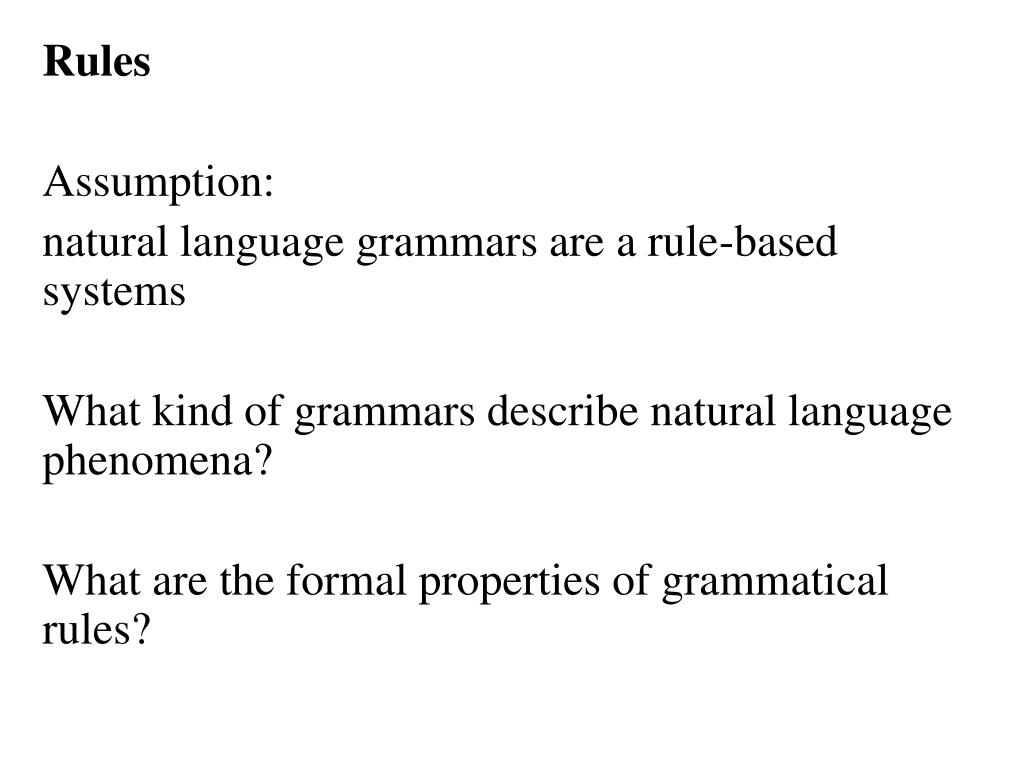

  14. Rules Assumption: natural language grammars are a rule-based systems What kind of grammars describe natural language phenomena? What are the formal properties of grammatical rules?

  15. The Chomsky Hierarchy

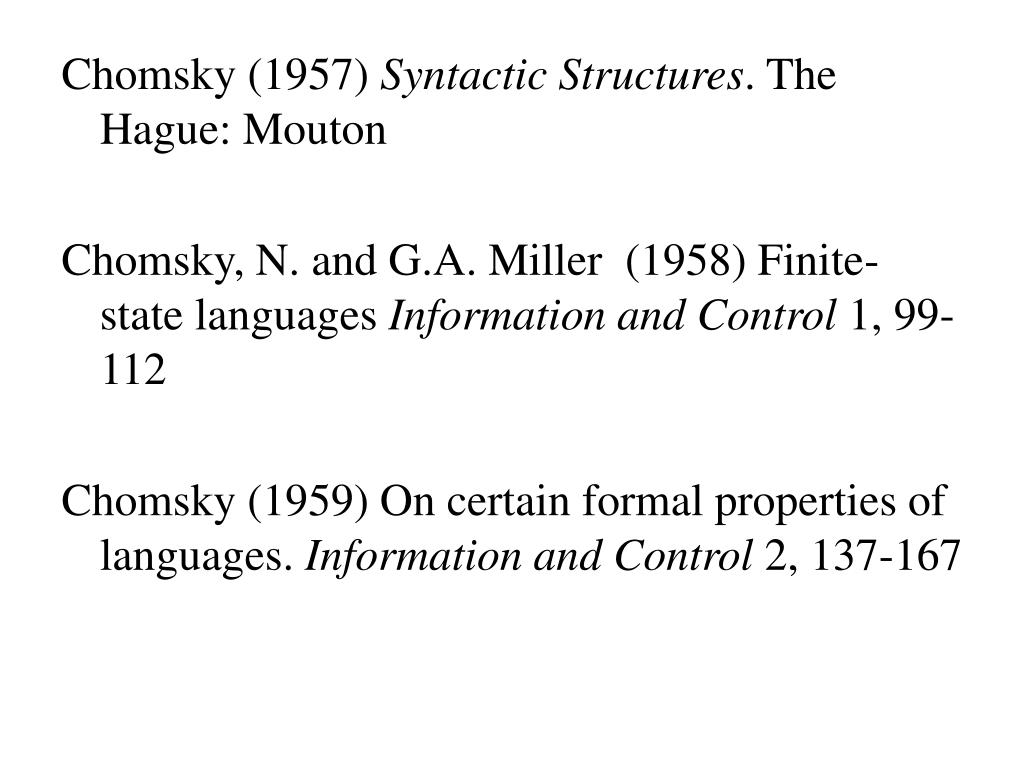

  16. Chomsky (1957) Syntactic Structures. The Hague: Mouton Chomsky, N. and G.A. Miller (1958) Finite-state languages Information and Control 1, 99-112 Chomsky (1959) On certain formal properties of languages. Information and Control 2, 137-167

  17. Rules in Linguistics1.PHONOLOGY /s/ → [θ]  V ___VRewrite /s/ as [θ] when /s/ occurs in context V ____ VWith:V = auxiliary nodes, θ = terminal nodes

  18. Rules in Linguistics2.SYNTAXS → NP VPVP → VNP → NRewrite S as NP VP in any contextWith:S, NP, VP= auxiliary nodesV, N = terminal node

  19. SYNTAX (phrase/sentence formation) sentence: The boy kissed the girl Subject predicate noun phrase verb phrase art + noun verb + noun phrase S → NP VP VP → V NP NP → ART N

  20. Chomsky Hierarchy 0. Type 0 (recursively enumerable) languages Only restrictionon rules: left-hand side cannot be the empty string (* Ø …….) 1. Context-Sensitive languages - Context-Sensitive (CS) rules 2. Context-Free languages - Context-Free (CF) rules 3. Regular languages - Non-Context-Free (CF) rules 0 ⊇ 1⊇ 2 ⊇ 3 a⊇b meaning a properly includes b (aisasupersetofb), i.e. b is a proper subset of a or b is in a

  21. Generative power 0. Type 0 (recursively enumerable) languages • only restriction on rules: left-hand side cannot be the empty string (* Ø  …….) - is the most powerful system 3. Type 3(regularlanguage) - is the least powerful

  22. Superset/subset relation S1 S2 a c b d f g a b S1 is a subset of S2 ; S2 is a superset of S1

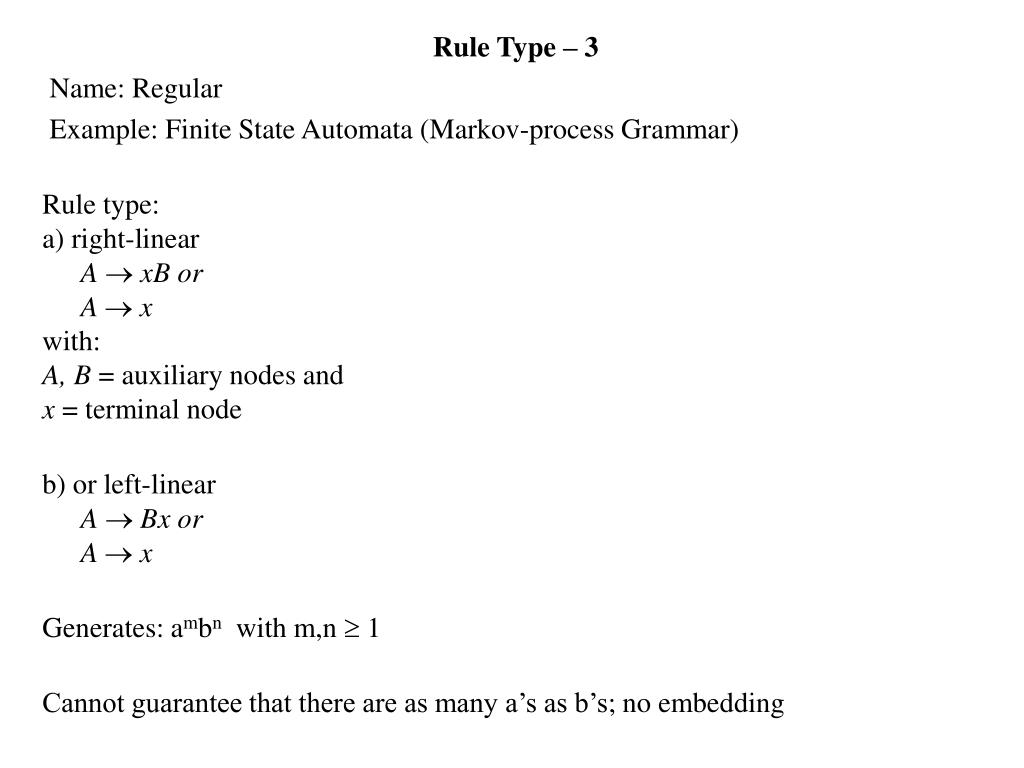

  23. Rule Type – 3  Name: Regular  Example:Finite State Automata (Markov-process Grammar) Rule type: a) right-linear AxB or A  x with: A, B = auxiliary nodes and x = terminal node b) or left-linear ABx or A  x Generates: ambn with m,n  1 Cannot guarantee that there are as many a’s as b’s; no embedding

  24. A regular grammar for natural language sentences S →the A A → cat B A → mouse B A → duck B B → bites C B → sees C B → eats C C → the D D → boy D → girl D → monkey the cat bites the boy the mouse eats the monkey the duck sees the girl

  25. Regular grammars Grammar 1: Grammar 2: A → a A → a A → a B A → B a B → b A B → A b Grammar 3: Grammar 4: A → a A → a A → a B A → B a B → b B → b B → b A B → A b Grammar 5: Grammar 6: S → a AA → A a S → b B A → B a A → a S B → b B → b b S B → A b S →  A → a

  26. Grammars: non-regular Grammar 6: Grammar 7: S → A B A → a S → b B A → B a A → a S B → b B → b b S B → b A S → 

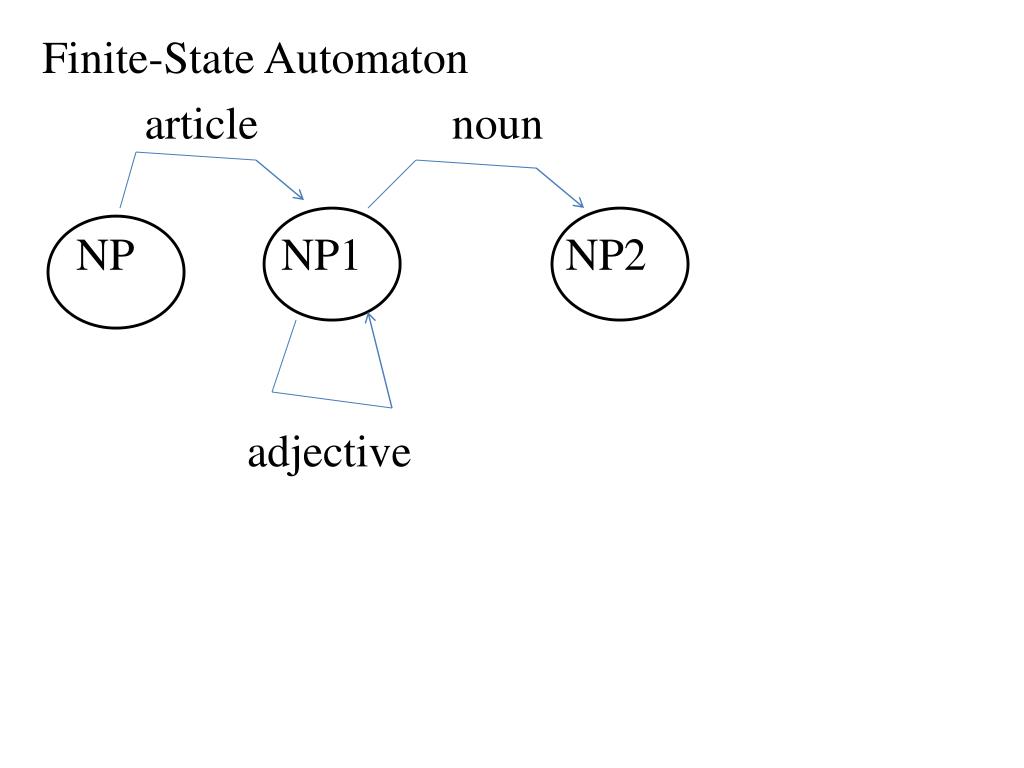

  27. Finite-State Automaton article noun NP NP1 NP2 adjective

  28. NP article NP1 adjective NP1 noun NP2 NP → article NP1 NP1 →adjective NP1 NP1 → noun NP2

  29. A parse tree S root node NP VP non- terminal N V NP nodes DET N terminal nodes

  30. Rule Type – 2 Name: Context Free Example: Phrase Structure Grammars/ Push-Down Automata Rule type: A with: A = auxiliary node  = any number of terminal or auxiliary nodes Recursiveness(centre embedding) allowed: AA

  31. CF Grammar  A Context Free grammar consists of: a) a finite terminal vocabulary VT b) a finite auxiliary vocabulary VA c) an axiom S  VA • a finite number of context free rules of form A → γ, where A  VA and γ  {VA VT}* In natural language syntax S is interpreted as the start symbol for sentence, as in S → NP VP

  32. Natural language Is English regular or CF? If centre embedding is required, then it cannot be regular Centre Embedding: 1. [The cat] [likes tuna fish] a b 2. The cat the dog chased likes tuna fish a a b b 3. The cat the dog the rat bit chased likes tuna fish a a a bb b 4. The cat the dog the rat the elephant admired bit chased likes tuna fish a a a a b b b b  ab aabb aaabbb aaaabbbb

  33. [The cat] [likes tuna fish] a b 2. [The cat] [the dog] [chased] [likes ...] aa bb

  34. Centre embedding S NP VP the likes cat tuna a b = ab

  35. S NP VP likes NP S tuna the b cat NP VP a thechased dogb a = aabb

  36. S   NP VP likes NP Stuna the b cat NPVP a chased NPSb the dog NPVP athebit ratb a = aaabbb

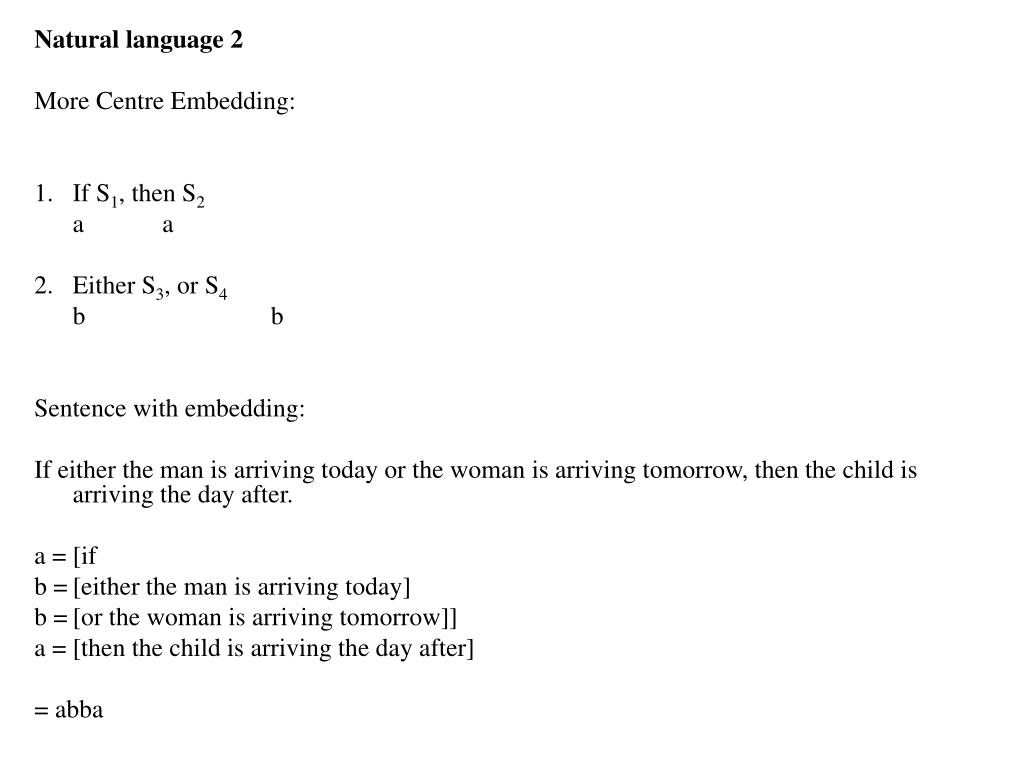

  37. Natural language 2 More Centre Embedding: 1. If S1, then S2 a a 2. Either S3, or S4 b b Sentence with embedding: If either the man is arriving today or the woman is arriving tomorrow, then the child is arriving the day after. a = [if b = [either the man is arriving today] b = [or the woman is arriving tomorrow]] a = [then the child is arriving the day after] = abba

  38. CS languages The following languages cannot be generated by a CF grammar (by pumping lemma): anbmcndm Swiss German: A string of dative nouns (e.g. aa), followed by a string of accusative nouns (e.g. bbb), followed by a string of dative-taking verbs (cc), followed by a string of accusative-taking verbs (ddd) = aabbbccddd = anbmcndm

  39. Swiss German: Jan sait das (Jan says that) … merem Hans esHuushälfedaastriiche we Hans/DAT the house/ACC helpedpaint we helped Hans paint the house abcd NPdatNPdatNPaccNPaccVdatVdatVaccVacc a a b b c c d d

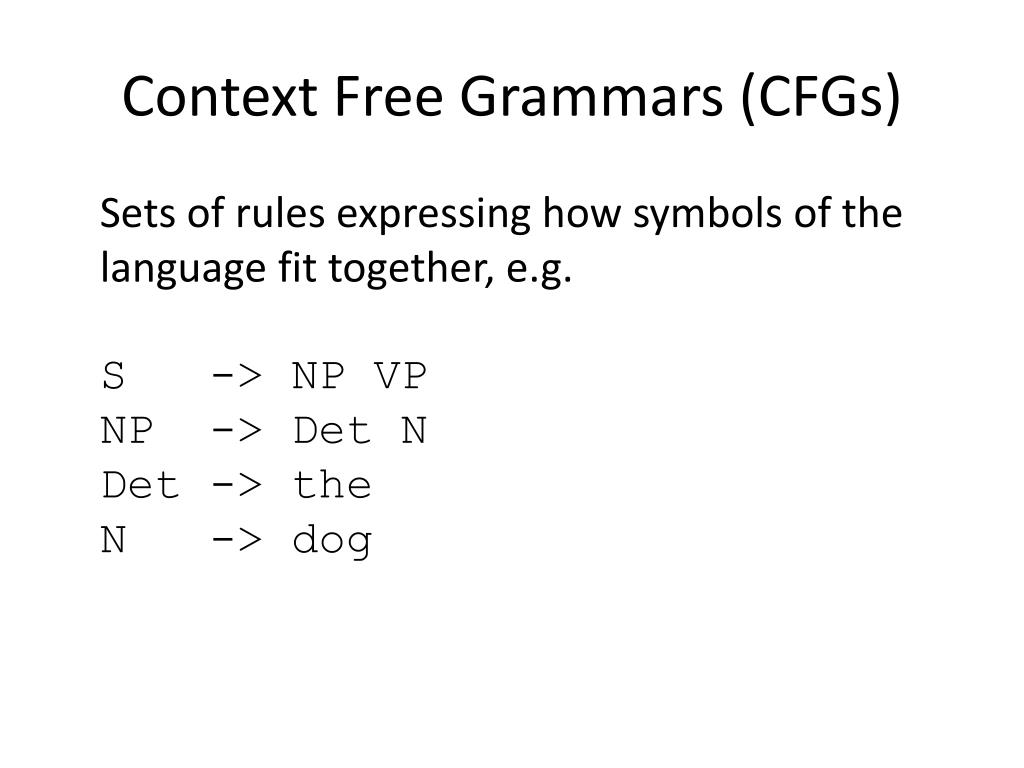

  40. Context Free Grammars (CFGs) Sets of rules expressing how symbols of the language fit together, e.g.S -> NP VPNP -> Det NDet -> theN -> dog

  41. What Does Context Free Mean? • LHS of rule is just one symbol. • Can haveNP -> Det N • Cannot haveX NP Y -> X Det N Y

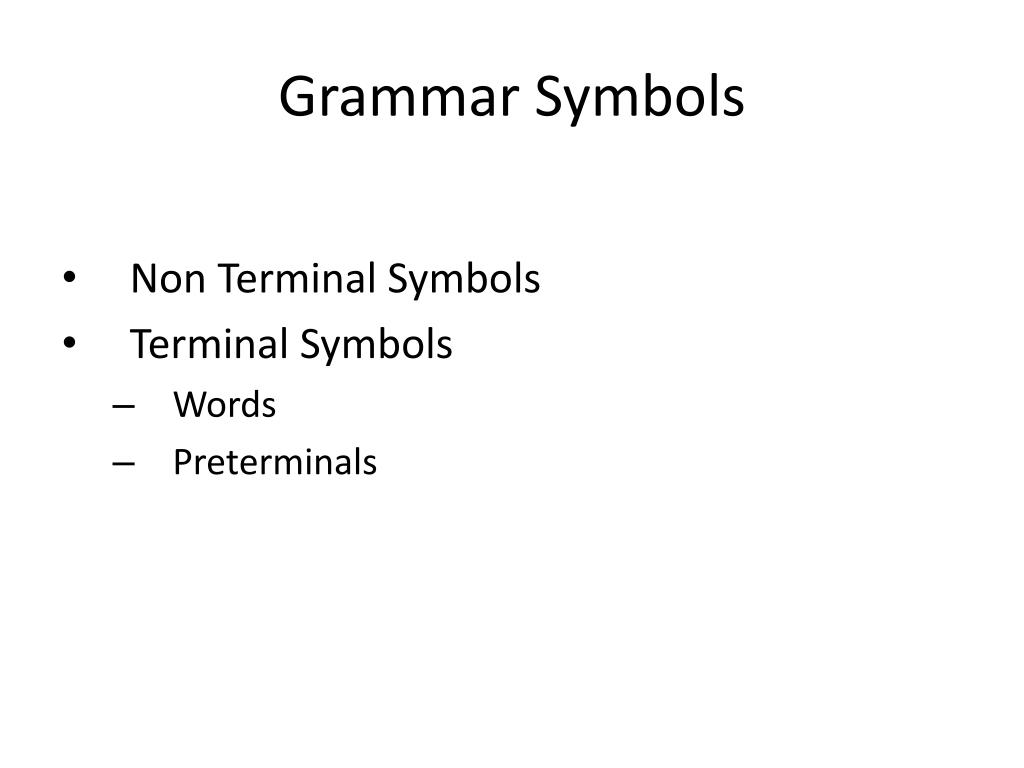

  42. Grammar Symbols • Non Terminal Symbols • Terminal Symbols • Words • Preterminals

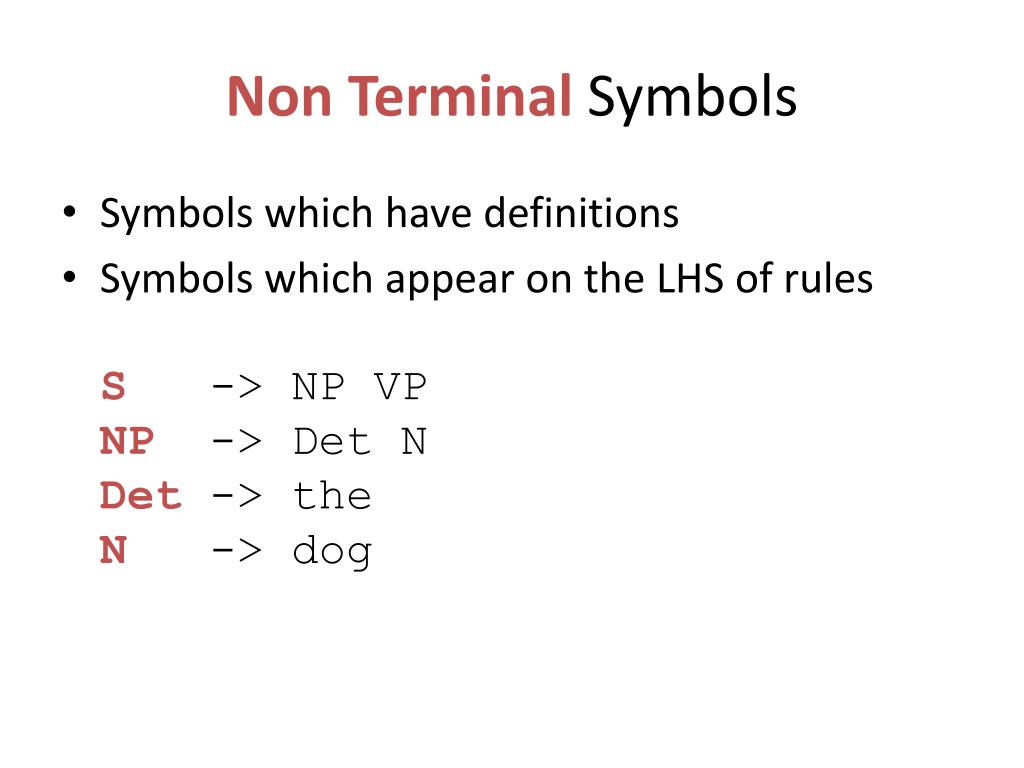

  43. Non Terminal Symbols • Symbols which have definitions • Symbols which appear on the LHS of rulesS-> NP VPNP -> Det NDet -> theN-> dog

  44. Non Terminal Symbols • Same Non Terminals can have several definitionsS-> NP VPNP -> Det N NP -> N Det -> theN-> dog

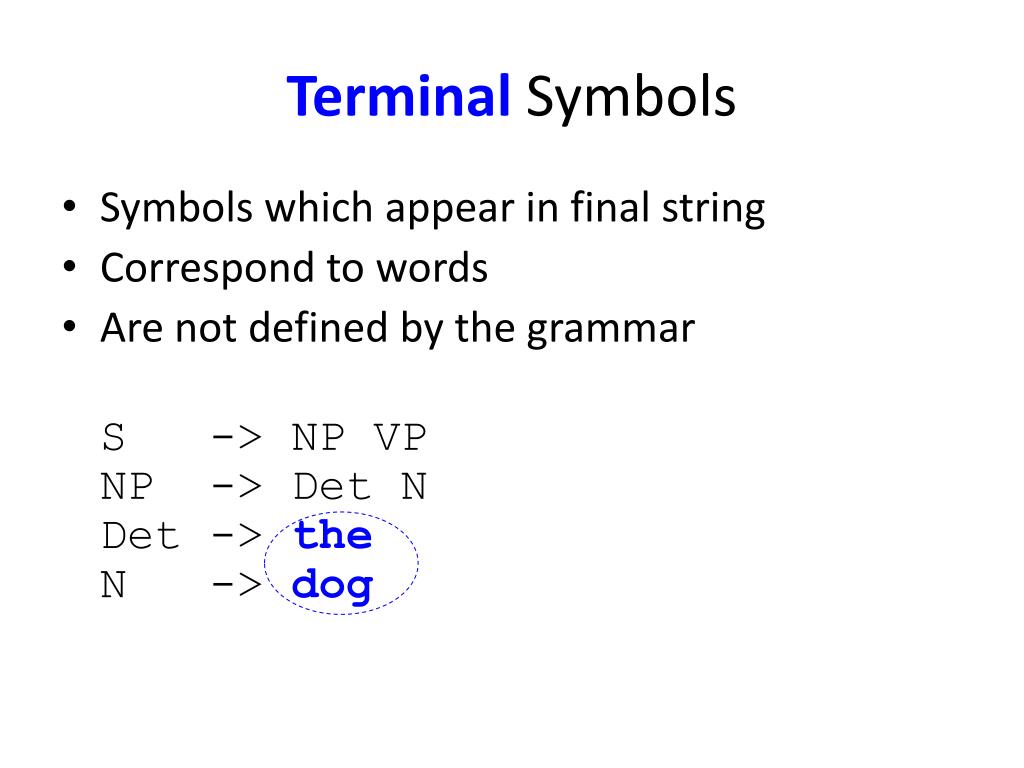

  45. TerminalSymbols • Symbols which appear in final string • Correspond to words • Are not defined by the grammar S -> NP VPNP -> Det NDet -> theN -> dog

  46. Parts of Speech (POS) • NT Symbols which produce terminal symbols are sometimes called pre-terminals S -> NP VPNP -> Det NDet -> theN-> dog • Sometimes we are interested in the shape of sentences formed from pre-terminalsDet N VAux N V D N

  47. CFG - formal definition A CFG is a tuple (N,,R,S) • N is a set of non-terminal symbols •  is a set of terminal symbols disjoint from N • R is a set of rules each of the form A   where A is non-terminal • S is a designated start-symbol

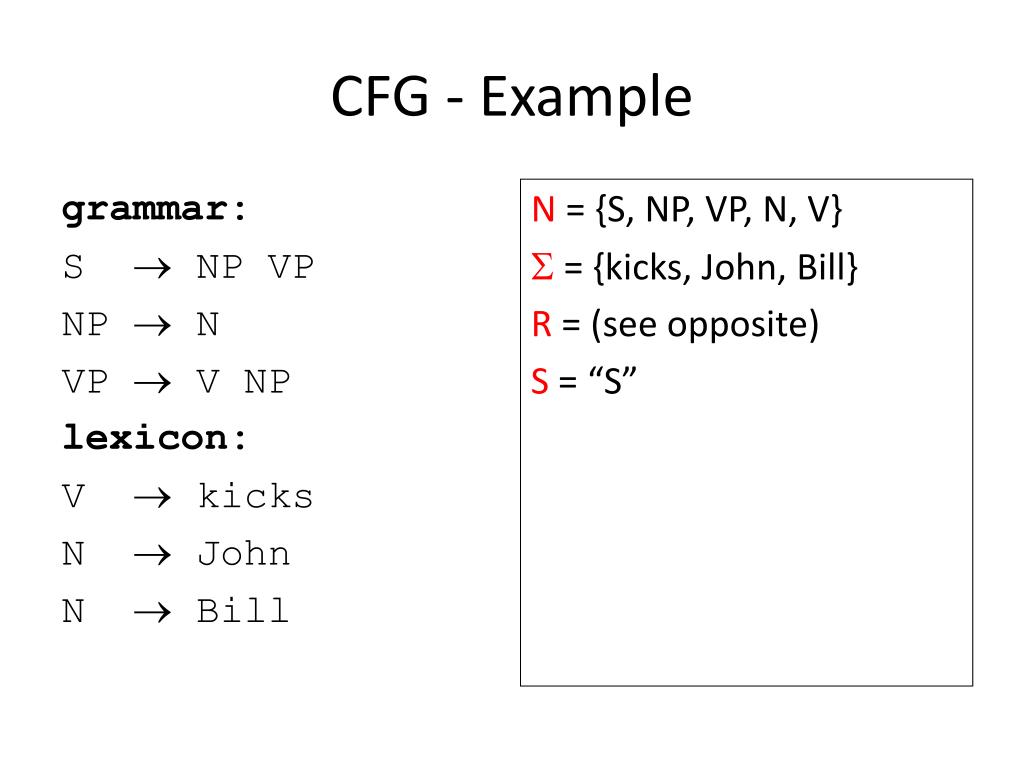

  48. grammar: S  NP VP NP  N VP  V NP lexicon: V  kicks N  John N  Bill N = {S, NP, VP, N, V}  = {kicks, John, Bill} R = (see opposite) S = “S” CFG - Example

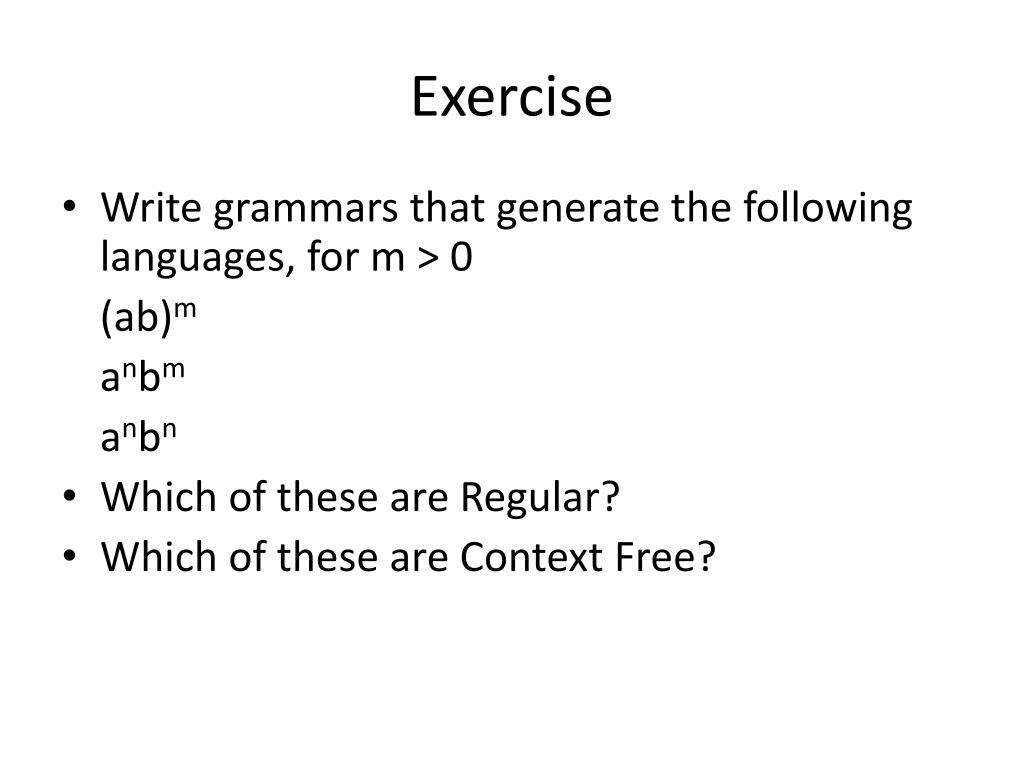

  49. Exercise • Write grammars that generate the following languages, for m > 0 (ab)m anbm anbn • Which of these are Regular? • Which of these are Context Free?

  50. (ab)m for m > 0 S -> a b S -> a b S
