  1. Chapter 3 Requirements Specifications SEG2101 Chapter 3

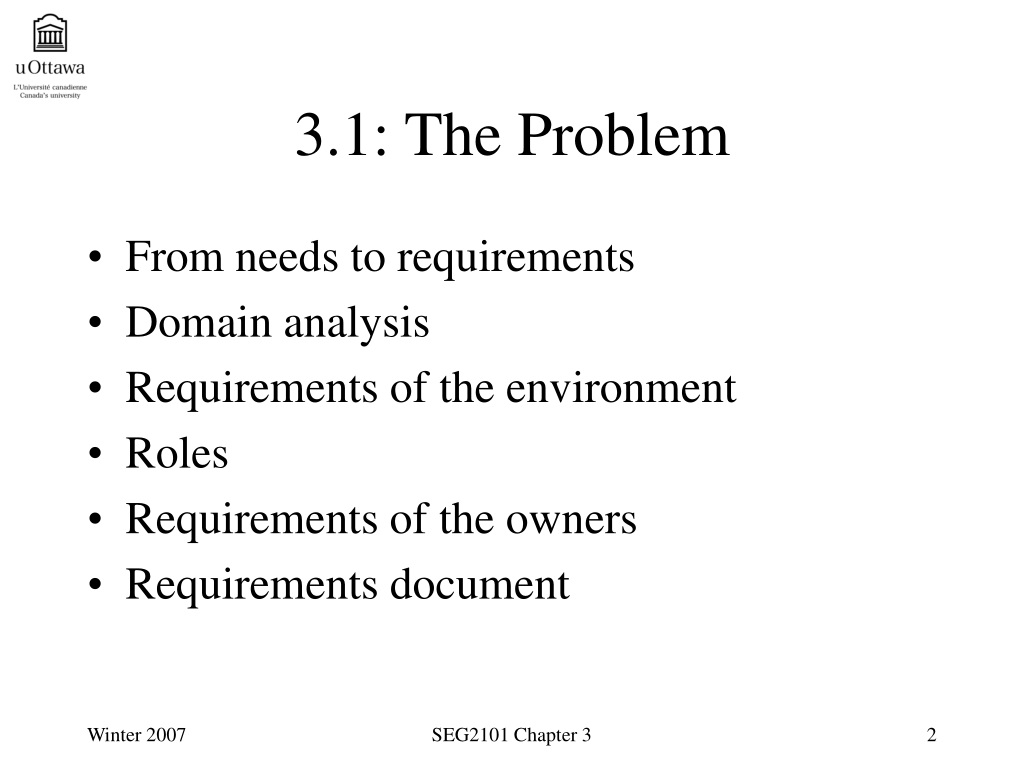

  2. 3.1: The Problem • From needs to requirements • Domain analysis • Requirements of the environment • Roles • Requirements of the owners • Requirements document SEG2101 Chapter 3

  3. Requirements • A condition or capability needed by a user to solve a problem or achieve an objective; • A condition or capability that must be met or possessed by a system or system component to satisfy a contract, standard, specification or other formally imposed document. The set of all requirements forms the basis for subsequent development of the system or system component. SEG2101 Chapter 3

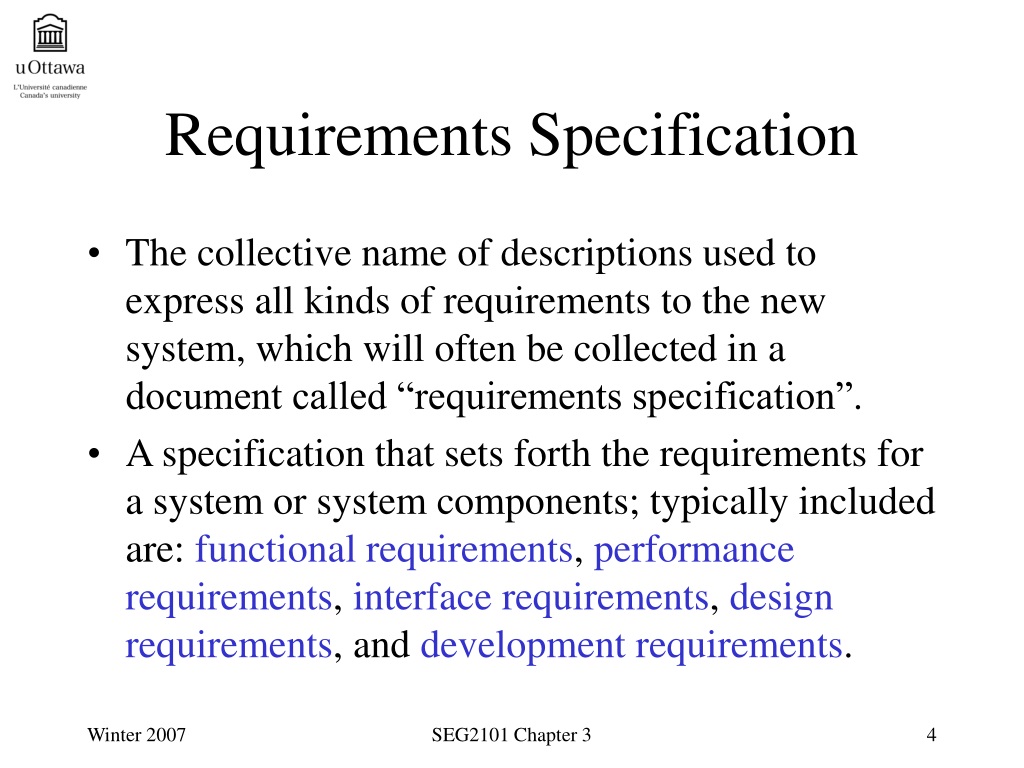

  4. Requirements Specification • The collective name of descriptions used to express all kinds of requirements to the new system, which will often be collected in a document called “requirements specification”. • A specification that sets forth the requirements for a system or system components; typically included are: functional requirements, performance requirements, interface requirements, design requirements, and development requirements. SEG2101 Chapter 3

  5. Characteristics of Requirements • Unambiguous: only one semantic interpretation • Complete: all needs or requirements are included • Verifiable: possible to check if the requirement is fulfilled • Consistent: no conflict • Modifiable: necessary changes can be made without violating other attributes • Traceable: the origin of each requirement should be clear; how each requirement is taken care in the system SEG2101 Chapter 3

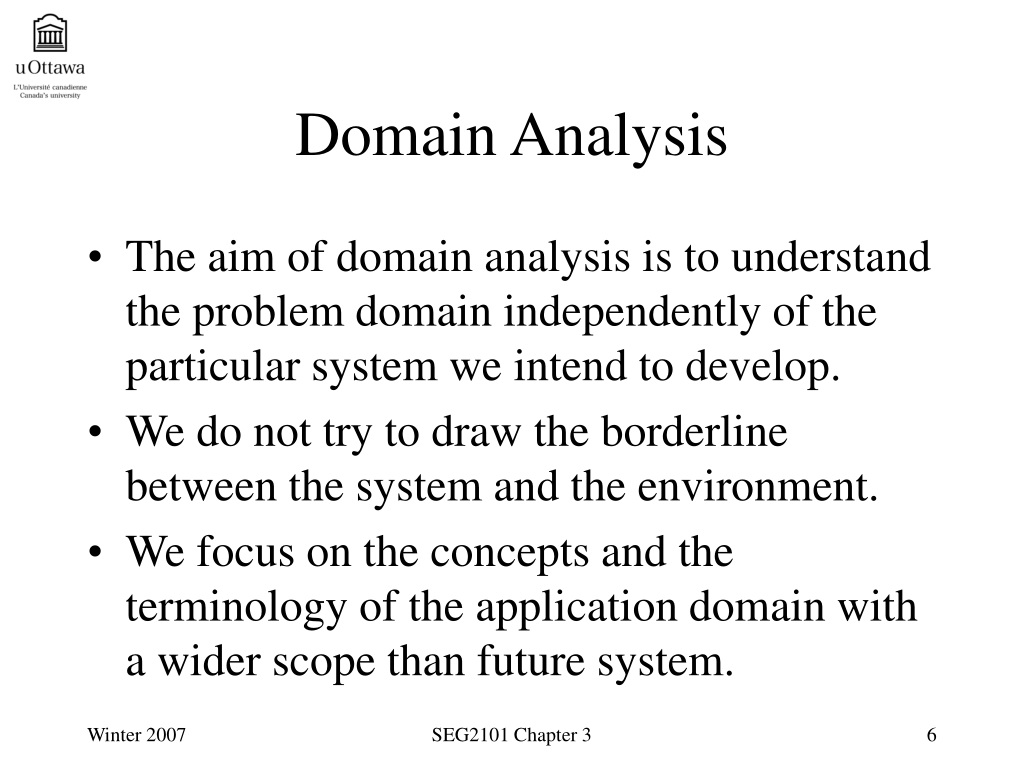

  6. Domain Analysis • The aim of domain analysis is to understand the problem domain independently of the particular system we intend to develop. • We do not try to draw the borderline between the system and the environment. • We focus on the concepts and the terminology of the application domain with a wider scope than future system. SEG2101 Chapter 3

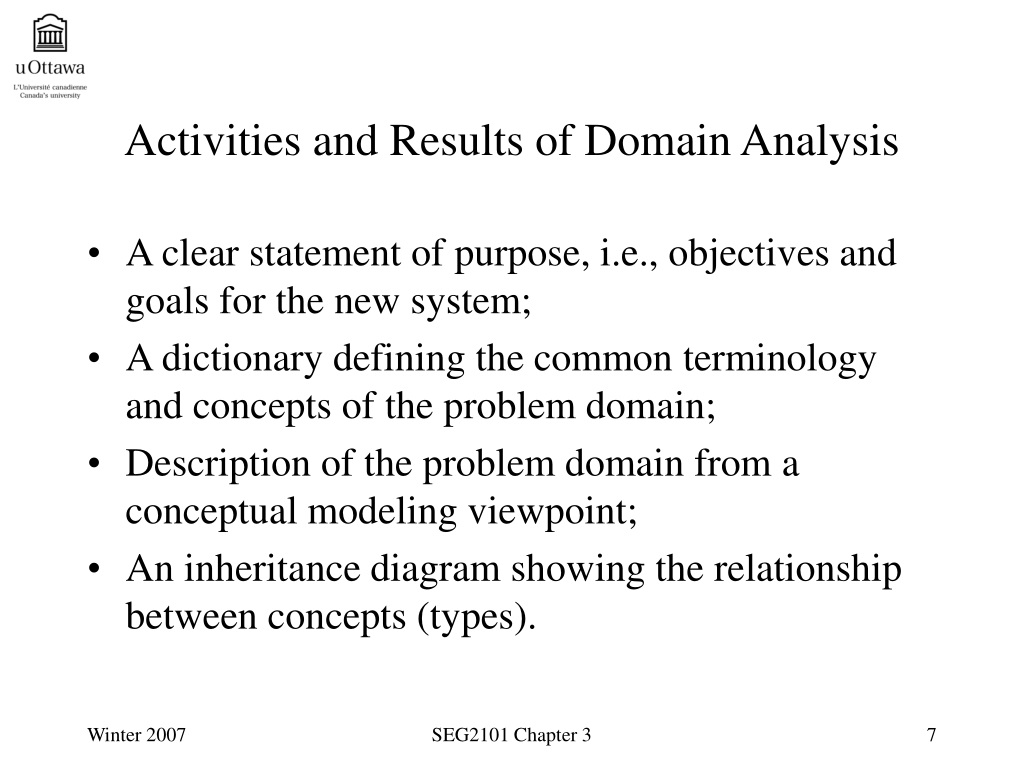

  7. Activities and Results of Domain Analysis • A clear statement of purpose, i.e., objectives and goals for the new system; • A dictionary defining the common terminology and concepts of the problem domain; • Description of the problem domain from a conceptual modeling viewpoint; • An inheritance diagram showing the relationship between concepts (types). SEG2101 Chapter 3

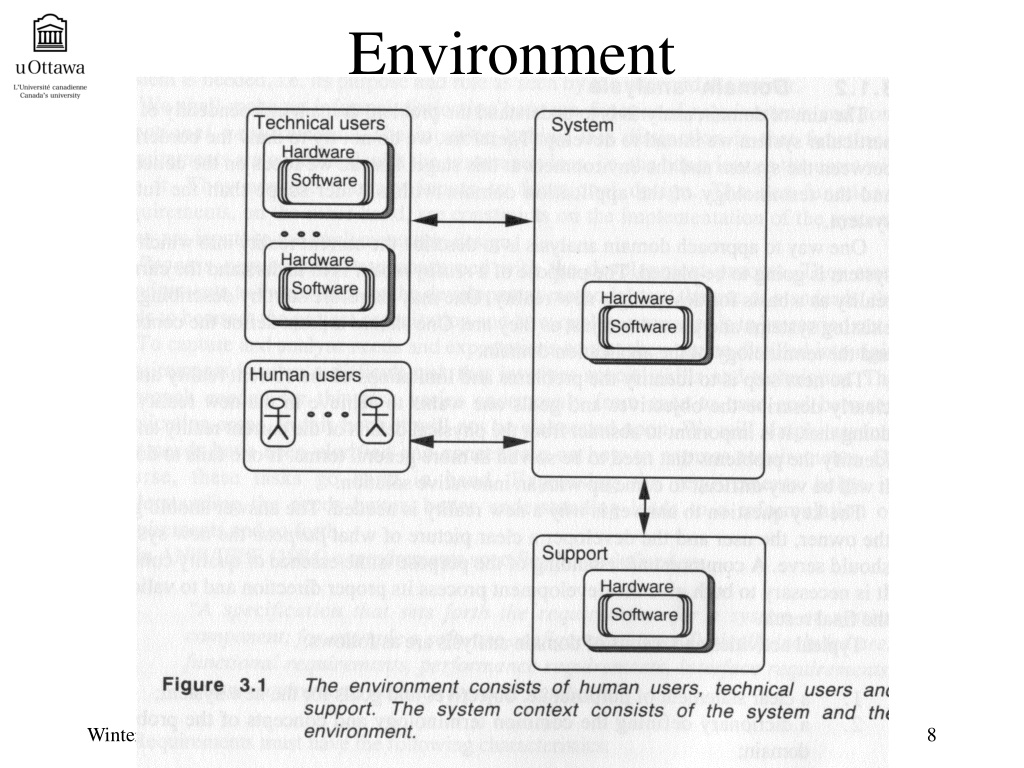

  8. Environment SEG2101 Chapter 3

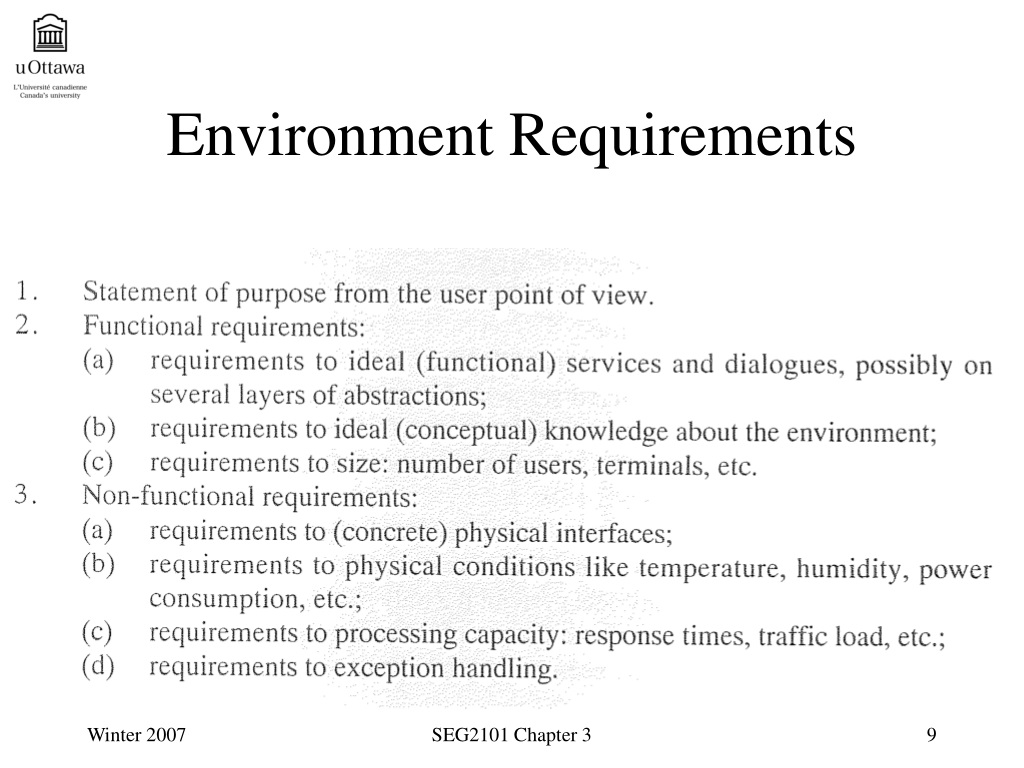

  9. Environment Requirements SEG2101 Chapter 3

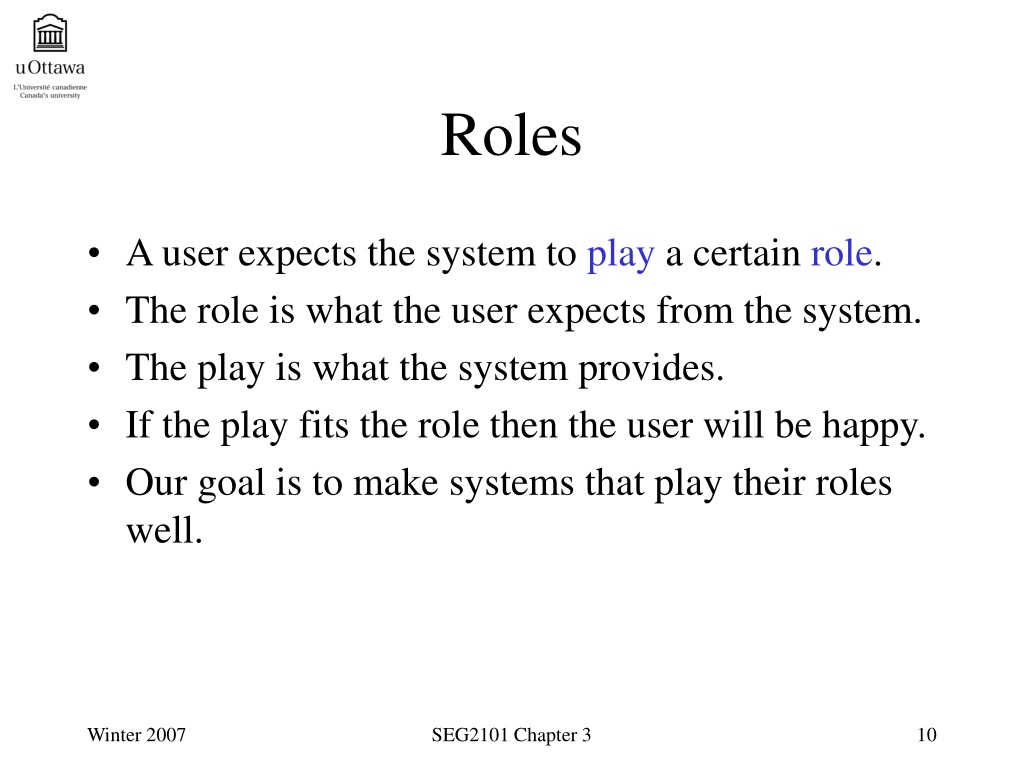

  10. Roles • A user expects the system to play a certain role. • The role is what the user expects from the system. • The play is what the system provides. • If the play fits the role then the user will be happy. • Our goal is to make systems that play their roles well. SEG2101 Chapter 3

  11. Owner Requirements SEG2101 Chapter 3

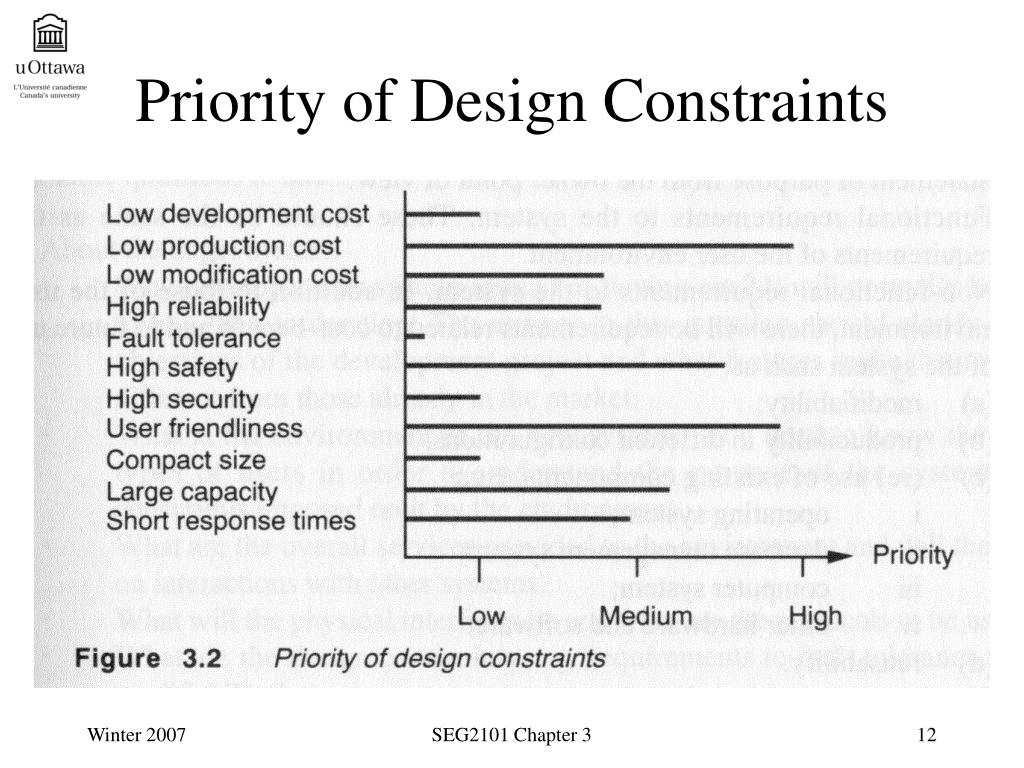

  12. Priority of Design Constraints SEG2101 Chapter 3

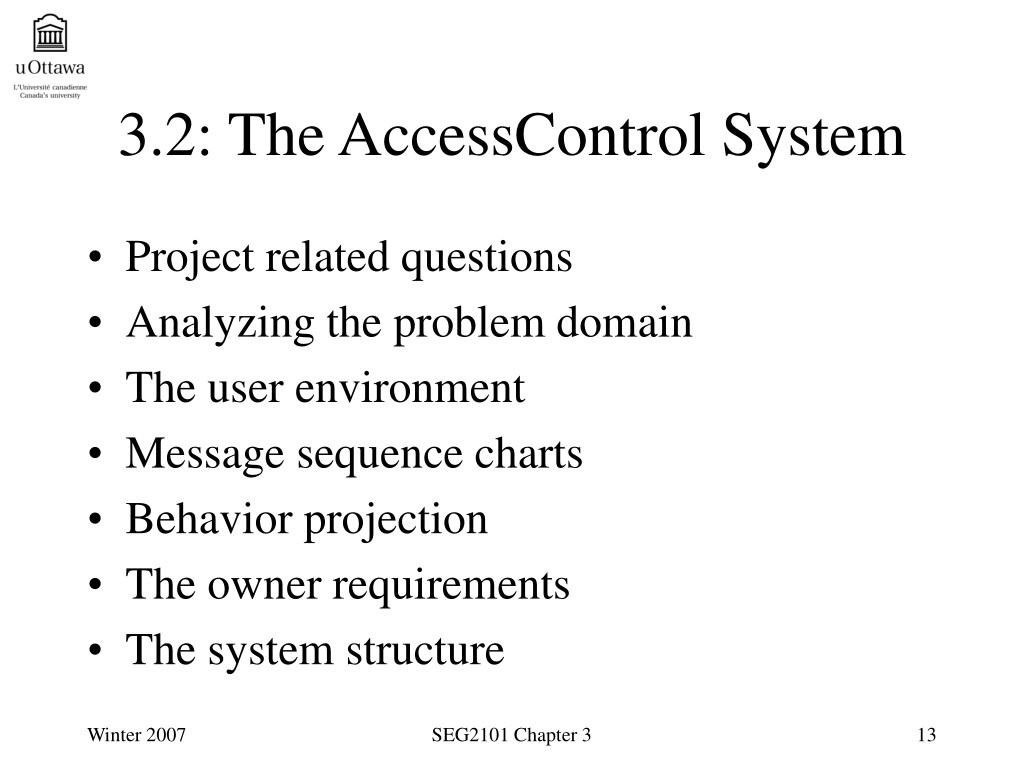

  13. 3.2: The AccessControl System • Project related questions • Analyzing the problem domain • The user environment • Message sequence charts • Behavior projection • The owner requirements • The system structure SEG2101 Chapter 3

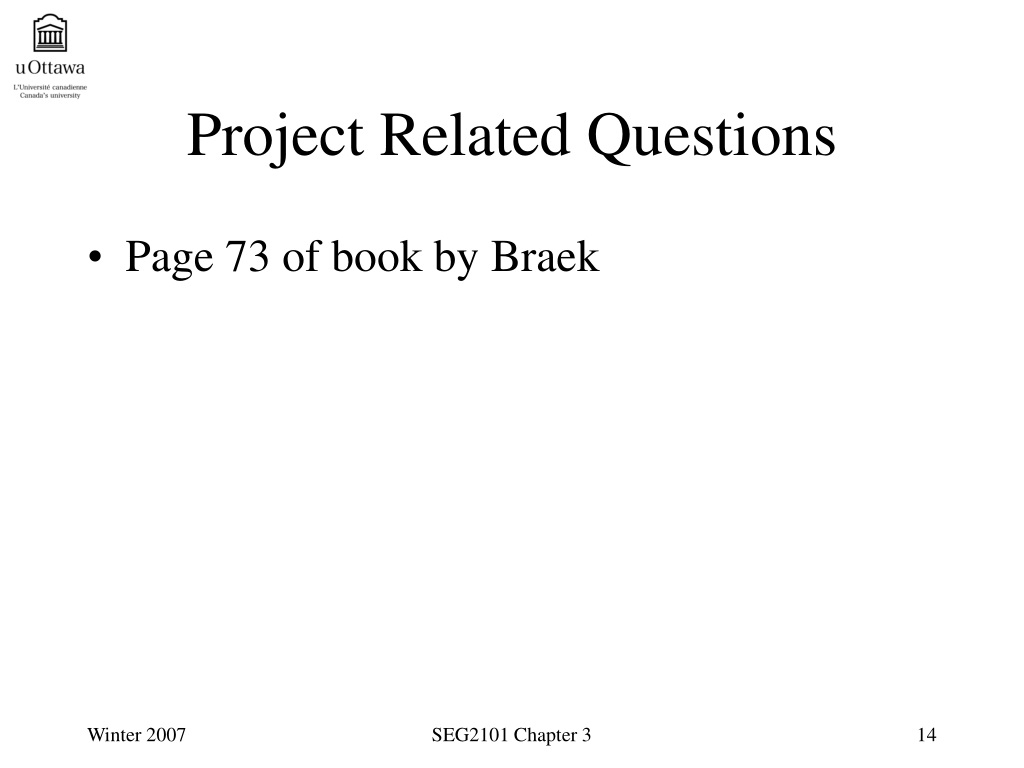

  14. Project Related Questions • Page 73 of book by Braek SEG2101 Chapter 3

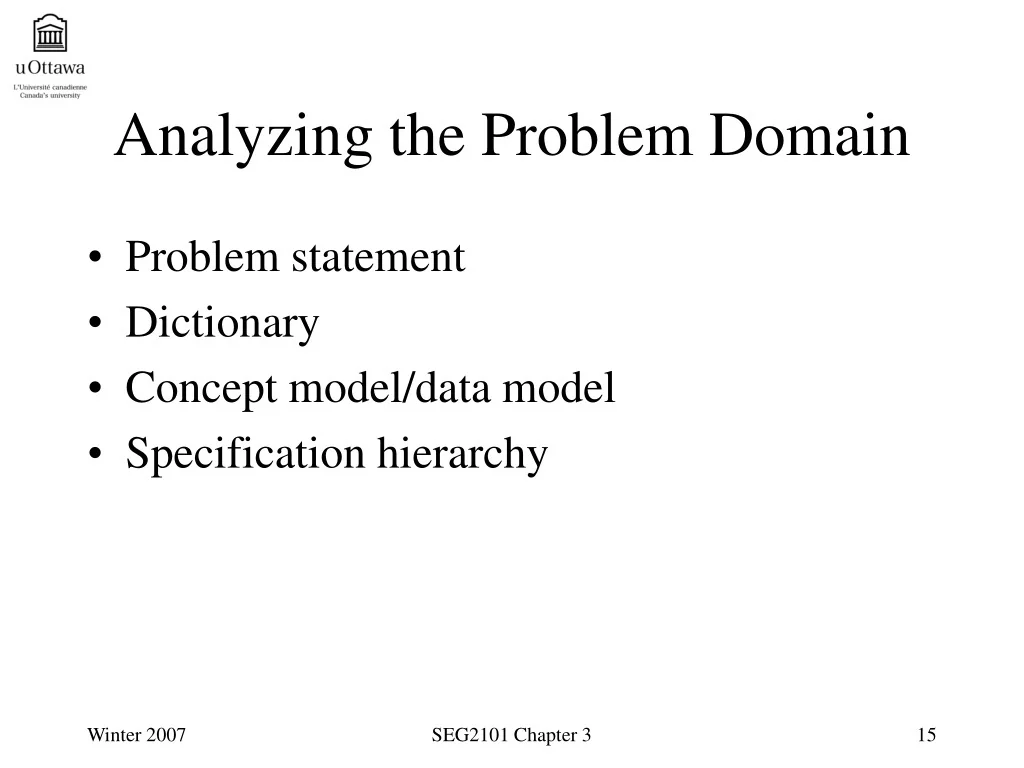

  15. Analyzing the Problem Domain • Problem statement • Dictionary • Concept model/data model • Specification hierarchy SEG2101 Chapter 3

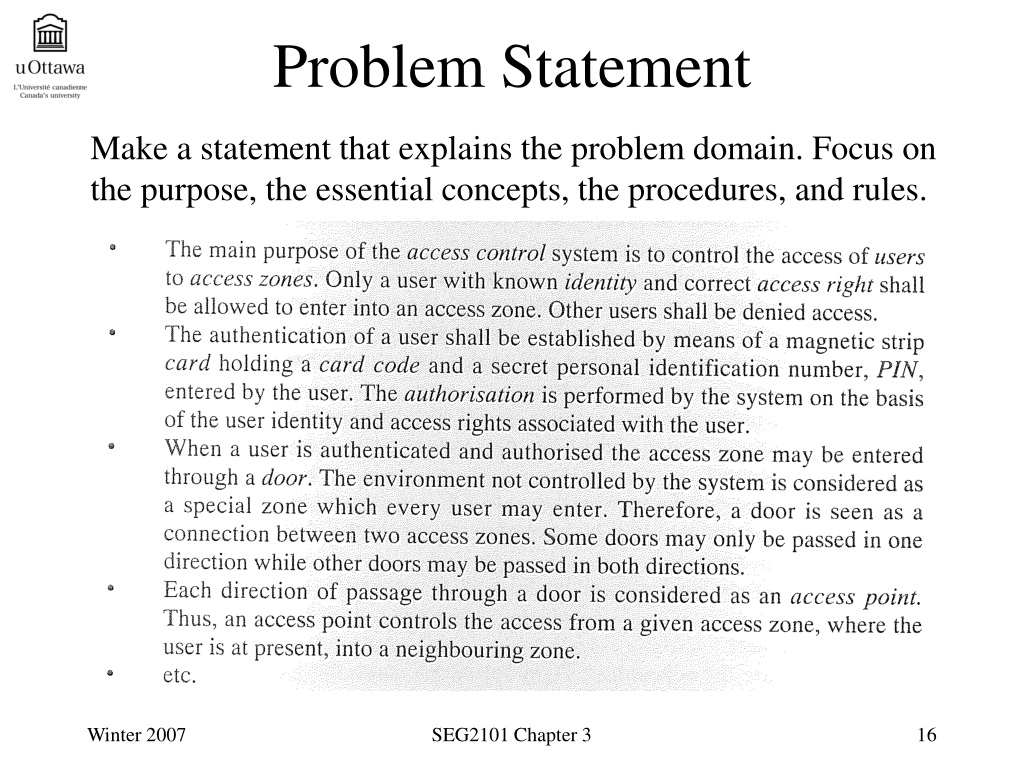

  16. Problem Statement Make a statement that explains the problem domain. Focus on the purpose, the essential concepts, the procedures, and rules. SEG2101 Chapter 3

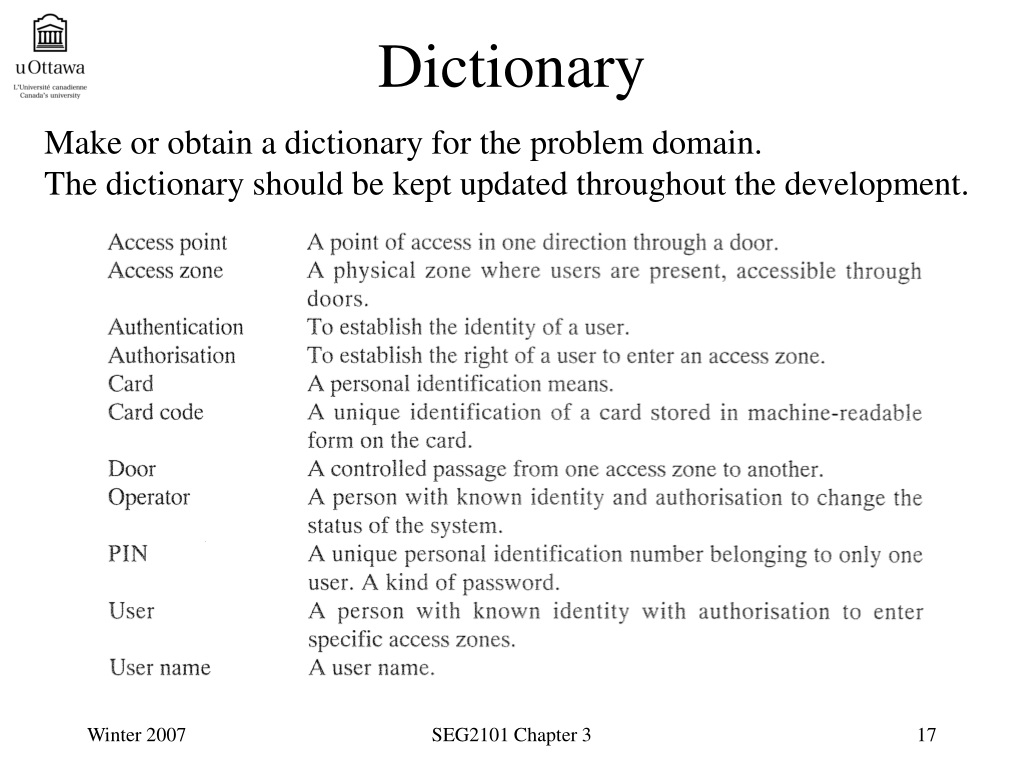

  17. Dictionary Make or obtain a dictionary for the problem domain. The dictionary should be kept updated throughout the development. SEG2101 Chapter 3

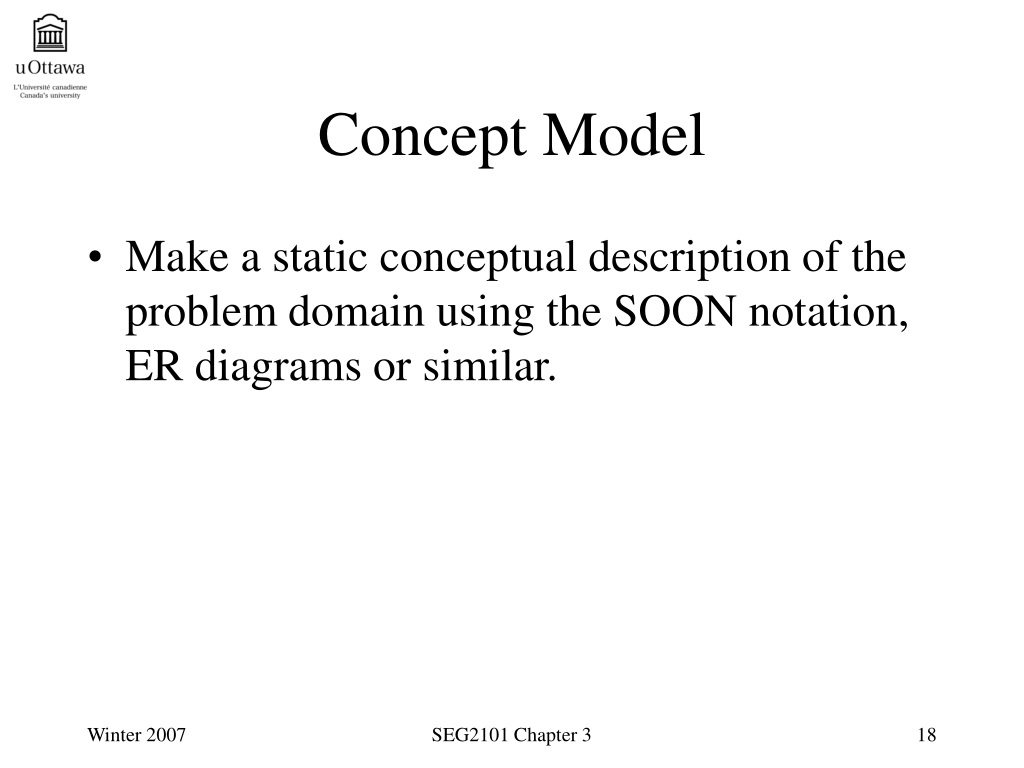

  18. Concept Model • Make a static conceptual description of the problem domain using the SOON notation, ER diagrams or similar. SEG2101 Chapter 3

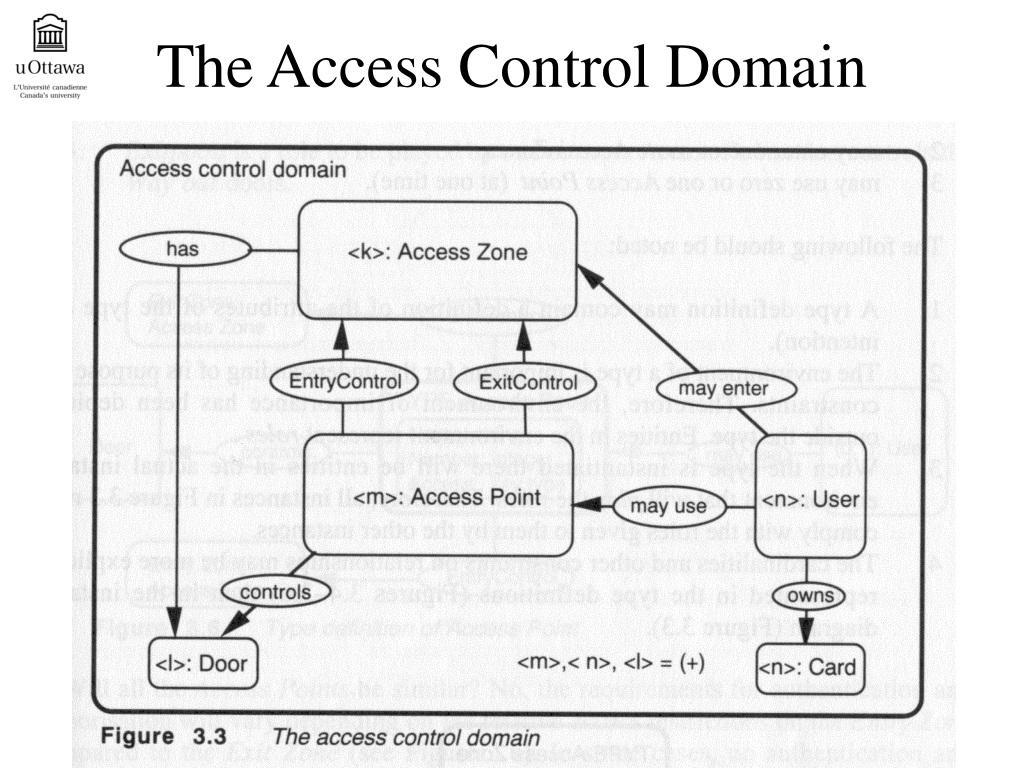

  19. The Access Control Domain SEG2101 Chapter 3

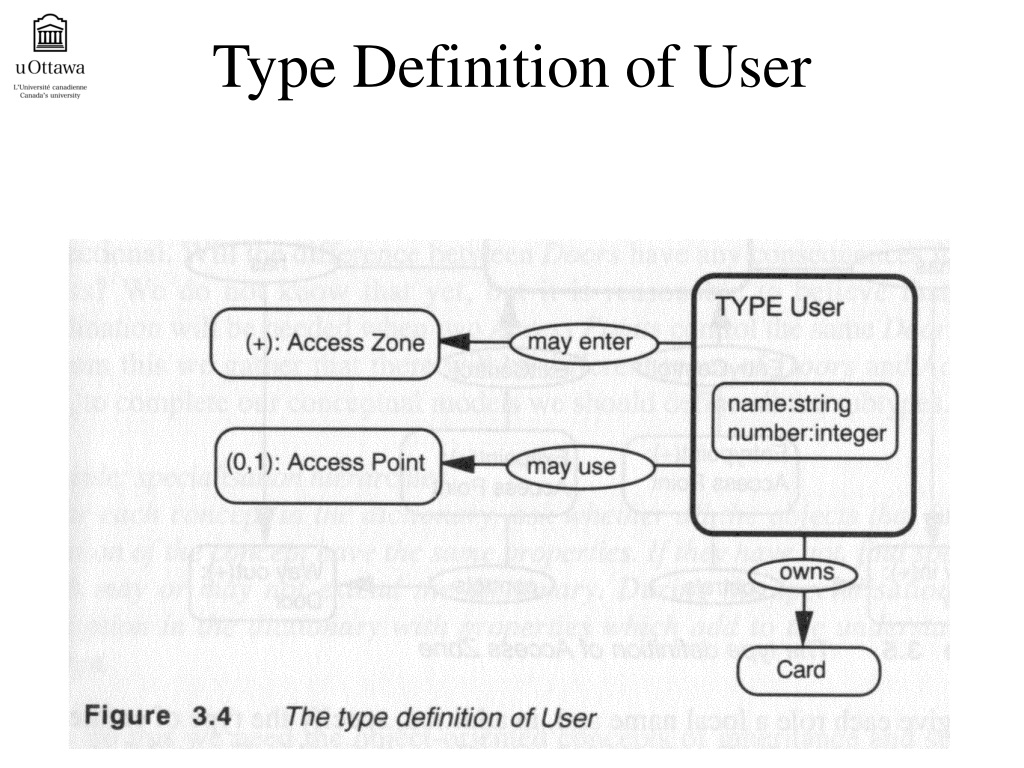

  20. Type Definition of User SEG2101 Chapter 3

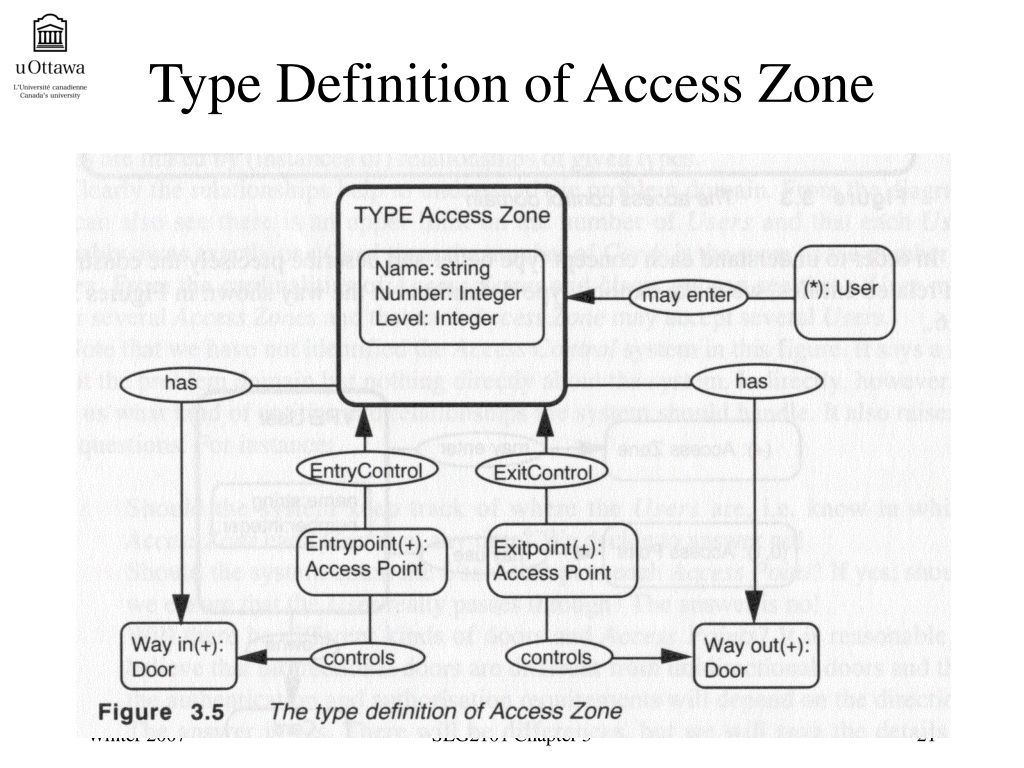

  21. Type Definition of Access Zone SEG2101 Chapter 3

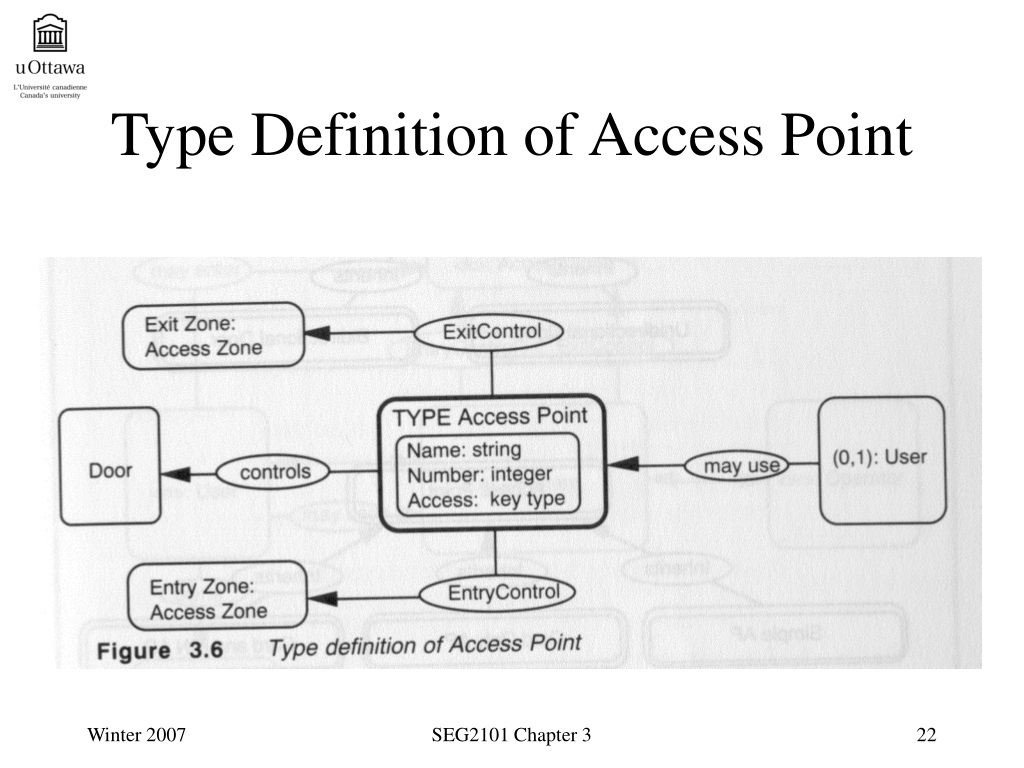

  22. Type Definition of Access Point SEG2101 Chapter 3

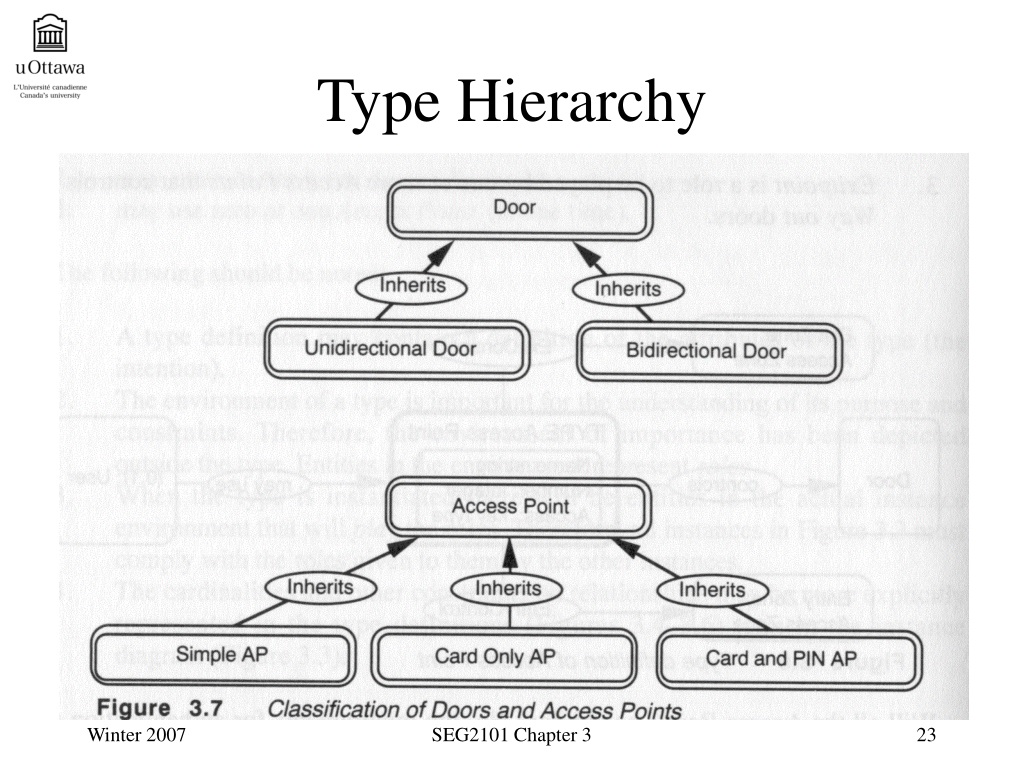

  23. Type Hierarchy SEG2101 Chapter 3

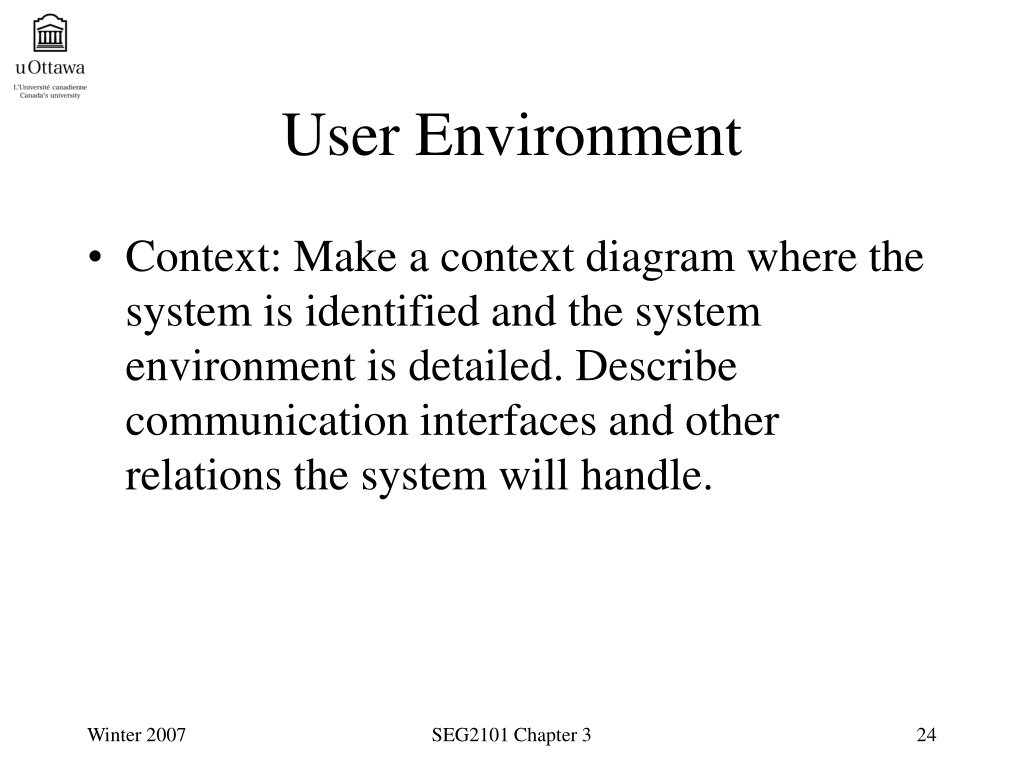

  24. User Environment • Context: Make a context diagram where the system is identified and the system environment is detailed. Describe communication interfaces and other relations the system will handle. SEG2101 Chapter 3

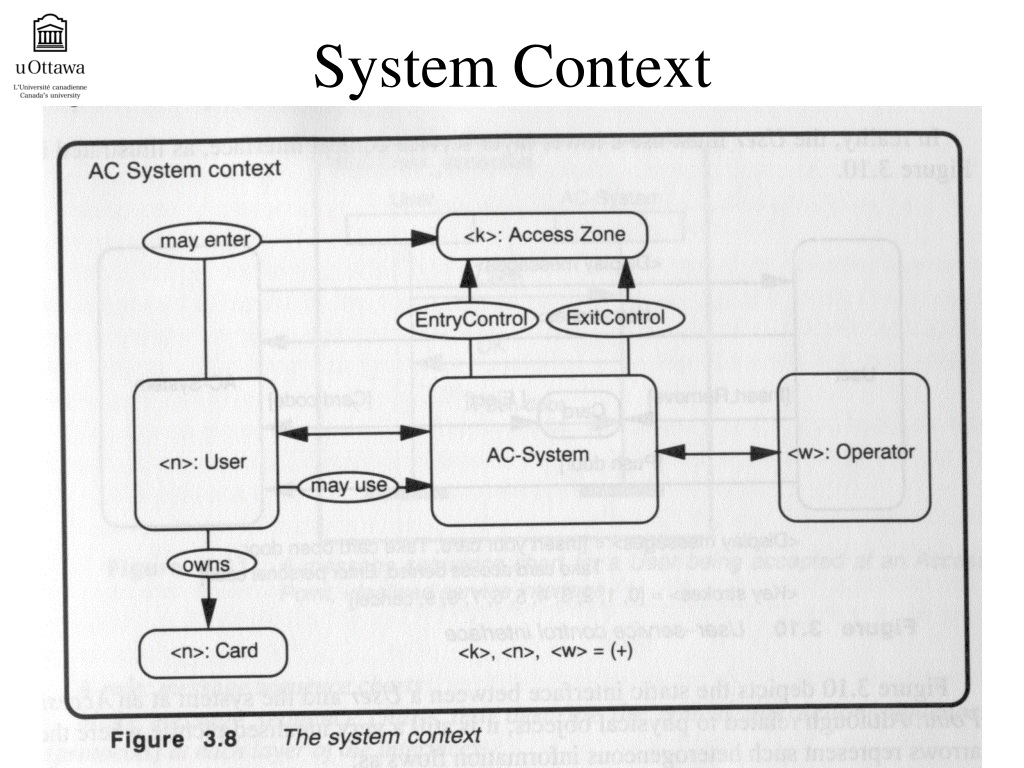

  25. System Context SEG2101 Chapter 3

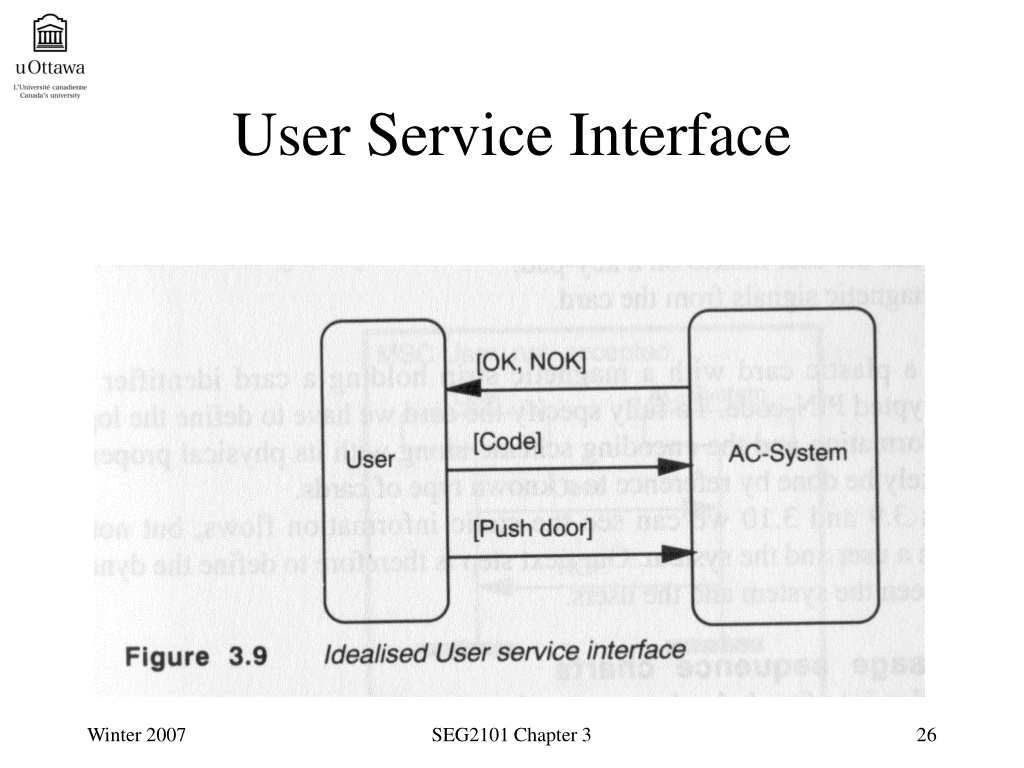

  26. User Service Interface SEG2101 Chapter 3

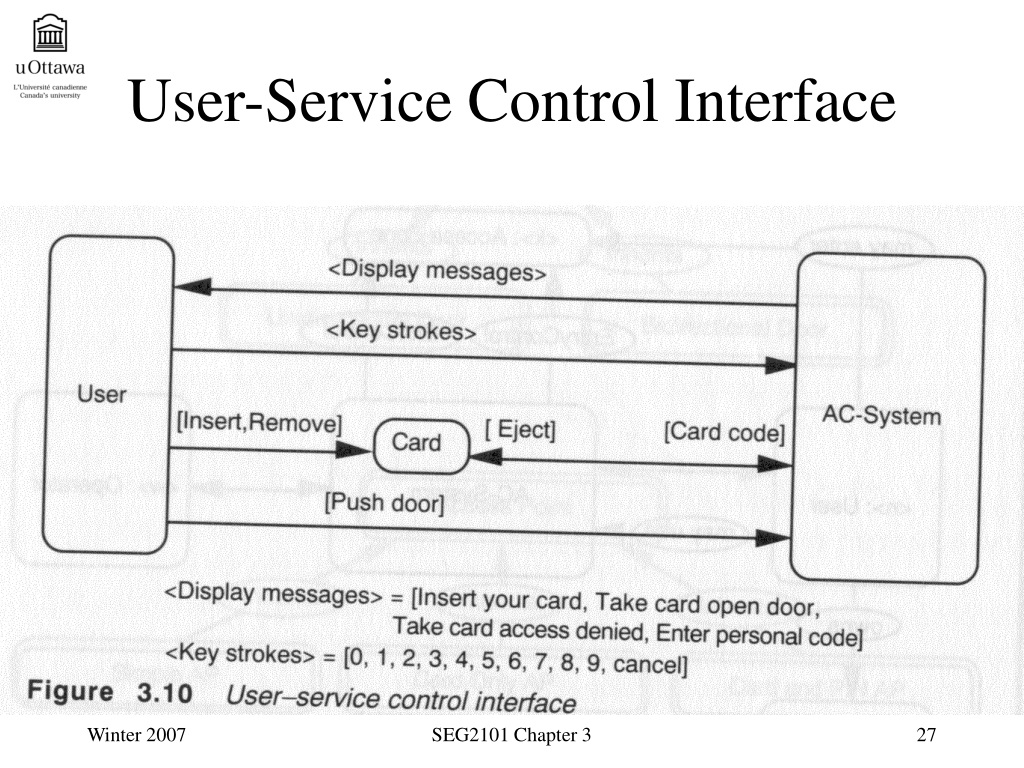

  27. User-Service Control Interface SEG2101 Chapter 3

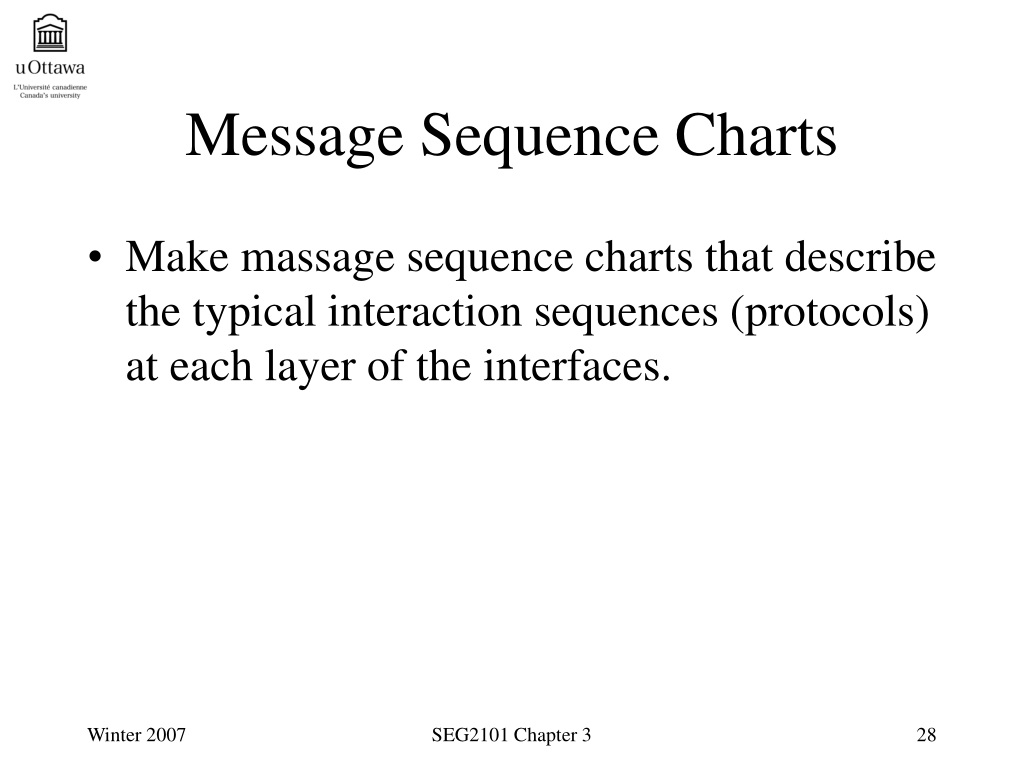

  28. Message Sequence Charts • Make massage sequence charts that describe the typical interaction sequences (protocols) at each layer of the interfaces. SEG2101 Chapter 3

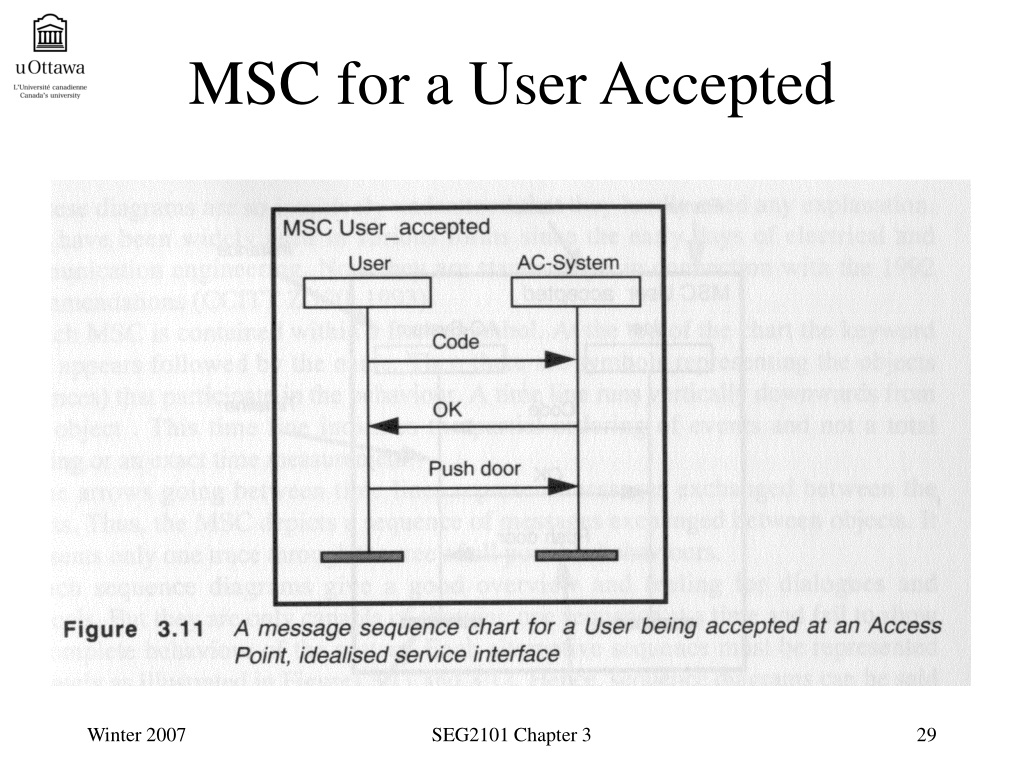

  29. MSC for a User Accepted SEG2101 Chapter 3

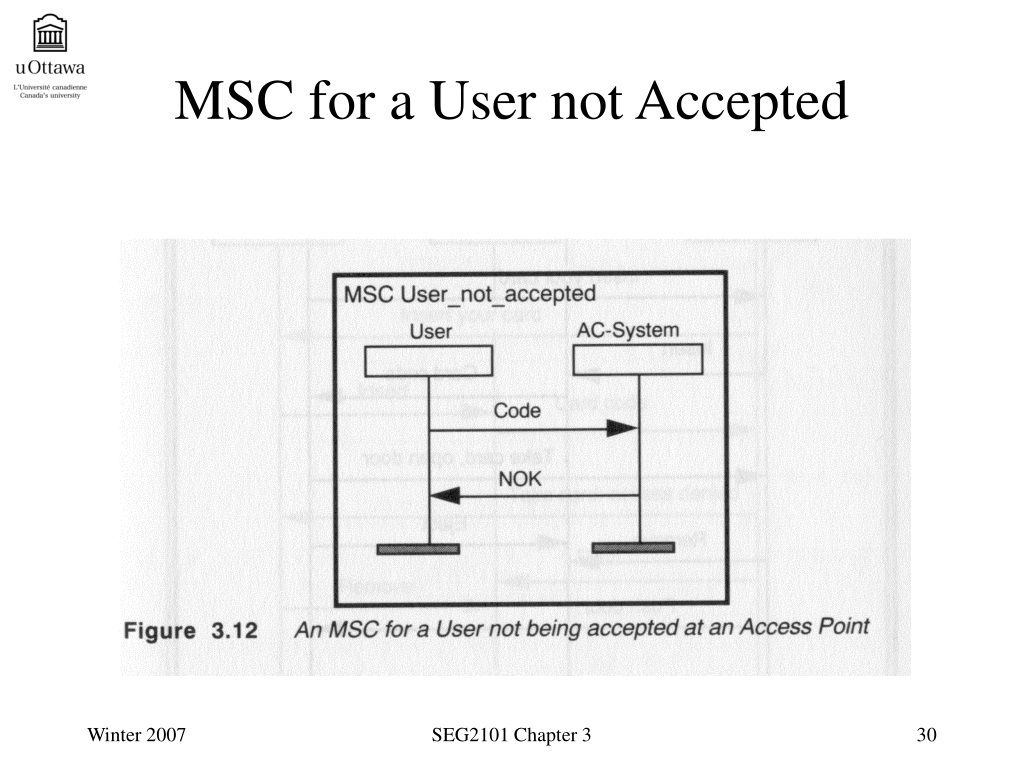

  30. MSC for a User not Accepted SEG2101 Chapter 3

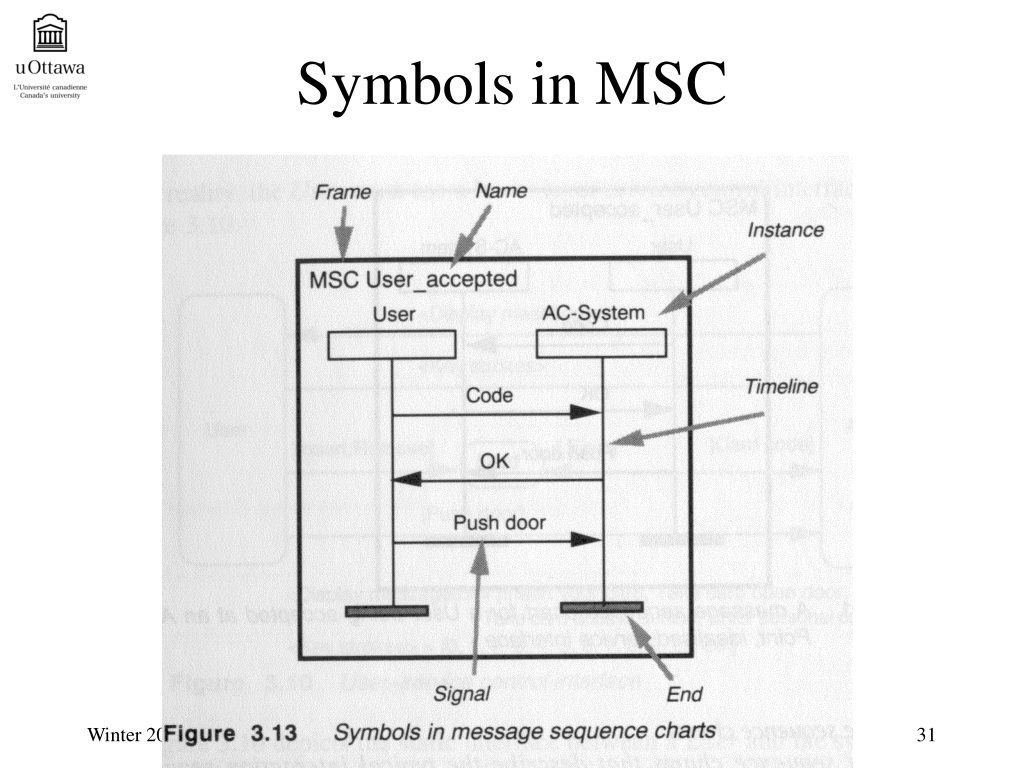

  31. Symbols in MSC SEG2101 Chapter 3

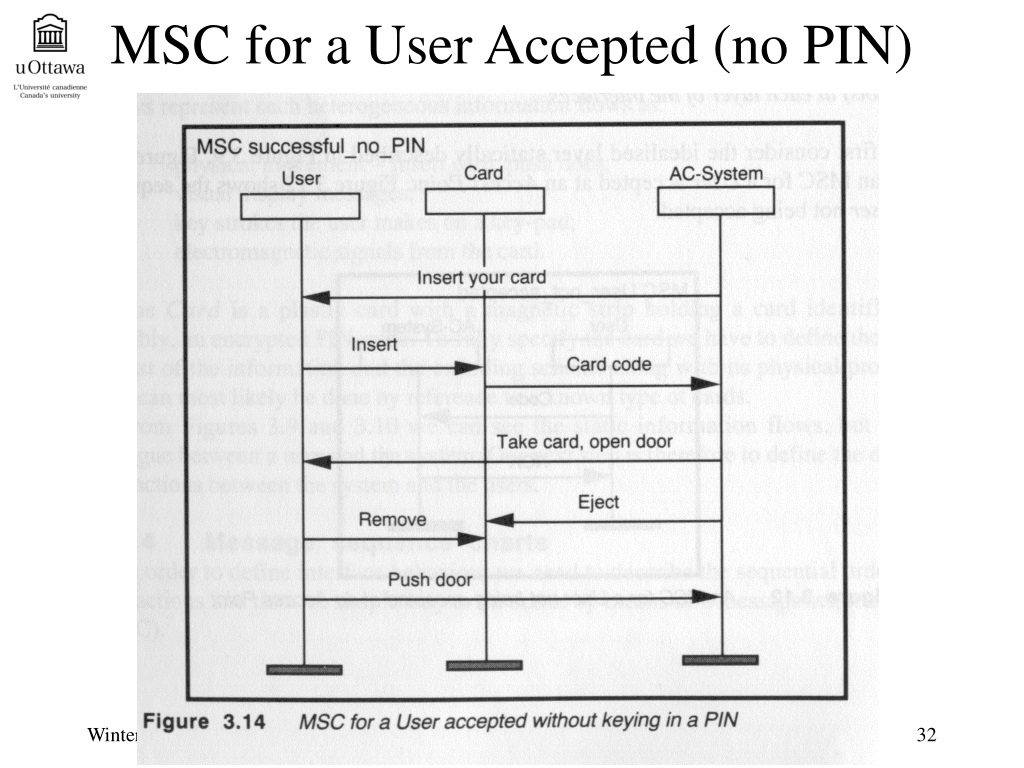

  32. MSC for a User Accepted (no PIN) SEG2101 Chapter 3

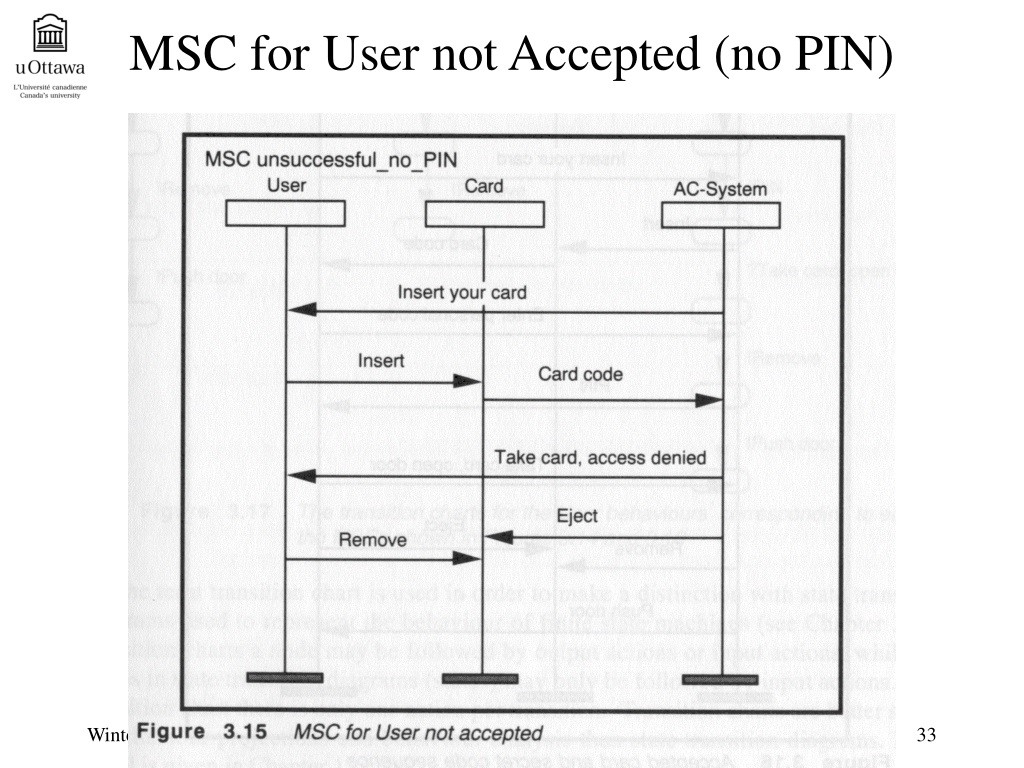

  33. MSC for User not Accepted (no PIN) SEG2101 Chapter 3

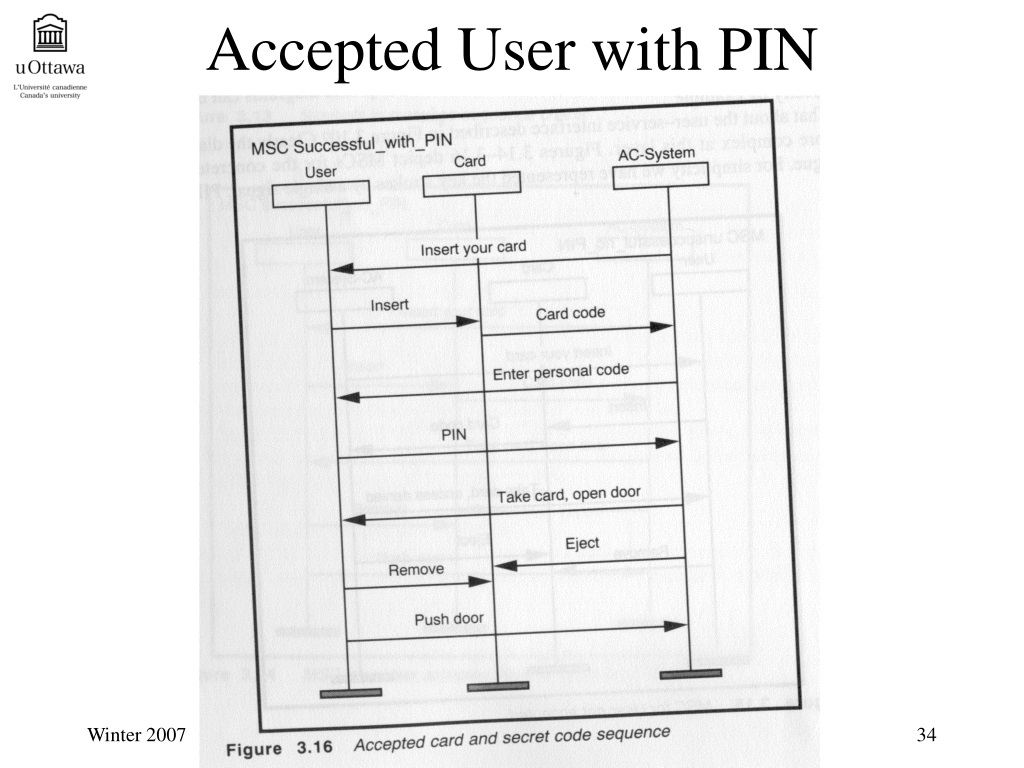

  34. Accepted User with PIN SEG2101 Chapter 3

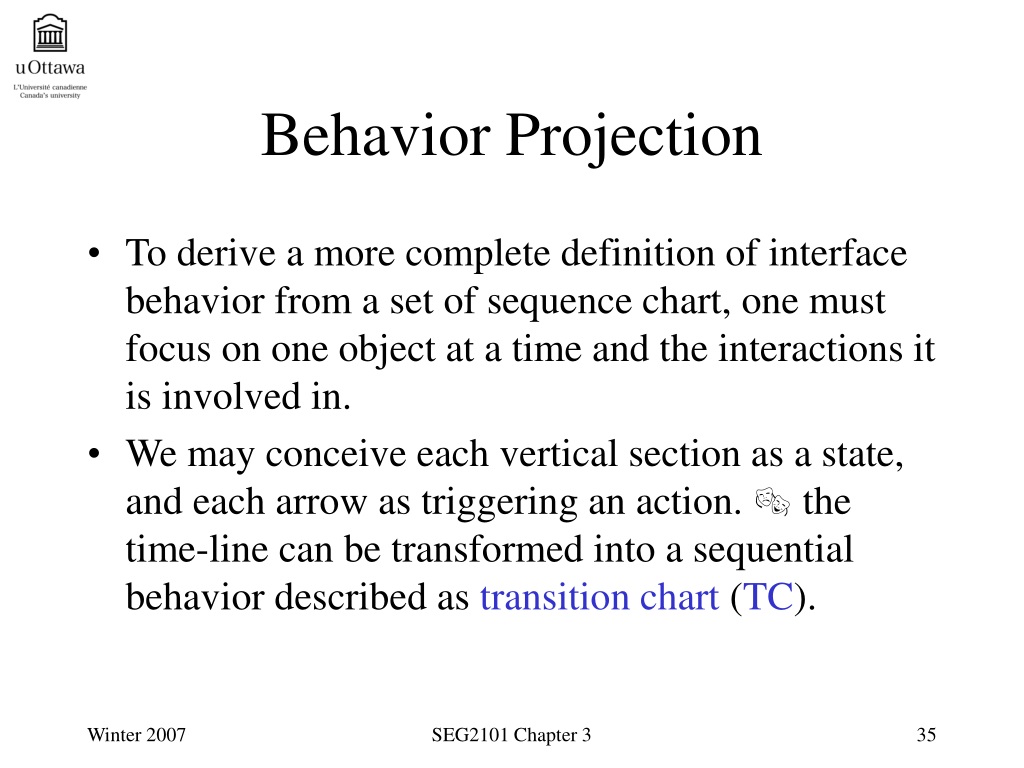

  35. Behavior Projection • To derive a more complete definition of interface behavior from a set of sequence chart, one must focus on one object at a time and the interactions it is involved in. • We may conceive each vertical section as a state, and each arrow as triggering an action.  the time-line can be transformed into a sequential behavior described as transition chart (TC). SEG2101 Chapter 3

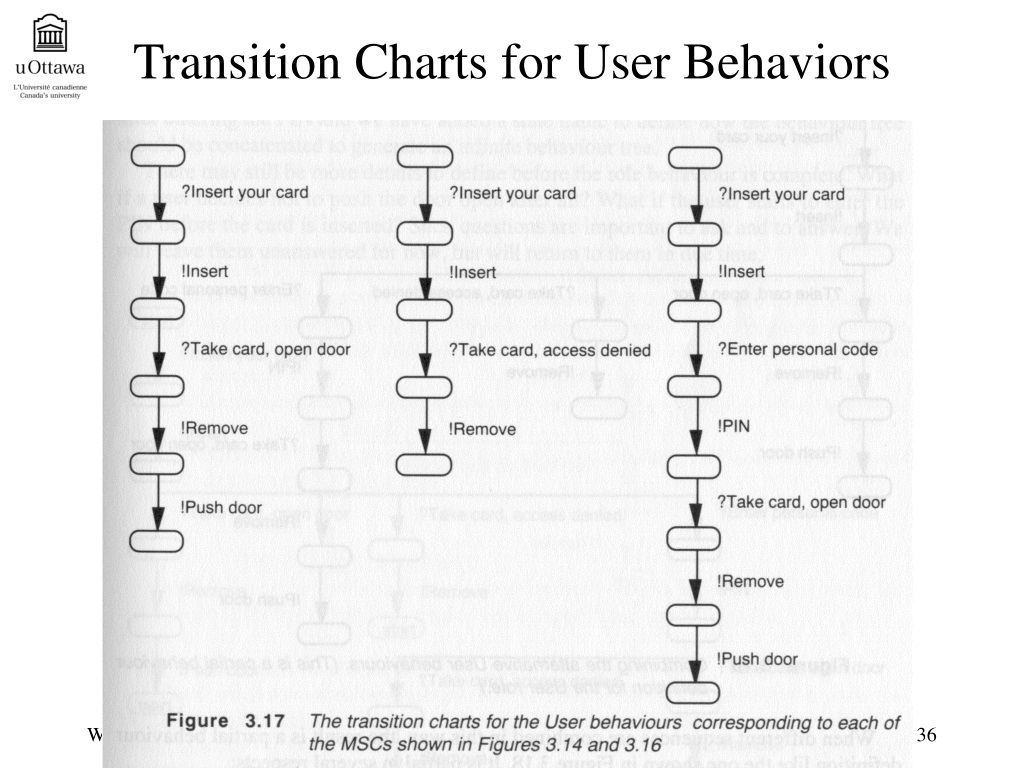

  36. Transition Charts for User Behaviors SEG2101 Chapter 3

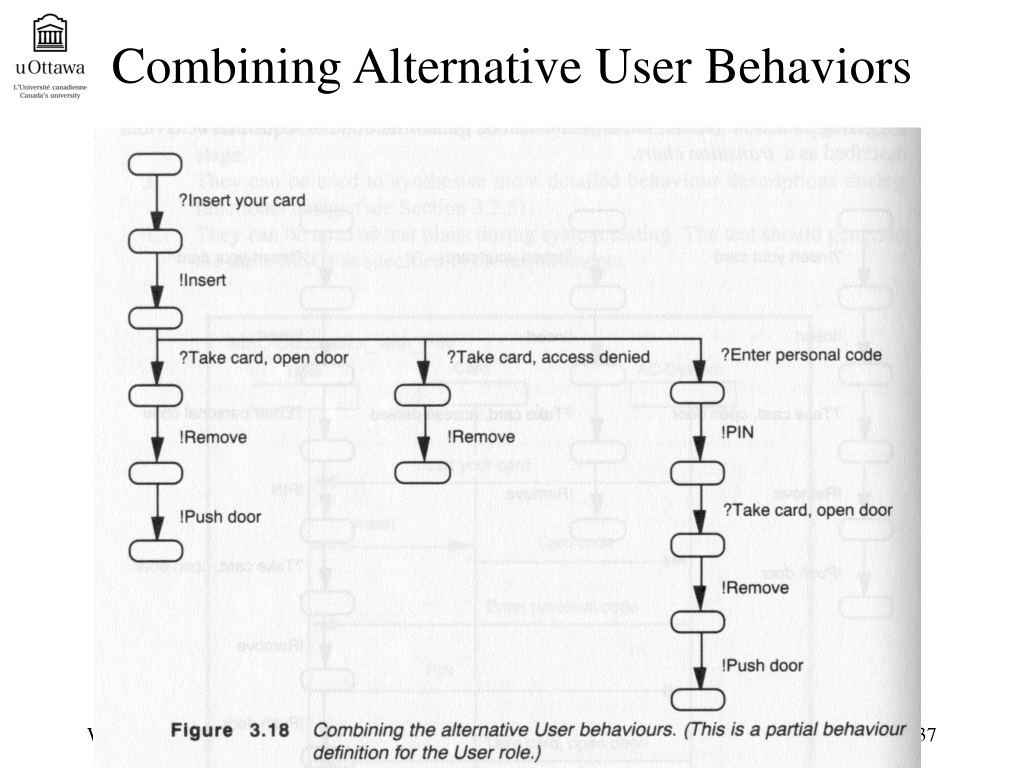

  37. Combining Alternative User Behaviors SEG2101 Chapter 3

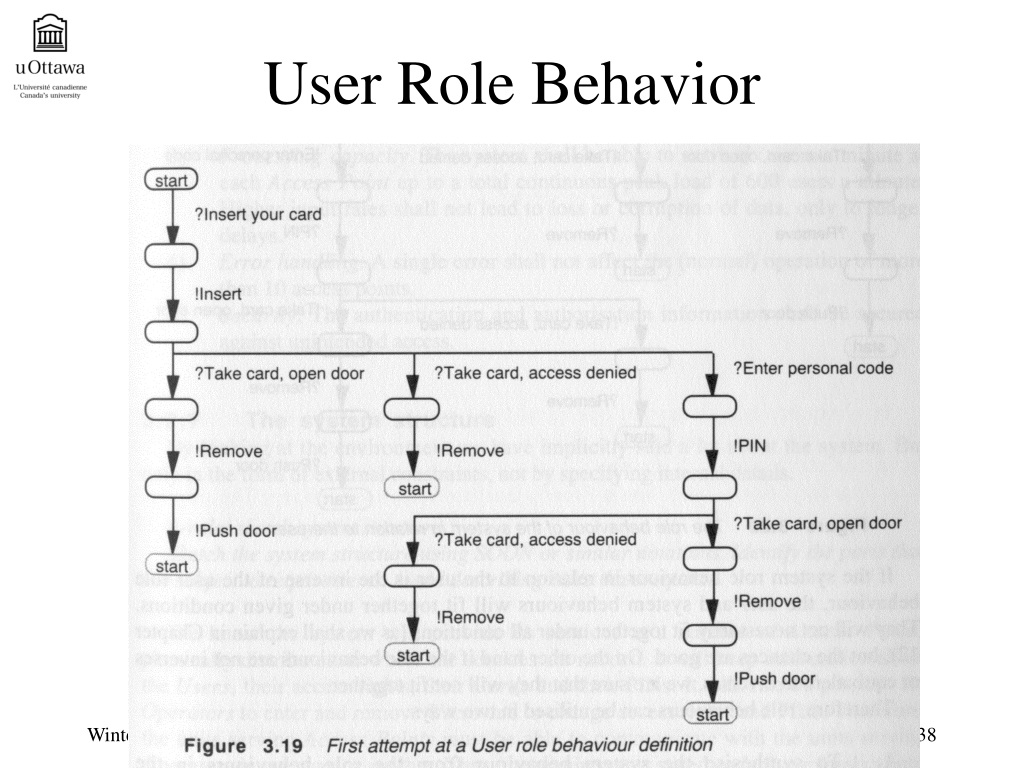

  38. User Role Behavior SEG2101 Chapter 3

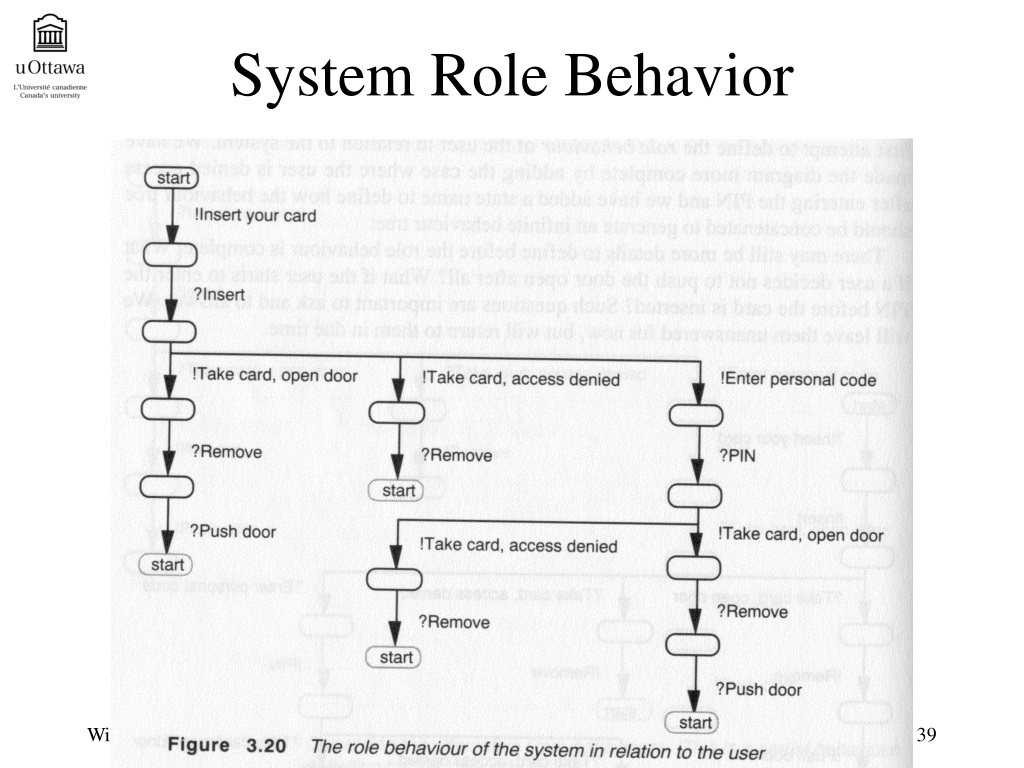

  39. System Role Behavior SEG2101 Chapter 3

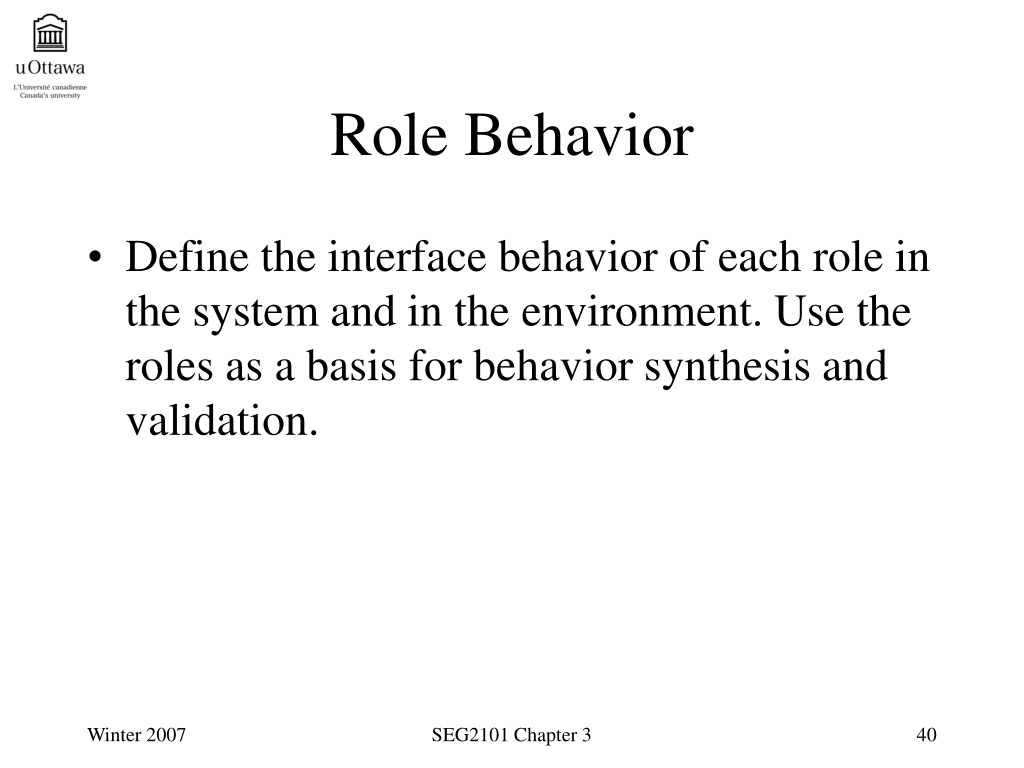

  40. Role Behavior • Define the interface behavior of each role in the system and in the environment. Use the roles as a basis for behavior synthesis and validation. SEG2101 Chapter 3

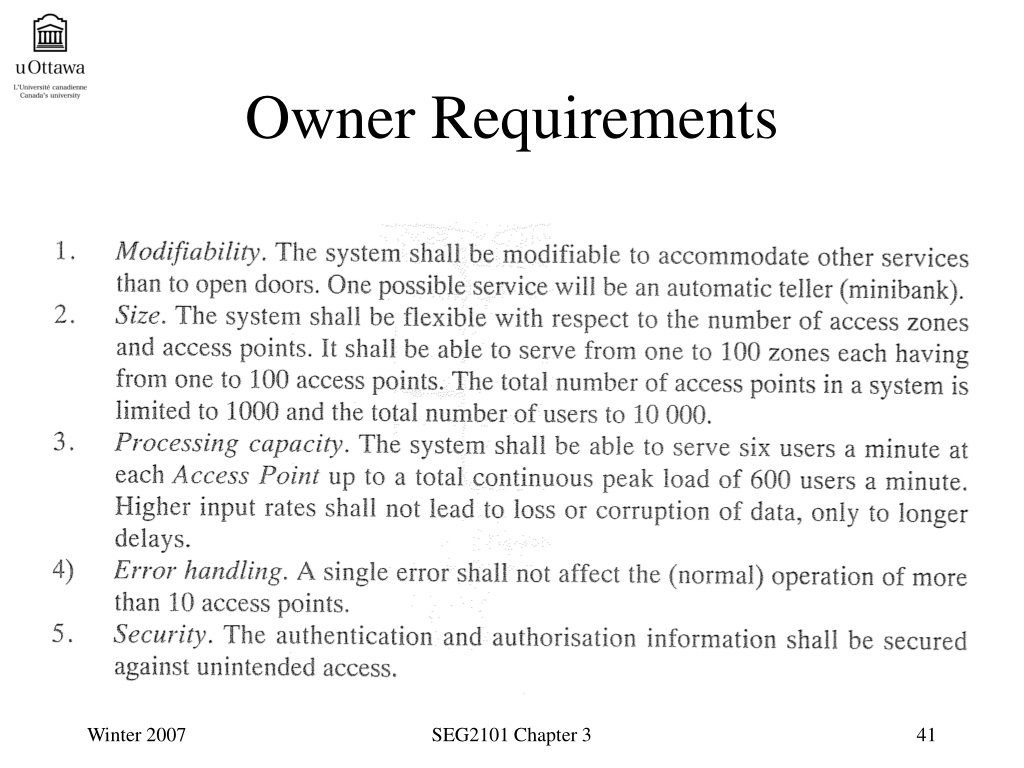

  41. Owner Requirements SEG2101 Chapter 3

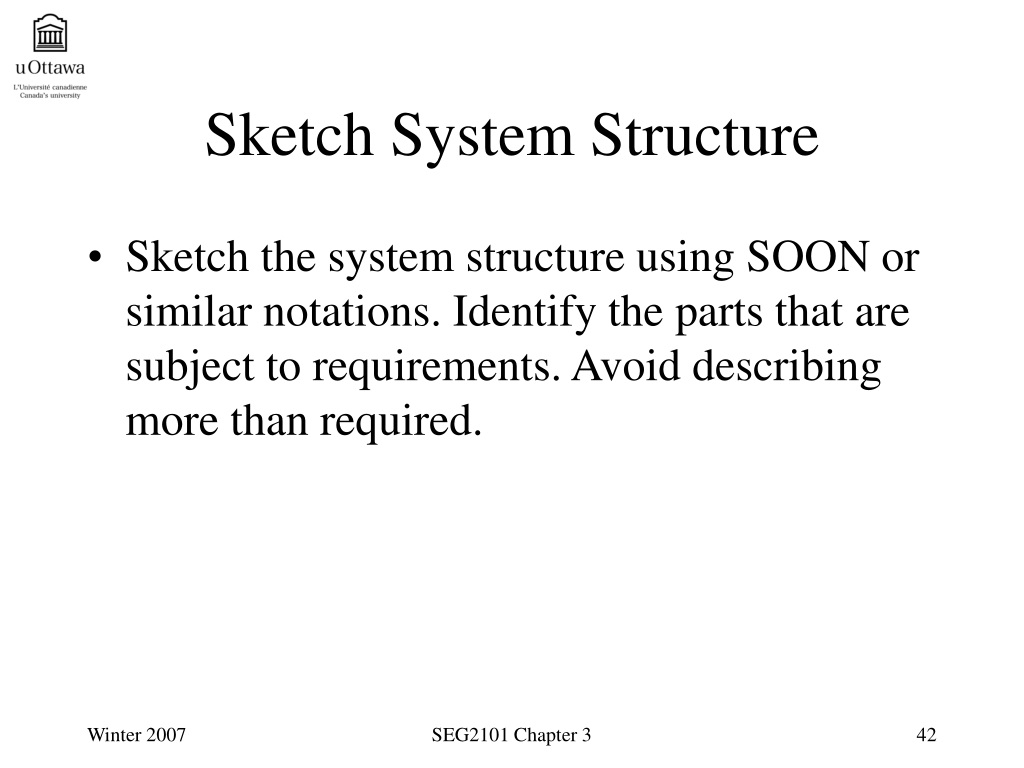

  42. Sketch System Structure • Sketch the system structure using SOON or similar notations. Identify the parts that are subject to requirements. Avoid describing more than required. SEG2101 Chapter 3

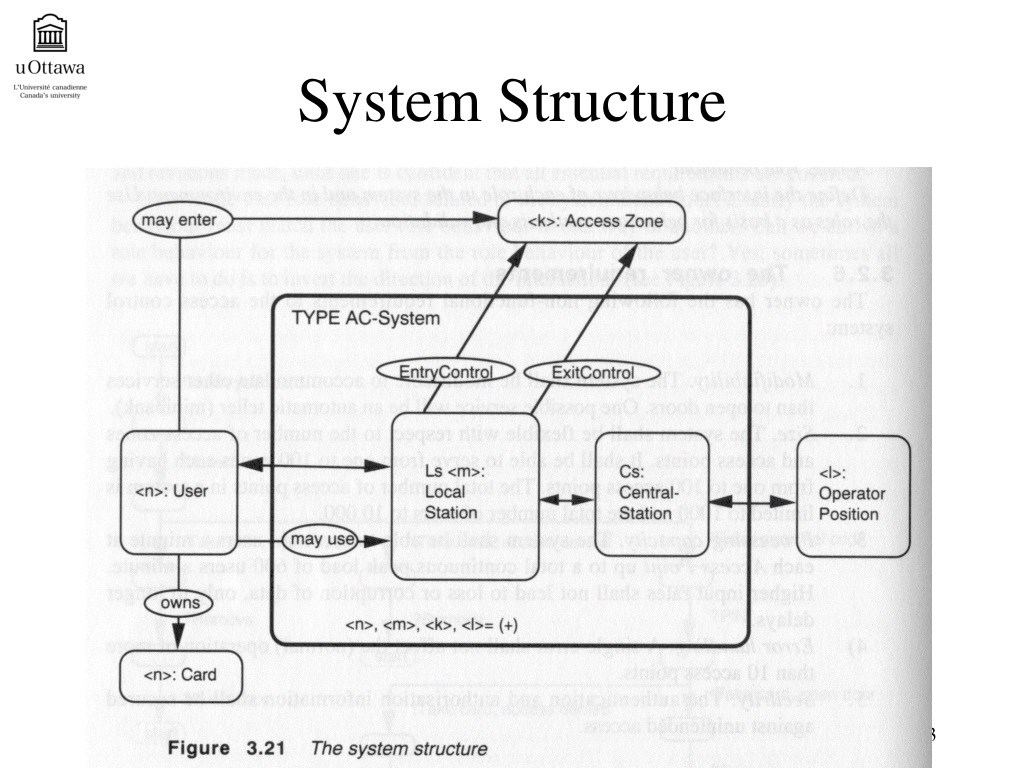

  43. System Structure SEG2101 Chapter 3

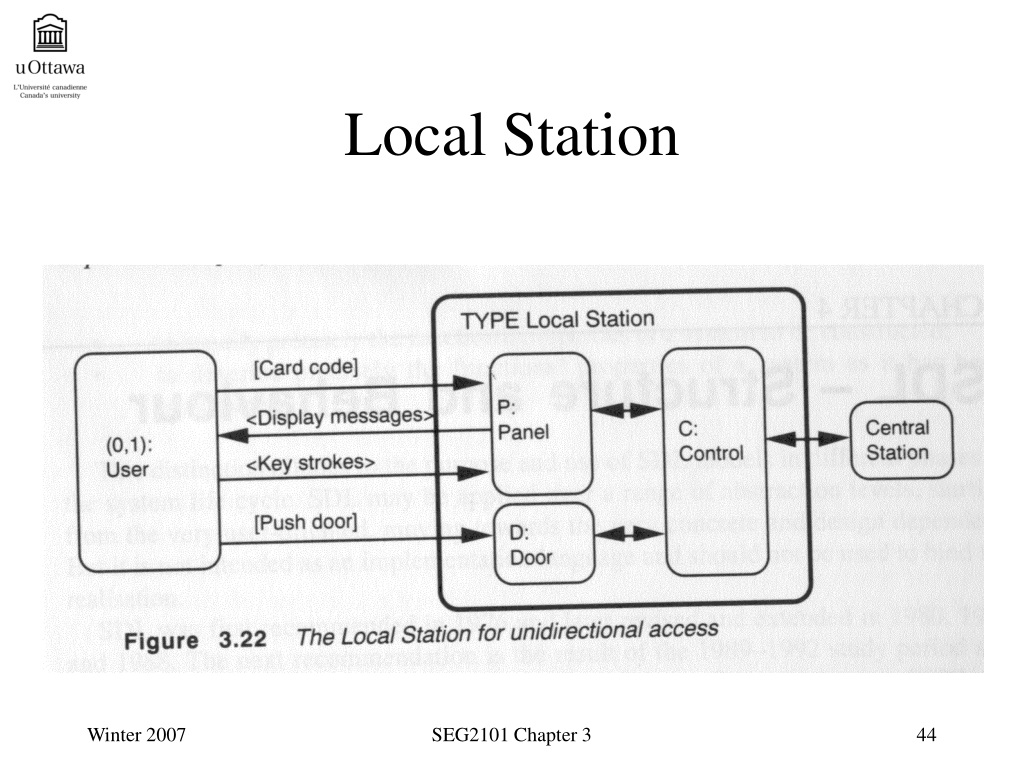

  44. Local Station SEG2101 Chapter 3
