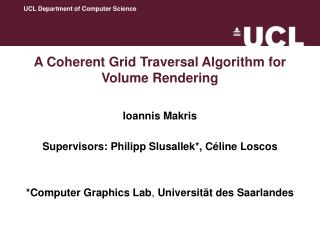

a coherent grid traversal algorithm for volume rendering

UCL Department of Computer Science

A Coherent Grid Traversal Algorithm for Volume Rendering

Ioannis Makris

Supervisors: Philipp Slusallek*, Céline Loscos

*Computer Graphics Lab, Universität des Saarlandes

overview

UCL Department of Computer Science

Overview
  • Introduction
  • Previous work in software Direct Volume Rendering
  • Introduction to the Cell Broadband Engine
  • The Coherent Grid Traversal Algorithm
  • Parallelisation Schemes
introduction to direct volume rendering
Introduction to Direct Volume Rendering
  • Technique of displaying a 2D projection of a 3D sampled dataset (volume), by accumulating samples across lines of sight with some transfer function.
  • Several types of sampled data. We will only deal with rectilinear grids.
direct volume rendering

UCL Department of Computer Science

Direct Volume Rendering
  • Ray Casting (Levoy 1988, 1990)
    • Image order algorithm
  • Splatting (Westover 1990)
    • Object order
  • Shear Warp (Lacroute 1994, 1996)
    • Hybrid order
ray casting

UCL Department of Computer Science

Ray Casting
  • Cast a ray from the viewpoint to the volume for all pixels
  • Obtain samples from the volume in equal intervals, by trilinearly interpolating neighbouring voxels. Accumulate with some operator to get final colour.
  • Several acceleration techniques have been suggested (early ray termination (Levoy 1990), adaptive sampling, octrees (Ogata et al. 1998), kd-trees(Wald et al 2005)
shear warp

UCL Department of Computer Science

Shear-Warp
  • Considered the fastest known Direct Volume Rendering algorithm.
  • Steps:
    • Transform volume to sheared object space
    • Project sheared slices on an intermediate image
    • Transform the intermediate image to image space
  • Requires 3 copies of the data, for every principal axis, but RLE compression can help.
characteristics of modern x86 processors
Characteristics of modern x86 processors
  • Deep instruction pipeline.
  • Very sophisticated hardware branch prediction
  • 2 levels of cache, supports software prefetching
  • Rich SIMD instruction set
the cell processor

UCL Department of Computer Science

The CELL processor
  • Developed jointly by IBM, Sony and Toshiba
  • Combines a PowerPC general purpose processor with 8 separate SIMD execution units (SPUs).
  • Exceptional FLOPS / cost ratio and more powerful than the Itanium!
  • Needs fast memory, which is relatively expensive
notable characteristics of the spus

UCL Department of Computer Science

Notable Characteristics of the SPUs
  • Software managed local store (i.e. no caches)
  • No branch prediction, expensive branch misses
  • SIMD loads/stores ONLY
  • Favors streaming code
motivation for a new algorithm

UCL Department of Computer Science

Motivation for a new algorithm
  • Ray Casting algorithms are typically not cache friendly. Performance depends on viewing axis.
  • Acceleration structures may produce non-streaming code and several overheads.
  • Shear Warp may require too much memory for certain data.
a coherent grid traversal algorithm for volume rendering 1

UCL Department of Computer Science

A Coherent Grid Traversal Algorithm for Volume Rendering (1)
  • Original idea from “Ray Tracing Animated Scenes using Coherent Grid Traversal” (Wald et al, SIGGRAPH 2006).
  • Bundles (frustums) of coherent rays are traced in grid space, by incrementaly computing the overlap with grid slices. The overlap of the frustum is computed with a SIMD addition and a SIMD truncation only
a coherent grid traversal algorithm for volume rendering 2

UCL Department of Computer Science

A Coherent Grid Traversal Algorithm for Volume Rendering (2)
  • The volume rendering version of the algorithm uses a “bricked” volume (Sakas et al 1994), bricks replace the grid elements.
  • Bricks are referenced by 3 maps, one for each principal axis.
  • Compression is achieved by not storing empty bricks.
a coherent grid traversal algorithm for volume rendering 4

UCL Department of Computer Science

A Coherent Grid Traversal Algorithm for Volume Rendering (4)
  • Traversal is performed on the principal axis, using the corresponding map.
  • Indices are computed incrementally.
  • If all the overlapping bricks of a slice are empty, the slice is skipped.
  • If some bricks are empty, they are associated with a locally stored empty brick and processed redundantly (but not fetched).
bundle parallelisation

UCL Department of Computer Science

Bundle Parallelisation
  • Bundle Parallelisation is trivial. On a x86 C++ OpenMP implementation, it only required 1 line of code.
  • It is possible to have some blocks fetched multiple times from neighbouring bundles.
slice parallelisation

UCL Department of Computer Science

Slice Parallelisation
  • A slice parallelisation is less likely to exhibit this problem, but traversal of brick slices is not incremental!
  • So, how would the processing element know which bundles to process for a given slice?
slice parallelisation1

UCL Department of Computer Science

Slice Parallelisation
  • Most bundles will start on k=0, or end on k=kmax (or both).
  • During tracing, we create 2 vectors of references to bundles, we shall call them A and D, along with 2 index tables for the corresponding slices we shall call P and Q.
  • The bundles that run through a given slice s can be expressed as
  • Only 2 memory reads are required for that, or no memory reads if the bundles are large enough for A and D to fit in the cache/local store.
slice parallelisation2

UCL Department of Computer Science

Slice Parallelisation
  • Remaining bundles can take up to 33% (they are about 14% average).
  • We use two more lists, we shall call S and E with index tables M and N. S holds references to the remaining bundles sorted by the first slice they intersect, and E sorted by the last.
  • Remaining bundles that run through s are:
  • We need to run through both these lists to find that out, but this does not hit performance.
a notable problem of the cgt algorithm as described in wald 2006
A notable problem of the CGT algorithm as described in [Wald 2006]
  • When the “roll” angle of the bundles to the respective angle of the volume is close to π/4, the number of blocks fetches can be double than the number required.
  • There is a good solution to that (not yet published).
results

UCL Department of Computer Science

Results

First results demonstrated an speed increase of up to 2 orders of magnitude from ray-casting.

This may increase with further optimisations

conclusion
Conclusion
  • We have developed a scalable algorithm for coherent volume traversal with performance on-par with the Shear – Warp, with reduced memory requirements.
  • We demonstrated parallel implementations.
future work
Future Work
  • Investigate mixed parallelisation schemes
  • Optimise the computation performed per brick.
the end

UCL Department of Computer Science

The End

Thank you for your attention

Questions?
