rendering with coherent layers

SIGGRAPH 97

Rendering With Coherent Layers

Jed Lengyel John Snyder

Microsoft Research

traditional pipeline
Traditional Pipeline
  • Renders 3D scene to an image.
traditional pipeline4
Traditional Pipeline
  • Problems
    • Does not exploit temporal coherence
    • Spatial and temporal resolutions are global
    • Limited integration of 2D elements in 3D
traditional pipeline6

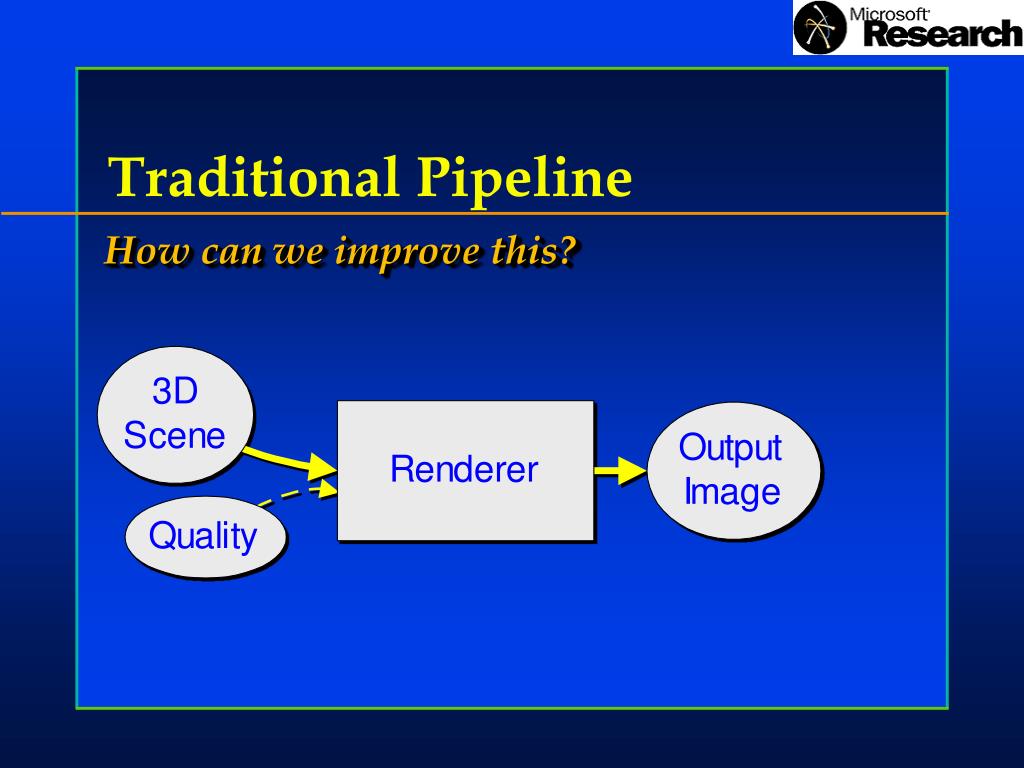

Traditional Pipeline
  • How can we improve this?
layered pipeline
Layered Pipeline

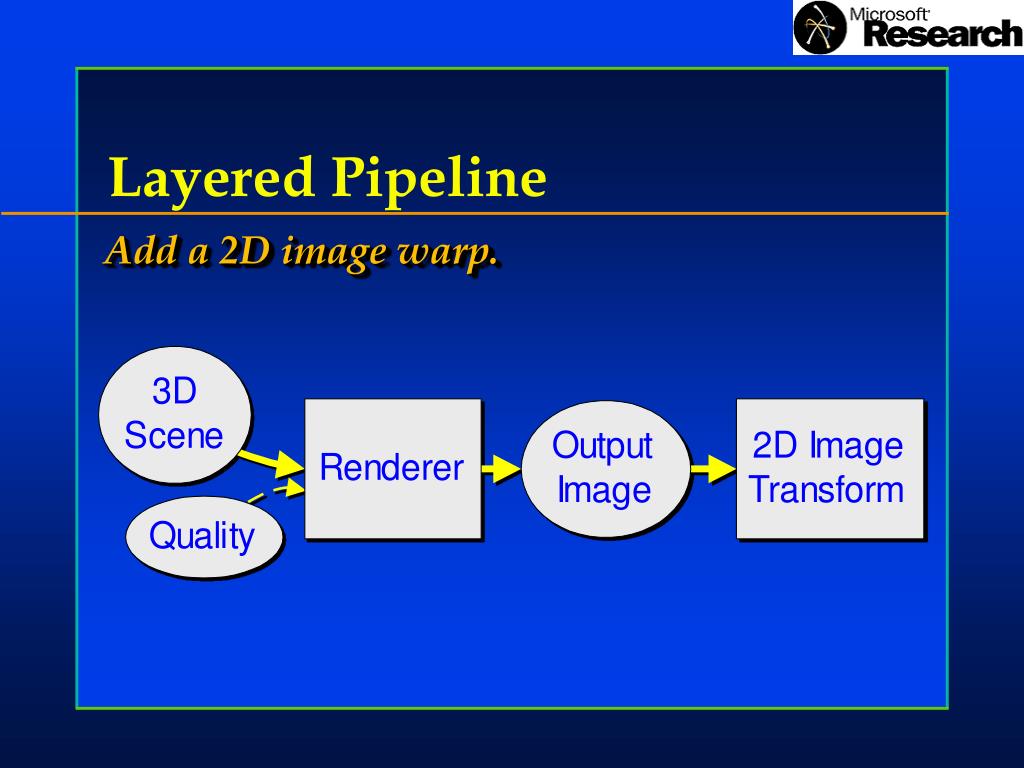

  • Add a 2D image warp.
layered pipeline8
Layered Pipeline
  • A sprite is a warped image with alpha.

Sprite

layered pipeline9
Layered Pipeline
  • Each layer produces a sprite.

Layer

layered pipeline10
Layered Pipeline

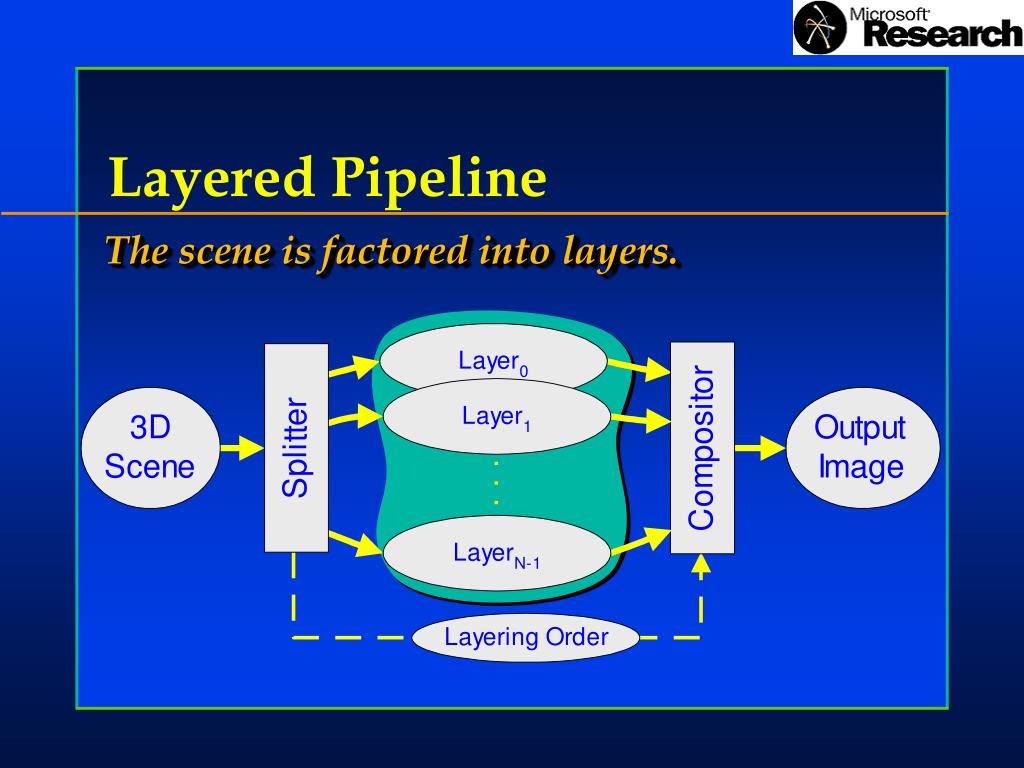

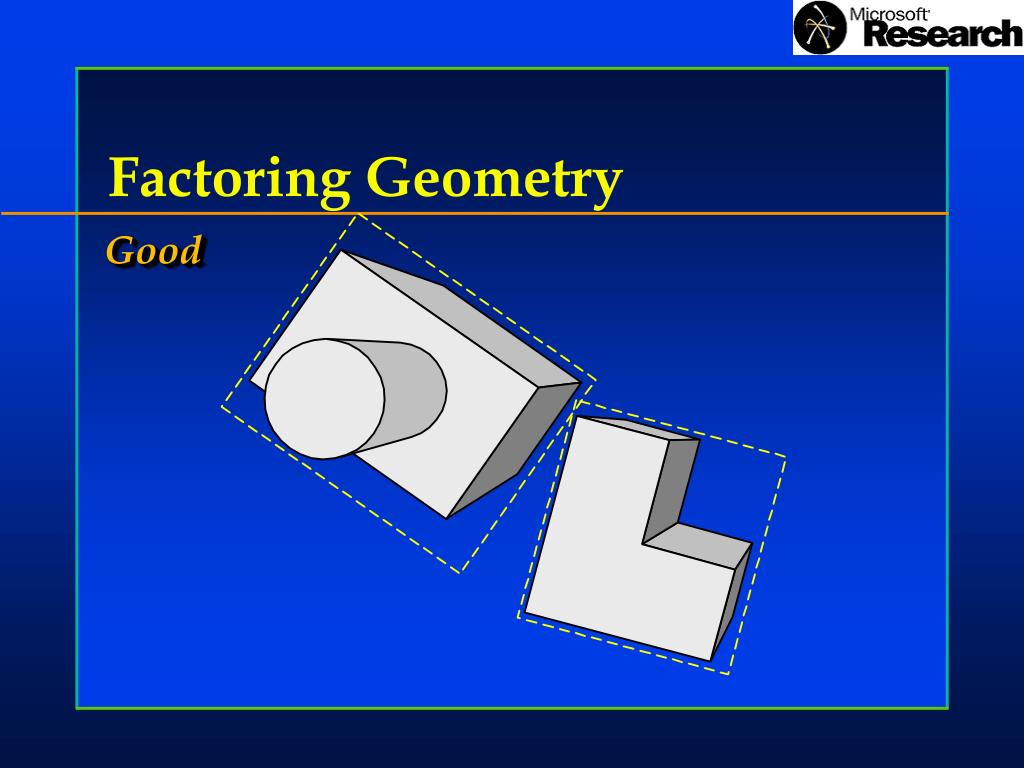

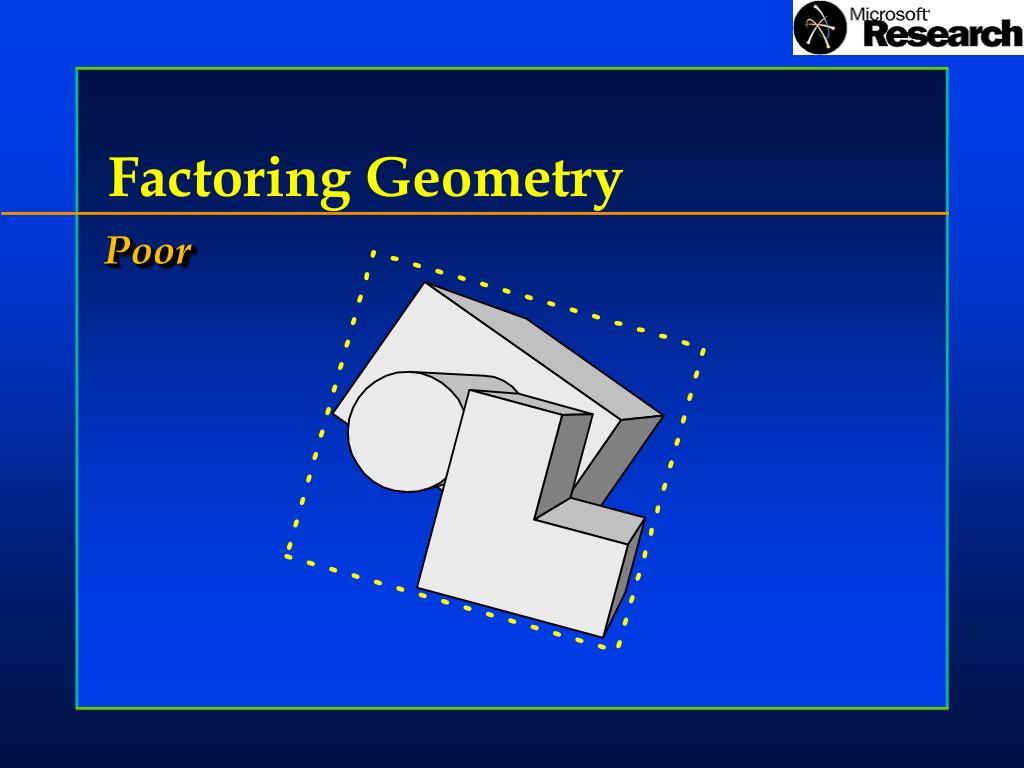

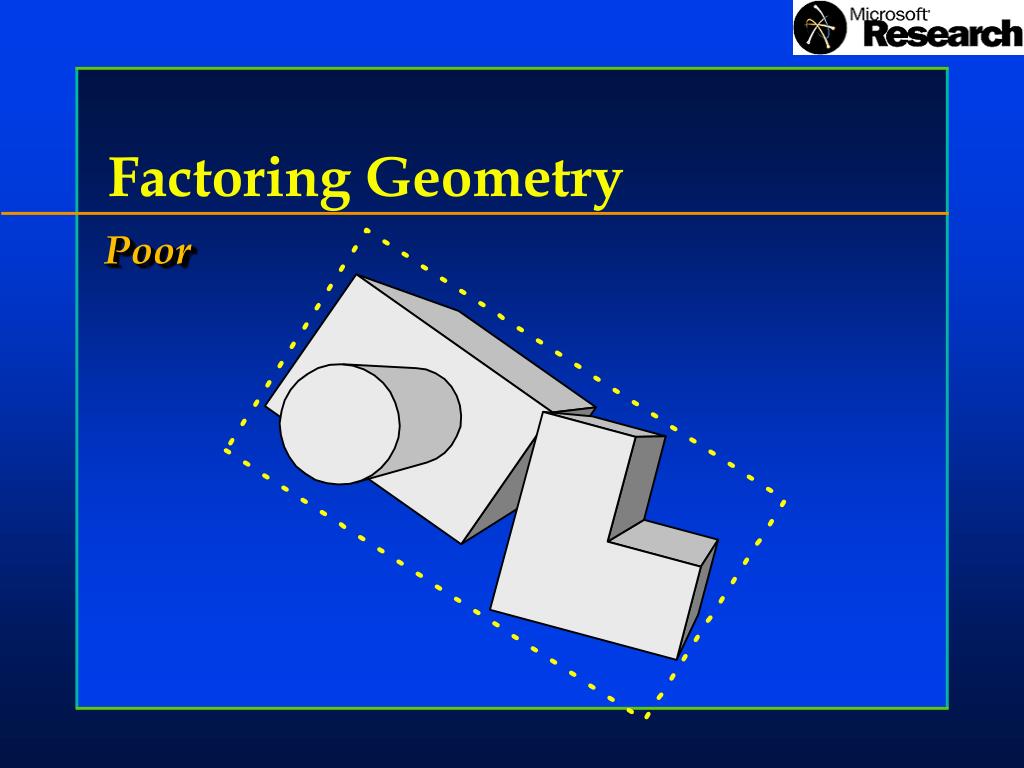

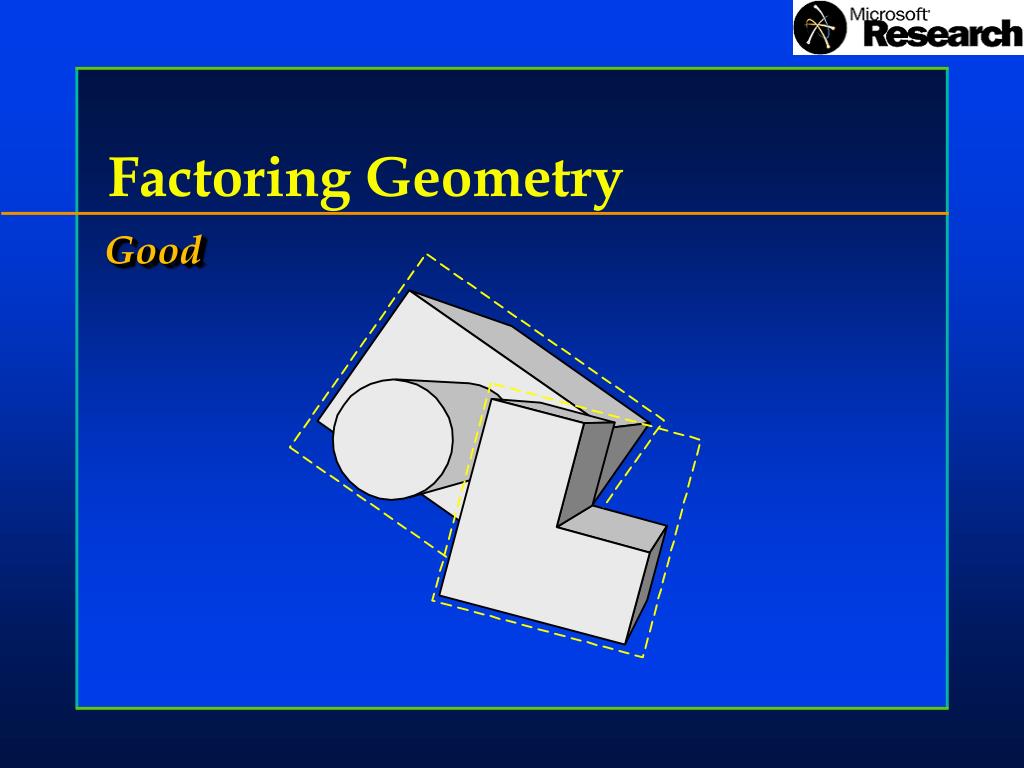

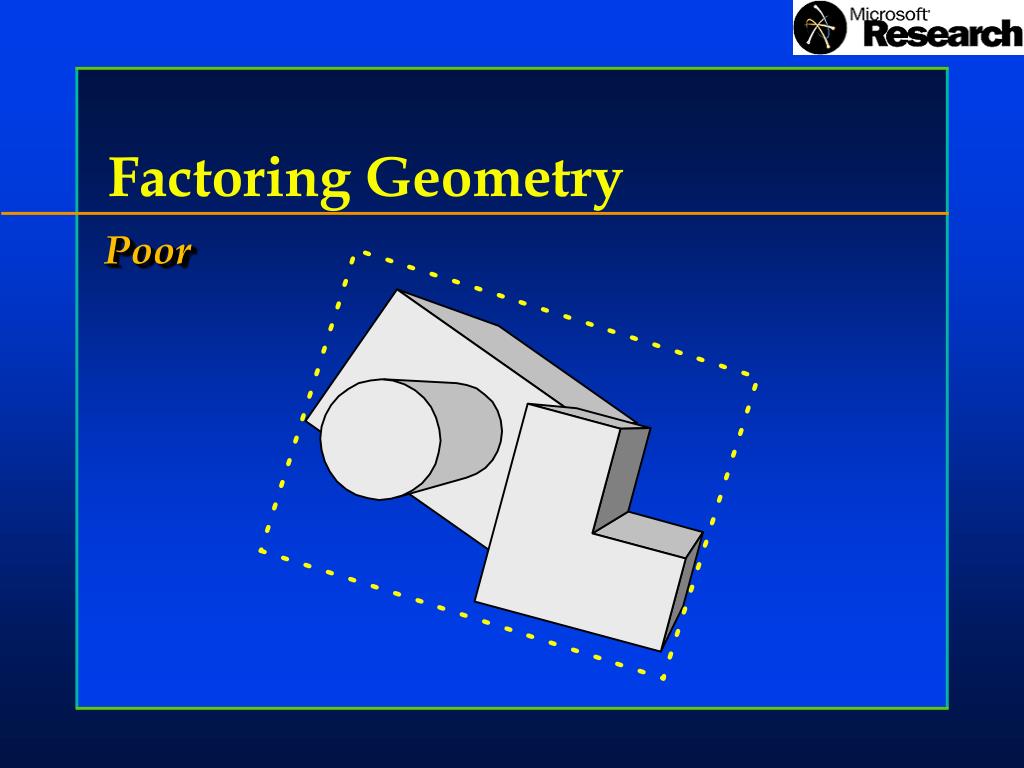

  • The scene is factored into layers.
previous work

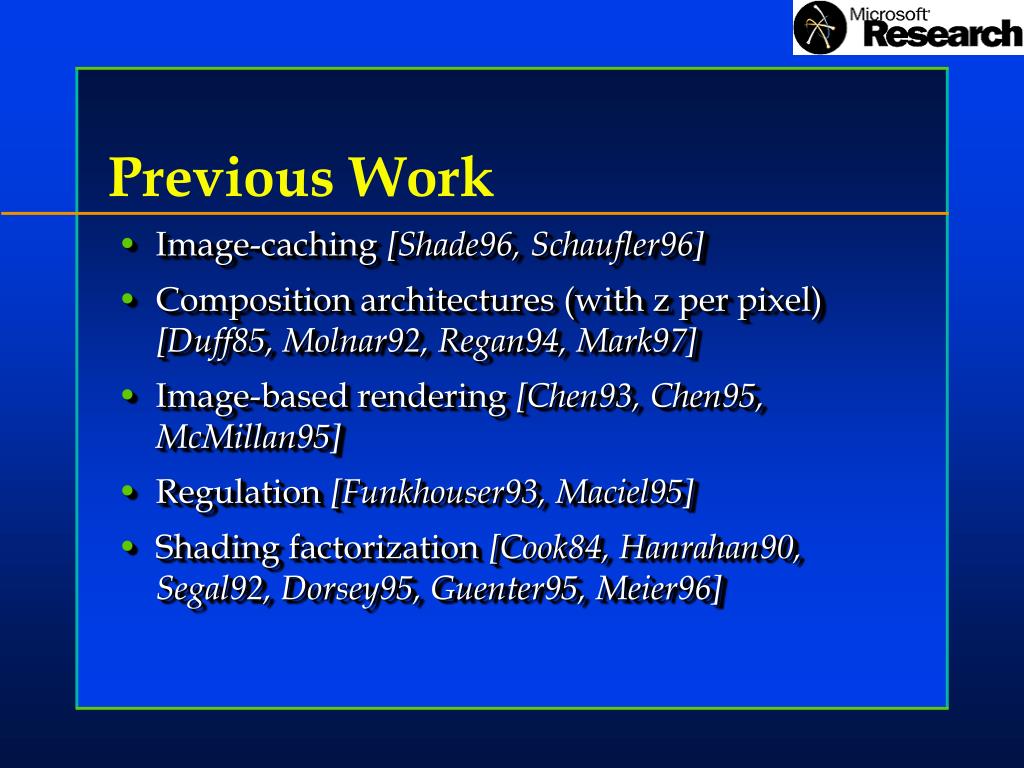

Previous Work
  • Image-caching [Shade96, Schaufler96]
  • Composition architectures (with z per pixel) [Duff85, Molnar92, Regan94, Mark97]
  • Image-based rendering [Chen93, Chen95, McMillan95]
  • Regulation [Funkhouser93, Maciel95]
  • Shading factorization [Cook84, Hanrahan90, Segal92, Dorsey95, Guenter95, Meier96]
2d image transform
2D Image Transform
  • T is 3D transform to screen coordinates.
2d image transform15
2D Image Transform
  • Extra degrees of freedom
2d image transform16
2D Image Transform
  • Composition maps to same screen point.
2d image transform17
2D Image Transform
  • Spatial resolution
2d image transform18
2D Image Transform
  • Temporal resolution
depth sorting of layers
Depth Sorting of Layers
  • Depth sorting in software is effective.
    • Relatively small number of primitives
    • Exploits temporal coherence
warp choice
Warp Choice
  • Accuracy of image interpolation through time
  • Efficient hardware implementation
  • Ease of computing the warp parameters
characteristic points
Characteristic Points
  • Track 3D motion projected to 2D
warp calculation

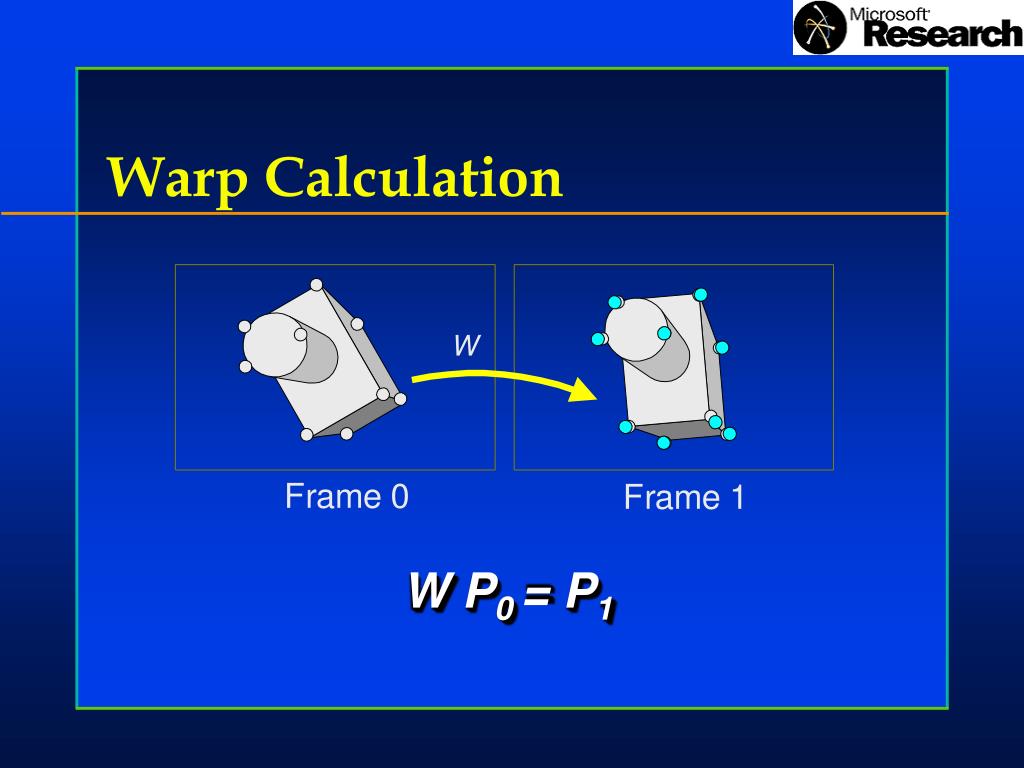

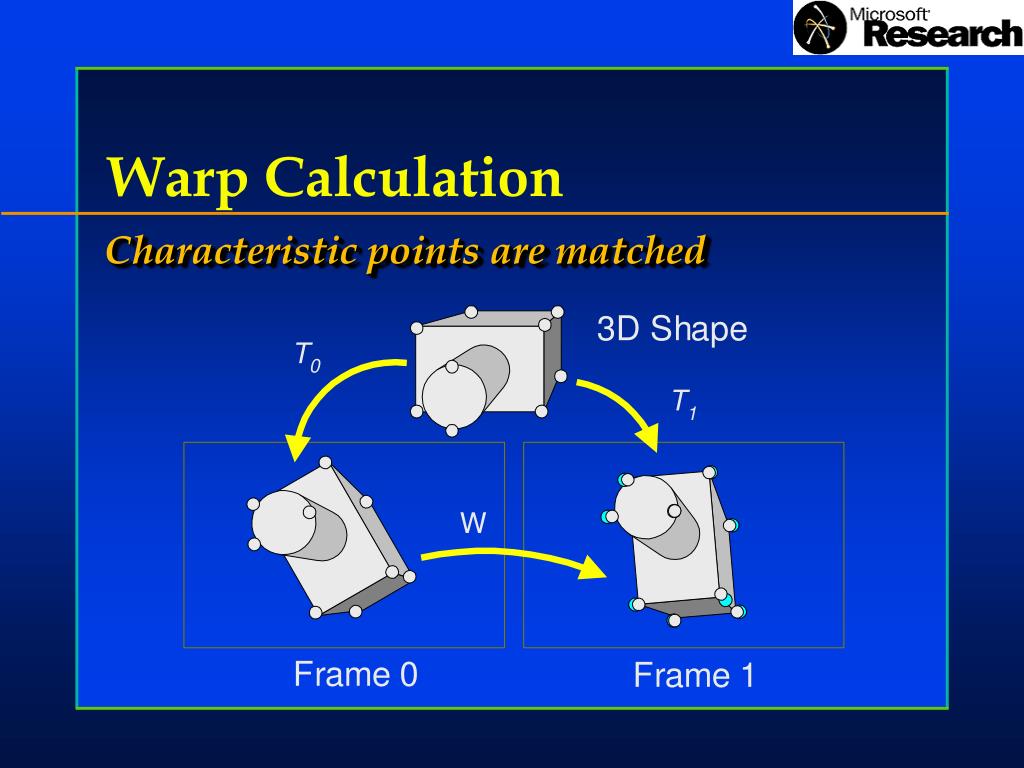

Warp Calculation
  • Characteristic points are matched
warps considered
Warps Considered
  • Pure translation
  • Translation with isotropic scale
  • Translation with independent scale in x and y
  • Affine
  • Perspective
image interpolation
Image Interpolation
  • Warping intermediate images is effective
    • Triple- or quadruple-framing
    • Warp calculated with a small set of points
    • Decouples 3D rendering from display
regulation
Regulation
  • Set independent layer quality parameters
regulator
Regulator
  • Maximize fidelity, balance resources

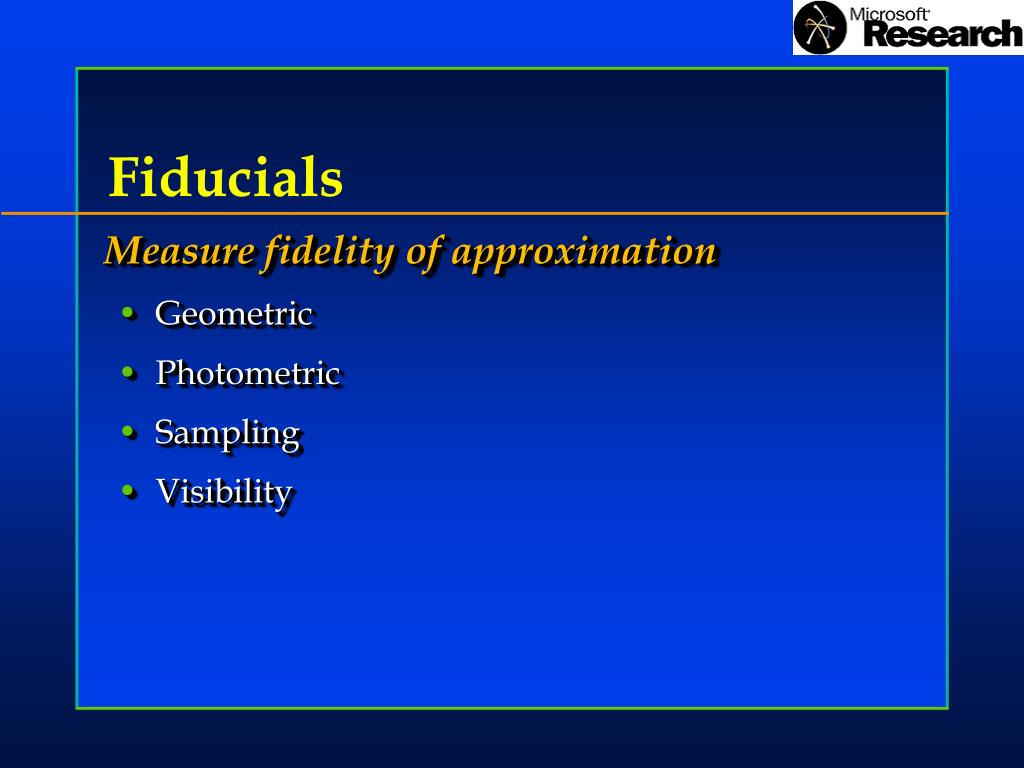

fiducials
Fiducials
  • Measure fidelity of approximation
    • Geometric
    • Photometric
    • Sampling
    • Visibility
geometric fiducial

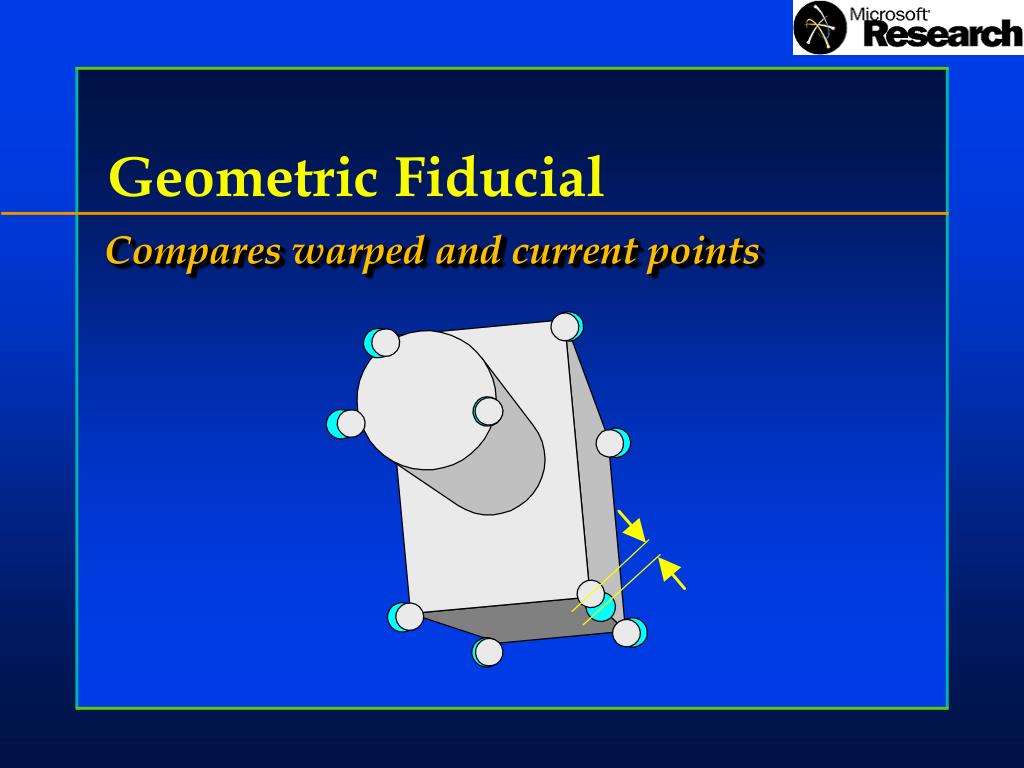

Geometric Fiducial
  • Compares warped and current points
photometric fiducial

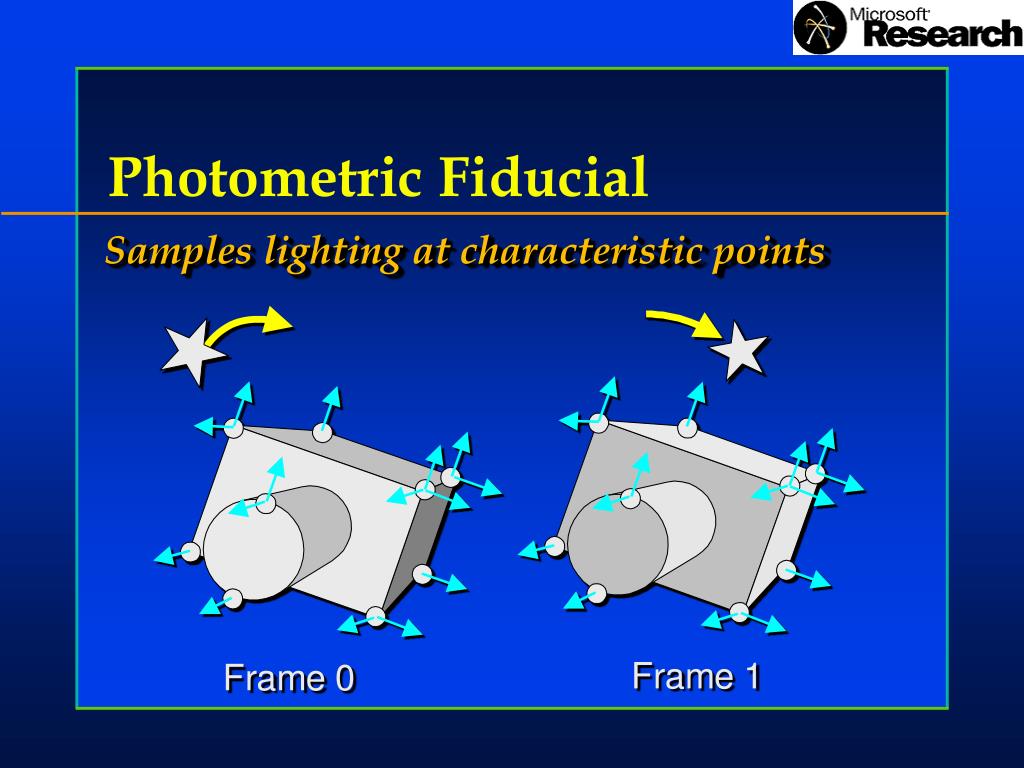

Photometric Fiducial
  • Samples lighting at characteristic points
photometric fiducial 2
Photometric Fiducial 2
  • Measures change in light position
sampling fiducial
Sampling Fiducial
  • Measures distortion of image samples

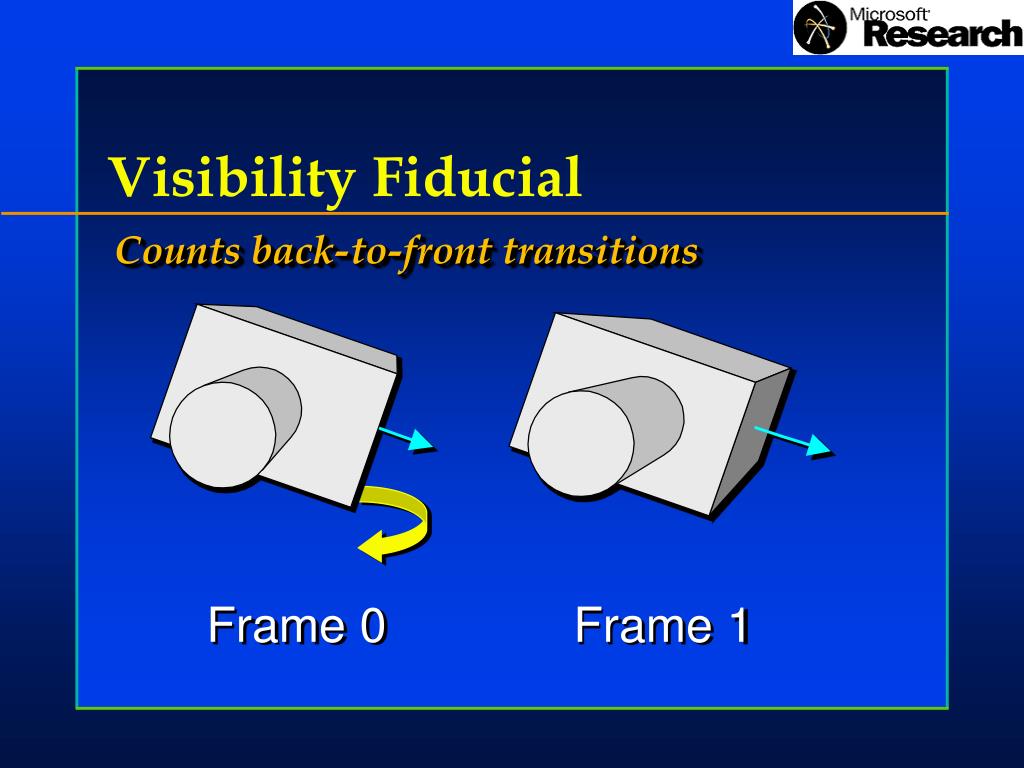

visibility fiducial
Visibility Fiducial
  • Counts back-to-front transitions

Frame 0

Frame 1

conclusion
Conclusion
  • Layers are good for real-time 3D.
    • Effective using affine image warp
    • Exploit temporal coherence

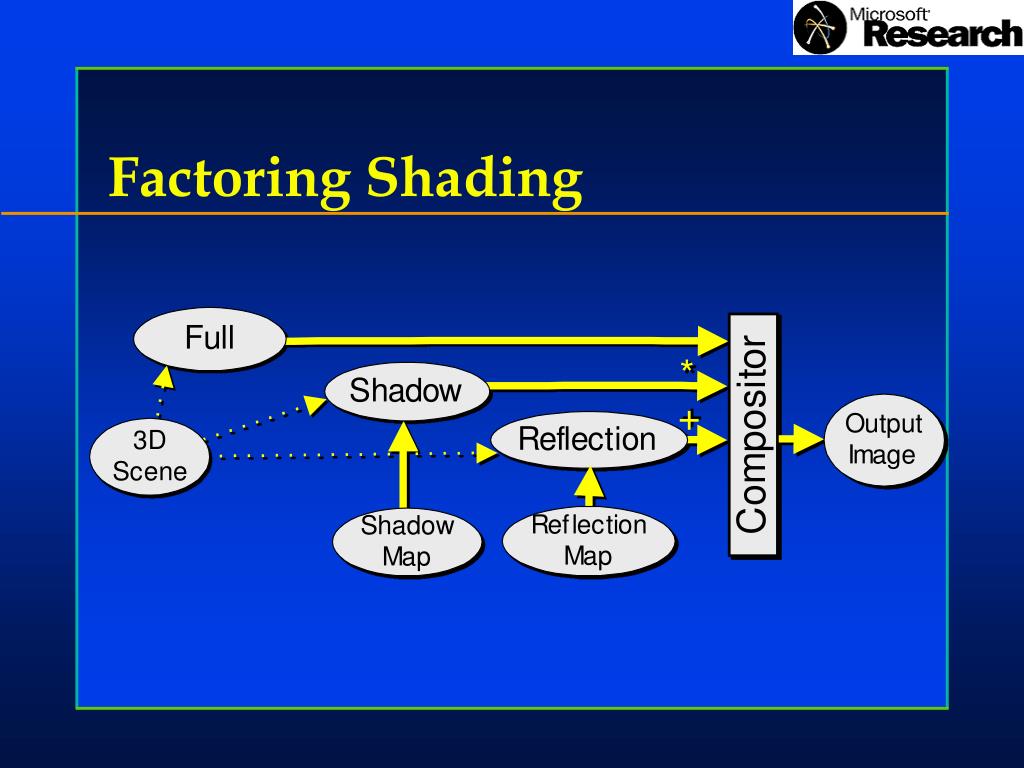

    • Factor shading
    • Allow precise targeting of resources
    • 3x-10x improvement
