  1. Weather

  2. What is weather? • Refers to the state of the atmosphere at a specific time and place. • The one thing that you can talk to anybody about, it affects all aspects of life • If you don’t like the weather just wait around it will change • What are some of the factors that affect the weather?

  3. Air Temperature • Temperature is the measure of the average amount of motion in particles.

  4. Wind a natural movement of air of any velocity; especially: the earth's air or the gas surrounding a planet in natural motion horizontally

  5. Humidity • The amount of water vapor present in the air • Relative Humidity -is a measure of the amount of water vapor present in the air compared to the amount needed for saturation at a specific temperature

  6. Clouds • Masses of small water droplets or tiny ice crystals that float in the air. • Three main types are cirrus, cumulus, and stratus. • Other clouds are a mixture of these three main types.

  7. Cloud Formation

  8. Types of Cloudsbased on Shape and Altitude MAIN SHAPES • Cirrus • Cumulus • Stratus THREE ALTITUDE Groups • Low Clouds • Middle Clouds -start with prefix “Alto” • High Clouds - start with prefix “Cirro”

  9. Cirrus • Cirro- means “curled” or “feathery” • Form highest in the sky; are made up of ice crystals; and appear as curls, tufts, or wisps. • Usually signal the end of clear weather. • High level clouds 18,000 to 30,000 ft.

  10. Cumulus • Cumulo- means “heaped” or “piled” • Cottony clouds with flat, usually gray bases, and puffy, bright tops. • Usually signal good weather, but if atmosphere is unstable, can build into towering clouds that produce showers and thunderstorms. • Low level cloud 1,000 to 18,000 ft.

  11. Stratus • Strato- means “layer-like” or “sheet-like.” • Low-lying, dull-colored clouds that form in layers or sheets. • Usually bring drizzling rain or light-falling snow.

  12. Alto • A prefix meaning “middle range of clouds “ and used to describe clouds that lie from 6,500-18,500 ft. (1,980-5,640m).

  13. Precipitation Clouds • Nimbostratus – rain, sleet, and snow • Stratus - drizzle, light rain • Cumulonimbus - rain, snow, sleet and hail • Altostratus – light rain (rarely)

  14. High Cloud Types Cirrocumulus Cirrostratus Condensation Trails Cirrus Cirrus

  15. Middle Cloud Types Altostratus Altocumulus

  16. Low Cloud Types Cumulus Stratus Nimbostratus Stratocumulus Nimbostratus

  17. Cumulonimbus

  18. Precipitation • Water that falls from the clouds • Air temperature determines the form of precipitation that falls • 4 main types of Precipitation: Rain, Sleet, Snow and Hail

  19. Types ofPrecipitation Rain Sleet Snow Hail

  20. Air Masses • A large body of air that has properties similar to the part of the Earth’s surface over which it develops.

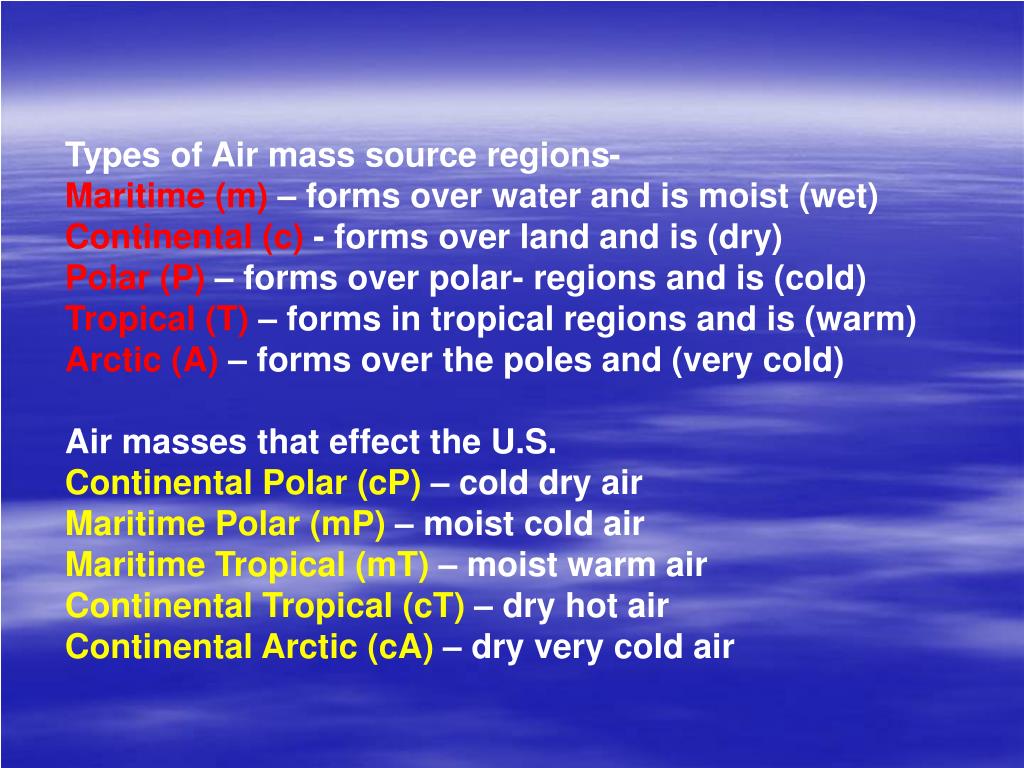

  21. Types of Air mass source regions- Maritime (m) – forms over water and is moist (wet) Continental (c) - forms over land and is (dry) Polar (P) – forms over polar- regions and is (cold) Tropical (T) – forms in tropical regions and is (warm) Arctic (A) – forms over the poles and (very cold) Air masses that effect the U.S. Continental Polar (cP) – cold dry air Maritime Polar (mP) – moist cold air Maritime Tropical (mT) – moist warm air Continental Tropical (cT) – dry hot air Continental Arctic (cA) – dry very cold air

  22. Air Mass Map

  23. Fronts • A boundary between two air masses of different density, moisture, or temperature.

  24. Types of Fronts

  25. Cold Front

  26. Warm Front

  27. Occluded Front

  28. Stationary Front

  29. Severe Weather Thunderstorms Lightning Tornadoes

  30. More Severe Weather Hurricanes Blizzards

  31. Severe Weather Safety • Watches- conditions are favorable for formation of severe weather • Warnings- severe weather has formed and has been observed by a sighting or by RADAR • Examples of Severe Weather Warnings- Tornadoes, Flash Flooding, Severe Thunderstorms, Blizzards, Wintery Mix (snow and ice), High Winds, Tropical Storms and Hurricanes

  32. THUNDERSTORMS • Form only in Cumulonimbus clouds • Can produce rain, snow, hail, Lightening, thunder, high winds and tornadoes • Forms individually by convection or multiple storms along a frontal system • Super cell thunderstorms exceed 40,000 ft.

  33. Thunderstorm formation

  34. Lightning 20,000 ft +. 32ᵒc 10,000 ft.

  35. TORNADOES • Form only in Cumulonimbus clouds • Average life span 5-15 minutes Super cell tornadoes may last up to two hours • Small scale storms average 100 yards across, Largest recorded 2 miles wide 2013 in OK. • Wind speeds 65 to 300 mph • Forms over land- if formed over water it is called a Waterspout and is generally weaker

  36. Tornadoes

  37. Tornado Alley

  38. Fujiti Scale

  39. HURRICANES • Forms over warm tropical water • Large scale storms average 300 miles in diameter Largest typhoon Tip 1,800 mi. dia. • Wind speeds 75-200 mph • Losses strength when moves over land and warm moist air is cut off from oceans • Generally moves east to west with deflection to the right due to Coriolis effect • Average life span of 10 days • Longest was Hurricane Ginger 31 days

  40. Hurricanes

  41. Hurricane cross section Eye Outflow Spiral rain bands Descending air

  42. Hurricane Scale

  43. FORECASTING WEATHER • Two sources of forecasting weather • Data collected from upper atmosphere • Data collected on the Earth’s surface

  44. Weather Balloons • Collects a vertical profile of the atmospheres temperature, relative humidity, air pressure, wind speed and direction and transmits the information to a meteorologist on the ground

  45. Weather Satellites • Provides visual data of weather systems and helps track weather located in distant locations.

  46. Weather RADAR • Locates Fronts, precipitation and severe weather.
