  1. Chapter 3 Databases and Data Warehouses

  2. STUDENT LEARNING OUTCOMES • Describe business intelligence and its role in an organization. • Differentiate between databases and data warehouses with respect to their focus on OLTP and OLAP. • List and describe the key characteristics of a relational database.

  3. STUDENT LEARNING OUTCOMES • Define the five software components of a database management system. • List and describe the key characteristics of a data warehouse. • Define the four major types of data-mining tools in a data warehouse environment. • List key considerations in information ownership in an organization.

  4. Can Companies Keep Your Personal Information Secure and Private? • Databases and data warehouses are organizational repositories of information • Much of the information is personal • It must be secure • If hackers get your personal information, you can suffer from identity theft

  5. Can Companies Keep Your Personal Information Secure and Private? • Top-10 incidents of personal information loss by organizations • Could affect over 53 million people • CardSystems lost information on 40 million customers • Many others

  6. Can Companies Keep Your Personal Information Secure and Private? • Have you been a victim of identity theft? • What happened? • What did you do to recover? • How long did it take?

  7. INTRODUCTION • Businesses need business intelligence (BI) • Business intelligence – knowledge about your customers, competitors, business partners, environment, and internal operations • Enables effective decision making • Information on steroids

  8. INTRODUCTION • IT tools help process information to create business intelligence according to… • OLTP (online transaction processing) • OLAP (online analytical processing)

  9. INTRODUCTION • OLTP – gathering and processing transaction information and updating existing information to reflect transaction • Databases support OLTP • Operational database – database that supports OLTP

  10. INTRODUCTION • OLAP – manipulation of information to support decision making • Databases can help some • Data warehouses support only OLAP, not OLTP • Data warehouses – special forms of databases that support decision making

  11. INTRODUCTION

  12. INTRODUCTION • This chapter – database and data warehouse concepts • Along with some privacy and security considerations

  13. RELATIONAL DATABASE MODEL • Database – logical collection of information you organize and access according to the logical structure of the information • Relational database – uses a series of two-dimensional tables or files to store information in the form of a database

  14. Databases Are… • Collections of information • Created with logical structures • With logical ties within the information • With built-in integrity constraints

  15. Databases – Collections of Information • Databases have many tables • Solomon Enterprises as a concrete provider. Tables include: • Order • Customer • Concrete Type • Employee • Truck

  16. Databases – Collections of Information

  17. Databases – Created with Logical Structures • In databases, row numbers are irrelevant • In databases, columns have logical names such as Order Date and Customer Name • Data dictionary – contains the logical structure of the information in a database

  18. Databases – Logical Ties within the Information • Logical ties must exist between the tables • Logical ties are created with primary and foreign keys • Primary key – field (or group of fields in some cases) that uniquely describe each record

  19. Databases – Logical Ties within the Information • Foreign key – primary key of one file that appears in another file • Foreign keys help create relationships among tables • Table = file = relation (don’t confuse yourself)

  20. Databases – Logical Ties within the Information

  21. Databases – Built-in Integrity Constraints • Integrity constraint – rule that helps ensure the quality of information • Examples • Primary keys must be unique • Foreign keys cannot be blank • Sales price cannot be negative • Phone numbers must have an area code

  22. DBMS TOOLS • Database management system (DBMS) – helps you specify the logical organization for a database and access and use the information within a database • Word processing software = document • Spreadsheet software = workbook • DBMS software = database

  23. DBMS TOOLS • 5 software components • DBMS engine • Data definition subsystem • Data manipulation subsystem • Application generation subsystem • Data administration subsystem

  24. DBMS TOOLS

  25. DBMS Engine • DBMS engine – accepts logical requests, converts them into their physical equivalent, and accesses the database and data dictionary • DBMS engine separates the logical from the physical

  26. DBMS Engine • Physical view – how information is arranged, stored, and accessed on a storage device • Logical view – how you (knowledge worker) need to arrange and access information • Databases – you work only with logical views

  27. Data Definition Subsystem • Data definition subsystem – helps you create and maintain the data dictionary and define the structure of the files in a database • Must create data dictionary for a database before entering any information

  28. Data Manipulation Subsystem • Data manipulation subsystem – helps you add, change, and delete information • Primary interface between you and a database • Views • Report generators • QBE tools • SQL

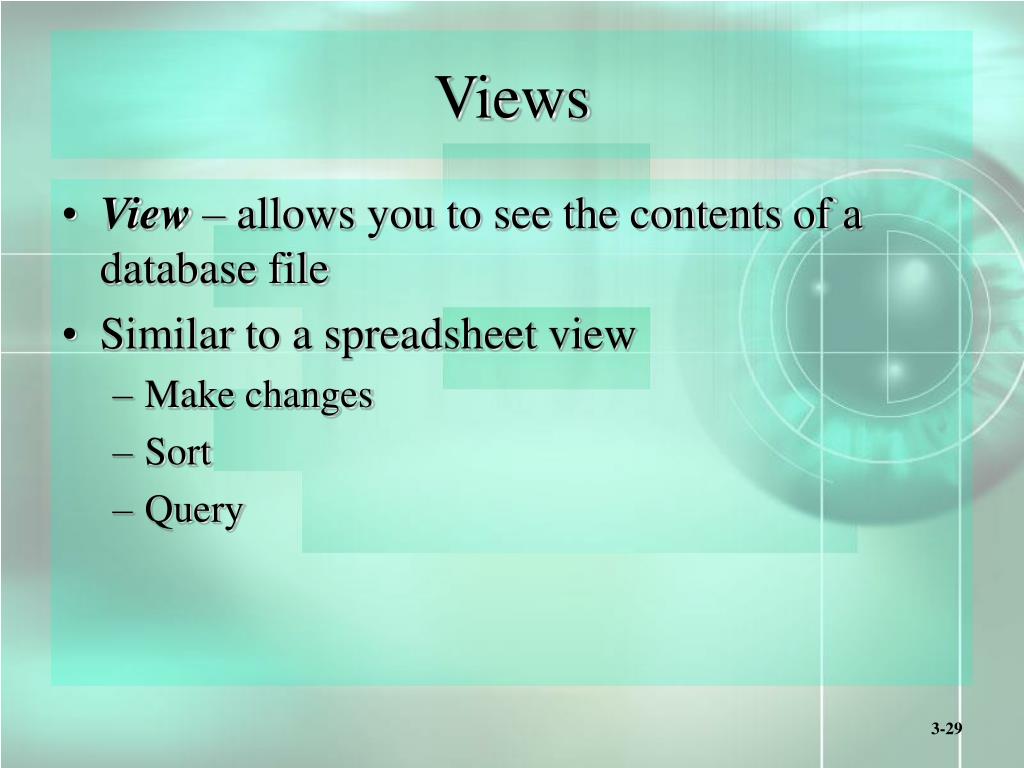

  29. Views • View – allows you to see the contents of a database file • Similar to a spreadsheet view • Make changes • Sort • Query

  30. Views

  31. Report Generators • Report generator – helps you quickly define formats of reports and what information you want to see in a report • Save report formats to use later • Uses a wizard interface

  32. Report Generators Specify the layout of the report Specify the fields you want in a report

  33. Report Generators

  34. QBE Tools • Query-by-example (QBE) tool – helps you graphically design the answer to a question • “What driver most often delivers concrete to Triple A Homes?”

  35. QBE Tools

  36. SQL • Structured query language (SQL) – standardized fourth-generation language found in most DBMSs • Performs same task as QBE • Uses sentence structure instead • Mostly used by IT people

  37. Application Generation Subsystem • Application generation subsystem – contains facilities to help you develop transaction-intensive applications • Data entry screens (called forms in Access) • Programming languages • Mostly used by IT people

  38. Data Administration Subsystem • Data administration subsystem – helps you manage the overall database environment • Backup and recovery • Security management • Query optimization • Concurrency control • Change management

  39. Data Administration Subsystem • Backup and recovery • Periodically back up information • Recover a database after a failure • Security management • Who has access to what information • Who can perform CRUD tasks on information

  40. Data Administration Subsystem • Query optimization • Restructure physical view to optimize response times to queries • Concurrency control • What happens if two people simultaneously try to change the same information?

  41. Data Administration Subsystem • Change management • What is the effect of structural changes to a database? • What if you add a new column? • What happens if you delete a column? • What happens if you change a column’s attributes?

  42. DATA WAREHOUSES & DATA MINING • Data warehouses support OLAP and decision making • Data warehouses do not support OLTP • Data-mining tools are tools for working with data warehouse information • DBMS software = database • Data-mining tools = data warehouse

  43. What Is a Data Warehouse? • Data warehouse – logical collection of information – gathered from operational databases – used to create business intelligence that supports business analysis activities and decision-making tasks

  44. What Is a Data Warehouse?

  45. What Is a Data Warehouse? • Multidimensional • Rows and columns • Also layers • Many times called hypercubes • What are the dimensions in Figure 3.8 on page 97?

  46. What Are Data-Mining Tools? • Data-mining tools – software tools that you use to query information in a data warehouse • Query-and-reporting tools • Intelligent agents • Multidimensional analysis tools • Statistical tools

  47. What Are Data-Mining Tools?

  48. Query-and-Reporting Tools • Query-and-reporting tools – similar to QBE tools, SQL, and report generators in the typical database environment • Also similar to pivot tables in Excel

  49. Intelligent Agents • Use various AI tools such as neural networks and fuzzy logic to form the basis for “information discovery” and building BI • Help you find hidden patterns in information • Chapter 4 focuses on these

  50. Multidimensional Analysis Tools • Multidimensional analysis (MDA) tools – slice-and-dice techniques that allow you to view multidimensional information from different perspectives • Bring new layers to the front • Reorganize rows and columns
