After problem 3.1 worksheet. Get your homework out. If you don’t have it get some loose leaf. 1. Use the diagram below to answer parts a-f. Show all work you do to find your solutions. a. What is the area of square ABCD? Show your work on the square.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'After problem 3.1 worksheet. Get your homework out. If you don’t have it get some loose leaf.' - inga


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
1 use the diagram below to answer parts a f show all work you do to find your solutions

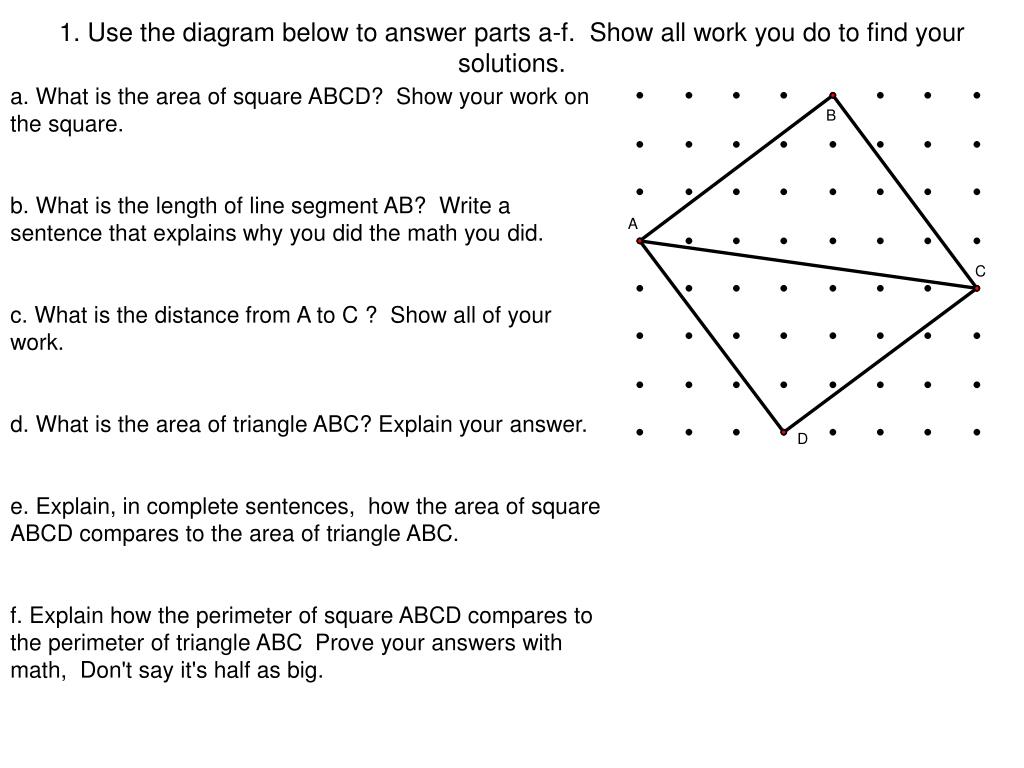

1. Use the diagram below to answer parts a-f. Show all work you do to find your solutions.

a. What is the area of square ABCD? Show your work on the square.

b. What is the length of line segment AB? Write a sentence that explains why you did the math you did.

c. What is the distance from A to C ? Show all of your work.

d. What is the area of triangle ABC? Explain your answer.

e. Explain, in complete sentences, how the area of square ABCD compares to the area of triangle ABC.

f. Explain how the perimeter of square ABCD compares to the perimeter of triangle ABC Prove your answers with math, Don't say it's half as big.

1 use the diagram below to answer parts a f show all of the work you did to find your solutions

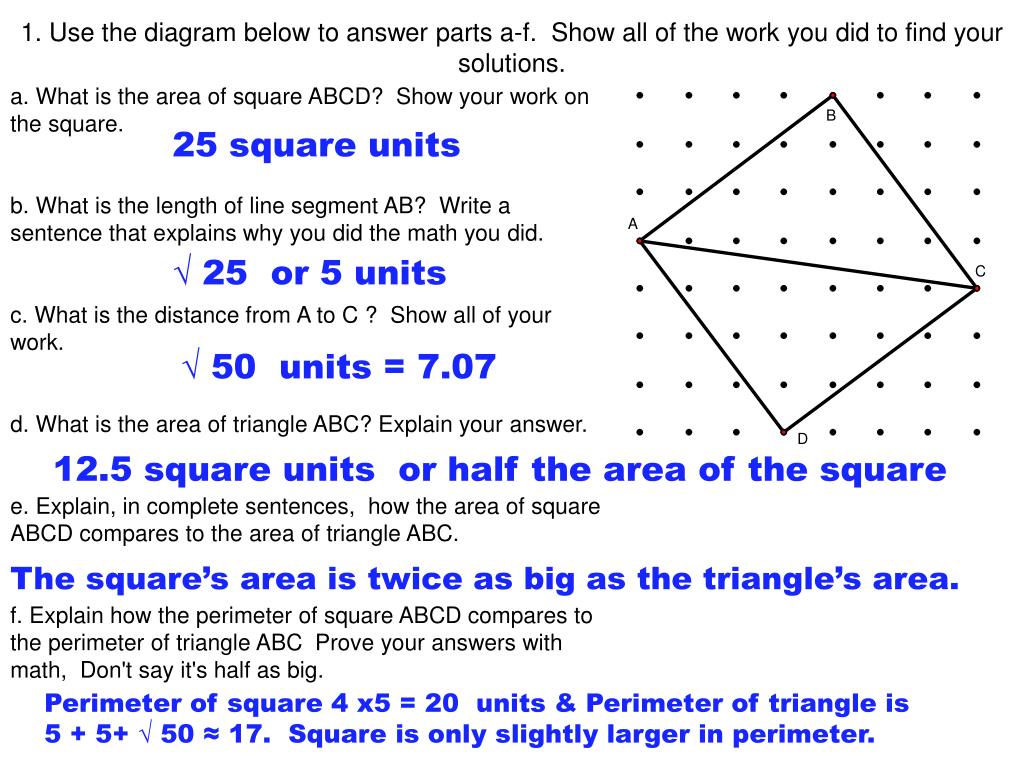

1. Use the diagram below to answer parts a-f. Show all of the work you did to find your solutions.

a. What is the area of square ABCD? Show your work on the square.

b. What is the length of line segment AB? Write a sentence that explains why you did the math you did.

c. What is the distance from A to C ? Show all of your work.

d. What is the area of triangle ABC? Explain your answer.

e. Explain, in complete sentences, how the area of square ABCD compares to the area of triangle ABC.

f. Explain how the perimeter of square ABCD compares to the perimeter of triangle ABC Prove your answers with math, Don't say it's half as big.

25 square units

√ 25 or 5 units

√ 50 units = 7.07

12.5 square units or half the area of the square

The square’s area is twice as big as the triangle’s area.

Perimeter of square 4 x5 = 20 units & Perimeter of triangle is 5 + 5+ √ 50 ≈ 17. Square is only slightly larger in perimeter.

slide4
2. This is a regular pentagon. Find the length of AB to the nearest hundredth. Show how you find the length.
slide5
2. This is a regular pentagon. Find the length of AB to the nearest hundredth. Show how you find the length.

Notice the 0.7 line goes to a midpoint not into a vertex. That is why AB is not 0.7 But the line from B to a midpoint will be 0.7

The full edge was 1 so half of an edge will be 0.5

a2 + b2 = c2

0.52 + 0.72 = c2

.25 + .49 = c2

0.7

.74 = c2

0.5

.74 =  c2

0.86 = c

Segment AB is 0.86 units long

slide6
3.Use the Pythagorean Theorem to find the length of each line segment. Show all work you do to find your solutions.

a. What is the length of segment AB?

b. What is the length of segment CD?

slide7

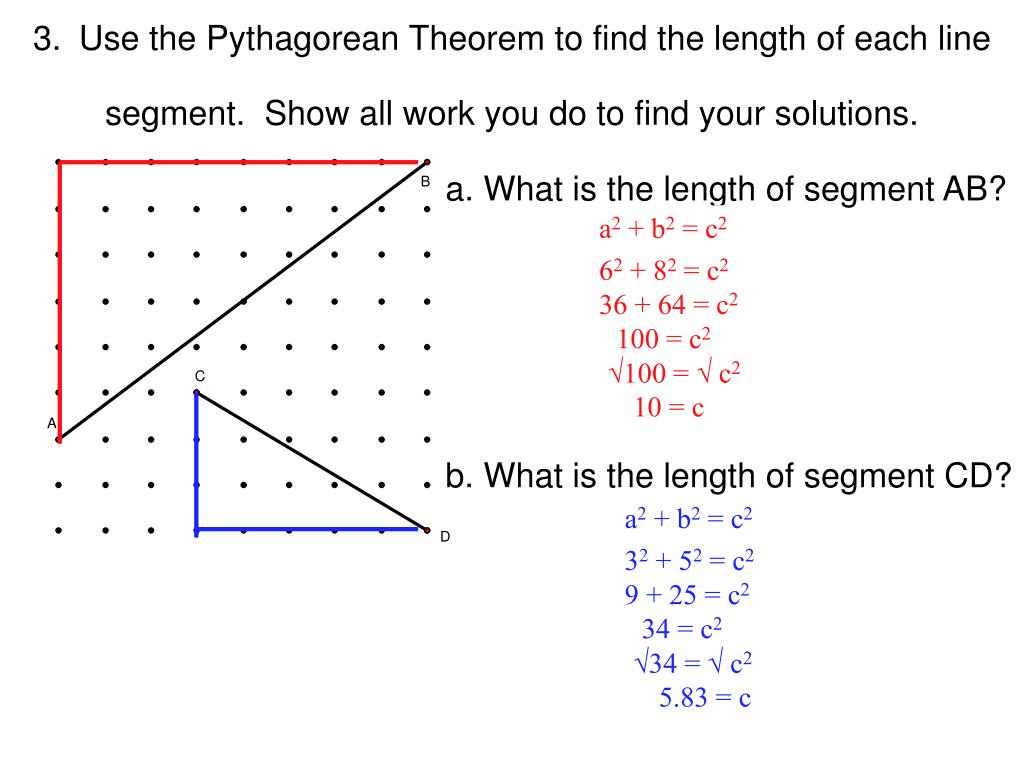

3.Use the Pythagorean Theorem to find the length of each line segment. Show all work you do to find your solutions.

a. What is the length of segment AB?

b. What is the length of segment CD?

a2 + b2 = c2

62 + 82 = c2

36 + 64 = c2

100 = c2

100 =  c2

10 = c

a2 + b2 = c2

32 + 52 = c2

9 + 25 = c2

34 = c2

34 =  c2

5.83 = c

slide8

4. The garden gate on the left needs help! The gardener wants to brace the gate by adding a diagonal strip of wood between the two horizontal strips.

a. How long should the diagonal strip of wood be? (Do not worry about trimming the ends to make a perfect fit.) Show all work you do to find your solution.

b. A standard tape measure is marked in feet and inches. If your answer for part a is written only in feet, rewrite it in feet and inches.

slide9

4. The garden gate on the left needs help! The gardener wants to brace the gate by adding a diagonal strip of wood between the two horizontal strips.

a. How long should the diagonal strip of wood be? (Do not worry about trimming the ends to make a perfect fit.) Show all work you do to find your solution.

b. A standard tape measure is marked in feet and inches. If your answer for part a is written only in feet, rewrite it in feet and inches.

To convert 5.83 feet to feet and inches you need to multiply the .83 part by 12 since there are 12 inches in a foot. You can just keep the 5 as it is.

.83 x 12 = 9.96 inches which can be rounded to 10 inches. Your final answer is about 5 feet 10 inches

a2 + b2 = c2

32 + 52 = c2

9 + 25 = c2

34 = c2

34 =  c2

5.83 = c
