Presentation Transcript

  1. Track 2 – Session 1Tuesday, 13 August 2013(13:30 – 15:30) Developing Testable Capability-Level Requirements Session Co-Chair: Bryan Herdlick, Ph.D. Session Co-Chair: Eileen Bjorkman, Ph.D. bryan.herdlick@jhuapl.edu

  2. Track 2, Session 1Testable Capability-Level Requirements • Tuesday, 13 August 2013 (13:30 – 15:30) • Objectives: • Establish the challenge / issue and the associated “body-of-knowledge” gap • Identify documentation that substantiates the research challenge • Establish a common foundation for discourse • Discuss SoS-level requirements and testing • Goal: Identify prospective paradigm shifts potential solutions • Establish a context for subsequent collaboration and/or future research • Foundation: Relevant contemporary references • Foundation: Panelist experience • Flow: • (10 min) Introduce Panel • (10 min) Establish topic and ‘boundaries’ for this session • (80 min) Discuss key questions (15-20 minutes per question, nominal) • (15 min) Consider prospective solution-space • (5 min) “Take-aways” and “next steps” bryan.herdlick@jhuapl.edu

  3. Panelist Introduction • Suzanne Beers, Ph.D. • Panelist • MITRE • Systems Engineer • Supporting: Office of the Secretary of Defense • Space & Missile Defense • Retired Military • Engineering & Test positions in Space Systems and Space Warfare (numerous) • NRO: Deputy Director, Systems Engineering • USAF Operational T&E Center, Detachment 4: Commander • sbeers@mitre.org • Eileen Bjorkman, Ph.D. • Panelist, and Session Co-Chair • USAF Test Center • Senior Executive & Technical Advisor • Retired Military • Flight test engineer • Instructor • Test squadron commander • Director and staff positions associated with MS&A and Joint T&E (numerous) • Chief of M&S Policy Division, Warfighter Integration & Deployment • eileen.bjorkman@edwards.af.mil bryan.herdlick@jhuapl.edu

  4. Panelist Introduction • Bryan Herdlick, Ph.D. • Session Co-Chair & Facilitator • JHU Applied Physics Lab • Systems Engineer • Supporting: NAVAIR • SoS Systems Engineering • Integration of M&S and T&E • Retired Military • F-14 Tomcat RIO and WTI • Flight Test NFO (F-14, F/A-18) • Navy T&E Policy / Oversight • Management (AIM-9X) • bryan.herdlick@jhuapl.edu • David Gill • Panelist • Boeing • System Test Engineer • Activities • Integration & Simulation • Electromagnetic Test • Test Ranges • Experience • F/A-18 Hornet • F-15 Eagle • CH-47 Chinook • Space Shuttle & Space Station • Various Proprietary Systems • david.j.gill2@boeing.com bryan.herdlick@jhuapl.edu

  5. Panelist Introduction • Katherine Morse, Ph.D. • Panelist • JHU Applied Physics Lab • Principal Professional Staff • Computer Scientist • Activity: Technical research that enhances distributed simulation • Experience & Specialization • Simulation Interoperability Standards • Live / Virtual / Constructive (LVC) Federation Engineering • katherine.morse@jhuapl.edu • Steve Scukanec • Panelist • Northrop Grumman Corp. • Aerospace Engineer • HALE Enterprise T&E Manager • Activity: High Altitude Long Endurance Family of Systems • Test Planning & Requirements • Test definition (Lab and Flight) • Experience / Programs • B-2 Spirit • F-35 Joint Strike Fighter • NASA, DARPA, MDA • Co-Chair NDIA DT&E Committee • stephen.scukanec@ngc.com bryan.herdlick@jhuapl.edu

  6. Panelist Introduction • Frank Serna • Panelist • Draper Laboratory • Director: Systems Engineering Directorate • Experience: • Draper SE activities, including: • Trident II guidance • Guided munitions • NASA manned space • UAS autonomy… • Member Missile Defense National Team, Systems • Co-chair NDIA SE Division • Chapter President, AUVSI New England • fserna@draper.com • George Wauer • Panelist • Developmental Evaluations, LLC; Touchstone POCs, LLC • President & CEO • Activity: OSD Consultant • Experience / Specialties • OSD SES (20 years) • OT&E of interoperability and cyber aspects • Command and Control T&E • NRO / Space • gw.touchstone@me.com bryan.herdlick@jhuapl.edu

  7. Topic Landscape Terms of Reference Literature Review “Challenges” = Body-of-Knowledge Gaps Discussion boundaries / guidelines bryan.herdlick@jhuapl.edu

  8. Terms of ReferenceCapabilities & Requirements • For purposes of this discussion… • Capability (CJCSI 3170.01C) • “The ability to achieve a desired effect under specified standards and conditions through combinations of means and ways to perform a set of tasks. It is defined by an operational user and expressed in broad operational terms in the format of a joint or initial capabilities document…” • Requirement (Requirements Process; CJCSI 3170.01C) • “The requirements process supports the acquisition process by providing validated capabilities and associated performance criteria to be used as a basis for acquiring the right weapon systems.”

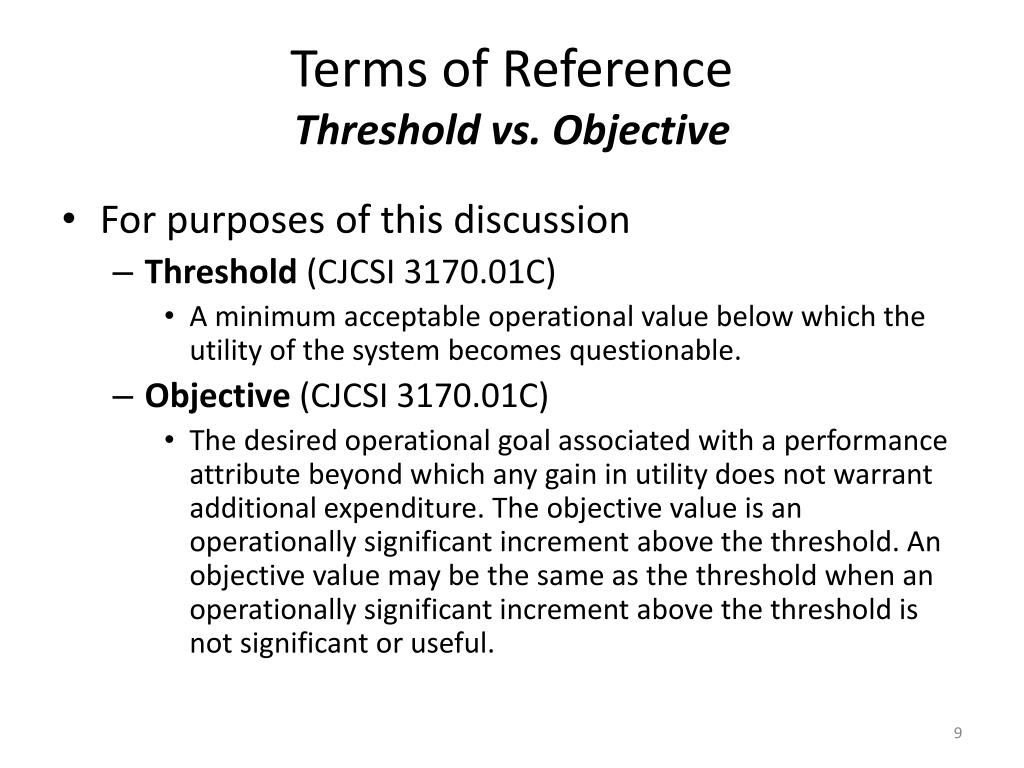

  9. Terms of ReferenceThreshold vs. Objective • For purposes of this discussion • Threshold (CJCSI 3170.01C) • A minimum acceptable operational value below which the utility of the system becomes questionable. • Objective (CJCSI 3170.01C) • The desired operational goal associated with a performance attribute beyond which any gain in utility does not warrant additional expenditure. The objective value is an operationally significant increment above the threshold. An objective value may be the same as the threshold when an operationally significant increment above the threshold is not significant or useful.

  10. Terms of Reference • For purposes of this discussion… • “Characterization” • Progress toward a Capability Objective in an Operational Context • vs. (or through?) “Verification / Validation of Requirements” • Even more dependent on applying a full-spectrum of: • Test, Analyze, Inspect, Demonstrate • Live / Virtual / Constructive

  11. Literature Review Highlights • SoS-level ‘requirements’ • Absent • SoS-based capability not documented / funded • Conflicting priorities across constituent systems • May require a new approach and/or lexicon? • “Capability Objective” (SoS-level) • Human / Operator Performance not considered • Human as a constituent system • Unique metrics  Unique testing requirements Supporting references and excerpts are detailed in back-up slides

  12. Capability Objectives & MetricsNational Defense Industrial Association (2011) “Addressing SoS Acquisition Questions” (November 2011 DRAFT Out-Brief) • Capability Objectives • Measured in terms of utility to the user • Best evaluated in field / exercise / operational environment(s) • External factors and complexity become more apparent • Metrics • Must be traceable to Capability Objectives • Remain in-force as the SoS-based capability matures • Supports utilityassessment Do “Threshold” and “Objective” mean something different in application to SoS-based capabilities? bryan.herdlick@jhuapl.edu

  13. Literature Review Highlights • SoS-level ‘testing’ • May require a new approach • “Capability Characterization” • Operational context is paramount • CONOPS • Full-scale SoS required • Asynchronous development & fielding are problematic • Requires a broader view, flexibility and innovation • Verify / Validate = Test + Analyze + Inspect + Demonstrate • Balanced use of Live / Virtual / Constructive venues Supporting references and excerpts are detailed in back-up slides

  14. Topic Landscape & Session Focus “Requirements” (Measures / Metrics) Operators as Constituent Systems Management Challenges “T&E” (Characterization?) Trade Space Exploration Terminology & Definitions Prototyping Systems Theory / Thinking M&S “Emergence” DoD Acquisition “Architecture” Security bryan.herdlick@jhuapl.edu

  15. Keeping the Discussion Focused Operators as Constituent Systems “Requirements” (Measures / Metrics) “T&E” (Characterization?) Management Challenges Trade Space Exploration ? Terminology & Definitions Prototyping ! Systems Theory / Thinking M&S “Emergence” DoD Acquisition “Architecture” Security bryan.herdlick@jhuapl.edu

  16. A question / premise to consider… If our “requirements” and “test strategy” were viable at the SoS / capability level, the rest of the Complex System “problem space” might become more tractable…(?)

  17. Questions & Discussion Target Window: 13:50 – 15:10 bryan.herdlick@jhuapl.edu

  18. Candidate Questions for Discussion • Should performance at the capability-level be articulated differently from “traditional” platform- / system- / program-centric requirements? • Should “requirements language”be modified to better support mission-centric or capability-centric approaches to verification / test? ? SYSTEM Requirements vs. SoS-LEVEL “Requirements” 13:50 – 14:20  30 min bryan.herdlick@jhuapl.edu

  19. Candidate Questions for Discussion • Are there “preferred” venues or methods for verifying complex systems performance, and should ‘requirements’ be tailored accordingly? • T&E approach / context • “Traditional” system-centric T&E • Performance verification against threshold values and/or ‘specifications’ • Capability Centric / Mission Focused T&E • Characterization of capability ? WHAT we test vs. HOW we test 14:20 – 14:40 bryan.herdlick@jhuapl.edu

  20. Candidate Questions for Discussion • Given that human operators constitute complex systems within the larger SoS, should human performance be reflected in capability-level requirements? • What aspects of human performance should be considered at the SoS / capability level? • What does this imply for T&E methods and resource dependencies? ? WHAT we test vs. HOW we test 14:40 – 14:55 bryan.herdlick@jhuapl.edu

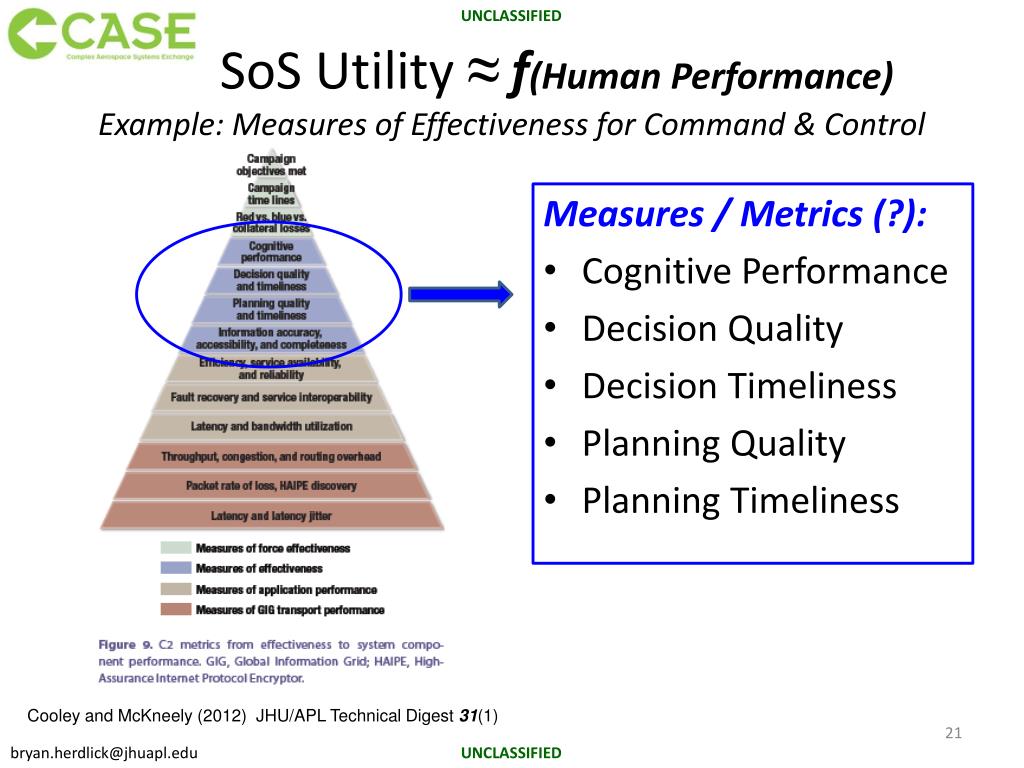

  21. UNCLASSIFIED SoS Utility ≈ f(Human Performance)Example: Measures of Effectiveness for Command & Control Measures / Metrics (?): • Cognitive Performance • Decision Quality • Decision Timeliness • Planning Quality • Planning Timeliness Cooley and McKneely (2012) JHU/APL Technical Digest 31(1) bryan.herdlick@jhuapl.edu UNCLASSIFIED

  22. Candidate Questions for Discussion • Does the role of an operational concept document (e.g., concept of operations, concept of employment, etc.) need to change to adequately support the development of SoS-based capabilities? • If requirements at the capability level are different, must the format of CONOPS / CONEMPS / OCDs change to accommodate SoS designs? ? Establishing CONTEXT for WHAT & HOW we test 14:55 – 15:10 bryan.herdlick@jhuapl.edu

  23. Candidate Questions for Discussion • Is there additional complexity or concern associated with SoS-level safety and assurance? • How does it differ from system-specific safety and assurance? • Are new approaches to requirements and/or test methods required? ? WHAT we test vs. HOW we test  transition at 15:10 to “solution space” bryan.herdlick@jhuapl.edu

  24. Candidate Questions for Discussion • In what way is the incorporation of human operators in the design process different when developing a SoS-based capability? • Is it necessary to insert human operators from the outset, or only when the hardware and software integration is complete and the SoS is available to “play with?” ? This is a SE process question – Consider skipping to stay on schedule Human Operator as a System within the SoS  transition at 15:10 to “solution space” bryan.herdlick@jhuapl.edu

  25. Solution Space (?)Take-Aways / Wrap-Up Target Window: 15:10 – 15:30 bryan.herdlick@jhuapl.edu

  26. Solution Space (?)National Defense Industrial Association (2010) “Addressing SoS Acquisition Questions” (November 2011 DRAFT Out-Brief) • Capability Objectives • Measured in terms of utility to the user • Best evaluated in field / exercise / operational environment(s) • External factors and complexity become more apparent • Metrics • Must be traceable to Capability Objectives • Remain in-force as the SoS-based capability matures • Supports utility assessment (capability characterization?) bryan.herdlick@jhuapl.edu

  27. “Capability Need Statement”One possible format… • Focus: User Perspective & Utility • The user needs to be able to ____________ • (insert: SoS-based capability objective) • …in order to _____________ • (insert: utility statement; gap being addressed) • …such that ____________. • (insert: measure of effectiveness / metric) • (address: what constitutes the first increment of utility) bryan.herdlick@jhuapl.edu

  28. SoS Utility ≈ f(composite system performance) • Candidate utility statements and categories of metrics / measures: • Increase service capacity • New customers / markets • New targets / nodes • Improve service in adverse environments • Weather • Terrain • “Over-the-horizon” • Aquatic / Subterranean • Electromagnetic • Day / Night • Increase extent of service • Range (miles) • Altitude • Exo-atmospheric • Candidate utility statements and categories of metrics / measures: • Improve persistence of service • Availability • Reliability • Improve survivability / safety • Reduce exposure • Time • Severity / level • Reduce vulnerability • Others????? • Discussion… HOW would such performance be tested? bryan.herdlick@jhuapl.edu

  29. SoS Utility ≈ f(humansystem performance) • Candidate utility statements and categories of metrics / measures: • Enhance decisionmaker effectiveness • Accuracy / Error Rate • Speed • Consistency • Within single role • Across roles / positions • Candidate utility statements and categories of metrics / measures: • Improve employment efficiency • Relative to desired speed / timeline HOW would such performance be tested? bryan.herdlick@jhuapl.edu

  30. “Litmus-Tests” for SoS-based Capabilities • Uniquely delivered by a SoS-based design? • Will (can) the capability ONLYbe successfully achieved and verified when constituent systems (or acceptable prototypes) are integrated and operational? • What justification exists for a SoS-based design? • Do any of the constituent systems deliver the capability independently? If so, why is a SoS-based design required? • Are multiple designs imbedded within the SoS, and if so, why? • i.e., Can the capability be achieved in more than one way within the SoS? • Can the SoS design be simplified / reduced, and are there disadvantages (or advantages) to doing so? bryan.herdlick@jhuapl.edu

  31. Relevant Excerpts from the Literature Review bryan.herdlick@jhuapl.edu

  32. Systems Engineering & Requirements • “…it is the responsibility of systems engineering to thoroughly analyze all requirements…vis-à-vis the basic needs that the system is intended to satisfy, and then to correct any ambiguities or inconsistencies in the definition of capabilities for the system…” • Systems Engineering: Principles and Practice, Kossiakoff & Sweet • “The output of Requirements Analysis is a technical description of characteristics the future system must have in order to meet Stakeholder Requirements – not a specific solution – which will be evolved in subsequent development processes.” • INCOSE Systems Engineering Handbook (V 3.1) bryan.herdlick@jhuapl.edu

  33. Requirements   T&E • “…it is a systems engineering responsibility to plan, lead and interpret the tests and their analysis in terms of what system design changes might best make the user most effective.” • Systems Engineering: Principles and Practice, Kossiakoff & Sweet • “The purpose of the Validation Process is to confirm that the realized system complies with the stakeholder requirements.” • INCOSE Systems Engineering Handbook (V 3.1) • The Validation Process “…is invoked during the Stakeholders Requirements Definition Process to confirm that the requirements properly reflect the stakeholder needs and to establish validation criteria…[and again] during the Transition Process to handle the acceptance activities.” • INCOSE Systems Engineering Handbook (V 3.1) bryan.herdlick@jhuapl.edu

  34. Challenge / Gap (2013)Trans-Atlantic Research & Education Agenda in SoS • SoSE Strategic Research Agenda • Theme #5: Measurement and Metrics • “…knowing what to measure and when to measure in order to determine SoS performance or likely future behaviours is inadequately understood.” • Theme #6: Evaluation of SoS • “…further work is needed to be able to evaluate SoS against their expected behaviour, desired outcomes, and in comparison with other possible configurations of the SoS…” What to test? SoS-level Requirements and Testing are Problematic bryan.herdlick@jhuapl.edu

  35. Challenge / GapINCOSE Insight (July 2009) • INCOSE Research Plan: 2008-2020 (Ferris) • Item 7: System-of-Systems & “Legacy” systems • “Means to ensure assurance that a system of systems will deliver the capability intended.” • i.e., How do we test at the SoS level? How to test? The SoS topic development landscape is complex too… bryan.herdlick@jhuapl.edu

  36. Challenge / Gap (2013)INCOSE International Symposium • System-of-Systems “Pain Points” • Capabilities & Requirements (dedicated section) • “The definition of SoS capabilities and translation to systems requirements is core to the application of [systems engineering] to SoS.” • “…we often think about requirements differently when working on an SoS.” • “In an SoS context, many people prefer to focus on capabilities and less on requirements…” What to test? The relationship between Capabilities and Requirements bryan.herdlick@jhuapl.edu

  37. Challenge / GapINCOSE Insight (July 2009) • INCOSE Research Plan: 2008-2020 (Ferris) • Item 7: System-of-Systems & “Legacy” systems • “Methods to address issues arising from legacy systems in the design of new or updated systems.” • e.g., Asynchronous development & fielding? • e.g., Conflicting performance / capability requirements? • Item 8: “Sundry other matters” • “Means to predict and to design human-intensive systems.” Related Considerations The SoS development process is complex too… bryan.herdlick@jhuapl.edu

  38. Challenge / Gap (2013)Trans-Atlantic Research & Education Agenda in SoS • SoSE Strategic Research Agenda • Theme #11: Human Aspects • “For the technical community, human aspects are often the elephant in the room, recognised as a key aspect of the SoS, but either not included in the design or included retrospectively.” • “…situational awareness [may be] compromised by the complexity of the SoS…” • “…human error or unexpected behaviour features significantly in normal accidents…” Related Considerations Human Operator = Constituent System within SoS bryan.herdlick@jhuapl.edu

  39. Challenge / Gap (2013)Trans-Atlantic Research & Education Agenda in SoS • SoSE Strategic Research Agenda • Theme #8: Prototyping SoS • “…the evolutionary nature of SoS make(s) prototyping a troublesome proposition.” • “…emergent behaviour may not be manifest until the system is fully deployed…” • “…prototyping may need to take place within the operational SoS, rather than a test bed…” Related Considerations Asynchronous Fielding Prototyping & Testing Challenges bryan.herdlick@jhuapl.edu

  40. Challenge / Gap (2006)USAF Scientific Advisory Board • Report on System-Level Experimentation • Experiments: “The only way to explore the complexities of a system is through campaigns of experiments, based on the proper venue, people and ideas. Combining these into a rigorous program of technology and CONOPS will create a deep understanding of what the future may be and how best to meet it.” How to test? Experimentation CONOPS Technology SoS  Capability bryan.herdlick@jhuapl.edu

  41. Bibliography & References bryan.herdlick@jhuapl.edu

  42. Bibliography • The System of Systems Engineering Strategic Research Agenda (2013) • Trans-Atlantic Research and Education Agenda in System of Systems (T-AREA-SoS) Project (www.tareasos.eu) • Prof. Michael Henshaw, Loughborough University, UK (tareasos@lboro.ac.uk) • INCOSE Research Agenda: 2008-2020 • Ferris, INCOSE Insight (July 2009) • System-of-Systems “Pain Points” • INCOSE International Symposium, 2013 bryan.herdlick@jhuapl.edu

  43. Bibliography • Report on System-Level Experimentation • USAF Scientific Advisory Board, 2006 • Systems Engineering: Principles and Practice • Kossiakoff & Sweet • INCOSE Systems Engineering Handbook (V 3.1) • Addressing SoS Acquisition Questions • NDIA (November 2011 DRAFT Out-Brief) bryan.herdlick@jhuapl.edu

  44. Additional References TESTABLE REQUIREMENTS: System-of-Systems / Complex Systems • Simulation in Test & Evaluation, Allen, C.L., ITEA Journal, 2012 • Rapid Prototyping and Human Factors Engineering, Beevis & Denis, Applied Ergonomics, 23(3), 1992 • Combining Attributes for Systems of Systems, Chattopadhyay (et al.), INCOSE INSIGHT, 2010 • System of Systems Requirements, Keating, Engineering Management Journal, 2008 • Test as We Fight, O’Donoghue, ITEA Journal, 2011 • Systems Engineering and Test for Unprecedented Systems, Weiss (et al.), ITEA Journal, 2009 • Implications of Systems of Systems on System Design and Engineering. Proceedings of the 2011 6th International Conference on System of Systems Engineering, Albuquerque, New Mexico, June 27-30, 2011 • Requirements Engineering for Systems of Systems, Lewis (et al.), IEEE SysCon, 2009 bryan.herdlick@jhuapl.edu

  45. Additional References OPERATIONAL CONCEPT DOCUMENTS: CONOPS, CONEMPS, DRMs & OCDs • American National Standards Institute / American Institute of Aeronautics and Astronautics [1992] Guide for the Preparation of Operational Concept Documents, ANSI/AIAA G-043-1992 • Chairman of the Joint Chiefs of Staff [2006] Joint Operations Concepts Development Process (JOpsC-DP), Instruction CJCSI 3010.02B • Department of the Air Force, Secretary of the Air Force [2005] Air Force Concept of Operations Development, Instruction 10-2801, Pentagon, Washington, D.C. www.e-publishing.af.mil • Department of the Navy, Fleet Forces Command (FFC) [2006] CONOPS TO DOCTRINE: Shaping the Force From Idea Through Implementation. Fleet CONOPS Guidance Brief. • Department of the Navy, Fleet Forces Command (FFC) [2009] Fleet CONOPS Writer’s Guide, Version 1 • Department of the Navy, Office of the Assistant Secretary of the Navy (Research, Development & Acquisition) [2002] Technical Brief: Design Reference Mission Profile Development Guidelines, TB # ABM 1002-03, Pentagon, Washington, D.C. www.abm.rda.hq.navy.mil • Department of the Navy, Office of the Chief of Naval Operations (OPNAV) [2010], Navy Concept Generation and Concept Development Program, Instruction 5401.9, Pentagon, Washington, D.C. • Department of the Navy, Office of the Chief of Naval Operations (OPNAV) [2010], Developmental System Concept of Operations, Instruction 5401.xx (DRAFT), Pentagon, Washington, D.C. • Department of the Navy, Naval Warfare Development Command (NWDC) [2010] Guide for Navy Concept Generation And Concept Development Program, Version 1.0 • Herdlick, B.E., [2011] Establishing an Operational Context for Early System-of-Systems Engineering Activities, Systems Research Forum, 5(2) • Department of the Navy, Space Warfare Systems Command (SPAWAR) [2000] Data Item Description for Operational Concept Document, DI-IPSC-81430A bryan.herdlick@jhuapl.edu

  46. Additional References HUMAN PERFORMANCE in a SoS / CxS context • Command and Control Systems Engineering: Integrating Rapid Prototyping and Cognitive Engineering, Cooley & McKneely, JHU/APL Technical Digest, 31(1), 2012 • The Effects of Automation on Battle Manager Workload and Performance, Soller & Morrison, IDA Report (D3523) of January 2008 • Successfully Changing Conceptual System Design Using Human Performance Modeling, Mitchell, Naval Engineers Journal (peer review DRAFT; 2009) • MORS Workshop of January 2012: “A Joint Framework for Measuring Command and Control Effectiveness” - see Group 4 Outbrief, in particular • Optimizing Performance for Mine Warfare: A Case of Mission-Centered Design, Osga (et al.), Naval Engineers Journal (ASNE) (peer review DRAFT; 2009) • An Obstacle Course Evaluation of AWACS 40/45 HMI Options, Donnelly & Vidulich, AFRL presentation, 28JUN2002 bryan.herdlick@jhuapl.edu

  47. Additional References INCOSE Compilation of 2013 (45 SoS ‘experts’ responded; 100 refs total) References recommended by the most respondents were • Maier, Mark W. 1998. “Architecting Principles for System-of-systems.” Systems Engineering 1 (4): 267–284.            [9 recommendations] • Office of the Under Secretary of Defense (Acquisition, Technology and Logistics) Systems Engineering Guide for Systems of Systems                                                        [9 recommendations] • Jamshidi, M. (Ed.) System of Systems Engineering: Principles for the 21st Century Wiley, 2009                        [7 recommendations] Beyond this, there were eight references which were recommend by more than one respondent • Jamshidi, M. (ed). 2009. Systems of Systems Engineering - Principles and Applications. Boca Raton, FL, USA: CRC Press     [4 recommendations] • Dahmann, J.; Rebovich, G.; Lane, J.; Lowry, R. & Baldwin, K. An Implementer's View of Systems Engineering for Systems of Systems Proceedings of the 2011 IEEE International Systems Conference (SysCon), 2011, 212 – 217.                 [3 recommendations] • DeLaurentis, D.A., "Understanding Transportation as a System-of-Systems Design, Problem," 43rd AIAA Aerospace Sciences Meeting & Exhibit, Reno, NV, 10-13 Jan. 2005. AIAA Paper No. 2005-123. [3 recommendations] • BKCASE, Part 4, Systems of Systems        [3 recommendations] • Barot, V., Henson, S., Henshaw, M., Siemieniuch, C., Sinclair, M., Lim, S. L., Jamshidi, M., DeLaurentis, D., 2012. State of the Art Report, Trans-Atlantic Research and Education Agenda in Systems of Systems (T-AREA-SoS), Loughborough University. Available on-line. A comprehensive introduction to SoS, issues and research towards solutions. [2 recommendations] • Boardman, J. and B. Sauser. (2006). System of Systems – the meaning of Of. IEEE International Conference on System of Systems Engineering. April 24-26, Los Angeles, CA                                 [2 recommendations] • Boardman, John, and Brian Sauser. 2008. Systems Thinking: Coping with 21st Century Problems. Boca Raton, FL: CRC Press.    [2 recommendations] • INCOSE Systems Engineering Handbook v. 3.2.2 INCOSE‐TP‐2003‐002‐03.2.2 October 2011         [2 recommendations] All the recommended references from the recent INCOSE SoS working group survey / compilation are on the SoS WG area of INCOSE Connect at  https://connect.incose.org/tb/soswg/ bryan.herdlick@jhuapl.edu

  48. Additional References TEXTS on COMPLEXITY & EMERGENT BEHAVIOR • Emergence: From Chaos to Order (Holland, John H.; 1998) • Hidden Order: How Adaptation Builds Complexity (Holland, John H.; 1995) • Complexity: The Emerging Science at the Edge of Order and Chaos (Waldrop, M. Mitchell; 1992) • Chaos: Making a New Science (Gleick, James; 1987) • Complexity: Life at the Edge of Chaos (Lewin, Roger; 1992; 2nd Ed.)  • Exploring Complexity: an introduction (Nicolis and Prigogine; 1989)  • The Black Swan: The Impact of the Highly Improbable (Taleb, Nassim N.; 2007) • Blackhawk Down (Bowden, Mark) • Coping With the Bounds: Speculation on Nonlinearity in Military Affairs (Czerwinski, Tom) • Engineering Systems: Meeting Human Needs in a Complex Technological World (Roos & de Weck) • Causality (Pearl, Judea) bryan.herdlick@jhuapl.edu
