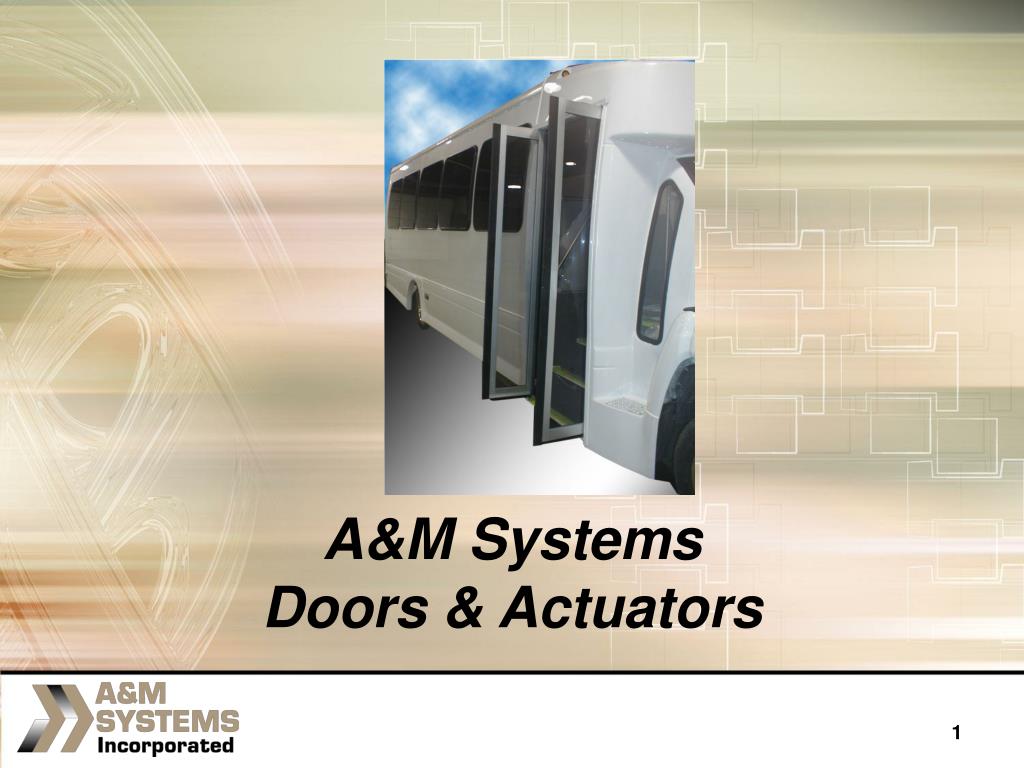

  1. A&M SystemsDoors & Actuators

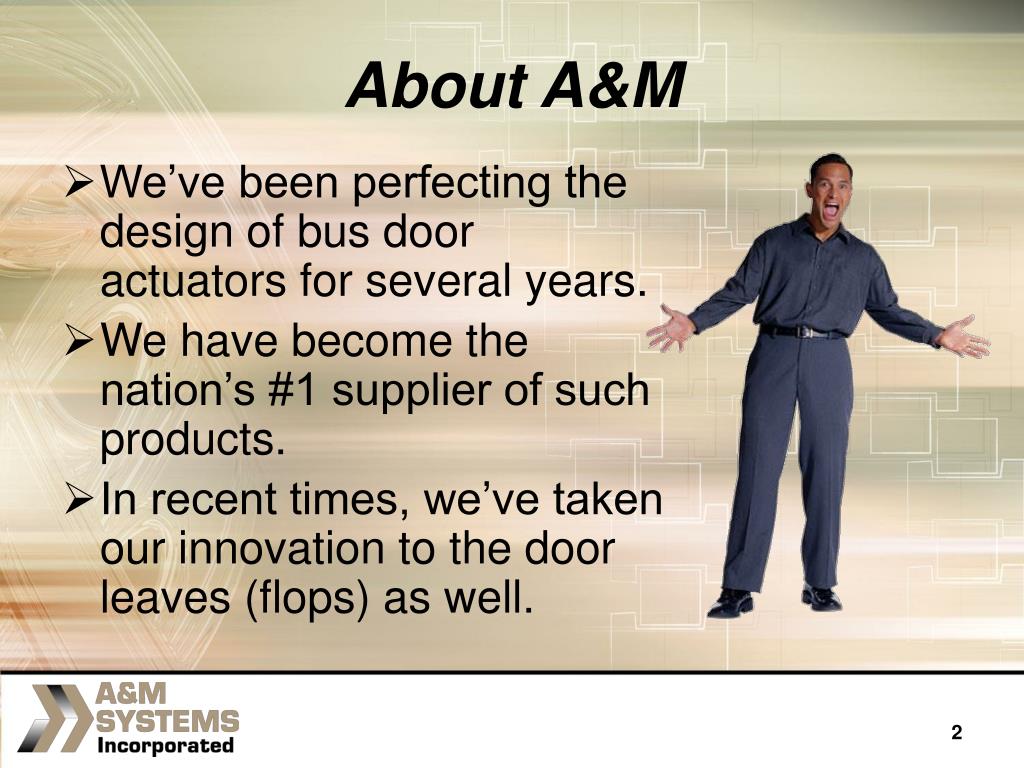

  2. About A&M • We’ve been perfecting the design of bus door actuators for several years. • We have become the nation’s #1 supplier of such products. • In recent times, we’ve taken our innovation to the door leaves (flops) as well.

  3. Our Driving Motivation • Design Goals: • Simplicity • Uncompromised Quality • Problem-free Operation

  4. Our Approach • We carefully engineer our products to operate smoothly and reliably while eliminating the problem-prone and complex design elements that plague our competitor's products.

  5. The Result • The result is a simple and elegant product which has become the number one choice for bus manufacturers.

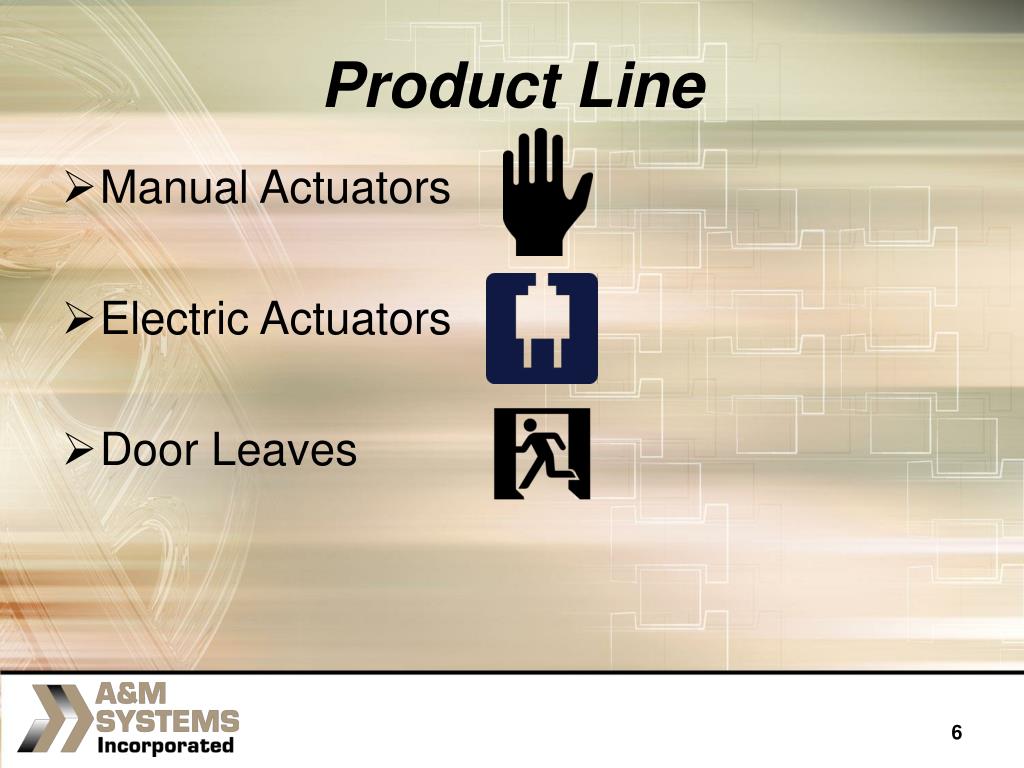

  6. Product Line • Manual Actuators • Electric Actuators • Door Leaves

  7. Recognizing Our Product distinctive door leaf design

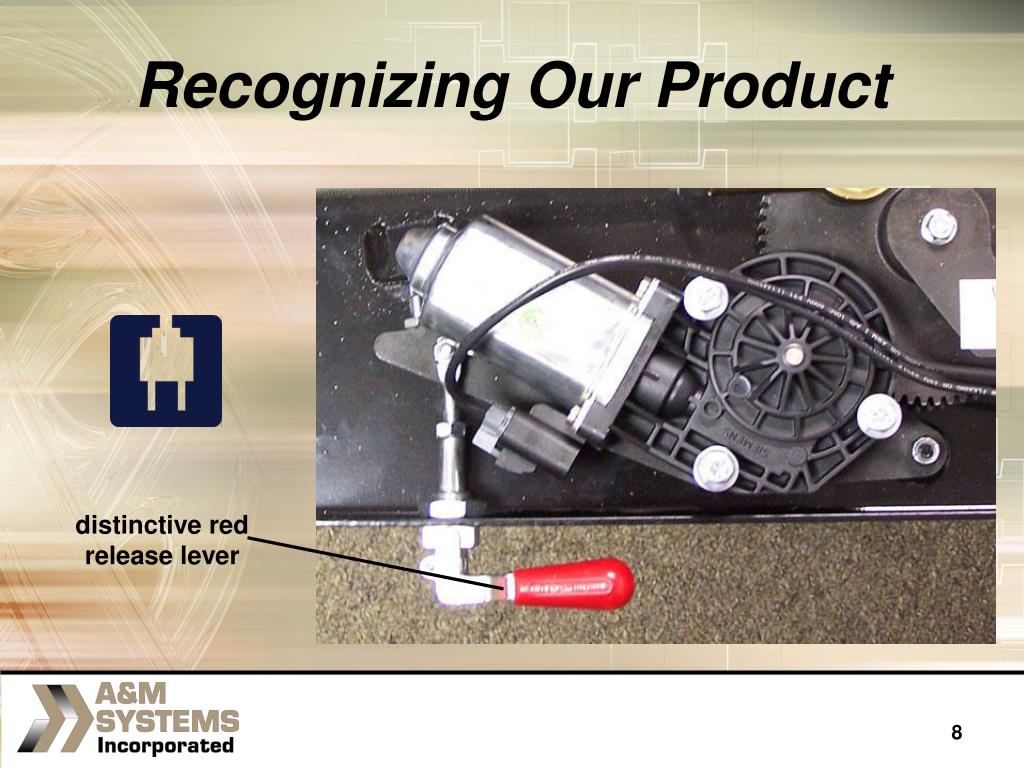

  8. Recognizing Our Product distinctive red release lever

  9. Manual Actuator Electric Actuator Product Features • Low-profile design • Powder-coated base plate • Plated push-pull rods • Permanently lubricated pivot points • 1–year warranty

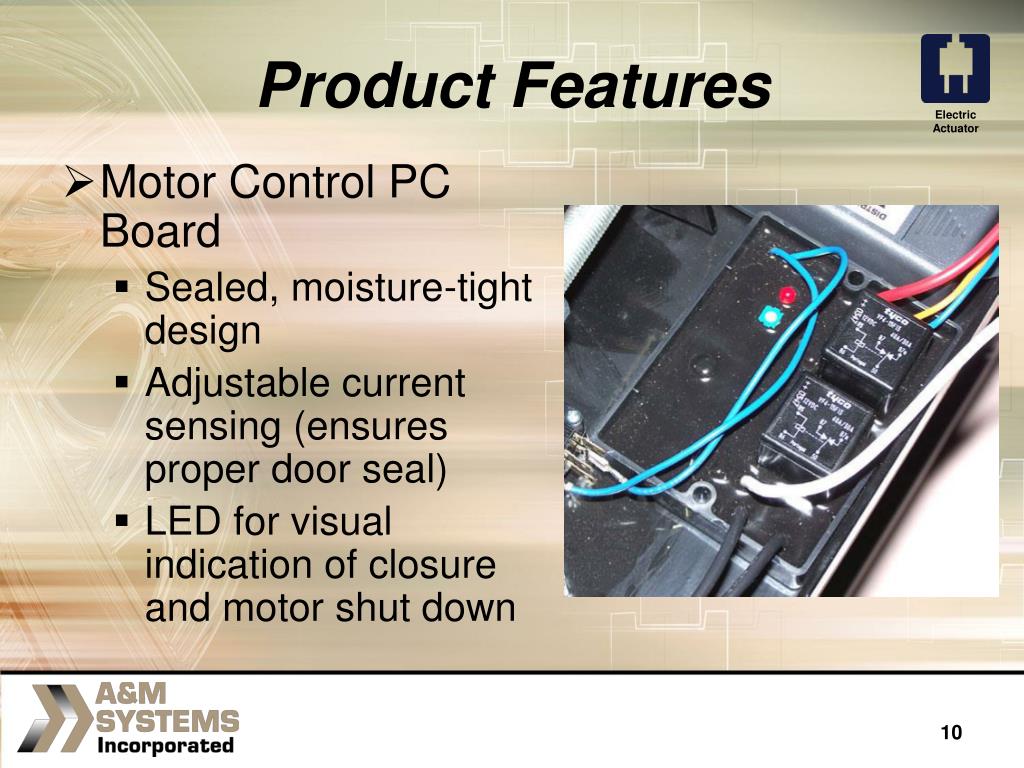

  10. Electric Actuator Product Features • Motor Control PC Board • Sealed, moisture-tight design • Adjustable current sensing (ensures proper door seal) • LED for visual indication of closure and motor shut down

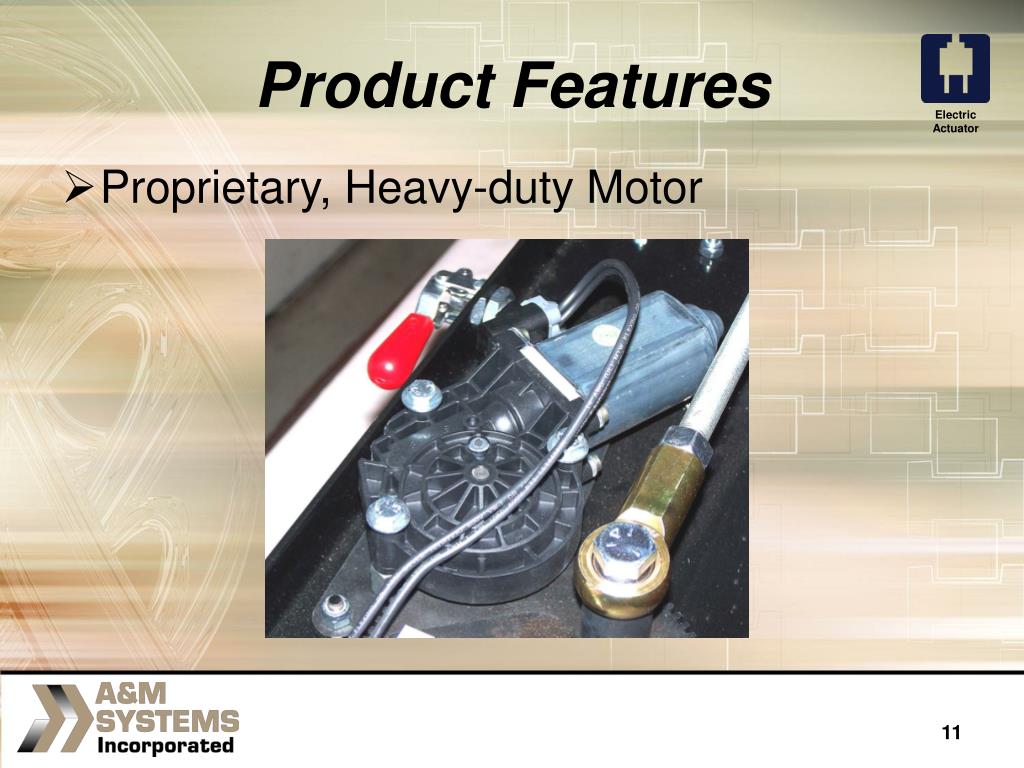

  11. Electric Actuator Product Features • Proprietary, Heavy-duty Motor

  12. Electric Actuator Product Features • Available Remote Actuator Control • Plug-n-play installation • It’s retrofitable!!!

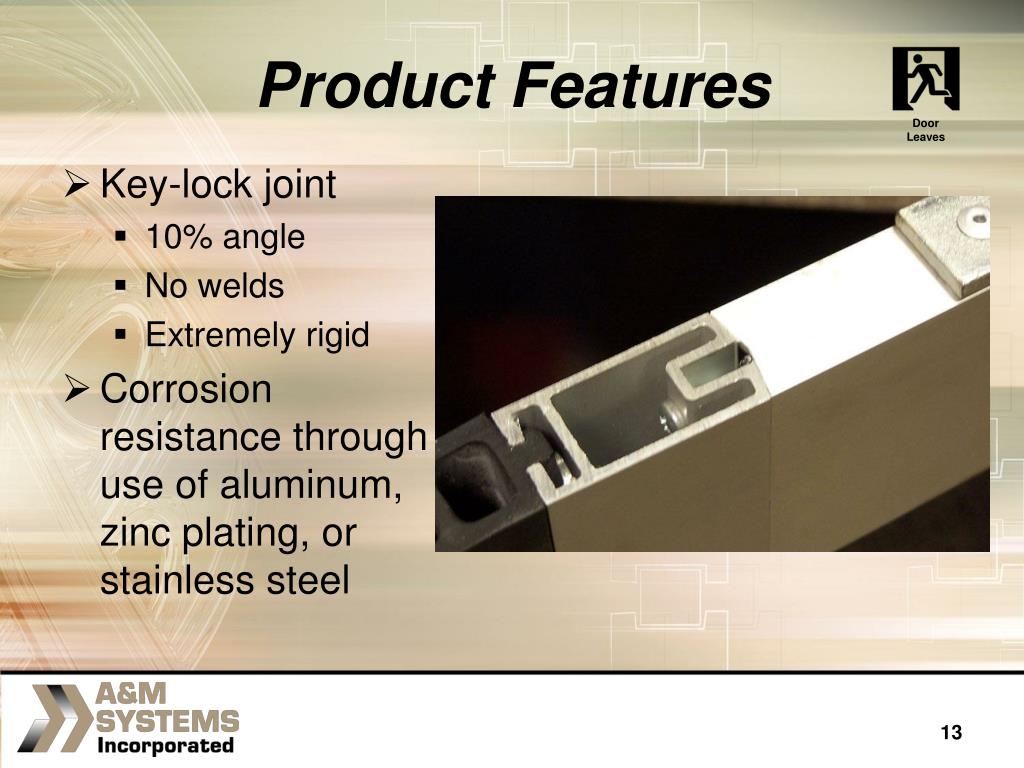

  13. Door Leaves Product Features • Key-lock joint • 10% angle • No welds • Extremely rigid • Corrosion resistance through use of aluminum, zinc plating, or stainless steel

  14. Door Leaves Product Features • Zinc-plated torque arm on upper door hinge • Unique • Adds to overall rigidity

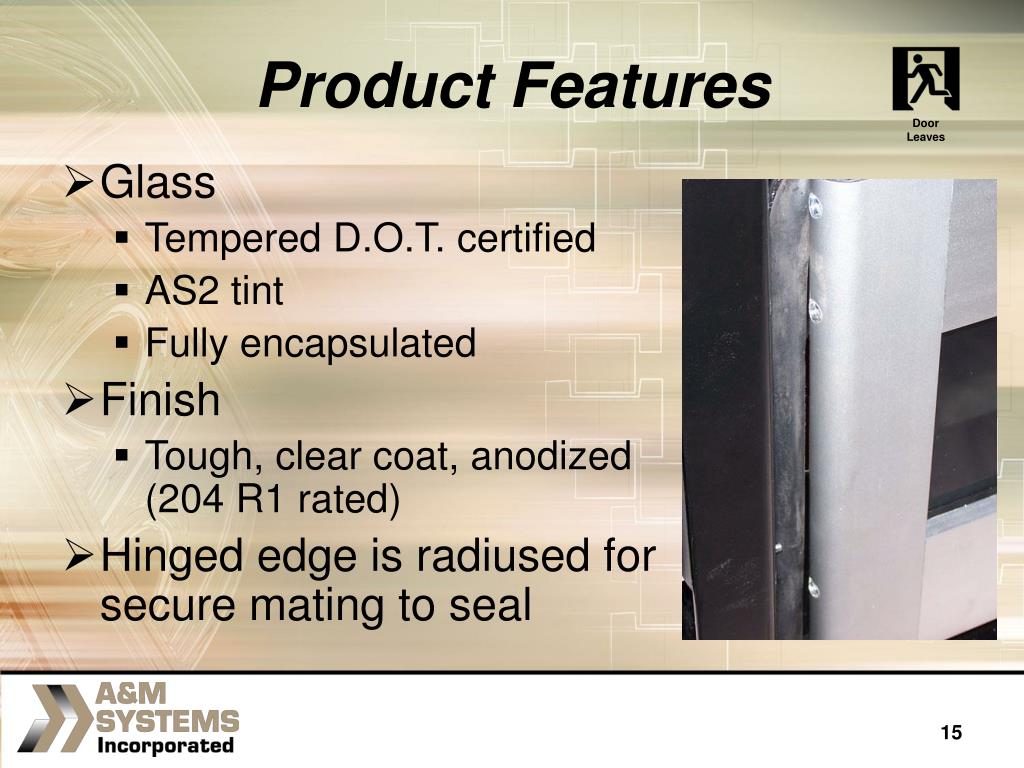

  15. Door Leaves Product Features • Glass • Tempered D.O.T. certified • AS2 tint • Fully encapsulated • Finish • Tough, clear coat, anodized (204 R1 rated) • Hinged edge is radiused for secure mating to seal

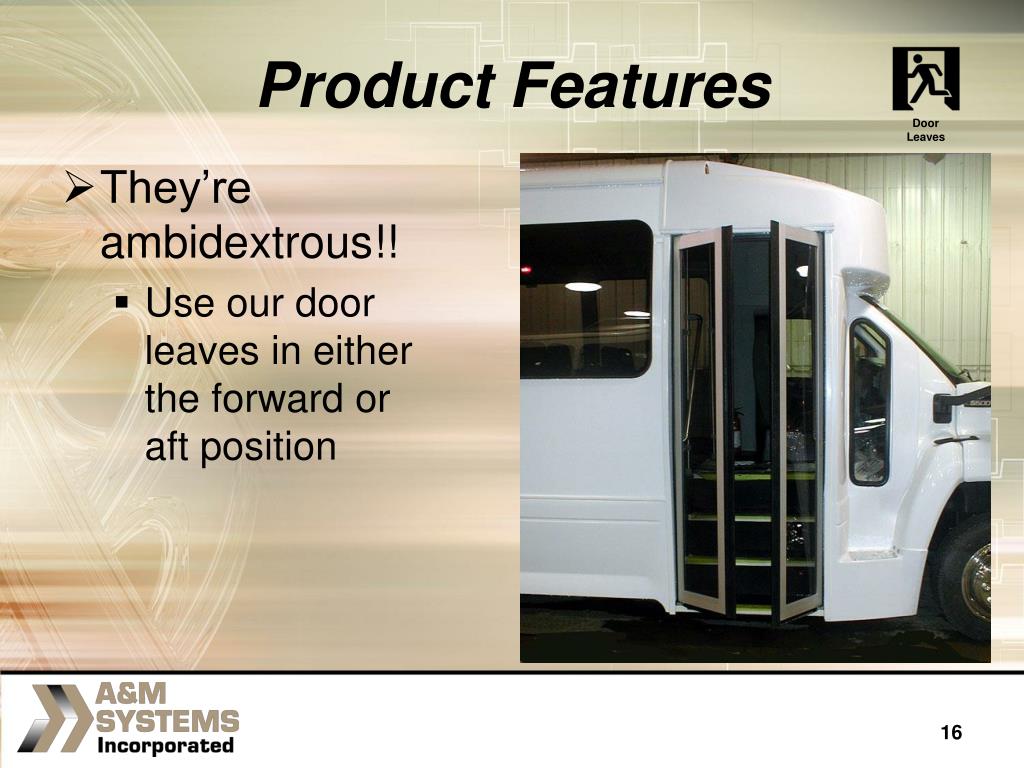

  16. Door Leaves Product Features • They’re ambidextrous!! • Use our door leaves in either the forward or aft position

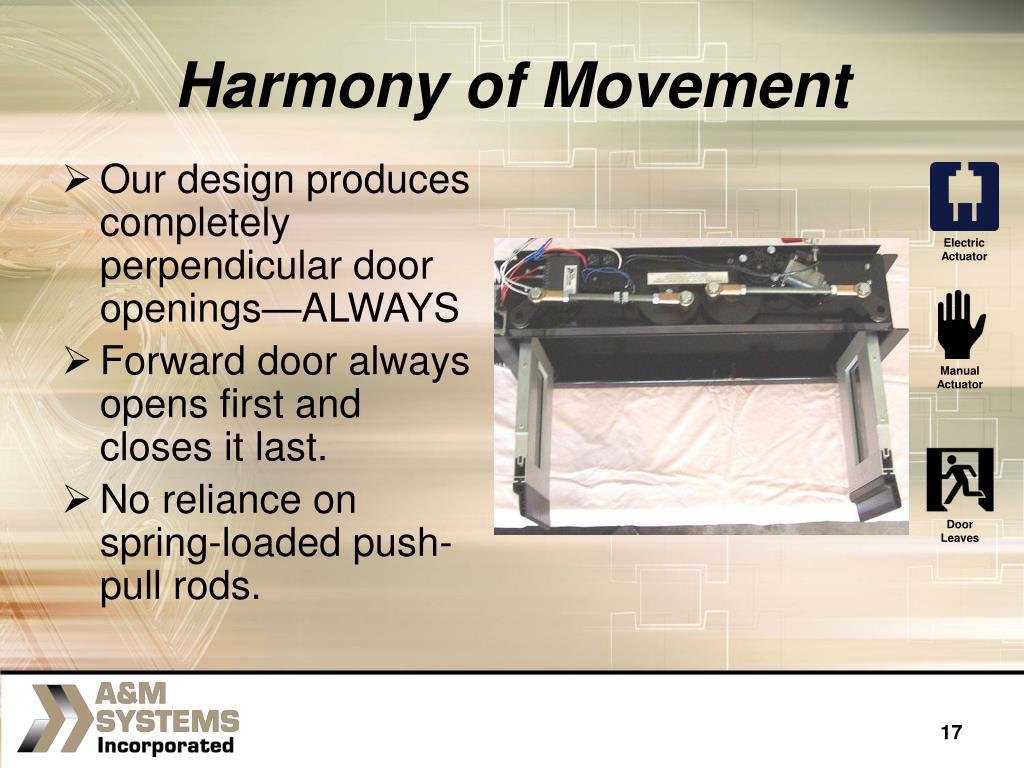

  17. Manual Actuator Electric Actuator Door Leaves Harmony of Movement • Our design produces completely perpendicular door openings—ALWAYS • Forward door always opens first and closes it last. • No reliance on spring-loaded push-pull rods.

  18. Manual Actuator Electric Actuator Door Leaves Secure Closure • Our design ensures a strong closing. • These doors stay reliably shut, even at highway speeds.

  19. Serviceability • The reliability of the design, • together with the ease-of-access, • and the documentation tools we provide, • work together to create unparalleled serviceability.

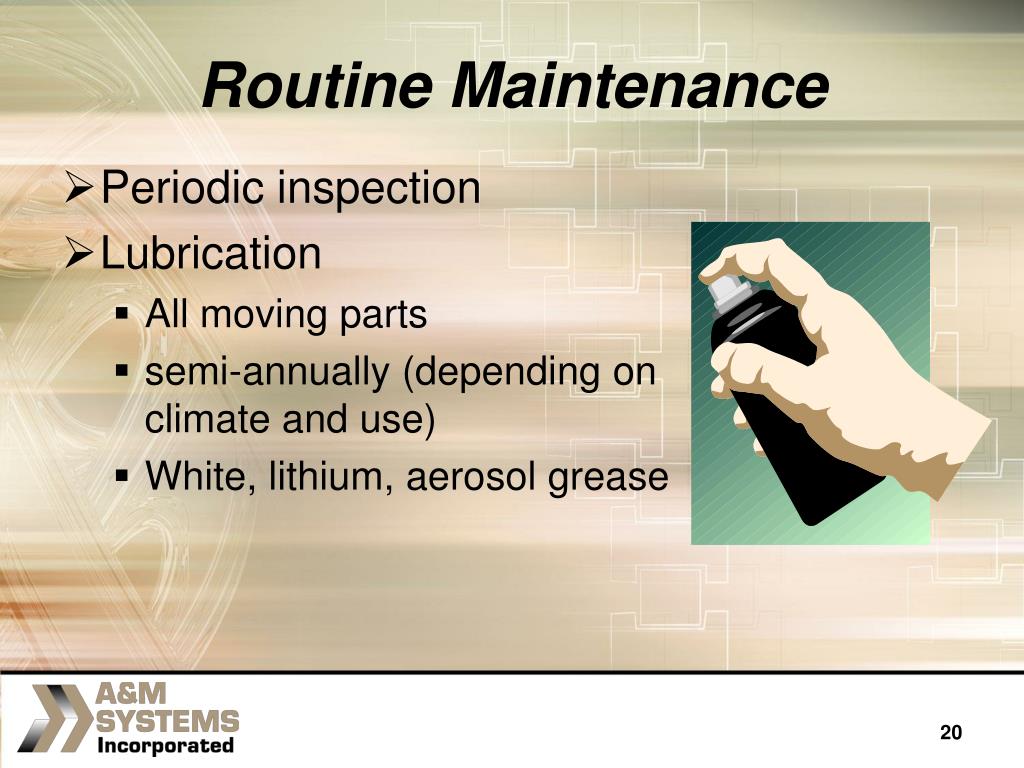

  20. Routine Maintenance • Periodic inspection • Lubrication • All moving parts • semi-annually (depending on climate and use) • White, lithium, aerosol grease

  21. Contact Information • Mailing Address: • 1845 Fieldhouse, Elkhart, IN 46517 • Phone: • 574.522.5000 • Fax: • 574.522.9099 • Email: • jmiller@anmsystems.com • kaenis@anmsystems.com
