  1. Built-in Adaptive Test and Calibration of DAC Wei Jiang and Vishwani D. Agrawal Electrical and Computer Engineering Auburn University, Auburn, AL 36849 18th IEEE North Atlantic Test Workshop 2009

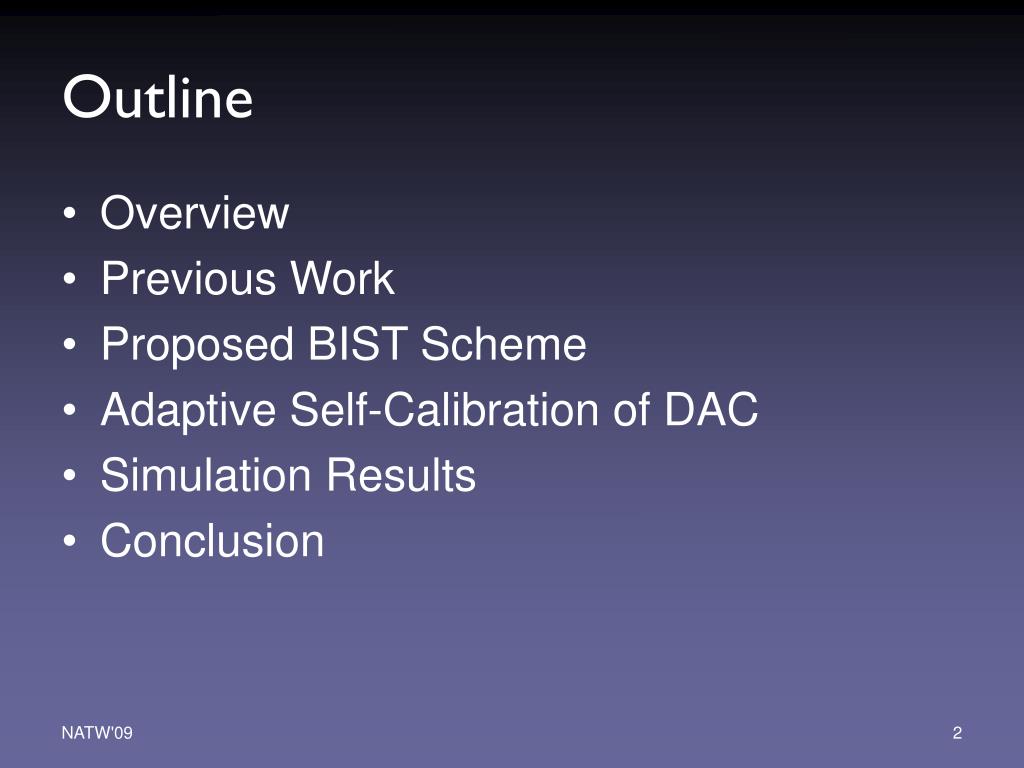

  2. Outline • Overview • Previous Work • Proposed BIST Scheme • Adaptive Self-Calibration of DAC • Simulation Results • Conclusion

  3. Overview • Proposed design-for-testability (DFT) architecture for a mixed-signal SoC • Accuracy • Performance • Cost • Test of on-chip DAC and ADC • Linearity (DNL/INL) • Resolution and speed • Signal-to-noise ratio (SNR)

  4. A Typical Mixed-Signal BIST for SoC* * F. F. Dai and C. E. Stroud, “Analog and Mixed-Signal Test Architectures,” Chapter 15, p. 722 in System-on-Chip Test Architectures: Nanometer Design for Testability, Morgan Kaufmann, 2008.

  5. Previous Work W. Jiang and V.D. Agrawal, Built-In Test and Calibration of DAC/ADC Using A Low-Resolution Dithering DAC, NATW’08

  6. Non-linearity Errors Non-linearity error Non-linearity error

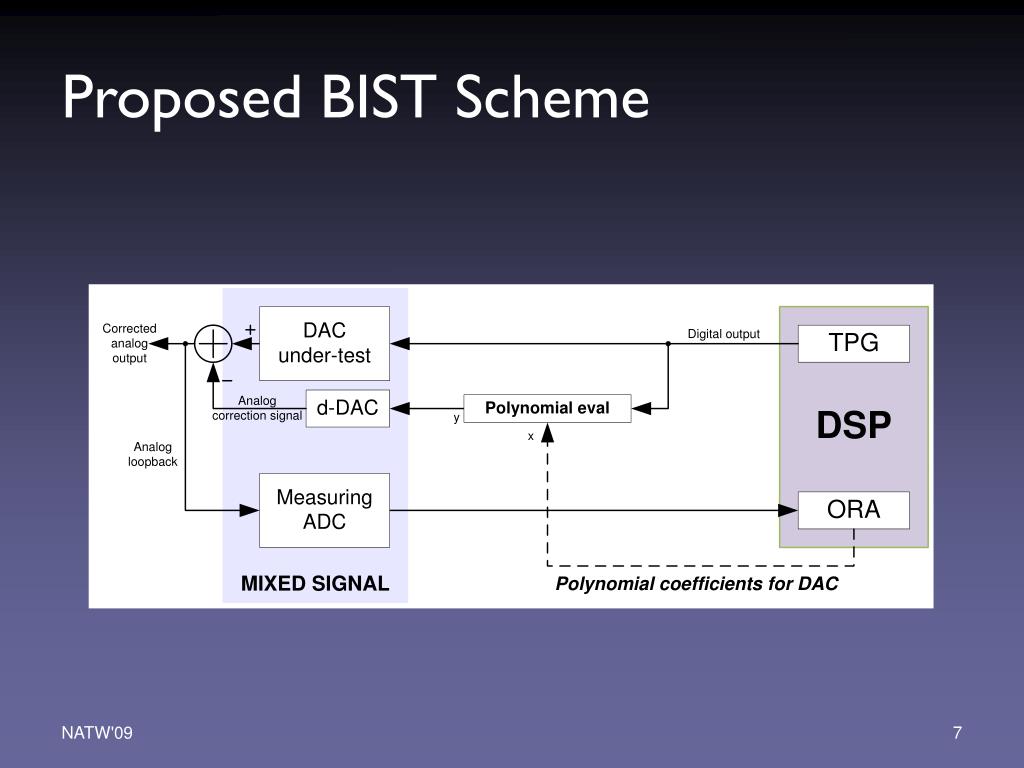

  7. Proposed BIST Scheme

  8. Proposed BIST Scheme (Cont.) • DSP for BIST control • Components • 1-bit first-order sigma-delta modulator • Low-pass filter (integrator or comb filter) • Adaptive polynomial evaluation/fix circuit • Low-resolution dithering DAC • Loop-back circuitry connecting internal DAC and ADC

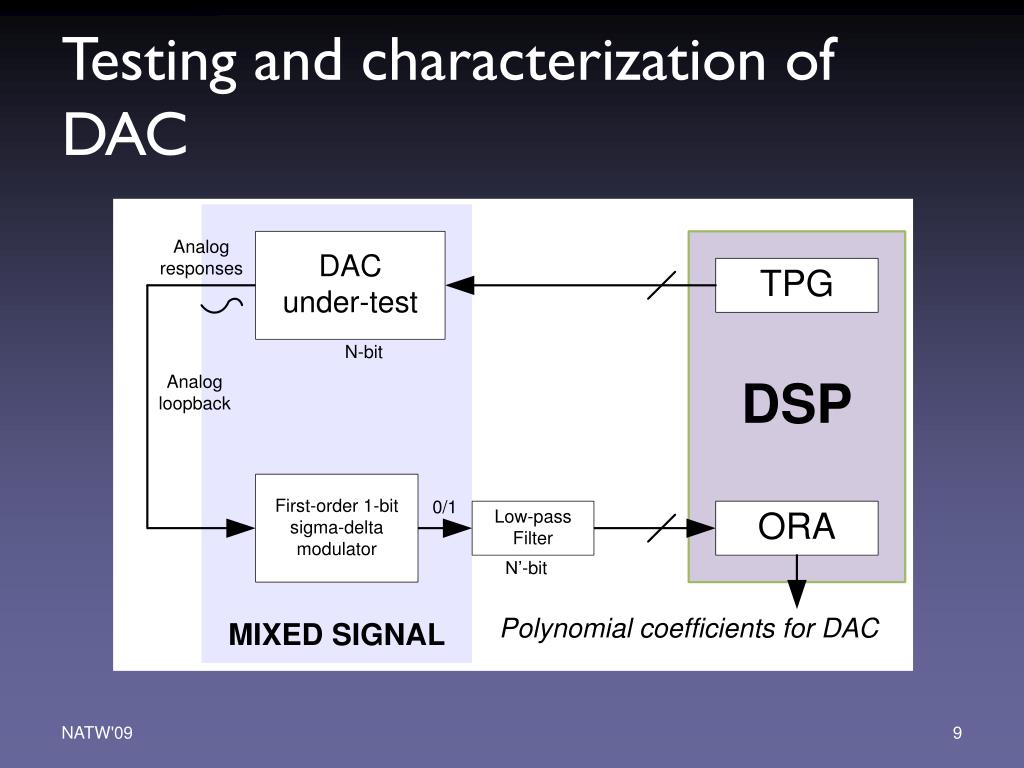

  9. Testing and characterization of DAC

  10. Testing of DAC (Cont.) • Response and ramp input compared for INL error • INL error analyzed by adaptive polynomial fitting algorithm • Best matching polynomials selected for various and DAC profiles • Test results indicated by calculated characteristics (offset, gain and harmonic distortion, etc) • Polynomial coefficients calculated for dithering DAC to improve INL

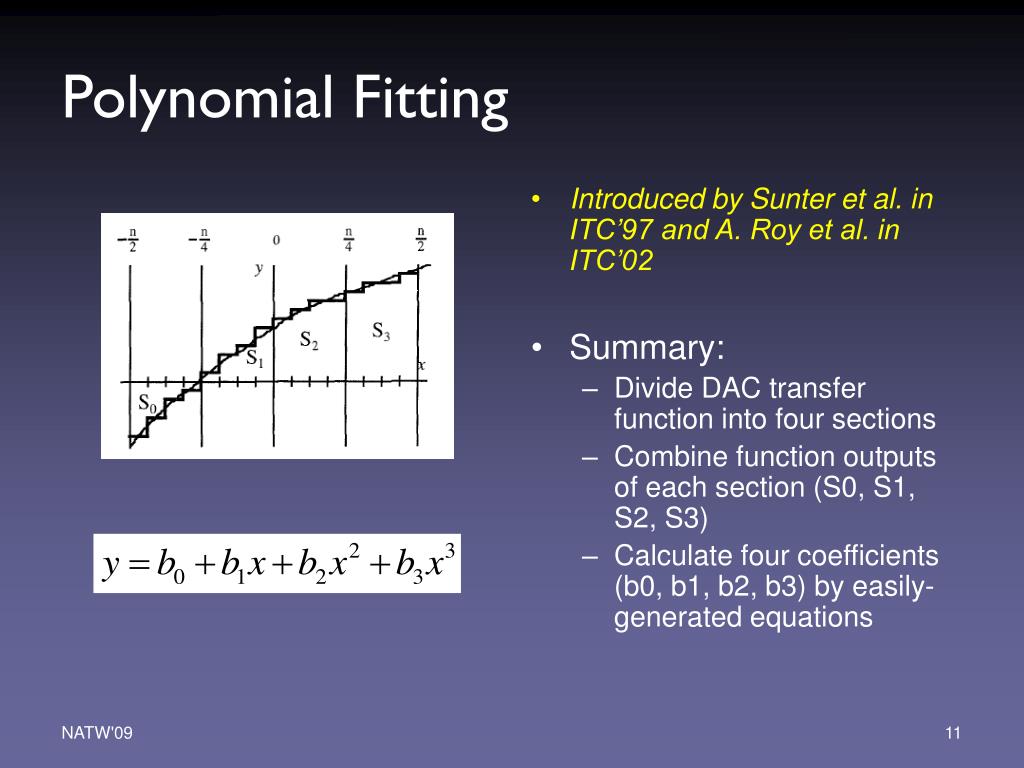

  11. Polynomial Fitting • Introduced by Sunter et al. in ITC’97 and A. Roy et al. in ITC’02 • Summary: • Divide DAC transfer function into four sections • Combine function outputs of each section (S0, S1, S2, S3) • Calculate four coefficients (b0, b1, b2, b3) by easily-generated equations

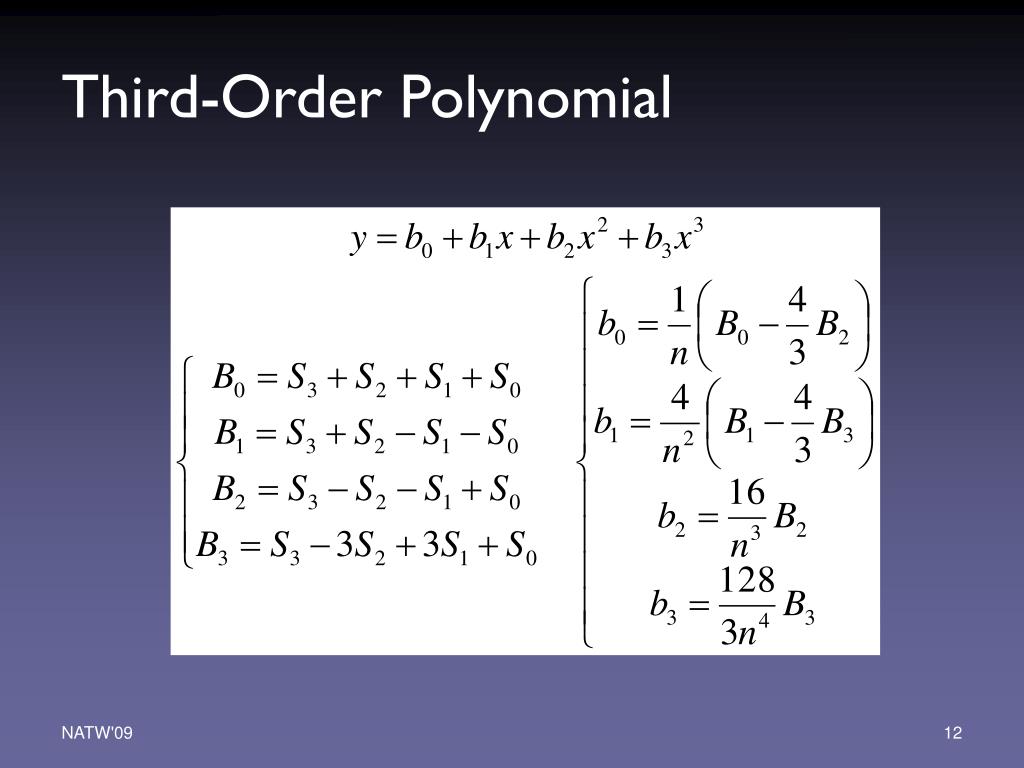

  12. Third-Order Polynomial

  13. First- and second-order Polynomial First-order polynomial Second-order polynomial

  14. Adaptive Polynomial Fitting • Fitting INL error from lower order polynomial to higher order • Calculate RMS error of each polynomial • Select the polynomial with least RMS error (when RMS error rising with higher order polynomial)

  15. Sigma-Delta Modulator 1-bit first-order sigma-delta modulator Transfer function in z-domain

  16. Sigma-Delta Modulator (Cont.) SNR (dB) Third-order Second-order 17-bit ENOB104.1dB First-order Oversampling ratio (OSR)

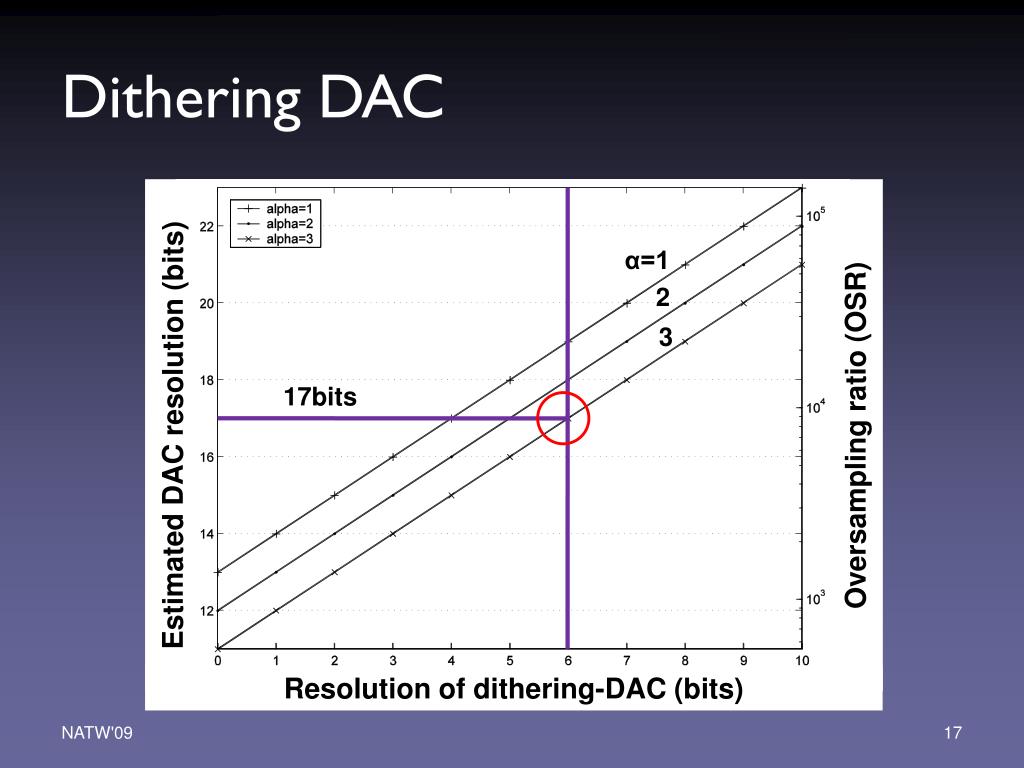

  17. Dithering DAC Estimated DAC resolution (bits) Oversampling ratio (OSR) α=1 2 3 17bits Resolution of dithering-DAC (bits)

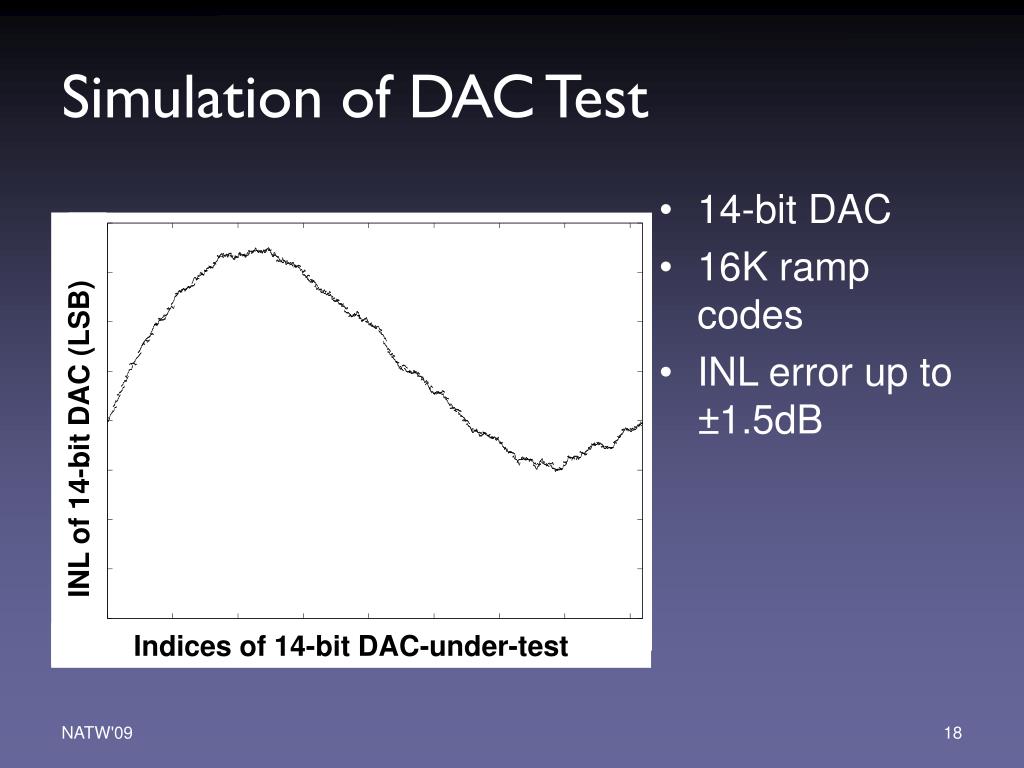

  18. Simulation of DAC Test • 14-bit DAC • 16K ramp codes • INL error up to ±1.5dB INL of 14-bit DAC (LSB) Indices of 14-bit DAC-under-test

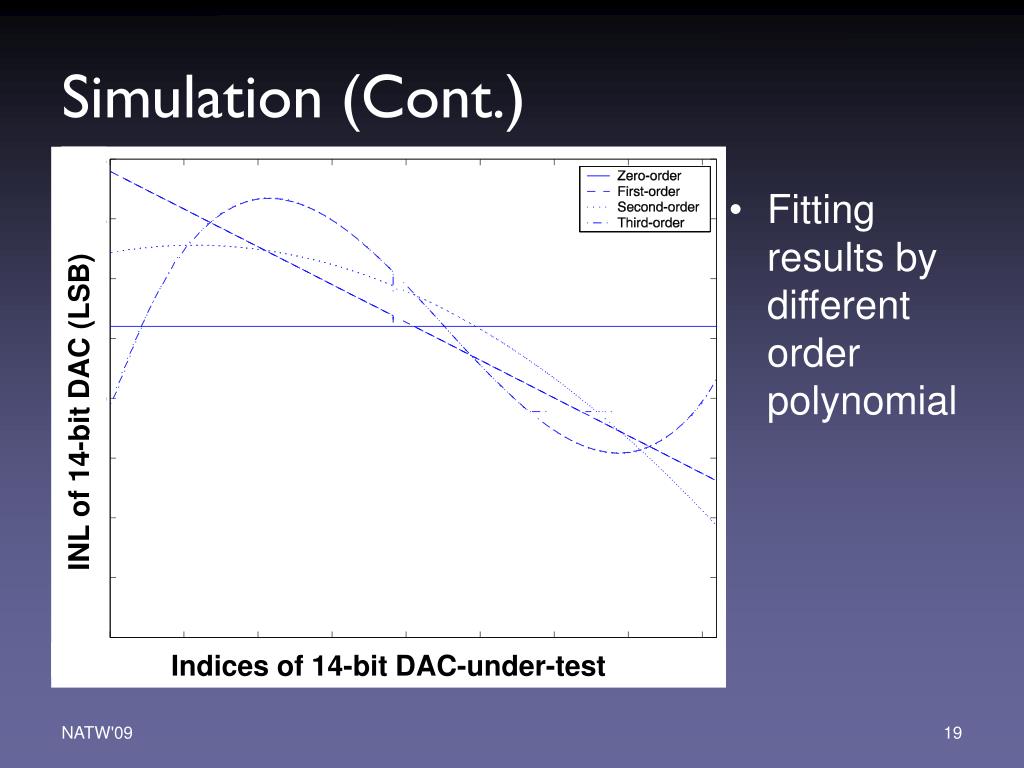

  19. Simulation (Cont.) INL of 14-bit DAC (LSB) • Fitting results by different order polynomial Indices of 14-bit DAC-under-test

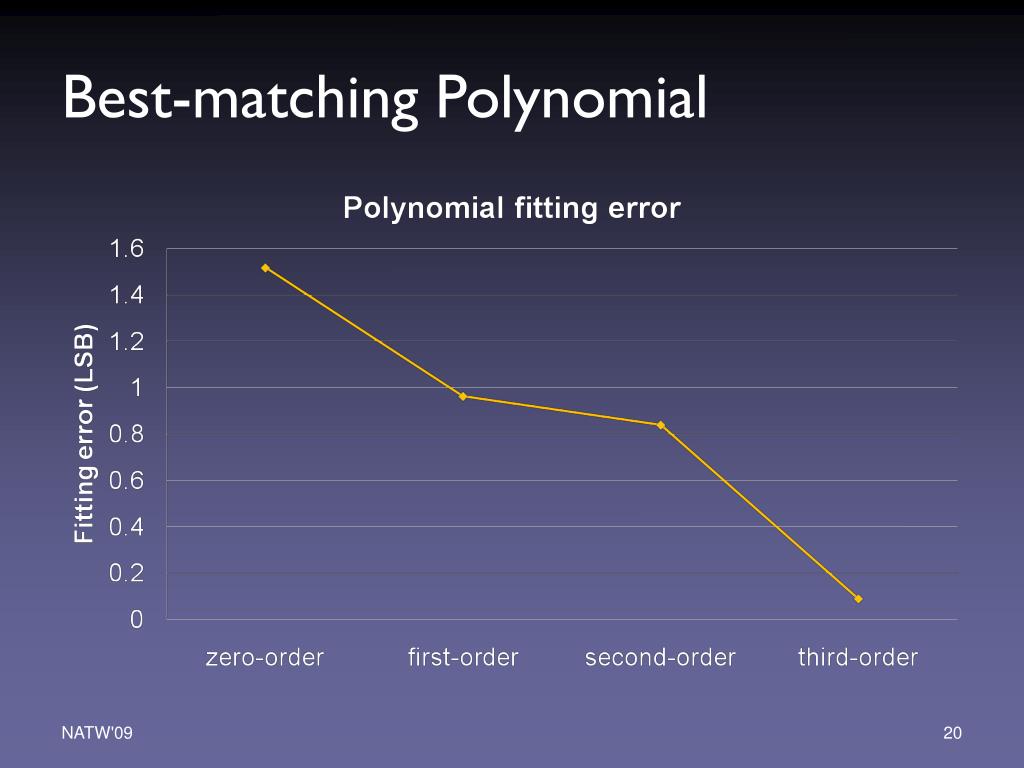

  20. Best-matching Polynomial

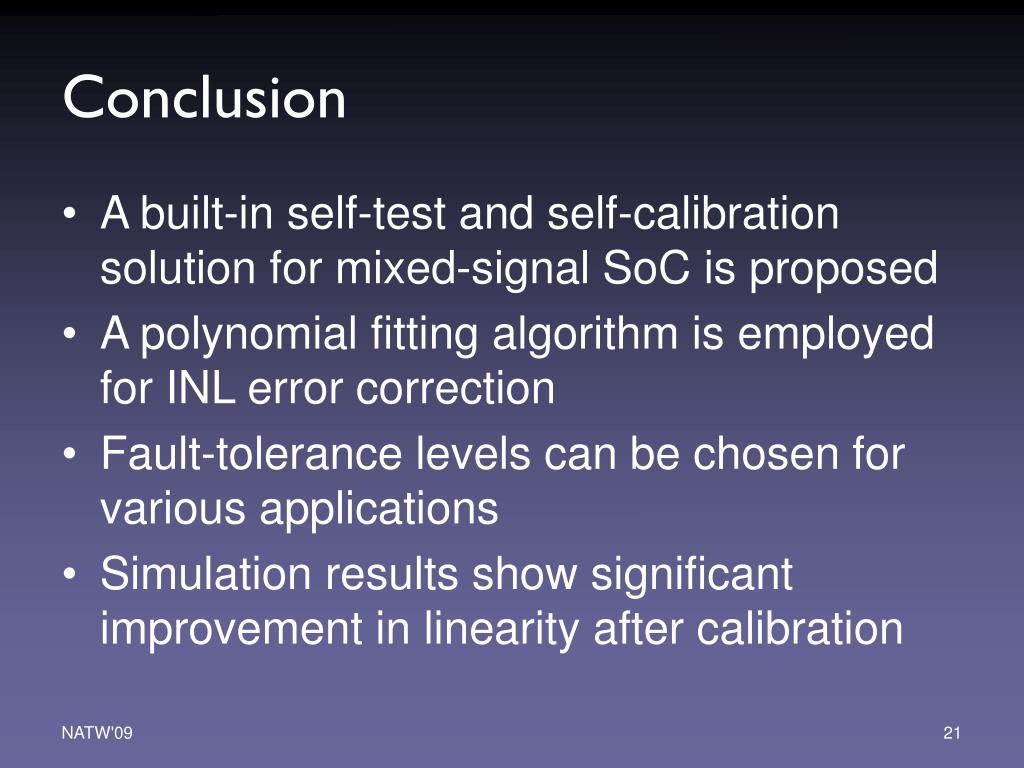

  21. Conclusion • A built-in self-test and self-calibration solution for mixed-signal SoC is proposed • A polynomial fitting algorithm is employed for INL error correction • Fault-tolerance levels can be chosen for various applications • Simulation results show significant improvement in linearity after calibration

  22. Q&A Thank you!
