1 / 7

Weather Data Analysis for South and North Lake Orographic Patterns

Explore actual rainfall totals, orographic ratios, and airflow patterns at South and North Lake regions. Interpret the color key to distinguish updrafts from downdrafts.

gafna
Download Presentation

Weather Data Analysis for South and North Lake Orographic Patterns

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Actual totals: SC: 33.5 NR: 62.5 Orographic ratio: 1.87 Actual totals: SC: 22 NR: 20 Orographic ratio: 0.91

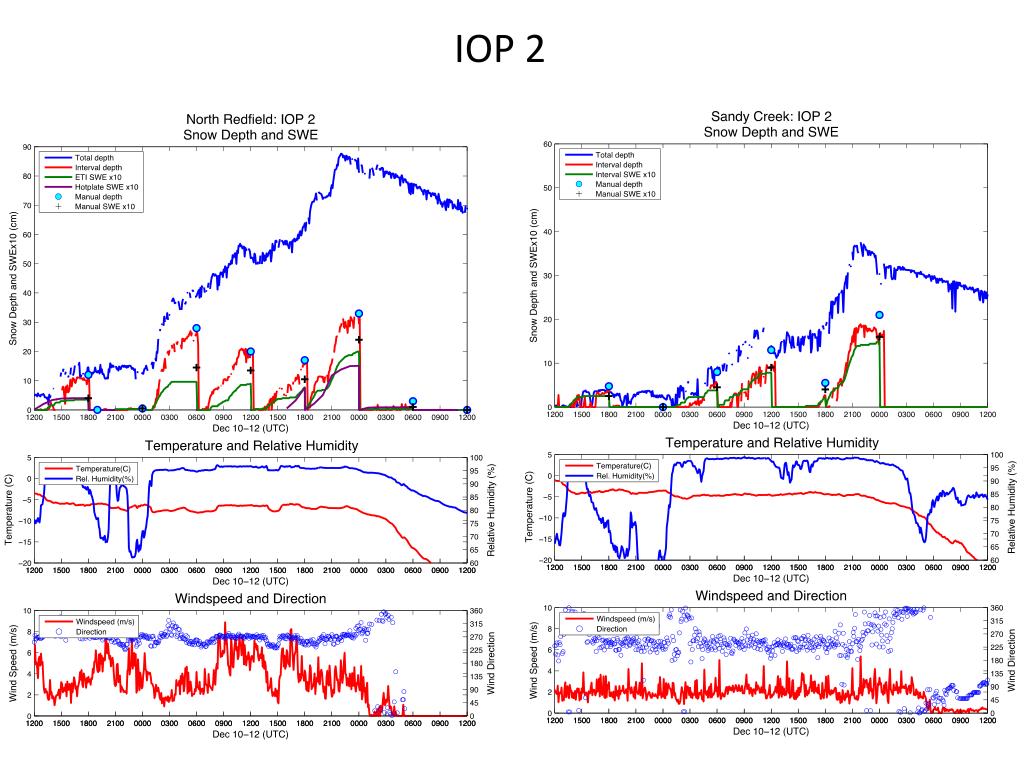

  2. IOP 2

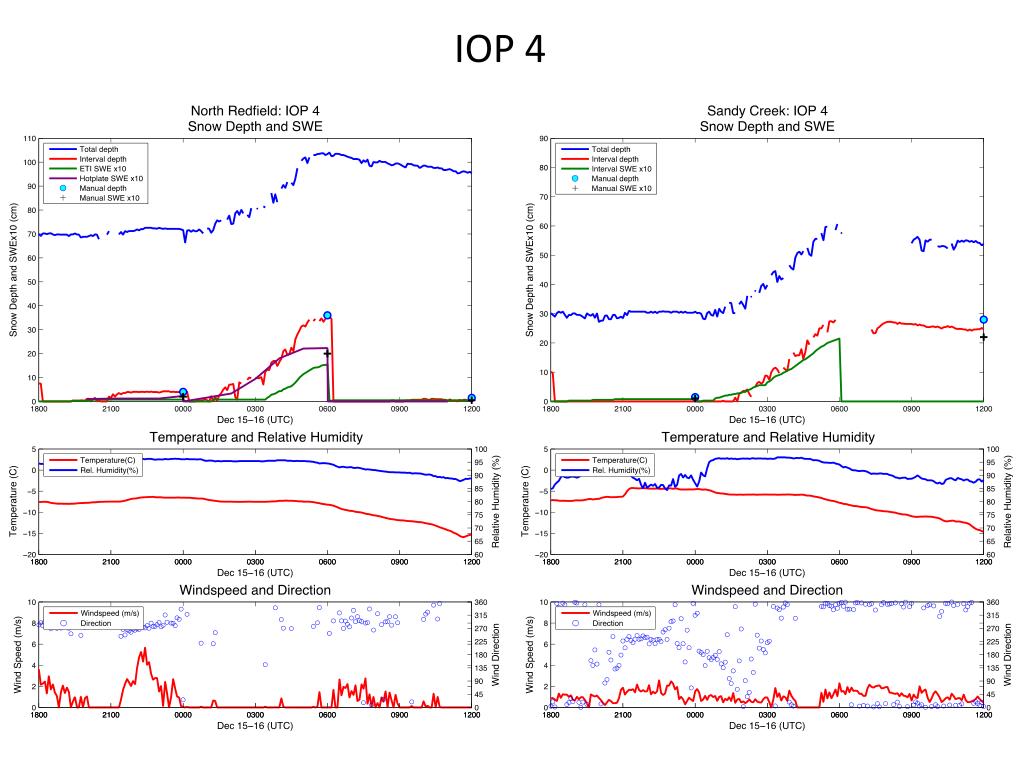

  3. IOP 4

  4. South North Lake IOP 2 Lowland Upland Note the color key, centered at -1 ms-1 rather than at 0 ms-1, to approximately account for the hydrometeor fall speed, such that blue (red) regions can be interpreted as updrafts (downdrafts).

More Related
